Cuisinart GR47BU User manual

Griddle & Grill
GR47BU

Congratulations on your purchase of the Cuisinart Griddle & Grill.
For over 30 years Cuisinart’s aim has been to produce the very finest kitchen
equipment. All Cuisinart products are engineered for exceptionally long life
and designed to be easy to use as well as to give excellent performance
day after day.
To learn more about our products and for recipe ideas visit our website
www.cuisinart.co.uk

3
Contents
Product Control Guide . . . . . . . . . . . . . . . . . . . . . . .4
Important Safety Cautions . . . . . . . . . . . . . . . . . . . . .5
Instructions for Use
Selecting and fitting the plates . . . . . . . . . . . . . . . . . . 9
Selecting the cooking position . . . . . . . . . . . . . . . . . . 10
Using the integrated drip tray . . . . . . . . . . . . . . . . . . 11
Cooking with the Griddle & Grill . . . . . . . . . . . . . . . . . 11
Cooking Guide . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . 13
UK Guarantee & UK After Sales Service . . . . . . . . . . . . . 14

4
Plate Release Buttons
(both upper
and lower)
Product Control Guide
Housing Base
Hinge Release Lever
Timer Dial
Temperature
Control Dial
Grill Plate
Handle
Drip tray
Scraping tool
Grill plates
Griddle Plates

5
Important Safety Cautions
Carefully read all the instructions before using the appliance and
keep in a safe place for future reference.
Always follow these safety cautions when using this appliance to avoid
personal injury or damage to the appliance. This appliance should be
used only as described within this instruction book. There is a risk of
injury if the product is misused.
IMPORTANT SAFEGUARDS
CAUTION: BURN HAZARD
nWARNING: very hot surfaces.
nDO NOT TOUCH hot surfaces as possible injury could
occur. Always use the handle.
nTHIS IS AN ATTENDED APPLIANCE. Do not leave unattended during
use, unplug after each use. Never leave the appliance unattended
when switched on or plugged in.
nIMPORTANT: Use extra care when working with hot liquids to avoid
injury from overflowing, steaming and splattering.
nAny adjacent furniture must be able to withstand a minimum
temperature rise of 85°C above the ambient temperature of the room
it is located in, whilst in use. This appliance requires 100mm clearance
around the front, back and sides of the appliance and a minimum of
700mm between the cooking plate and the underside of any horizontal
surface above it. Certain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at temperatures
even below the guidelines given above. Any damage caused by the
appliance being installed in contravention of these instructions will
be at the liability of the owner. You should not use this appliance to
store items on or as work surface.
nDo not use the grill near or under combustible materials like curtains
or furniture.
nThis appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,

6
unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
nChildren should always be supervised to ensure that they do not play
with this appliance.
nNot for use by children. Keep the appliance and its supply cord out of
reach of children during and after use.
nThis appliance is for indoor, domestic use only and is not intended to
be used in applications such as: staff kitchen areas in shops, offices
and other working environments; farm houses; by customers in hotels,
motels and other residential type environments; bed and breakfast
type establishments.
nDo not use the appliance if the supply cord is damaged. In the event
of supply cord damage, discontinue use immediately. If the supply
cord is damaged it must be replaced by the manufacturer. Return
the appliance to the Customer Care Centre (refer to ‘UK After Sales
Service’ section for further information). No repair must be attempted
by the consumer.
nDo not wrap the supply cord around the main body of the appliance
during or after use.
nDo not leave the supply cord hanging over the edge of a kitchen table
or worktop.
nDo not allow the supply cord to come into contact with sources of
heat.
nAs the outer surfaces may get hot when the appliance is in use, take
care not to allow the appliance surfaces to come into contact with
other heat sensitive surfaces.
nDo not use metal utensils as this will damage the cooking plates.
nAlways unplug the appliance from the mains outlet and allow to cool
before cleaning.
ELECTRICAL SAFETY
nAlways ensure the voltage to be used corresponds with the voltage on
the appliance, this is indicated on the bottom of the housing.
nThe appliance is not intended to be operated by means of external
timer or separate remote control system.
nAlways disconnect the appliance from the electric supply if it is left
unattended and before assembling, disassembling or cleaning.
nNever pull the plug out of the mains socket by the supply cord.

7
nAlways ensure that your hands are dry before touching the supply
cord or removing the plug from the mains socket.
GENERAL SAFETY
nEnsure all packaging materials and any promotional labels or stickers
are removed from the appliance before first use.
nAlways inspect the appliance before use for noticeable signs of
damage. Do not use if damaged, or if the appliance has been dropped.
In the event of damage, or if the appliance develops a fault, contact
the Cuisinart Customer Care Line (refer to “UK After Sales Service
section” for further information).
nBefore switching on the appliance ensure that the plates are correctly
fitted and locked into position.
nDo not use the appliance for anything other than its intended use.
nDo not touch hot surfaces; use the handle whilst the appliance is
switched on and during cooling time.
nPosition the Grill on a stable, level, heat resistant surface near a power
socket.
nDo not attempt to move or lift the Griddle & Grill by the handle, when
lifting the appliance ensure you fully support from underneath.
nDo not place anything on top of the appliance while it is operating or
while it is hot.
nDo not wrap food in plastic film, polythene bags or metal foil during
cooking. This may cause damage to the cooking plates and create a
fire hazard.
nDo not use accessories or attachments with this appliance other than
those recommended by Cuisinart.
nDo not place the appliance on or near a hot gas or electric burner or
place in a heated oven.
nNever leave the appliance unattended when switched on or plugged
in.
nPeriodically check all parts before use. If any part is damaged DO NOT
USE.
nTo avoid injury or possible fire, do not cover the appliance when in use.
nTo protect against fire, electric shock or personal injury, do not immerse
the housing base, cord or plug in water or other liquids or place in a
dishwasher.
nTo disconnect, turn the control to the zero setting (0) and then remove
the plug from the mains.

8
nSwitch off and unplug the appliance after use.
nUnplug from the mains when not in use and before cleaning. Allow to
cool completely before fitting or removing parts and before cleaning
the appliance.
nWe recommend washing the plates by hand. If you wash the plates in
a dishwasher place them on the top rack only. If you wash the cooking
plates by hand do it carefully.
WARNING: Polythene bags over the product or packaging may
be dangerous. To avoid danger of suffocation, keep away from
babies and children. These bags are not toys.
This product complies fully with all appropriate EU and UK legislation
and the standards relevant to this type and class of appliance. We are an
ISO9001:2015 certified company that continually evaluates our Quality
Management System performance. If you have any queries regarding
product safety and compliance, please contact our Customer Services
Department (see “U.K. After Sales Service” section).
Disposing of electrical and electronic appliances at the end-
of-life
This symbol on the product or on the packaging indicates that this
product may not be treated as household waste. Instead it should
be handed over to the appliance collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed
of correctly you will help prevent potential negative consequences for
the environment and human health which could otherwise be caused
by inappropriate waste handling of the product. For more detailed
information about the recycling of this product, please contact your
local council office or your household waste disposal service.

9
Instructions for Use
The Griddle & Grill is a really versatile piece of kitchen equipment. It can be used in
different ways depending on the food you are cooking.
It is supplied with two sets of plates, the ribbed grill plates are ideal for steaks, kebabs and
Paninis, the flat griddle plates are great for pancakes, eggs and French toast.
You can use both grill plates together, both griddle plates together or a combination of
one grill plate and one griddle plate.
To fit the plates:
To fit the plates:
1. Ensure the product is switched off and disconnected from the electric supply.
2. Select the plates you intend to use for cooking.
3. Position the Griddle & Grill so that the controls are facing towards you. Lift the handle
to open the grill.
4. Align the two plate locating legs at the back of the plate (See Fig. 1) with the brackets
on the bottom of the housing case (See Fig. 2) Tilt the plate and slide it underneath
the bracket.
5. Push the plate into the grill housing until it clicks and locks into place.
6. Repeat with the second plate.
To remove the plates:
1. Ensure the product is switched off, disconnected from the electric supply and is fully
cooled down before removing the plates.
2. Locate the plate release buttons which can be found on the right side of the unit, there
is one on the upper and lower casing.
3. Press the upper release button firmly and the upper plate will pop up slightly from the
base.
4. Lift the plate up and slide out from under the brackets.
5. Repeat by pressing the lower release button and releasing the lower plate.
6. The plates can be hand washed carefully or placed on the top shelf of a dishwasher.
Fig. 1 Fig. 2

10

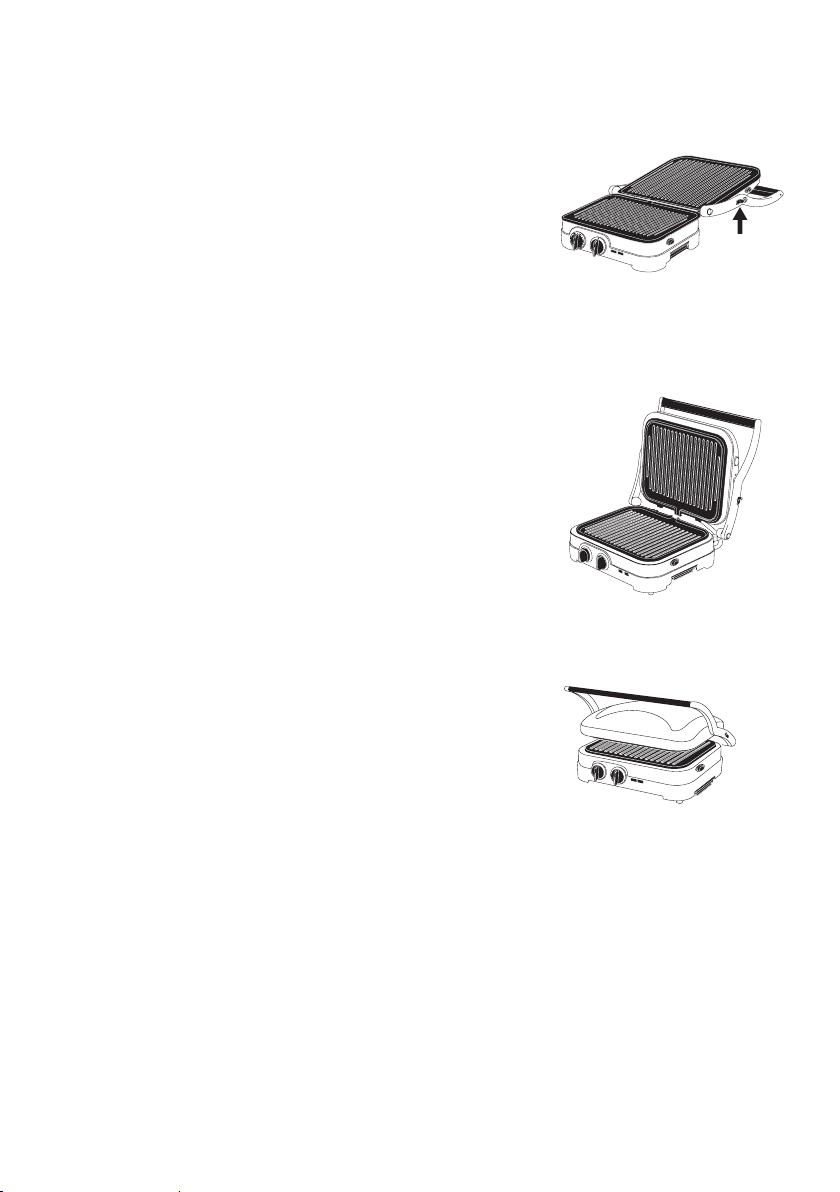

Selecting the cooking position
Once you have fitted the cooking plates you intend to use, you need to select the cooking
position.
Fully open position
The Griddle & Grill can be used in the fully open position to
create a double cooking surface.
To adjust the Griddle & Grill to the fully open position, lift the handle using one hand, then
use the other hand to push the hinge release lever located on the right side of the product
upwards. As you do this, push the handle back, until it is resting on the work surface and
the upper and lower plates are level.
Half Open Position
The Griddle & Grill can be used in the half open position. To
adjust the appliance to this position, simply lift the handle
until it comes into the fully upright position and clicks into
place. The unit will stay in this position until you close the
cover or continue to open it to the fully open position, using
the hinge release lever.
Closed Position
The Griddle & Grill can be used in the closed position as a
contact grill/panini press and is ideal for quick cooking as the
heat comes from both sides of the plates. The floating hinge
design means that the space between the top and bottom
plate adjusts to the thickness of your food. When cooking
more than one item at a time, try to ensure the thickness of
the food is consistent to ensure even cooking for each piece
of food.
To achieve this position simply place food on the bottom plate, place your left hand on
the handle, use your right hand to tap the top of the grill using light pressure until the lid
is level with the base unit and is resting on your food. You can apply light pressure using
the handle to press whilst cooking to lock in flavour.

11
Using the integrated drip tray
The Griddle & Grill has a clever fat drainage system. Fat is drained via a small recess at the
rear of the plates, allowing fat and grease to drip down into the integrated tray.
To insert the drip tray, insert it into the slot on the right side of the lower housing, the
edge of the drip tray with the curved shape should be inserted first.
To remove the drip tray, simply slide the tray out of the slot. Grease should be disposed of
safely after cooking. The drip tray can be washed in the dishwasher.
Cooking with the Griddle & Grill
Once the plates and drip try are fitted and the cooking position has been selected, you are
ready to start cooking with the Griddle & Grill.
1. Ensure the unit is plugged into the mains power supply.
2. Select the required temperature using the temperature dial. The red light will illuminate
to indicate the grill is on and is heating up. When the Griddle & Grill reaches the
required temperature the green light will illuminate.
3. Set the timer dial once you have placed the ingredients to be cooked on the grill.
NOTE: The timer does not switch the Griddle and Grill off when the timer countdown is
complete. It will make an audible sound when the timer reaches the end.
4. The green light will continue to turn on and off as the thermostat monitors the
temperature during cooking. This is normal.
N.B The first time you use the appliance, it may have a slight odour and may smoke
a little. This is normal and common to appliances with a non-stick surface.
Use wooden or heatproof plastic utensils only. Never leave plastic utensils in contact with
the hot grill plate.
In between recipes, scrape excess food build-up through the grease channel and into the
drip tray, then wipe off any residue with a paper towel before proceeding with the next
recipe.
When you have finished cooking, turn the temperature dial to zero and unplug the
power cord from the mains. Allow the appliance to cool completely before handling. The
following table is provided as a guide only to help you with cooking. The cooking guide
provides suggested cooking times for contact grilling fresh food. Cooking times may vary
depending on overall thickness and density of food. Cook poultry and meat until juices run
clear, cook fish until flesh is opaque throughout. Ensure food is thoroughly cooked before
serving. Please also see the recipes in the booklet included..

12
Meat Preparation Grill Posi-
tion Temp Time
Chicken breast boneless,
skin removed
Pound to an even thickness of 15-
20mm (½ to ¾”).
Closed 210°C 7-9 minutes
Fully or half
open
210°C 8-10 minutes per side
Chicken thighs, boneless,
skin removed
Spread to an even thickness,
remove all visible fat
Closed 210°C 8-10 minutes.
Fully or half
open
210°C 8-10 minutes per side
Beef steak, boneless, 20-
25mm (¾” to 1”) thick
Season to taste. If marinated drain
well before cooking
Closed 230°C 3-10 minutes depending on
your preparation.
Fully or half
open
230°C 3-10 minutes depending on
your preparation.
Beef, fillets, 25mm (1”)
thick
Season to taste. If marinated drain
well before cooking
Closed 230°C 4-5 minutes.
Beef, hamburgers Beef, hamburgers Closed 230°C 5-8 minutes.
Pork tenderloin Cut into ¾” (20mm) thick medal-
lions, may be pounded. Season
to taste
Closed 230°C 4 minutes. Pork should be
slightly pink in appearance,
overcooking will result in dry
meat.
Boneless pork loin chops,
15-25mm (½ to 1”).
All chops should be same thickness Closed 210°C 4-9 minutes. Pork should be
slightly pink in appearance,
overcooking will result in dry
meat.
Sausages, uncooked Prick links with tines of fork or tip
of knife.
Closed 210°C 14-18 minutes depending on
thickness.
Fish Steaks (sword, tuna,
salmon, boned)
20-25mm (¾” to 1”) thick
Closed 210°C 6-7 ½ minutes.
Fully or half
open
210°C 7-8 minutes per side.
Prawns Dry well. Season to taste and or
rub with extra virgin olive oil
Closed 230°C 2-2 ½ minutes.
Fully or half
open
230°C 1-2 minutes per side.
Scallops Dry well. Season to taste and or
rub with extra virgin olive oil
Closed 230°C 2-2 ½ minutes.
Fully or half
open
230°C 1-2 minutes per side.
Do not overcook.
Portobello mushrooms,
15mm (½”) thick slices
Closed 210°C 6-8 minutes until nicely
brown and tender.

13
Cleaning & Maintenance
Before first use and after every use, clean each part thoroughly.
Once you have finished cooking, turn the temperature control to the zero (0) position and
unplug the power cord from the mains.
Allow the appliance to cool completely before handling.
When cold use the scraper to remove any leftover food from the cooking plates. The
scraper can be washed by hand or in the dishwasher.
Dispose of grease from the drip tray. The drip tray can be cleaned by hand or in the
dishwasher.
The cooking plates can be washed by hand or in the top rack of the dishwasher. Do not
use metallic objects such as knives when cleaning. This will damage the non-stick coating.
If you have been cooking seafood, wipe the cooking plate with lemon juice to prevent
seafood flavour transferring to the next recipe.
The housing base cover and control knobs can be wiped clean with a soft, dry cloth. For
tough stains dampen cloth. Never use an abrasive cleaner or harsh pad.
Never immerse the plug, lead or housing base in water or any other liquid.
Make sure all the parts are clean and dry before storing.
Never wrap the cord around the outside of the grill.

14
UK Guarantee
The Conair Group Ltd, Unit 3 Waterfront Business Park, Fleet, GU51 3TW
This appliance is guaranteed for consumer use for 5 years and is only valid within the
United Kingdom.
This guarantee covers consumer use only i.e. defects occurring under normal use within
the home from date of purchase or date of delivery, whichever is later.
If the product develops a fault due to defects in materials or manufacture within 12
months from the date of purchase, to avoid delays and unnecessary inconvenience, where
possible please return the product to the point of purchase for an exchange.
If the product develops a fault due to defects in materials or manufacture after 12
months from the date of purchase, and within the guarantee period, Conair UK After Sales
Service will repair or replace the product.
Exclusions
This guarantee will no longer be valid meaning that The Conair Group Ltd will not be liable
to repair or replace your product where:
1. The appliance has been used on a voltage supply other than that which is marked on
the product, or advised within this instruction booklet
2. The appliance has been purchased from an unauthorised stockist*
3. The appliance is used for professional / non-domestic usage
4. Repairs or alterations have been attempted by unauthorised persons
5. The failure of the appliance is a direct result of misuse
6. The failure is a result of not following the instructions for use
This guarantee does not cover any cosmetic damage due to misuse of the product nor
any damage to persons or property that occurs because of product misuse.
*unauthorised stockists include, but are not limited to online auction sites, private sellers
and those selling second hand goods, refurbished products etc.
Please contact the Conair Customer Care Line on 03702 406902 (09:00 to 17:00 Monday to
Friday) or email [email protected] for further information on authorised stockists.
It is important to retain your proof of purchase. We recommend attaching your
receipt to this page.

15
Even where a refund may be applicable, no refund will be provided without a valid
receipt or proof of purchase, we will only be able to offer a repair or replacement
service. Please note this does not apply if the product was purchased directly from
The Conair Group Ltd.
Guarantees on replacement products run from the original purchase date or date of
delivery, whichever is later, and not from the date of replacement.
This guarantee is an additional benefit and does not affect your statutory rights as
a consumer.
If you have any queries regarding this guarantee, please contact the Conair Customer
Care Line on 03702 406 902 (09:00 to 17:00 Monday to Friday) or email your enquiry to
[email protected]
UK After Sales Service
For further advice on using the appliance or should you need to return your product,
please contact the Conair Customer Care Line on 03702 406 902 (09:00 to 17:00 Monday
to Friday) or email your enquiry to [email protected]
Return address:
Customer Care Centre
Conair Logistics
Unit 4, Revolution Park
Buckshaw Avenue
Buckshaw Village
Chorley
PR7 7DW
Please enclose your returns number, name and address details, together with a copy of
proof of purchase and details of the fault.
Please note this Instruction Booklet is not the guarantee.

www.cuisinart.co.uk
IB-19/243
