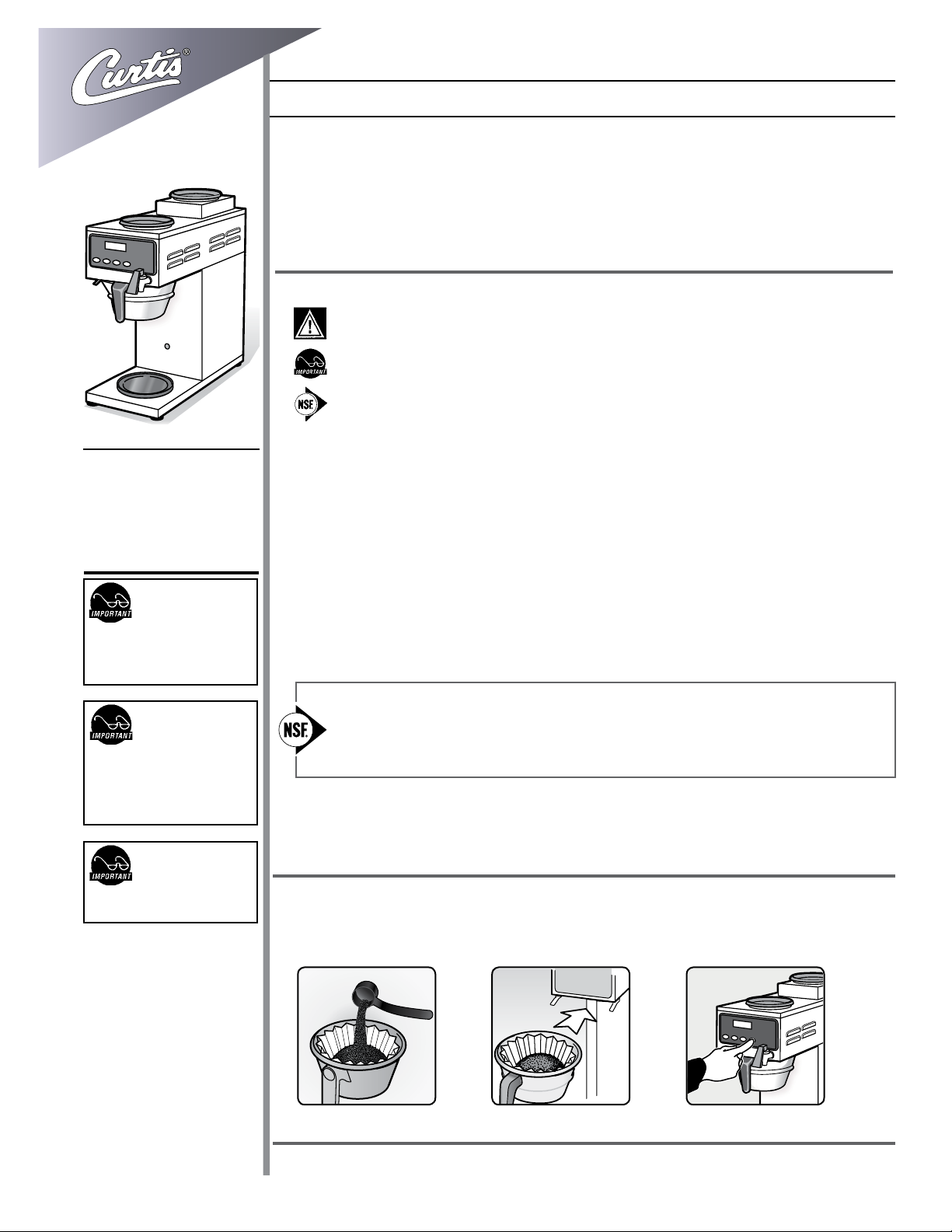

Curtis Alpha McDonald's Fresh-Trac User manual

1
Models Included:
• ALP3GT15A826
• ALP3GT32A826
• ALP3GT32A898
3. Connect the unit to electrical outlet with appropriate amperage rating (see serial tag on machine).
4. Once power has been supplied to the unit, ip the toggle switch to the ‘ON’ position (located on the rear of the unit), the water tank will
begin to ll. When the water level in the tank reaches the probe, the heating element(s) will turn on.
5. Water in the heating tank will require approximately a half hour before reaching operating temperature (factory setting of 202°F). When
the unit reaches operating temperature, it will display “READY TO BREW”.
BREWING INSTRUCTIONS
1. The brewer should be ON. Conrm this at the rear toggle switch, then press the ON/OFF button. Ready-to-Brew should be displayed.
2. Place an empty decanter on warmer plate.
3. Place a new paper lter into the brew cone.
6. Press the BREW button on the
control panel to start brewing.
5. Slide the lled brewcone into the
rails on the coffee brewer.
4. Pour the proper amount of ground
coffee into the brewcone.
Wilbur Curtis Co., inC.
Service Manual – Alpha McDonald’s Fresh-Trac
Important Safeguards/Conventions
This appliance is designed for commercial use. Any servicing other than cleaning and preventive maintenance should be performed by an
authorized Wilbur Curtis service technician.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of re or electric shock, do NOT open service panels. No user serviceable parts inside.
• Keep hands and other items away from hot surfaces of unit during operation.
• Never clean with scouring powders, bleach or harsh chemicals.
Symbols
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
The Curtis Alpha G3 is Factory Pre-Set and Ready to Go… Right from the Box.
Following are the Factory Settings for the Alpha Fresh-Trac:
• Brew Temperature = 202°F
• Brew Volume = Set to vessel requirements (60 oz).
System Requirements:
• Water Source 20 – 90 PSI (minimum ow rate of 1 GPM)

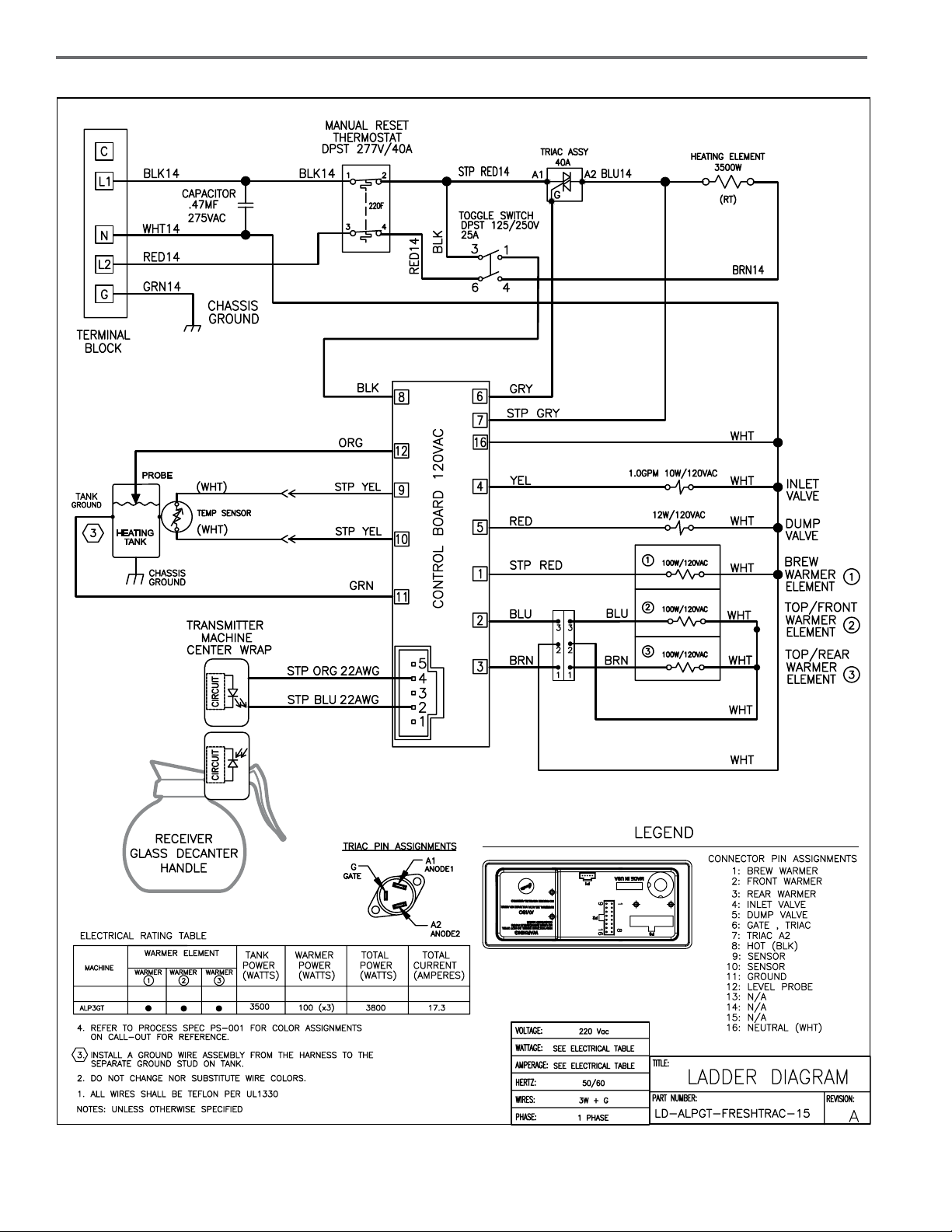

• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model.
SETUP STEPS
1. The unit should be level (left to right - front to back), on a secure surface.
2. Connect the water line to the water inlet tting on the rear of the unit. Water volume ow to the machine should be consistent. Use
tubing sized sufciently to provide a minimum ow rate of 1 gallon per minute.
NOTE: A water ltration system must be used to help maintain trouble-free operation. Air must be purged from the cartridge prior to
connection to equipment. In areas with extremely hard water, we highly recommend the use of a Curtis approved water lter. For our
full line of lters, please log on to www.wilburcurtis.com.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so that the unit can be moved
for cleaning.
2. Thisunitmustbeinstalledwithadequatebackowprotectiontocomplywithapplicablefederal,stateandlocalcodes.
3. Waterpipeconnectionsandxturesdirectlyconnectedtoaportablewatersupplyshallbesized,installedandmain-
tainedinaccordancewithfederal,state,andlocalcodes.
CAUTION: DO NOT
connect the unit to
hot water supply.
The inlet valve is not rated for
hot water.
CAUTION: Follow
this setup procedure
before attempting
to use this unit. Failure to
follow these instructions can
result in injury and/or void of
warranty.
ISO 9001:2008 REGISTERED
WILBURCURTISCO.,INC.
6913 West Acco Street
Montebello,CA90640-5403
For the latest information go to
www.wilburcurtis.com
Tel:800-421-6150
Fax:323-837-2410
CAUTION:
Equipment must be
installed to comply
with applicable federal, state,
and local plumbing/electrical
codes.

2
Brew Volume
During the actual brew cycle, a 2-minute drip mode is added to the brew time. The programmed water level compensates for back to back brewing to
allow for an increase of water volume.
Brew by Volume (Factory set to 60 oz.) Press  to select. Display will now show Push START To Begin... Press the BREW button then hot water starts
running, when desired volume is reached press BREW button again to stop the ow. Now the volume is set. Pressing the > button will display the next menu
feature, Brew by Time.
Brew by Time (Factory set to 2min–17sec) Press  to select and change the brew time. Display will show the current time. By pressing < or > you can toggle
between minutes and seconds, to exit (ex). Change the time or set and exit by pressing .
Temperature (Factory set to 202°F) Press  to Select. Press < or > to move to desired temperature and then  to set. Temperature is programmable from
170ºF to 206ºF, in 2-degree increments.
Energy Save Mode (Factory set to OFF) Press  to Select, < or > ON, OFF or ON 140ºF,  to set. When in ON, unit will automatically shut off 4 hours from
last brew. When feature is OFF, unit does not have the energy saving mode. In the ON 140ºF position, temperature goes down to 140ºF if unit has not brewed
in 4 hours. This feature will save energy by lowering the tank temperature during periods of non-operation.
Brew Count Odom. Press to display total gallons brewed. Press ex or Reset
Pre-Infusion (Factory set to OFF Disabled) Press  to Select. Current setting in seconds is displayed < to decrease or select > to increase (range from OFF
to 10 through 60 seconds); press to set.
If Pre-infusion is selected (ON), Cold Brew Lock is set to within 15ºF of set point and Cold Brew Lock disappears from the list of program selections.
When Pre-infusion is ON, Pulse Brew disappears from the list of program selections.
Brew Count Total Press  to select. This feature will display the total gallons and total brew cycles on the brewer. It is read only and cannot be reset.
Enter Program Mode
Turn off (dark display) by pressing ON/OFF button (yellow). Press and hold BREW button (green) and then press and release ON/OFF button (yellow).
Continue holding BREW button. Display will read , wait until is displayed Enter the 4-digit access code, the digits 1-4 cor-
respond to the buttons (see illustration below).
The default code set at the factory is 1-2-3-4. Then will be displayed.
YourCurtisG3SystemisFactoryPre-SetforOptimumPerformance.
Afterconnectiontowaterandpower;thereartoggleswitchmustbeon.Youwillhearabeepsound,indicatingpowerisavailabletothecontroller.
Thecontroldisplays  .PressON/OFFbuttonandthescreenwilldisplay .Afterthreeseconds,  isdisplayed.
Waterwillllthetank(approximately2-3minutesdependingonwaterowrate).Whentheproperlevelisreached willappearonthescreen.Ittakesapproxi-
mately20minutestoreachsetpointtemperatureof202°F.
Controlwilldisplay  whentemperaturereachesthesetpoint(202°F).Unitisnowreadytobrew.
<ALP3/4/5>
CURTIS
CURTIS CURTIS
FILLING
CURTIS
HEATING
ENTER CODE
– – – –
PROGRAM MENUS
< SELECT >
ENTERING PROGRAM
MODE
PROGRAM MENUS

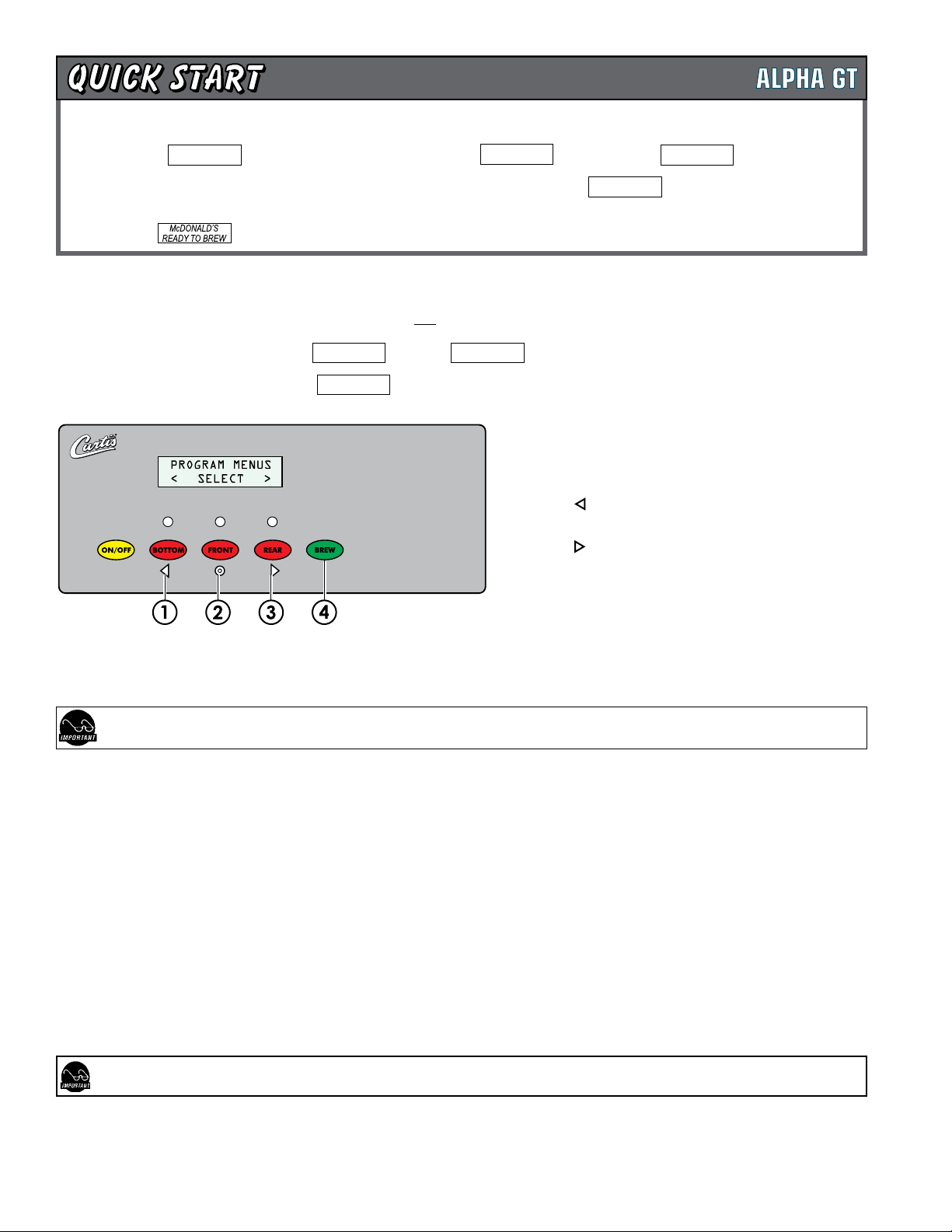

All programming selections are performed with the three center buttons.
The symbols below the buttons are:
Scroll LEFT
 SELECTION or ENTER to save new parameter
Scroll RIGHT

3
Cold Brew Lock (Factory set to 15º) Press  to select, < or > to select desired setting (CBL 5 or 15), to set.
The Cold Brew Lock feature allows the brewer to brew at three different temperature levels from the actual set point. The rst setting is within 5 degrees of set
point, next is within 15 degrees of set point for the Ready to Brew message, however it will brew at any temperature.
Master Reset Press  to display Are You Sure? Then < for Yes, > for No. Brewer factory defaults are then reset.
Service Call (Phone number Factory set to 1-[800] 000-0000x) Press  to display number and change number or < to move place and EX to exit when
complete This number will be displayed during a Heating system SENSOR ERROR or during a WATER ERROR.
Access Code (Factory set to 1-2-3-4) Press  to display number and change number, (the range is 1 to 4) or < to move place and ex to exit when complete.
Banner Name (Factory set to McDONALD’S) Press  to display letters and change letters or < to move place and EX to exit when complete. This feature
allows up to 14 letters to be programmed for company name or regional name. Programming all blanks disables Banner Name.
Warmer Auto OFF (Factory set to Disable) Press  to Select. Press < or > to move to desired time and then  to set. Timer range is OFF, 2 hours, 3 hours,
and 4 hours.
P-Maintenance (Factory set to OFF) Press  to select. To turn on, press < or > set gallons brewed. The range is from Off to 3000 gallons. Press  to exit.
When the number of brews reaches the set amount, P-Maintenance will display on the screen.
Beeper On/Off (Factory set to ON) Press  to display ON or OFF. Pressing either < or > to toggle between on and off. Press to set.
Pulse Brew (Factory set to Pulse D [1 pulse of 40 sec on, 5 sec off, 2 pulses of 40 sec on, 5 sec off] ). Press  to select, < or > to select OFF or one of ve
pulse patterns (A to E) .
Guidelines for Pulse Brew:
This feature allows tuning of the coffee avor. The pot level should always be set rst with this option OFF. Depending on your grind prole and water condi-
tions, the ve Pulse Brew options help “tune” or change the coffee avor. Filter Pack type coffees typically extract better with the A and B pulse setting. Decaf-
feinated coffees typically extract better with the B pulse setting. High-Yield coffees typically extract better with the C pulse setting. Of course, any of the A, B or
C settings may be used to suit your taste prole. There are two additional settings (D and E) that allow you to manually set the ON TIME pulses and OFF TIME.
If Pulse Brew is selected (ON), Cold Brew Lock is set to within 15ºF of set point and Cold Brew Lock disappears from the list of program selections.
When Pulse Brew is ON, Pre-infusion disappears from the list of program selections.
Display Brew Time (Factory set to ON). Press  to display ON or OFF. Pressing either < or > toggles between on and off. Press  to set. When on, this
feature will appear when the brew button is pressed. The brew time will count down.
Drip-Out Mode (Factory set to 1 min) Press  to select. Press > to increase time (to a maximum of 5 minutes) or < to decrease the time and turn OFF. Time
counts up in 5 second increments. Press to set.
Display Messages (Factory set to ON) Press  to turn ON or OFF. The message displayed is “Rinse Server Before Brewing”. This message will alternate;
two seconds with Rinse Server Before Brewing, then McDONALD’S - READY will appear for six seconds..
Language (Factory set to English) Pressing < or > toggles between English and French. Press to set.
Model Select (Factory set to ALPHA-3/4/5) Press  to select, < or > to select model. The selections are: ALPHA-1, ALPHA-2, ALPHA-3/4/5, Airpot Brewer,
Thermo-Alpha (for the D60GT). Press  to set. When the Model Select feature is changed, all settings are reset to the defaults of the newly selected model.
Exit Press  to select, exits program mode and returns unit to operation.
Warmer Temperature Control
Turn on brewer at the control panel ON/OFF button. Warmer button should be OFF (LED off). Press and hold desired WARMER button. Screen will display cur-
rent setting in % of power. Press < or > to increase or decrease power to warmer (50% to 100% in 10% increments). Press to set.
Tank Temperature Check
Turn on brewer at the control panel ON/OFF button. Press and hold 3 button (see illustration, page 2) for 5 seconds. Water Temperature will be displayed. The
temperature will not display while the unit is in the process of reheating.
NOTE: Alpha 3GT ONLY; when checking tank temperature, rst make sure REAR warmer is ON (red LED on) and then press button 3 for 5 seconds to
display tank temperature.
Brew Volume – Easy Access
Units can be easily adjusted from the front panel. Written into the software on the Alpha G3 UCM, is a feature to access the brew volume without entering the
program mode.
On any multi-station Alpha (ALP2/3/4/5/6GT): Press the center Select button 2 (see illustration, page 2) twice, with the second press hold down the button for
around ve [5] seconds. The screen will display pressing < or > will adjust the brew volume up or down, ± 20 oz, in 1 ounce increments.
PROGRAM MENUS

4
Fresh-Trac Transmitter
These instructions will explain the operation and maintenance of the Fresh-Trac coffee timer. This timer will
allow the user to track the freshness of coffee brewed into glass decanters. Fresh-Trac is only available
with Curtis Alpha G3 brewers. The Fresh-Trac decanter is dish-washer safe. The expected battery life in
the light unit is two years. The battery is not replaceable.

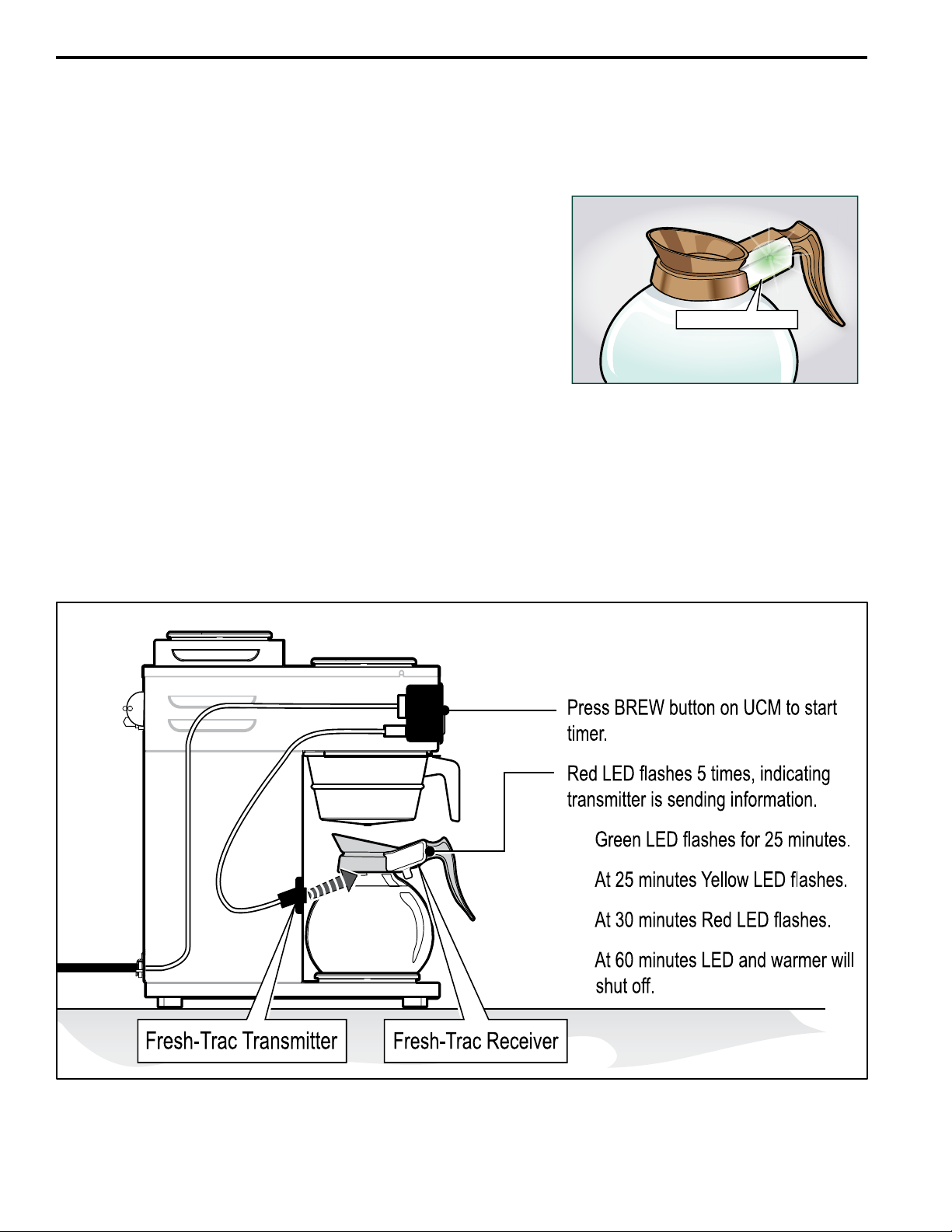

The Fresh-Trac timer uses 3 LEDs (Red, Yellow & Green), as a
visual time indicator.
The Red LED ashes 5 times at the beginning of the brew cycle
and the warmer plate will turn on.
The Green LED will ash every 3 to 5 seconds during the brew
cycle and continue until 25 minutes have elapsed.
At 25 minutes, the Yellow LED will ash every 3 to 5 seconds, for
5 minutes. This will continue for 5 minutes until 30 minutes has
elapsed.
At 30 minutes, the Red LED will ash every 3 to 5 seconds until 60 minutes have elapsed. The Red LED
indicates that the hold time has expired and any remaining coffee should be discarded.
All ashing LEDs will stop and the warmer will turn off completely after 60 minutes. A new brew cycle will
restart the Fresh-Trac timer.
FRESH-TRAC SYSTEM - OPERATION
INSTRUCTIONS
FRESH-TRAC TIMER

5
ROUGH-IN DRAWING
INSTRUCTIONS
FRESH-TRAC TIMER

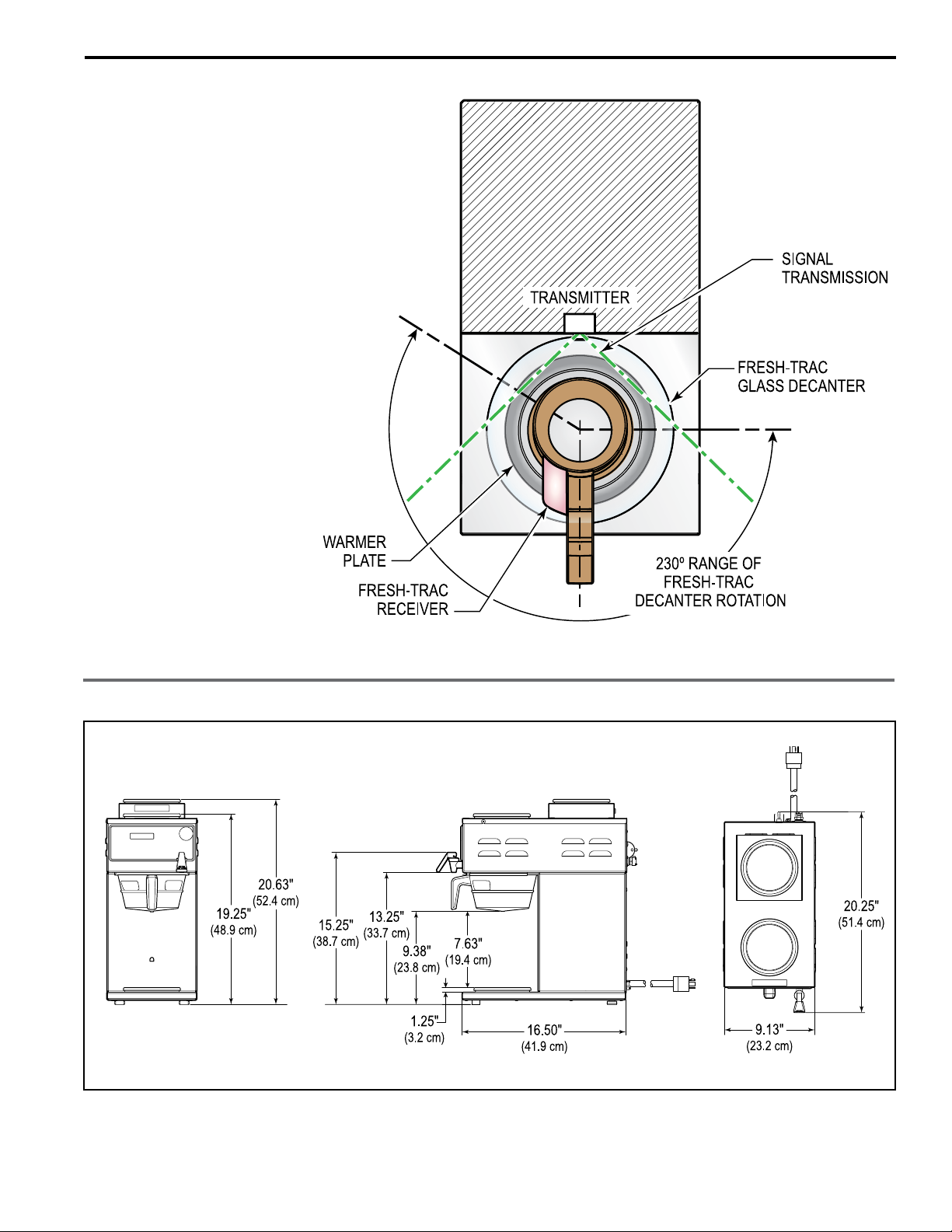

TRANSMITTER RANGE
The most effective signal range of the Fresh-
Trac transmitter is 230º. This is shown as a
top view in the illustration.

6

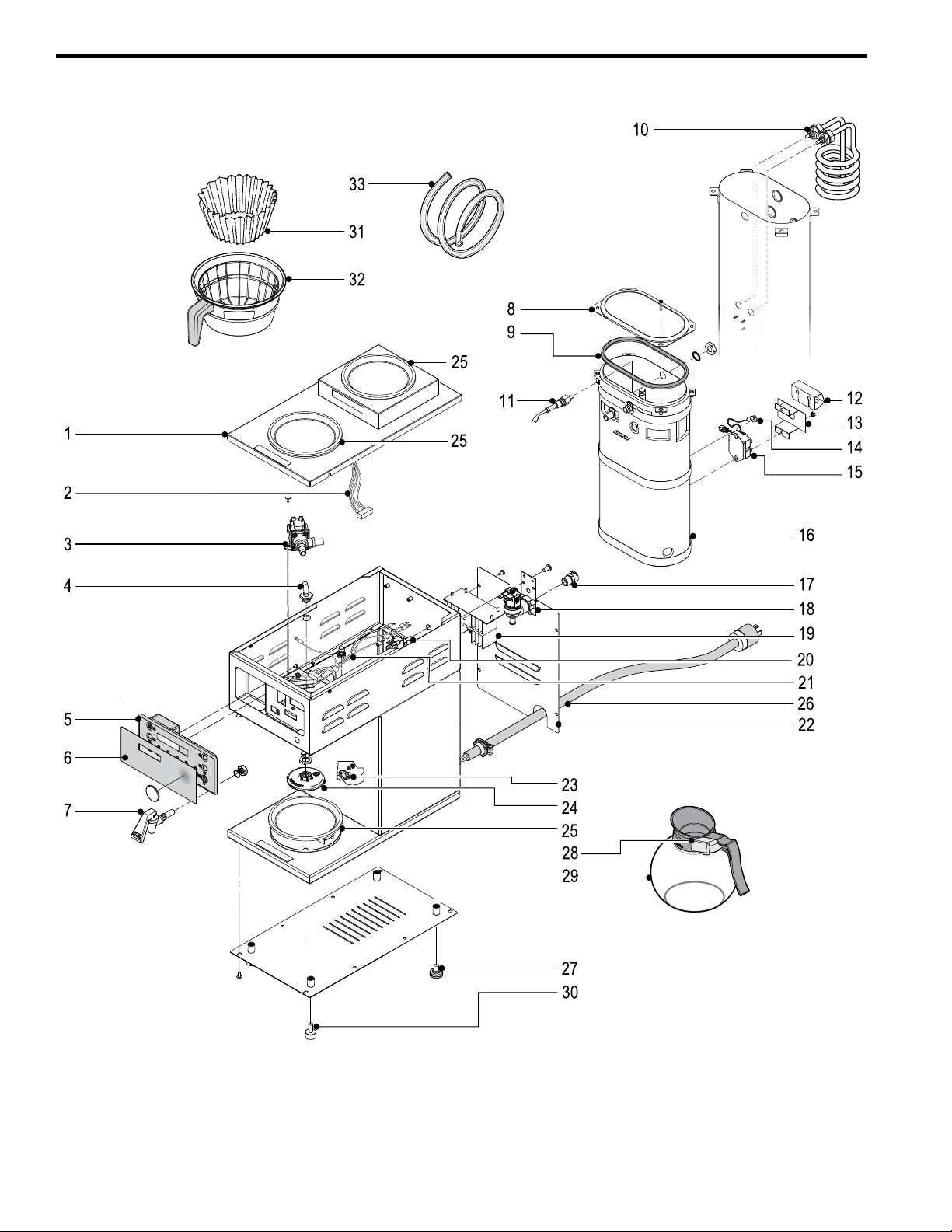

ILLUSTRATED PARTS LIST
ALPHA G3

7
ILLUSTRATED PARTS LIST
ALPHA G3
ITEM № PART № DESCRIPTION
1 WC-6812 WARMER, ASSY TOP ALP3GT
2 WC-13164 HARNESS ASSY, WARMER ALPGT UPPER WARMER
3 WC-889-101 VALVE, DUMP LEFT 120V 12W
4 WC-37379 KIT, SPRAYHEAD FITTING
5. WC-774-108* CONTROL MODULE, FRESH TRAC MCDONALDS ALP
6 WC-390178 LABEL, UCM OVERLAY ALP3GT WITH QR CODE CURTIS LOGO
7 WC-1809* FAUCET, PS/HSP SERIES HOT WATER 1/2-20 UNF
8 WC-5853-102 COVER, TOP HEATING TANK
9 WC-43062* GASKET, TANK LID
10 WC-922-04 KIT, ELEMENT HEATING 3.5KW 220V W/JAM NUTS & SILICONE WASHERS
11 WC-5527K* KIT, PROBE WATER LEVEL O-RING & NUT
12 WC-4394 GUARD, SHOCK HEATING ELEMENT
13 WC-43055 GUARD, SHOCK RESET THERMOSTAT
14 WC-1438-101* SENSOR, TEMPERATURE TANK
15 WC-522 * THERMOSTAT, HI LIMIT HEATER DPST 277V-40A
16 WC-6267* TANK, COMPLETE ALP-DS/G3 220V
17 WC-2467 COUPLING BODY, SHUTOFF 3/8 NPT CHROME PLATED ALP3GT15A826
18 WC-826L* VALVE, INLET 1 GPM 120V 10W ALP/AP/TLP GREY BODY
19 WC-8556* HEATSINK and TRIAC ASSY 40A 600V
20 WC-103 * SWITCH, TOGGLE DPST 25A 125/250VAC RESISTIVE
21 WC-13315-103 HARNESS COMPLETE ALPHAGTN-18
22 WC-5985 COVER, BACK CENTER WRAP D60GT/ALP TALL
23 WC-10002D TRANSMITTER ASSY, D-STYLE (UNITS BUILT AFTER 8/2012)
24 WC-29025 SPRAYHEAD, ASSY AFS-PURPLE
25 WC-972-102* WARMER, ASSY COMPLETE 100W 120V W/TBNG SEALANT
26 WC-1226 CORD, 600V 12/4, 6’ W/NEMA PLUG LOCKING L14-20P
27 WC-3518 LEG, 3/8”-16 X 1/2” L GLIDE
28 WC-10011* RECEIVER ASSEMBLY 3 LEDs FRESH -TRAC MCDONALDS DECANTER
29 70517430303* DECANTER, GLASS CURTIS FRESH-TRAC REG BLACK
29A 70517430103* DECANTER, GLASS CURTIS FRESH-TRAC DECAF ORANGE
30 WC-3503 LEG, 3/8”- 16 STUD SCREW BUMPER
31 WC-3316* BREW CONE ASSY, w/HANDLE 7.1” DIA.
32 CR-10 * FILTER, PAPER COFFEE #506 1000/PKG
33 WC-5310* TUBE, 5/16 ID X 1/8 W SILICONE
* SUGGESTED PARTS TO STOCK

8
ELECTRICAL SCHEMATIC

9
CLEANING
1. Brewer (Exterior) Cleaning Instructions: Use KAY QSR Glass & Multi-Surface Cleaner solution
and a clean, sanitizer-soaked towel to remove soils from the exterior of coffee brewers.
2. Glass Coffee Pot Cleaning Instructions:
a. Place one Kay Beverage Equipment Cleaner tablet into the decanter and ll with hot water.
b. Allow to soak for 10 minutes. For heavy soil, use two Kay Beverage Equipment Cleaner
tablets.
c. Scrub the decanter and the lip at the neck of the decanter thoroughly with the curved coffee
pot brush.
d. Use the exible brush to scrub the lid and areas around and inside each inlet/outlet.
e. Discard the solution; then, rinse and sanitize the decanter at the 3-compartment sink.
f. Allow to air dry
3. Brew Basket Cleaning Instructions:
a. Turn coffee machine OFF.
b. Remove coffee pots and take to 3-compartment sink.
c. Remove brew basket and spray head tting.
d. Take brew basket and spray head to 3-compartment sink. Wash,
rinse, and sanitize for a minimum of one minute; then, allow to air
dry.
e. Spray a clean, sanitizer-soaked towel with Glass & Multi-Surface
Cleaner Solution and use to wipe the exterior of the coffee ma-
chine clean.
f. Then, wipe with a clean, sanitizer-soaked towel from the clean towel bucket.
g. For tough stains, dissolve one tablet of Beverage Equipment Cleaner in 1 gallon of hot 110-
120°F (43-49°C) water in a clean bucket.
h. Submerse brew baskets and parts in BEC solution and allow to soak for 10 minutes.
i. Remove items, rinse and sanitize for a minimum of one minute at the 3-compartment sink.
j. Allow to air dry.

10
ECN 16599 . 7/01/[email protected] . rev H
ECN 15762 . 3/27/[email protected] . rev G
ECN 15607 . 1/20/[email protected] . rev F
ECN 15489 . 11/26/[email protected] . revE
ECN 14661 . 12/28/[email protected] . revD
ECN 14320 . 8/8/[email protected]
ECN 14032 . 4/24/[email protected] revB
ECN 13812 . 2/2/[email protected] . EAR 10269
EDR8040. 12/14/1[email protected] . EAR10142
FOR THE LATEST SPECIFICATION INFORMATION GO TO WWW.WILBURCURTIS.COM
Printed in U.S.A. 6/2015 F-3844 rev H ver1.3
WILBUR CURTIS CO., INC.
6913AccoSt.,Montebello,CA90640-5403USA
Phone:800-421-6150 Fax:323-837-2410
TechnicalSupportPhone:800-995-0417(M-F5:30A-4:00PPST) E-Mail:[email protected]
Web Site: www.wilburcurtis.com
Product Warranty Information
The Wilbur Curtis Co., Inc. certies that its products are free from defects in material and workmanship under normal
use. The following limited warranties and conditions apply:
3 Years, Parts and Labor, from Original Date of Purchase on digital control boards.
2 Years, Parts, from Original Date of Purchase on all other electrical components, ttings and tubing.
2 Years, Labor, from Original Date of Purchase on all electrical components, ttings and tubing.
Additionally, the Wilbur Curtis Co., Inc. warrants its Grinding Burrs for Forty (40) months from date of purchase or 40,000 pounds of
coffee, whichever comes rst. Stainless Steel components are warranted for two (2) years from date of purchase against leaking or
pitting and replacement parts are warranted for ninety (90) days from date of purchase or for the remainder of the limited warranty
period of the equipment in which the component is installed.
All in-warranty service calls must have prior authorization. For Authorization, call the Technical Support Department at 1-800-995-
0417. Effective date of this policy is April 1, 2003.
Additional conditions may apply. Go to www.wilburcurtis.com to view the full product warranty information.
CONDITIONS & EXCEPTIONS
The warranty covers original equipment at time of purchase only. The Wilbur Curtis Co., Inc., assumes no responsibility for substitute
replacement parts installed on Curtis equipment that have not been purchased from the
Wilbur Curtis Co., Inc. The Wilbur Curtis Co., Inc. will not accept any responsibility if the following conditions are not met. The war-
ranty does not cover and is void under the following circumstances:
1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.
2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all
local electrical, mechanical and plumbing codes.
3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment.
4) Improper water supply: This includes, but is not limited to, excessive or low water pressure, and inadequate or uctuating
water ow rate.
5) Adjustments and cleaning: The resetting of safety thermostats and circuit breakers, programming and temperature
adjustments are the responsibility of the equipment owner. The owner is responsible for proper cleaning and regular
maintenance of this equipment.
6) Damaged in transit: Equipment damaged in transit is the responsibility of the freight company and a claim should be
made with the carrier.
7) Abuse or neglect (including failure to periodically clean or remove lime accumulations): Manufacturer is not responsible for
variation in equipment operation due to excessive lime or local water conditions. The equipment must be maintained accord-
ing to the manufacturer’s recommendations.
8) Replacement of items subject to normal use and wear: This shall include, but is not limited to, light bulbs, shear disks, “0”
rings, gaskets, silicone tube, canister assemblies, whipper chambers and plates, mixing bowls, agitation assemblies and
whipper propellers.
9) Repairs and/or Replacements are subject to our decision that the workmanship or parts were faulty and the defects showed
up under normal use. All labor shall be performed during regular working hours. Overtime charges are the responsibility of
the owner. Charges incurred by delays, waiting time, or operating restrictions that hinder the service technician’s ability to
perform service is the responsibility of the owner of the equipment. This includes institutional and correctional facilities.
The Wilbur Curtis Co., Inc. will allow up to 100 miles, round trip, per in-warranty service call.
RETURN MERCHANDISE AUTHORIZATION: All claims under this warranty must be submitted to the Wilbur Curtis Co., Inc.
Technical Support Department prior to performing any repair work or return of this equipment to the factory. All returned equip-
ment must be repackaged properly in the original carton. No units will be accepted if they are damaged in transit due to improper
packaging. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA). RMA
NUMBER MUST BE MARKED ON THE CARTON OR SHIPPING LABEL. All in-warranty service calls must be performed by an
authorized service agent. Call the Wilbur Curtis Technical Support Department to nd an agent near you.
