Damage
Never use your TV if it is damaged in any way. Always place your TV on a flat level
surface avoiding anywhere which may be subject to strong vibration.
Weather
It is advisable to unplug the aerial during an electrical storm.
Temperature
Avoid extremes of temperature, either hot or cold, place your TV well away from
heat sources such as radiators or gas/electric fires.
Naked Flames
Naked flames such as candles and night lights should not be placed on or near your TV.
Ornaments
Vases and other water containers or lamps should not be put on top of your TV set.
Moisture
Do not allow your TV to be exposed to rain, moisture, dust. If any liquid is spilt into
your TV it can cause serious damage. If you spill any liquid into your TV unplug the
power cord immediately. Contact your store.
Ventilation
The TV must be well ventilated. Do not cover your TV or place it inside a small
confined space. Make sure that there is a gap of at least 10cm on both sides and
20 cms at the top.
Interference
Do not place your TV on or near appliances which may cause electromagnetic
interference (TV or Hi-Fi speakers). If you do, it may adversely affect the working
of the unit, and cause a distorted picture or sound.
Batteries
Batteries are easily swallowed by young children. Do not allow young children to
play with the remote control unit.
Covers
Do not remove any fixed covers as this may expose dangerous voltages.
Standby
The power button on the remote control doesn't switch off the TV completely and
the TV will continue to draw electricity from the mains supply. There fore in the
interests of safety and to avoid unnecessary energy consumption, never leave
your TV in standby while unattended for long periods of time, eg. while on holiday.
We recommend that you unplug at the mains power supply.
Power Cord
Make sure your TV or TV stand is not resting on top of the power cord, as the weight
of the TV may damage the cord and create a safety hazard.
LCD TV Safety Warnings

Packaging
If you can store the packaging it will prove useful should you need to transport the
TV to protect it while it is in transit. Try to reuse packaging wherever you can. If you
cannot store it, contact your local authority for details of your nearest recycling
facilities.
Installation
We strongly recommend that this product is installed by qualified personnel with
enough skill and competence. The seller cannot assume liabilities for damage
caused by mistake in installation, mounting, misuse or modification.
This symbol on the product or in the instructions means that
your electrical and electronic equipment should be disposed
at the end of its life separately from your household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or
your retailer where you purchased the product.
The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
The apparatus shall be connected to a MAINS socket outlet
with a protective earthing connection.
The MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.

CONTENT
ACCESSORIES -----------------------------------------------------------------
FRONT PANEL BUTTONS---------------------------------------------------
BACK PANEL OVERVIEW---------------------------------------------------
BRIEF FOR BACK TERMINALS-----------------------------------
REMOTE CONTROL-----------------------------------------------------------
REMOTE CONTROL BUTTON FUNCTIONS ------------------
CONFIGURATION OF THE LCD--------------------------------------------
POWER ON/OFF-------------------------------------------------------
INSTALLATION GUIDE-----------------------------------------------
CHANNEL MENU-------------------------------------------------------
AUTO TUNING----------------------------------------------------
DTV MANUAL TUNING----------------------------------------
ATV MANUAL TUNING-----------------------------------------
PROGRAM EDIT-------------------------------------------------
PICTURE MENU--------------------------------------------------------
SOUND MENU----------------------------------------------------------
TIME MENU--------------------------------------------------------------
OPTION MENU---------------------------------------------------------
LOCK MENU-------------------------------------------------------------
EPG MENU--------------------------------------------------------
FAST CHANNEL LIST------------------------------------------
INPUT SOURCE-------------------------------------------------
FAVORITE LIST--------------------------------------------------
SUBTITLE LANGUAGE----------------------------------------
TECHNICAL SPECIFICATION LCD TV-----------------------------------
DVD OPERATION----------------------------------------------------------------
------------------------------------------------------
--------------------------------------------------
SAFETY PRECAUTIONS
CARE AND MAINTENANCE
1
2
3
4
5
6
7
7
7
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
28
29

ACCESSORIES
ACCESSORIES
Thank you for purchasing this LCD-TV.
This LCD-TV package comes with:
User’s Guide book
Remote control
Battery AAA x 2
Adapter
Power Cord/External Power Supply
OPTIONAL ACCESSORIES
You can purchase these optional accessories for your LCD TV:
HDMI Cable
AV Cable
SCART Cable
VGA Cable
Audio Cable
Please save your packaging as you will need this in the event of
warranty/service repair or support. We are unable to carry out
warranty/service if you are unable to package it correctly. The safest
way to package your item in the event of warranty/service repair is in
its original box/packaging.
Warranty Card x 1

FRONT PANEL BUTTONS
1
2
3
4
5
6
7
Power ON/OFF
Volume Up/Right orientation
Volume Down/Left orientation
Channel Up/Scroll up
Channel Down/Scroll down
OSD (ON Screen Display) Menu
Select the input source:DTV/TV/SCART/YPBPR/DVD/PC-RGB/HDMI/AV
POWER
SOURCE
MENU
CH+
CH-
VOL+
VOL-
1
2
3
4
5
6
7
8
9
8
9
Remote Sensor
Indicator Light
10 DVD Button
10

BACK PANEL OVERVIEW
A
B
C
D
E
F
H
DC 12V
HDMI
VGA
SCART
VGA AUDIO IN
YPBPR
L/R
Power input
HDMI input
VGA input
SCART input
Audio input
YPBPRinput
Audio input for Video and Y/PB/PR
Antenna input
G
DC 12V
HDMI
VGA
SCART
Y
PB
PR
VGA
AUDIO
IN
A
B
C
D
E
F
H
G
VIDEO
L
R
I
I
VIDEO VIDEO input
RF
Top/Label Side Of Disc
RF

DC 12V
HDMI
VGA
SCART
Y
PB
PR
VGA
AUDIO
L
R
RF
YPBPR
LR
Audio Out
HDMI
SCART
Power
Supply
Adapter
Don’t remove the cable
between Indoor antenna
(TV RF) and Outdoor
antenna (DVB R F-OUT)
BRIEF FOR BACK TERMINALS
VIDEO
VIDEO
IN

VOL CH
NICAM
NICAM
SOURCE
SOURCE
OK
OK
EXIT
EXIT
MENU
MENU
FAV EPG SUBT
SUBT
TEXT
TEXT
INDEX
INDEX
REPEAT
REPEAT
SLEEP
SLEEP
HOLD
SIZE
SIZE
ANGLE
ANGLE
TV-RADIO
TV-RADIO
PGDN
PGDN
REVEAL
REVEAL
L/R
L/R
AUDIO
AUDIO
SUBPAGE
SUBPAGE
P-MODE
P-MODE
LIST
PGUP
PGUP
1
3
5
10
12
14
15
18
19
22
23
26
27
30
31
2
6
4
8
9
17
16
21
20
25
24
29
28
33
32
7
11
13
REMOTE CONTROL
i
SET UP
SET UP
DVD

POWER The power key to switch On and Off of the power
MUTE Press once to turn off the sound, once again to restore the sound
0-9 Select TV channels in TV mode
i
VOL+/- To adjust the sound volume
CH+/- To select the previous or next TV channel
To move the cursor and select the option needed
OK To confirm the selected option
LIST
To display system information
SUBT To open and close subtitles on DVB
In TV mode, press this key to come back to the previous TV channel
To select sound modes
NICAM
To open the system setting menu of the LCD Display
MENU
In the TV menu mode, press this key to return to the upper menu
EXIT
FAV
To open EPG menu
EPG
RED/REPEAT
GREEN/ANGLE
YELLOW/AUDIO
CYAN/SETUP
SLEEP
AUDIO
P-MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
26
27
28
29
30
31
32
33
Select sleep time
To select and store channels of favorite program
Select picture mode
REMOTE CONTROL BUTTON FUNCTIONS
SOURCE
TV-RADIO
To display the TV program list
To display audio language.
When watching a channel, allows you to switch between TV and Radio modes.
To cycle through the input source:DTV/TV/SCART/YPBPR/DVD/PC-RGB/HDMI/AV
PGUP/DVD
To select TEXT for viewing the previous page/return to the DVD main menu
TEXT/ To open the function of TELETEXT or remove the disc
HOLD/ To select the lock-on function of TEXT/Stop the DVD disc
SUBPAGE/
To select TEXT for viewing the next page/play or pause the DVD disc
PGDN/
REVEAL/
INDEX/
SIZE/
18
19
20
21
22
23
24
25
To select and return to the main directory of TEXT/skip to the
previous chapter or track
To zoom in and out for the display of the TEXT/skip to the next
chapter or track
To select the hidden TEXT function/backward scene with faster speed
To open the TEXT function of sub-page/foward scene with faster speed
To select the corresponsive TELETEXT page after entering the homepage
of TELETEXT/cycle through the options: Chapter, Title, All and nothing
To select the corresponsive TELETEXT page after entering the
homepage of TELETEXT/select multiple angles
To select the corresponsive TELETEXT page after entering the
homepage of TELETEXT/select desired audio track
To select the corresponsive TELETEXT page after entering the
homepage of TELETEXT/open and close the DVD OSD menu

CONFIGURATION OF THE LCD
Installation Guide
Note: generally, you can press MENU to return to previous menu, and EXIT to
exit the menu, it is a default option.
- Press to select the OSD language, then press to select Auto Tuning.
Refer page 8 “Auto Tuning”.
POWER On/Off
Plug the TV into a standard outlet, making sure the output voltage and frequency
corresponds to the requirement of your machine.
When the power supply is connected, the red indicator on the front panel will be on and the
machine turns into standby state.
Push the POWER button on your remote control the indicator on the front panel will
change from red to green. And after several seconds, the system will enter the state
previously selected when it was used last time.
When finish watching, push the POWER button on your remote control to return the TV to
standby mode, The green light will change to red.
Unplug the power.

CONFIGURATION OF THE LCD
- Press to select the selection, or OK to confirm.
- Press MENU to return to previous menu.
- Press EXIT to exit the menu.
Auto Tuning
- Press to select the country, then OK to confirm.
- Press MENU to display the OSD menu to select the menu Channel.
Channel Menu

CONFIGURATION OF THE LCD
DTV Manual Tuning
- Press to select the channel, then OK to search.
- Press to select start highlight. Press OK key to start Auto Tuning.
- Press <Exit> to return to the previous menu.
- Press <Menu> to skip the current tuning (ATV or DTV).

CONFIGURATION OF THE LCD
Storage To
System
Current CH
Search
Fine-Tune
Skip
- Press to select the channel number you want to save to.
- Press to select the system.
- Press to turn on/off the switch of skip. When the switch is turned on, the current
channel will be skipped when you scan channels with P+/P- button.
- Press to select the current channel.
- Press to search backward/forward, MENU or EXIT to stop the searching.
- Press to fine tuning when the signal of the current channel is weak.
ATV Manual Tuning
- Press to select the selection, to adjust the option as requirement. See details in
the following suboptions.
- Press SAVE (RED) to save the channel.

CONFIGURATION OF THE LCD
Program Edit
Delete
- Press to select the channel you want to delete, then press DELETE (RED), and the
channel will be marked DELETE, press DELETE (RED) again to delete, or MENU to cancel.
Rename(only for ATV)
Move
Skip
Favorite
- Press to select the channel you want to rename, press RENAME (GREEN), the channel
will be marked RENAME, then press to select the position of word, press to select
the letter you want.
- Press to select the channel you want to move, then press MOVE (YELLOW), and the
channel will be marked MOVE, press MOVE (YELLOW) again to move, or MENU to cancel.
- Press to select the channel you want to skip, then press SKIP (CYAN) to mark or
dismark the channel. The channel marked SKIP will be skipped when you scan channels
with CH+/CH- button.
- Press to select your favorite channel, then press FAV to mark or dismark the channel.
The channel marked FAV will be storage to the favorite list.
DELETE RENAME MOVE
SKIP
FAV
TV
TV
TV
TV
1 S-02
2 C-42
3 S-03
4 S-04

CONFIGURATION OF THE LCD
Brightness
Color
Sharpness
Color Temperature
Aspect Ratio
Noise Reduction
Picture Mode
Contrast
- Press to select Picture Mode. Dynamic, Standard, Mild, User.
- Press to adjust the contrast.
- Press to adjust the brightness.
- Press to adjust the color.
- Press to adjust the sharpness.
- Press to select Color Temperature. Cool, User, Warm, Medium.
- Press to select Aspect Ratio. Zoom1, Zoom2, Auto, 4:3, 16:9.
- Press to open or close Noise Reduction.
Picture Menu
- Press MENU to display the OSD menu to select the menu PICTURE, to enter the submenu.
- Press MENU to return to the main menu from the submenu.

CONFIGURATION OF THE LCD
Bass
Auto Volume
Surround Sound
Sound Mode
Balance
Treble
- Press to select sound mode. Standard, Music, Movie, Sports, User. Press MENU to confirm
and return to preview menu.
- Press to adjust the balance.
- Press to adjust the treble.
- Press to adjust the bass.
- Press to select off or on.
- Press to select off or on.
Sound Menu
- Press MENU to display the OSD menu to select the menu SOUND, to enter the submenu.
- Press MENU to return to the main menu from the submenu.

CONFIGURATION OF THE LCD
Clock
Off Time
- Press to select hour or minute, press to
setup the time.
- Press to select on, to enter the setup
item, use to setup the time you want
the TV to be turn off.
Time Menu
- Press MENU to display the OSD menu, to select the menu TIMER, to enter the submenu.
- Press MENU to return to the main menu from the submenu.
- Press to select on, to enter the setup item,
use to setup the time you want the TV to
be turn on.
OnTime

CONFIGURATION OF THE LCD

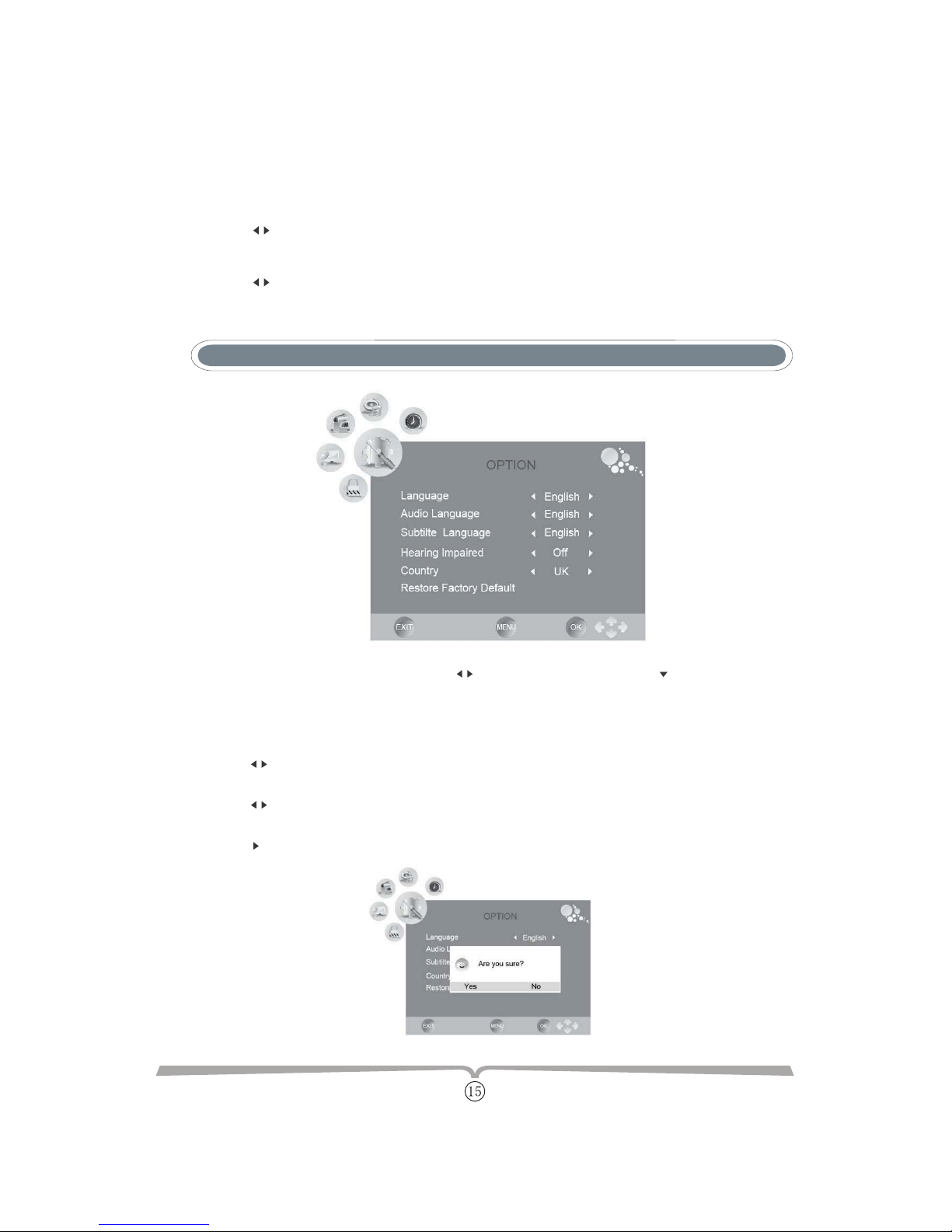

Option Menu
- Press MENU to display the OSD menu, to select the menu OPTION, to enter the submenu.
- Press MENU to return to the main menu from the submenu.
Sleep Timer
Auto Standby
- Press to select timer.
- Press to select standby on or off.
Language
Hearing Impaired
Restore Factory Default
- Press to select the OSD language.
- Press to On/Off the OSD Hearing Impaired.
- Press restore factory default.

CONFIGURATION OF THE LCD
Lock Menu
Lock Channel
- Press MENU to return to the main menu from the submenu.
- Press enter Password is “0000”.
- Press to select off or on.
- Press MENU to display the OSD menu, to select the menu Lock, to enter the submenu.
Set password
- Press display please enter password new password and confirm.
Block Program
- Press display to enter Block Program, press Lock (GREEN).
