CW GRILLES 4331 User manual

Thank you for purchasing the CW Grilles
Installation Guide
Part # 4331
(-1, Brushed; -2, Polished; -3, Black)
This model fits:
1970 Ford F150/250
4331.
816-966-1405
4305 E 140th Street, Grandview, MO 64030
cwgrilles.com
Brackets Included
(2) B-4331-5 BRACKETS
(2) B-4331-6 BRACKETS
(4) B-4331-7 BRACKETS
Hardware Included
(16) #8 X 5/8 PHILIPS HEAD SCREWS
(16)#8 U-CLIP

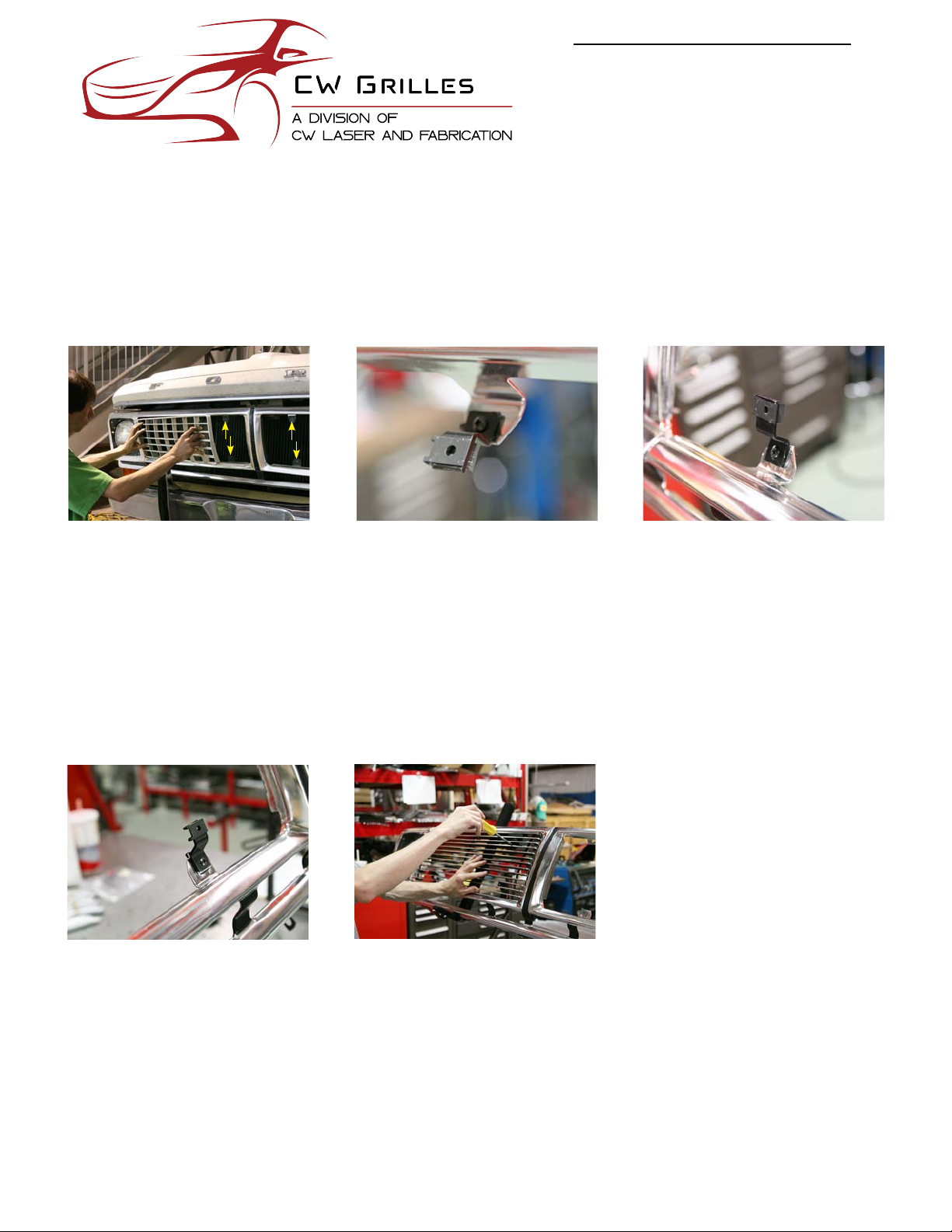

STEP 1 Remove the stock “egg
crate” sections by removing the
(4) per side screws as shown
above. If you are using your old
stock shell you will need to
remove the inner plastic screw
retainers.
STEP 2 Remove brackets from
hardware pack. Place supplied u-
clips on all ends of the supplied
brackets. Attach the (4) identical
top brackets to mounting tabs in
shell using the supplied #8 x
5/8” Phillip screws as shown
above.
STEP 3 Locate the (2) brackets
that have a slightly longer end
than the other. These brackets
attach to the outer most mounting
tab per side in the stock shell.
Attach the shorter end to the
stock shell using the supplied #8
x 5/8” Phillip screws as shown
above.
STEP 4 Attach the remaining (2)
brackets to the inner (2)
mounting tabs in stock shell per
side using the supplied #8 x 5/8”
Phillip screws as shown above.
STEP 5 With all brackets
attached simply attach billet
grille to brackets using the
supplied #8 x 5/8” Phillip screws.
For installation of billet grilles that require cutting of the stock shell, proper tools, knowledge and skill are needed. CW is not responsible for care & accuracy of the installation, only for Fit & Finish of its products. Use a
qualified installer or contact original vendor for references to complete all instructions.

Thank you for purchasing the CW Grilles
Installation Guide
Part # 4331
(-1, Brushed; -2, Polished; -3, Black)
This model fits:
1971-72 Ford F150/250
4331.
816-966-1405
4305 E 140th Street, Grandview, MO 64030
cwgrilles.com
Brackets Included
(2) B-4331-1 BRACKETS
(2) B-4331-2 BRACKETS
(2) B-4331-3 BRACKETS
(2) B-4331-4 BRACKETS
Hardware Included
(16) #8 X 5/8 PHILIPS HEAD SCREWS
(16)#8 U-CLIP
Upper Inner
Outer
Outer
Inner
Inner
Lower Inner
STEP 1 Remove the stock “egg
crate” sections by removing the
(4) per side screws as shown
above. If you are using your old
stock shell you will need to
remove the inner plastic screw
retainers. Remove brackets from
hardware pack. Place supplied
u-clips on all ends of the
supplied brackets.
STEP 4 With all brackets
attached simply attach billet
grille to brackets using the
supplied #8 x 5/8” Phillip screws.
Upper Outer
Lower Outer
STEP 3 Locate the (4) lower brackets as shown above. The larger (2)
attach to the outer most mounting tabs in the stock shell using #8 x 5/8”
Philip screws. The (2) smaller ones attach to the inner most mounting
tabs in stock shell using #8 x 5/8” Phillip screws. Please see second
image for attachment.
STEP 2 Locate the (4) upper brackets as shown above. The larger (2)
attach to the outer most mounting tabs in the stock shell using #8 x 5/8”
Phillip screws. The (2) smaller ones attach to the inner most mounting
tabs in stock shell using #8 x 5/8” Phillip screws. Please see second
image for attachment.
For installation of billet grilles that require cutting of the stock shell, proper tools, knowledge and skill are needed. CW is not responsible for care & accuracy of the installation, only for Fit & Finish of its products. Use a
qualified installer or contact original vendor for references to complete all instructions.
