ATTENTION:
ATTENTION:
ATTENTION:
ATTENTION:
Thank you very much to choose our light! AILISI-1060 is powerful in functions with “ CE ”
Standard. It has been tested through frequent practice in deferent cases, and well
recognized by professional designers in the filed of stage light. It fully shows the modern
times light characteristic with good performance, it can be used in all kinds of scenes with
need high quality lighting.
Please read over this manual carefully before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual.
Warning: Always disconnect from mains supply before replacing the lamp, or not, it will burn
the light.
1. Disconnect the fixture from AC power before removing or installing the lamp, fuses, or
any part, and when not in using
2. Always make the fixture connected to the ground electrically.
3. Please stop using when it is very hard to use, and check the problem with our agent or
factory.
4. If lamp on/off by controller please pays attention to the voltage depressed when open a
lot of light in one time.
5. Using Electromagnetic ballast, the second time to open the light should be after
15minutes from the first time.
6. Don ’ t expose the fixture to rain or moisture.

3
STRUCTURE
STRUCTURE
STRUCTURE
STRUCTURE

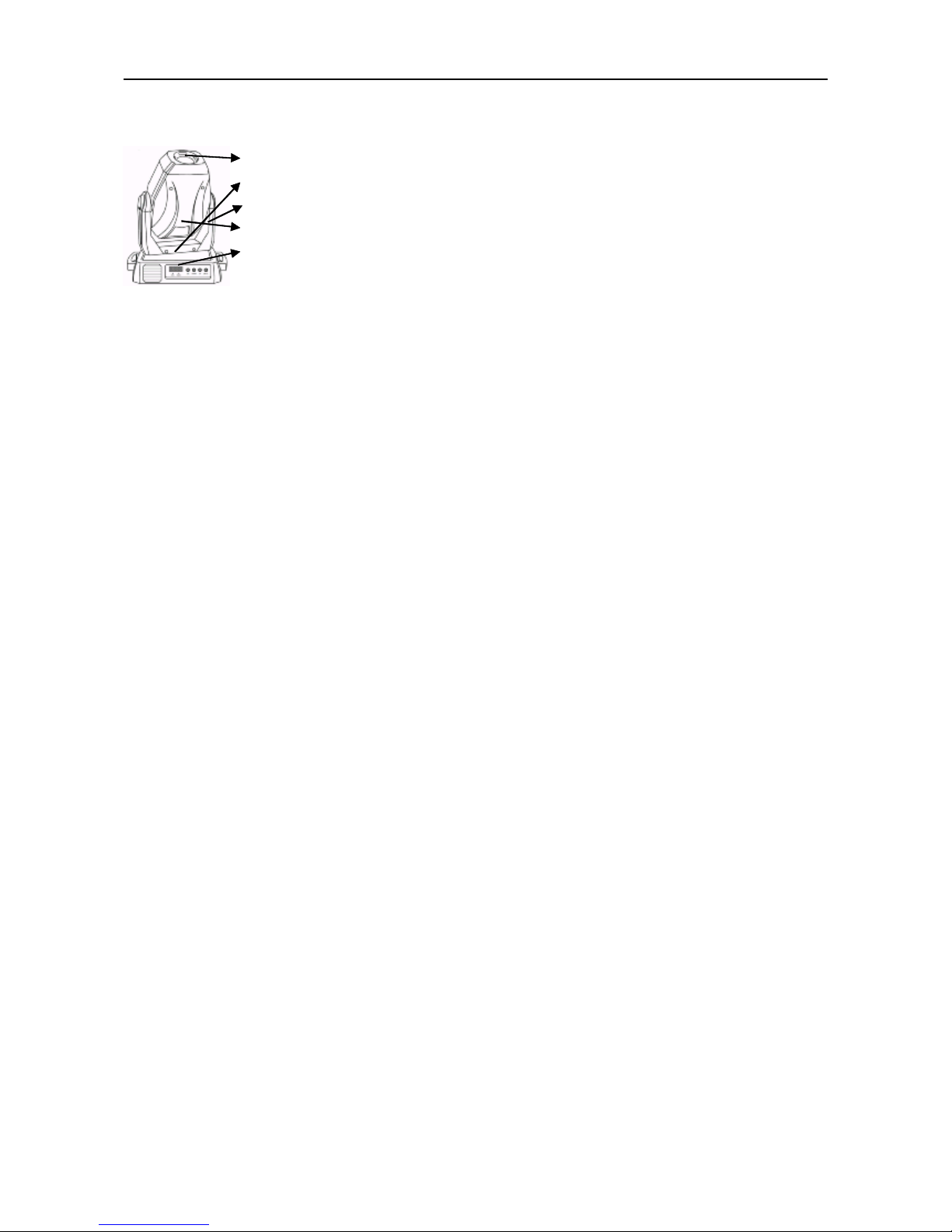

1、Aperture
2、Housing
3、Arm
4、Cover
5、Digital screen
AILISI-1060 moving head is a kind of very powerful computer light and it has gained a very popular
approval by the professional light designer after numerous use and strict test on its stability and has
already become one of the most successful computer light; it can produce strong and impressive bright
light and be suitable for any spot where the clear cast is required; it meets CE standards.
TECHNICAL
TECHNICAL
TECHNICAL
TECHNICAL PARAMETER:
PARAMETER:
PARAMETER:
PARAMETER:
VOLTAGE : AC 90- 2 4 0V , 50 / 60Hz
L IGHT SOURCE : 6 0 W LED
POWER CONSUMPTION: 15 0 W
BEAM ANGLE: 18 °
1 COLOR WHEEL: 6 colors+open, b i-directional rainbow effect at variable speed
1 ROTATING GOBO WHEEL: 7 interchangeable gobos+open,
bi-directionally rotating at variable speed
1 PRISM WHEEL: 3-facet prism, bi-directionally rotating at variable speed
FOCUS: Linearly adjustable
DIMMER: 0 - 100% linearly adjustable
STROBE: 0 - 20 flash per second, speed adjustable
PAN AND TILT: Smooth, automatic Pan&Tilt position correction, speed adjustable
RANGE: Pan-540 ° , Tilt-270 ° (16-bit)
VECTOR MODE: Color+GOBO+Prism+XY Vector
CONTROL PROTOCOL: DMX 512, 3 pin interface
CHANNELS: 12
DISPLAY: LED display
PROTECT GRADE: IP20, over - heating & over - voltage protection
NET WEIGHT : 8.5 K g
GROSS WEIGHT: 11.5 K g
FIXTURE DIMENSION: L3 62 *W250*H4 12 (mm)
PACKING DIMENSION: L 390 *W 310 *H4 95 (mm)

4
DMX
DMX
DMX
DMX 512
512
512
512 CHANNELS
CHANNELS
CHANNELS
CHANNELS :
:
:
:
CHANNEL 1: SHUTTER+STROBE+RESET
CHANNEL 2: DIMMER
CHANNEL 3: COLOR WHEEL
CHANNEL 4: ROTATING GOBO WHEEL
CHANNEL 5: GOBO ROTATION
CHANNEL 6: FOCUS
CHANNEL 7: PRISM+PRISM ROTATION
CHANNEL 8: PAN
CHANNEL 9: PAN FINE
CHANNEL 10: TILT
CHANNEL 11: TILT FINE
CHANNEL 12: PAN & TILT SPEED + VECTOR MODE

5
CHANNEL 1 SHUTTER+STROBE+RESET
DMX512 signal 0-255 range Function
0- 10 Shutter off
11-39 Shutter on
40-240 Strobe, slow to fast
241-245 Shutter on
246-250 Reset
251-255 Shutter on
CHANNEL 2 D I MM ER
DMX512 signal 0-255 range Function
0 - 255 D ark to Bright
CHANNEL 3 COLOR WHEEL
DMX512 signal 0-255 range Function
0 - 1 8 Open
1 9 - 3 7 Color 1
38-56 Color 2
57-75 Color 3
76-94 Color 4
95-113 Color 5
114-127 Color 6
128-191 Rainbow effect, c lockwise , fast to slow
192-255 Rainbow effect, a nticlockwise , slow to fast
CHANNEL 4 ROTATING GOBO WHEEL
DMX512 signal 0-255 range Function
0 - 1 5 Open
1 6 - 3 1 Gobo 1
3 2 - 47 Gobo 2
48 - 63 Gobo 3
64-79 Gobo 4
80-95 Gobo 5
96-111 Gobo 6
112-127 Gobo 7
128-191 Rainbow effect, c lockwise , fast to slow
192-255 Rainbow effect, a nticlockwise , slow to fast
CHANNEL 5 GOBO ROTATION
DMX512 signal 0-255 range Function
0 - 127 Rotating Angle
128-191 Clockwise Rotating, slow to fast
192-255 Anticlockwise Rotating, slow to fast

6
CHANNEL 6 FOCUS
DMX512 signal 0-255 range Function
0-255 Focus
CHANNEL 7 PRISM+PRISM ROTATION
DMX512 signal 0-255 range Function
0- 4 No Prism
5-19 Prism
20-139 Prism Angle Adjustment
140-197 Clockwise Rotating, fast to slow
198-255 Anticlockwise Rotating, slow to fast
CHANNEL 8 PAN
DMX512 signal 0-255 range Function
0-255 0-450 °
CHANNEL 9 PAN FINE
DMX512 signal 0-255 range Function
0 -255 0-2.1 °
CHANNEL 1 0 TILT
DMX512 signal 0-255 range Function
0-255 0-270 °
CHANNEL 1 1 TILT FINE
DMX512 signal 0-255 range Function
0 - 255 0-1.0 °
CHANNEL 1 2 PAN/TILT SPEED + VECTOR MODE
DMX512 signal 0-255 range Function
0- 251 Fast to slow
25 2- 255 Vector mode

7

8

9
INSTALL
INSTALL
INSTALL
INSTALL THE
THE
THE
THE FIXTURE
FIXTURE
FIXTURE
FIXTURE
1. Make sure that the point of fixing is stable before positioning the light, It must bear more than 10
multiple of the fixture's weight .

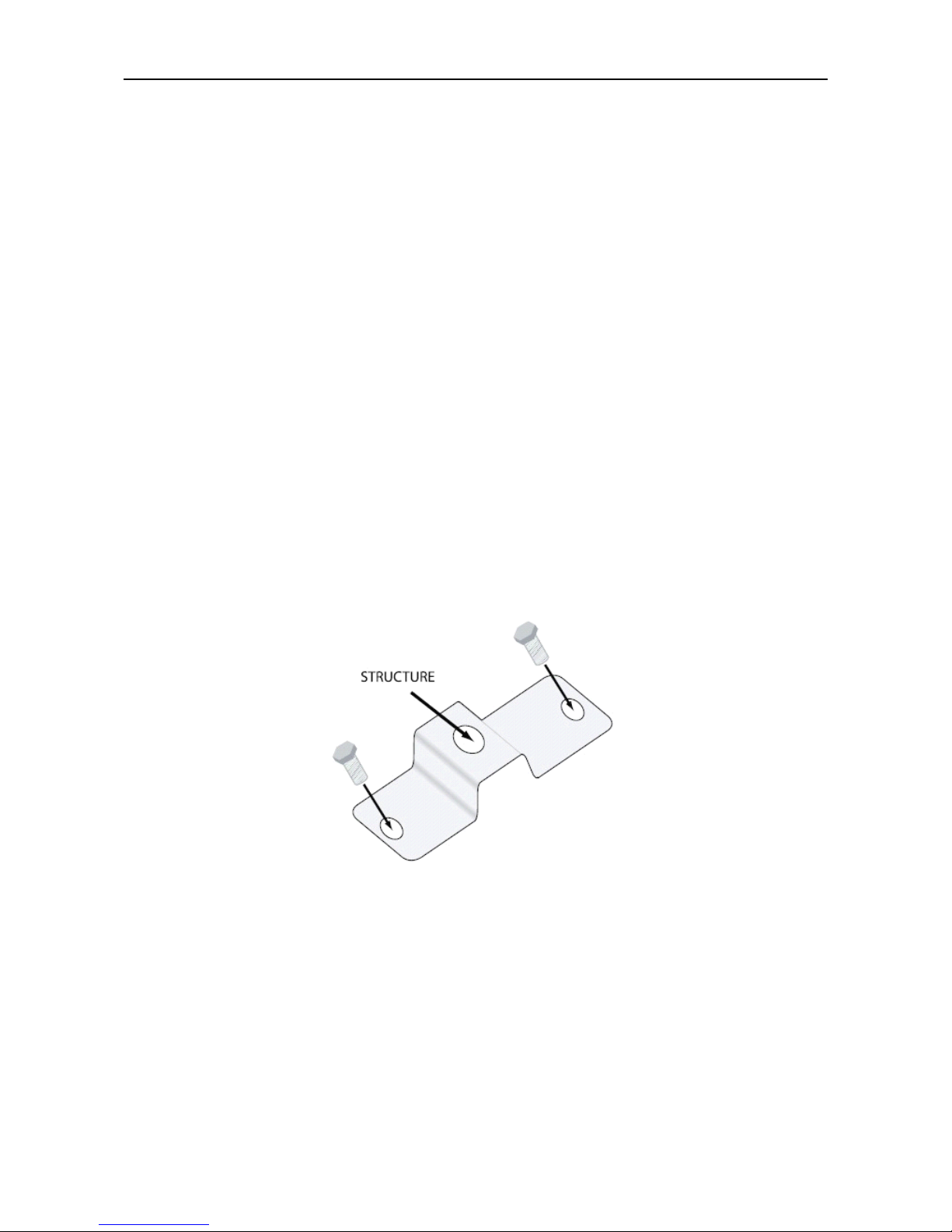

2. Use two special M10 bolts to fix the fixed-screw, which is in the projector ’ s soleplate, ensure
projector can ’ t fall. And must use safety belt to tie the projector ’ s handle and other fixing-point when
you fix ing them .
3. W hen positioning the projector, the distance between the objects that beam hi and the lens of
projector should keep more than 1 meter, and the minimum distance from the surface of projector to
any flammable material should be at least 0.5meters. In order to ensure the light working normally
and stably, the ambient temperature must not exceed 35 ° .

10
Power
Power
Power
Power supply
supply
supply
supply mains
mains
mains
mains and
and
and
and DMX
DMX
DMX
DMX 512
512
512
512 connecting
connecting
connecting
connecting
1、Power supply mains:
Use the provided plug to connect the main power to the projector . P aying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
2、DMX 512 signal cable connecting:
Use 3-pin or 5-pin XLR with dual core shield cable to connect DMX-OUT and DMX-IN, the diameter of
each core must be 0.5mm.
In case of problems, please use high quality shield cable of balance microphone cable, and insert a
terminal into socket for the end of projector(Weld a 1/4W120 ohm resistor for 2
nd
& 3
rd
Pin of 3-pin XLR
connectors)
3、Power on for the projector:
After finishing all the operations of above and make sure the lamp is no problem, power on and checking
it's good or not. Lighting on the lamp after power on; projector will reset after few seconds. Meanwhile, if
the projector working normally, the LED shining, DMX 512 signal cables are all working well.
Attention: All the cables should not be twined, otherwise, the projector won't working or working with
problems
DMX512 signal cable c onnecting .
Please using high quality shield cables .

11
Rigging
Rigging
Rigging
Rigging （
（
（
（Optional
Optional
Optional
Optional ）
）
）
）
This equipment can be positioned and fixed by clamp in every direction of the stage. Locking system
makes it easy to fasten to the bracket.
Attention! Two clamps are needed to fix the equipment. Every clamp is locked by fastener of 1/4 kind.
Fastener can only be locked clockwise.
Attention! Fasten a safety string to the additional hole of side aluminum piece. The secondary accessory
can not hang on the delivery handle. Nip the equipment on bracket.
1, Check if rigging clamp (not including the one inside) damaged or not. If stand ten times weight as the
equipment. Make sure the architecture can stand ten times weight as all the equipments, clamps, wirings
and other additional fixtures.
2, Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher) to clamp bracket,
and then screw the nuts.
3, Level the two hanging points at the bottom of clamp. Insert fastener to the bottom, lock the two levers
by 1/4 rotating clockwise; then install another clamp.
4 Install on safety string which stands at least ten times weight as equipment. Terminal of the accessory
is designed for clamps.
5 Make sure pan/tilt lock opened or not. Keep the distance more than 1 M from equipment to flammable
material or lighting source.
Maintenance
Maintenance
Maintenance
Maintenance
Cleaning
Cleaning
Cleaning
Cleaning of
of
of
of lens
lens
lens
lens system
system
system
system
�
Wash exterior and interior optical mirrors to enhance the brightness in regular time, especially when
equipment used in messy surroundings. Use mirror cleanser (or alcohol) to wash exterior mirrors in
every 15/20 days, 40/60 days for interior focusing prism/reflector.
Safety
Safety
Safety
Safety information
information
information
information
�
Do not separate the light personally.
�
Prevent liquid, water and metal into the equipment.
The
The
The
The equipment
equipment
equipment
equipment not
not
not
not fit
fit
fit
fit for
for
for
for cases
cases
cases
cases below:
below:
below:
below:
◆Relative humidity is too high.
�
Shake and hit
�
Room temperature is above 40 degree or below 0 degree.
�
Relative temperature is below 30 degree or above 80 degree.
Notice
Notice
Notice
Notice ：
：
：
：
�
In case of serious problems, stop using the equipment, and refer it to the agent or factory for
checking.
�
Do not separate the equipment; there are no accessories for replacing use in it.
�
Who to check this equipment must be well qualified.
�
If the functional controller is used to ignite light, be cautious that the voltage will fall down
immediately when many lamps are lighted. The solution to this is lighting the lamps in every five

12
seconds one by one.
�
When magnetic ballast is used, make sure it is five minutes after the bulb is cooled when relight the
lamps. (Electronic ballast can relight by heat)
�
When pull out the cable of power supply, do grip the insulated housing of the plug, do not draw the
cable directly.
Alarm
Alarm
Alarm
Alarm ：
：
：
：
�
Replace the housing,lens and ultraviolet radiation when visible damage takes place, such as cracks.
�
Replace the lamp when damage happens to it or its maximum life is used up.
�
Shut off the power supply when replace lamp, safety box, and any other accessories and when it
does not work.
�
Keep the ground switch connected to ground.
�
Power supply must meet the local standard on architecture and electric signal with overload
protection and connect to earth.
�
Do not make light beam shine on s kin, do not look at the light source directly.
�
Prevent short circuit happening to temperature control switch and safety box. When replace
defective fuse, choose approved new fuse of the same type.
�
Keep the distance more than 1 M from equipment to flammable material (such as cloth, wood,
paper).
�
Keep the distance 0.1 M from fan to vent.
�
When housing of equipment feels very hot, cool it for 5 minutes before operation.
�
Advise you to choose accessories produced by us when install and replace.
�
Whenever install or move equipment, set an alarm to prevent others entering job site.
�
Do not put your hand between side arm and light structure when light working. (shown in picture 1
by arrow)
�
Keep the optical system clean. Make the maintenance according to this manual when use in messy
and dusty environment
�
Luminous flux will decrease once the mirror gets covered by fatness or dust.
Solutions
Solutions
Solutions
Solutions to
to
to
to problems
problems
problems
problems
Phenomenon
Phenomenon
Phenomenon
Phenomenon o
o
o
o f
f
f
f power
power
power
power supply
supply
supply
supply
◆Lamp does not light, motor does not work itself.
When reset, indicator light of On/Off does not light.
◆Lamp lights, reset, but one of the protocols out of control.
�
Lamp not in stable control for lighting.
�
Light spot not bright enough.
�
Lamp lights, then black out, and lights again in a while.
Causes
Causes
Causes
Causes ：
：
：
：
�
Power supply not in normal state, not well connected, the fuse breaks up.
�
Control cable not connected, or connected not to the right address code, please check the address
code.
�
Voltage is too low, lamp close to using up
◆Lamp clos e to using up, optical mirror not clean.
◆Overheat ing protection, please check if cooling system is blocked or not.
