CyberPower CST150XLU User manual

YOUR ULTIMATE ALLY IN POWER
STANDBY UPS SERIES
CST150XLU
USER MANUAL

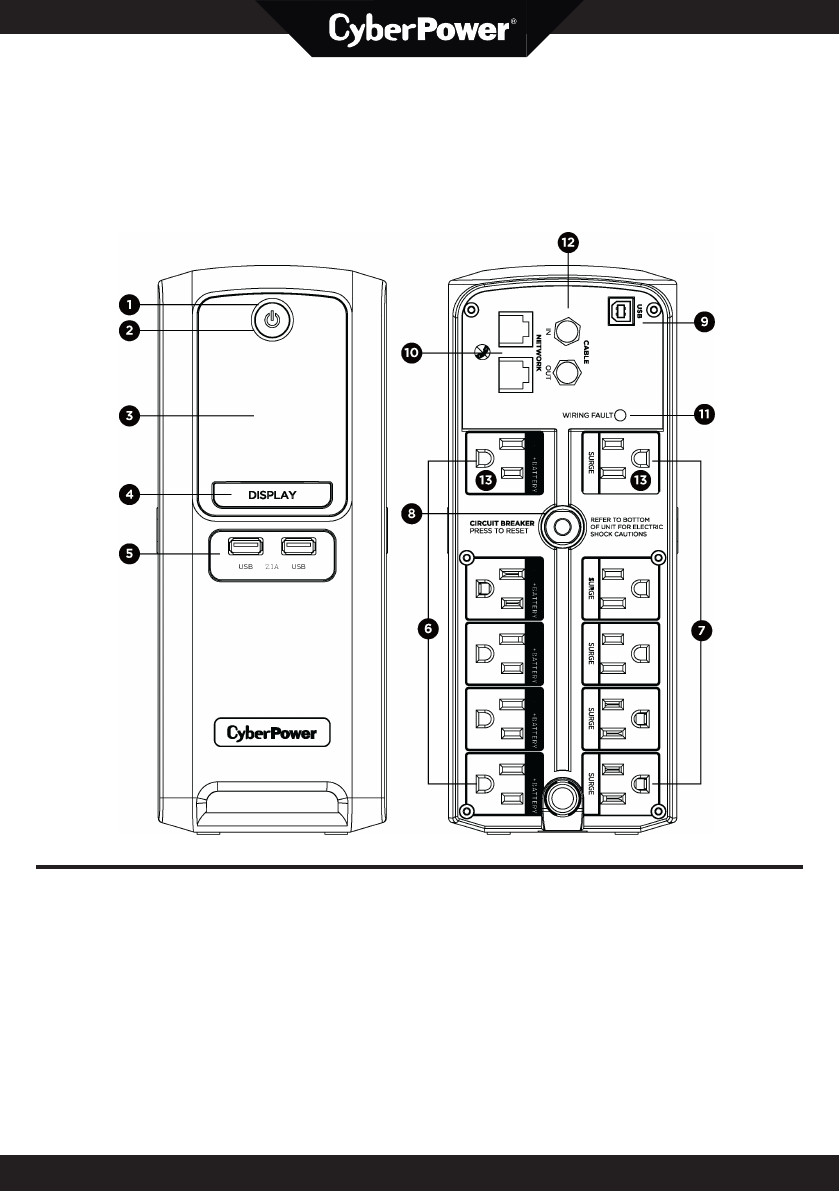

FEATURES
1. Power Switch
2. Power On Indicator
3. LCD Module Display
4. LCD Toggle / Selected Switch
5. USB Charging Ports
6. Battery and Surge Protected Outlets
7. Full-Time Surge Protection Outlets
8. Circuit Breaker
9. USB Ports to PC
10. Communication Protection Ports
11. Wiring Fault Indicator (red)
12. Coax / Cable / DSS Surge Protection
13. Widely-Spaced Outlets Designed
for AC Adapters
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com

PRODUCT REGISTRATION
Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed
power protection, operation, and performance during the lifetime of the product. Please take a
few minutes to register your product at: www.CyberPowerSystems.com/registration.
Registration certifies your product’s warranty, confirms your ownership in the event of a product
loss or theft, and entitles you to free technical support. Register your product now to receive the
benefits of CyberPower ownership.
IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to
unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature and
humidity controlled indoor area free of
conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric shock,
do not remove the cover. There are no user-
serviceable parts inside.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
equipment, turn o and unplug the unit.
CAUTION! To avoid electric shock, turn o the
unit and unplug it from the AC power source
before connecting equipment to the unit.
CAUTION! To reduce the risk of fire, connect
only to a circuit provided with 20 amperes
maximum branch circuit over current
protection in accordance with the National
Electric Code, ANSI/NFPA 70.
CAUTION! Not for use in a computer room as
defined in the Standard for the Protection of
Electronic Computer / Data Processing
Equipment, ANSI/NFPA 75.
CAUTION! Do not open or mutilate batteries.
Released electrolyte is harmful to the skin and
eyes. It may be toxic.
DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products
for life support or medical applications.
DO NOT use in any circumstance that would
aect operation and safety of life support
equipment, any medical applications or
patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock, do
not use with or near an aquarium.
Condensation from the aquarium can cause
the unit to short out.
DO NOT USE THE UPS
ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The eect of shock or
vibration caused during transit and the damp
environment can cause the unit to short out.
CAUTION! Do not dispose of batteries in a fire.
The batteries may explode.

INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS unit
(b) User’s manual
(c) USB A + B type cable
(d) Function Setup Guide
PowerPanel® software is available on our website.
Please visit www.cyberpowersystems.com and
go to the Software Section for a free download.
OVERVIEW
The CST150XLU provides complete power
protection from utility power that is not always
consistent. The CST150XLU features 1500
Joules of surge protection. The unit provides
long lasting battery backup during power
outages with maintenance free batteries. The
CST150XLU ensures consistent power to your
computer system and includes software that
will automatically save your open files and
shutdown your computer system during a
utility power loss.

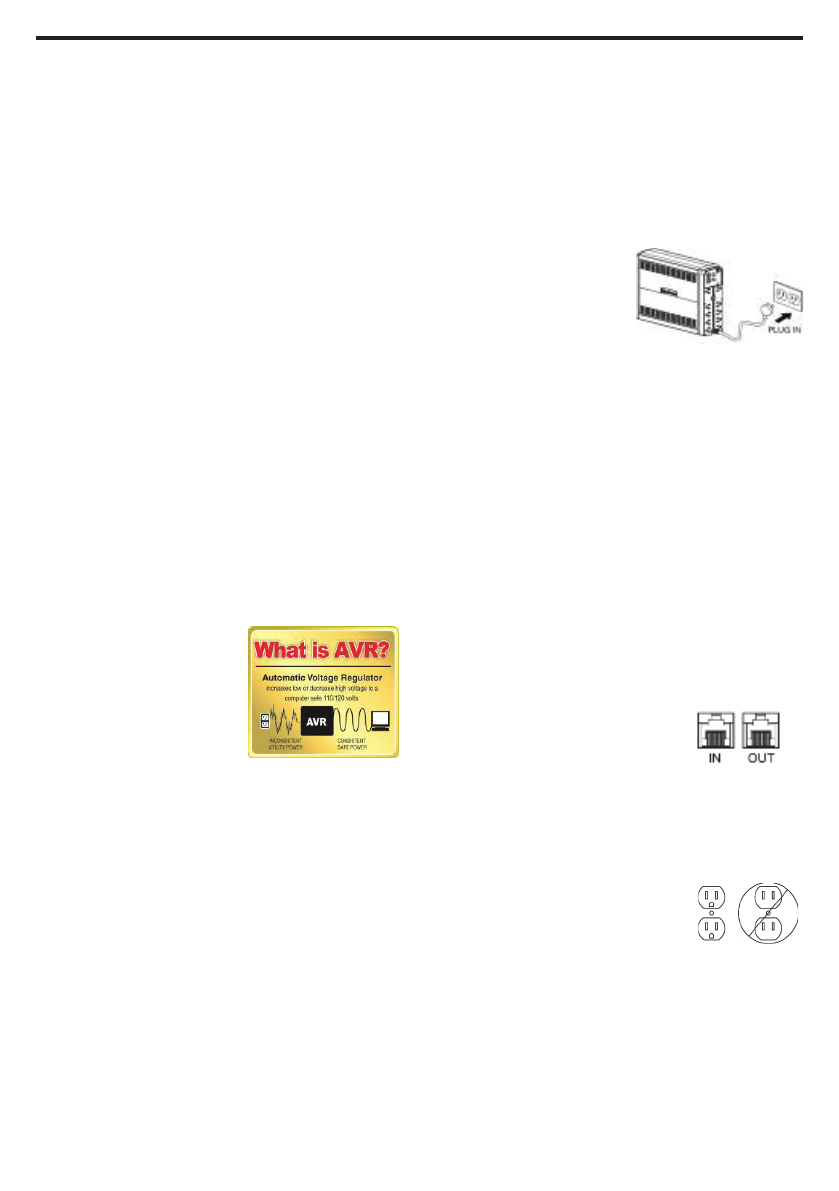

AUTOMATIC VOLTAGE REGULATOR
The CST150XLU stabilizes inconsistent utility
power voltage to nominal
levels that are safe for
equipment. Inconsistent
incoming utility power
may be damaging to
important data files
and hardware, but with
Automatic Voltage
Regulation (AVR),
damaging voltage levels are corrected to safe
levels. AVR automatically increases low utility
power or decreases high utility power to a
consistent and safe 110/120 volts.
DETERMINE THE POWER REQUIREMENTS
OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into
the UPS does not exceed the UPS unit’s
rated capacity. If the rated capacities of the
unit are exceeded, an overload condition
may occur and cause the UPS unit to shut
down or the circuit breaker to trip.
2. There are many factors that can aect
the amount of power that your electronic
equipment will require. For optimal system
performance keep the load below 80% of
the unit’s rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery’s maximum
charge capacity, it is recommended that
you charge the battery for at least 8 hours.
Your UPS is equipped with an auto-charge
feature. When the
UPS is plugged
into an AC outlet,
the battery will
automatically charge
whether the UPS is
turned on or o.
2. Note: This UPS is designed with a safety
feature to keep the system from being
turned on during shipment. The first time
you turn the UPS on, you will need to have
it connected to AC power or it will not
power up.
3. With the UPS unit turned o and
unplugged, connect your computer,
monitor, and any other peripherals
requiring battery backup into the battery
power supplied outlets. DO NOT plug a
laser printer, paper shredder, copier, space
heater, vacuum, sump pump or other
large electrical devices into the “Battery
and Surge Protected Outlets”. The power
demands of these devices may overload
and damage the UPS.
4. To protect a fax, phone
or modem, connect a
telephone cable or network
cable from the wall jack
outlet to the IN jack of the UPS. Connect
a telephone cable or network cable from
the OUT jack of the UPS to a fax machine,
telephone, modem, or network devices.
5. Plug the UPS into a 2-pole,
3-wire grounded receptacle
(wall outlet). Make sure
the wall branch outlet
is protected by a fuse
or circuit breaker and does not service
equipment with large electrical demands
(e.g. air conditioner, copier, etc.). The
warranty prohibits the use of extension
cords, outlet strips, and surge strips.
6. Press the power switch to turn the unit on.
The Power On indicator light will illuminate
and the unit will “beep”. If an overload is
detected, an audible alarm will sound and
-continued

INSTALLING YOUR UPS SYSTEM - continued
the unit will emit one long beep. To correct
this, turn the UPS o and unplug at least
one piece of equipment from the battery
power supplied outlets. Make sure the
circuit breaker is depressed and then turn
the UPS on.
8. To store the UPS for an extended period,
cover it and store with the battery fully
charged. While in storage, recharge the
battery every three months to ensure
battery life.
9. Ensure the wall outlet and UPS are located
7. To maintain optimal battery charge,
leave the UPS plugged into an AC outlet
at all times.
near the equipment being attached for
proper accessibility. near the equipment
being attached for proper accessibility.
BASIC OPERATION
1. Power Switch
Used as the master on/o switch for
equipment connected to the battery
power supplied outlets. (Please refer
to the Function Setup Guide for more
information.)
2. Power On Indicator
This LED is illuminated when the utility
power is normal and the UPS outlets are
providing power, free of surges and spikes.

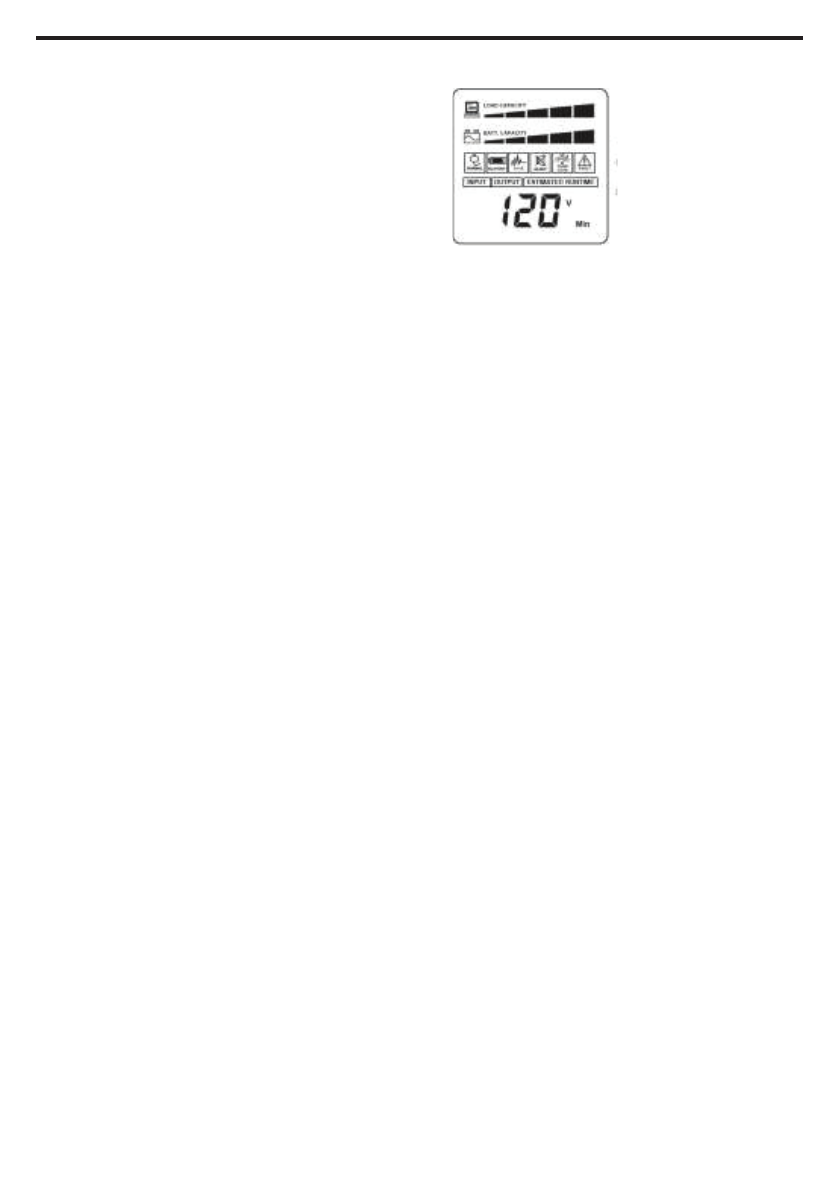

3. LCD module display
The LCD display shows all the UPS
information using icons and messages.
For more information please review the
“Definitions for Illuminated LCD Indicators”
section below.
4. LCD Display Toggle/Selected Switch
The switch can be used to select the LCD
display contents including Input Voltage,
Output Voltage, and Estimated Run Time.
The toggle frequency is set to one time
per second.
5. USB Charging Ports
The USB Charging ports provide 5V 2.1A
power output.
6. Battery and Surge Protected Outlets
The UPS has five battery powered/
surge suppression outlets for connected
equipment to ensure temporary
uninterrupted operation of your equipment
during a power failure. (DO NOT plug a
laser printer, paper shredder, copier, space
heater, vacuum, sump pump or other
large electrical devices into the “Battery
and Surge Protected Outlets”. The power
demands of these devices may overload
and damage the unit.)
7. Full-Time Surge Protection Outlets
The UPS has five surge suppression outlets.
8. Circuit Breaker
Located on the back of the UPS, the circuit
breaker serves to provide overload and
fault protection.
9. USB Ports to PC
The USB port allows connection and
communication between the USB port on
the computer and the UPS unit.
10.Communication Protection Ports
Communication protection ports will
protect any standard modem, fax,
telephone line, network or Ethernet
connection (RJ11/RJ45).
11. Wiring Fault Indicator (red)
This LED indicator will illuminate to warn
the user that a wiring problem exists, such
as bad ground, missing ground or reversed
wiring. If this is illuminated, disconnect
all electrical equipment from the outlet
and have an electrician verify the outlet is
properly wired. The UPS will not provide
surge protection without being plugged
into a grounded and properly wired wall
outlet.
12.Coax/Cable/DSS Surge Protection
The Coax/Cable/DSS protection ports will
protect any cable modem, CATV converter,
or DSS receiver.
13. Outlets Designed for AC Adapters
The unit has two outlets spaced to allow
AC power adapter blocks to be plugged
into the UPS without blocking adjacent
outlets.

REPLACING THE BATTERY
Replacement of batteries located
in an OPERATOR ACCESS AREA
1. When replacing batteries, replace with
the same number of the following
battery: CyberPower / RB1290X2 for the
CST150XLU
2. CAUTION! Risk of Energy Hazard, 24 V,
maximum 9 Ampere-hour battery. Before
replacing batteries, remove conductive
jewelry such as chains, wrist watches, and
rings. High energy conducted through
these materials could cause severe burns.
3. CAUTION! Do not dispose of batteries in a
fire. The batteries may explode
4. CAUTION! Do not open or mutilate
batteries. Released material is harmful to
the skin and eyes. It may be toxic.
5. CAUTION: A battery can present a risk
of electrical shock and high short circuit
current. The following precautions should
be observed when working on batteries:
1) Remove watches rings, or other
metal objects.
2) Use tools with insulated handles.
CAUTION - RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO LOCAL REGULATIONS
Yellow Wire to (+) Red Connector Red Wire to (+) Red Connector
Black Wire to (-) Black Connector Yellow Wire to (-) Black Connector
BATTERY REPLACEMENT PROCEDURE
1. Turn o and unplug all connected equipment.
2. Turn the UPS o and unplug it from the AC power source.
3. Turn the UPS on its side.
4. Remove two retaining screws located on the bottom of the UPS.
5. Slide the battery compartment cover completely o of the unit.
6. Remove the battery which is located on the right side from the compartment.
7. Disconnect the battery wires from the right side of the battery.
8. Slide the remaining battery from left to right and remove it from the compartment.
9. Disconnect the battery wires from the remaining battery.
10. Install the “left side” replacement battery by connecting the yellow wire (+) to the red
connector from the battery and the black wire (-) to the black connector from the battery.
Place the battery into the left side of the compartment.
11. Install the “right side” replacement battery by connecting the red wire (+) to the red
connector from the battery and yellow wire (-) to the black connector from the battery.
Place the battery into the right side of the compartment. Note: Only new batteries should
be used for replacement and both batteries should be replaced at the same time to insure
maximum life span.
12. Slide back the battery compartment cover and tighten the retaining screws.
13. Recharge the UPS for 8 to 16 hours to fully charge the battery.
REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly. Most retailers that sell lead-acid
batteries collect used batteries for recycling, as required by local regulations.

TROUBLESHOOTING
Problem Possible Cause Solution
Circuit breaker button is
projecting from the back of
the unit.
Circuit breaker has tripped due to
an overload.
Turn the UPS o and unplug at
least one piece of equipment.
Reset the circuit breaker by
depressing the button, and then
turn the UPS on.
The UPS does not perform
Battery not fully charged. Recharge the battery by leaving
the UPS plugged in.
expected runtime.
Battery is worn out.
Contact CyberPower Systems
about replacement batteries at:
cyberpowersystems.com/support.
The on/o switch is designed
to prevent damage from rapidly
turning it o and on.
Turn the UPS o. Wait 10 seconds
and then turn the UPS on.
The UPS will not turn on.
The unit is not connected to an
AC outlet.
The unit must be connected to a
120V 60Hz outlet.
The battery is worn out.
Contact CyberPower Systems
about replacement batteries at:
cyberpowersystems.com/support.
Mechanical problem. Contact CyberPower Systems at:
cyberpowersystems.com/support.
The USB cable is not connected.
Connect the USB cable to the
UPS unit and an open USB port on
the back of the computer.
You must use the cable that came
with the unit.
PowerPanel® Personal is inactive
(all icons are gray). The USB cable is connected to the
wrong port.
Check the back of the computer
for an additional USB port.
Move the cable to this port.
The unit is not providing
battery power.
Shutdown your computer and turn
the UPS o. Wait 10 seconds and
turn the UPS back on. This should
reset the unit.
The USB power ports are not
providing power to the
connected devices.
The USB power port has Over
Current Protection design. When
the total current of connected
devices is over 2.1 A, the USB
power ports will stop providing
power to the connected devices.
Turn the UPS o and unplug at
least one piece of device
connected to the USB power
port and then turn the UPS on.
Additional troubleshooting information can be found at “Support” at www.CyberPowerSystems.com

DEFINITIONS FOR ILLUMINATED LCD INDICATORS
1. INPUT Voltage Meter:
This meter measures the AC voltage that
the UPS system is receiving from the
utility wall outlet. The UPS is designed to
continuously supply connected equipment
with stable output voltage. In the event of a
complete power loss, severe planned power
suppression, or over-voltage, the UPS relies
on its internal battery to supply consistent
110/120 output voltage. The INPUT voltage
meter can be used as a diagnostic tool to
identify poor-quality input power.
2. OUTPUT Voltage Meter:
This meter measures, in real time, the AC
voltage that the UPS system is providing
to the computer during normal AC/Utility
Power mode, and battery backup mode.
3. ESTIMATED RUNTIME:
This displays the run time estimate of the
UPS with the current battery capacity
and load.
4. NORMAL Icon:
This icon appears when the UPS is working
under normal conditions.
5. BATTERY Icon:
During a severe planned power suppression
or power outage, this icon appears and an
alarm sounds (two short beeps followed by
a pause) to indicate the UPS is operating
from its internal batteries. During a
prolonged planned power suppression
or power outage, the alarm will sound
continuously to indicate the UPS’s batteries
are nearly out of power. You should
save files and turn o your equipment
immediately or allow the software to shut
the system down.
6. AVR (Automatic Voltage Regulation) Icon:
This icon appears whenever your UPS
is automatically correcting low AC line
voltage without using battery power. This is
a normal, automatic operation of your UPS,
and no action is required on your part.
7. SILENT MODE Icon:
This icon appears whenever the UPS is in
silent mode. The buzzer does not beep
during silent mode until the battery reaches
low capacity.
The LCD display indicated a
variety of UPS operational
conditions. All descriptions
apply when the UPS is
plugged into an AC outlet
and turned on or when the
UPS is on battery.
8. OVERLOAD Icon:
This icon appears and an alarm sounds to
indicate the battery-supplied outlets are
overloaded. To clear the overload, unplug
some of your equipment from the battery-
supplied outlets until the icon turns o and
the alarm stops.
9. FAULT:
F01: Battery Mode or AC/Utility Power
Mode Overload fault (Unplug at least one
piece of equipment from battery outlets
and turn the UPS on again.)
F02: Battery Output Short fault (Unplug at
least one piece of equipment from battery
outlets and turn the UPS on again.)
F03: Charger Fault (Contact CyberPower
Systems for support.)
F04: Internal Fault (Contact CyberPower
Systems for support.)
10. BATT. CAPACITY Meter:
This meter displays the approximate charge
level (in 20% increments) of the UPS’s
internal battery. During a power outage
or severe planned power suppression,
the UPS switches to battery power, the
BATTERY icon appears, and the charge
level decreases.
11. LOAD CAPACITY Meter:
This meter displays the approximate output
load level (in 20% increments) of the UPS
battery outlets.

EMI
Filter
Surge
Suppressor AVR
Input Output
Inverter
Charger
AC / DC
Normal Mode
Battery Mode
Battery
TECHNICAL SPECIFICATIONS
Model CST150XLU
Capacity 1500 VA / 900 W
Nominal Input Voltage 120 Volts
Input Frequency 60 Hz +/- 3 Hz
On-Battery Output Voltage 120 VAC +/- 5%
Max. Load for UPS Outlets (5 Outlets) 1500 VA / 900 W
Max. Load for Full-Time Surge Protection Outlets 12 Amps
On-Battery Output Wave Form Simulated Sinewave
Operating Temperature + 32°F to 104° F / 0° C to 40° C
Operating Relative Humidity 0 to 95% non-condensing
Size (W x H x D) 3.9 in., 9.8 in., 13.7 in.
Net Weight 25.0 lbs / 11.3 kg
Battery Type CyberPower / RB1290X2
Typical Battery Recharge Time 8 hours to 90% capacity from total discharge
Typical Battery Life 3 to 6 years, depending on number of
discharge/recharge cycles
Recommended Battery Sealed Maintenance Free Lead Acid Battery
Safety Approvals UL1778(UPS), cUL107., FCC/DoC Class B
SYSTEM FUNCTION BLOCK DIAGRAM

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY
Advanced Energy-Saving Design
The GreenPower UPS™ has a high-eciency charger, which makes it
the most energy-ecient UPS in its class. The advanced high-frequency
charging system significantly improves charging eciency and conserves
energy. As a result of this advanced design, the GreenPower UPS™ uses
less energy compared to competitive models. The GreenPower UPS™ is
manufactured in accordance with the Restriction on Hazardous Substances
GREEN POWER UPS™
Energy-Saving Technology
(RoHS) directive making it one of the most environmentally-friendly UPS
systems on the market today.
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Canadian Compliance Statement
CAN ICES-3 (B)/NMB-3(B)
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE
Please visit www.CyberPowerSystems.com for a copy of the Limited Warranty and Connected
Equipment Guarantee.
Where Can I Get More Information?
The application of the United Nations Convention of Contracts for the International Sale of
Goods is expressly excluded. CyberPower is the warrantor under this Limited Warranty.
For further information please feel free to contact CyberPower at:
Cyber Power Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379;
call us at [phone]; or submit a web ticket online at cyberpowersystems.com/support.
Cyber Power Systems (USA), Inc. encourages environmentally sound methods for disposal
and recycling of its UPS products. Please dispose and/or recycle your UPS and batteries in
accordance to the local regulations of your state.
WARNING: This product can expose you to chemicals including bisphenol A (BPA) and styrene,
which is known to the State of California to cause reproductive harm and cancer. For more
information, go to www.P65Warnings.ca.gov.
© 2022 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc.
All rights reserved. All other trademarks are the property of their respective owners.
