CyberView CV-S101 User manual

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
Designed and manufactured by Austin Hughes 751
User Manual
CV-S101 Combo KVM Extender
dedicated KVM switch and rackmount screen technology

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
< Part. 3 > Keyboard Hotkey Command P. 7
< Part. 2 > Application
2.1 Extending the KVM console port to 150 meters
2.2 Extending the computer to KVM port to 150 meters
2.3 Extending the computer up to 150 meters
P. 4
P.5
P. 6
< Part. 1 > CV-S101
1.1 Package Contents
1.2 Transmitter
1.3 Receiver
Contents
P. 1
P. 2
P. 3

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
P. 1

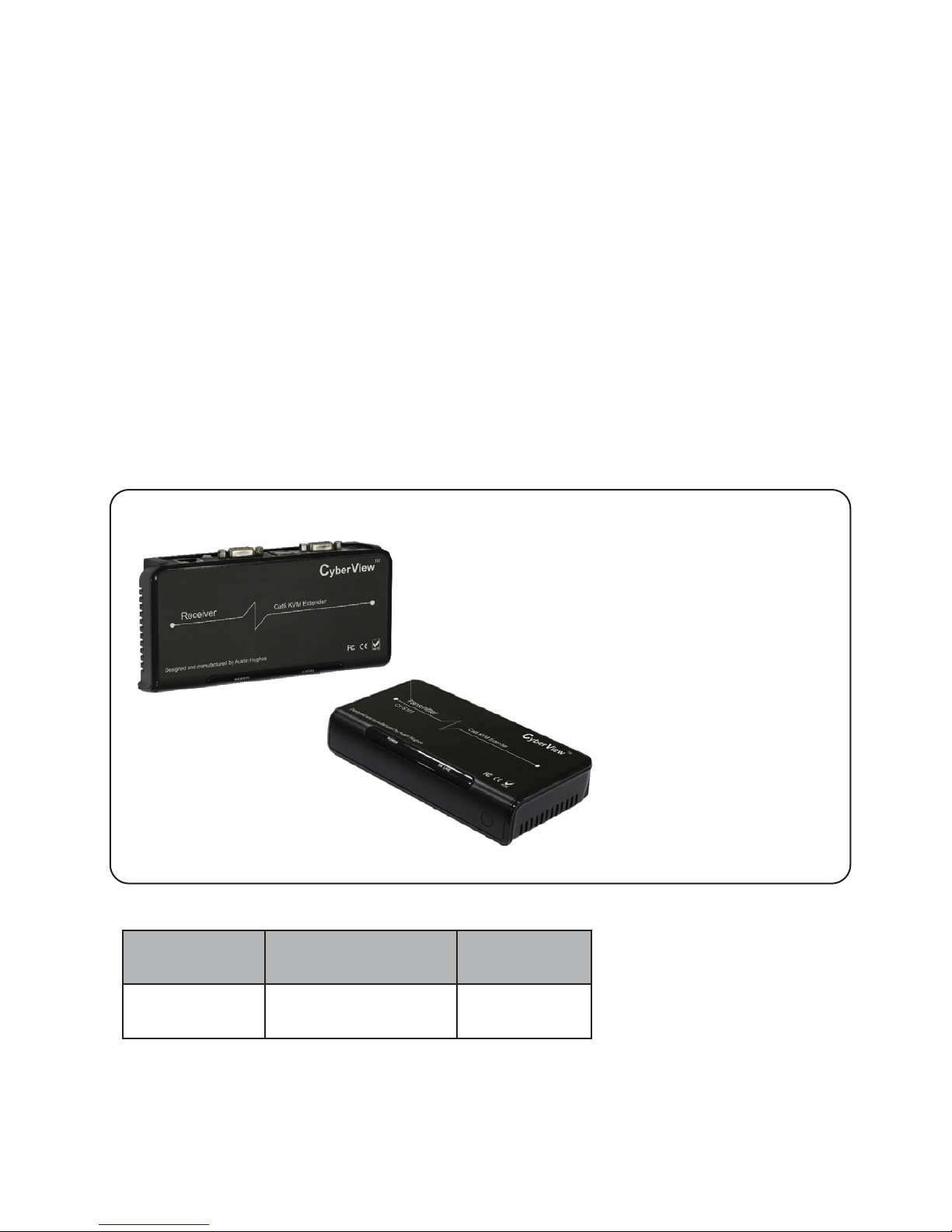

< 1.1 > Package Contents
Receiver
CV-S101
< Part 1 >
Transmitter
CV-S101 Receiver and Transmitter X 1
- CE-6 6ft Combo KVM cable X 1
- Power adapter w/ power cord ( for receiver ) X 1
Receiv
er
Model Packing Dimension
(W x D x H) Gross Weight
CV-S101 317 x 210 x 107 mm
12.5 x 8.3 x 4.2"
1.25 kg
2.8 lb

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
P. 2
Power
LED
Status
LED
LED Status Description
POWER Solid Blue Power is on ( from the local computer or power adapter )
No Light There is no Power
ON LINE Solid Green The connection to Receiver is active
Flashing Green Transmitter is sending or receiving data, or auto-adjusting the signal
No Light No connection established
< 1.2 > Transmitter CV-S101
Transmitter Specification
Console Port 1 x DB-15 VGA, up to 1920 x 1440
2 x USB connector for KB & mouse
Remote I / O 1 x RJ-45 port, connect the Receiver up to 1280 x 1024 resolution
( 150 meters )
Local computer 1 x DB-15 combo KVM port
LED Power ( blue ) & On Line ( green )
Power Input From attached local computer or optional 12V power adapter
Power Consumption Max. 9W
Operating Temperature 0 to 55°C degree
Storage Temperature -20 to 60°C degree
Operating Humidity 20~90%, non-condensing
Storage Humidity 5 ~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 5~500Hz 1G RMS random
Dimension ( W x D x H ) 165 x 85 x 32 mm
Weight 200g
Safety FCC & CE certified
Environmental RoHS2 compliant
VGA
Power KB
Mouse
Local
Computer Remote I/O
Front
Rear

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
VGA
Power KB
Mouse
Local
Computer Remote I/O
Front
Remote
LED
Local
LED
Rear
Receiver Specification
Console Port 1 x DB-15 VGA, up to 1920 x 1440
2 x USB connector for KB & mouse
Remote I / O 1 x RJ-45 port, connect the Transmitter up to 1280 x 1024 resolution
( 150 meters )
Local computer 1 x DB-15 combo KVM port
LED Local ( green / red ) & Remote ( green / red )
Power Input 12V power adapter
Power Consumption Max. 9W
Operating Temperature 0 to 55°C degree
Storage Temperature -20 to 60°C degree
Operating Humidity 20~90%, non-condensing
Storage Humidity 5 ~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 5~500Hz 1G RMS random
Dimension ( W x D x H ) 165 x 85 x 32 mm
Weight 200g
Safety FCC & CE certified
Environmental RoHS2 compliant
P. 3
LED Status Description
REMOTE Solid Green Remote port is connected to the Transmitter
Solid Red Remote port is selected
Flashing Red Remote port is selected but no connection established
or auto-adjusting the signal
No Light Remote port is not connected or the power is OFF
LOCAL Solid Green Local port is connected to the local PC / KVM
Solid Red Local port is selected
Flashing Red Local port ( PC / KVM ) is selected but no PC signal is detected
No Light Local port is not connected or the power is OFF
< 1.3 > Receiver CV-S101
Select button
Button Description
SELECT Switch between REMOTE ( Transmitter ) and LOCAL ( Receiver )

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
CE-6 combo
KVM cable
USB Console
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
KVM switch
P. 4
< 2.1 > Extending the KVM console port to 150 meters
CV-S101
< Part 2 > Application
Transmitter Front
Cat6 cable
up to 150 meters
Monitor
Receiver
CE-6
6ft combo
KVM cable
Front
Monitor

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
Transmitter
P. 5
Cat6 cable
up to 150 meters
Receiver
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
Cat6 KVM port
12345678
DB-15 KVM port
Cat5/6 dongle
OR VGA
< 2.2 > Extending the computer to KVM port to 150 meters CV-S101
Monitor
Front
KB
Mouse
Front
CE-6
6ft combo
KVM cable

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
Cat6 cable
up to 150m
< 2.3 > Extending the computer up to 150 meters CV-S101
P. 6
Monitor
CE-6
6ft combo
KVM cable
Monitor
CE-6
6ft combo
KVM cable
Transmitter
Front
Receiver
Front

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
< Part 3 > Keyboard Hotkey Command
Command Function
CTo switch between Local and Remote ports
QTo turn the beep sound on or off
STo activate the Auto-Scan function. Auto-scan Remote
and Local port every 8 seconds repeatedly.
AFor auto-adjust video signal of remote port to optimum
You can switch the Receiver from “LOCAL” to “REMOTE” and vice-versa through simple key sequences
made by the remote console side. To send commands to the Receiver, you must press the hotkey (default is
Scroll Lock) twice within 2 seconds. You will hear a beep sound confirming you are in the hotkey mode. If you
do not press any key during hotkey mode over 2 seconds, the hotkey mode will be terminated and back to
normal state.
The default hotkey is Scroll Lock but you can change hotkey as your application convenience.
The table blow lists all the supported hotkey commands.
Example:
P. 7
CV-S101

UM-CV-751-CV-S101-Q116V2 www.austin-hughes.com
