CYP CSC-6011 User manual

CSC-6011
4K UHD+ HDMI and PC/HD to HDMI Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2016 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 04/07/16 Preliminary release
VR1 23/09/16 Supported resolution
VS2 14/11/16 Updated text/diagrams

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 4
6.3 OSD Menu.................................................. 5
7. Connection Diagram ......................................9
8. Specications ................................................10
8.1 Technical Specications ........................ 10
8.2 Video Specications............................... 11
8.2.1 Supported Resolutions................... 11
8.2.2 Scaled Resolutions ......................... 12
8.3 Audio Specications............................... 13
9. Acronyms .......................................................14

1
1. INTRODUCTION
This is a compact yet versatile 4K UHD HDMI and PC/HD to HDMI
Scaler. It accepts a wide range of resolutions from 480i up to 1080p/
WUXGA for PC/HD and up to 4K@60Hz (4:4:4) for HDMI with the ability
to scale the output to a selectable resolution up to 4K@60Hz (4:4:4)
with simultaneous de-embedded, digital optical and analog audio
output. 3-D motion adaptive de-interlacing and frame rate conversion
is supported as well.
Integrated EDID management options allow for control over the
way connected sources detect the unit. Also included is an auto
source detection and switching feature allowing the unit to switch
automatically to the most recently connected source, or to switch to
the alternate source if the current one becomes disconnected.
This unit has a comprehensive OSD menu that provides the user with
easy access to all settings. An integrated hot-key design makes for
rapid access to common functions such as input selection and audio
volume. This is an ideal device to integrate previously incompatible
sources and displays or to provide a exible auto-detecting input
point for your boardroom meeting presenter’s devices.
2. APPLICATIONS
• Home Theater with 4K@60Hz HDMI media player and VGA home PC
with output to a 4K@60Hz TV
• Boardroom presenter connection point with auto-switching to new
presenters and output to a large 4K display
• Lecture Hall, Showroom or Classroom signal display
• Displaying analog PC/HD contents on an HDMI display with audio
3. PACKAGE CONTENTS
• 1×HDMI/VGA to HDMI Scaler
• 1×5 V/2.6 A Power Adaptor
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI or VGA source equipment such as media players, video
game consoles, set-top boxes, PCs or laptops
• HDMI receiving equipment such as HDTVs, monitors or audio
ampliers
• The use of “Premium High Speed HDMI” cables is highly
recommended
5. FEATURES
• HDMI 2.0 with 4K@60Hz (4:2:0 and 4:4:4) support, DVI 1.0 compliant
• HDCP 2.2 compliant
• Supports PC input resolutions from VGA~WUXGA and HD input
resolutions from 480i~1080p@60Hz
• Supports HDMI input resolutions from 480i~4K@60Hz (4:4:4, 8-bit)
• Supports HDMI output resolutions from 640×480@60Hz up to
4096×2160@60Hz (4:4:4, 8-bit)
• Analog YUV input is supported with the use of a 15-pin to 3-RCA
adapter
• 50/60Hz frame rate conversion
• 3-D motion adaptive de-interlacing and 3:2/2:2 pull-down detection
and recovery
• Can automatically detect and output the preferred resolution and
refresh rate reported by the EDID of the connected display (NATIVE
output mode)
• EDID management options including multiple pre-dened EDIDs
and EDID pass-through
• Comprehensive output picture adjustments (contrast, brightness,
hue, saturation, sharpness, RGB (color tone) level and aspect ratio
size)
• Supports LPCM 2.0 digital/analog audio input and LPCM 2.0 digital/
analog output. The audio source is selected via the OSD and output
simultaneously over the HDMI, optical and phone jack connections
• Supports rmware updates via USB

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
OUT XGA
MEN
UE
NTER + -
OPTICAL HDMIAUDIO
720P
1 2 3 4 5 6
1OPTICAL OUT: Connect to powered speakers or an amplier for
digital audio output using an appropriate optical cable. Supports
LPCM 2.0 audio only. Bitstream formats will be muted.
2HDMI OUT: Connect to HDMI TVs, monitors or ampliers for digital
video and audio output.
Note: When outputting 4K@60Hz HDMI signals, a compatible
4K@60Hz display is required. The use of “Premium High Speed
HDMI” cables is highly recommended.
3AUDIO OUT: Connect to powered speakers or an amplier for
stereo analog audio output. Supports LPCM 2.0 audio only.
Bitstream formats will be muted.
4MENU: Press to enter the OSD menu, or to back out from menu
items.
Note: Pressing “MENU” and “+” together will reset the output
resolution to XGA (1024x768@60Hz). Pressing “Menu” and “-”
together will reset the output resolution to 720p@60Hz.
5-/+: Press to move up and down or adjust selections within menus.
When not in the OSD press “-” to adjust the analog audio output
volume (with on screen level indicator). Press “+” to activate the
Auto Adjust function for VGA sources.
6ENTER: Press to conrm a selection or to go deeper into a menu
item within the OSD. When not in the OSD this button switches
between the 2 inputs.
Note: Pressing “ENTER”, “+” and “-” together will perform a factory
reset on the unit.

4
6.2 Rear Panel
DC 5V
POWER
IN
PC HDMIAUDIO
OPTICAL
SERV.
1 2 3 4 5 6 7
1PC IN: Connect to VGA source equipment such as a PC or laptop.
YUV sources, such as DVD players, are also supported with the use
of a 15-pin to 3-RCA adapter.
2HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box. DVI sources are also
supported with the use of an HDMI to DVI adapter.
Note: When outputting 4K@60Hz HDMI signals, a compatible
4K@60Hz display is required. The use of “Premium High Speed
HDMI” cables is highly recommended.
3AUDIO IN: Connect to the stereo analog output of a device such
as a CD player or PC.
4OPTICAL IN: Connect to the optical audio output of a device such
as a media player or game console using an appropriate optical
cable.
5SERVICE: This slot is reserved for rmware update use only.
6DC 5V: Plug the 5V DC power adapter into the unit and connect it
to an AC wall outlet for power.
7POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.

5
6.3 OSD Menu
MAIN MENU SUB MENU PARAMETER DEFAULT
PICTURE CONTRAST 0~100 50
BRIGHTNESS 0~100 50
EXIT
FINETUNE
[HDMI/YPbPr
source only]
HUE 0~100 50
SATURATION 0~100 50
SHARPNESS 0~100 50
NR OFF OFF
LOW
MIDDLE
HIGH
EXIT
FINETUNE
[PC source only]
PHASE 0~100
CLOCK 0~100
H-POSITION 0~100
V-POSITION 0~100
EXIT
COLOR RED 0~100 50
GREEN 0~100 50
BLUE 0~100 50
EXIT
OUTPUT SOURCE PC/YPbPr HDMI
HDMI
RESOLUTION* 640×480@60 NATIVE
800×600@60
1024×768@60
1280×768@60
1360×768@60
1280×800@60

6
MAIN MENU SUB MENU PARAMETER DEFAULT
OUTPUT
(Cont.)
RESOLUTION
(Cont.)
1280×1024@60 NATIVE
1440×900@60
1400×1050@60
1680×1050@60
1600×1200@60
1920×1200@60 (RB)
480P@60
576P@50
720P@50
720P@60
1080P@50
1080P@60
4K2K@24
4K2K@25
4K2K@30
4K2K@50
4K2K@60
4K2K@50 (4:2:0)
4K2K@60 (4:2:0)
NATIVE
UHD BYPASS BYPASS SCALER
SCALER
SIZE* FULL BEST FIT
OVER SCAN
UNDER SCAN
LETTER BOX
PAN SCAN
BEST FIT
EXIT

7
MAIN MENU SUB MENU PARAMETER DEFAULT
AUDIO HDMI INPUT AUTOMATIC AUTOMATIC
EMBEDDED
ANALOG
OPTICAL
PC INPUT ANALOG ANALOG
OPTICAL
VOLUME
[Analog audio
only]
0~100 100 [=2Vrms]
EXIT
OSD TIMER OFF 10
5~100
DISPLAY INFO INFO
ON
OFF
EXIT
EDID MANAGE
[HDMI source
only]
EDID COPY DEF. 1080P DEF. 1080P
DEF. 4K2K (6G)
DEF. 4K2K
DEF. 4K2K (3G)
OUTPUT
EXIT
ADVANCED AUTO SYNC OFF OFF
FAST [≈ 10 sec.]
SLOW [≈ 120 sec.]
AUTO INPUT OFF AUTO
SWITCH
AUTO SWITCH
HDCP ON INPUT OFF ON
ON

8
MAIN MENU SUB MENU PARAMETER DEFAULT
ADVANCED
(Cont.)
AUTO ADJUST OFF OFF
ON
EXIT
FACTORY RESET NO NO
YES
EXIT
Note:
• When outputting a 4K resolution with the same refresh rate as the
4K source (or when bypass mode is enabled) the OSD items marked
with an asterisk (*) will be disabled.
• When a new output resolution is selected the output will
immediately change and you will be asked to conrm that you can
view the new resolution by pressing “Enter”. If “Enter” is not pressed
within 30 seconds the output will return to the previous resolution
automatically.

9

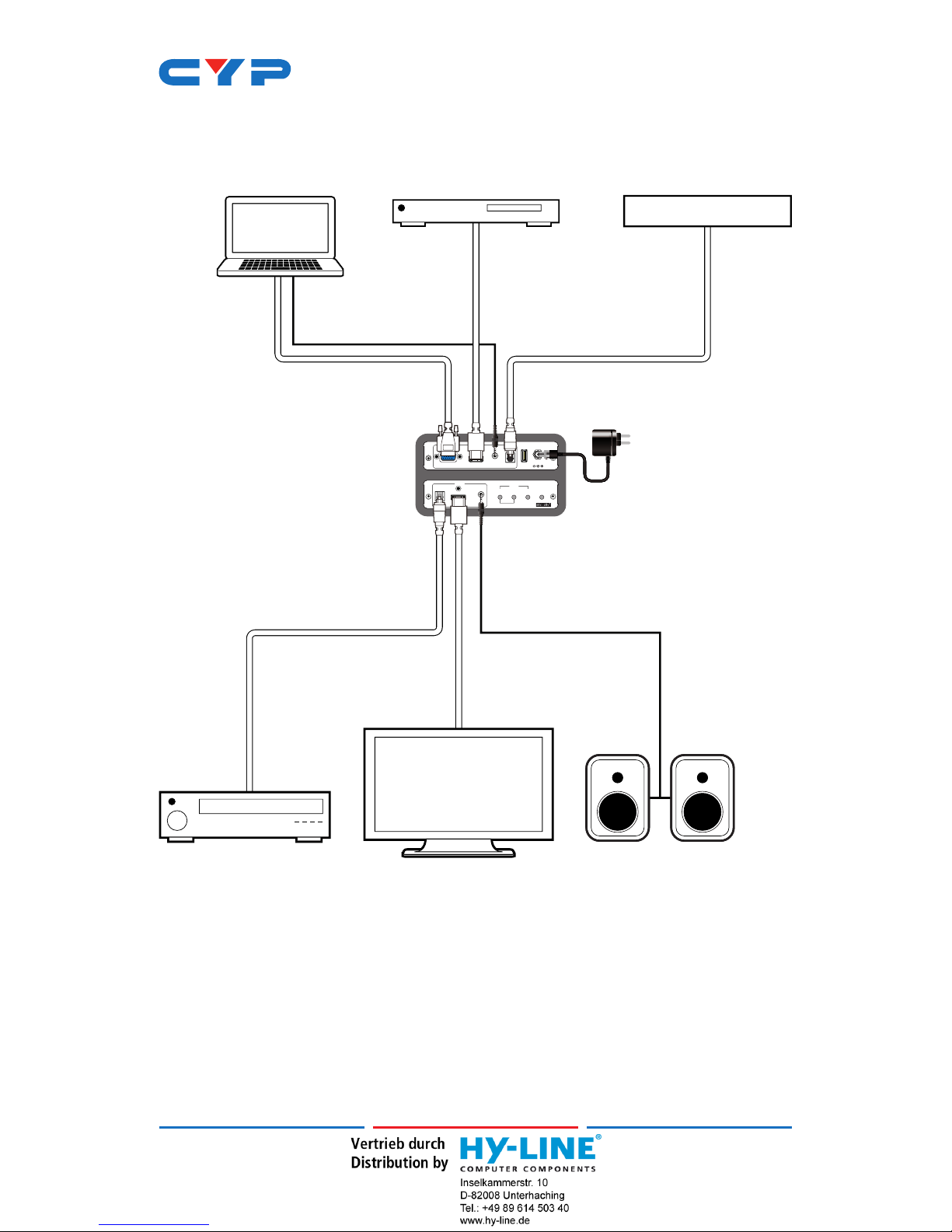

7. CONNECTION DIAGRAM
DC 5V
POWER
IN
PC HDMIAUDIO
OPTICAL SERV.
OUT XGA
MENUENTER
+ -
OPTICAL HDMIAUDIO
720P
DVD or Blu-ray Player Media StreamerPC/Laptop
Analog
Audio
Input
Digital
Audio
Output
AV Receiver HDTV Powered Speakers
HDMI
Input
HDMI
Output
Digital
Audio
Input
Analog
Audio
Output
Power
Supply
VGA
Input

10
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 600MHz/18Gbps
Input Ports 1×HDMI, 1×VGA [15-pin D-sub], 1×Optical
Audio, 1×3.5mm Audio
Output Ports 1×HDMI, 1×Optical Audio, 1×3.5mm Audio
Supported Resolutions 408i@60Hz - 4K@60Hz (4:4:4, 8-bit)
VGA@60Hz - WUXGA@60Hz (RB)
Cable Length 10 m (1080p@60Hz, 12-bit)
5 m (4K@60Hz, 4:4:4, 8-bit)
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human Body Model: ±8KV (Air Discharge),
±4KV (Contact Discharge)
Dimensions 145mm×30mm×192mm (W×H×D)
[Case Only]
145mm×30mm×201.2mm (W×H×D)
[All Inclusive]
Weight 578g
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (No-condensing)
Power Consumption 8.47W

11
8.2 Video Specications
8.2.1 Supported Resolutions
PC Resolution (Hz)
HDMI
Input
VGA
Input
HDMI
Output
640×480@60/72/75/85  
60Hz only
800×600@56/60/72/75/85  
1024×768@60/70/75/85  
1280×1024@60/75/85  
1360×768@60 
1280×800@60 
1280×1024@60 
1440×900@60 
1400×1050@60 
1600×1200@60 
1680×1050@60 
1920×1200@60 (RB) 
TV Resolution (Hz)
HDMI
Input
YPbPr
Input
HDMI
Output
480i/576i  
480p/576p 
720p@50/60 
1080i@50/60  
1080p@24/25/30  
1080p@50/60 
3840×2160@24/25/30  
3840×2160@50/60  
4096×2160@24/25/30 Bypass
only
4096×2160@50/60 

12
8.2.2 Scaled Resolutions
Input
Resolution
Output
Resolution
UHD BYPASS
SCALER BYPASS
Bypass
Path
Scaler
Path
Bypass
Path
Scaler
Path
Non-4K Timing Any Timing  
4K but not 24Hz 4K@24Hz N/A N/A
4K but not 25Hz 4K@25Hz N/A N/A
4K but not 30Hz 4K@30Hz N/A N/A
4K but not 50Hz 4K@50Hz Note N/A N/A
4K but not 60Hz 4K@60Hz Note N/A N/A
4K but not 50Hz 4K@50Hz (4:2:0) Note N/A N/A
4K but not 60Hz 4K@60Hz (4:2:0) Note N/A N/A
4K@24Hz 4K@24Hz  
4K@25Hz 4K@25Hz  
4K@30Hz 4K@30Hz  
4K@50Hz 4K@50Hz  
4K@60Hz 4K@60Hz  
4K@50Hz (4:2:0) 4K@50Hz (4:2:0)  
4K@60Hz (4:2:0) 4K@60Hz (4:2:0)  
Note: If a 4K input source and the selected 4K output resolution share
the same timing (e.g. 3840×2160@60Hz input to 3840×2160@60Hz
output) but use different color sub-sampling (4:4:4 to 4:2:0) the unit will
convert the color and use the “Bypass path” for the output.

13
8.3 Audio Specications
Formats HDMI Optical Analog
LPCM 2.0 
LCPM 5.1 
LPCM 7.1 
Bitstream 
HD Bitstream 
Sampling Rates (kHz) HDMI Optical
32  
44.1  
48  
88.2 
96 
176.4 
192 
Input Output
Level
Frequency
Range Level THD+N
Frequency
Response SNR Crosstalk
Digital Audio Digital Audio
0 dB 1 kHz 0 dB ~ -1 dB < 0.01 % ± 1 dB > 80 dB < -80 dB
Analog Audio Digital Audio
1Vrms 1 kHz 0 dB ~ -1.5 dB < 0.1 % ± 3 dB > 70 dB < -60 dB
Digital Audio Analog Audio
0 dB 1 kHz 0.5 Vrms ± 10 % < 0.1 % ± 3 dB > 80 dB < -60 dB
Analog Audio Analog Audio
1 Vrms 1 kHz 0.5 Vrms ± 10 % < 0.1 % ± 3 dB > 70 dB < -60 dB

14
9. ACRONYMS
ACRONYM COMPLETE TERM
dB Decibel
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
LPCM Linear Pulse-Code Modulation
SNR Signal-to-Noise Ratio
THD+H Total Harmonic Distortion plus Noise
UHD Ultra-High-Denition
VGA Video Graphics Array
XGA Extended Graphics Array
WUXGA Wide Ultra Extended Graphics Array

CYPRESS TECHNOLOGY CO., LTD.
www.cypress.com.tw
