Ophit UVC-S300 User manual

Universal Video Converter
UVC-S300
USER’S manual

Table of Contents
1. Introduction ………….......................................…2
2. Features ……………….............………..………....2
3. Model Name …...............………………….………2
4. Panel Descriptions ...........………………….………3
5. Package Contents ….............…………….……….3
6. Key name & Function ...........................................4
7. Video Cropping.......................................................4
8. Installation .………………............……….…………7
9. Specification ………………..............……..………..8
10. Precaution .……………………………..............…9
11. Warranty ...............................................................10
12. Contact us ............................................................11
www.ophit.com 1

2
Introduction
This Universal Video Converter (Model: UVC-S300) is powerful Multi-Format
Video input/output Converter which is able to convert Digital to Analog. This unit
has digital HDMI port as input formats and Composite
(RCA & BNC) / S-Video / D-SUB / DVI as output formats.
The input video signal (HDMI) is converted 5(five) output formats as analog
Composite (RCAand BNC) / S-Video / D-SUB and 1(one) digital DVI output.
The unit has a unique function as cropping which is available in the
S-Video /composite output formats.
The unit is designed with a stringent safety requirements such as the medical
environment and other similarly restriction location.
•Convert Digital to Analog video signal
•Input format : HDMI
•5 Output formats : D-Sub, DVI, S-Video, Composite (RCA and BNC)
•5 Simultaneous Outputs.
•Output of DVI / D-SUB outputs to the same size screen when HDMI
Inputs (NO Crop)
•Output of S-video / Composite outputs to down scaling when HDMI
Input available for 7types of cropping in S-VIDEO /Composite output
using by Dip Switch.
•Output of S-video / Composite outputs to down scaling when HDMI
Inputs available for any cropping position in S-VIDEO /Composite
output using by communication commands from system’s I2C signal line.
•NTSC/PAL Output is selectable by Dip Switch (S-video / Composite)
•Available for RCA and BNC port output simultaneously as composite output.
•DVI 1.0 Compliant
Features
www.ophit.com
Model Name
•UVC-S300

Panel Descriptions
3
Package Contents
Before installingUVC-S300, please check the package contents.
•Converter (UVC-S300)
•HDMI to HDMI cable (Length : 1.0 m)
•User’s Manual
www.ophit.com

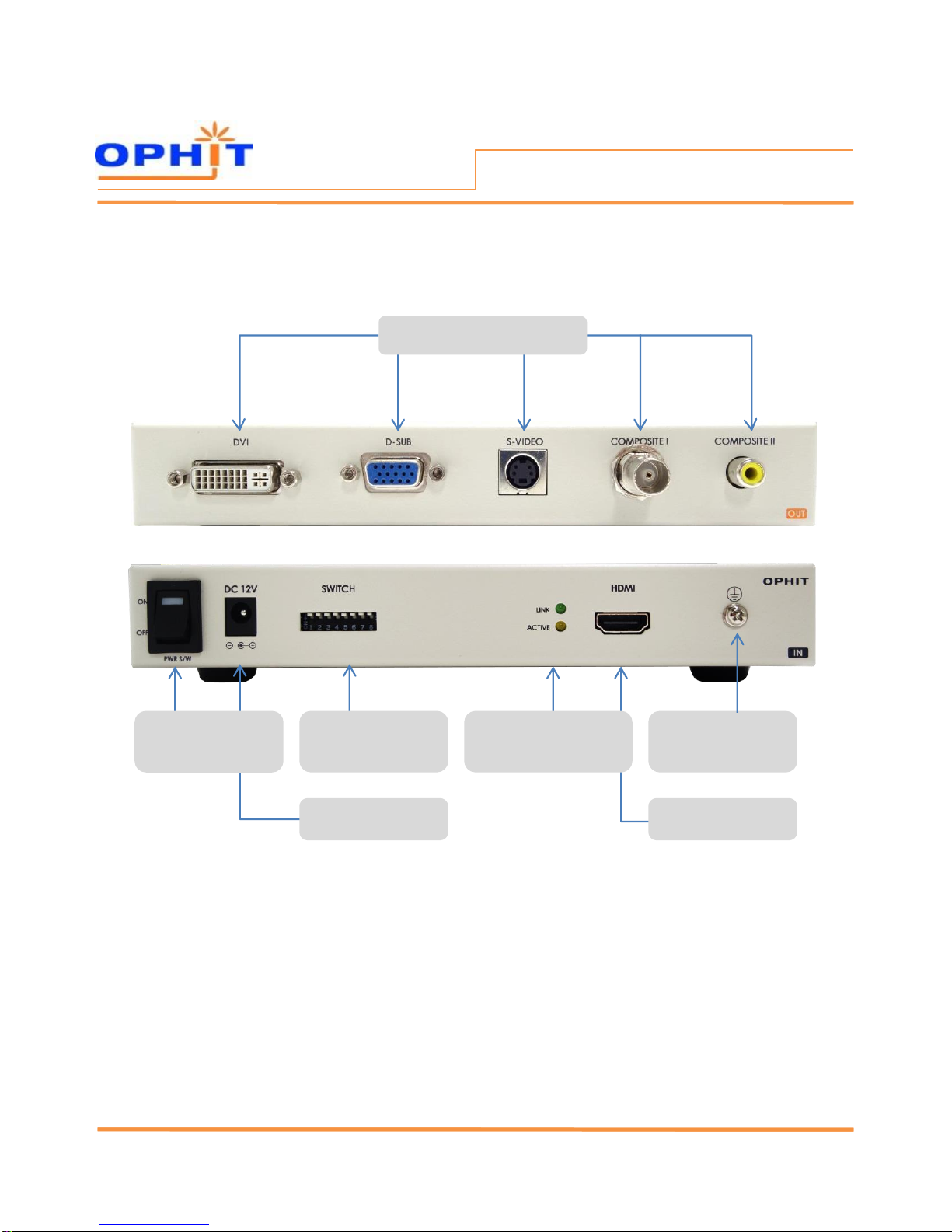

Panel Descriptions
Input HDMI
LED Indicator
Function
Switch
Power Port
Output port
Power
Switch
Input HDMI
GND
Screw

Key name & Function
www.ophit.com4
Video Cropping
User shall be selected one of 7 types cropping area or adjustable by
communication command
SW # Function
1 Video clock setting for Sony monitor
2
S-Video/Composite 7 types Cropping area Select
3
4
5
S-Video/Composite 5 Signal Format Select
(Current 2 Signal Format support)
6
7
8 Adjustable Cropping area select
Key name & Function
<8Pin SelectionDIP Switch SignalAssignment>

Key name & Function
www.ophit.com 5
Coordinate # (x1,y1).start (x2,y2).end
Video Area
(X,Y)
Resolution
Coordinate 1 ( 305, 15 ) ( 1264, 734 )
960 x 720 ( 1280, 1024 ) SXGA
Coordinate 2 ( 256, 1 ) ( 1279, 768) 1024 x 768
( 1280, 1024 ) SXGA
Coordinate 3 (316.0, 0) (1771, 818) 1456 x 819
( 1920, 1080 ) HD 1080
Coordinate 4 ( 224, 0 ) ( 1023, 599 )
800 x 600 ( 1024, 768 ) XGA
Coordinate 5 (315,0) (1919,919) 1605 x 920
( 1920, 1080 ) HD 1080
Coordinate 6 (355,0) (1494,919) 1140 x 920
( 1920, 1080 ) HD 1080
Coordinate 7 (390,0) (1634,932) 1245 x 933
( 1920, 1080 ) HD 1080
S-Video/Composite 7 types Cropping area Selection
* Cropping image shall be fit into full display size for S-Video and Composite video
Video clock setting for Sony monitor
* This function is change to frequency of resolution for compatibility.
- 1080p(1920x1080@60Hz): 148.352MHz@59.94Hz → 148.5[email protected]2Hz
- SXGA(1208x1024@60Hz): 108.00MHz@60.01Hz → 108.[email protected]4Hz
- XGA(1024x768@60Hz): 65.00MHz@60.00Hz → 65.0[email protected]
SW # OFF ON
SW1 Default For Sony Monitor

Key name & Function
www.ophit.com
6
S-Video/Composite 7 types Cropping area Select
Coordinate # SW2 SW3 SW4
Coordinate 1 OFF OFF OFF
Coordinate 2 ON OFF OFF
Coordinate 3 OFF ON OFF
Coordinate 4 ON ON OFF
Coordinate 5 OFF ON ON
Coordinate 6 ON ON ON
Coordinate 7 OFF OFF ON
* For detail Coordinate # information,refer to the table, 7Types Video Cropping
Area in the section 3.2.5 Video Cropping
Adjustable Cropping Area Selection
S-Video/Composite Output Format Selection
SW # OFF ON
SW8 Disable Enable
Function SW5 SW6 SW7
NTSC OFF OFF OFF
PAL ON OFF OFF
Reserved OFF ON OFF
Reserved ON ON OFF
Reserved OFF OFF ON
Reserved ON OFF ON
Reserved OFF ON ON
Reserved ON ON ON

Installation
www.ophit.com
Installation
1. Connect HDMI source to UVC-S300 input port
2. Connect DVI, D-sub, S-video, Composite display to UVC-S300 output ports
3. Plug the 12V DC power supply
4. Select function switch (8pin Dip Switch)
5. Press the ‘Power’ button
7

Specification
Specification
www.ophit.com
•Input Connector : HDMI(female) x 1
•Output Connector : DVI 24Pin(female) x 1, D-sub(female) x 1
S-video(female) x 1, Composite(BNC x 1, RCA x 1)
•Supporting Resolution
Input : 1024x768@50/60Hz
1280x1024@50/60Hz
1920x1080@50/60Hz
Output
DVI : 1024x768@50/60Hz, 1280x1024@50/60Hz, 1920x1080@50/60Hz
(Convert and Bypass)
D-Sub: 1024x768@50/60Hz, 1280x1024@50/60Hz, 1920x1080@50/60Hz
(Convert and Bypass)
S-video : NTSC-M or PAL-BGHI (Crop Image)
•Power Consumption : 9W (Max)
•Power supply :
100-240 V 50-60Hz, DC 12V, 2.5A
•Dimension : 200mm(W) x 137mm(D) x 30mm(H), Tolerance: ±0.1mm
•Weight : 850g (UVC-S300 only, not including packing material and adapter)
•Environment
- Operating Temperature Range : +0°C ~ +45°C
- Storage Temperature Range : -10°C ~ +70°C
8

Precaution
WARNING
•Do not dismantle the housing or modify the product.
Dismantling the housing or modifying the product may result in electrical
shock or burn.
•Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing
housing may expose you to dangerous voltage or other hazards.
•Keep the product away from liquids.
Spilling into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls/spills into the housing, unplug the
product immediately.
Have the product checked by a qualified service engineer before using it
again.
•Do not touch the product with wet hands.
Touching the housing and plug with wet hands is dangerous and can
cause electrical shock.
www.ophit.com 9

Warranty
www.ophit.com
10
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One(1) year limited warranty
Our customers have right to be served with free charge when there is trouble in
this product during one(1) year from the day purchased.
Out of warranty services
Whenyou request services (in the case of non manufacturing defect but the
troubles by misusage), may served with charge of follows.
•Defects of products caused by accident, disaster.
•Damages of products caused by the customer’s carelessness or
mistaken application.
•Damages of products caused by the application of parts or
products not supplied or sold by our company.
•Damages of products and related defects caused by not our staff
or the man or group not nominated by us for services.

Contact us
www.ophit.com 11
OPHIT CO., LTD.
www.ophit.com
Head office
#908~911, 103-dong, Digital Empire II, 88 Sinwon-ro,
Yeongtong-gu, Suwon-city, Gyeonggi-do, 16681, KOREA
TEL : [phone], FAX : [phone]
E-mail : suppor[email protected]
Factory
3F Suntechnovil 77, Deogyeong-daero 1471beon-gil,
Yeongtong-gu, Suwon-city, Gyeonggi-do, 16681, KOREA
TEL : [phone], FAX : [phone]

Memo
www.ophit.com
12

Memo
www.ophit.com 13

Copyright ⓒOPHIT 2016 all right reserved
Rev. 0
