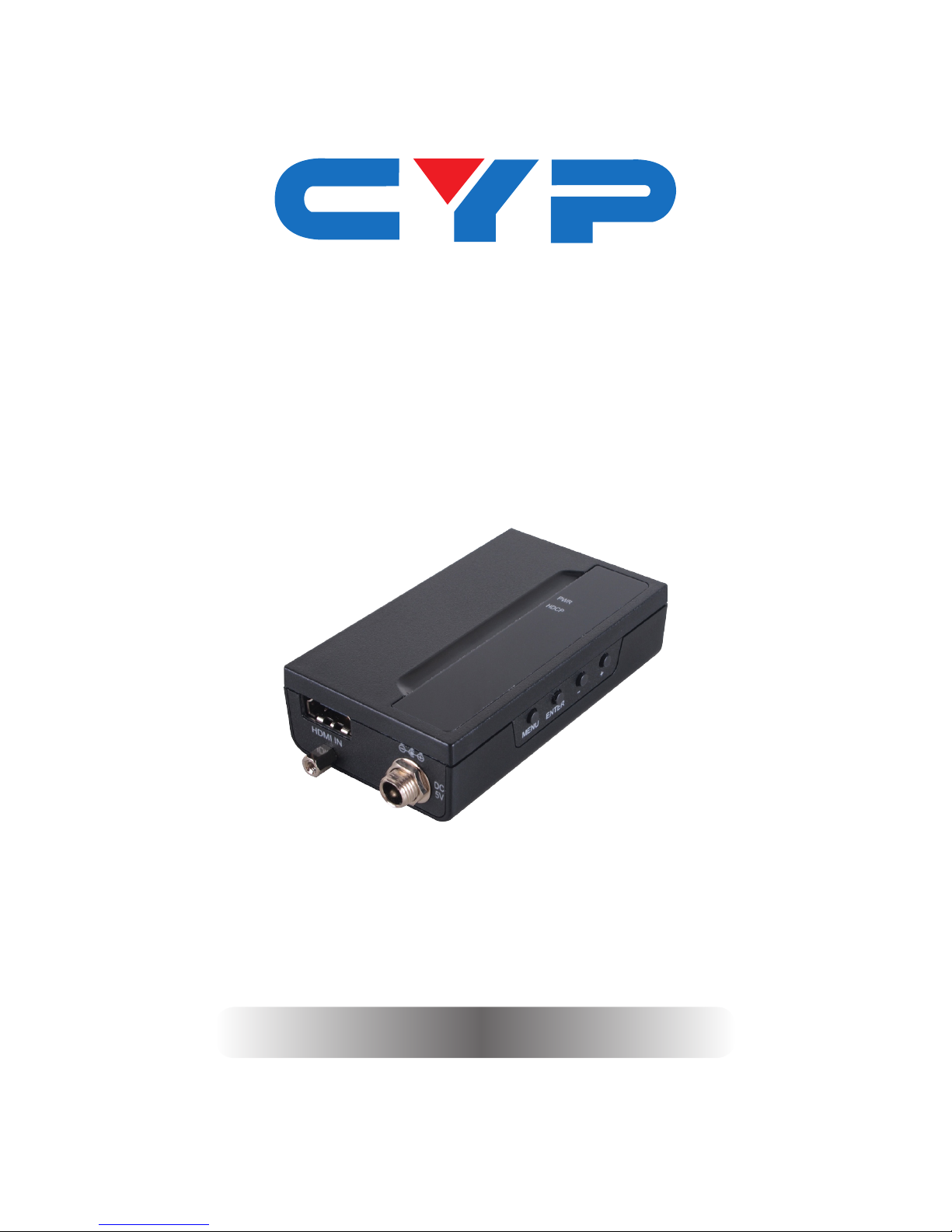

CP-302MN
Compact HDMI to HDMI Scaler Box
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2016 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 28/03/16 Preliminary release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ..........................................3
6.2 Right Panels ......................................4
6.3 Left Panels.........................................4
6.4 Side Panel .........................................5
6.5 OSD Menu.........................................5
8. Specications ...................................... 12
9. Timing ................................................... 13

1
1. INTRODUCTION
The compact HDMI to HDMI Scaler box is designed to scale HDMI
sources, either HD or PC resolution, to an alternative HDMI resolution
(HD or PC). Both of maximum support input and output resolution is
up to 1920 x 1200. The HDMI, HDCP and DVI are compliant which is
perfect solution for the integration of sources where resolution and/or
resolution type requires conversion. The video contrast, brightness, hue
and saturation are able to be adjusted manually.
Most of audio formats are supported and plus audio mute function.
Maximum audio sampling rate is up to 192 kHz. In addition, this
compact scaler box supports native EDID. A simple on-screen display
(OSD) allows the user to congure the device with ease.
2. APPLICATIONS
• Convert and integrate HD resolution output to PC systems
• Convert and integrate PC resolution output to HD systems
• Downscale Full HD (1080p) resolution output for HD Ready displays
3. PACKAGE CONTENTS
• HDMI to HDMI Scaler
• 1×5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment such as a PC/laptop or Blu-ray player and an HDTV
or HD monitor with HDMI connection cables.
*Cable distance might affected by material or design of cable.

2
5. FEATURES
• HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
• Upscale the video signal from an HDMI source up to
1920x1200@60RB
• Accepts a wide range of input resolutions of 480i to 1080p (HDTV)
• Manual adjustments for contrast, brightness, hue and saturation are
achievable
• Free run output mode that provides stable timing once no video
input is present
• Maximum pixel rate of output is up to 165 MHz
• Maximum pixel rate of input is up to 225 MHz
• Support color space of RGB, YCbCr 444@ 8,10 and 12 bit and RGB
can be color space converted to YCbCr for input and output
RGB@8bit
• Supports audio formats of LCPM 8CH, AC3, DTS, Dolby True HD and
DTS-HD bypass
• Support audio mute and maximum audio sampling rate of 192kHz
• Supports both of Frame rate and Format conversion
• Supports CEC bypass
• Supports Native EDID copies from sink device such as TV
• Easily rmware update via USB in eld

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
PWR
HDCP
1
2
1PWR: This LED will illuminate when the scaler box connected to a
power supply. When LED ashing, the scaler box goes to “standby”
mode.
2HDCP: This LED will illuminate when detected HDCP source.

4
6.2 Right Panels
HDMI IN
DC
5V
1 2
1HDMI IN: Connect to an HDMI source such as a PC/Laptop or DVD
player with an HDMI cable.
2DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
6.3 Left Panels
HDMI OUT
SERVICE
1 2
1SERVICE: The slot is for manufacturer use only.
2HDMI OUT: Connect to an HDMI equipped TV/monitor for display
of the HDMI source signal.

5
6.4 Side Panel
MENU ENTER - +
1 2 3
1MENU: Press this key to enter menu, press again to return.
2ENTER: Press this key to conrm menu selection. Press “ENTER” key
then plug the power in for factory reset.
3+/-: When into menu selection, press “+” or “–“ to navigate up and
down, when no in OSD menu selection, press “+” to still the video
or audio. Hold “–“ then plug the power in, then the resolution will
set up at 720p59.
6.5 OSD Menu
Main Menu Sub Menu Description Default
Adjust
Contrast To set picture
contrast from
0~100.
64
Brightness To set brightness
from 0~100.
64
Saturation To set saturation
from 0~100.
64
Hue To set Hue from
0~100.
64
Sharpness To set picture
sharpness from
0~100.
16
Picture Reset Reset picture
adjustment status.
N/A

6
Main Menu Sub Menu Description Default
Aspect Full Set picture aspect
ratio.
Full
16:9 TV
4:3 TV
16:10 TV
Keep Ratio
Overscan Enable To enable or
disable over
scan(Yes/No).
No
H Size% Horizontal
percentages
adjust(0~50%).
0%
V Size% Vertical
perventages
adjust(0~50%).
0%
Input EDID Pref. Video Set input EDID
to rst detail
timing(800x600@60,
1024x768@60,
1280x720@60,
1280x800@60,
1366x768@60,
1920x1080@60,
1920x1200@60RB,
Follow TV's 1st
Detail Timing*).
720p

7
Main Menu Sub Menu Description Default
Pref. Audio Set Input EDID
audio data block.
( LPCM 2CH, LPCM
6CH, LPCM 8CH,
Bitstream, HD,
Follow TV**)
Follow TV
Output
Resolution
480p, 576p,
720p50,720p59,
720p60, 1080p23,
1080p24, 1080p25,
1080p29,1080p30,
1080i50, 1080p50,
1080i59, 1080i60,
1080p59, 1080p60,
640x480, 800x600,
1024x768,
1280x800,
1280x1024,
1360x768,
1366x768,
1400x1050,
1440x900,
1600x900,
1600x1200,
1680x1050,
1920x1200,
Native***
Set output
resolution.
720p59

8
Main Menu Sub Menu Description Default
HDCP Input Set input HDCP
status. Set to On for
HDCP supported;
Off for HDCP non-
supported, Auto for
follow TV setting.
Auto
Output Set output HDCP
status. Set to Follow
Source for follow
source setting;
Protected for set
HDCP out to On,
Auto for remain last
setting.
Auto
OSD
Settings
H Position**** Set H position from
0~100.
10
V Position**** Set V position from
0~100.
5
Transparency Set OSD
transparent from
0~15.
12
Menu Timeout Set Menu timeout
from 5~50 or set to
Off for no timeout.
20
Info. Timeout Set Info timeout
from 5~50 or set to
Off for no timeout.
10
Info. Display Set Info display On/
Off
On

9
Main Menu Sub Menu Description Default
Background Set background
color Grey, Cyan,
Magenta or Yellow.
Grey
Others Standby(Min.) Set stand by time
to Off, 3sec, 5sec,
10sec, 20sec,
30sec, 1min, 2min,
3min, 4min, 5min,
10min, 15min,
20min, 25min,
30min
Off
Mirror-V Set mirror to On/Off Off
Still Options***** Set still to Video,
Video+Audio,
Audio
Video+Audio
Still Video***** When video still,
set to Still Video or
Black Video
Still Video
Factory
Reset
Yes , No Perform device
factory reset.
No
Information Source Info. To show Source
information
N/A
Sink Info To show Sink
information
N/A
Firmware Version To show device’s
correct rmware
version.
N/A
* If TV native is not on the above preset resolution, then will set to
1280x720@60.
** If TV is DVI, then input EDID will be DVI.
*** Device will read TV’s EDID automatically, and set to native timing, if

10
native timing cannot be supported, then will set to 720p59.
**** When H POSITION set to 95 or ab more, INFO. will be at right of
MENU.
When V POSITION set to 95 or more, INFO. will be at bottom of
MENU.
***** When set to still, choose the option of still. Video= still the video or
to black out video, audio remains normal, Aud0= video remains
rolling, but audio mute, Video + Audio= to still or black out the
video and audio mute. When switch output timing, the still status
will automatically disable.

11
7. CONNECTION DIAGRAM
HDMI IN
DC
5V
HDMI OUT
SERVICE
DVD Player
HD TV/Monitor
Power Supply
HDMI Input
HDMI Output

12
8. SPECIFICATIONS
Maximum Pixel Rate 165 MHz (output) / 225MHz (input)
Input Ports 1×HDMI
1×Mini USB(Service only)
Output Ports
LED on top plates
1×HDMI
1 x Power LED
1 x LED for HDCP status
Audio Sampling Rate 44.1, 48, 96,192 kHz
HDMI Cable In 10 m/1080p@12-bit
HDMI Cable Out 10 m/1080p@8-bit
ESD Protection Human body model:
±8 kV (Air-gap discharge)
±6 kV (Contact discharge)
Power Supply 5V / 2.6A
Dimensions 98(L)x51(W)x22.5(H)mm jack included
85(L)x50(W)x22.5(H)mm jack exclude
Weight 75 g
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0˚C~40˚C/32˚F~104˚F
Storage Temperature −20˚C~60˚C/−4˚F~140˚F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 2.42 W

13
9. TIMING
DVI AND HDMI SUPPORTED RESOLUTIONS INPUT OUTPUT
480i@59 
480p@59  
480p@60 
576i@50 
576p@50  
720p@24/25/30/50/60 
720p@50/59/60  
1080i@50/60  
1080i@59  
1080p@24/25/30/50/60  
1080p@23/29/59  
640x480@60  
640x480@60/72/75/85 
720x400@70 
800x600@60  
800x600@56/60/72/75/85 
1024x768@60  
1024x768@60/70/75/85 
1152x864@70/75/85 
1280x720@60cvt 
1280x768@60RB,60,75 
1280x800@60RB/60/75 
1280x800@60  
1280x960@60/85 
1280x1024@60  
1280x1024@60/60cvt/75/85 
1360x768@60  

14
DVI AND HDMI SUPPORTED RESOLUTIONS INPUT OUTPUT
1366x768@60  
1366x768@60RB/60 
1400x1050@60RB/60 
1400x1050@60  
1440x900@60RB/60/75 
1440x900@60  
1600x900@60RB  
1600x1200@60  
1680x1050@60RB 
1680x1050@60  
1920x1200@60RB  
NATIVE 

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
MPM-CP302MN
