Operation Manual
Operation Manual
CP-255I
Multi-Format to HDMI Scaler

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VS1 25/11/11 First release
VR2 03/07/13 Input 1080i resolution @60/50
VR3 18/10/13 RS-232 Port

CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents .................................. 1
4. System Requirements.............................. 1
5. Features....................................................2
6. Operation Controls and Functions......... 3
6.1 Front Panel...........................................3
6.2 Rear Panel ...........................................4
6.3 Remote Control...................................5
6.4 OSD Menu............................................6
6.5 RS-232 Pin Assignment ........................7
6.6 RS-232 Setting Commands.................8
6.7 RS-232 Status Commands ................12
6.8 Resolution Supports...........................14
8. Specications ........................................ 16
9. Acronyms ...............................................17

1
1. INTRODUCTION
The Multi-Format to HDMI Scaler is designed to upscale digital/analog
video signals from Composite, S-Video, PC, Component (HD) and
HDMI input sources, to digital HDMI output of a wide range of HDTV
and PC resolutions including 1080p and WUXGA (1920 x 1200).
As well as upscaling video, the scaler box also converts digital/analog
audio signals to digital format, which can then be output either
through HDMI combined with the video signal or separately via the
discrete Coaxial S/PDIF output.
The Scaler has a comprehensive on-screen display (OSD) menu that
allows the user to select a variety of output resolutions and adjust
them for the best picture quality.
2. APPLICATIONS
• Upscale the video from standard denition sources or a PC/Laptop
to a HDMI equipped display.
3. PACKAGE CONTENTS
• Multi-Format to HDMI Scaler
• Remote Control
• 1×D-Sub 15-pin Cable
• 1×Composite Video Cable (3 RCA)
• 5 V/3 A DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• INPUT: Composite, Component, S-Video or HDMI, or PC VGA video/
audio source.
• OUTPUT: HDMI equipped TV or monitor, optional Coaxial (S/PDIF)
equipped receiver/amplier.

2
5. FEATURES
• HDMI, HDCP 1.1 and DVI 1.0 compliant
• Scales any PC (VGA~WUXGA) or HD (480i~1080p) resolutions to from
another PC/HD resolutions
• Automatically detects the correct settings of the connected display
and outputs the corresponding resolution and refresh rate, when
the NATIVE output is selected
• Supports 50/60 Hz frame rate conversion
• Supports 3D motion video adaptive, 3D de-interlacing, and 3:2 / 2:2
pull-down detection and recovery
• Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB (color tone) level, and aspect ratio size
• Supports high resolution input/output:
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, and WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
• Supports digital and analog audio input and digital output

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER CV SV COMP PC
MEN
UE
NTER
Digital Video Scaler Processor
- +
HDMI
1 2 5 63 4
1
POWER Button and LED: Press the button power the unit on or off.
When the power is turned on, the LED will illuminate.
2
IR Window
3
Input Buttons and LEDs: Press the required button (CV/SV/COMP/
PC/HDMI) to select the desired input source. The LED will illuminate
to indicate the corresponding input is selected.
4
MENU Button: Press the MENU button to bring up OSD operation
menu (see section 6.3 OSD Operation for reference.)
5
Minus (-)/Plus (+) Buttons: A. On the rst level of OSD menu, use +
and − buttons to move up/down the menu to highlight the item
for selection. B. Once the desired option is selected, use + and −
buttons to toggle between setting values.
6
ENTER Button: In the OSD menu, use the ENTER button to conrm
the selection.

4

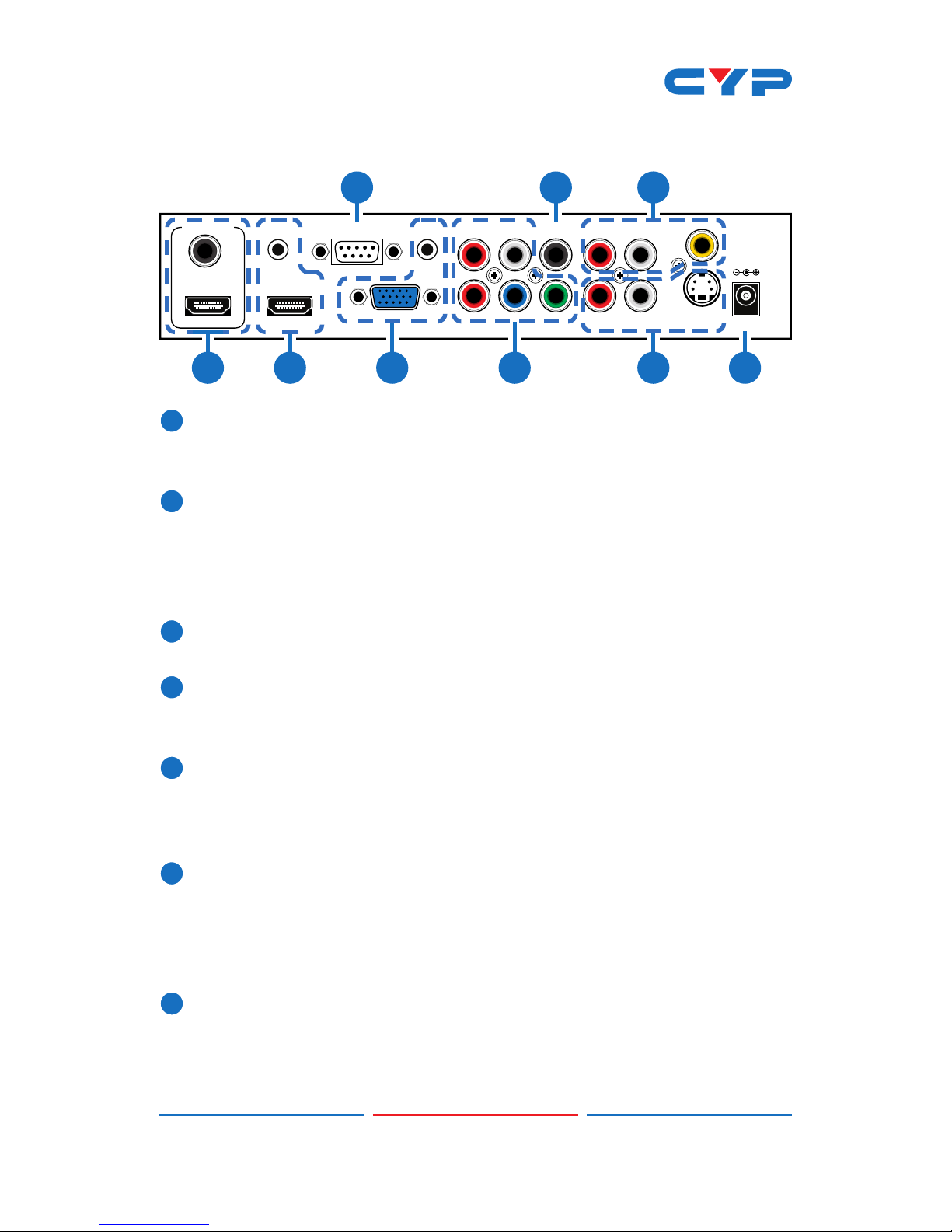

6.2 Rear Panel
HDMI OUT
AUX IN RS-232PC IN
HDMI IN
PC IN
R
Cr/Pr
L
Cb/Pb
CO-AX
Y
R
R
LCV
DC 5V
LSV
CO-AX OUT
1 2
3 6 8
4 5 7 9
1
HDMI OUT and COAX OUT: Connect the HDMI OUT port to an HDMI
display such as HDTV or monitor. Connect the COAXIAL OUT port
(TOSLINK) to an amplier for separate digital audio output.
2
HDMI IN and AUX IN: Connect the HDMI IN port to an HDMI source
device such as a DVD player or set-top box or connect to a DVI
source equipment such as a PC with an HDMI to DVI cable. Use
the AUX IN port to input the audio signal when the video signal
input through the HDMI IN port is an DVI source.
3
RS-232: Connect to a PC/Laptop or RS-232 control system to use
RS-232 commands to control the device.
4
PC IN and Audio IN: Connect the D-sub 15-pin port to a PC for
video signal conversion. Connect the 3.5mm phone jack port to
the PC for audio signal conversion.
5
YCbCr/YPbPr IN and L/R IN: Connect the YCbCr/YPbPr input ports
(3 RCA) to source equipment such as a DVD player or set-top box
for video signal conversion. Connect the L/R audio input ports to
source equipment for audio signal conversion.
6
COAX IN: The COAXIAL port provides the digital audio input
support, and can be assigned to any of the video inputs. Once
connected, it can be assigned in the OSD Menu under Audio
Source Selection by selecting between Coaxial (S/PDIF) or other
audio source (see section '6.4 OSD Menu' for reference).
7
S-Video IN and L/R IN: Connect the S-Video input port to
source equipment such as a DVD player or set-top box for vido
signal conversion. Connect the L/R audio input ports to source
equipment for audio signal conversion.

5
8
Composite Video IN and L/R IN: Connect the Composite Video
input port to source equipment such as a DVD player or Set-top
box for video signal conversion. Connect the L/R audio input ports
to source equipment for audio signal conversion.
9
DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to AC wall outlet.
6.3 Remote Control
1
POWER: Press the button once to power on
the unit. Press again to enter standby mode.
2
INPUT: Press the button repeatedly to toggle
through various input sources.
3
HD, PC, HDMI/DVI: Press the appropriate
button to directly select component video,
PC, or HDMI/DVI input.
4
VGA, SVGA, XGA, SXGA, UXGA or 480p,
720p, 1080i, 1080p: Press appropriate button
to directly select the preferred output
resolution. Other output resolutions that
are not covered by these buttons can be
selected from the OSD Menu.
5
MENU: Press the button to bring up the OSD
main menu page.
6
EXIT: Press the button to exit from a sub
menu or main menu.
7
Up, Down, Left, Right and OK: Press the Up/Down button to move
the highlight bar to your desired parameter during the OSD
operation. Press the Left/Right button to increase/decrease the
value of a selected parameter.Press the OK (ENTER) button to
conrm your selection.
8
AUTO ADJUST: Press the button to optimize the positioning of the
picture (picture centering) on the screen.
9
RESET: Press the button to reset the unit's rmware setting to the
factory default value.
2
4
6
9 8
7
5
1
3

6
6.4 OSD Menu
MAIN MENU SUBMENU ADJUSTMNET
VIDEO PICTURE MODE USER, STANDARD, VIVID, MOVIE
CONTRAST 0~100 (50)
BRIGHTNESS 0~100 (45)
HUE 0~100 (50)
SATURATION 0~100 (60)
SHARPNESS 0~100 (32)
SCALE OVERSCAN, UNDERSCAN,
LETTERBOX, PANSCAN, FULL
NR LOW, MIDDLE, HIGH, OFF
EXIT -
COLOR COLOR TONE USER, NORMAL, WARM, COOL
RED 0~100 (47)
GREEN 0~100 (47)
BLUE 0~100 (47)
EXIT -
OUTPUT - NATIVE, VGA, SVGA, XGA, SXGA,
UXGA, 480I, 480P, 720P@60 HZ,
1080I@30 HZ, 1080P@60 HZ, 576I,
576P, 720P@50 HZ, 1080I@25 HZ,
1080P@50HZ, WXGA, WSXGA,
WUXGA
OSD HPOSITION 0~100 (50)
VPOSITION 0~100 (50)
TIMER (SEC) 0~100 (10)
TRANSP 0~8 (5)
EXIT -

7
MAIN MENU SUBMENU ADJUSTMNET
AUDIO SOURCE HDMI, L/R, COAXIAL
DELAY OFF, 40ms, 110ms, 150ms
SOUND ON, MUTE
EXIT -
INFORMATION - SOURCE (Input interface)
INPUT (Input resolution)
OUTPUT (Output resolution)
VERSION (Firmware version)
EXIT - -
Note: Items in brackets are the default values for those settings.
6.5 RS-232 Pin Assignment
HDMI SCALER REMOTE CONTROL
PIN ASSIGNMENT PIN ASSIGNMENT
1 NC 1 NC
2 TXD 2 RXD
3 RXD 3 TXD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8-bits
Parity: None
Stop Bit: 1-bit

8
6.6 RS-232 Setting Commands
COMMAND RESPONSE DESCRIPTION
S POWER 0 POWER OFF Power OFF the unit
S POWER 1 POWER ON Power ON the unit
S SOURCE 0 SOURCE CV Set the source to the
Composite Video input
S SOURCE 1 SOURCE SV Set the source to the
S-Video input
S SOURCE 2 SOURCE COMP Set the source
Component Video input
S SOURCE 3 SOURCE PC Set the source to the PC
input
S SOURCE 4 SOURCE HDMI Set the source to the
HDMI input
S OUTPUT 0 OUTPUT NATIVE Set the output resolution
to the display's Native
resolution
S OUTPUT 1 OUTPUT VGA Set the output resolution
to VGA
S OUTPUT 2 OUTPUT SVGA Set the output resolution
to SVGA
S OUTPUT 3 OUTPUT XGA Set the output resolution
to XGA
S OUTPUT 4 OUTPUT SXGA Set the output resolution
to SXGA
S OUTPUT 5 OUTPUT UXGA Set the output resolution
to UXGA
S OUTPUT 6 OUTPUT 480I Set the output resolution
to 480i
S OUTPUT 7 OUTPUT 480P Set the output resolution
to 480p
S OUTPUT 8 OUTPUT 720P Set the output resolution
to 720p@60 Hz
S OUTPUT 9 OUTPUT 1080I Set the output resolution
to 1080i@60 Hz
S OUTPUT 10 OUTPUT 1080P Set the output resolution
to 1080p@60 Hz

9
COMMAND RESPONSE DESCRIPTION
S OUTPUT 11 OUTPUT 576I Set the output resolution
to 576i@60 Hz
S OUTPUT 12 OUTPUT 576P Set the output resolution
to 576p@60 Hz
S OUTPUT 13 OUTPUT 720P Set the output resolution
to 720p@50 Hz
S OUTPUT 14 OUTPUT 1080I50 Set the output resolution
to 1080i@50 Hz
S OUTPUT 15 OUTPUT 1080P50 Set the output resolution
to 1080p@50 Hz
S OUTPUT 16 OUTPUT WXGA Set the output resolution
to WXGA resolution
S OUTPUT 17 OUTPUT WSXGA Set the output resolution
to WSXGA
S OUTPUT 18 OUTPUT WUXGA Set the output resolution
to WUXGA
S SIZE 0 SIZE FULL Set the output size to
FULL
S SIZE 1 SIZE OVERSCAN Set the output size to
OVERSCAN
S SIZE 2 SIZE UNDERSCAN Set the output size to
UNDERSCAN
S SIZE 3 SIZE LETTERBOX Set the output size to
LETTERBOX
S SIZE 4 SIZE PANSCAN Set the output size to
PANSCAN
S PICTUREMODE 0 PICTUREMODE
STANDARD
Set the picture mode to
STANDARD
S PICTUREMODE 1 PICTUREMODE MOVIE Set the picture mode to
MOVIE
S PICTUREMODE 2 PICTUREMODE VIVID Set the picture mode to
VIVID
S PICTUREMODE 3 PICTUREMODE USER Set the picture mode to
USER
S CONTRAST 0~100 CONTRAST 0~100 (50) Adjust the CONTRAST
value

10
COMMAND RESPONSE DESCRIPTION
S BRIGHTNESS 0~100 BRIGHTNESS 0~100 (45) Adjust the BRIGHTNESS
value
S HUE 0~100 HUE 0~100 (50) Adjust the HUE value
S SATURATION 0~100 SATURATION 0~100 (60) Adjust the SATURATION
value
S SHARPNESS 0~100 SHARPNESS 0~100 (32) Adjust the SHARPNESS
value
S NR 0 NR OFF~HIGH Set the noise reduction
to OFF
S NR 1 NR LOW Set the noise reduction
to LOW
S NR 2 NR MIDDLE Set the noise reduction
to MIDDLE
S NR 3 NR HIGH Set the noise reduction
to HIGH
S PCHPOSITION 0~100 PCHPOSITION 0~100 Adjust the value for the
PC horizontal position
setting
S PCVPOSITION 0~100 PCVPOSITION 0~100 Adjust the value for
the PC vertical position
setting
S PCCLOCK 0~100 PCCLOCK 0~100 Adjust the value for the
PC mode clock setting
S PCPHASE 0~63 PCPHASE 0~63 Adjust the value for the
PC mode phase setting
S COLORTEMP 0 COLORTEMP NORMAL Set the color
temperature to
NORMAL
S COLORTEMP 1 COLORTEMP WARM Set the color
temperature to WARM
S COLORTEMP 2 COLORTEMP COOL Set the color
temperature to COOL
S COLORTEMP 3 COLORTEMP USER Set the color
temperature to USER
S RED 0~100 RED 0~100 (47) Adjust the value for the
RED color setting
S GREEN 0~100 GREEN 0~100 (47) Adjust the value for the
GREEN color setting

11
COMMAND RESPONSE DESCRIPTION
S BLUE 0~100 BLUE 0~100 (47) Adjust the value for the
BLUE color setting
S OSDHPOSITION 0~100 OSDHPOSITION 0~100
(50)
Set the value to adjust
the horizontal position of
the OSD menu
S OSDVPOSITION 0~100 OSDVPOSITION 0~100
(50)
Set the value to adjust
the vertical position of
the OSD menu
S OSDTIMEOUT 0~100 OSDTIMEOUT 0~100 (10) Set the value for the
OSD menu timeout
S OSDBACKGROUND
0~8
OSDBACKGROUND 0~8
(5)
Set the value for the
OSD menu background
S AUDIOMUTE 0 AUDIOMUTE OFF Set the audio mute to
OFF
S AUDIOMUTE 1 AUDIOMUTE ON Set the audio mute to
ON
S AUDIODELAY 0 AUDIODELAY OFF Set the AUDIO DELAY to
OFF
S AUDIODELAY 1 AUDIODELAY 40MS Set the AUDIO DELAY to
40ms
S AUDIODELAY 2 AUDIODELAY 110MS Set the AUDIO DELAY to
110ms
S AUDIODELAY 3 AUDIODELAY 150MS Set the AUDIO DELAY to
150ms
S RESET 1 RESET ON System Reset
Note: Items in brackets are the default values for those settings.

12
6.7 RS-232 Status Commands
COMMAND RESPONSE DESCRIPTION
R POWER POWER ON/OFF Reports the current POWER status
R SOURCE SOURCE CV~HDMI Report the current SOURCE
R OUTPUT OUTPUT
NATIVE~WUXGA
Reports the current OUTPUT
resolution
R SIZE SIZE FULL~PANSCAN Reports the current SIZE mode
R PICTUREMODE PICTUREMODE
STANDARD~USER
Reports the picture mode
R CONTRAST CONTRAST 0~100 Reports the value (1~100) of the
CONTRAST setting
R BRIGHTNESS BRIGHTNESS 0~100 Reports the value (1~100) of the
BRIGHTNESS setting
R HUE HUE 0~100 Reports the value (1~100) of the
HUE setting
R SATURATION SATURATION 0~100 Reports the value (1~100) of the
SATURATION setting
R SHARPNESS SHARPNESS 0~100 Reports the value (1~100) of the
SHARPNESS setting
R NR NR OFF~HIGH Reports the status of the NOISE
REDUCTION setting
R PCHPOSITION PCHPOSITION 0~100 Reports the value (1~100) of the
PC horizantal position setting
R PCVPOSITION PCVPOSITION 0~100 Reports the value (1~100) of the
PC vertical position setting
R PCCLOCK PCCLOCK 0~100 Reports the value (1~100) of the
PC CLOCK setting
R PCPHASE PCPHASE 0~63 Reports the value (1~63) of the
PC PHASE setting
R COLORTEMP COLORTEMP
NORMAL~USER
Reports the current color
temperature setting
R RED RED 0~100 Reports the value (1~100) of the
RED color setting
R GREEN GREEN 0~100 Reports the value (1~100) of the
GREEN color setting

13
COMMAND RESPONSE DESCRIPTION
R BLUE BLUE 0~100 Reports the value (1~100) of the
RED color setting
R OSDHPOSITION OSDHPOSITION
0~100
Reports the value (1~100) of the
OSD MENU horizontal position
setting
R OSDVPOSITION OSDVPOSITION
0~100
Reports the value (1~100) of the
OSD MENU horizontal position
setting
R OSDTIMEOUT OSDTIMEOUT 0~100 Reports the value (1~100) of the
OSD MENU TIMEOUT setting
R
OSDBACKGROUND
OSDBACKGROUND
0~8
Reports the value (1~8) of the
OSD MENU BACKGROUND
setting
R AUDIOMUTE AUDIOMUTE
OFF~ON
Reports the current AUDIOMUTE
status
R AUDIODELAY AUDIODELAY
OFF~150ms
Reports the current AUDIO DELAY
status

14
6.8 Resolution Supports
INPUT
RESOLUTION
Component Video VGA HDMI/DVI
OUTPUT
RESOLUTION
HDMI/DVI
480i/576i - * 480i/576i *
480p/576p 480p/576p 
720p@50/60 Hz 720p@50/60 Hz 
1080i@50/60 Hz -1080i@25/30 Hz 
1080p@50/60 Hz 1080p@50/60 Hz 
VGA@60/72/75/85 Hz -  VGA@60/72/75/85 Hz 
SVGA@56/60/72/75/85 Hz -  SVGA@56/60/72/75/85 Hz 
XGA@60/70/75/85 Hz -  XGA@60/70/75/85 Hz 
SXGA@60/72/75/85 Hz -  SXGA@60/72/75//85 Hz 
UXGA@60 Hz -  UXGA@60 Hz 
WXGA@60 Hz
(1280×800) - 
WXGA@60 Hz
(1280×800)

WSXGA@60 Hz
(1650×1050) - 
WSXGA@60 Hz
(1650×1050)

WXGA@60 Hz
(1920×1200) - 
WXGA@60 Hz
(1920×1200)

*480i@30×2/576i@30×2 *480i@30×2/576i@30×2

15
7. CONNECTION DIAGRAM
IENJ!PVU
BVY!JO ST.343 QD!JO
IENJ!JO
QD!JO
S
Ds0Qs
M
Dc0Qc
DP.BY
Z
S
S
MDW
ED!6W
MTW
DP.BY!PVU
RS-232
RS-232 Control from
PC/Laptop or RS-232
Control System
AV Receiver
Coaxial Digital
Audio Output
HDTV
HDMI Output
DVD player
Composite Video,
Coaxial Digital
Audio and Analog
Stereo Audio Input
Blu-ray player
S-Video and
Analog Stereo
Audio Input
DVD player
Component
Video and
Analog Stereo
Audio Input
Laptop
VGA and
Analog Stereo
Audio Input
Set-top Box
HDMI Input (with
Optional Analog
Stereo Audio Input)
