CYP AU-D18 User manual

AU-D18
Analogue Stereo Lip Sync
Corrector
OPERATION MANUAL

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
V1 20100816 Preliminary Release

Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. PackageContents......................................................................1
4. SystemRequirements..................................................................1
5. Features........................................................................................ 1
6. Specifications..............................................................................2
6.1 Input Audio Reference Level ......................................... 2
7. OperationControlsandFunctions............................................. 3
7.1 Top Panel ...................................................................... 3
7.2 Right Panel .................................................................... 3
7.3 Left Panel ...................................................................... 3
7.4 Front Panel .................................................................... 4
7.5 Rear Panel .................................................................... 4
8. ConnectionandInstallation...................................................... 5
9. Acronym.......................................................................................6

1
1. Introduction
The analog to analog Lip SYNC Corrector is a tiny cutie device for your audio
output delay correction. For every channel of your audio output, the Lip SYNC
corrector is able to adjust it with the best timing to display so that users may
received both video and audio with more vividly and live enjoyment. No more
lip and sound dismatch but more pleasant entertainment enjoyment. The Lip
SYNC Corrector is ease use with simple setup and an affordable unit for your
entertainment sound delay setting.
2. Applications
• Home Theater
• Cable TV
• Set-Top-Box
• Showroom display
3. Package Contents
• Lip SYNC Corrector
• 5V / 1A Power Adaptor
• Operation Manual
4. Features
• Sample Rates 48 kHz
• Analog to analog signal bypass
• Low power consumption
• Up to 24 bit resolution

2
6. Specications
Input Port 1 x L/R
Sample Frequency 48 kHz
Output Port 1 x L/R
Input Impedance 44Kk Ω
Output Imp edance 1k Ω
Power Supply 5V / 1A DC ( US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions(mm) 42 (W) x 40.5 (D) x 22(H)
Weight(g) 32
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0ºC~40ºC / 32ºF~104ºF
Storage Temperature -20ºC~60ºC / -4ºF~140ºF
Power Consumption 0.5 W
Relative Humidity 20 ~ 90% RH (non-condensing)
6.1InputAudioReferenceLevel
Input Level /
Frequency
Output
Terminal
Reference
Level
THD+N Frequence
Response
SNR Crosstalk
Analog L/R
2 Vrms / 20.1k,
20kHz
Analog L/R 2.0±0.1Vrms <0.01% ±1Vrms >80dB <-80dB

3

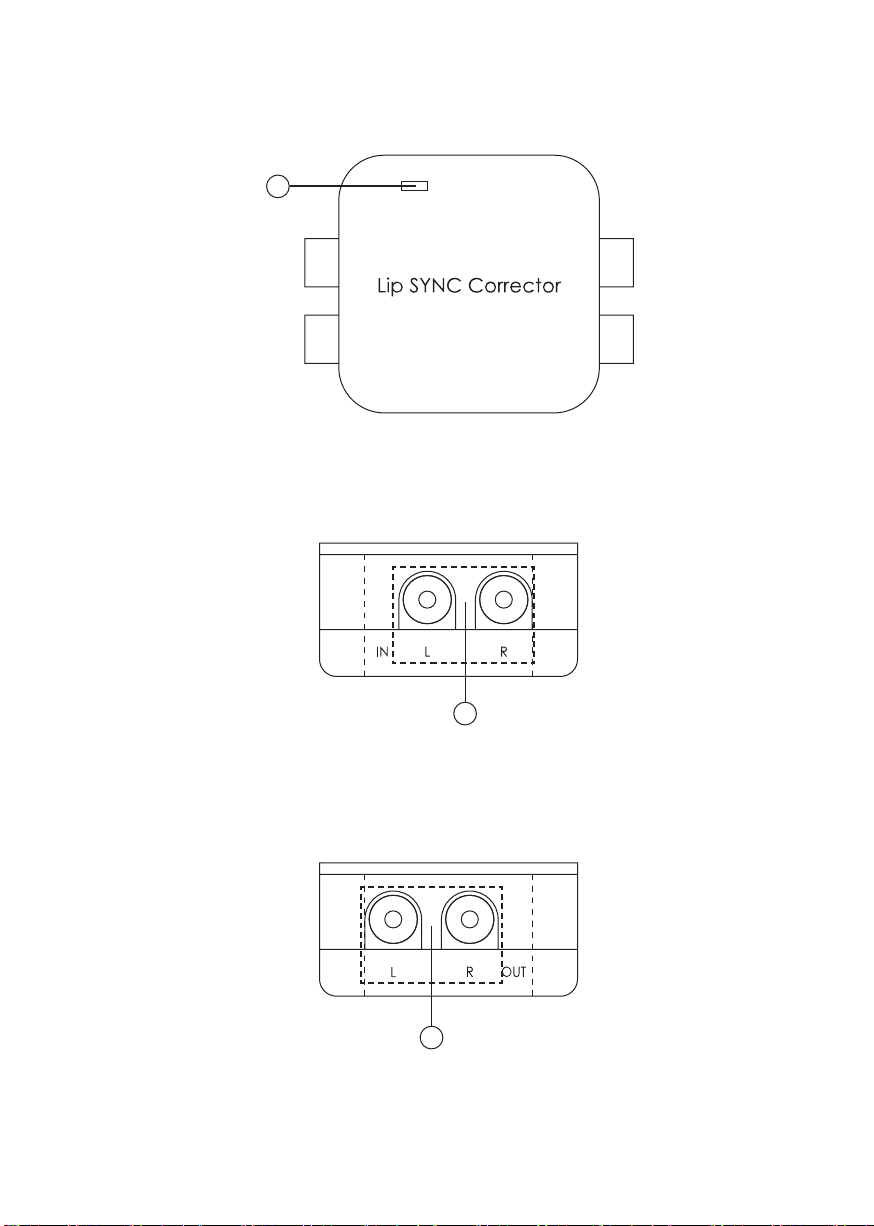

7. Operation Controls and Functions
7.1TopPanel
1
① POWER LED: The LED will illuminate in blue when the power is turn on.
7.2RearPanel
1
① L/R IN: These slots are to connect with input source equipments such as
DVD/Blue-Ray player with RCA cable for audio input signal sending.
7.3LeftPanel
1
① L/R OUT: These slots are where you connect the amplier or active
speaker with RCA cable for audio output.
6. Specications
Input Port 1 x L/R
Sample Frequency 48 kHz
Output Port 1 x L/R
Input Impedance 44Kk Ω
Output Imp edance 1k Ω
Power Supply 5V / 1A DC ( US/EU standards, CE/FCC/UL certied)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions(mm) 42 (W) x 40.5 (D) x 22(H)
Weight(g) 32
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0ºC~40ºC / 32ºF~104ºF
Storage Temperature -20ºC~60ºC / -4ºF~140ºF
Power Consumption 0.5 W
Relative Humidity 20 ~ 90% RH (non-condensing)
6.1InputAudioReferenceLevel
Input Level /
Frequency
Output
Terminal
Reference
Level
THD+N Frequence
Response
SNR Crosstalk
Analog L/R
2 Vrms / 20.1k,
20kHz
Analog L/R 2.0±0.1Vrms <0.01% ±1Vrms >80dB <-80dB

4

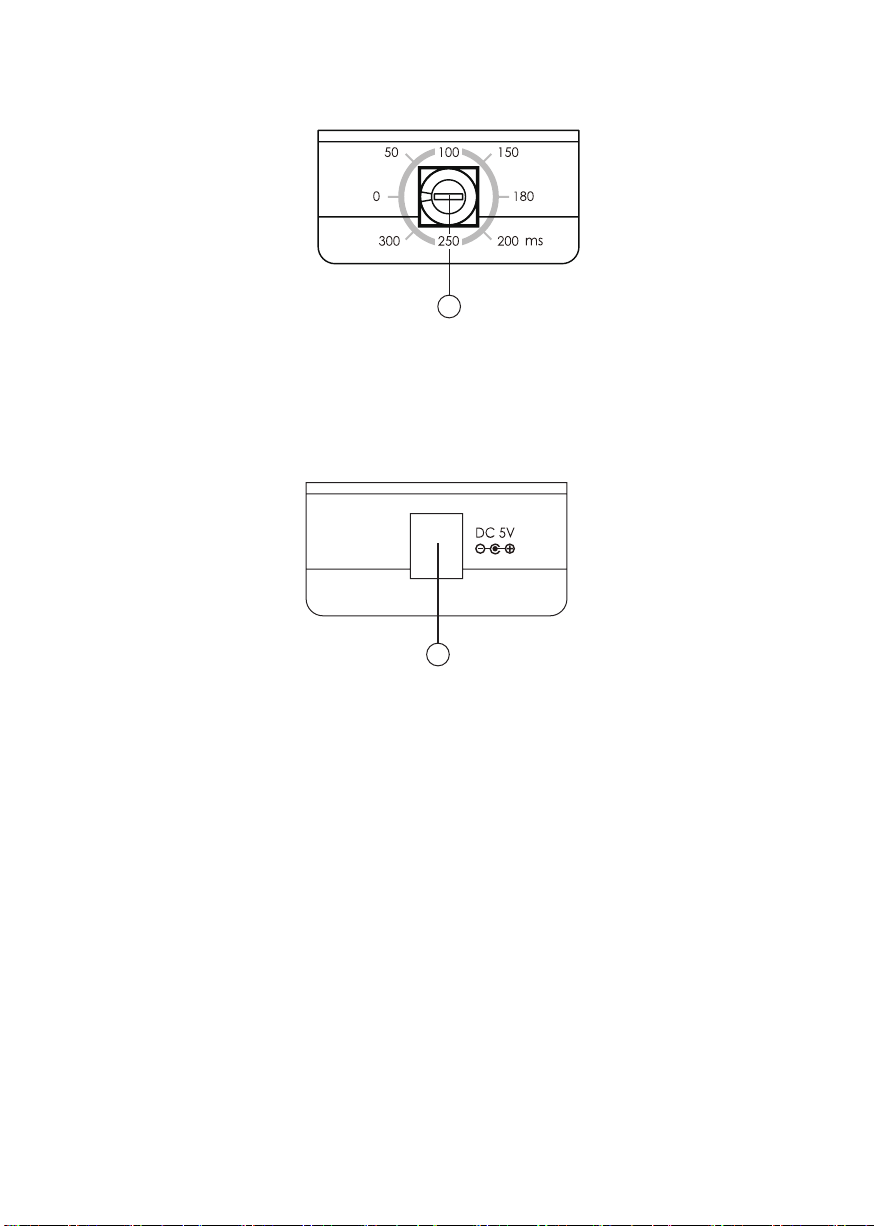

7.4FrontPanel
3
① Lip SYNC switch: This switch has 8 section from 0 to 7 that allows user to
set the audio output for delay display from 0~300 millisecond.
7.5RearPanel
3
① DC 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC wall outlet.

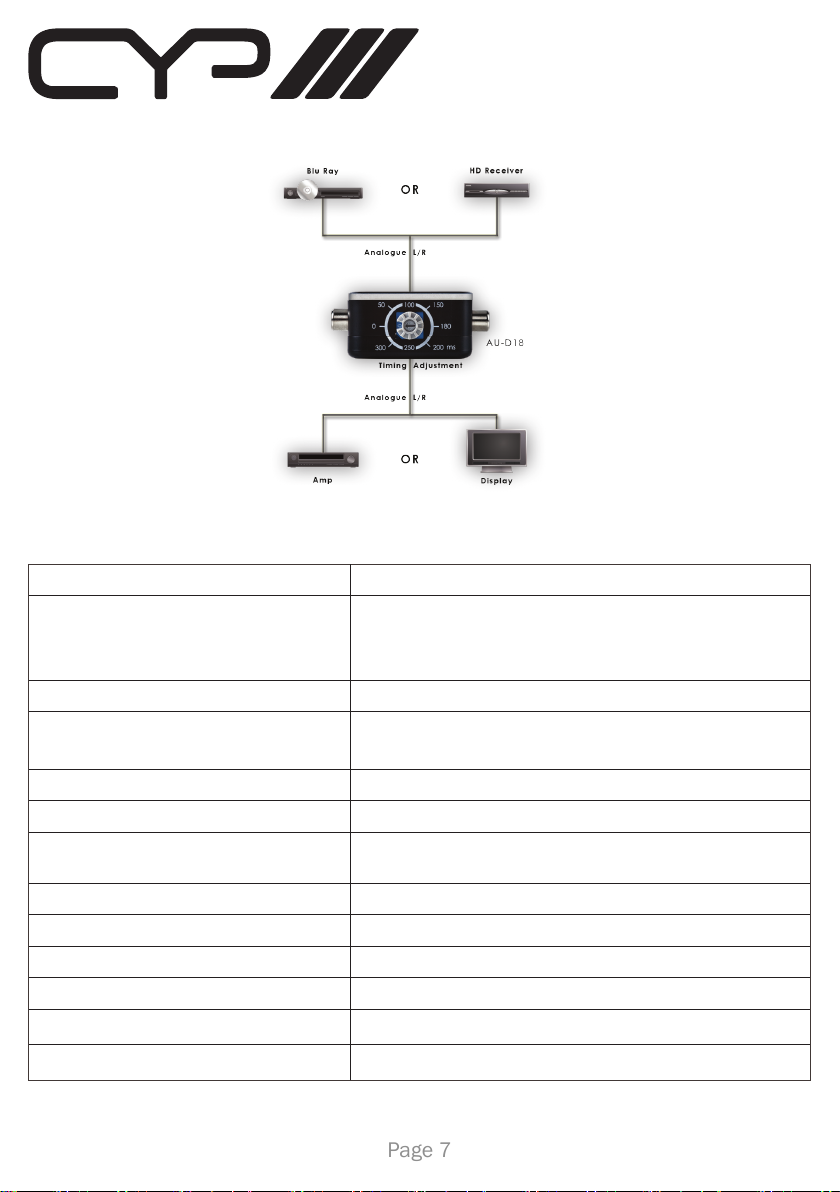

5. Connection Diagram
Input Port 2 x Analogue Audio (L/R stereo)
HDMI input Audio Format
LPCM 7.1, 5.1 or 2 channels and Bitstream (Dolby
TrueHD, Dolby Digital Plus and DTS-HD Master
Audio)
Output Port 2 x Analogue Audio (L/R stereo)
HDMI Output Audio Formats PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+,
D-TrueHD, DTS-HD
Analogue Output port 1 x HDMI
Multi channel output ports 1 x Optical
Multi channel output audio
formats Dolby 5.1/2 and LPCM 2 channels
Power Supply 0.5W
Dimensions (mm) 45 (W) x 45 (D) x 25 (H)
Weight (g) 140
Chassis Material Plastic
Silk Skin Colour Black
Operating Temperature 0 to 40 degrees C
6. Specications
Page 7
4.5 Rear Panel

6
Acronyms A
Acronym Complete Term

A
Acronym Complete Term

www.cypeurope.com
