CYP RE-11HS-4K User manual

RE-11HS-4K
HDMI to HDMI Equaliser (4K Resolution support)
OPERATION MANUAL
SUPPORT

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 22/10/2013 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Top Panel ...................................................... 8
6.2 Right Panel................................................... 9
6.3 Left Panel...................................................... 9
6.4 Front Panel.................................................10
7. Connection Diagram .......................... 11
8. Specications...................................... 12
9. Acronyms............................................. 13

6
1. INTRODUCTION
The RE-11HS-4K is perfect for placing at the end of a HDMI cable to boost
the signal to improve the HDMI signal quality to the display. The RE-11HS-
4K Equaliser uses v1.4 HDMI specications, supporting 4K resolutions, 3D
signals, and‘Deep Colour’ together with High Denition Audio at 192KHz
sampling rate.
2. APPLICATIONS
Extend the operating distance of a 4Kx2K HDMI connection
Extend the distance between HDMI matrix systems
3. PACKAGE CONTENTS
HDMI 4K×2K Repeater
5V Power adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment such as a PC/Laptop or Blu-ray/DVD player and TV/
display or AV receiver with suitable HDMI connection cables.

7
5. FEATURES
v1.4 HDMI, HDCP 1.1 and DVI 1.0 compliant
HDMI to HDMI Equaliser with 4K resolution support
Resolutions Support: Output resolution follows Input. PC:
VGA,SVGA,XGA,SXGA, UXGA (1600 x 1200) and WUXGA (1920x1200).
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i & 1080p + 1080P 24fps, 4K
High Denition Audio supported: Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM
Corrects digital error and automatically provides equalisation
where the input is Compensated, Clock / Phase Adjusted, and Jitter
Eliminated
Supports maximum input and output HDMI cable lengths of up to 15
meters each @ 1080p/8-bit resolution, or 10 meters each at 1080p/12-
bit resolution
Support xvYCC & CEC Bypass
Supports 3D signals
Note: For playback of 4kx2k HDMI source signals, a 4Kx2K capable display
and High Speed HDMI cables are required.

8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
LinkHDCP Power
1 2 3
1HDCP:
This LED will illuminate when an HDCP encoded HDMI signal has been
detected.
2Link:
This LED will illuminate when an active HDMI signal is being received.
3Power:
This LED will illuminate when the unit is connected to an active power
supply.

9

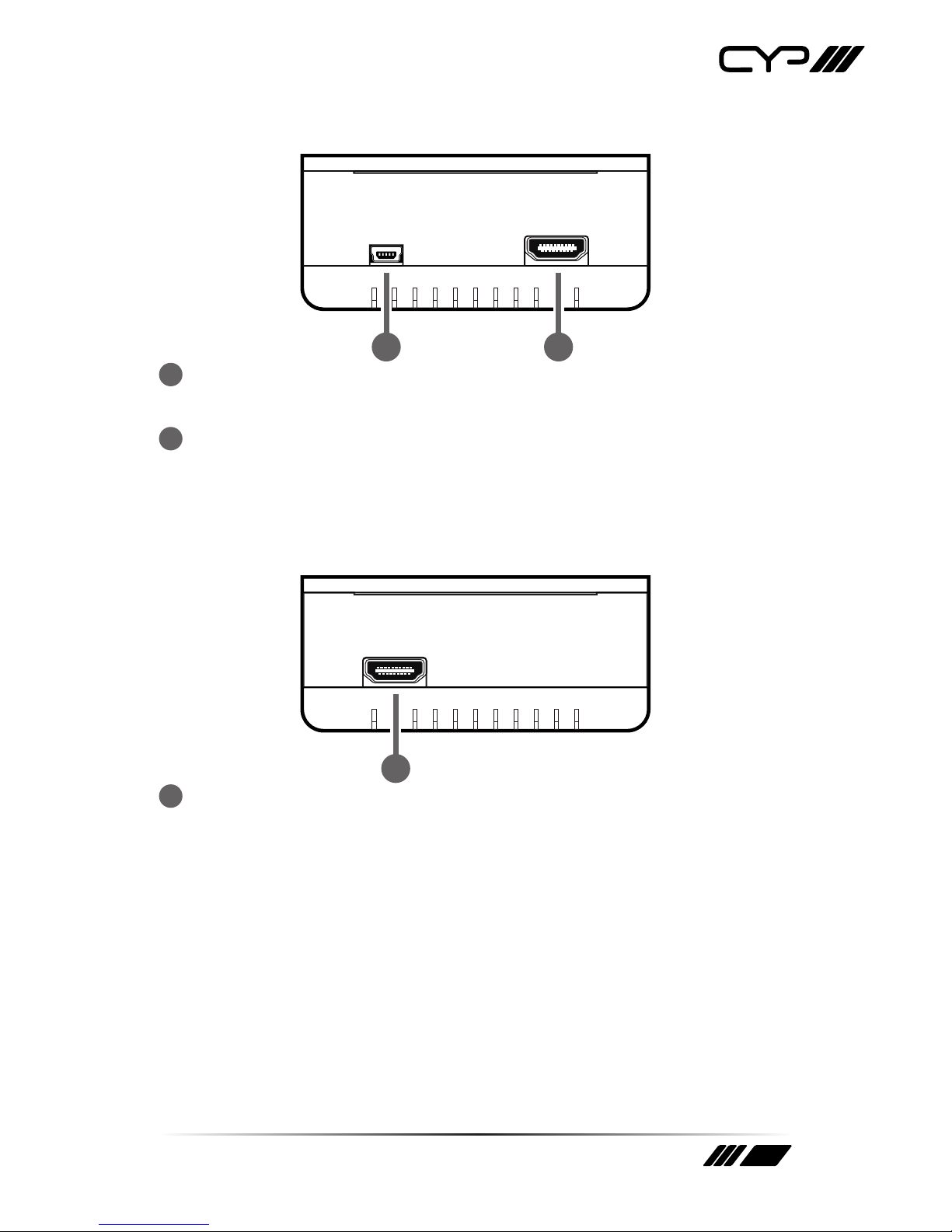

6.2 Right Panel
HDMI InService
21
1Service:
This port is reserved for manufacturer use only.
2HDMI In:
Connect to a source such as Blu-ray player, games console or PC/
laptop with an HDMI output*.
6.3 Left Panel
HDMI Out
1
1HDMI OUT:
Connect a TV/display with an HDMI cable for output of the combined
audio/video HDMI signal*.
*Note: For playback of 4kx2k/3D HDMI source signals, a 4Kx2K/3D
capable display and High Speed HDMI cables are required.

10
6.4 Front Panel
DC 5V
1
1DC 5V:
Connect the 5V DC power supply to the unit and plug the adaptor
into an AC wall outlet.

11

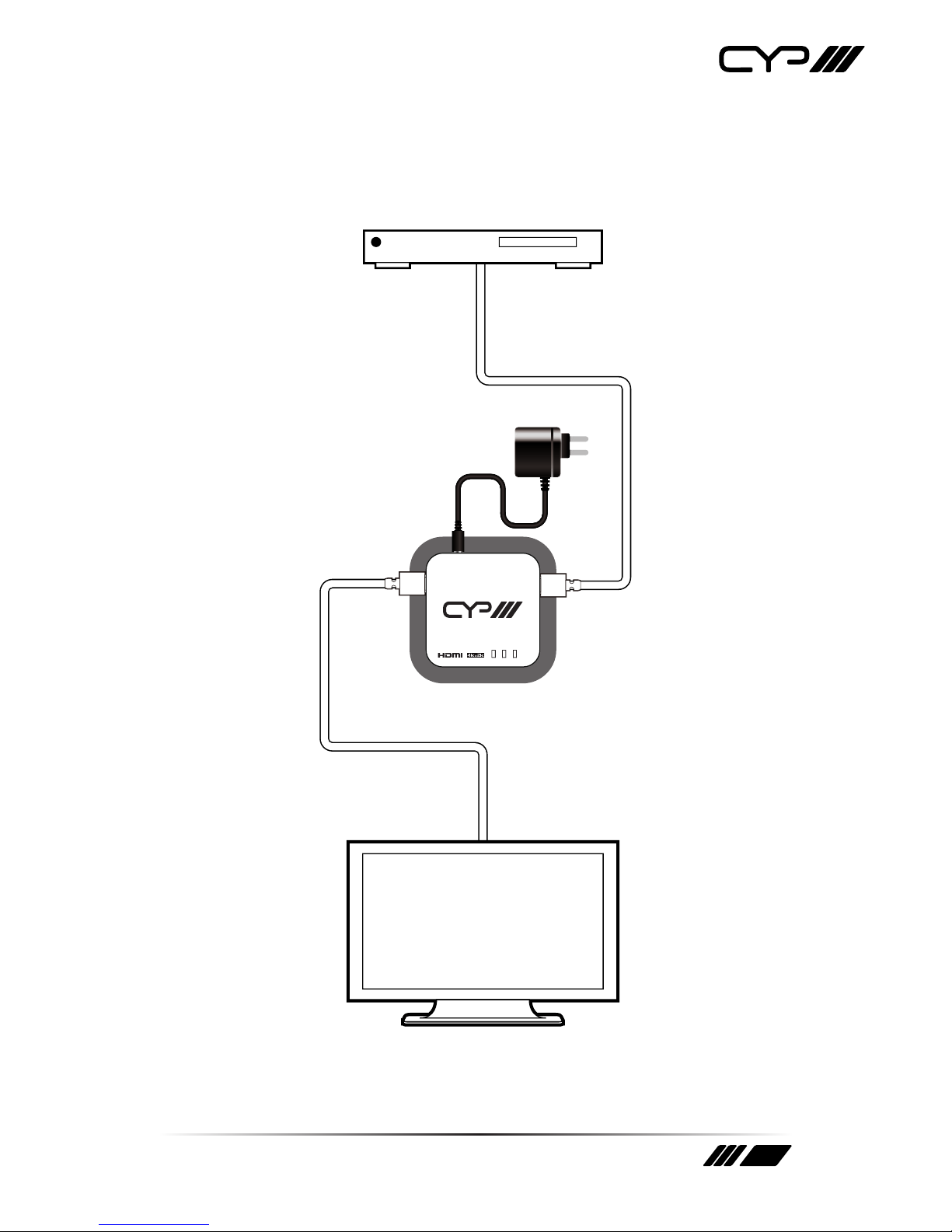

7. CONNECTION DIAGRAM
LinkHDCP Power
LinkLPCM Power
DVD or Blu-ray Player
HDMI Input
Display
HDMI Output
Power Supply

12
8. SPECIFICATIONS
Video Bandwidth 300 Mbps/10.2 Gbps
Input Ports 1×HDMI,
1×Mini-USB (service only)
Output Port 1×HDMI
HDMI Audio Sampling Rate Up to 192 kHz
HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital
2~5.1CH, DTS 2~5.1CH, Dolby
Digital Plus, Dolby TrueHD, and
DTS-HD Master Audio
HDMI Cable I/O Distance 10 meters, 1080p@12-bit
15 meters, 1080p@8-bit
HDMI I/O 4Kx2K Cable Distance 10m/10m
Power Supply 5V / 1.2A DC ( US/EU standards,
CE/FCC/UL certied)
ESD Protection Human body model:
±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions (mm) 85 (W) x 87.5 (D) x 34(H)
Weight (g) 102
Chassis Material Plastic
Colour White
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 2.5 W

13
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K UltraHD (3840×2160/4096×2160)
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
TMDS Transition-minimized differential signaling
