CYP RE-HDEQ-4K User manual

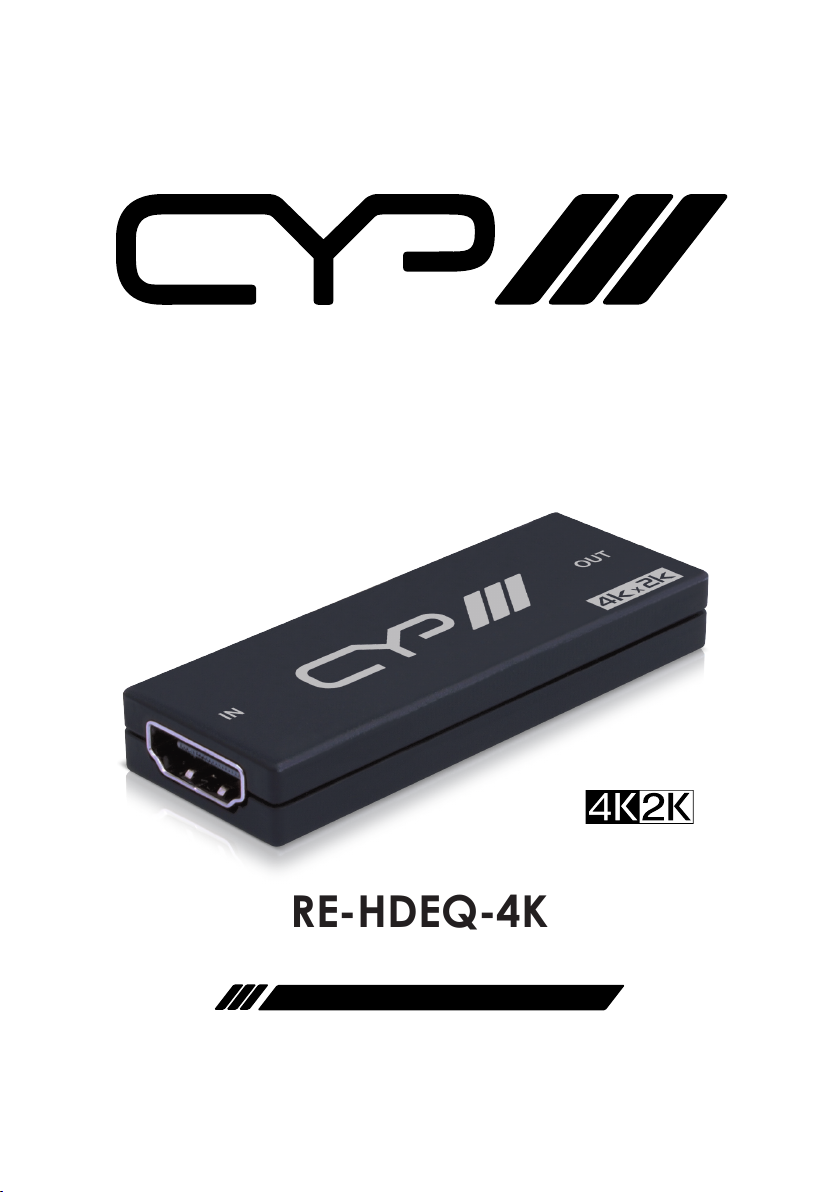

RE-HDEQ-4K
HDMI to HDMI Equaliser (4K resolution support)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 21/04/2015 First release
v1.01 29/06/2015 Corrected Connection Diagram, added
note about 4K requirements
v1.02 20/05/2016 Removed reference to HDCP

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 HDMI Dongle .............................................. 8
7. Connection Diagram .............................9
8. Specications...................................... 10
8.1 Technical Specications ........................10
8.2 Supported Resolutions..........................11
9. Acronyms............................................. 11

6
1. INTRODUCTION
The RE-HDEQ-4K is a mini HDMI equaliser enabling the user to extend
their HDMI cable lengths either side of the device, 15 meters at 4K/2K@
60Hz (YUV 4:2:0). Please note that the RE-HDEQ requires power to be
received via the HDMI source, so it is important to ensure that the HDMI
source being used is capable of providing the standard 2W power supply
via HDMI as is common on many HDMI sources.
For sources which do not have power via HDMI, CYP recommend the
use of the RE-PI Power Inserter product, designed to be used alongside
the RE-HDEQ. Supports resolutions VGA~WUXGA, 480i~1080p, 4K
UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0),
4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
dependent upon the output display’s EDID settings. This product is a
simple, yet very eective way of extending HDMI cable capabilities..
2. APPLICATIONS
Custom installation usage
Cascade an HDMI signal
Extend the operating distance of an HDMI system
3. PACKAGE CONTENTS
1×HDMI 4K UHD Enhancer
1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source device and HDMI equipped output display (TV/monitor)
with HDMI connection cables.

7
5. FEATURES
Supports TMDS equalisation and CDR (Clock Rate Recovery) for
extended HDMI cable range
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz
(RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon
the output display’s EDID settings
Requires HDMI source to output power via HDMI cable to power
Enhancer (2W as standard)
No PSU required
Supports HDMI Input/Output cable distance up to 15m at 4K2K@50/60
& YUV_420
Cascade the HDMI signal up to 5 layers
Note:
1. Testing was done with 24AWG HDMI cable, results may vary when used
with dierent source devices or dierent specication cable and may
aect overall cable distance and cascadable layers.
2. For HDMI source devices that do not support Power over Cable (PoC) an
HDMI Power Inserter unit can be used in-line between the source device
and the HDMI Enhancer unit.
3. For playback of 4K/2K HDMI source signals, a 4K/2K capable display and
High Speed HDMI cables are required.

8
6. OPERATION CONTROLS AND FUNCTIONS

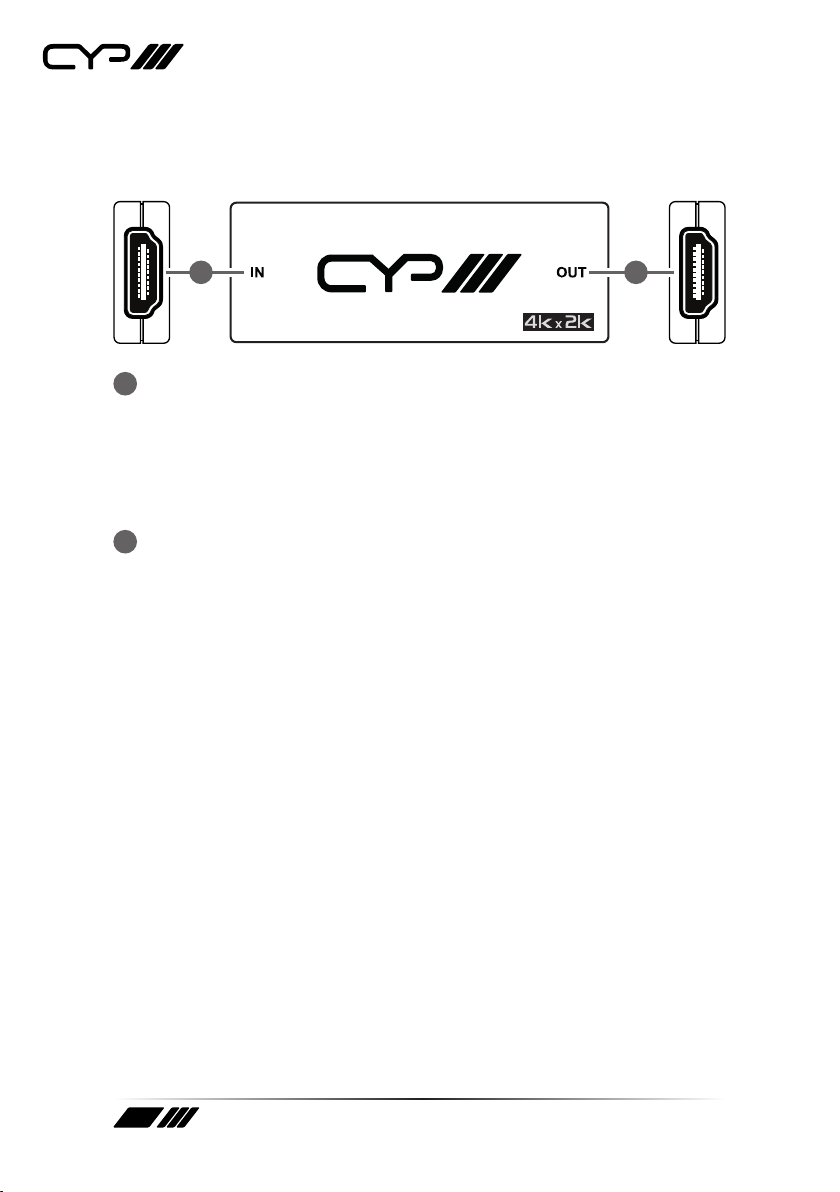

6.1 HDMI Dongle
1 2
1
HDMI IN
Connect the HDMI input to the HDMI output of an source device such
as a Blu-ray player or an HDMI Matrix/Splitter/Switcher. The unit can
be directly powered by compatible HDMI source devices that provide
power through the HDMI cable or can be powered by an HDMI Power
Inserter placed in-line between the source and the unit.
2
HDMI OUT
Connect the HDMI output to the HDMI input of an HDMI equipped
display (TV/monitor) or an HDMI Transmitter.
Note: Multiple HDMI Enhancer units may be used (up to 5 layers) to
cascade the signal over longer distances. Additional HDMI Power Inserter
units will be required. It is recommended that an HDMI Power Inserter unit
is used between the rst and the second HDMI Enhancer units being used
and on the last/5th layer before the connecton to TV or monitor/nal
HDMI equipped display.

9
7. CONNECTION DIAGRAM
HDMI OUT 1 HDMI OUT 2
HDMI OUT
HDMI IN
IN OUT
IN OUT
4K AV Receiver
4K Display
HDMI Cable
HDMI Cable
(Up to 10m@4K2K)
HDMI Cable
(Up to 10m@4K2K)
HDMI Cable
(Up to 10m@4K2K)
HDMI Source
(Blu-ray Player
HDMI Cable
(Up to 10m@4K2K)
HDMI Cable
(Up to 10m@4K2K)
4K Display
RE-PI
Power Inserter
(Optional)
RE-HDEQ-4K
(Optional)
RE-HDEQ-4K
4K HDMI Splitter
(Optional)

10
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 340MHz/10.2 Gbps
Input Port 1× HDMI
Output Port 1× HDMI
Resolution PC: VGA~WUXGA (RB)
HDTV: 480i~4K2K@24/25/30 & 4K2K@50/60
(YUV420)
Cable Distance 10m@4K2K
15m@1080p/8-bit or 12-bit
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Dimensions 65mm (W)×24mm (D)×9.5mm(H)
Weight 14g
Chassis Material Plastic
Color Black
Operating Temperature 0˚C~40˚C/32˚F~104˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 0.75W (Max)

11
8.2 Supported Resolutions
RESOLUTION INPUT OUTPUT
640×480@60/72/75/85 √ √
800×600@56/60/72/75/85 √ √
1024×768@60/70/75/85 √ √
1280×720@60 √ √
1280×1024@60 √ √
1600×1200@60 √ √
1920×1200@60RB √ √
3840×2160p@24/25/30 √ √
4096×2160p@24 √ √
4096×2160p@50/60 (YUV420) √ √
480i/576i √ √
480p/576p √ √
720p@50/60 √ √
1080i@50/60 √ √
1080p@50/60 √ √
1080p@24/25/30 √ √
9. ACRONYMS
ACRONYM COMPLETE TERM
CDR Clock Rate Recovery
EQ Equalization
HDMI High-Denition Multimedia Interface
TMDS Transition-minimised Dierential Signaling
UHD Ultra High Denition
