cypress solutions CTM-ONE M SOLAR User manual
© 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE-
SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0
CTM-ONE M SOLAR
1.1 Overview
The CTM-ONE M Solar is a standalone ruggedized system for remote telemetry monitoring. It has an
integrated solar panel and battery, with advanced logic for monitoring charge level and battery level, to
optimize reporting in the most adverse of conditions. It is designed to be field installed with minimal
tools and setup. This Guide does not cover SIM installation or device configuration. The CTM-ONE will
be pre-configured with sensors and/or interconnects to downstream sensors.
The CTM-ONE M can be mounted vertically or horizontally. The mounting bracket can be adapted for
pipe or wall or platform mounting.
CTM-ONE M SOLAR INSTALLATION GUIDE
Quick Installation Guide
© 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE-
SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0
1.2 Installation
The CTM-ONE M Solar should be mounted facing true South (non-magnetic) in the Northern
Hemisphere, or true North in the Southern Hemisphere. The solar panel can be tilted to various angles
based on geographic location of installation (refer to Appendix A for information about setting Solar
panel tilt angles).
To determine true South and to correct for magnetic declination based on a compass reading, visit:
https://www.ngdc.noaa.gov/geomag-web/
For areas prone to snow, adjusting the solar panel to be more vertically inclined will allow snow to shed
from the face of the panel. Tilt angle should be adjusted based on the latitude of the installation
location. In summer months, the panel can be aligned more horizontally to the ground, and in the
winter months the panel should be aligned more vertically to the ground.
For general installations (angle from horizontal):
•Latitude +15 degrees for winter installation
•Latitude -15 degrees for summer installation
For year round installation without panel adjustment adjust the tilt angle to be between the winter
angle and summer angle.
For 50 degrees latitude, a 50-degree angle from horizontal will offer a good angle for optimizing winter
sunlight, and will provide suitable tilt angle for shedding snow and will allow for adequate charging
during summer months.
© 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE-
SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0
1.3 Device Activation
The CTM-ONE M Solar has two embedded magnets activated (reed) switches that are used to turn
power on to wake up the device. Removal of the magnets held in place by adhesive tape will trigger the
switch.
1.3.1 Initial Power UP
After installation remove the magnet held in place by the fiber tape. The removal of this battery turns
the system on. No further action is required.
The magnet is located on the side opposite the Solar Panel, (see image, below).
To turn the system off permanently, place the magnet in the same location and hold in place using
adhesive tape.
© 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE-
SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0
Appendix A: Solar Panel Tilt Angles
Note: The diagrams below show two angles, one measured from horizontal and one measured from
vertical. For Solar panel tilt angles this document refers to Tilt angles measured from horizontal. The tilt
angle can be adjusted by moving the two small braces to different hole positions on the mounting
bracket and solar panel L-brackets.
© 2021 Cypress Solutions L:\Documentation\QUICKSTART-INSTALLGUIDES\CTM-ONE-
SOLAR INSTALLATION\CTM ONE-SOLAR INSTALLATION GUIDE-rev1.0.docx Rev 1.0
Appendix B: Device Wake up
Device Wake Up is only required for troubleshooting and configuring the device to be in an always on
state.
There is a second switch which controls the ability to wake up the system, and provides network
connectivity for local and remote management. The intention of this wake up switch is to provide an
easy means of turning the system on for configuration and trouble shooting. Normally, these systems
will be powered off more than on, and this switch forces the unit to remain powered on when the
magnet is installed. The switch is activated by holding the magnet over the location shown in the image.
The magnet needs to be held in place to turn on the system. If using tape, make sure to use strong
adhesive tape as the metal frame will attract the magnet. Once the magnet is removed, the system
returns to previous operating modes. When the magnet is held in place the power, sim, cell LED will be
solid, the Wi-Fi and GPS may be blinking depending on the state.
Note: The magnet should not be left in place for long periods as this will cause the battery drain due to
the device being in an always on/connected state.
The magnet can be attached to the black metal frame when not being used to reset the device. If
revisiting the site at a later date make sure to bring strong adhesive tape to hold the magnet in place.
Table of contents
Popular Inverter manuals by other brands
Siemens
Siemens MICROMASTER 420 operating instructions
Dass
Dass Soleaf DSP-123JB-OD Operation and installation
Afore
Afore AF1K-SL-0 Installation and operation manual
TECO

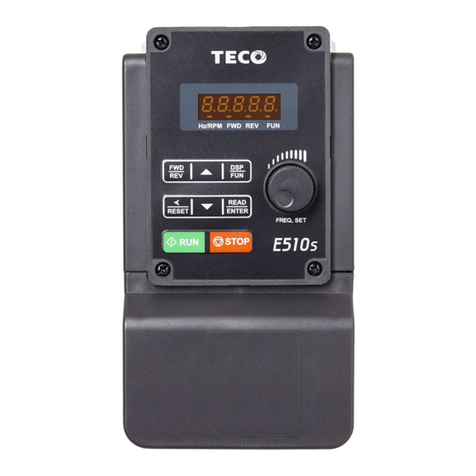

TECO E510s Series Quick Setting-up Manual
Peak Scientific
Peak Scientific Genius 1022 user manual
Perkins

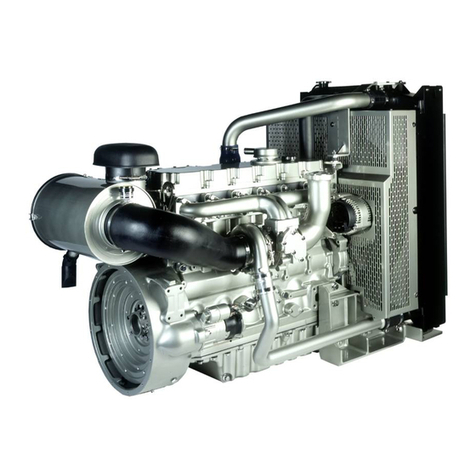

Perkins 1106C Genset Systems operation testing and adjusting
