Cypress CPRO-A1 User manual

CPRO-A1
Sound Bar
Operation Manual
CPRO-A1
DRAFT

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 June 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
DRAFT

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
 To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
RDV0 20110630 Preliminary Release
DRAFT

Table of Contents
1
1
1
1
2
2
2
3
4
5
5
7
8
8
9
13
14
1. Introduction ……………………..……………………..…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Audio Input Specications …………….…...……..........………....….
7. Analog Audio Output Specication …………….…...…...……....….
8. Amplier Performance …………….…........................…...……....….
9. Specication …………….…........................................…...……....….
10. Operation Controls and Functions ……………...……..............……
10.1 Front Panel ............................................................................
10.2 Rear Panel .………………………….....…..…….......…...….…
11. Remote Control .......................…......……………..........…..…....…...
11.1 Dip Switch ..............................................................................
12. OSD Chart .........................................................................................
13. Connection and Installation ….………………….........…..…..…......
14. Acronyms …......................................................................................
DRAFT

1. Introduction
As we advance we are able to create some amazing pieces of technology,
on ofthose creations is the Sound Bar. With its sleek, modern design that
includes built inspeakers, this Sound bar is superior to most thanks to its
umerous new features and compact design. HDMI TM compliant and
supporting 7.1 channel surround soundthe Sound Bar is a single piece speaker
system designed so you can enjoy highquality surround sound without going
through the hassle of a multi-speaker setup. The Sound Bar makes your
entertainment world complete.
2. Applications
Home Theater
Showroom
Concert Room
Dancing Room
Display Room
3. Package Contents
Sound Bar x 1
Remote Control x 1
Battery x 2
Operation Manual x 1
24V / 6.75A Power adaptor x 1
Power Cord x 1
4. System Requirements
Input source equipments such as DVD/Blue-Ray player, Set-Top-Box, VCR,
and or PS3 amplifier with up to 7.1 Channels connection cables and output
display HD TV/monitor.
1
DRAFT

5. Features
HD Sound Theater Technology
HDCP and CEC compliant
HDMI v1.4 with:
Audio Return Channel
Fast switching on all HDMI input ports in less than 1 second
EIncludes a built-in HDMI EDID simulator and HDCP keset which allows
independent audio source selection.
HDMI output with xvYCC to RGB color space design
Support HDMI CEC bypass and HDCP repeater
Easy to install and operate
User friendly OSD menu
Large, easy to read LCD display
Audio supports:
Different audio sound mode (Jazz/music/Speech/Concert/Movie)
Dedicated, flexible and full audio input and output
Flexible Subwoofer setting (internal or external)
Audio Channel Level +/- 10dB
7x Passive speaker 4ohm~8ohm
PCM 2.0, 5.0 & 7.1
Sampling rate up to 192kHz
HDMI compatible audio interface
6. Audio Input Specications
1. Analog Input
(1). Max. Input Level: 2Vrms
(2). Input Impedance: 47k ohm
2. Coaxial Digital Input
(1). Max. Input Level: 0dBFS
(2) Input Impedance: 75ohm
3. HDMI Ditigal Input
(1). Max. Input Level:0dBFS
(2). HDMI Differential Impedance: 100+/-10%ohm(TMDS)
7. Analog Audio Output Specication
1. Sub Woofer Output
(1). Max Output Level: 1.7Vrms
(2). Output Imedance: 620ohms
(3). SNR>85dB@0dbFs
(4). Sub Woofer -3dB, Frequency: 100Hz
2
DRAFT

8. Amplier Performance
(1). Analog Input sensitivity: 200mVrms
(2). Digital Input sensitivity: -20dBFS
(3). Frequency Response<+-1dB@20Hz~20KHz
(4). THD+N<0.05%@1W 20Hz~20KHz
(5). SNR >120dB a-weighted
(6). class D amplify efficient > 80%
(7). Amplifier OUTPUT
Front:
50W+50W @4Ω<1%THD+N@1KHz
25W+25W @8Ω<1%THD+N@1KHz
Center
50W+50W @4Ω<1%THD+N@1KHz
25W+25W @8Ω<1%THD+N@1KHz
Surround
50W+50W @4Ω<1%THD+N@1KHz
25W+25W @8Ω<1%THD+N@1KHz
Surround Back
50W+50W @4Ω<1%THD+N@1KHz
25W+25W @8Ω<1%THD+N@1KHz

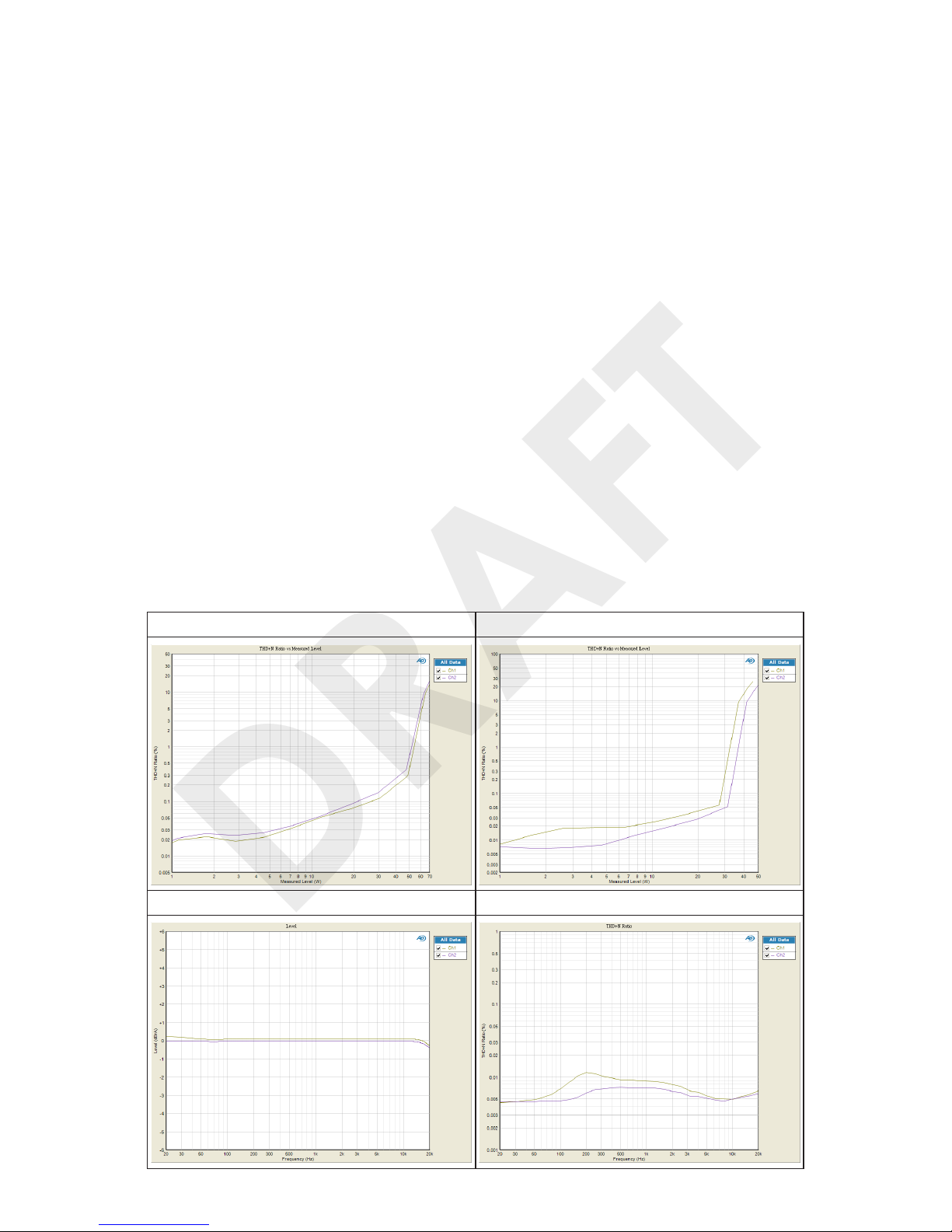

Amplier Performance
THD+N Ratio Vs Level (4OHM) THD+N Ratio Vs Level (8OHM)
Level Vs Frequency Response (1W) THD+N Vs Frequency Response(1W)
3
DRAFT

9. Specications
Input ports 3 x HDMI, 1 x Coaxial, 1x Optical,
1 x Analog 7.1 or 4x Analog Stereo
Output ports 1 x HDMI, 1 x Subwoofer,
VIDEO Support Resolution 480i~1080p 50/60/24, VGA ~WUXGA
HDMI Cable IN/OUT 15M/15M
Audio Analog IN/OUT Impedance 47kohm/620 ohm
Audio Analog INPUT Max. 2Vrms
Audio Sensitivity 200mV
Audio TYPE LPCM2.0, 5.1 & 7.1
Audio Sampling 32k~192kHz
Power Supply 24V/6.75A DC (US/EU standards,
CE/FCC/UL certified)
Dimensions (mm) 1010 (W) x 146(D) x 139 (H)
1010 (W) x 154(D) x 146 (H) (With Stand)
Chassis Material Metal
Silkscreen Color Silver
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Power Consumption 150W
Relative Humidity 20~90% RH(non-condensing)
4
DRAFT

10. Operation Controls and Functions

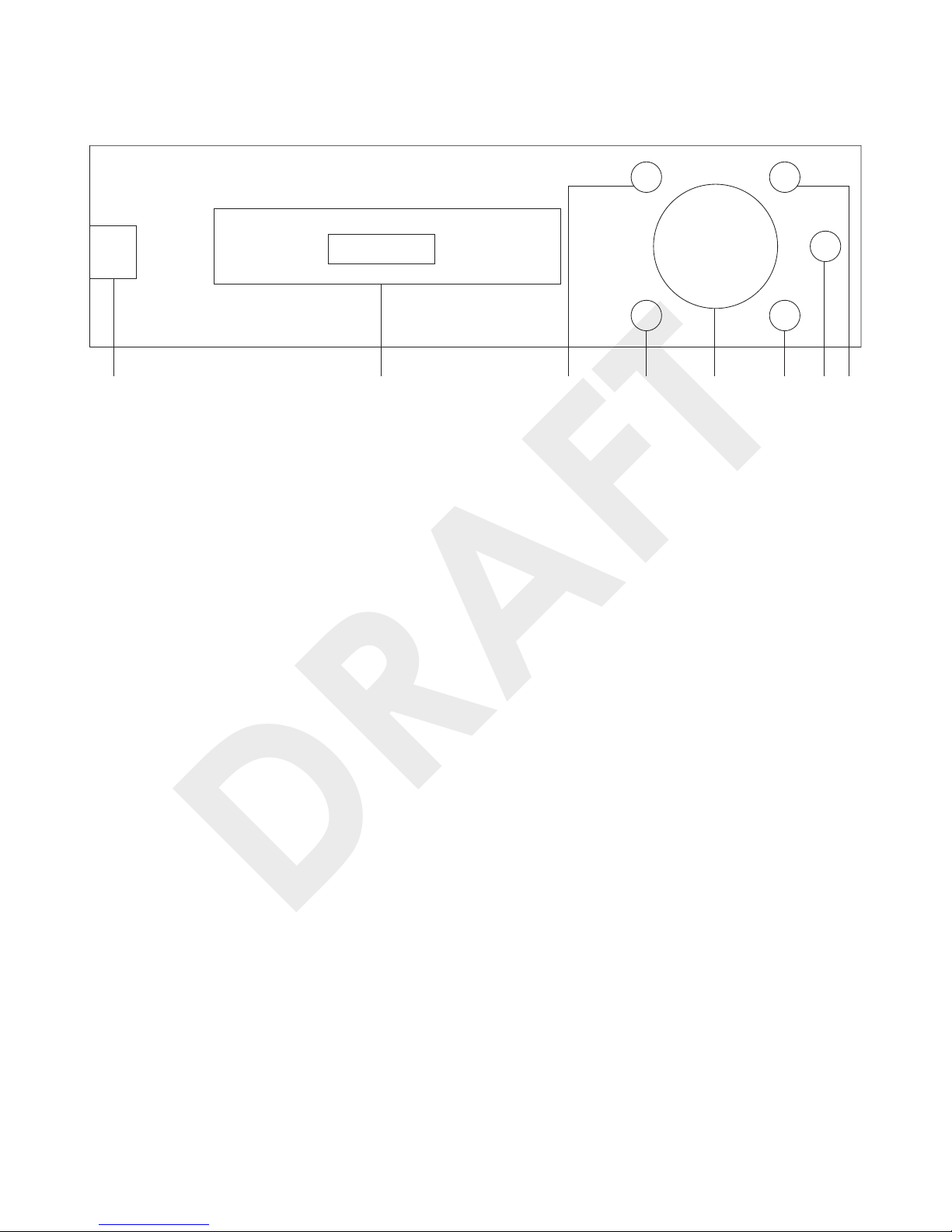

10.1 Front Panel
① ② ④ ⑥⑦⑧③ ⑤
Video Mute
Audio Info
Power
Menu /
Volume
①IR window: This is the IR receiver window which receive IR signal from the
remote control included in the device package.
②LED monitor: This monitor will display the setting status.
③Video: Press this button to select HDMI input from 1~4
④Audio: Press this button to select audio input from analog RCA or digital
coaxial input.
⑤Mute: Press this button to mute the audio sound.
⑥Power: Press this button to turn on or set the device to standby mode.
⑦Info: Press this button to bring up the information screen and press it again
to exit it.
⑧Menu/Volume wheel: Turn this wheel to turn up or down the volme or
when selecting the OSD turn it to right or left to bring in and out the OSD
sele
5
DRAFT

6.2
6.1
6.3 6.5 6.9
6.86.7
6.4 6.6 6.10

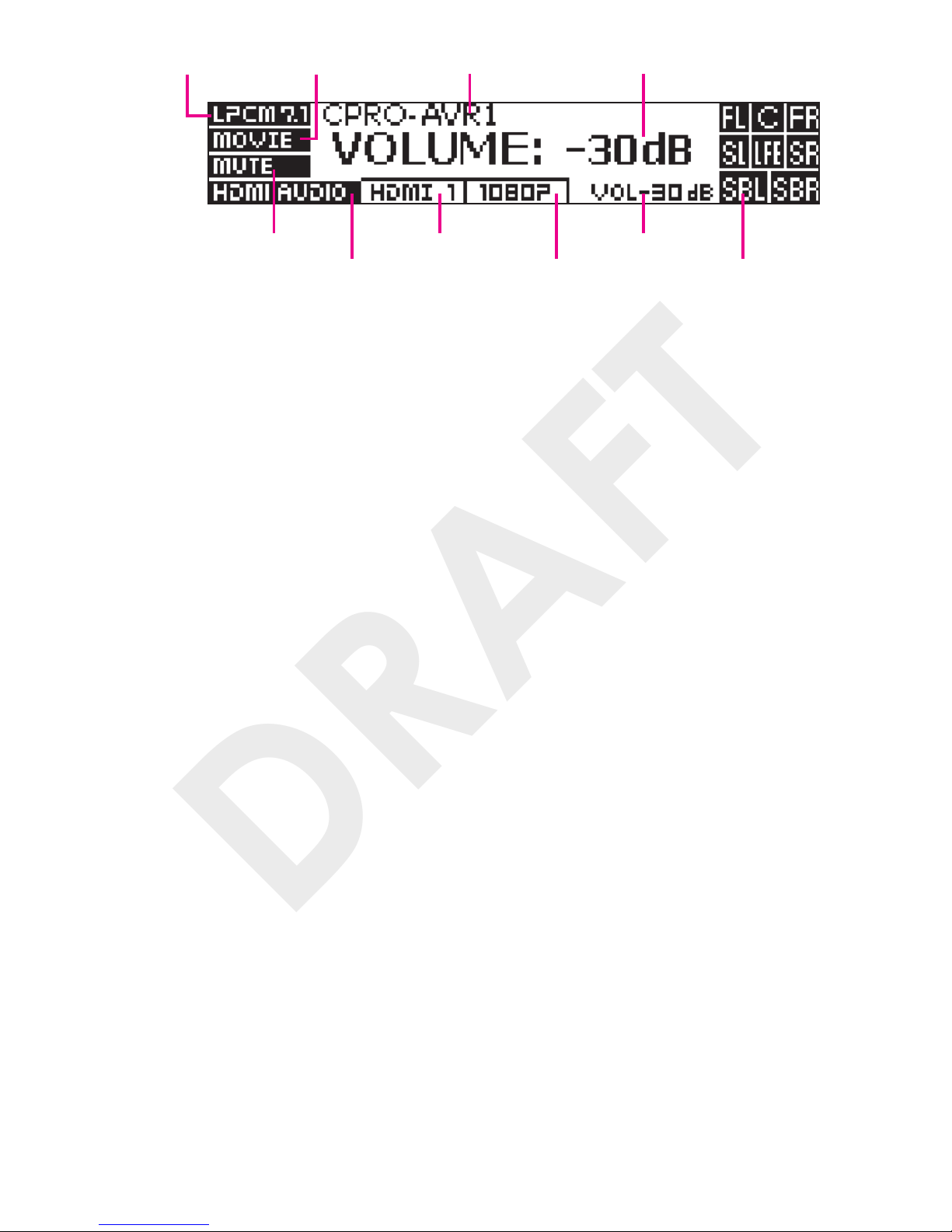

6.1 Audio Type: This LED will show output audio format setting from
LPCM 2.0/ 5.1./7.1.
6.2 Sound Mode: This LED will show output sound format setting from
Default/Concert/Speech/Movie/Music or Jazz.
6.3 MUTE: This LED shows the output audio is being muted, when
the LED is off the output audio will output sound again.
6.4 Audio Input: This LED shows the audio input format setting from
Digital HDMI 1~4/Digital Coaxial/analog 7.1CH or Analog Stereo.
6.5 Video Input: This LED shows the video input format setting from HDM
1~4.
6.6 Video Resolution This LED shows the output video resolution
according to the display monitor or TV or the built-in EDID.
6.7 OSD Upper Layer: This LED shows the device’s mode or the upper
level of the OSD selection.
6.8 OSD Lower Layer: This LED shows from the upper level to the lower
level of the OSD selection but the default will always goes back to
the main volume setting.
6.9 Volume: This LED shows the present volume setting.
6.10 Speaker: These LEDs shows the output speaker connection.
6
DRAFT

10.2 Rear Panel
③② ④ ⑧⑦⑥① ⑤
123
1234
FRONTSUB.SUR.SUR-BACK
DC 24V
RS 232
HDMI IN HDMI OUT
123
AUDIO IN
SUB OUT
COAXIAL
OPTICAL CENTER
1234
FRONTSUB.SUR.SUR-BACK
L
R
①DC 24V: This slot is to connect with power adaptor and power cord
included in the package and connect it to the AC wall outlet for power
supply.
②RS-232: This slot is to connect with D-sub 9pin cable from PC/NB for RS-232
control and command sending.
③HDMI Input 1~3: These slots are for connecting the input source
equipments such as DVD or Blue-Ray player for both video and audio
signal input with HDMI cables.
④HDMI Out: This slot is to connect with display equipment such as HD TV/
monitor for output video signal display with HDMI cable.
⑤COAX IN: This slot is to connect with input source equipment such as DVD
or Set-Top-Box for audio signal input with coaxial cable.
⑥OPTICAL IN: This slot is to connect with input source equipment such as
DVD or Set-Top-Box for audio signal input with optical cable.
⑦Analog Audio Input: These slots are for connecting the analog audio
signal from input source equipment such as Set-top-Box or VCR with RCA
cables up to 7.1 channels.
⑧SUB Out: This slot is to connect to the subwoofer speaker for external
subwoofer sound display.
7
DRAFT

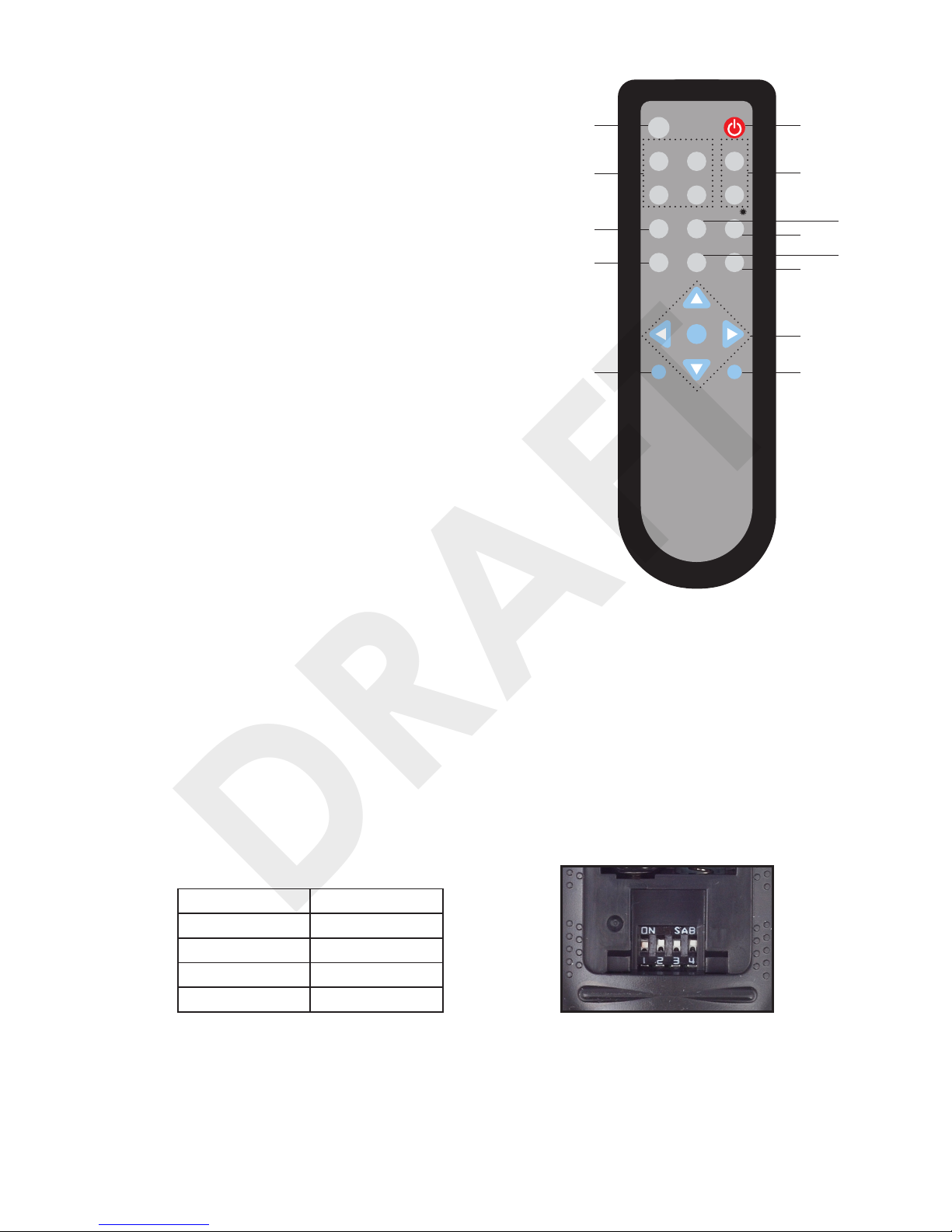

11. Remote Control
①Power: Press this key to turn on or set the
device to standby mode.
②Mute: Press this key to mute the audio
output sound, press it again to turn back
the audio sound.
③HDMI 1~4: Press these keys to select HDMI
input source equipments from 1~4.
④Vol +/-: Press these Keys to set the audio
output volume up or down.
⑤HDMI: Press this key to set the audio output
volume from HDMI Input signal.
⑥Coaxial: Press this key to set the audio
output volume from COAX In signal.
⑦LCM *: Press this key to light up/down the
LCM screen.
⑧Analog 7.1: Press this key to set the audio
output volume from analog Audio Input
signal.
⑨Stereo: Press this key to set the audio
output to be 2Ch only from analog Audio
Input signal.
⑩Sound Mode: Press this key to select the sound mode from Jazz/Music/
Speech/Concert or Movie.
⑪pqtu & Menu/Enter: Press the Menu key to bring up the OSD menu
and press the up/down/right/left keys to select the OSD selection and
once confirm the selection press Enter key.
⑫Exit: Press this key to exit the OSD selection.
⑬Info: Press this key to bring up the present setting.
11.1 Dip Switch
NO. DATA
Channel 1 iiii
Channel 2 iihi
Channel 3 ihii
Channel 4 ihhi
To return back to the factory defualt setting, press buttons Mute→HDMI 1
→HDMI 2→HDMI 3→HDMI 4 sequencly and switch the dip switch to Channel 1.
CR-90*B
Info
Exit
PowerMute
HDMI 1 HDMI 2 Vol +
HDMI 3HDMI 4Vol -
HDMI Coaxial
LCM
Analog 7.1
Stereo Sound
Mode
Menu/Enter
①
④
⑦
⑩
⑬
⑪
⑥
⑨
②
③
⑤
⑧
⑫
8
DRAFT

12. OSD Chart
CYP-CPRO-AVR1 1st Tier 2nd Tier 3rd Tier
VIDEO INPUT
HDMI1
HDMI2
HDMI3
HDMI4
RETURN
AUDIO INPUT
DIGITAL HDMI
DIGITAL
COAXIAL
ANALOG 7.1CH
ANALOG STEREO
STEREO 1
STEREO 2
STEREO 3
STEREO 4
RETURN
NOISE GREN.
FRONT L
FRONT R
CENTER
SUBWOOFER
SURROUND L
SURROUND R
SUR BACK L
SUR BACK R
RETURN
RETURN
SOUND MODE
DEFAULT MODE
CONCERT MODE
SPEECH MODE
MOVIE MODE
MUSIC MODE
JAZZ MODE
RETURN
TONE CONTROL
BASS: 0dB +/- 10dB
TREBLE: 0dB +/- 10dB
RETURN
9
DRAFT

SPK SETTING
SPK SIZE
FRONT L/R
(LARGE)
SMALL
RETURN
CENTER
(SMALL)
LARGE
OFF
RETURN
SUBWOOKFER
(ON)
OFF
RETURN
SURROUND L
(SMALL)
LARGE
OFF
RETURN
SURROUND R
(SMALL)
LARGE
OFF
RETURN
RETURN
SPK LEVEL
FRONT L -10dB ~ (0) ~+10dB
FRONT R -10dB ~ (0) ~+10dB
CENTER -10dB ~ (0) ~+10dB
SUBWOOFER -10dB ~ (0) ~+10dB
SURROUND L -10dB ~ (0) ~+10dB
SURROUND R -10dB ~ (0) ~+10dB
SUR BACK L -10dB ~ (0) ~+10dB
SUR BACK R -10dB ~ (0) ~+10dB
RETURN
SPK DISTANCE
FRONT L 0~(3)~10M
FRONT R 0~(2)~10M
CENTER 0~(3)~10M
SUBWOOFER 0~(3)~10M
SURROUND L 0~(2)~10M
SURROUND R 0~(3)~10M
SUR BACK L 0~(2)~10M
SUR BACK R 0~(2)~10M
RETURN
RETURN
10
DRAFT

SYS. CONFIG
OSD TIMEOUT
5 SEC
10 SEC
20 SEC
RETURN
EDID SETTING
INT
TV
RETURN
LCM SETTING
BRIGHTNESS 0-10
CONTRAST 0-10
RETURN
LIP SYNC (50ms) 0ms ~ 100ms
IR CHANNEL
IR CHANNEL 1
IR CHANNEL 2
IR CHANNEL 3
IR CHANNEL 4
RETURN
RETURN
INFORMATION
HDMI INPUT
Resolution
AUDIO INPUT
AUDIO TYPE
SOUND MODE
SKP SETTING
OSD TIMEOUT
F/W Version
Note: The value is the default setting
System Config
EDID Setting: The device has built-in EDID allowing source to output signal for
display or users may set the EDID to TV to allow the source to read display’s
EDID and send the output signal accordingly.
Lip Sync: This function allows all output speakers with the same delay.
11
DRAFT

Speaker Setting
Speaker Size: This function allows users to set each and every speaker’s
output sound from OFF/ON/Small to Large base on the main volume setting.
This setting favor user when in setting the speaker position and the desire
favor sound part.
Speaker Level: This function allows users with add or less each and every
speaker’s output level base on main volume sound.
Speaker Distance: This function allows users to set each and every speaker’s
distance starting from the audience’s position and each meter is about 3ms
delay.
12
DRAFT

13. Connection and Installation
DVD Blu Ray
or
VCR
HDMI OUT
STB
7.1 Speakers
HDMI
HDMI
13
DRAFT

Acronyms A
Acronym Complete Term
CEC Consumer Electronics Control
COAX Coaxial
EDID Extended Display Identification Data
HDCP High-bandwidth Digital content protection
HDMI High-Definition Multimedia Interface
LCM Liquid Crystal Monitor
OSD On-Screen Display
SUB Subwoofer
14
DRAFT

A
DRAFT

20110811 MPM-CPROA1
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
DRAFT
