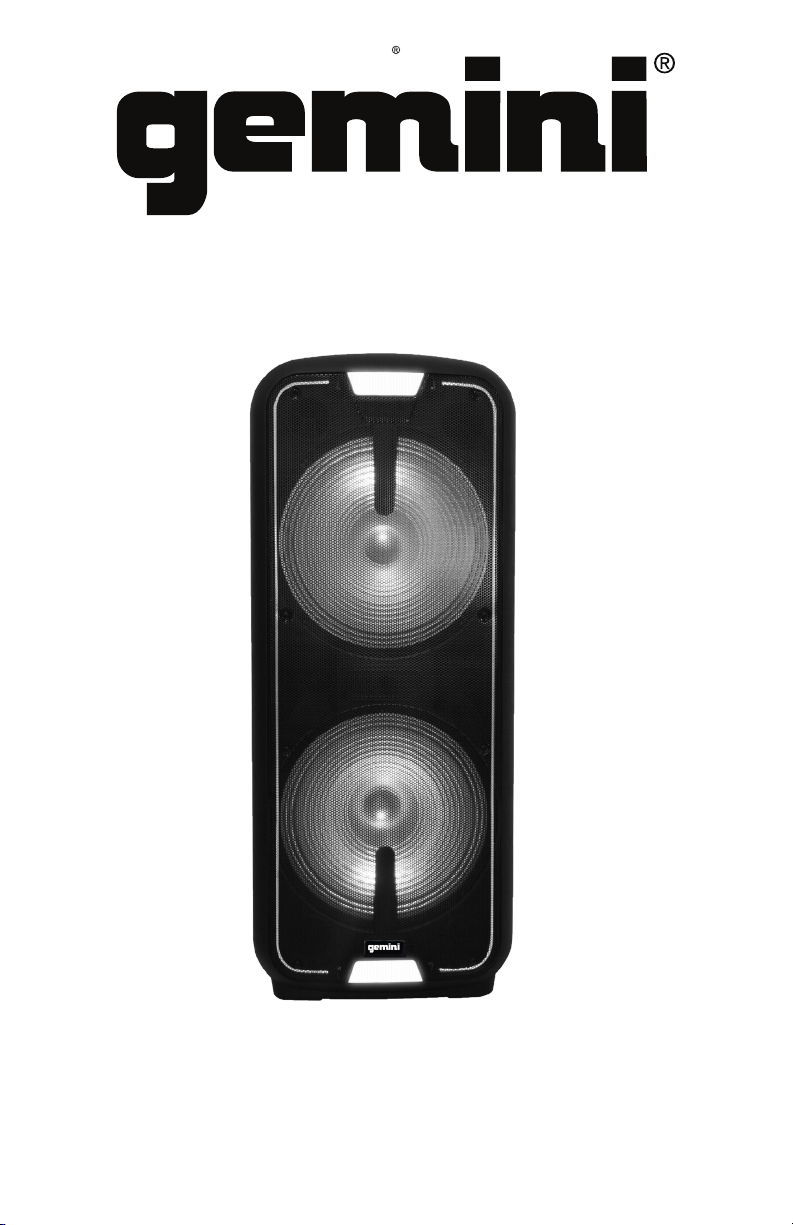

Gemini GSX-L2515BTB User manual

GSX-L2515BTB
Portable Bluetooth Speaker
Empower Your Sound.

2GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
Index
What’s Included
Features
Product Overview
Introduction
Caution
Precautions
FCC Compliance Statement
Warranty and Repair
Limited Warranty
Return/Repair
3
4
6
6
6
6
7
7
7
What’s Included
Please ensure that you nd these
accessories included with your GSX-
L2515BTB speaker:
(1) GSX-L2515BTB
(1) Wired Microphone
(1) USB Charging Cable

3
FEATURE
Wirelessly stream music from any Bluetooth device
Play music from any storage device with built-in USB port, TF
Card slot and AUX input
Built-in FM radio with external antenna support
2000 Watts Peak Power (PMPO) through dual 15” woofers for
big, powerful, and clear sound
Long lasting battery powered speaker with USB charge port
Wired Microphone included with echo control ability
Remote control included
MICROPHONE
Microphone input for the included wired microphone
CUSTOMIZABLE SOUND
Bass, Treble, and Echo control
MIXED MEDIA, TOTAL CONTROL
Built-in media player with Bluetooth streaming, FM Radio, and
USB player.
TAKE IT ALONG YOUR ADVENTURES
The GSX-L2515BTB features a long-lasting battery and an easy
carry handle for maximum portability.
SING-ALONG
Sing-along to your favorite music with the included wired micro-
phone.

4GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
1
235
7
46
810
12 11 9

5
1. LED SCREEN
2. MODE
To turn the PLAYER on/o press and hold MODE. Press MODE again to toggle through
USB, SD, or Bluetooth as the input device. MODE key is used to switch radio status in
order to use radio key-pressing function; if the receiving frequency needs inputting
manually, press the numbers on remote control directly to input the frequency of radio
station.
REC: Press The Key To Record
MIC PRIORITY: Lowers The VolUme On The Speaker so The Mic Is Clear
CH- / : press the key and the radio will read the saved radio station and select the previ-
ous one in descending order
SCAN/ : Each press of the PLAY / PAUSE BUTTON causes the operation to change
from PLAY to PAUSE or from PAUSE back to PLAY.
CH+/ : press the key and the radio will read the saved radio station and select the next
one in ascending order;
3. MIC IN
They are used to connect the plug interface of the wire microphone.
4. AUX IN
5. USB PLAYBACK
On the right side of the device is a USB drive slot where a USB memory stick can be
connected.
6. TF CARD
On the left side of the device is an TF card slot. To connect the TF card, push the card-
completely in the slot until it clicks into place.
7. MIC ECHO
It is used to adjust the echo depth of microphone.
8. MIC VOLUME
(Microphone Volume): It is used to adjust the volume of microphone.
9. BASS
It is used to adjust the gain of music bass.
10. TREBLE
It is used to adjust the gain of music treble.
11. VOLUME
CHANNEL 1 and 2 VOLUME controls determine the LEVEL of each channel individually.
12. DC
*DC15V IN (15V DC power input): the interface of external power adaptor; please use the
original adapter.

6GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
INTRODUCTION
Thank you for purchasing our GSX-L2515BTB. We are condent that the Gemini
platform of products will not only make your life easier through the use of the
latest technological advancements in cross-platform connectivity and sound
reproduction but will raise the bar for DJ and pro audio products. With the proper
care & maintenance, your unit will likely provide years of reliable, uninterrupted
service. All Gemini products are backed by a 1-year limited warranty*.
PREPARING FOR FIRST USE
Please ensure that you nd these accessories included with the GSX-L2515BTB:
(1) Power Cord
(1) Operating Instructions
(1) Warranty Card
PRECAUTIONS
1. All operating instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open the unit. There are NO USER
REPLACEABLE PARTS INSIDE. Please refer servicing to a qualied Gemini Sound
Products service technician. Do not attempt to return this equipment to your
dealer.
3. Do not expose this unit to direct sunlight or to a heat source such as a radiator
or stove.
4. This unit should be cleaned only with a damp cloth. Avoid solvents or other
cleaning detergents.
5. When moving this equipment, it should be placed in its original carton and
packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO WATER OR HEAT.
7. DO NOT USE CLEANING PRODUCTS OR LUBRICANTS ON THE CONTROLS OR
SWITCHES.
CONNECTIONS
PLEASE NOTE IT IS VERY IMPORTANT THAT YOUR AMPLIFIER HAS MATCHED
POWER RATINGS! (Make sure your equipment is completely OFF and also lower
ALL VOLUME, LEVEL, & GAIN controls before connecting the speaker.)
Responsible Party Name:
Innovative Concepts & Designs
Company address:
458 Florida Grove Road
Perth Amboy, NJ, 08861 USA
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. The operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2( This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC Rules. These equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment o and then on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to a dierent outlet so that the equipment and receiver are on dierent branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AE6G-2515BTB

7
LEGALITY & SAFETY
The device is not intended for use by people (including children) with reduced
physical, sensory or mental capacity. People who have not read the manual,
unless they have received an explanation by someone responsible for their
safety, should not use this unit. Children should be monitored to ensure
that they do not play with the device. The device should always be readily
accessible. The device should not be exposed to water. No objects lled with
liquids, such as vases, shall be placed on the device. Always leave a minimum
distance of 10 cm around the unit to ensure sucient
ventilation. Open ame sources, such as candles, should not be placed on top
of the device. The device is intended for use only in a temperate climate. At full
volume, prolonged listening may damage your hearing and cause temporary
or permanent deafness, hearing drone, tinnitus, or hyperacusis. Listening at
high volume is not recommended. One hour per day is not recommend either.
Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent. The battery should not be exposed to excessive
heat such as sunshine or re. Dierent types of batteries, or new and used
batteries, should not be mixed. The battery must be installed according to
its polarity. If the battery is worn, it must be removed from the product. The
battery must be disposed of safely. Always use collection bins to protect the
environment. The battery can only be replaced by the maker of this product,
the sales department, or a qualied person. Switch the device o where the
use of the device is not allowed or where there is a risk of causing interference
or danger - for examples: on an aircraft, or near medical equipment, fuel,
chemicals or blasting sites. Check the current laws and regulations regarding
the use of this device in the areas where you drive. Do not handle the device
when driving. Concentrate fully on driving. All wireless devices are susceptible
to interference which may aect their performance. All our devices conform
to international/national standards and regulations, and we aim to limit user
exposure to electromagnetic elds. These standards and regulations were
adopted after the completion of extensive scientic research. This research
established no link between the use of the mobile headset and any adverse
eects on health if the device is used in accordance with standard practices.
Only qualied people are authorized to install or repair this product. Only use
batteries, chargers and other accessories which are compatible with this
equipment. Do not connect incompatible products. This equipment is not
waterproof. Keep it dry. Keep your device in a safe place, out of the reach of
young children. The device contains small parts which may present a choking
hazard to kids.

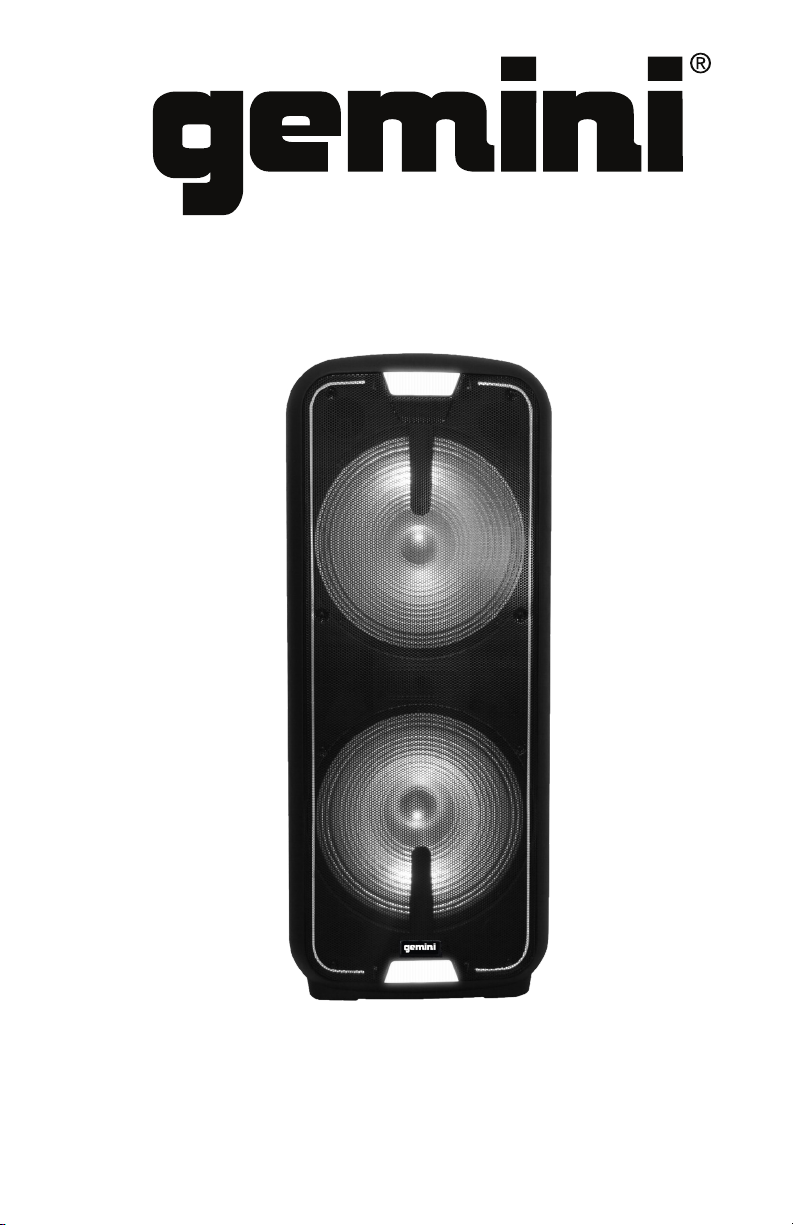

GSX-L2515BTB
Altavoz Bluetooth portátil
Empower Your Sound.

9
Índice
Qué está incluido
Caracteristicas
Descripción del producto
Introducción
Precaución
Precauciones
Declaración de cumplimiento de la
FCC
Garantía y reparación
Garantía limitada
Devolución / reparación
10
11
11
13
13
13
14
14
14
Qué está incluido
Asegúrese de encontrar estos accesorios
incluidos con su altavoz GSX-L2515BTB:
(1) GSX-L2515BTB
(1) micrófono con cable
(1) cable de carga USB

10 GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
CARACTERÍSTICA
Transmita música de forma inalámbrica desde cualquier dispositi-
vo Bluetooth
Reproduzca música desde cualquier dispositivo de almace-
namiento con puerto USB incorporado, ranura para tarjeta TF y
entrada AUX
Radio FM incorporada con soporte de antena externa
Potencia máxima de 2000 vatios (PMPO) a través de woofers
duales de 15 “para un sonido grande, potente y claro
Altavoz con batería de larga duración con puerto de carga USB
Micrófono con cable incluido con capacidad de control de eco
Control remoto incluido
MICRÓFONO
Entrada de micrófono para el micrófono con cable incluido
SONIDO PERSONALIZABLE
Control de graves, agudos y eco
MEDIOS MIXTOS, CONTROL TOTAL
Reproductor multimedia incorporado con transmisión por Blue-
tooth, radio FM y reproductor USB.
TÓMELO A LO LARGO DE SUS AVENTURAS
El GSX-L2515BTB presenta una batería de larga duración y un asa
de transporte fácil para una máxima portabilidad.
CANTAR JUNTO
Canta con tu música favorita con el micrófono con cable incluido.

11
1
235
7
46
810
12 11 9

12 GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
1. PANTALLA LED
2. MODO
Para encender / apagar PLAYER, mantenga presionado MODE. Presione MODE nueva-
mente para alternar a través de USB, SD o Bluetooth como dispositivo de entrada. La
tecla MODE se usa para cambiar el estado de la radio para usar la función de presionar
la tecla de radio; Si la frecuencia de recepción necesita ingresar manualmente, presione
los números en el control remoto directamente para ingresar la frecuencia de la estación
de radio.
REC: Presione la tecla para grabar
PRIORIDAD DEL MICRO: Reduce el volumen en el altavoz para que el micrófono
esté claro
CH- /: presione la tecla y la radio leerá la estación de radio guardada y seleccionará la
anterior en orden descendente
SCAN /: Cada vez que presiona el BOTÓN PLAY / PAUSE, la operación cambia de
PLAY a PAUSE o de PAUSE de nuevo a PLAY.
CH + /: presione la tecla y la radio leerá la estación de radio guardada y seleccionará la
siguiente en orden ascendente;
3. ENTRADA DE MICRÓFONO
Se utilizan para conectar la interfaz de enchufe del micrófono de cable.
4. AUX IN
5. REPRODUCCIÓN USB
En el lado derecho del dispositivo hay una ranura para unidad USB donde se puede
conectar una memoria USB.
6. TARJETA TF
En el lado izquierdo del dispositivo hay una ranura para tarjeta TF. Para conectar la tarje-
ta TF, empuje la tarjeta completamente en la ranura hasta que encaje en su lugar.
7. MIC ECHO
Se utiliza para ajustar la profundidad del eco del micrófono.
8. VOLUMEN MIC
(Volumen del micrófono): se utiliza para ajustar el volumen del micrófono.
9. BAJO
Se utiliza para ajustar la ganancia del bajo musical.
10. TRIPLICAR
Se utiliza para ajustar la ganancia de los agudos musicales.
11. VOLUMEN
Los controles de VOLUMEN DE CANAL 1 y 2 determinan el NIVEL de cada canal indivi-
ualmente
12. DC
* DC15V IN (entrada de alimentación de 15V DC): la interfaz del adaptador de ali-
mentación externo; por favor use el adaptador original.

13
INTRODUCTION
Gracias por comprar nuestro GSX-L2515BTB. Conamos en que la plataforma
de productos Gemini no solo le facilitará la vida mediante el uso de los últimos
avances tecnológicos en conectividad multiplataforma y reproducción de sonido,
sino que elevará el estándar para los productos de DJ y audio profesional. Con el
cuidado y mantenimiento adecuados, es probable que su unidad brinde años de
servicio conable e ininterrumpido. Todos los productos Gemini están respaldados
por una garantía limitada de 1 año *.
PREPARING FOR FIRST USE
Asegúrese de encontrar estos accesorios incluidos con el GSX-L2515BTB:
(1) cable de alimentación
(1) Instrucciones de funcionamiento
(1) Tarjeta de garantía
PRECAUTIONS
1. Todas las instrucciones de funcionamiento deben leerse antes de usar este
equipo.
2. Para reducir el riesgo de descarga eléctrica, no abra la unidad. NO HAY PIEZAS
REEMPLAZABLES POR EL USUARIO EN EL INTERIOR. Consulte el servicio
técnico a un técnico de servicio calicado de Gemini Sound Products. No intente
devolver este equipo a su distribuidor.
3. No exponga esta unidad a la luz solar directa ni a una fuente de calor como un
radiador o una estufa.
4. Esta unidad debe limpiarse solo con un paño húmedo. Evite solventes u otros
detergentes de limpieza.
5. Al mover este equipo, debe colocarse en su caja y embalaje originales. Esto
reducirá el riesgo de daños durante el tránsito.
6. NO EXPONGA ESTA UNIDAD AL AGUA O AL CALOR.
7. NO USE PRODUCTOS DE LIMPIEZA O LUBRICANTES EN LOS CONTROLES O
INTERRUPTORES.
CONNECTIONS
¡TENGA EN CUENTA QUE ES MUY IMPORTANTE QUE SU AMPLIFICADOR TIENE
CLASIFICACIONES DE POTENCIA IGUALES! (Asegúrese de que su equipo esté
completamente APAGADO y también baje TODOS los controles de VOLUMEN,
NIVEL Y GANANCIA antes de conectar el altavoz).
Responsible Party Name:
Innovative Concepts & Designs
Company address:
458 Florida Grove Road
Perth Amboy, NJ, 08861 USA
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. The operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2( This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC Rules. These equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined
by turning the equipment o and then on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to a dierent outlet so that the equipment and receiver are on dierent branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AE6G-2515BTB

14 GSX-L2515BTB
PORTABLE BLUETOOTH SPEAKER
LEGALIDAD Y SEGURIDAD
El dispositivo no está diseñado para ser utilizado por personas (incluidos
niños) con capacidad física, sensorial o mental reducida. Las personas que
no hayan leído el manual, a menos que hayan recibido una explicación de
alguien responsable de su seguridad, no deben usar esta unidad. Los niños
deben ser monitoreados para asegurarse de que no jueguen con el dispositivo.
El dispositivo siempre debe ser fácilmente accesible. El dispositivo no debe
exponerse al agua. No se colocarán objetos llenos de líquidos, como jarrones,
sobre el dispositivo. Deje siempre una distancia mínima de 10 cm alrededor de
la unidad para garantizar suciente
ventilación. Las fuentes de llamas abiertas, como las velas, no se deben colocar
encima del dispositivo. El dispositivo está diseñado para usarse solo en un
clima templado. A todo volumen, la escucha prolongada puede dañar su
audición y causar sordera temporal o permanente, zumbido auditivo, tinnitus
o hiperacusia. No se recomienda escuchar a un volumen alto. Una hora por
día tampoco es recomendable. Peligro de explosión si la batería se reemplaza
incorrectamente o no se reemplaza por el mismo tipo o equivalente. La batería
no debe exponerse a calor excesivo como la luz solar o el fuego. No se deben
mezclar diferentes tipos de baterías, o baterías nuevas y usadas. La batería
debe instalarse de acuerdo con su polaridad. Si la batería está desgastada,
debe retirarse del producto. La batería debe desecharse de manera segura.
Utilice siempre contenedores de recolección para proteger el medio ambiente.
La batería solo puede ser reemplazada por el fabricante de este producto,
el departamento de ventas o una persona calicada. Apague el dispositivo
donde el uso del dispositivo no esté permitido o donde exista el riesgo de
causar interferencia o peligro, por ejemplo: en un avión o cerca de equipos
médicos, combustible, productos químicos o sitios de explosión. Verique
las leyes y regulaciones actuales con respecto al uso de este dispositivo
en las áreas donde conduce. No manipule el dispositivo mientras conduce.
Concéntrese completamente en conducir. Todos los dispositivos inalámbricos
son susceptibles a interferencias que pueden afectar su rendimiento. Todos
nuestros dispositivos cumplen con las normas y regulaciones internacionales /
nacionales, y nuestro objetivo es limitar la exposición del usuario a los campos
electromagnéticos. Estas normas y reglamentos fueron adoptados después
de la nalización de una extensa investigación cientíca. Esta investigación no
estableció ningún vínculo entre el uso de los auriculares móviles y cualquier
efecto adverso sobre la salud si el dispositivo se usa de acuerdo con las
prácticas estándar. Solo personas calicadas están autorizadas para instalar o
reparar este producto. Utilice solo baterías, cargadores y otros accesorios que
sean compatibles con este
equipo. No conecte productos incompatibles. Este equipo no es resistente al
agua. Mantenlo seco. Mantenga su dispositivo en un lugar seguro, fuera del
alcance de los niños pequeños. El dispositivo contiene piezas pequeñas que
pueden presentar un peligro de asxia para los niños.

15

At Gemini, our highest priority
is making your experience
unforgettable. Need help setting
up, troubleshooting, or looking
for some tips? We’re here for you,
Monday through Friday 9-5PM EST.
Love coupon codes and an
extended warranty?
E-mail us a link to your product
review and we’ll send you a coupon
code for our website and extend
your warranty 3 months.
*US ONLY*
www.geminisound.com
[e-mail]
1-844-GEMINI9
Innovative Concepts and Design LLC
458 Florida Grove Road
Perth Amboy, NJ 08861

FCCWarningStatement
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.Thisequipmenthasbeentestedandfoundto
complywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These
limitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto
correcttheinterferencebyoneormoreofthefollowingmeasures:
‐‐ Reorientorrelocatethereceivingantenna.
‐‐ Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.

