Cyrus DAC X+ User manual

Digital Filter Response
Fast Roll-off
Phase
Normal
Display mode
Small Input Names
Offset
Input 7
+4dB
Input name
Input 1
DVD
< >
Fig 4a
Fig 4b
Fig 4c
Fig 4d
Fig 4e
Cyrus Tuner
Cyrus Amplifier or
Power Amplifier
Cyrus DAC X+/XP+
MC-BUS
Cyrus CD player
MC-BUS out
MC-BUS out
MC-BUS out
MC-BUS out
MC-BUS in
MC-BUS in
MC-BUS in
-27
CD
Sample rate 44.1kHz
MUTE BAL SETUP
INPUT
DAC XP
CD
Sample rate 44.1kHz
SETUP
INPUT
DAC X
R
R R
USE PSX-R ONLY
BALANCED OUT L
L L
PRE
OUT 1 IN 8
PRE
OUT 2 IN 7
FIXED
MADE IN ENGLAND
230V
50/60Hz
25W
OUT
IN
MC-BUS
IN 3
IN 2IN 1
IN 4
OUT 1
IN 6
IN 5
R
R R
USE PSX-R ONLY
BALANCED OUT L
L L
PRE
OUT 1 IN 8
PRE
OUT 2 IN 7
FIXED
MADE IN ENGLAND
230V
50/60Hz
25W
OUT
IN
MC-BUS
IN 3
IN 2IN 1
IN 4
OUT 1
IN 6
IN 5
a b c d e f
1!1@
Fig 1
Fig 2 Fig 4
Fig 3
a b c d e f ghi
1!1@1#
1$
1%
fghi
fi
1)
ghi1)
abde
a b c d e
DAC X+
DAC XP+
DAC X+
DAC XP+

Cyrus DAC X+, Cyrus DAC XP+ User Instructions
1
IMPORTANT! Read before operating this equipment!
WARNING: To reduce the risk of electrical shock do not remove any unit covers
orpanels.There are nouserserviceable partsinthisproduct.
WARNING: To reduce the risk of electric shock, do not expose this equipment to
rainormoisture.
HEED WARNINGS: All warnings on the product and in the operating
instructions shouldbeadheredto.
READ ALL THE INSTRUCTIONS: All the safety and operating instructions
shouldbereadbefore the productisoperated.
RETAIN INSTRUCTIONS: The safety and operating instructions should be
retainedforfuture reference.
FOLLOW INSTRUCTIONS: All operating and use instructions should be
followed.
CLEANING: Unplug this product from the mains before cleaning. Do not use
liquidoraerosol cleaners.Useadampcloth for cleaning.
WATER AND MOISTURE: Do not use this product near water - for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a
wet basement; or near a swimming pool and the like. The product must
not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the product.
HEAT: The product should be situated away from heat sources such as
radiators,stoves, oranyotherproducts(including amplifiers)thatproduceheat.
VENTILATION: Slots and openings in the cabinet are provided for ventilation, to
ensure reliable operation of the product and to protect it from overheating and
these openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or similar surface. This
product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is providedorthe manufacturer's instructionshave been
adheredto.
OBJECT OR LIQUID ENTRY: Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out parts
thatcould resultinafireorelectric shock.
ACCESSORIES: Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with acart, stand, tripod, bracket or
table recommended by the manufacturer, or sold with the product. Any mounting
of the product should follow the manufacturer's instructions, and should use a
mounting accessoryrecommended by the manufacturer.
ATTACHMENTS: Do not use attachments not recommended by the product
manufacturer as theymaycausehazards.
POWER SOURCES: This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type of
powersupply to yourhome, consultyour productdealeror localpowercompany.
For products intended to operate from battery power, or other sources, refer to
theoperating instructions.
OVERLOADING: Never overload wall outlets, extension cords, or integral
convenience receptacles. This can result in an increased risk of fire or electric
shock.
POWER CORD PROTECTION: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles, and
thepointwherethey exitfromtheproduct.
NAKED FLAMES: No naked flame sources, such as candles, must be
placed on this product. Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, fire or the like.
LIGHTNING: For added protection for this product during a lightning storm, or
when it is left unattended or unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent
damagetothe productduetolightning and power-linesurges.
BATTERIES: Warning : Batteries shall not be exposed to excessive heat
such as sunshine, fire or the like.
CAUTION!POLARISED CONNECTOR(CANADA andUSA):
Topreventelectrical shock,matchwide bladeofplugtowide slot, fully insert.
Do not alter or remove this plug if it does not fit your mains power socket. Have a
suitablesocket installedbyacompetent electrician.
POWER SUPPLY:
The moulded IEC connector of the AC cord supplied plugs into the power
inlet 1@ on the rear of the unit.
The mains supply requirement for your Cyrus unit is marked on a label on
the rear panel. Before connecting, check that this voltage is the same as
your mains supply.
230V Products: Voltage Range 220V-240V
115V Products: Voltage Range 110V-120V
If you move to an area with a different mains voltage, contact your local
Cyrus distributor to have your product converted.
There are no user replaceable fuses in this unit.
SERVICING:
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualifiedservice personnel.
CONDITIONS REQUIRING SERVICE: Unplug this product from the wall outlet
andreferservicing toqualifiedservice personnelwhen:
•Whenthepowersupply cord orplugisdamaged.
•Ifliquidhas been spilled,orobjects havefalleninto the product.
•Iftheproduct has beenexposedtorain or water.
•Iftheproduct has beendroppedor damagedinanyway.
•If the product does not operate normally by following the operating
instructions. (Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls may result
in damage requiring extensive work by a qualified technician to restore
theproducttoits normaloperation).
•Whentheproduct exhibitsadistinct changeinperformance.
REPLACEMENT PARTS: When replacement parts are required, be sure the
service technician has used replacements specified by the manufacturer or have
the same characteristics as the original part. Unauthorised substitutions may
resultinfire,electricshock,orotherhazards.
SAFETY CHECK:Upon completion of any service or repairs to this product, ask
theservicetechniciantoperformsafetycheckstodeterminethattheproductisin
properoperating condition.
PRODUCT SERVICE CENTRES
For product service or technical advice, contact only authorised Cyrus
service centres. Contact details for Cyrus distributors may be found on
the Cyrus website at www.cyrusaudio.com.
CAUTION: The exclamation mark is to draw your attention
to important instructions and safety procedures in this
manual.
ATTENTION: The lightning flash warns you of the risk o
f
electrical shock presented by components inside this
p
roduct. Unauthorised
p
ersonnel must not o
p
en this unit.
MOVING THE PRODUCT:
A
product and cart
combination should be moved with care. Sudden stops,
excessive force, and uneven surfaces may cause the
product and cart to overturn.

Cyrus DAC X+, Cyrus DAC XP+ User Instructions
2
Welcome to the world of Cyrus!
Congratulations on your choice of Cyrus Audio-Visual products. Our state-of-the-
art design technology and outstanding quality of manufacture has won
countless awards around the world. We are confident that you will derive
great pleasure from owning a product from one of the most recognised and
respected manufacturers of hi-fi equipment.
Now is a good time to register your new Cyrus product. Registration takes
only a few minutes, brings the added benefit of a full two year factory warranty
and adds you to our mailing list for future product updates and upgrades. To
register, visit www.cyrusaudio.com and click the ‘Login/Register’ link.
Please read these instructions carefully before commencing installation. They
provide full guidance to help you install your Cyrus DAC safely and correctly.
Preparations for Installation
Before installing your DAC check that the following items are included in the
accessory box.
•Power Cable
•2 MC-BUS phono cables
•Remote Control Handset (DAC XP+ only)
•2 AAA Batteries (DAC XP+ only)
After removing these items, please retain the packaging.
Install the DAC in a well ventilated location away from sources of high
temperature, dust or humidity. Never stand the DAC under another unit or on
any surface likely to hamper its cooling or ventilation.
IMPORTANT NOTE:- To avoid damage to your system, always ensure that
mains power is disconnected from all system components until installation is
complete.
Model Differences and Upgrades
There are two model versions in the DAC X+ series –
•The DAC X+ upsampling audio D/A converter. The DAC X+ features dual
mono DACs and a balanced audio design throughout the analogue
domain. The DAC X+ is a high-end upgrade for a CD transport or other
digital audio sources, connecting between the digital outputs of the
sources and a preamplifier.
•The DAC XP+ shares digital technology with the DAC X+, adding a fully
balanced preamplifier stage with additional analogue audio inputs. The
DAC XP+ can drive a power amplifier directly and replaces a
conventional analogue pre-amplifier in a high-end audio system.
This handbook includes instructions for the connection and operation of both
the DAC X+ and DAC XP+. Refer to the index to find instructions for the
model you own.
In sections that are common to both models, model differences are shown in
the text where necessary.
A factory upgrade is available for the DAC X+ to full DAC XP+ specification,
adding the balanced preamplifier stage.
Index
Important safety instructions............DAC X+ & DAC XP+ ..............................1
Introduction.......................................DAC X+ & DAC XP+ ..............................2
Installation ........................................DAC X+...................................................3
Setting up .........................................DAC X+...................................................4
Operation..........................................DAC X+...................................................5
Installation ........................................DAC XP+................................................6
Setting up .........................................DAC XP+................................................8
Operation..........................................DAC XP+................................................9
Remote control.................................DAC XP+..............................................10
Troubleshooting................................ DAC X+ & DAC XP+ ............................12
Warranty...........................................DAC X+ & DAC XP+ ............................12
Specifications................................... DAC X+ & DAC XP+ ............................13

Cyrus DAC X+ User Instruction
3
INSTALLATION (DAC X+)

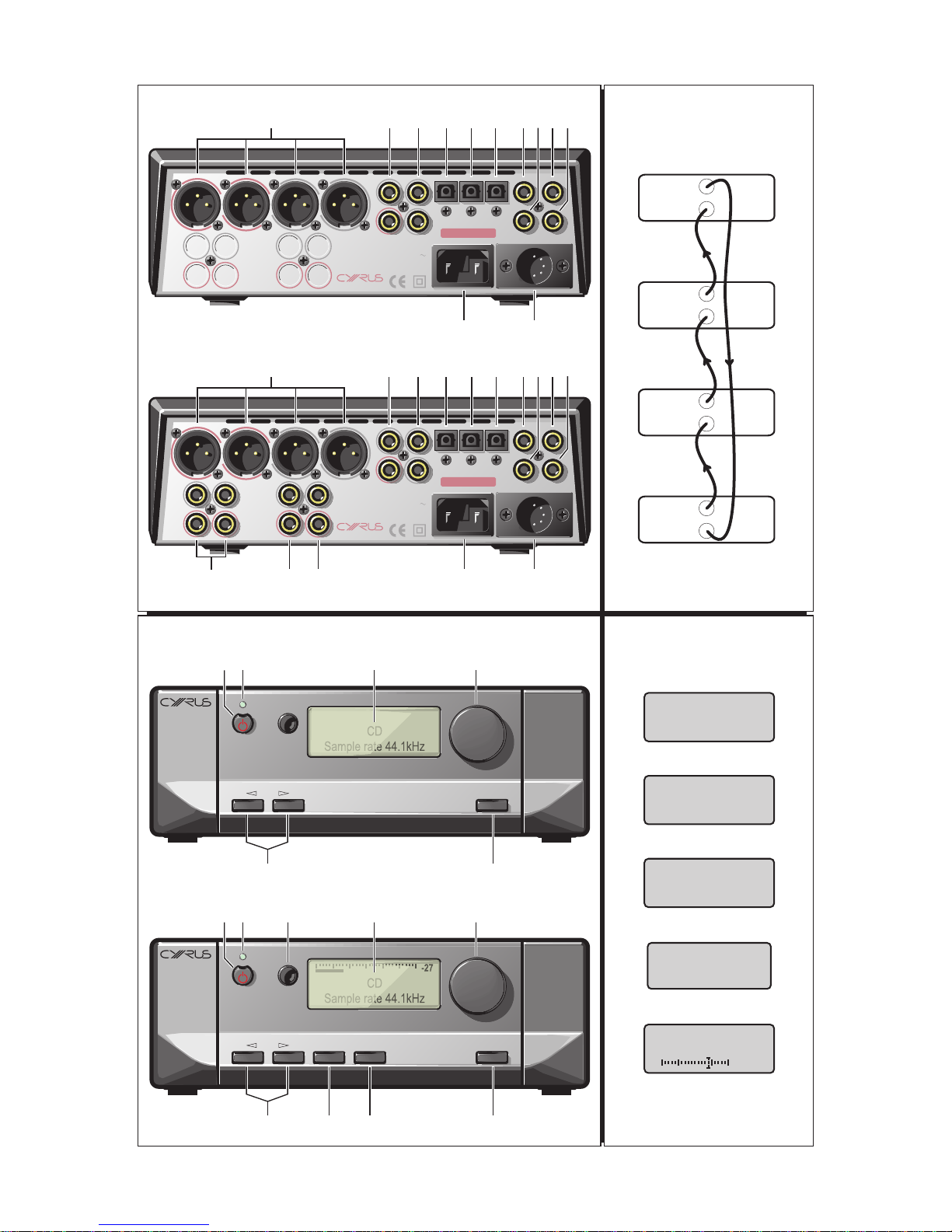

Key to the rear panel drawing (Fig.1)
1. Dual balanced outputs 9. Input 5 Digital
2. Fixed level DAC outputs 10. Input 6 Digital
3. MC-BUS connections 11. PSX-R connection
4. Optical digital output 12. AC mains inlet
5. Input 1 Optical
6. Input 2 Optical
7. Input 3 Digital
8. Input 4 Digital
NOTE: When connecting inputs to the DAC X+, ensure that only digital audio
sources are connected to ‘Digital’ inputs.
Connecting Digital Audio Sources
The digital audio inputs of the DAC X+ are compatible with a number of
different digital audio sources. These include-
•Digital Audio output from a CD player
•DVD players (for replay of 2 channel PCM programs only)
•Digital tape/disc recorders
•Digital Radio
•Digital Satellite receivers (for replay of2 channel PCM programs only)
Using a suitable Toslink optical or Digital phono interconnect, connect each
digital audio source to one of the inputs 1~6. Make a note of the input number
used for each source as the inputs of the DAC X+ can be re-named at the set-
up stage.
Connecting the DAC X+ to an amplifier
The DAC X+ requires an external amplifier or preamplifier to provide input
selection and volume control functions for the system, and to drive the
speakers. Two output options are available from the DAC X+ via either
standard RCA phono outputs, or via balanced audio connections.
CAUTION:- Do not connect power amplifiers to the Fixed output.
Connecting to amplifiers with phono inputs
With suitable phono interconnects, connect from the Fixed Out terminals bto
a suitable amplifier line input. All line level inputs, such as CD, TU, AU, AV
are suitable. We recommend selection of an input that corresponds to the
primary source connected to the DAC X+. If the primary source is a CD
player, the CD input is recommended, if the primary source is a DVD player,
the AV input is recommended etc. For Cyrus amplifiers with optional MC-BUS
connection, see also the section ‘MC-BUS connections’.
Connecting to amplifiers with balanced inputs
If the amplifier is equipped with balanced inputs, the balanced outputs of the
DAC X+ may be used. With suitable balanced interconnects fitted with XLR
connectors, connect from the Balanced Output terminals aof the DAC X+ to
the input of the amplifier. Dual balanced outputs are provided for connection
to a second amplifier or recording device with balanced input.
Connecting to the Digital Output
An optical Digital Output dis provided for the connection of another digital
device to the DAC X+. This may include such devices as a multi-channel
surround decoder or a digital tape/disc recorder. The currently selected digital
input signal will be routed to this output.
External Regulated Power Supply - PSX-R
The PSX-R is a unique DC power supply that will upgrade the sonic
performance of your DAC X+ and other Cyrus products. When a DAC X+ /
PSX-R combination is installed, the analogue section of the DAC stage is
powered from this clean, stable power source while other requirements are
supplied internally. This ensures complete isolation of the sensitive analogue
sections reducing AC mains-borne noise and power supplyripple.
To connect the PSX-R to the DAC X+, plug the connector on the umbilical
cord of the PSX-R into the Multi-Pole socket on the rear of the DAC X+ 1!.
You will need a mains supply for both units.
NOTE: Connection of a PSX-R is detected automatically, so no internal
adjustments are required.
MC-BUS Connections
MC-BUS operation
Connecting the MC-BUS sockets cof the DAC X+ to those of other Cyrus
products is an option that provides unified system power control. With MC-
BUS connections established the power function of all connected Cyrus
components may be controlled from the system amplifier or its remote control.
All connected components will also set to Standby when the amplifier is set to
Standby.
MC-BUS connection
An MC-BUS loop is established by connecting single phono cables from the
MC-BUS output of one unit to the MC-BUS input of another. Complete the
loop by returning the MC-BUS output of the final component to the MC-BUS
input of the first. The drawing in Fig 3 shows an example of MC-BUS wiring
for a Cyrus DAC X+ with a CD player, tuner and amplifier.
MC-BUS configuration
Within a Cyrus system, the DAC X+ may be connected to either the CD, TU,
AU or AV input, as selected by the user to best match their system
components. To ensure that the DAC X+ will power on when the correct input
is selected, the MC-BUS response may be configured accordingly.
The factory response enables the DAC X+ to switch on when the CD input is
selected from the amplifier. To change the response, refer to the paragraph
‘DAC X+ Connected to’ in the section ‘Setting up the DAC X+’.

Cyrus DAC X+ User Instruction
4
SETTING UP THE DAC X+
There are many configuration options available in the setup menu to
customise the DAC X+ to best match each individual system.
The setup sequence is activated by pressing the front panel setup button f.
Each press of the setup button will step through each available setup option
until ‘Storing settings’ is shown on the display. When each setup screen is
displayed, changes may be made to the settings by moving the rotary knob.
Settings will be stored automatically after 5 seconds of inactivity. The setup
menu options are shown here –
Digital filter
Display options
Connected to:
Name Input 1 Choose a name for input 1 from the name list
Choose a name for input 2 from the name list
Choose a name for input 3 from the name list
Choose a name for input 4 from the name list
Choose a name for input 5 from the name list
Choose a name for input 6 from the name list
Name Input 2
Name Input 3
Name Input 4
Name Input 5
Name Input 6
Storing settings Save settings and exit setup
Phase adjust Select normal or inverted
Select fast or slow roll off
Select large or small
Select CD, TU,AU or AV
Setup
Some examples of the setup display screens are shown in Fig 4.
Phase adjust (Fig 4a)
This menu option sets the audio phase for the DAC. The factory setting is
normal. Some listeners may prefer the inverted setting with their systems or
for when playing particular recordings.
Digital Filter Response (Fig 4b)
This menu option gives two settings for the digital filtering of the DAC stage.
Choose your preference of Fast or Slow roll-off by auditioning some of your
favourite tracks with each setting.
DACX Connected to: (Fig 4c)
This option may be used to change theremote control and MC-BUS response
of the DAC X+. From the factory, the DAC X+ will power on in response to a
CD select command from a Cyrus remote control or from a CD select signal
sent via MC-BUS, so if the DAC X+ is connected to the CD input of the
amplifier, no change will be required to this setting. If, however, theDAC X+ is
connected to the TU, AU or AV inputs of the amplifier, the appropriate remote
and MC-BUS responses may be selected through this menu option to ensure
power-on compatibility with the amplifier.
Input display (Fig 4d)
There are two modes of display operation. The small setting will show a two-
line display with the selected input in the display centre and the current
sample rate/lock status at the bottom. The large setting will show a single line
display with a larger input legend.
Input names (Fig 4e)
When the DAC X+ leaves the factory, the input names are set to correspond
to the rear panel connections, for example Input 1 will display as Input 1.
The name of any input may be changed to a choice from the following list-
•No source (off)
•LaserDisc, DVD, DVD 2, DVD-A, CD, CD 2
•Linkserver, Linkport
•Jukebox, Phono
•Tuner, DAB, TV, AV, Cyrus AV, Satellite, Satellite 2, Cable
•Video, VCR, VCR 2, Tape, MiniDisc, DAT
•PC, Games, Keyboard, Aux, AV Direct, Stream X
To change the names of the inputs, we recommend making a list of each
input number with your preferred name from the choices above before setting
the names.
No source is a special function name, used to name inputs that have no
source connected to them. These input numbers will not then appear in the
input selector sequence.

Cyrus DAC X+ User Instruction
5
RESTORING FACTORY SETTINGS
You can also restore all configuration options to the initial default settings that
were applied at the factory.
NOTE: This operation is not reversible.
To restore factory settings, disconnect mains power from the unit. Now re-
connect mains power while holding down the Standby key.
OPERATION (DAC X+)
Key to the front panel drawing (Fig.2a):
1. Standby key 9. Input select
2. Standby light
4. Display window
5. Setup adjust
6. Setup select
Switching On
The mains power to the DAC X+ should normally be left on unless left
unattended for a long period when the mains power at the wall socket should
be switched off or the product disconnected from the AC supply.
When power is applied, the STANDBY key ais used for power control. The
Standby light bshows red when the DAC X+ is in Standby and green when
operational.
Selecting an input
Inputs may be selected from the front panel INPUT SELECT buttons i. As a
new input is selected the input name/number are displayed briefly. The main
display indication for input can be selected from the two options available
from the setup menu.
The factory default ‘small input’ display option will also identify the sample
rate of the selected source and indicate ‘Invalid Audio Format’ for program
material which the DAC X+ will not decode (such as multi-channel digital
sound from DVD players or satellite receivers).
Remote control operation
Cyrus system remote controls
For convenience of operation, the DAC X+ will respond to CD system select
commands from a Cyrus amplifier or system remote control, switching on
each time the CD system is selected and switching off with power off
commands. If the DAC X+ is connected to a different input (TU, AUX or AV)
the remote response may be changed through the set-up menu to match the
connected input. Refer to the paragraph ‘DAC X+ connected to:’ in the
‘Setting up the DAC X+’ section to change the response.

Cyrus DAC XP+ User Instructions
6
INSTALLATION (DAC XP+)
Key to the rear panel drawing (Fig.1)
1. Dual balanced preamp outputs 9. Input 5 Digital
2. Fixed level DAC outputs 10. Input 6 Digital
3. MC-BUS connections 11. PSX-R connection
4. Optical digital output 12. AC mains inlet
5. Input 1 Optical 13. Input 7 Analogue
6. Input 2 Optical 14. Input 8 Analogue
7. Input 3 Digital 15. Dual preamp outputs
8. Input 4 Digital
NOTE: When connecting inputs to the DAC XP+, ensure that only digital
audio sources are connected to ‘Digital’ inputs.
Connecting Digital Audio Sources
The digital audio inputs of the DAC XP+ are compatible with a number of
different digital audio sources. These include-
•Digital Audio output from a CD player
•DVD players (for replay of 2 channel PCM programs only)
•Digital tape/disc recorders
•Digital Radio
•Digital Satellite receivers (for replay of2 channel PCM programs only)
Using a suitable Toslink optical or Digital phono interconnect, connect each
digital audio source to one of the inputs 1~6. Make a note of the input number
used for each source as the inputs of the DAC XP+ can be re-named at the
set-up stage.
Connecting Analogue Audio Sources
Analogue Inputs 7-8 are available for the connection of stereo analogue audio
sources to the DAC XP+. Inputs 7-8 are intended for use with analogue
program sources which include-
•Analogue output from CD/DVD Players
•Televisions
•Analogue Satellite Receivers
•FM Radio tuners
•Analogue VCRs/Tape recorders
•Surround decoders
Connecting Power amplifiers
External power amplifiers are necessary to drive the system speakers. Both
stereo and high power monoblock Cyrus power amplifiers are available to
partner the DAC XP+ and a choice of RCA phono or balanced outputs is
provided.
NOTE:- Take care to connect each of the DAC XP+ output channels to the
correct power amplifier and loudspeaker.
Connecting to power amplifiers with phono inputs
With suitable phono interconnects, connect from the Pre Out terminals 1% to
the power amplifier inputs. The system loudspeakers may then be connected
to each power amplifier. Dual outputs are provided to enable the connection
of two amplifiers for bi-amping.
Connecting to power amplifiers with balanced inputs
With suitable Balanced interconnects, connect from the Balanced Output
terminals ato the power amplifier inputs. The system loudspeakers may then
be connected to each power amplifier. Dual outputs are provided to enable
the connection of two amplifiers for bi-amping.
Fixed output
The Fixed output is connected directly to the internal DAC stage of the DAC
XP+ and bypasses the internal preamplifier and volume control. It may be
used to feed the DAC stage output to an external system preamplifier, or for
high quality tape recording from digital sources.
NOTE:- Analogue inputs 7 and 8 are not routed to the Fixed output.
CAUTION:- Do not connect power amplifiers to the Fixed output.
Connecting a Cyrus Surround Sound decoder
In a Cyrus multi-channel surround sound system the surround decoder may
be connected through the DAC XP+ to share the same front channel power
amplifiers.
In this case, connect a stereo phono interconnect from the front channel
outputs of the surround decoder to the Input 7 sockets 1# of the DAC XP+.
For this system to function correctly both the DAC XP+ and the Cyrus
surround decoder must be included in an MC-BUS connection loop and the
‘Cyrus AV’ input name must be set for Input 7 (see ‘MC-BUS’ section and
‘Input names’ in the ‘Setup menu’ section).
When set up in this way, the DAC XP+ will automatically check for the
presence of the decoder when the ‘Cyrus AV’ input is selected, then lock the
DAC XP+ volume setting to an appropriate level.
Connecting a Surround Sound decoder (other brand)
If your system includes a multi-channel surround sound decoder (but not a
Cyrus model), it may be connected through your DAC to drive the front
channel speakers.
In this case, connect a stereo phono interconnect from the front channel
outputs of the surround decoder to one of the Analogue Inputs of the DAC.
For this system to function correctly, the ‘AV Direct’ input name must be set
for the input used (see ‘Input names’ in the ‘Setup menu’section).
When set up in this way, the DAC will automatically lock its volume setting to
a fixed level to match the output of the surround decoder.
CAUTION: The ‘AV Direct’ input name should only be used for surround
decoders that include a volume control, as the volume control of your DAC
will be fixed at a very high level.
Connecting to the Digital Output
An optical Digital Output dis provided for the connection of another digital
device to the DAC XP+. This may include such devices as a multi-channel
surround decoder or a digital tape/disc recorder. The currently selected digital
input signal will be routed to this output.

Cyrus DAC XP+ User Instructions
7
External Regulated Power Supply - PSX-R
The PSX-R is a unique DC power supply which will upgrade the sonic
performance of your DAC XP+ and other Cyrus products. When a DAC XP+ /
PSX-R combination is installed, the analogue section of the DAC stage is
powered from this clean, stable power source while other requirements are
supplied internally. This ensures complete isolation of the sensitive analogue
sections reducing AC mains-borne noise and power supplyripple.
To connect the PSX-R to the DAC XP+, plug the connector on the umbilical
cord of the PSX-R into the Multi-Pole socket on the rear of the DAC XP+ 1!.
You will need a mains supply for both units.
NOTE: Connection of a PSX-R is detected automatically, so no internal
adjustments are required.
MC-BUS Connections
MC-BUS operation
Connecting the MC-BUS sockets cof the DAC XP+ in an MC-BUS system
provides unified system power control. With MC-BUS connections established
the power function of all connected Cyrus components may be controlled from
the DAC XP+ front panel or remote control. Refer to the following table for
Cyrus components that will be activated by the DAC XP+ when the inputs
have been named as listed -
Input name Power on response
CD CD players, power amplifiers
TUNER Tuners, power amplifiers
AV DVD players, power amplifiers
CYRUS AV DVD players, surround decoders, power amplifiers
DVD DVD players, power amplifiers
Follow the instructions in section ‘Setting up the DAC XP+’ to set the listed
input names.
All connected components will also set to Standby when the DAC XP+ is set
to Standby.
MC-BUS connection
An MC-BUS loop is established by connecting single phono cables from the
MC-BUS output of one unit to the MC-BUS input of another. Complete the
loop by returning the MC-BUS output of the final component to the MC-BUS
input of the first. The drawing in Fig 3 shows an example of MC-BUS wiring
for a Cyrus DAC XP+ with a CD player, tuner and power amplifier.

Cyrus DAC XP+ User Instructions
8
SETTING UP THE DAC XP+
There are many configuration options available in the setup menu to
customise the DAC XP+ to best match each individual system.
The setup sequence is activated by pressing the front panel set up button f.
Repeated pressing of the setup button will step through each available setup
option until ‘Storing settings’ is shown on the display. When each setup
screen is displayed, changes may be made to the settings by rotating the
front panel volume knob.
The setup sequence will cancel after 5seconds of inactivity.
The setup menu options are shown here –
Digital Filter
Display Mode
Name Input 1 Choose a name for input 1 from the name list
Choose a name for input 2 from the name list
Choose a name for input 3 from the name list
Choose a name for input 4 from the name list
Choose a name for input 5 from the name list
Choose a name for input 6 from the name list
Choose a name for input 7 from the name list
Choose a name for input 8 from the name list
Set the sensitivity for input 7
Set the sensitivity for input 8
Name Input 2
Name Input 3
Name Input 4
Name Input 5
Name Input 6
Name Input 7
Name Input 8
Trim Input 7
Trim input 8
Storing settings Save settings and exit setup
Phase adjust Select normal or inverted
Select fast or slow roll off
Select large input, small input or large volume
Setup
Some examples of the setup display screens are shown in Fig 4.
Phase adjust (Fig 4a)
This menu option sets the audio phase for the DAC. The factory setting is
normal. Some listeners may prefer the inverted setting with their systems or
for when playing particular recordings.
Filter adjust (Fig 4b)
This menu option gives two settings for the digital filtering of the DAC stage.
Choose your preference of Fast or Slow roll-off by auditioning some of your
favourite tracks with each setting.
Display mode (Fig 4c)
There are three modes of display operation.
The ‘small input’ setting will show a three line
display with the volume reading at the top of
the display, the selected input in the display
centre and the current sample rate/lock
status at the bottom.
The ‘large input’ setting will show a two
line display with the volume reading at the
top and a larger input legend below.
The ‘large volume’ setting will display large
volume characters at the bottom of the
screen with the bargraph above.
Input names (Fig 4d)
When the DAC XP+ leaves the factory, the input names are set to correspond
to the rear panel connections, for example Input 1 will display as Input 1.
The name of any input may be changed to a choice from the following list-
•No source (off)*
•LaserDisc, DVD, DVD 2, DVD-A, CD, CD 2
•Linkserver, Linkport
•Jukebox, Phono
•Tuner, DAB, TV, AV, Cyrus AV*, Satellite, Satellite 2, Cable
•Video, VCR, VCR 2, Tape, MiniDisc, DAT
•PC, Games, Keyboard, Aux, AV Direct*, Stream X.
To change the names of the inputs, we recommend making a list of each
input number with your preferred name from the choices above before setting
the names.
There are three special function input names marked *.
‘No source’ is used to name inputs which have no source connected to them.
These input numbers will not then appear in the input selector sequence.
‘Cyrus AV’ is reserved for the connection of Cyrus surround sound decoders.
When a Cyrus surround decoder is connected to an analogue input named
‘Cyrus AV’ the DAC XP+ will check the system for the presence of a Cyrus
surround decoder and, if found, lock out its volume control at a precise
setting. Normal volume operation will be restored when any other input is
selected.
‘AV Direct’ is reserved for the connection of non-Cyrus surround decoders to
an analogue input. This input name must only be used for this purpose as the
volume level will lock to a very high setting (-6dB) when AV Direct is selected.
Input trims (Fig 4e)
It is possible to adjust the sensitivity of
analogue inputs 7 and 8 by selecting the
appropriate trim option from the menu. This
enables the volume level when playing low or
high output source components such as tape
decks or tuners to be equalised with the
digital system sources.
RESTORING FACTORY SETTINGS
You can also restore all configuration options to the initial default settings that
were applied at the factory.
NOTE: This operation is not reversible.
To restore factory settings, disconnect mains power from the unit. Now re-
connect mains power while holding down the Standby key.
-27
CD
Sample rate 44.1kHz
-27
CD
Offset
Input 7 +4dB
-27
-27dB
