Cytron Technologies CuteDuino User manual
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
INDEX
1. Introduction 3
2. Packing List 4
3. Product Specification And Limitations 5
4. Dimension 6
5. Board Layout 7
6. Hardware Installation 9
7. Getting Started 11
8. Warranty 23
9. Appendix A: CuteDuino’s Pinout Diagram 24
10. Appendix B: FAQ of CuteDuino 25
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 2
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
1. INTRODUCTION
CuteDuino is an Attiny85 based microcontroller development board similar to the Arduino
line, only cheaper, smaller, and a bit less powerful. With a compact yet powerful Attiny85
microcontroller and the ability to use the familiar Arduino IDE, the CuteDuino is a great way
to jump into electronics, or perfect for when an Arduino is too big or too much.
It is inspired and build around the DigiSpark which uses the micronucleus bootloader.
CuteDuino comes with direct USB connection which allows it to be programmed directly
over a bit banged USB connection. Yup, no USB to UART bridge in between. Besides, the
CuteDuino can also be used to emulate any USB 1.0 device!
The board is broken down into 10 individual pins and has 2 indication LEDs: Power and
active high LED connected to pin 1 (arduino designation). It has 5 GPIO pins but two are
shared with the USB interface. The other three pins have one analog input and two PWM
outputs. The shared pins (USB) have an extra analog pin and a PWM pin which can be used
if your board does not need to be USB connected to the computer after programming. This
version runs on 5.0V and has an onboard voltage regulator so you can also run on a 12V
supplied to the "VIN" pin. With the new Arduino IDE (v1.6.4 and above), you can install all
the necessary library and example with simple import, please follow this tutorial.
CuteDuino come with this features:
●Inspired by Digispark.
●With the new Arduino IDE v1.6.4, we have prepared the board manager URL, install
CuteDuino accordingly with this tutorial.
●Power via USB or external power (7 - 12V).
●On board 5V 800mA (Max 1A) voltage regulator.
●Pre-built with micro USB receptor.
●5 I/O pins (2 I/O shared with USB).
●2 ADC, analog input pin (pin 2 = A1, pin 4 = A2), A2 shared with USB.
●3 PWM output pin (pin 0, 1 and 4), pin 4 shared with USB.
●8K flash/program memory (~6k after bootloader).
●512 bytes of SRAM.
●512 bytes of EEPROM.
●ATtiny85 running at 16 MHz (Internal oscillator).
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 3
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
2. PACKING LIST
Please check the parts and components according to the packing list. If there are any parts
missing, please contact us at [email protected] immediately.
●1 x CuteDuino board
●2 x 5 ways header pin
Optional (not included):
●USB Micro-B cable for program loading.
* USB Micro-B is commonly use for Android phone, you can utilize it.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 5
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
3. PRODUCT SPECIFICATION AND LIMITATIONS
CuteDuino is designed to offer starting up platform for development, the specification of
ATTINY IC used should be referred.
Absolute Maximum Rating
* With Vin at 12V
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 6
Parameter
Min
Max
Unit
Input Voltage via VI pin
7
15
V
IMAX (Maximum output current from on-board 5V Voltage
regulator)*
-
1
A
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
5. BOARD LAYOUT
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 8
Label
Function
A
Micro USB B type (female)
B
Power indicator LED
C
Programmable LED (connected to Pin 1, active high)
D
5V voltage regulator
E
ATtiny85
F
Pad for header pin
G
Reset button
H
3mm hole
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
Micro USB B type (female)
This connector is for USB connection to upload program or power it via USB cable. A USB
Micro-B type cable is needed.
Power LED
Power LED will light ON once the board is powered.
Programmable LED
Programmable LED is active HIGH and it is connected to pin 1 (Arduino designation).
5V voltage regulator
This type of voltage regulator can handle up to 1A maximum.
ATtiny85
CuteDuino uses ATtiny85 as main controller running at 16MHz internal oscillator.
Pads for header pin
CuteDuino pins can be extended to breadboard by soldering the header pin to these pads.
Reset button
Reset button can be used to enter bootloader mode or restart program.
3mm hole
This hole can fit standard PCB stand.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 9
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
6. HARDWARE INSTALLATION
6.1 CuteDuino I/O pins
CuteDuino comes with 2 x 5 header pin. User may solder it and plug CuteDuino onto
breadboard to utilize the I/O of CuteDuino. Figures below shows the example of CuteDuino
with header pins and insert onto breadboard.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 10
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
7. GETTING STARTED
This section will guide user to get started with CuteDuino. There are two parts which are
“Installing CuteDuino USB Driver” and “Program CuteDuino with Arduino IDE”. For
further information can refer to this link.
7.1 Installing CuteDuino USB Driver
Download the Digispark package which include the open source Arduino IDE (v1.5.8C)
Digispark Addons and Digispark driver. Double click the files to execute it. It will extract the
necessary files and install the USB driver. Easy!
Alternatively, if you want to download the driver only, please download from CuteDuino
Github folder. Extract to the zip file.
1. DigisparkWindowsDriver
Using Micro-B USB cable, connect CuteDuino to computer. Once connected, the PWR LED
will turn ON.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 12
NOTE:
*For Windows 8, user might need to disable the “driver signature enforcement” before
proceed with the driver installation.
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
Windows Security will popup, choose Install driver software anyway. Reminder, for
Windows 8 user, if driver signature enforcement is not disable, Windows Security will not
popup and driver installation will not succeed.
Windows has successfully updated your driver software.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 16
ROBOT . HEAD to TOE
Product User’s Manual – CuteDuino
7.2 Program CuteDuino with Arduino IDE
If you download the Arduino IDE from DigiSpark, open Arduino IDE inside
Digispark-Arduino-1.5.8 folder. Just ignore/click No if they request for software update.
Open Digispark example code, go to File - Examples - Digispark_Examples - Start.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 18
Table of contents
Other Cytron Technologies Motherboard manuals
Cytron Technologies

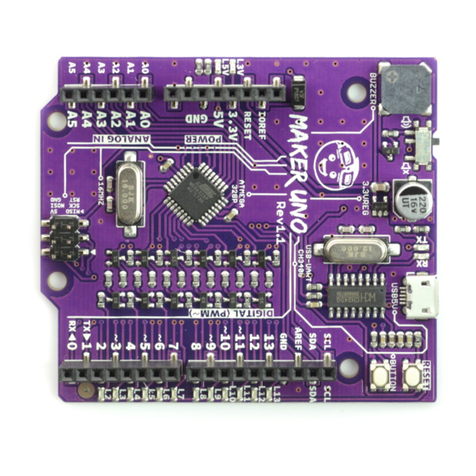

Cytron Technologies Maker Uno User manual
Cytron Technologies

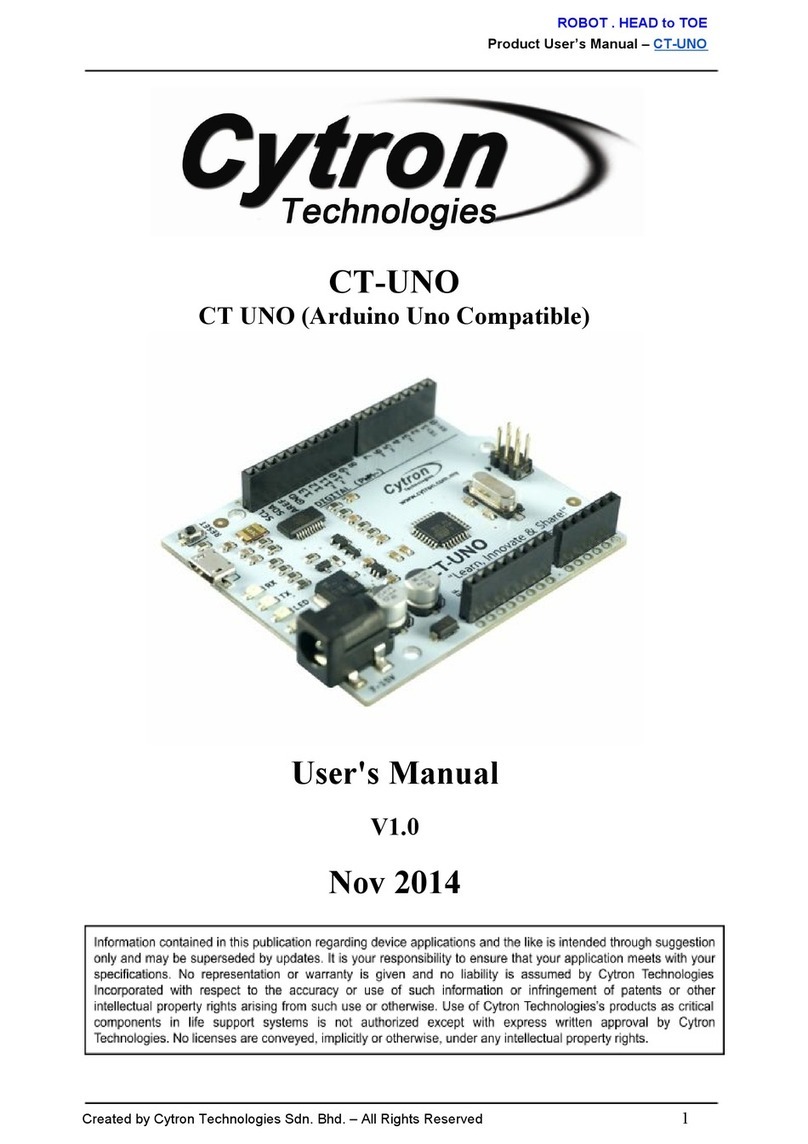

Cytron Technologies CT-UNO User manual
Cytron Technologies
Cytron Technologies EasyMP3 Shield User manual
Cytron Technologies
Cytron Technologies UIC00B User manual
Cytron Technologies

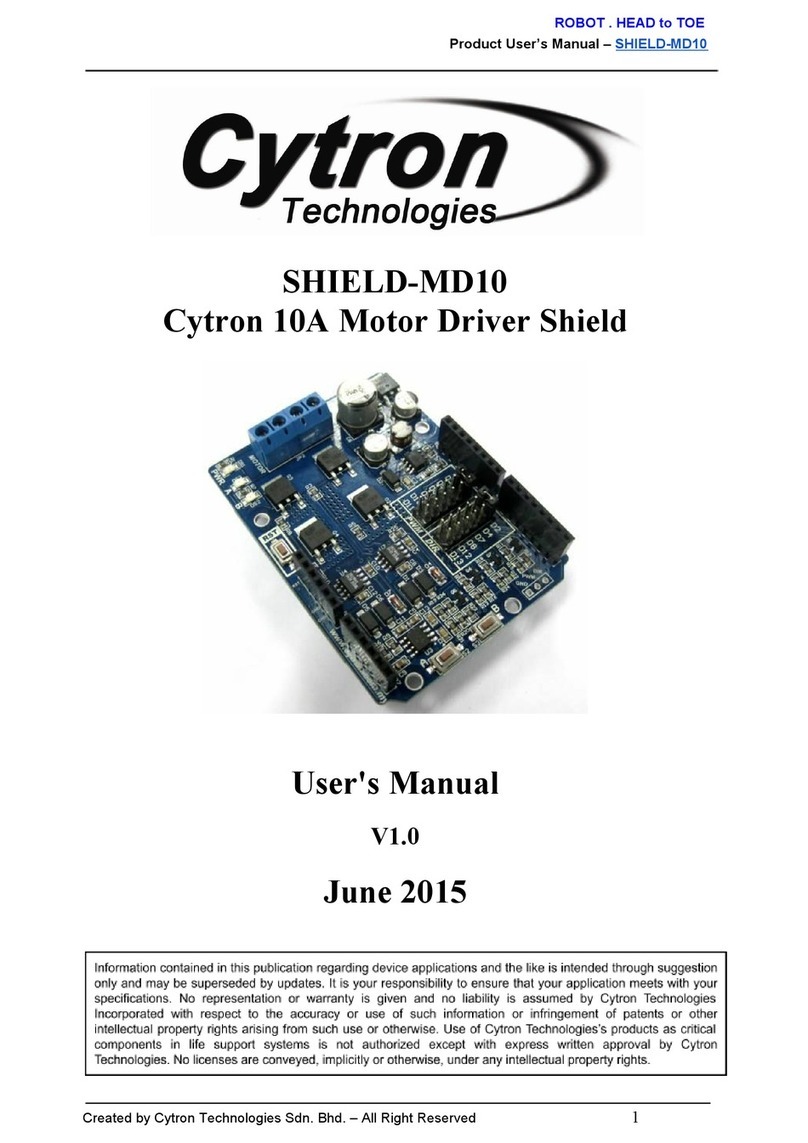

Cytron Technologies SHIELD-MD10 User manual
Cytron Technologies
Cytron Technologies UIC00A User manual
Popular Motherboard manuals by other brands
PCchips

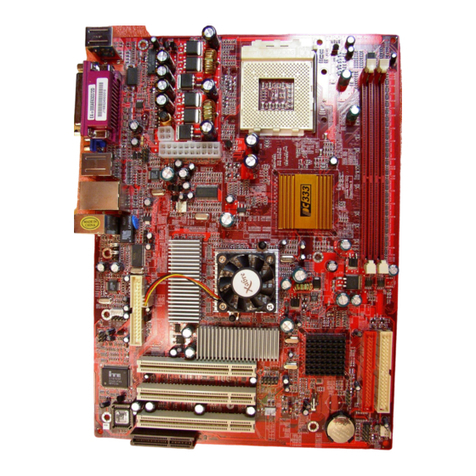

PCchips M847FLU manual
