Product User’s Manual – UIC00B
Index
1. Introduction and Overview 3
2. Packing List 4
3. Supported PIC 5
4. Dimension 10

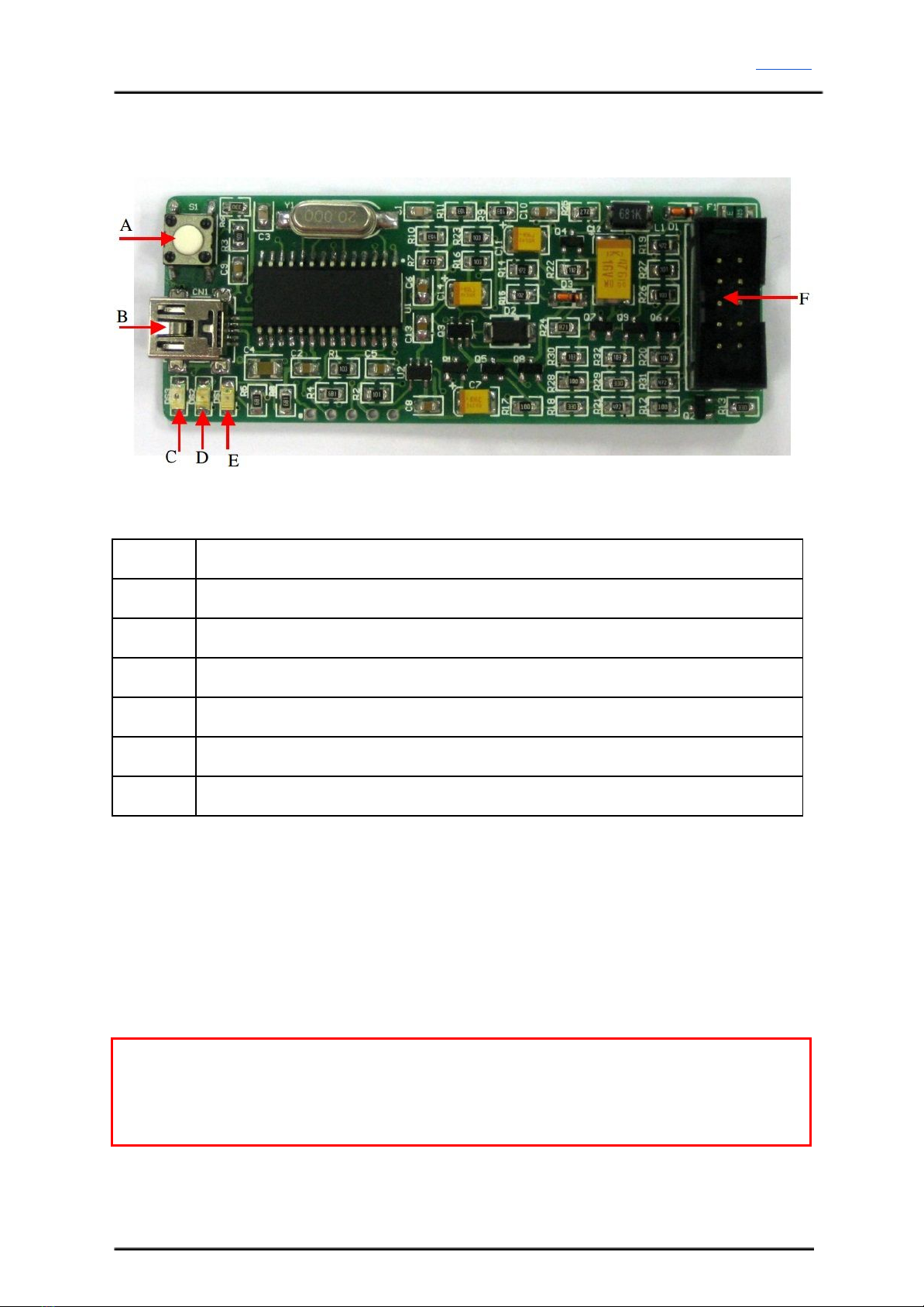

5. Board Layout 11
6. Hardware 14
6.1 Using UIC00B with application circuit (development board) 14
6.2 Using UIC00B with UIC-S (optional, buy separately) 15

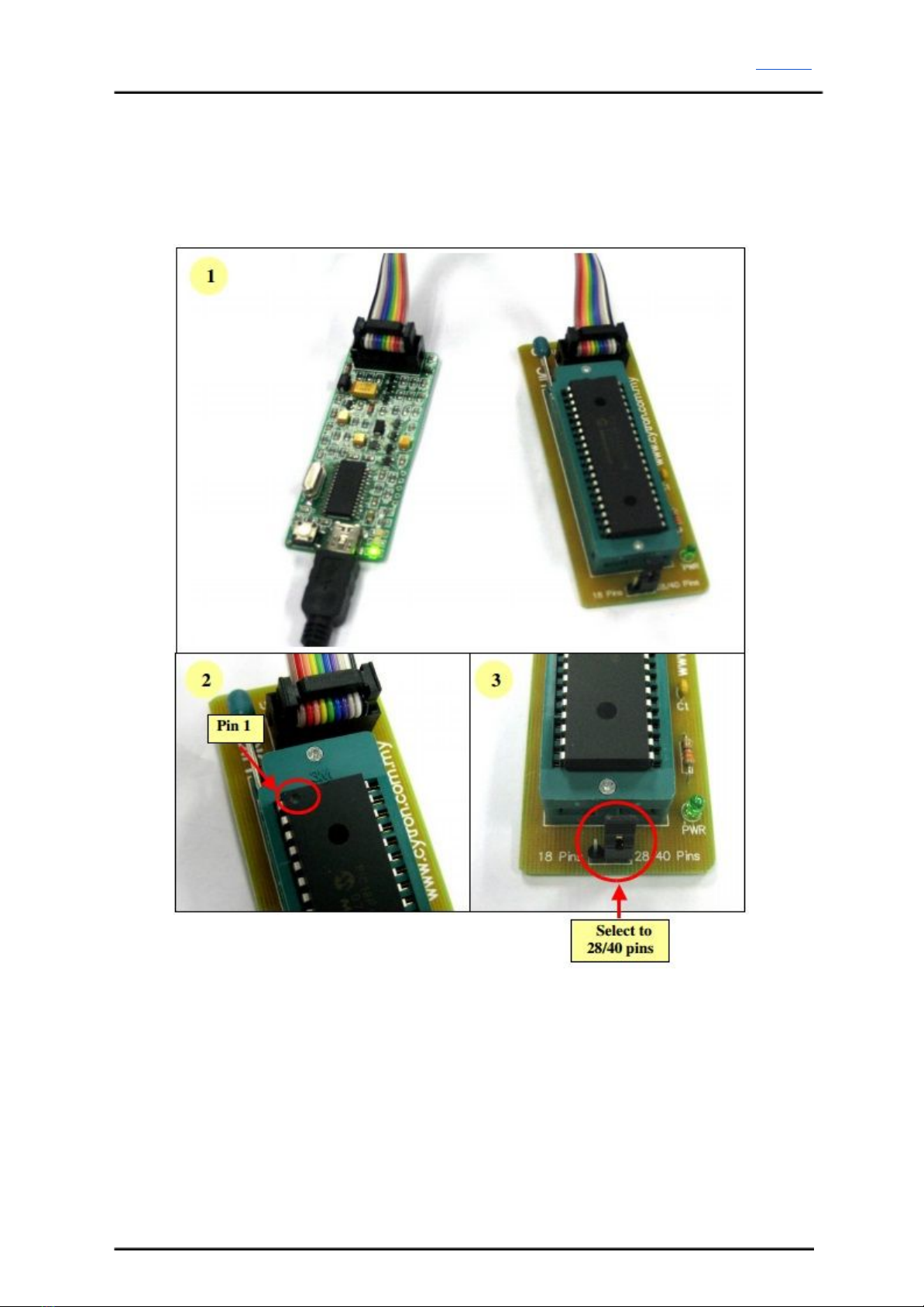

6.2.1 Plugging the microcontroller 18
7. Software 20
7.1 Download setup file from Cytron’s website 20

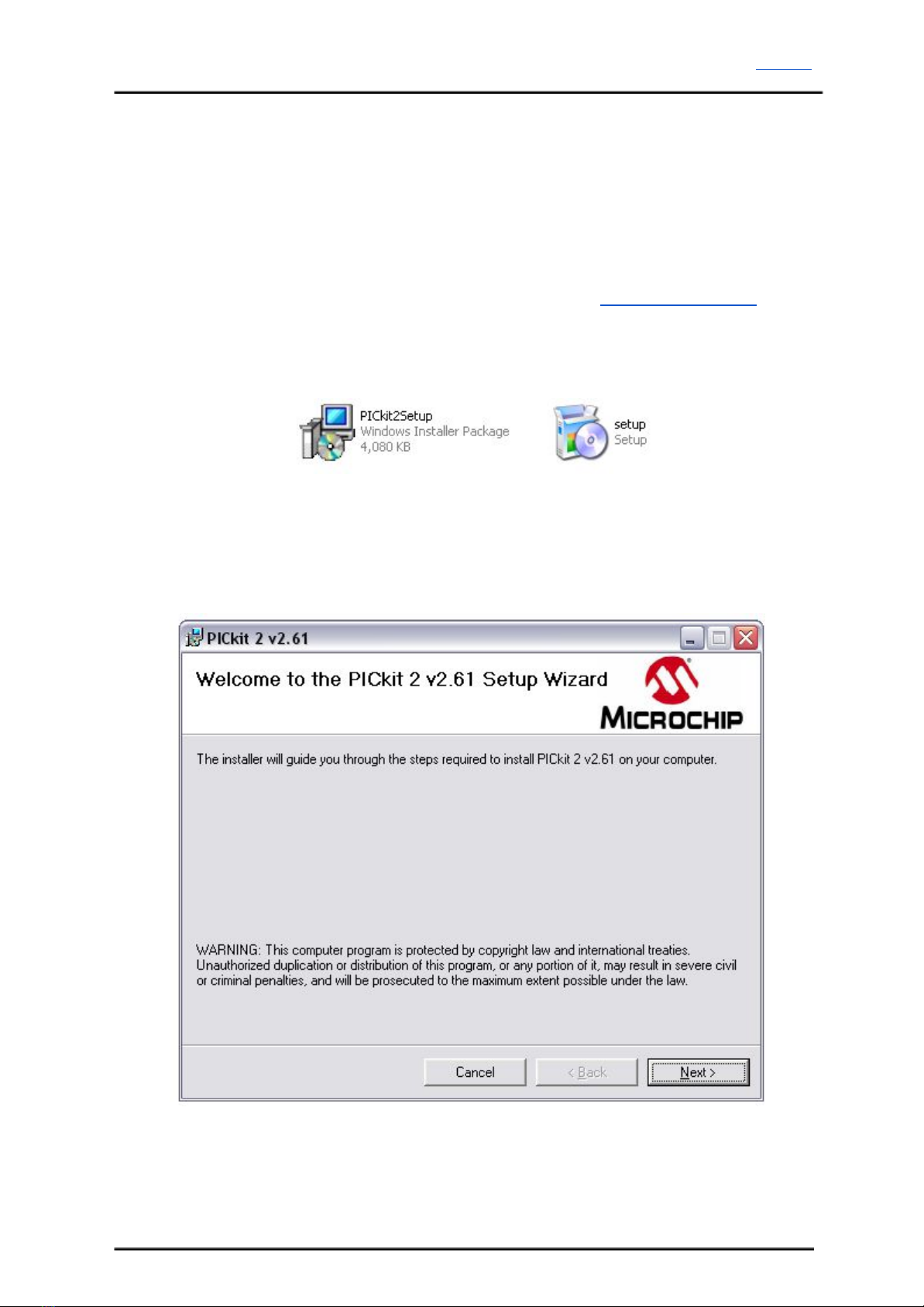

7.2 PICkit 2 Programmer setup procedures 20
7.3 Using PICkit 2 Programmer 24
7.4 PICkit 2 UART TOOL 29
7.4.1 ASCII Mode 31
7.4.2 Hex Mode 32
7.5 PICkit 2 Logic Tool 33
7.5.1 Logic I/O Mode 34
7.5.2 Logic Analyzer Mode 37
8. Getting Started 42
8.1 Using UIC00B with application circuit (development board) 42
8.2 Using UIC00B with UIC-S (optional, buy separately) 44
9. Troubleshooting 45
10. Warranty 46
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 2
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
1. INTRODUCTION/OVERVIEW
UIC00B is an enhanced version of UIC00A. It offers low cost yet reliable and user friendly
PIC USB programmer solutions for developer, hobbyist as well as students. It is designed to
program popular Flash PIC MCU which includes most of the PIC family. Besides 8bit, it can
also program 16bit and 32bit PIC MCU. On board ICSPTM (In Circuit Serial Programming)
connector offers flexible methods to load program, UART Tool and Logic Tool. It supports
on board programming which eliminate the frustration of plug-in and plug-out of PIC MCU.
This also allow user to quickly program and debug the source code while the target PIC is on
the development board. Since USB port is commonly available and widely used on Laptop
and Desktop PC, UIC00B is designed to be plug and play with USB connection. This
programmer obtained its power directly from USB connection, thus NO external power
supply is required, making it a truly portable programmer. This programmer is ideal for field
and general usage. UIC00B offers reliable, high speed programming and free windows
interface software.
●New! Program most of the +3.3V or +5V PIC.
●New! Compatible with PICkit2’s UART Tool and Logic Tool.
●New! Program most of the current 8-, 16-, and 32-bit Flash PIC microcontroller.
It is designed with capabilities and features of:
●Industrial grade PCB with surface mount component to offer small size yet reliable
and quality product.
●Every component is soldered properly and programmer is tested before it is shipped to
customer.
●USB Plug and Play function.
●IDC box header for ICSPTM connection, an IDC cable is included for external on
board programming.
●Windows XP compatible software.
●Compatible with Windows XP, Vista, Win 7, Win 8 & 8.1 (32-bit or 64-bit) .
●Auto load program capability.
●Compatible with Microchip’s PICkit 2.
●Integrated into MPLAB IDE or MPLAB X IDE as PICkit2, just 1 software to
develop, compile and load program.
●Powered directly from USB port.
●NO EXTERNAL POWER REQUIRED for UIC00B to function.
●USB 2.0
●Low cost yet reliable solution.
●Suitable for Laptop and Desktop PC.
●Optional socket (UIC-S) to program 18 pins, 28 pins and 40 pins PIC microcontroller.
●Dimension 74mm x 28mm
This document explains the method to use UIC00B.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 3
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B

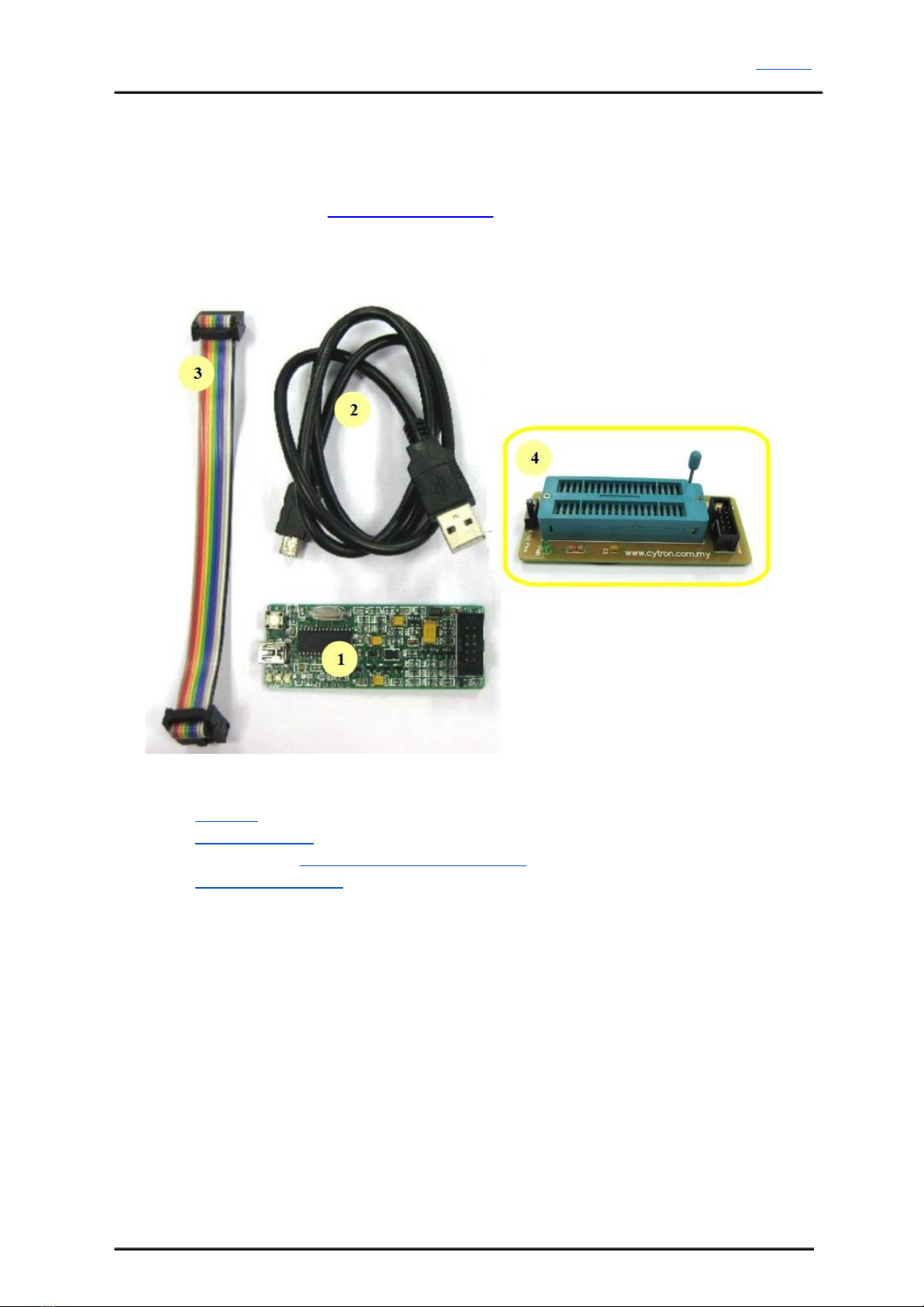

2. PACKING LIST
Please check the parts and components according to the packing list. If there are any parts
missing, please contact us at [email protected] immediately.
1. 1 x UIC00B main board
2. 1 x mini USB cable
3. 1 x rainbow cablehttp://cytron.com.my/p-wr-uic (programming cable)
4. 1 x UIC-S socket board (optional, buy separately from Cytron website)
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 4
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
3. SUPPORTED PIC
Please refer PICkit 2 Readme file for supported PIC. The file can be downloaded at the
UIC00B product page, under “Attachment” tab. We can only listed those popular model.
Baseline Devices
PIC10F200 PIC10F202 PIC10F204 PIC10F206
PIC10F220 PIC10F222
PIC12F508 PIC12F509 PIC12F510 PIC12F519
PIC16F505 PIC16F506 PIC16F526
PIC16F54 PIC16F57 PIC16F59
Midrange/Standard Devices
>> All 'LF' versions of devices are supported
PIC12F609 PIC12HV609
PIC12F615 PIC12HV615
PIC12F629 PIC12F635# PIC12F675 PIC12F683#
PIC16F610 PIC16HV610 PIC16F616 PIC16HV616
PIC16F627 PIC16F628 PIC16F639
PIC16F627A PIC16F628A PIC16F648A
PIC16F630 PIC16F631 PIC16F636# PIC16F676
PIC16F677 PIC16F684# PIC16F685# PIC16F687#
PIC16F688# PIC16F689# PIC16F690#
PIC16F72+
PIC16F73+ PIC16F74+ PIC16F76+ PIC16F77+
PIC16F716
PIC16F737+ PIC16F747+ PIC16F767+ PIC16F777+
PIC16F785 PIC16HV785
PIC16F84A PIC16F87# PIC16F88#
PIC16F818# PIC16F819#
PIC16F870 PIC16F871 PIC16F872
PIC16F873 PIC16F874 PIC16F876 PIC16F877
PIC16F873A PIC16F874A PIC16F876A PIC16F877A
PIC16F882#
PIC16F883# PIC16F884# PIC16F886# PIC16F887#
PIC16F913# PIC16F914# PIC16F916# PIC16F917#
PIC16F946#
Midrange/1.8V Min Devices
PIC16F722 PIC16LF722
PIC16F723 PIC16LF723 PIC16F724 PIC16LF724
PIC16F726 PIC16LF726 PIC16F727 PIC16LF727
PIC16F1933 PIC16F1934 PIC16F1936 PIC16F1937
PIC16F1938 PIC16F1939
PIC16LF1933 PIC16LF1934 PIC16LF1936 PIC16LF1937
PIC16LF1938 PIC16LF1939
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 5
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
PIC18F Devices
>> All 'LF' versions of devices are supported
PIC18F242 PIC18F252 PIC18F442 PIC18F452
PIC18F248 PIC18F258 PIC18F448 PIC18F458
PIC18F1220 PIC18F1320 PIC18F2220
PIC18F1230 PIC18F1330 PIC18F1330-ICD
PIC18F2221 PIC18F2320 PIC18F2321 PIC18F2331
PIC18F2410 PIC18F2420 PIC18F2423 PIC18F2431
PIC18F2450 PIC18F2455 PIC18F2458 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2523
PIC18F2525 PIC18F2550 PIC18F2553 PIC18F2580
PIC18F2585
PIC18F2610 PIC18F2620 PIC18F2680 PIC18F2682
PIC18F2685
PIC18F4220 PIC18F4221 PIC18F4320 PIC18F4321
PIC18F4331 PIC18F4410 PIC18F4420 PIC18F4423
PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4458
PIC18F4480
PIC18F4510 PIC18F4515 PIC18F4520 PIC18F4523
PIC18F4525 PIC18F4550 PIC18F4553 PIC18F4580
PIC18F4585
PIC18F4610 PIC18F4620 PIC18F4680 PIC18F4682
PIC18F4685 PIC18F6310 PIC18F6390 PIC18F6393
PIC18F6410 PIC18F6490 PIC18F6493 PIC18F6520
PIC18F6525 PIC18F6527
PIC18F6585 PIC18F6620 PIC18F6621 PIC18F6622
PIC18F6627 PIC18F6628 PIC18F6680 PIC18F6720
PIC18F6722 PIC18F6723
PIC18F8310 PIC18F8390 PIC18F8393 PIC18F8410
PIC18F8490 PIC18F8493
PIC18F8520 PIC18F8525 PIC18F8527 PIC18F8585
PIC18F8620 PIC18F8621 PIC18F8622 PIC18F8627
PIC18F8628
PIC18F8680 PIC18F8720 PIC18F8722 PIC18F8723
PIC18F_J_ Devices
PIC18F24J10 PIC18LF24J10
PIC18F24J11 PIC18LF24J11 PIC18F24J50 PIC18LF24J50
PIC18F25J10 PIC18LF25J10
PIC18F25J11 PIC18LF25J11 PIC18F25J50 PIC18LF25J50
PIC18F26J11 PIC18LF26J11 PIC18F26J50 PIC18LF26J50
PIC18F44J10 PIC18LF44J10
PIC18F44J11 PIC18LF44J11 PIC18F44J50 PIC18LF44J50
PIC18F45J10 PIC18LF45J10
PIC18F45J11 PIC18LF45J11 PIC18F45J50 PIC18LF45J50
PIC18F46J11 PIC18LF46J11 PIC18F46J50 PIC18LF46J50
PIC18F63J11 PIC18F63J90 PIC18F64J11 PIC18F64J90
PIC18F65J10 PIC18F65J11 PIC18F65J15 PIC18F65J50
PIC18F65J90
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 6
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
PIC18F66J10 PIC18F66J11 PIC18F66J15 PIC18F66J16
PIC18F66J50 PIC18F66J55 PIC18F66J60 PIC18F66J65
PIC18F66J90
PIC18F67J10 PIC18F67J11 PIC18F67J50 PIC18F67J60
PIC18F67J90
PIC18F83J11 PIC18F83J90 PIC18F84J11 PIC18F84J90
PIC18F85J10 PIC18F85J11 PIC18F85J15 PIC18F85J50
PIC18F85J90
PIC18F86J10 PIC18F86J11 PIC18F86J15 PIC18F86J16
PIC18F86J50 PIC18F86J55 PIC18F86J60 PIC18F86J65
PIC18F86J90
PIC18F87J10 PIC18F87J11 PIC18F87J50 PIC18F87J60
PIC18F87J90
PIC18F96J60 PIC18F96J65 PIC18F97J60
PIC18F_K_ Devices
PIC18F13K22 PIC18LF13K22 PIC18F14K22 PIC18LF14K22
PIC18F13K50 PIC18LF13K50 PIC18F14K50 PIC18LF14K50
PIC18F14K50-ICD
PIC18F23K20 PIC18F24K20 PIC18F25K20 PIC18F26K20
PIC18F43K20 PIC18F44K20 PIC18F45K20 PIC18F46K20
PIC24 Devices
PIC24F04KA200 PIC24F04KA201
PIC24F08KA101 PIC24F08KA102
PIC24F16KA101 PIC24F16KA102
NOTE: To program PIC24F-KA- devices with MCLR used as IO, Tools > Use High Voltage
Program Entry must be enabled.
PIC24FJ16GA002 PIC24FJ16GA004
PIC24FJ32GA002 PIC24FJ32GA004
PIC24FJ32GA102 PIC24FJ32GA104
PIC24FJ48GA002 PIC24FJ48GA004
PIC24FJ64GA002 PIC24FJ64GA004
PIC24FJ64GA102 PIC24FJ64GA104
PIC24FJ64GA006 PIC24FJ64GA008 PIC24FJ64GA010
PIC24FJ96GA006 PIC24FJ96GA008 PIC24FJ96GA010
PIC24FJ128GA006 PIC24FJ128GA008 PIC24FJ128GA010
PIC24FJ128GA106 PIC24FJ128GA108 PIC24FJ128GA110
PIC24FJ192GA106 PIC24FJ192GA108 PIC24FJ192GA110
PIC24FJ256GA106 PIC24FJ256GA108 PIC24FJ256GA110
PIC24FJ32GB002 PIC24FJ32GB004
PIC24FJ64GB002 PIC24FJ64GB004
PIC24FJ64GB106 PIC24FJ64GB108 PIC24FJ64GB110
PIC24FJ128GB106 PIC24FJ128GB108 PIC24FJ128GB110
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 7
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
PIC24FJ192GB106 PIC24FJ192GB108 PIC24FJ192GB110
PIC24FJ256GB106 PIC24FJ256GB108 PIC24FJ256GB110
PIC24HJ12GP201 PIC24HJ12GP202
PIC24HJ16GP304
PIC24HJ32GP202 PIC24HJ32GP204
PIC24HJ32GP302 PIC24HJ32GP304
PIC24HJ64GP202 PIC24HJ64GP204
PIC24HJ64GP206 PIC24HJ64GP210
PIC24HJ64GP502
PIC24HJ64GP504 PIC24HJ64GP506 PIC24HJ64GP510
PIC24HJ128GP202 PIC24HJ128GP204
PIC24HJ128GP206 PIC24HJ128GP210
PIC24HJ128GP306 PIC24HJ128GP310
PIC24HJ128GP502 PIC24HJ128GP504
PIC24HJ128GP506 PIC24HJ128GP510
PIC24HJ256GP206 PIC24HJ256GP210 PIC24HJ256GP610
dsPIC33 Devices
dsPIC33FJ06GS101 dsPIC33FJ06GS102 dsPIC33FJ06GS202
dsPIC33FJ16GS402 dsPIC33FJ16GS404
dsPIC33FJ16GS502 dsPIC33FJ16GS504
dsPIC33FJ12GP201 dsPIC33FJ12GP202
dsPIC33FJ16GP304
dsPIC33FJ32GP202 dsPIC33FJ32GP204
dsPIC33FJ32GP302 dsPIC33FJ32GP304
dsPIC33FJ64GP202 dsPIC33FJ64GP204
dsPIC33FJ64GP206 dsPIC33FJ64GP306 dsPIC33FJ64GP310
dsPIC33FJ64GP706 dsPIC33FJ64GP708 dsPIC33FJ64GP710
dsPIC33FJ64GP802 dsPIC33FJ64GP804
dsPIC33FJ128GP202 dsPIC33FJ128GP204
dsPIC33FJ128GP206 dsPIC33FJ128GP306 dsPIC33FJ128GP310
dsPIC33FJ128GP706 dsPIC33FJ128GP708 dsPIC33FJ128GP710
dsPIC33FJ256GP506 dsPIC33FJ256GP510 dsPIC33FJ256GP710
dsPIC33FJ128GP802 dsPIC33FJ128GP804
dsPIC33FJ12MC201 dsPIC33FJ12MC202
dsPIC33FJ16MC304
dsPIC33FJ32MC202 dsPIC33FJ32MC204
dsPIC33FJ32MC302 dsPIC33FJ32MC304
dsPIC33FJ64MC202 dsPIC33FJ64MC204
dsPIC33FJ64MC506 dsPIC33FJ64MC508 dsPIC33FJ64MC510
dsPIC33FJ64MC706 dsPIC33FJ64MC710
dsPIC33FJ64MC802 dsPIC33FJ64MC804
dsPIC33FJ128MC202 dsPIC33FJ128MC204
dsPIC33FJ128MC506 dsPIC33FJ128MC510 dsPIC33FJ128MC706
dsPIC33FJ128MC708 dsPIC33FJ128MC710
dsPIC33FJ256MC510 dsPIC33FJ256MC710
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 8
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
dsPIC33FJ128MC802 dsPIC33FJ128MC804
dsPIC30 Devices
dsPIC30F2010 dsPIC30F2011 dsPIC30F2012
dsPIC30F3010 dsPIC30F3011 dsPIC30F3012
dsPIC30F3013 dsPIC30F3014
dsPIC30F4011 dsPIC30F4012 dsPIC30F4013
dsPIC30F5011^ dsPIC30F5013^ dsPIC30F5015
dsPIC30F5016
dsPIC30F6010A dsPIC30F6011A dsPIC30F6012A
dsPIC30F6013A dsPIC30F6014A dsPIC30F6015
^ These 2 devices are not supported for low VDD programming.
dsPIC30 SMPS Devices
--------------------
dsPIC30F1010
dsPIC30F2020 dsPIC30F2023
PIC32 Devices
--------------------
PIC32MX320F032H PIC32MX320F064H PIC32MX320F128L
PIC32MX320F128H
PIC32MX340F128H PIC32MX340F128L
PIC32MX340F256H
PIC32MX340F512H*
PIC32MX360F256L PIC32MX360F512L
PIC32MX420F032H
PIC32MX440F128L PIC32MX440F128H
PIC32MX440F256H PIC32MX440F512H
PIC32MX460F256L PIC32MX460F512L
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 9
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
5. BOARD LAYOUT
Label
Function
A
Push Button
B
Mini USB port socket
C
Main power supply indicator LED (green)
D
Target indicator LED (orange)
E
Busy indicator LED (red)
F
IDC Box Header for programming connector
Push Button
This push button used to initiate the write device function when programmer>Write on
PICkit Button
is checked.
Mini USB port
This is for USB connection to PC desktop or laptop. Please connect the mini header of USB
cable to this socket.
Mini USB socket is not designed for frequent plug in and plug out, thus user is advise to
minimize the connect/disconnect of USB cable and Mini USB socket. It is advice to
disconnect it at the other end of USB cable which is USB type A. This will pro-long the
life span of UIC00B.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 11
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
Main power supply indicator LED(green)
This LED is to indicate the main power supply of UIC00B. It should ON once USB
connection from UIC00B to computer or laptop is ready.
Target indicator LED (orange)
This LED is used to indicate the UIC00B is powering the target device.
Busy indicator LED (red)
This LED is used to indicate busy function such as UIC00B is in program mode or is alerting
that a function is in progress.
IDC Box Header for programming connector
This IDC box header is for programming cable. Please connect one end of programming
cable to this header, while the other end to target board.
Figure and table below shown UIC00B pin connection and description.
Figure and table below shown SK40C ICSP Programmer pin connection at the target board
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 12
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
6. HARDWARE
This section will show the connection during UIC00B usage.User may used UIC00B with
target/development board or UIC-S. UIC-S is optional and user need to buy it separately.
6.1 Using UIC00B with application circuit (development board)
1. Connect A-type USB connector (one end of USB cable) to USB port at laptop or PC
desktop.
2. Connect another end of USB cable (mini) to UIC00B USB port. Power supply
indication green LED will light ON.
3. Continue to software installation if this is the first time usage. Refer to section 6 for
software installation guide.
4. Connect one side of programming cable to box header of UIC00B and the other side
to box header of development board (target device) to be program. Use external
power for the target board, UIC00B cannot support large power usage.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 14
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
Caution: USB port current limit is 150mA. If the target and UIC00B exceed this current
limit, the UIC00B board might be damaged. The target board should be powered
externally.
6.2 Using UIC00B with UIC-S (optional, buy separately)

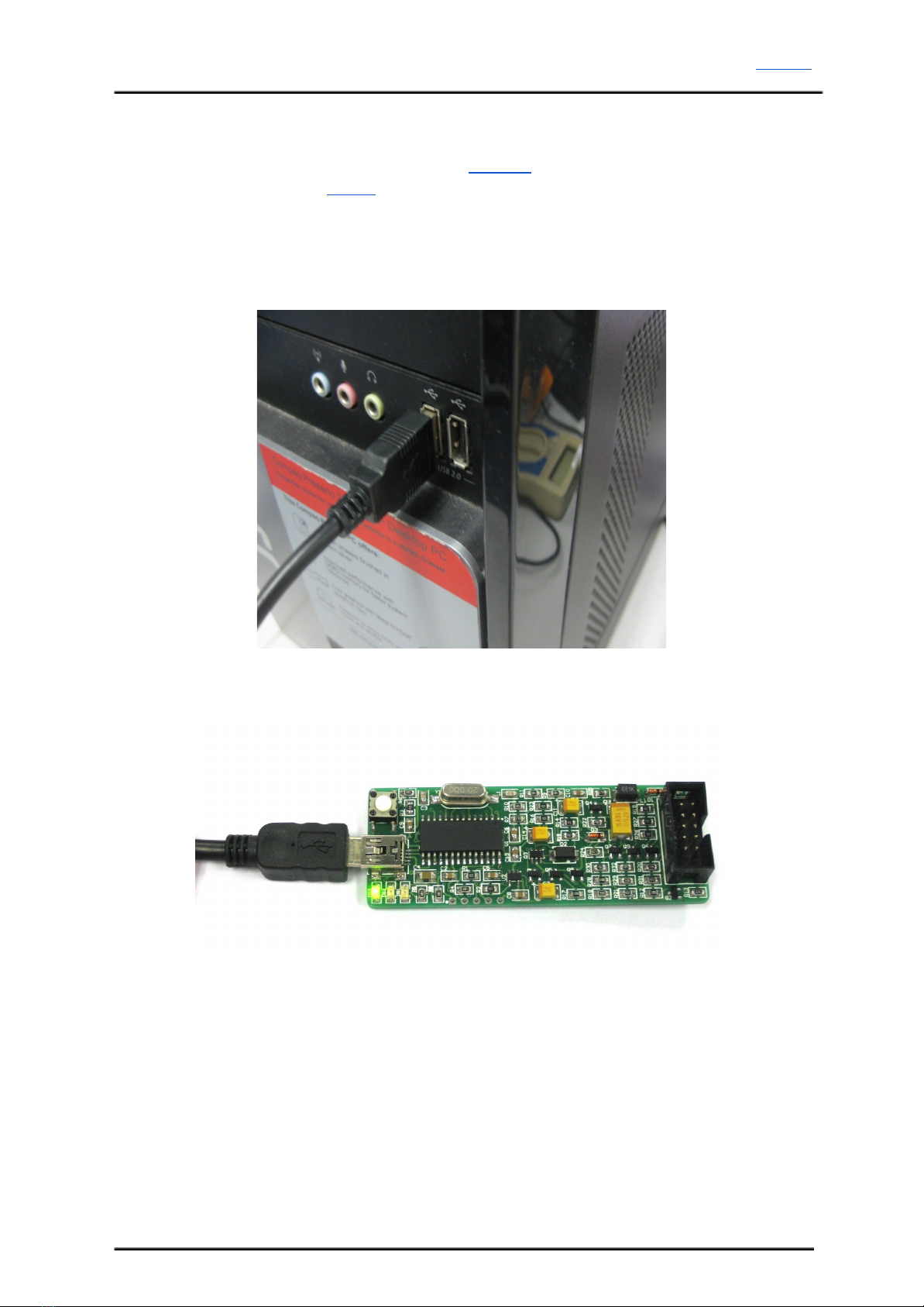

1. Connect A-type USB connector (one end of USB cable) to USB port at laptop or PC
desktop.
2. Connect another end of USB cable (mini) to UIC00B USB port.
●Power supply indication green LED will light ON.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 15
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
3. Continue to software installation if this is the first time usage. Refer to section 6 for
software installation guide.
4. Connect one side of programming cable to box header of UIC00B and the other side
to box header of UIC-S board.
●No external power required for UIC-S to function.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 16
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
6.2.1 Plugging the microcontroller
40-pin Microcontroller
●Plug in the microcontroller at the ZIF socket and select 40 pins at label “28/40
Pins” using mini jumper as shown below.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 17
ROBOT . HEAD to TOE
Product User’s Manual – UIC00B
7. SOFTWARE
Since UIC00B is compatible with PICkit 2, thus PICkit 2 programming software should be
installed. With the help of pictures and some simple instruction, following section will guide
to install the PICkit 2 programming software.
7.1 Download setup file from Cytron’s website
1. User may download the setup file from Cytron’s website: www.cytron.com.my
2. After finish downloading, unzip the file and click “setup” to run the installation
wizard.
7.2 PICkit 2 Programmer setup procedures
Follow steps below to setup Microchip PICkit2 Programmer after launched the setup file.
1. Click next.
Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved 20
Table of contents
Other Cytron Technologies Motherboard manuals
Cytron Technologies
Cytron Technologies CT-UNO User manual
Cytron Technologies
Cytron Technologies EasyMP3 Shield User manual
Cytron Technologies
Cytron Technologies SHIELD-MD10 User manual
Cytron Technologies
Cytron Technologies UIC00A User manual
Cytron Technologies
Cytron Technologies CuteDuino User manual
Cytron Technologies
Cytron Technologies Maker Uno User manual
