CZZN GL6 User manual
GL60云台灯说明书
2020.06.08
用户说明书
目录
一、云台灯系列介绍
二、免责声明与警告
三、GL60介绍
四、DJI Pilot使用教程
五、固件升级
2
2
3
5
9
一、云台灯系列介绍
成至云台灯系列产品，适用于巡检、刑事追捕、云台相机补光、搜救巡查、电力抢修、
夜间救援、轮船海上照明等用途。
采用大疆DJI SKYPORT V2通用转接环，无需额外供电，即插即用，完美适配DJI
M300 RTK/DJI M210 V2无人机。
二、免责声明与警告
警告事项
感谢您购买成至智能产品。本文所提及的内容关系到您的安全以及合法权益与责任。使
用本产品之前，请仔细阅读本文以确保已对产品进行正确的设置。不遵循和不按照本文的
说明与警告来操作可能会给您和周围的人带来伤害，损坏本产品或其它周围的物品。本文
档及所有相关的文档最终解释权归成至智能所有。如有更新，恕不另行通知。请访问
www.gzczzn.com 官方网站以获取最新的产品信息。
GL60对灯体内部的光路环境要求极为严格，需完全无尘洁净。如遇硬件问题，请返厂
维护，请勿擅自拆卸，否则由此造成对光路不良影响的后果自行承担。
注意事项
1、GL60云台灯的安装方式与大疆其它载荷相同，请确认转接环是否正确安装。
2、GL60在无人机起飞前工作，功率会限制在50%以下；起飞后，功率可达100%。
三、GL60介绍
成至GL60无人机云台探照灯仅重495克，额定功率高达65W，由多达5片透镜组成的
光学成像结构，发射出仅12度角的锐利光柱，有效照射距离可达200米，亮度均匀，颜色
一致性高，为无人机夜间作业提供前所未有的空中照射效果，通过 DJI SKYPORT V2.0接
口，可直接挂载在大疆经纬 M210 V2、M300 RTK 等系列无人机上使用。连接DJI Pilot
APP即可控制开关、切换常亮及爆闪等模式，且能自动跟随云台相机的转动。GL60无风扇
的机身实现全密封设计，具备优异的防水防尘性能，能在恶劣气候条件下可靠工作，是DJI
M300 RTK行业无人机的最佳搭档。
1.防尘盖 2.DJI SKYPORT V2.0转接环 3.内存卡插槽
4.三轴增稳云台 5.出光口
5
3
2
4
1
技术参数
型号
电气接口
尺寸/mm
重量/g
总功率/W
LED功率/W
FOV/°
探照距离/m
探照面积/m2
中心光照度/Lux
控制角度
工作温度
GL60
DJI SKYPORT V2.0
L132*W110*H137
495
65
60
12
100
780
6
俯仰
-20°C~+50°C
150 50
347 87
18 52
水平
-110°~+30°
±320°
结构设计范围
俯仰
水平
-115°~+40°
全向360°
四、云台灯软件使用教程
1、点击DJI Pilot进入主界面。
2、进入到主界面，左下角显示出Gimbal SearchLight 60字样，说明GL60定焦
云台灯负载识别成功，可进行下一步操作，点击手动飞行。
3、进入主界面后点击多云台联动按钮，选择云台Ⅰ和云台Ⅱ，实现云台同步。
4、点击菜单栏，点击第三方负载选项，进入GL60操作界面。
多云台联动按钮

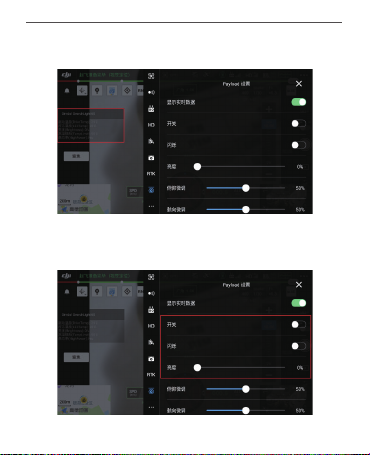

5、点击显示实时数据按钮，在主界面左上角会弹出状态显示框，可观察GL60实
时温度及功率等参数状态。
6、点击开光按钮，实现灯的亮灭状态控制；点击闪烁按钮，可开启灯爆闪模式；
滑动亮度进度条选项，可以对云台灯进行亮度调节。
7、使用H20和GL60时，可通过俯仰微调按钮、航向微调按钮及水平微调按钮，对画
面中的光斑位置进行微调，使光斑保持在画面中央。单次微调后需点击保存微调按钮。
每次最大微调±5°，点击保存微调后，可继续微调±5°。
8、对目标进行观测时，如遇相机曝光过曝情况，可滑动画面上的光圈按钮进行调节。
五、固件升级
了解GL60云台灯固件更新情况或下载最新版本固件，请关注成至智能官网：
www.gzczzn.com 。
如遇到无人机固件更新导致云台灯无法正常工作情况，请及时联系当地代理商或厂家。
如您对说明书有任何疑问或者建议
请通过以下电子邮箱联系我们：
Printed in China
Contents
Ⅰ. Gimbal Light Series Introduction
Ⅱ.Disclaimers And Warnings
Ⅲ. The Introduction Of GL60
Ⅳ. The Gimbal Light Software Tutorial
Ⅴ.The Firmware Update
11
11
12
15
19
Ⅰ. Gimbal Light Series Introduction
This series of products can be used for UAV, film and television shooting, night
patrol search light, Power line inspection, emergency lighting, etc.
Through the DJI SKYPORT V2.0 interface, this product can be directly mounted
on DJI M300 RTK/M210 V2 for use.
Ⅱ. Disclaimer And Warning
Cautions
Thank you for purchasing our intelligent products. The content mentioned in this
article is related to your safety and legal rights and responsibilities. Before using this
product, please read this article carefully to ensure that the product has been set up
correctly. Ignoring the instructions and warnings in this article may cause harm to you
and those around you, and may damage this product or other nearby item. The right
to interpret this document and all related documents shall remain with us. If there are
any updates, forgive us for not notifying you specifically.
Please visit www.gzczzn.com for the latest product information.
GL60 is a precision optical equipment, the body needs a high seal for dust and
water proof. If there is any problem with the hardware, please send it back to the
manufacturer and contact after-sales service. You must not disassemble and repair
by yourself, otherwise you will lose the warranty and maintenance qualification.
NOTE
1. The installation method of GL60 is the same as that of DJI the PTZ camera.
Please confirm whether the installation is correct before taking off.
2. When GL60 works before the UAV takes off, its power will be limited below 50%;
After take-off, the power can reach 100%.
Ⅲ. The Introduction Of GL60
GL60 only weighs 495 grams and has a rated power of up to 65W. Through an
optical imaging structure composed of five lenses, it emits a sharp light column with
only 12 degrees of Angle, with an effective irradiation distance of up to 200 meters.
Its brightness uniformity and color uniformity are extremely high, providing
unprecedented aerial lighting for unmanned aerial vehicles operating at night. Through
the DJI SKYPORT V2.0 interface, this product can be directly mounted on DJI M300
RTK, M210 V2 for use.
Connect DJI Pilot APP to control switch, switch regular light and flash mode, and
automatically follow the rotation of the PTZ camera. The GL60 UAV Gimbal Lights is
the best night partner for DJI M300 RTK drone. It has a fan - free fuselage to
achieve a fully sealed design, providing excellent waterproof and dustproof
performance, can work reliably in harsh weather conditions. It has an advanced
automatic temperature control system.
1. Dust Cover 2. The DJI SKYPORT V2.0 Interface 3. Memory Card Slot
4. UAV 3-axis Gimbal 5. The Light Export
5
3
2
4
1
Model
Electrical interface
Size/mm
Weight/g
The total power/w
The LED power/w
FOV/°
Effective distance/m
Effective area/m2
Central illumination/Lux
Controllable Angle
Working temperature
GL60
DJI SKYPORT V2.0
L132*W110*H137
495
65
60
12
100
780
6
Pitch Angle
Pitch Angle
-20°C~+50°C
150 50
347 87
18 52
Horizontal
Angle
Horizontal
Angle
-110°~+30°
±320°
Structural design scope
-115°~+40°
Omnidirectional（360°）
Description Of Parameters
Ⅳ. The Gimbal Light Software Tutorial
1. Click DJI Pilot to enter the main interface.
2. Enter the main interface and the word Gimbal SearchLight 60 is displayed in
the lower left corner, indicating that the LOAD identification of GL60 is
successful. You can proceed to the next step and click manual flight.
3. Enter the main interface and then click the Multi-Gimbal Connection button,
and then select the GimbalⅠand GimbalⅡ, achieve the result of two Gimbals
synchronization.
4. Click the menu bar and click the third-party load option to enter the GL60
operation interface.
the Multi-Gimbal Connection button
5. Click the button to display real-time data, and a status display box will pop up in
the upper left corner of the main interface to observe real-time temperature, power
and other parameter states of GL60.
6. Click the switch button to control the on-off state of the light; Click the Twinkle
button to turn on the flash mode. Slide the Brightness bar option to adjust the
brightness of the GL60.
7.When H20 and GL60 are used simultaneously, the Pitch adjustment button
Roll adjustment button and Yaw adjustment button can be used to keep the spot
in the center of the screen. Click the save fine adjustment button after a single fine
adjustment.Each time the maximum fine adjustment range is ±5°.
You need to save the adjustment and then make another fine adjustment of ±5°
8. When observing the target, if the camera is overexposed, it can be adjusted
by the aperture button on the sliding screen.
For firmware update of GL60 UAV Gimbal Light or download the latest version
please pay attention to www.gzczzn.com.
If the Light cannot work properly due to the firmware update of UAV
please contact the local agent or manufacturer in time.
Ⅴ.The Firmware Update
If you have any questions or suggestions on
the manual, please contact us through the
following email:：[email protected]
Printed in China
