D-JIX PVS 1007-20 BR User manual

PVS 1007-20 BR
Blu-ray player
User Guide
Photo representative only
This guide must be read before using the device

1
DECLARATION OF CONFORMITY
We, D-JIX (Logicom - 55 rue de Lisbonne, 75008 Paris, France), declare that the D-JIX PVS 1007-20
BR (MBP1061) portable Blu-ray player complies with the essential and applicable requirements of the
following directives:
- 2004/108/EC on safety and electromagnetic compatibility.
- 2006/95/EC on electrical equipment designed for use within certain voltage limits.
- 2006/66/EC on batteries and accumulators.
- 2011/65/EU on the restriction of certain hazardous substances.
- 2009/125/EC on establishing a framework for the setting of ecodesign requirements for energy-
related products.
Any product modification unauthorized by D-JIX voids this declaration of conformity and the user's
authority to operate this device.
Paris, 18 July 2013
Bernard Bessis, President

2
Table of Contents
DECLARATION OF CONFORMITY_____________________________________________ 1
OVERVIEW OF THE PVS 1007-20 BR __________________________________________ 4
SAFETY AND GENERAL INFORMATION________________________________________ 4
LISTENING SAFELY ________________________________________________________ 6
ENVIRONMENTAL INFORMATION ____________________________________________ 6
MAIN CHARACTERISTICS ___________________________________________________ 7
DIAGRAMS AND FUNCTIONS ________________________________________________ 7
View of the DVD player _____________________________________________________ 7
Remote control ___________________________________________________________ 8
USING THE REMOTE CONTROL______________________________________________ 9
ACCESSORIES ___________________________________________________________ 10
CONNECTING THE POWER SUPPLY _________________________________________ 10
CONNECTING A USB DEVICE_______________________________________________ 10
CONNECTING AN SD/MMC CARD____________________________________________ 10
CONNECTING AUDIO/VIDEO OUTPUT________________________________________ 11
HDMI OUTPUT CONNECTION _______________________________________________ 12
INTERNET CONNECTION __________________________________________________ 12
BASIC OPERATION _______________________________________________________ 13
PLAYING AN AUDIO FILE___________________________________________________ 14
PLAYING AN IMAGE FILE___________________________________________________ 15
PLAYING A VIDEO FILE ____________________________________________________ 16
BD LIVE _________________________________________________________________ 17
GENERAL SETTINGS______________________________________________________ 18
DISPLAY SETTINGS_______________________________________________________ 21
AUDIO SETTINGS_________________________________________________________ 22
TABLE OF CONTENTS

3
SYSTEM INFORMATION ___________________________________________________ 23
TECHNICAL SPECIFICATIONS ______________________________________________ 24
USING THE BATTERY _____________________________________________________ 24
TROUBLESHOOTING______________________________________________________ 25
WARRANTY AND AFTER-SALES SERVICE ____________________________________ 26

4
Thank you for choosing our portable Blu-ray player. Equipped with high-tech electrical components,
this device is designed for personal use in homes, hotels, offices, etc. Its compact size makes it easy
to carry and set up. Please read this guide carefully before using the device and keep the guide for
future reference.
High voltage, do not open
These symbols remind the user to exercise
caution to prevent risk of electrocution
SAFETY AND GENERAL INFORMATION
Warning: To reduce the risk of fire or electrocution, do not expose this device to
rain or moisture.
1) Please read this user guide carefully and follow the safety instructions when operating the
device.
2) Do not use this device near water. Do not place any items containing liquid on top of the device.
3) Do not install your device near a heat source such as radiators, heat registers, stoves or other
equipment, including amplifiers, which produce heat.
4) Disconnect the device during electrical storms or when not in use for an extended period.
5) To clean the device, disconnect it and clean using only a damp cloth. Do not use liquid or
aerosol cleaners.
6) Use only accessories specified by the manufacturer.
7) All repairs must be carried out by a qualified repair technician. Servicing is required when the
device has been damaged, for example when the power cord or plug is damaged, when
liquid has been spilled or objects have fallen on the device, or when the device has been
exposed to rain or moisture, is operating abnormally or has been dropped.Do not attempt to
repair the device yourself due to the dangers associated with high voltages and the risk of
electrocution.
OVERVIEW OF THE PVS 1007-20 BR
WARNING

5
8) Do not use discs with irregular shapes, for example heart-shaped or star-shaped
discs. These may cause the device to malfunction.
9) Do not dispose of the device or the battery in fire. There is a serious risk of explosion and/or
release of highly toxic chemicals.
10) Do not expose the device to extended periods of sunshine or low temperatures.
11) Do not submerge the device in water and do not use in damp or wet locations.
12) Do not expose the device to fire or other hazardous environments, for example at petrol stations
or in areas where explosive materials are used.

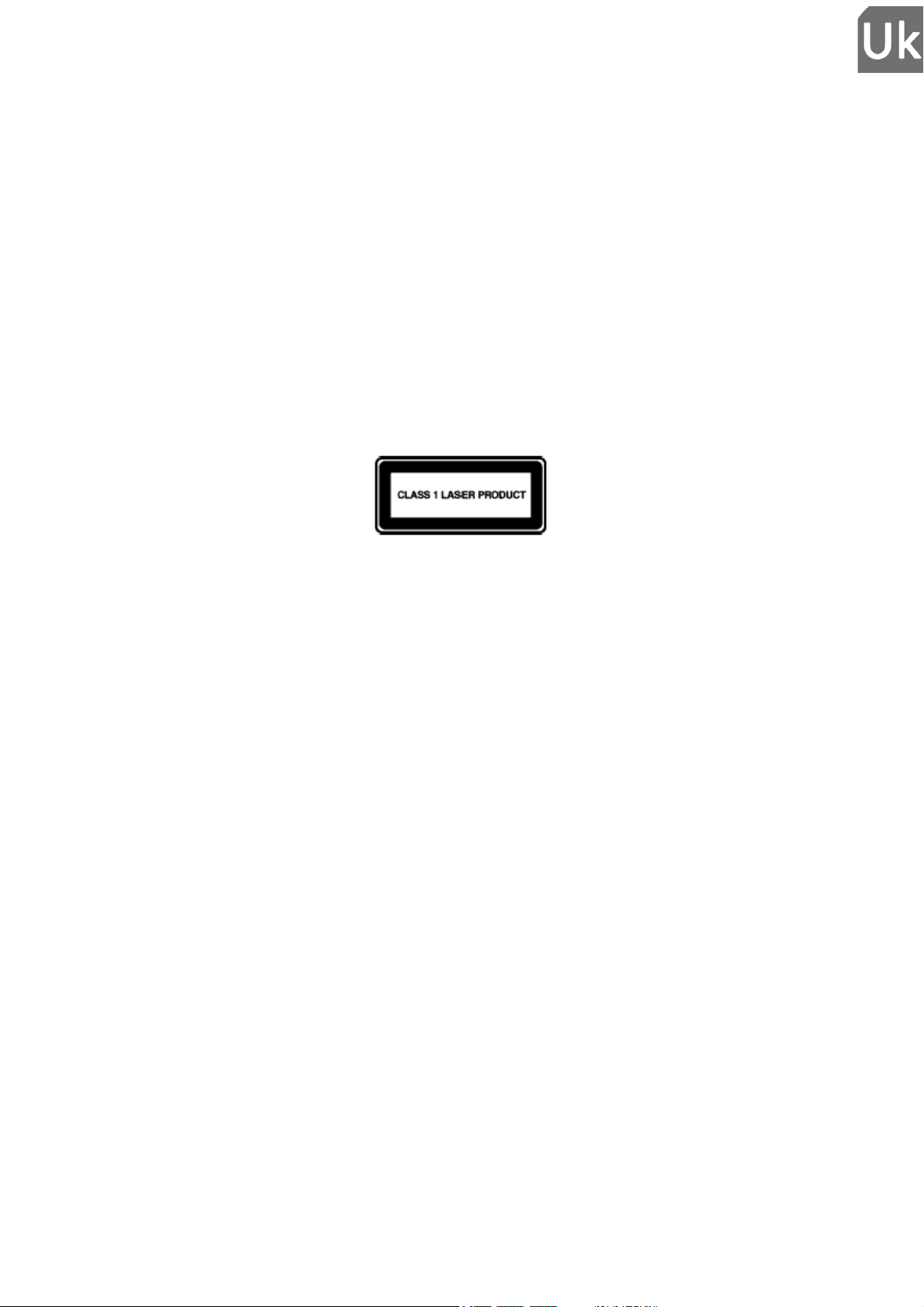

13) Never look at the laser beam emitted by the device. This device carries the following label:
14) Do not block the ventilation openings. These must not be obstructed by placing the portable
Blu-ray player on a cushion, sofa or other similar surface. The slots and opening on the unit
are designed for ventilation.
15) Do not place you portable Blu-ray player on a cart, bracket, tripod or table. The device may fall
and cause damage or injury.
16) Never place heavy or sharp objects on the LCD screen.
17) Only use the mains adapter supplied with the portable Blu-ray player. The use of any other
adapter will void the warranty.
18) The mains adapter plug is used to disconnect the device and must remain easily accessible.

6
LISTENING SAFELY
Before using the earphones, check that the volume is not set to maximum to prevent hearing
loss.
The high volume settings are intended for individuals with reduced hearing capacity and not
for those with normal hearing.
Do not use the earphones while driving.
Adjust the volume so that you can hear the sounds around you.
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
Listening to a portable audio player at high volumes can damage your hearing and
lead to hearing impairment (deafness, ringing ears, tinnitus and hyperacusis). In order
to prevent these risks it is recommended not to use the device at full volume; use
must not exceed one hour per day.
This product complies with standards EN 50332-1:2000 and EN 50332-2:2003 on sound
pressure level restrictions, in compliance with Article L. 5232-1 of the French Public
Health Code relating to portable audio players.
To protect your hearing, only use the earphones supplied, or those with reference D-JIX EM-
100 or headphones with reference D-JIX CM-100 available on our site www.djix.fr.
Do not use pre-amplified or amplified models of headphones or earphones (i.e. with
individual volume control and/or self-powered by batteries), as they do not ensure adherence
to the maximum volume.
If the headphones or earphones need replaced, use a model identical to the original to
ensure adherence to the maximum volume.
For further information, please contact our hotline or visit our site at www.djix.fr.
ENVIRONMENTAL INFORMATION
Please always take your device to a professional to perform removal of the built-in battery.
This logo indicates that this is electrical or electronic equipment containing hazardous substances that
may have an effect on the environment and human health.
These products should therefore be treated as waste under EU Directive 2012/19/EC, of Wednesday, July
04, 2012, on electrical and electronic equipment waste. They should not be disposed of with unsorted
municipal waste and instead should be returned to a waste dropoff company or through a community
collection or recovery program.

7
•A 10-inch high-brightness color LCD screen.
•Compatible with Blu-ray, DVD, VCD, MP3, MP4, CD, JPEG and Xvid formats amongst
others. Built-in stereo speaker.
•Built-in lithium polymer rechargeable battery.
•Supports PAL or NTSC systems.
•Supports operating systems in several languages, fast-forward/fast-backward, repeat
function.
•Zoom in/out function.
•Supports HDMI output signal function.
DIAGRAMS AND FUNCTIONS
View of the DVD player
MAIN CHARACTERISTICS
1. Screen
2. Previous key
3. OK key
4. Volume + key
5. Infrared sensor
6. Volume - key
7. Next key
8. PLAY/PAUSE key
9. STOP key
10.Speakers
11.Disc door
12.Press to shut
13.OPEN key
14.Charge indicator
15.Power indicator

8

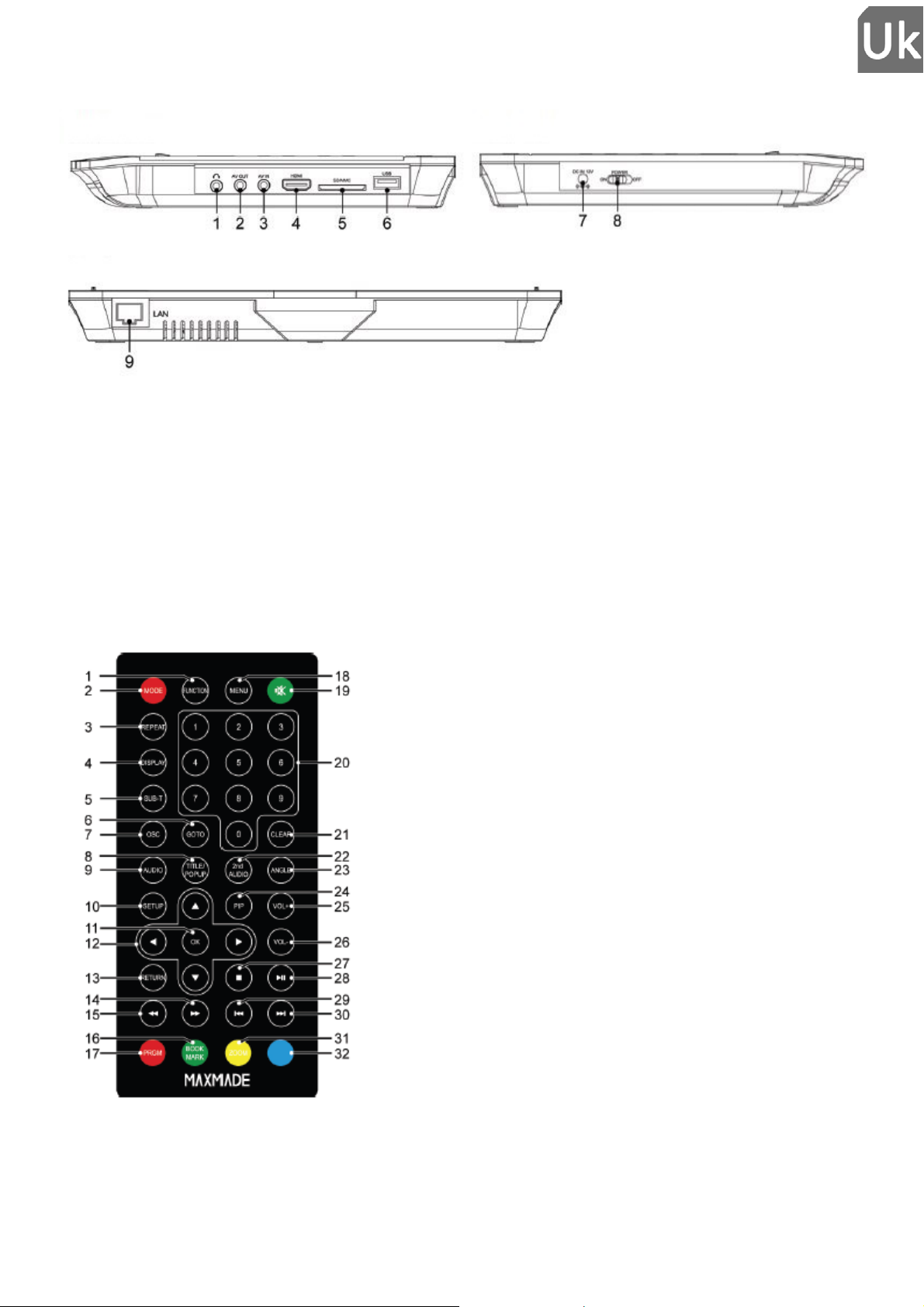

Remote control
Right side
Left side
Rear
1. 3.5mm jack
2. AV output
3. AV input
4. HDMI output
5. SD/MMC port
6. USB port
7. 12V DC IN
8. ON/OFF button
9. Ethernet port
1. Function
2. Mode
3. Repeat
4. Display
5. Subtitle
6. Goto
7. OSC
8. Title/Popup
9. Audio
10.Setup
11.OK
12.Arrow keys
13.Return
14.Fast-forward
15.Fast-backward
16.Green/Book mark
17 Red/Program
18 Menu
19 Mute
20 Numeric keys
21 Clear
22 2nd Audio
23 Angle
24 PIP
25 Volume +
26 Volume -
27 Stop
28 Play/Pause
29 Previous
30 Next
31 Yellow/Book mark
view
32 Blue/Zoom

9

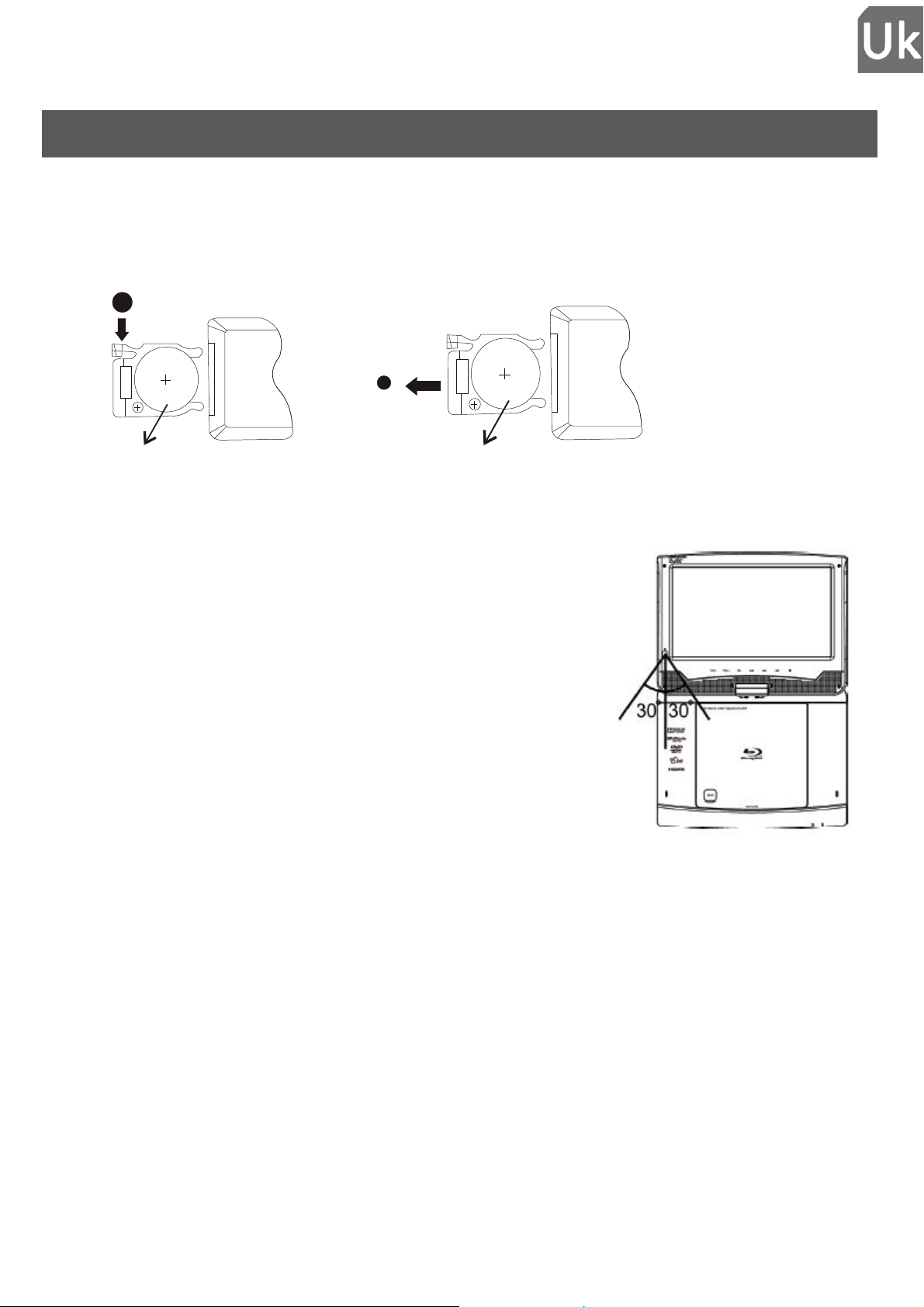

USING THE REMOTE CONTROL
Insert the CR2025 battery into the remote control as shown below.
When using the remote control, ensure the infrared light
is pointing at the infrared sensor on the device. The
distance between the device and the remote control
must be less than 3 meters. Refer to the following
illustration.
Note:
1). Avoid dropping the device or placing it in a damp location.
2). Avoid exposing the device's infrared sensor to direct sunlight.
3). Replace the remote control's battery once exhausted.
CR2025 battery

10
ACCESSORIES
10-inch LCD screen 1
Remote control 1
Audio/video cable 1
Mains power adapter
1
Cigarette lighter power cable 1
Instruction manual 1
Earphones 1
CONNECTING THE POWER SUPPLY
Plug the adapter jack plug into the 12V DC IN input jack located at the right of the device then plug
the other end into the mains socket. Refer to the illustration below.
The device can be connected to a USB mass storage device. Refer to the following illustration.
The device can be connected to an SD/MMC card. Refer to the following illustration.
CONNECTING A USB DEVICE
CONNECTING AN SD/MMC CARD
12V DC
On/Off button

11

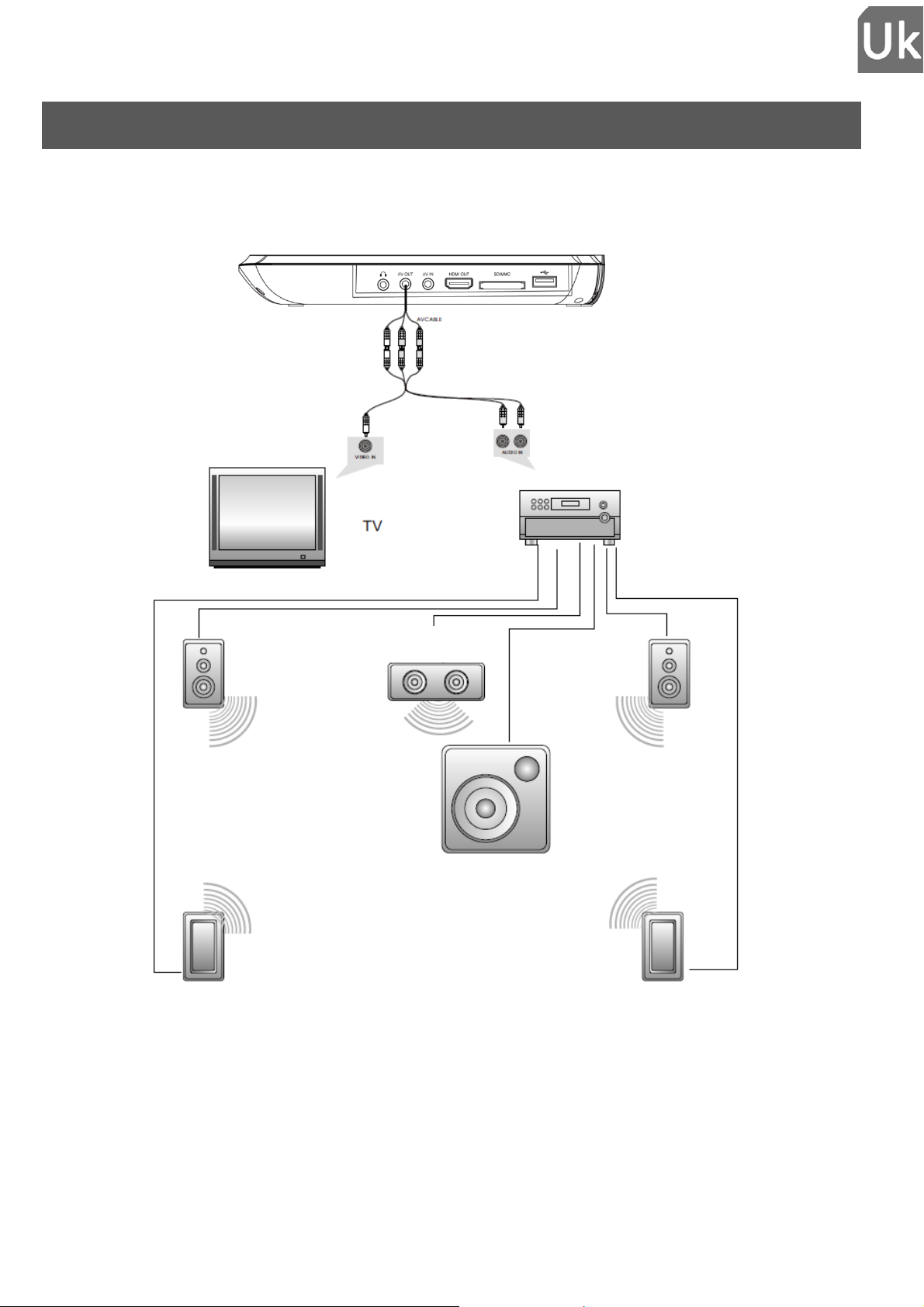

The device can be connected to an external speaker.Refer to the following
illustration.
Note: Use 480p/576p or 480i/576i resolution to maximize image quality.
CONNECTING AUDIO/VIDEO OUTPUT
Amplifier
Central speaker
Not supplied
Subwoofer
Rear-right speaker
Rear-left speaker
Front-left speaker
Front-right
speaker

12
The device can be connected using an HDMI cable (not supplied) to a screen supporting HDMI.
Refer to the following illustration.
Please change the resolution to 1080p for better image quality.
After using the HDMI connection, remember to switch the resolution back to 720p for best image
quality on the Blu-ray player.
The device can be connected to the Internet using an Ethernet cable to enable access to BD-Live
content.
To connect your Blu-ray player to the Internet, connect the Ethernet cable (not supplied) to the
Ethernet port of the Blu-ray player and then connect it to a modem or router.
HDMI OUTPUT CONNECTION
INTERNET CONNECTION

13
BASIC OPERATION
Switching on the player
Slide the ON button on the left of the player to switch on the player.

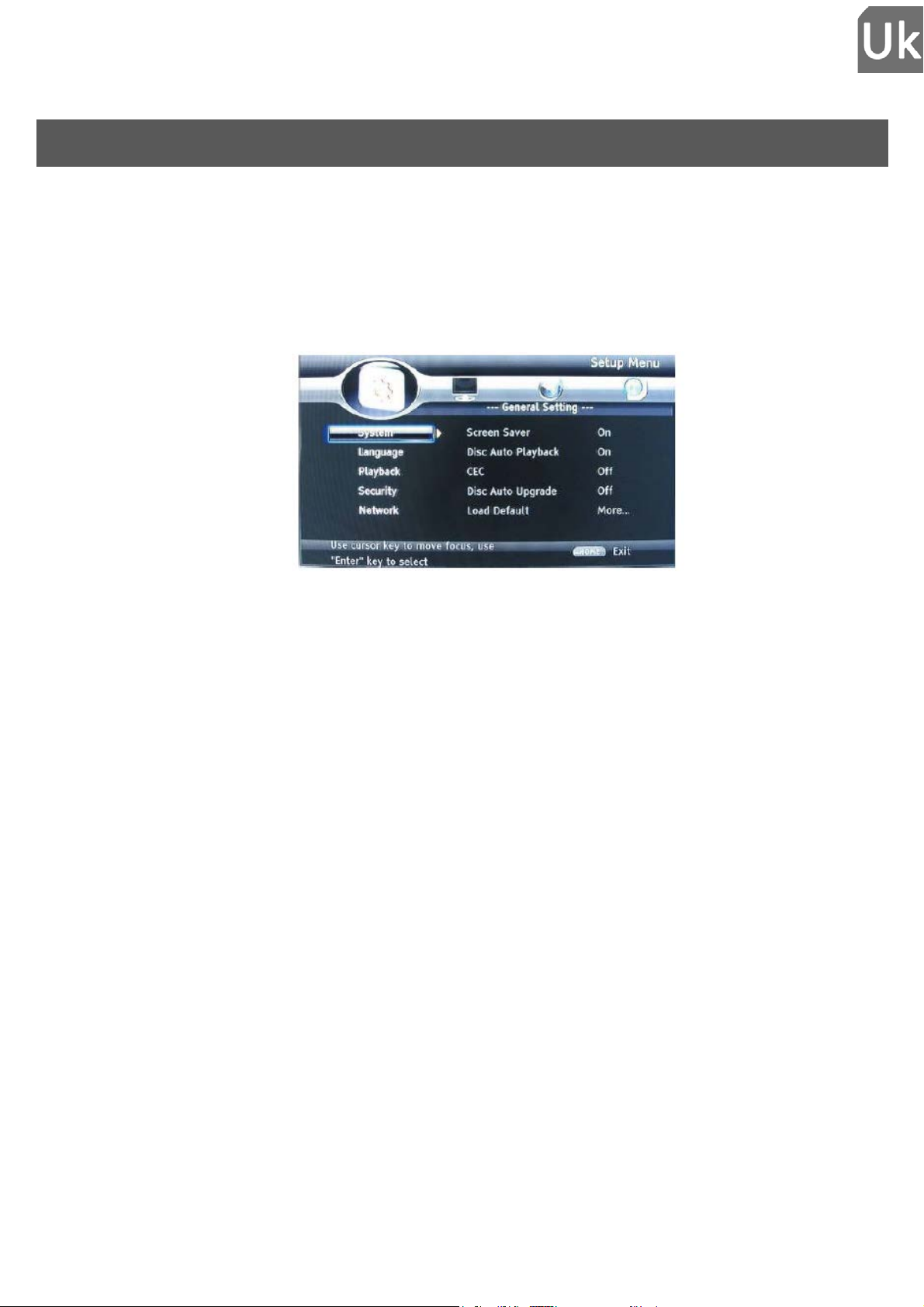

Setup menu
To access the setup menu on the Blu-ray player, press the "SETUP" button on the remote control.
If a CD is inserted into the player, you will not be able to access the settings menu.
Browsing the menus
When a menu is displayed, press the navigation buttons (◄►▼▲) on the remote control.
Choosing the language
1. Select "General Settings" in setup.
2. Press the Up/Down buttons to select "Language".
3. Press the right navigation button to select "Player Menu". Then select the desired
language.
Playing a disc
1. Press the button located on the door of the Blu-ray player.
2. Insert a disc face up.
3. Close the door of the Blu-ray player and start playing the disc.
4. To stop playback, press ■ .

14
Place a disc, an SD/MMC card or a mass storage unit into the player.
Press "FUNCTION" to access the Media Center. Press "FUNCTION" again to leave the menu.
Press the ▲▼ navigation arrows or the "OK" key on the remote control to select the storage device
containing your Audio files.
Then select "Music" using the ▲▼navigation arrows and press the "OK" key on the remote control to
confirm. This enables the Blu-ray player to display only Audio files.
After this, you can browse through your storage device. To browse, use the ▲▼ navigation arrows
and the "OK" button on the remote control. To return to the previous folder, select "FUNCTION".
Use the remote control to control playback of your audio files.
Button
Action
Play or Resume playback/Pause
Stop playback
Skip to next or previous
Fast-backward or fast-forward playback. Press several times to
increase speed. (max x5)
Use to choose the number of the Audio file to listen to.
REPEAT
Use to choose repeat mode.
Note:
- During playback, press "FUNCTION" to display the previous music folder.
- For multi-session discs, only the first session will be played.
- This player cannot read files which are protected by digital rights management.
- This Blu-ray player does not support MP3PRO audio file format.
- The special characters of MP3 ID3 audio files might not display correctly on the screen.
PLAYING AN AUDIO FILE

15
Place a disc, an SD/MMC card or a mass storage unit into the player.
Press "FUNCTION" to access the Media Center. Press "FUNCTION" again to leave the menu.
Press the ▲▼ navigation arrows or the "OK" key on the remote control to select the storage device
containing your Image files.
Then select "Image" using the ▲▼navigation arrows and press the "OK" key on the remote control to
confirm. This enables the Blu-ray player to display only Image files.
After this, you can browse through your storage device. To browse, use the ▲▼ navigation arrows
and the "OK" button on the remote control. To return to the previous folder, select "FUNCTION".
Use the remote control to control playback of your audio files.
Button
Action
◄►
Use to rotate an image.
▲▼
Use to invert a photo.
Stop image playback.
Use to select the speed of image transition (slow, medium,
fast).
Use to choose the number of the Image file to view.
REPEAT
Use to choose repeat mode.
Image option:
Press the "OSC" button on the remote control to access the image options.
1. File: use to determine/select the number of the desired image.
2. Selection mode: use to change the playback mode (Normal, Shuffle, Random).
3. Transition speed: use to select the speed of image transition (slow, medium, fast).
4. Transition mode: use to change the transition animation between two images.
PLAYING AN IMAGE FILE

16
Listening to music during image playback:
Create a musical slideshow to play both MP3 and JPEG files simultaneously.
1. Select your Music (refer to "playing an audio file") and start playback.
2. Press "FUNCTION" and return to the main menu with the choice between Photo, Music, Video
or AVCHD and choose Photo.
3. Browse to the folder containing your Images and start playback of your images.
Note:
- The music continues until the folder containing your music is finished
- To stop playback of the music, press ■twice.
Place a disc, an SD/MMC card or a mass storage unit into the player.
Press "FUNCTION" to access the Media Center. Press "FUNCTION" again to leave the menu.
Press the ▲▼ navigation arrows or the "OK" key on the remote control to select the storage device
containing your Image files.
Then select "Video" using the ▲▼navigation arrows and press the "OK" key on the remote control to
confirm. This enables the Blu-ray player to display only Video files.
After this, you can browse through your storage device. To browse, use the ▲▼ navigation arrows
and the "OK" button on the remote control. To return to the previous folder, select "FUNCTION".
PLAYING A VIDEO FILE

17
Use the remote control to control playback of your Video/Disc files.
Display options:
TOP menu: use to display additional information or the content of the disc.
POP UP: use to display the disc's menu without stopping playback.
DISPLAY: use to display extra disc information.
Note: For Blu-ray disc with the Java application, the resume function is not available.
Enjoy the BD-live function which allows you to use the Interactive functions of the disc when the Blu-
ray player is connected to the Internet.
•Additional content (such as trailers, subtitles, BD-Java, etc) can be downloaded to a USB
mass storage device.
•Certain video data can be viewed during download.
•When a disc supporting BD-Live is in playback, the player or the disc ID can be sent to the
supplier of the content via the Internet.
Note:
- The Blu-ray player must be connected and set to access the Internet.
- For slower Internet connections, connecting to the Internet may take longer.
- Follow the instructions given by the disc when using the BD-Live function.
- It is recommended that a USB mass storage device with at least 1GB of free space is used.
Button
Action
AUDIO
Use to select the language on the audio track
SUBTITLE
Use to choose the language of the subtitles
REPEAT
Use to activate or deactivate repeat mode
ZOOM
Use to zoom in/out on the video
BOOKMARK SET
Use to save a point during playback
BOOKMARK VIEW
Use to select a point during playback
GOTO
Use to jump to a specified time during playback
2nd AUDIO
Use to choose the audio track from the main movie or the PiP
video.
PiP
Use to activate the 2nd video
OSC
Use to access options relating to selection and control of the
video during playback.
Play or Resume playback/Pause
Stop current playback
Skip to next or previous
Fast-backward or fast-forward playback. Press several times to
increase speed. (max x5)
BD LIVE

18
Press the "Setup" key to display the setup menu. Press "Setup" again to leave the menu.
In the sub-menu, press "◄►▼▲" to select the desired option then the "OK" key to confirm. The
system can be configured to your own preferences.
1. System:
The System option can be set here.
•Screen saver: use to activate or deactivate the screen saver
•Auto playback: use to activate or deactivate auto playback when you insert a Disc.
•CEC: use to activate or deactivate Consumer Electronics Control which enables compatible
devices to communicate with each other and to send each other control commands (HDMI
only).
•Defaults settings: use to restore the default settings of the Blu-ray player.
•Easy installation: use to quickly configure the Blu-ray player (language, resolution and screen
format).
•BUDA: use to view the remaining memory on your Blu-ray player and to select where to store
the BD-live data (USB, Internal Memory, SD/MMC Card).
GENERAL SETTINGS

19
2. Language:
Use to set the language for different uses.
•Player (OSD) menu: use to choose the language for the Blu-ray player.
•Disc menu: use to choose the language in the disc menus.
•Audio: use to change the language of the audio track of the disc.
•Subtitles: use to change the language of the subtitles of the disc.
Note: You must select the audio language and the subtitles which can be played with your disc.
3. Playback settings:
Use to activate certain functions of disc playback.
•Closed Caption: use to activate or deactivate the audio description for hearing-impaired users.
•Angle Mark: use to activate or deactivate management of playback from all different angles
contained on the disc.
•PiP Mark: use to activate or deactivate the PiP mark function
•Secondary audio: use to activate or deactivate the audio of the PiP
•Resume play: use to activate or deactivate resume playback when a disc is restarted.
•PBC: use to support certain VCD discs for chapters and menus.
