Section 1 - Product Overview
• D-Link DWA-192 AC1900 Wi-Fi USB 3.0 Adapter
• Micro-USB 3.0 Cable
• Manual and Warranty on CD
• Quick Install Guide
System Requirements
• A desktop or laptop computer with an available USB 3.0 port*
• Windows® 8 or 7 (32/64-bit)
• CD-ROM drive
• 1.3GHz processor and at least 128 MB of RAM
• An 802.11ac or 802.11n wireless network
Product Overview
Package Contents
* For best performance, connect to a USB 3.0 port. If you connect to a non-USB 3.0 port, performance will be severely reduced.

5D-Link DWA-192 User Manual
Section 1 - Product Overview
Introduction
The DWA-192 AC1900Wi-Fi USB 3.0 Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Instead
of stringing Ethernet cables to your PC or dismantling your desktop computer case, the DWA-192 can enable 802.11ac wireless
connectivity by simply utilizing your desktop or notebook PC’s USB port.
Powered by Wireless AC technology, the DWA-192 provides a much faster wireless connection and superior reception than
802.11n*.The DWA-192 is designed for use in bigger homes and for those that demand higher bandwidth networking. Maximize
wireless performance by connecting this USB adapter to a Wireless AC router and stay connected from virtually anywhere
in the home. This USB adapter supports WPA and WPA2 encryption to prevent outside intrusion and protect your personal
information from being exposed.
Compact in size, robust in speed the DWA-192 AC1900 Wi-Fi USB 3.0 Adapter is a convenient solution for providing high
performance wireless connectivity to your desktop or notebook PC. Enjoy the many benets of Wireless AC connectivity today!
* Maximum wireless signal rate derived from IEEE Standard 802.11ac and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.

6D-Link DWA-192 User Manual
Section 1 - Product Overview
Features
• Compact size for placement anywhere
• Convenience of Plug & Play installation
• Fully 802.11n/g/b/a compatible
• 802.11ac compliant
• Advanced AC SmartBeam technology for enhanced speed and range
• Powered by the USB port; no external power source required
• USB 3.0 standard*
• You can securely connect to a wireless network usingWPA/WPA2 (Wi-Fi Protected Access) providing you a much
higher level of security for your data and communication than has previously been available.
• Position the DWA-192 almost anywhere in your workspace to achieve the best reception possible
* For best performance, connect to a USB 3.0 port. If you connect to a non-USB 3.0 port, performance will be severely reduced.

7D-Link DWA-192 User Manual
Section 1 - Product Overview
Hardware Overview

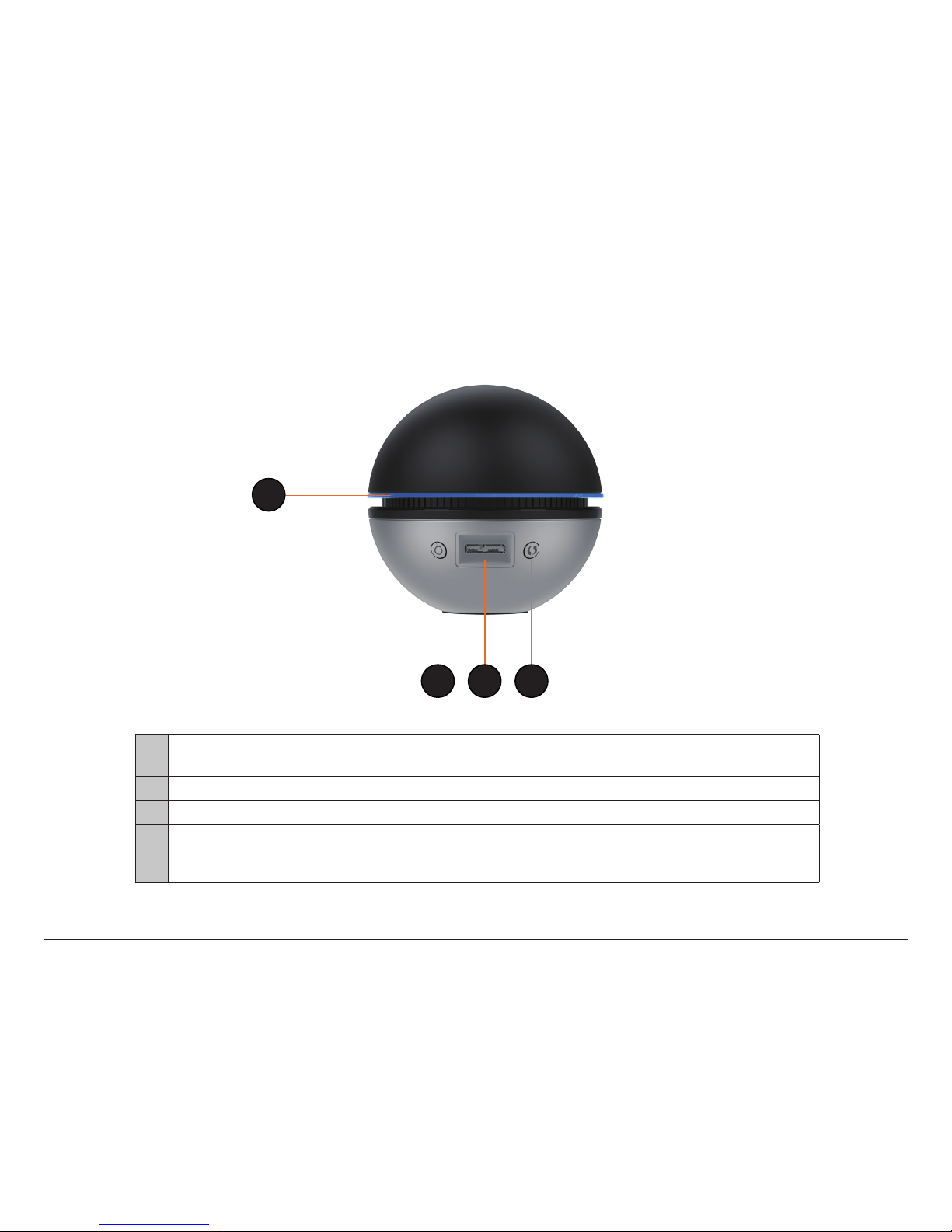

1Status LED A solid blue light indicates a proper connection to a wireless network. This LED
will blink if it is not successfully connected to a wireless network.
2LED On/O Button Turns the Status LED on or o.
3USB 3.0 Connector Used to connect the DWA-192 to your computer via the included USB cable.
4WPS Button
Press to start the WPS process. You will need to press the WPS button on your
wireless router within two minutes.The light will turn solid blue when successfully
connected.
32 4
1

8D-Link DWA-192 User Manual
Section 2 - Installation
Getting Started
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device
manager before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make
sure any software is uninstalled.
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network you want to connect to
Remove Existing Installations
If you’ve installed a dierent manufacturer’s adapter or a dierent model D-Link adapter, make sure the software is uninstalled
before installing the new software. Some utilities may cause a conict with the new software. If you plan to use multiple adapters
at dierent times, make sure the utilities are not set to load when your computer boots up.
To remove any old software:
Windows® 8 users: Press Windows Key + Q > Control Panel > Uninstall Programs.
Windows® 7 users: Click Start > Control Panel > Uninstall Programs.

9D-Link DWA-192 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter.To prevent any conicts
with the D-Link wireless adapter, it is recommended to disable the wireless adapter
(as well as any unused Ethernet adapters).
Windows® 8 - Press the Windows key and Xtogether and then click Device Manager.
Windows® 7 - Go to Start > Device Manager.

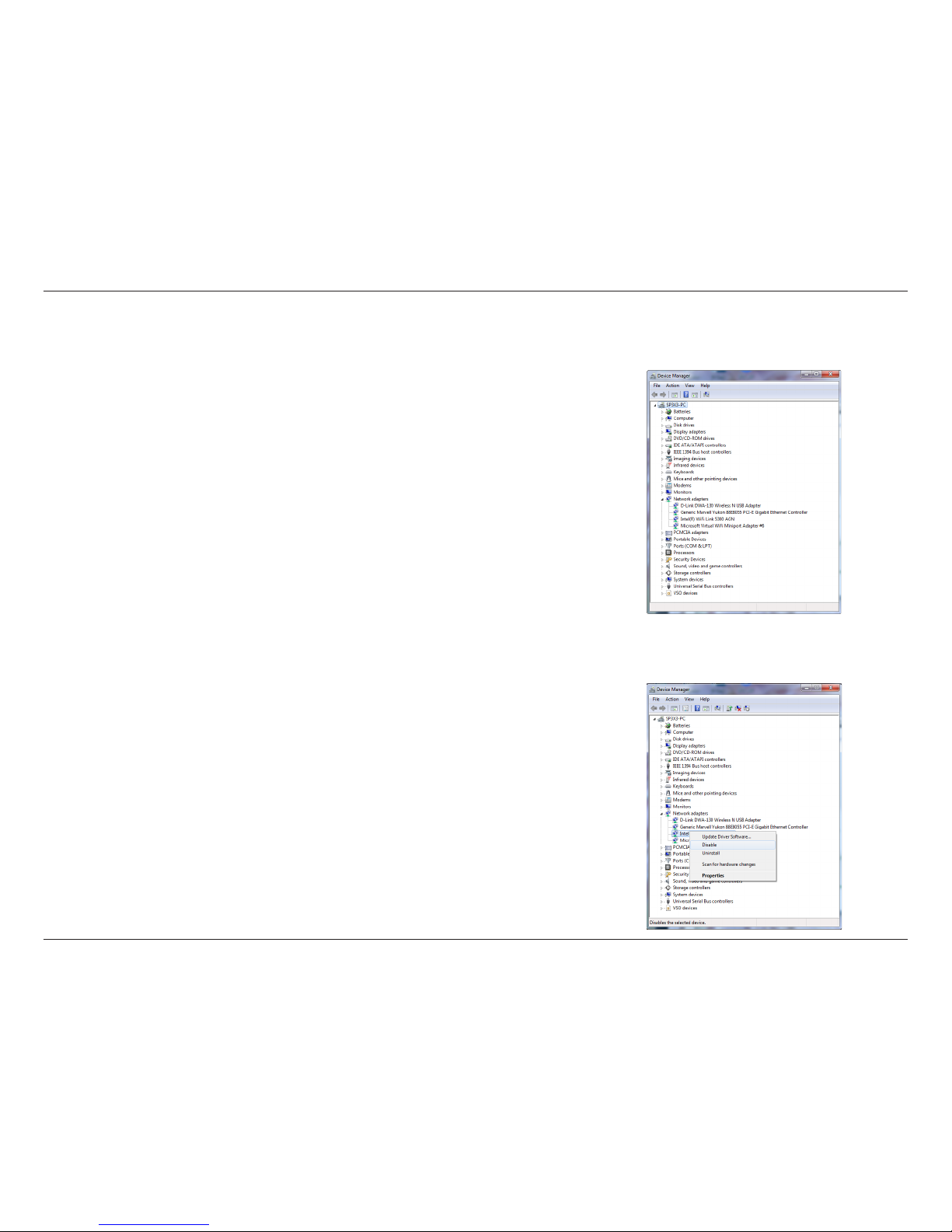

Click the Hardware tab and then click Device Manager. Scroll down the list and
click the +sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.

10D-Link DWA-192 User Manual
Section 2 - Installation

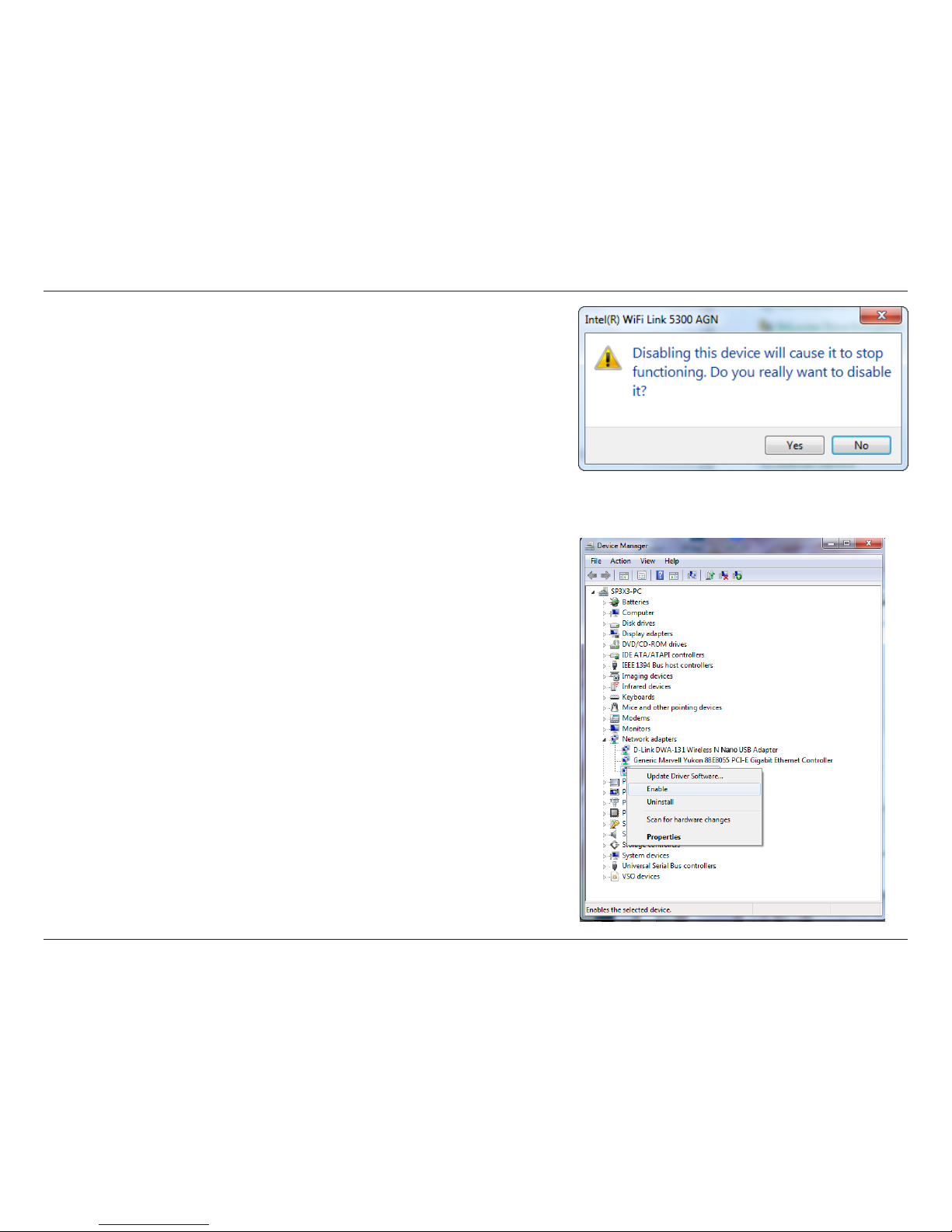

Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use
the adapter, simply right-click it and select Enable.

11D-Link DWA-192 User Manual
Section 2 - Installation
Driver Installation
Before using the DWA-192 AC1900 Wi-Fi USB 3.0 Adapter, you must rst install a device driver from the included D-Link CD.
Warning: Do NOT connect the DWA-192 AC1900 Wi-Fi USB 3.0 Adapter to your computer’s USB port before installing
the driver software from the D-Link CD.
Turn on the computer and insert the D-Link DWA-192 Driver CD in the CD-ROM drive.
Note: If the CD Autorun function does not automatically start on your computer, go to Start >Run. In the run box type “D:\
autorun.exe” (where D: represents the drive letter of your CD-ROM drive).

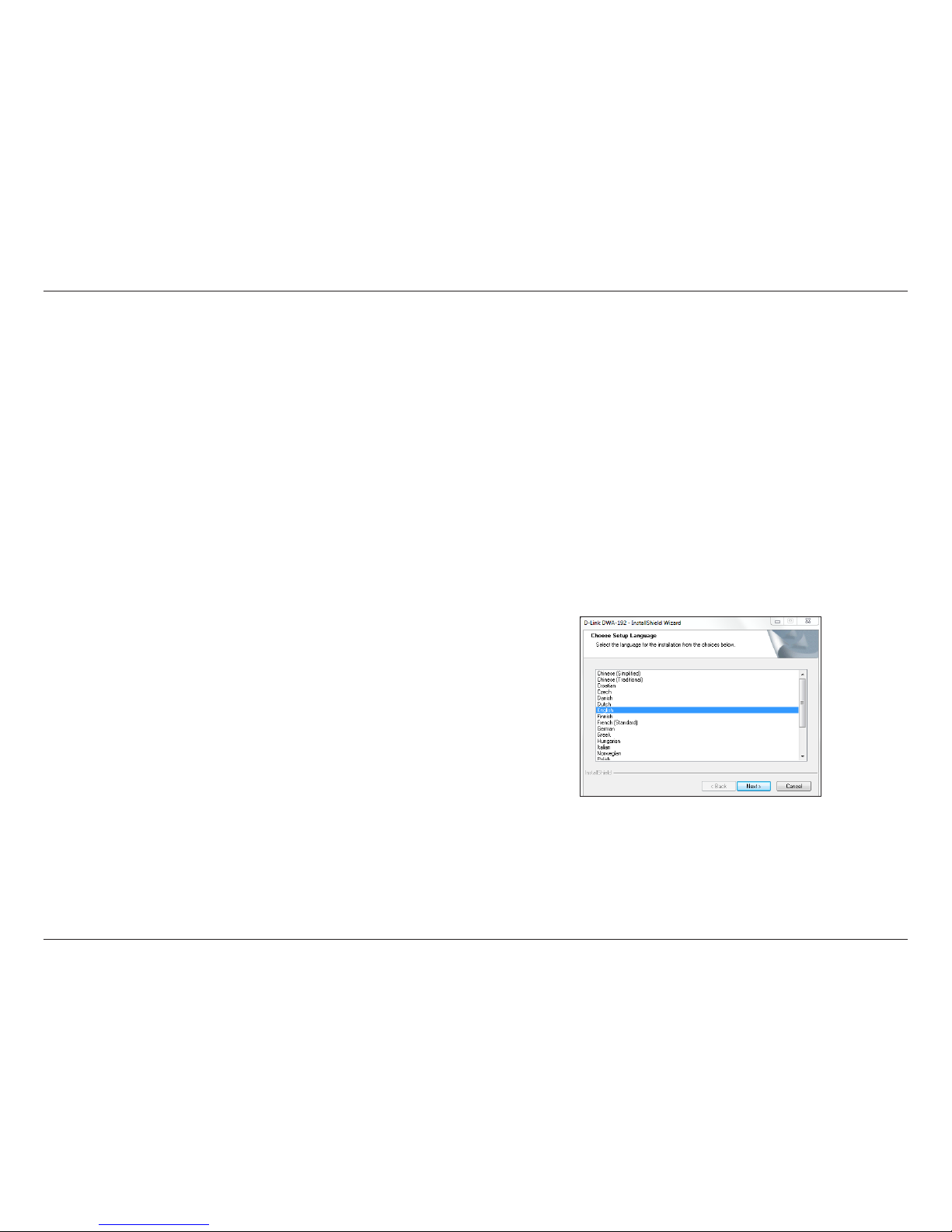

The D-Link DWA-192 InstallShield Wizard window will appear. Select the
setup language from the list and click Next.

12D-Link DWA-192 User Manual
Section 2 - Installation

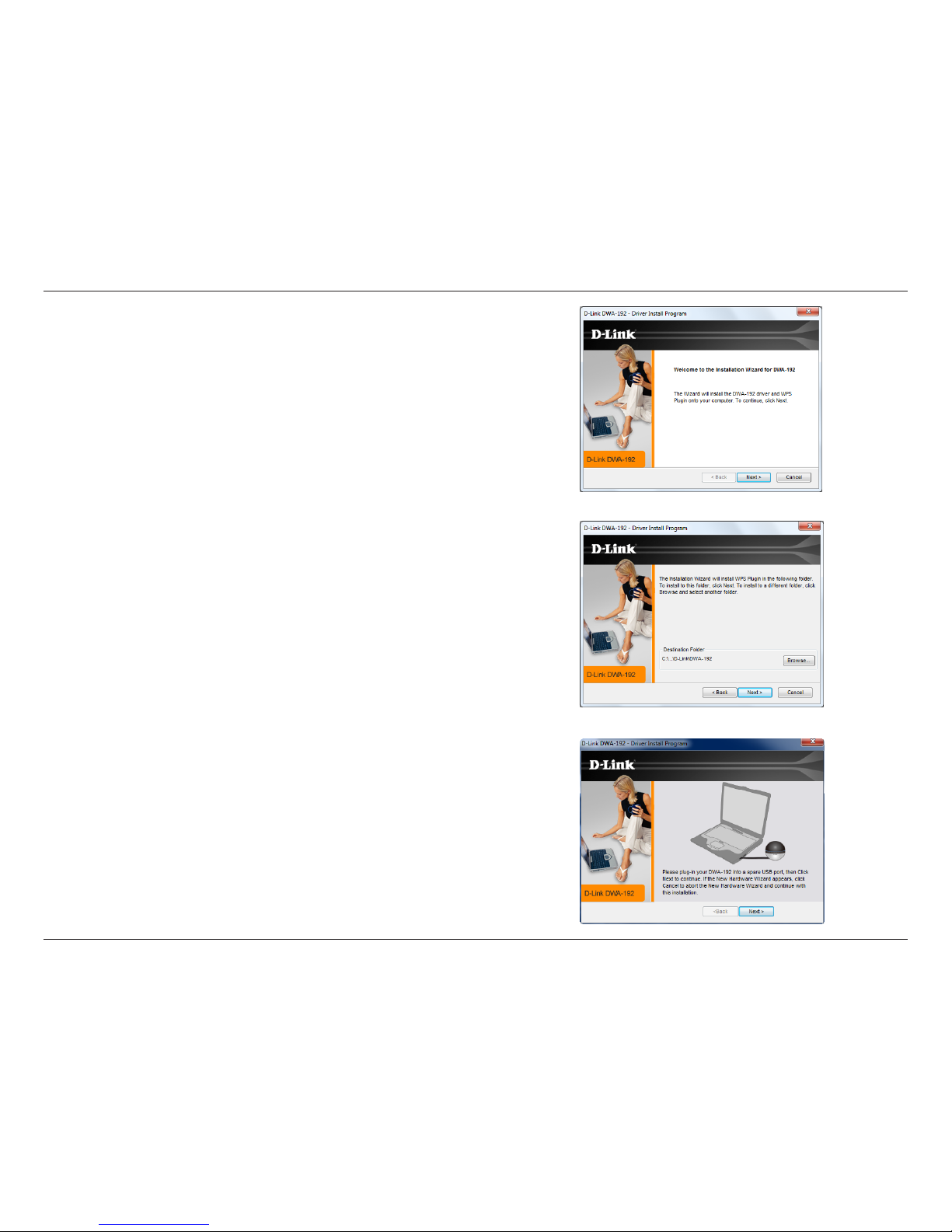

The welcome window will appear. Click Next to continue.
By default setup will install to the default location:
C:\Program Files\D-Link\DWA-192, where C: represents the drive letter of
your hard drive. To install to a dierent location click Browse and specify
the location, then click Next.
Insert the adapter into an available USB port on your computer. Click Next
to continue.
If the Found New Hardware Wizard appears, click Cancel.

13D-Link DWA-192 User Manual
Section 2 - Installation

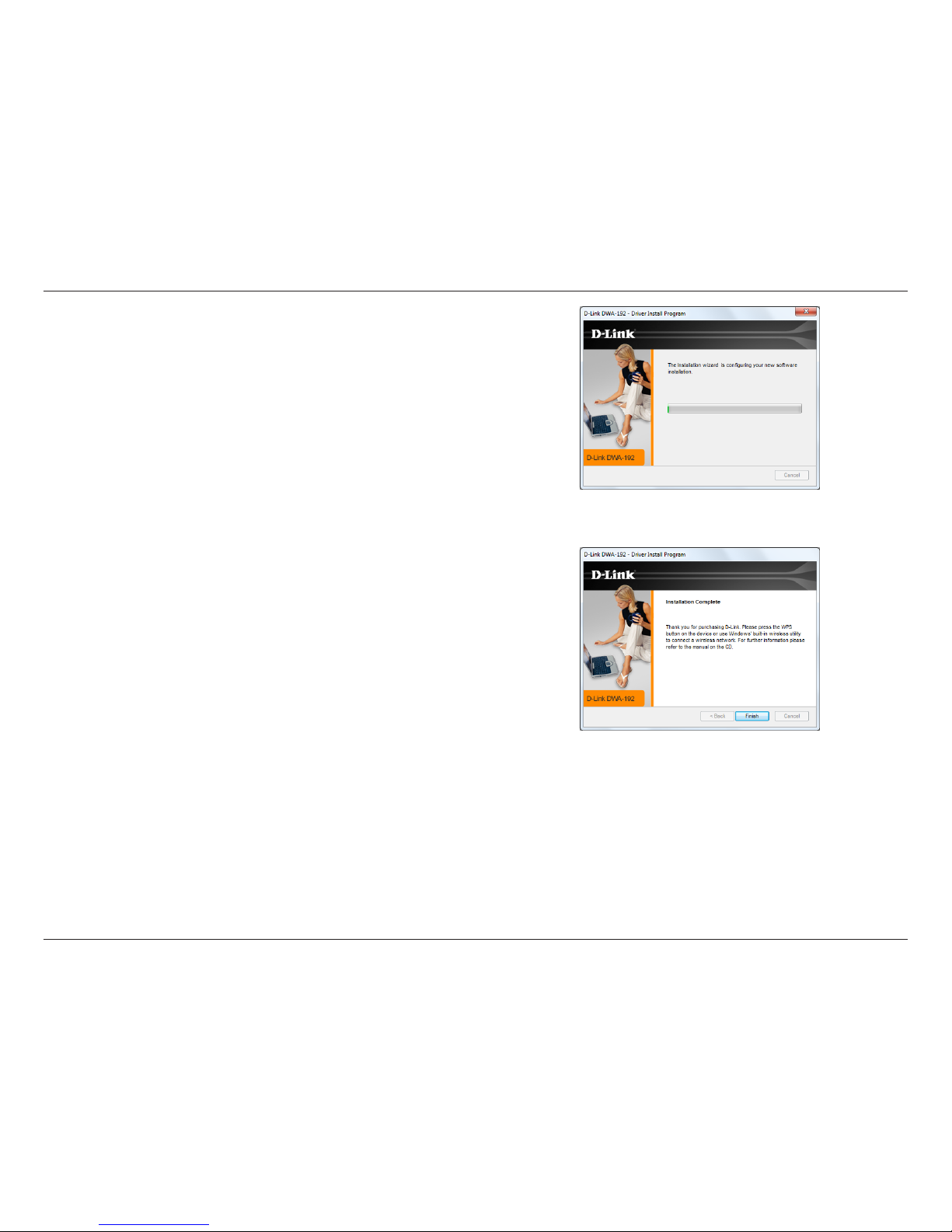

The drivers and software will now install. Please allow 1-2 minutes for this
process to nish.
The driver installation process is complete. Click Finish to exit setup.
The DWA-192’s Status LED should be blinking blue (see Hardware
Overview on page 7).
To connect to your wireless network, see Connecting to a Wireless
Network on page 15. Once a connection is established, the Status LED
should be solid blue.

14D-Link DWA-192 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through, may limit the range.Typical ranges vary depending on the types of materials
and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these
basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum
- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so
that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. A solid metal door or aluminum studs may have a negative eect on range.Try to position access points, wireless
routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will
degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone in not in use.

15D-Link DWA-192 User Manual
Section 3 - Connecting to a Wireless Network
Connecting to a Wireless Network
Using Windows 8
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.

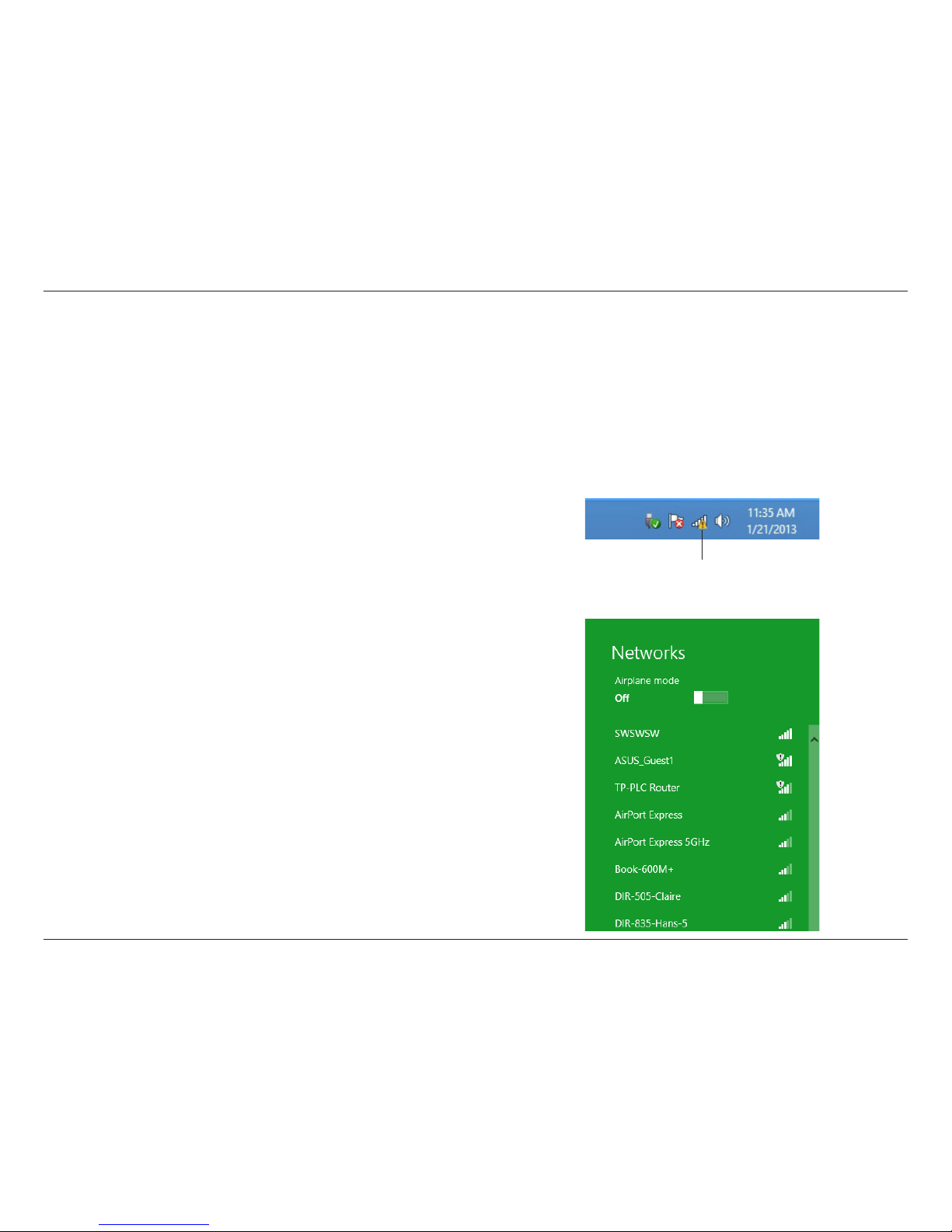

To join an existing network, locate the wireless network icon in the taskbar, next to
the time display.
Wireless Icon

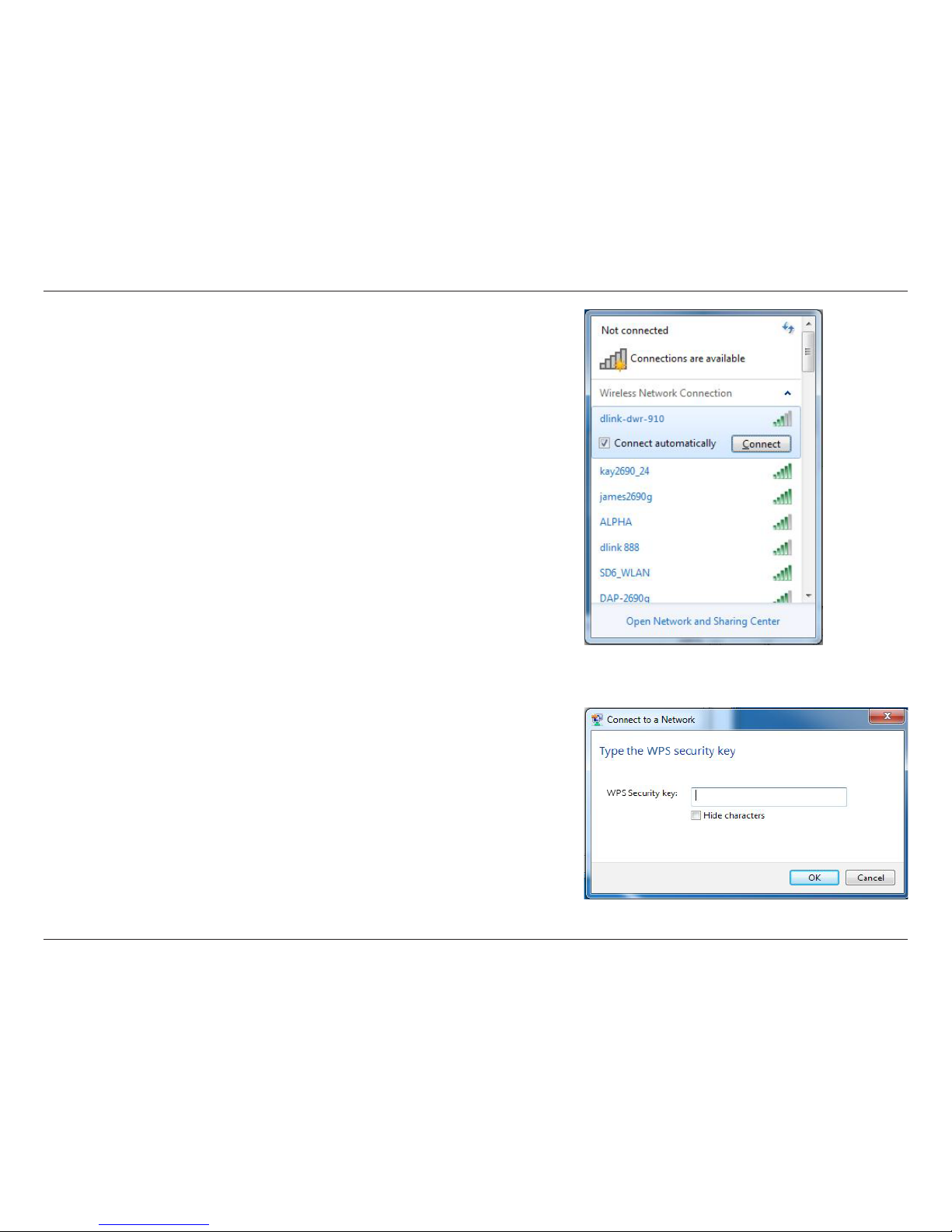

Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network
name.

16D-Link DWA-192 User Manual
Section 3 - Connecting to a Wireless Network

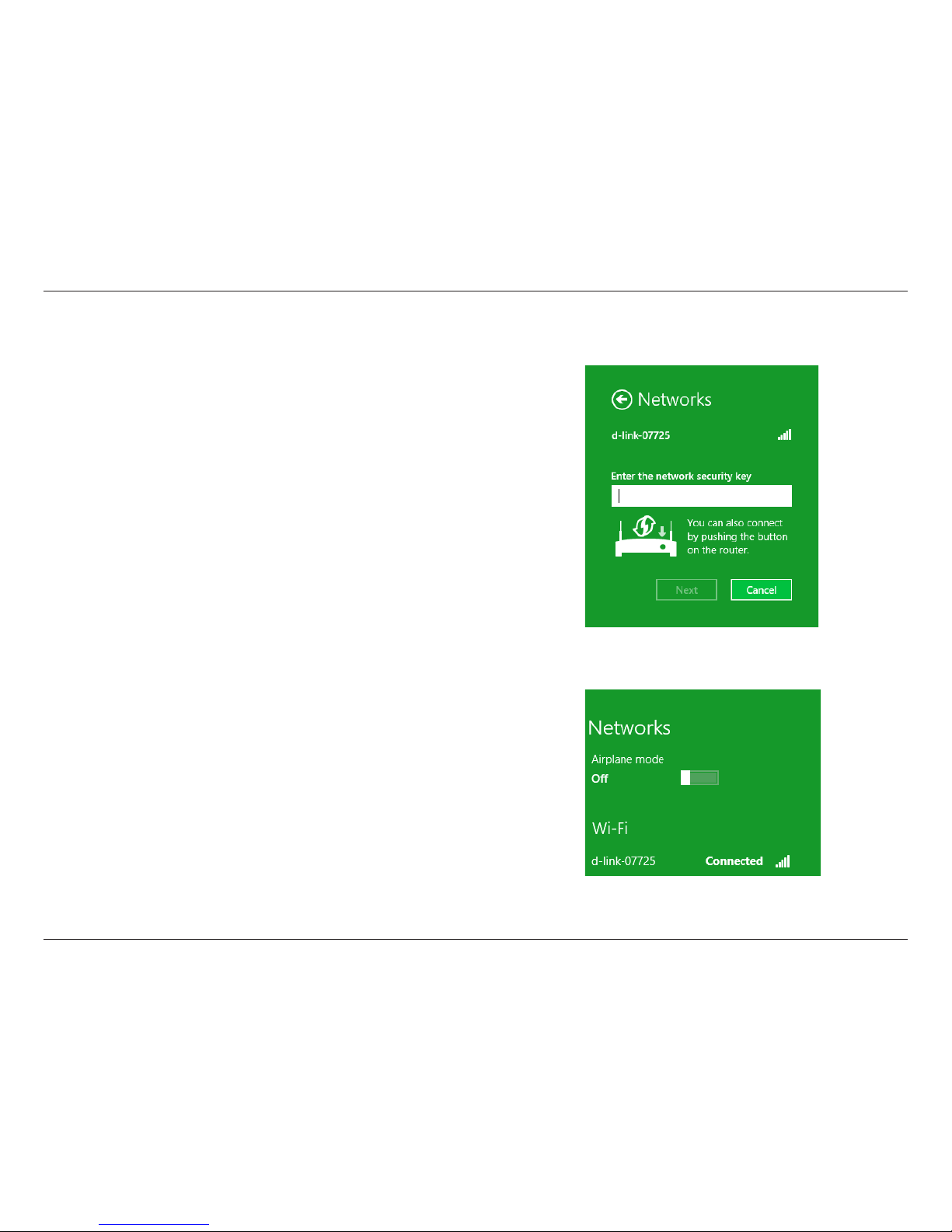

You will then be prompted to enter the network security key (Wi-Fi password) for the
wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.

17D-Link DWA-192 User Manual
Section 3 - Connecting to a Wireless Network
Using Windows 7
Windows 7 users may use the built-in wireless utility to connect to a wireless network.

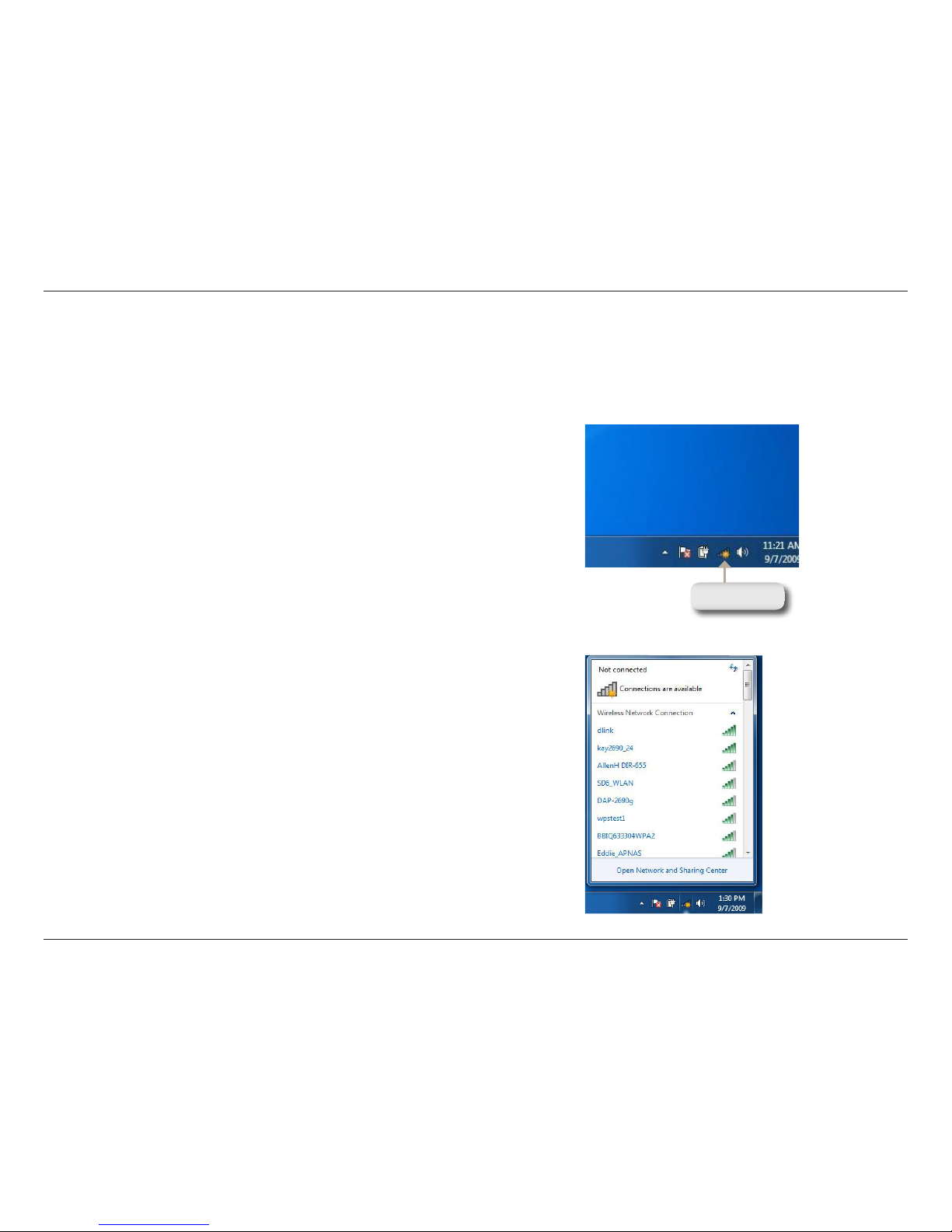

If you receive the Wireless Networks Detected bubble, click on the center of the bubble
to access the utility. You can also click on the wireless icon in your system tray (lower-
right corner).
The utility will display any available wireless networks in your area.
Wireless

18D-Link DWA-192 User Manual
Section 3 - Connecting to a Wireless Network
Highlight the wireless network (SSID) you would like to connect to and click the
Connect button.
Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
If you get a good signal but cannot access the Internet, check your TCP/IP settings for
your wireless adapter. Refer to Networking Basics on page 27 for more information.

19D-Link DWA-192 User Manual
Section 4 - Troubleshooting
1. How do I know if my adapter is installed properly?
Click Device Manager.
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWA-192. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows®7. If you have a dierent
operating system, the process on your computer will be similar.

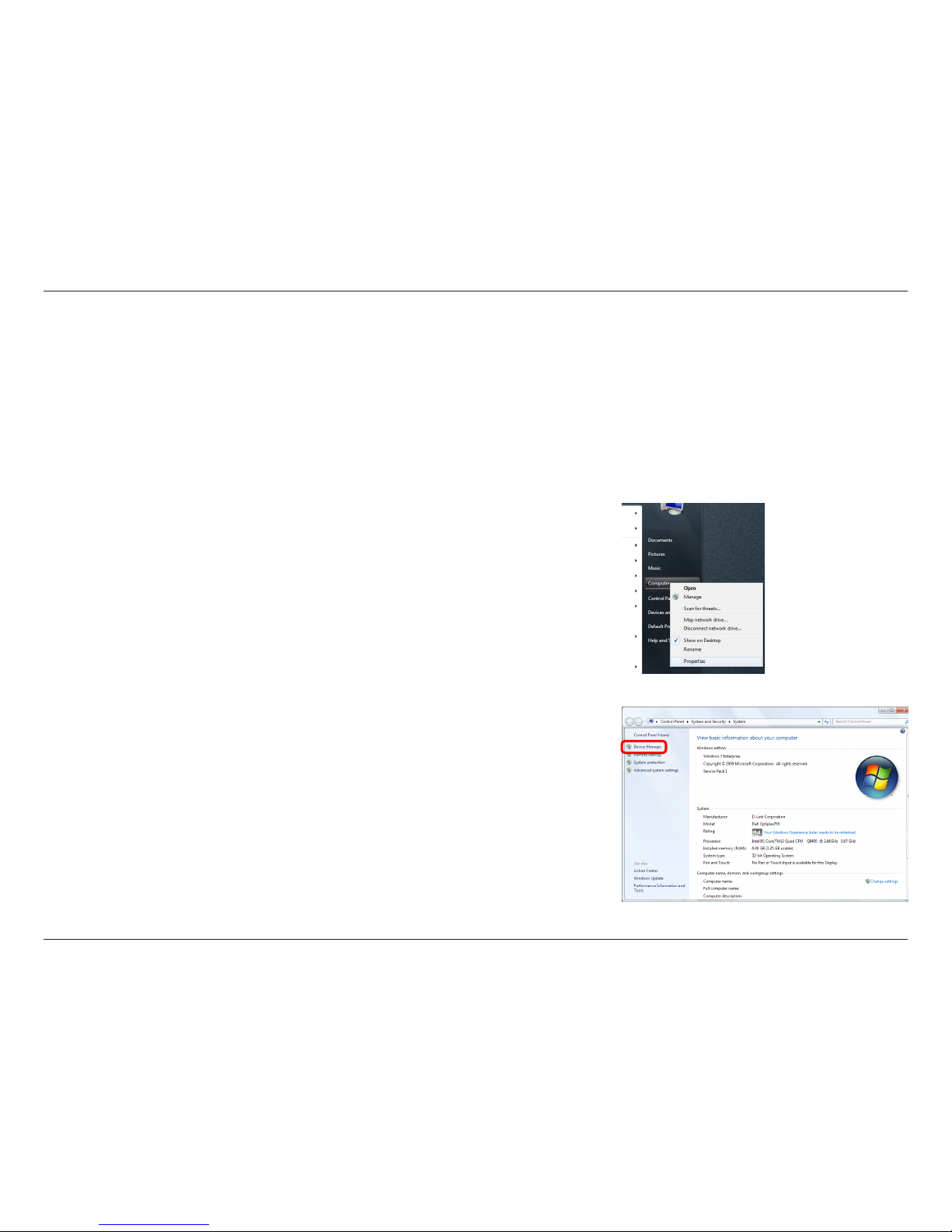

Go to Start >Computer (right-click) >Properties.
This will bring up the System settings under the Windows Control Panel.

20D-Link DWA-192 User Manual
Section 4 - Troubleshooting

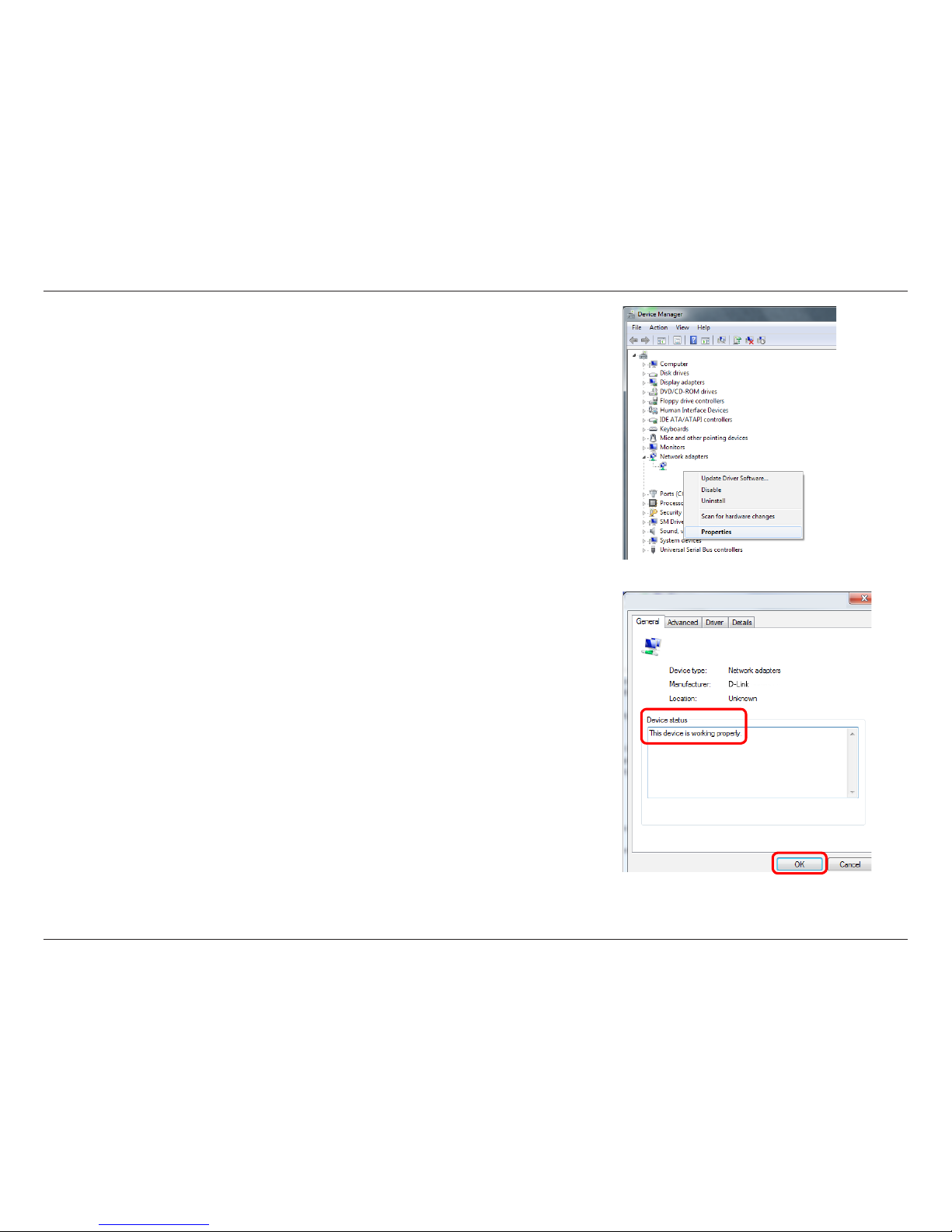

Click the +sign next to Network Adapters.
Right-click on D-Link DWA-192 USB Adapter.
Select Properties to check that the drivers are installed properly.
Look under Device Status to check that the device is working properly. Click
OK to continue.
D-Link DWA-192 USB Adapter
D-Link DWA-192
Wireless USB Adapter
