D-Link AirPlus DWL-520+ Original operating instructions

Before You Begin
You must have at least the following:
•A desktop computer with an available 32-bit PCI slot
•At least a 300 MHz processor and 32 MB of memory
•An 802.11b Access Point (for Infrastructure Mode) or another 802.11b
wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)
Check Your Package Contents
These are the items included with your DWL-520+ purchase:
If any of the above items are missing, please contact your reseller.
Insert the D-Link CD-ROM
Into Your Computer
Turn on the computer and
Insert the D- Link AirPlus DWL-520+
Driver CD in the CD-ROM drive.
The step-by-step instructions that follow are shown in
Windows XP. The steps and screens are similar for
the other Windows operating systems.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice. DWL-520+.03272003
This product works with the following operating
system software: Windows XP, Windows
2000, Windows Me, Windows 98SE
• DWL-520+ Wireless PCI Adapter
• CD-ROM (containing Drivers, Manual and Warranty)
Do NOT install
the DWL-520+
PCI Adapter
into your computer
before installing the
driver software on the
D-Link
C
D!
DWL-520+
D-Link AirPlus™
Wireless PCI Adapte
r

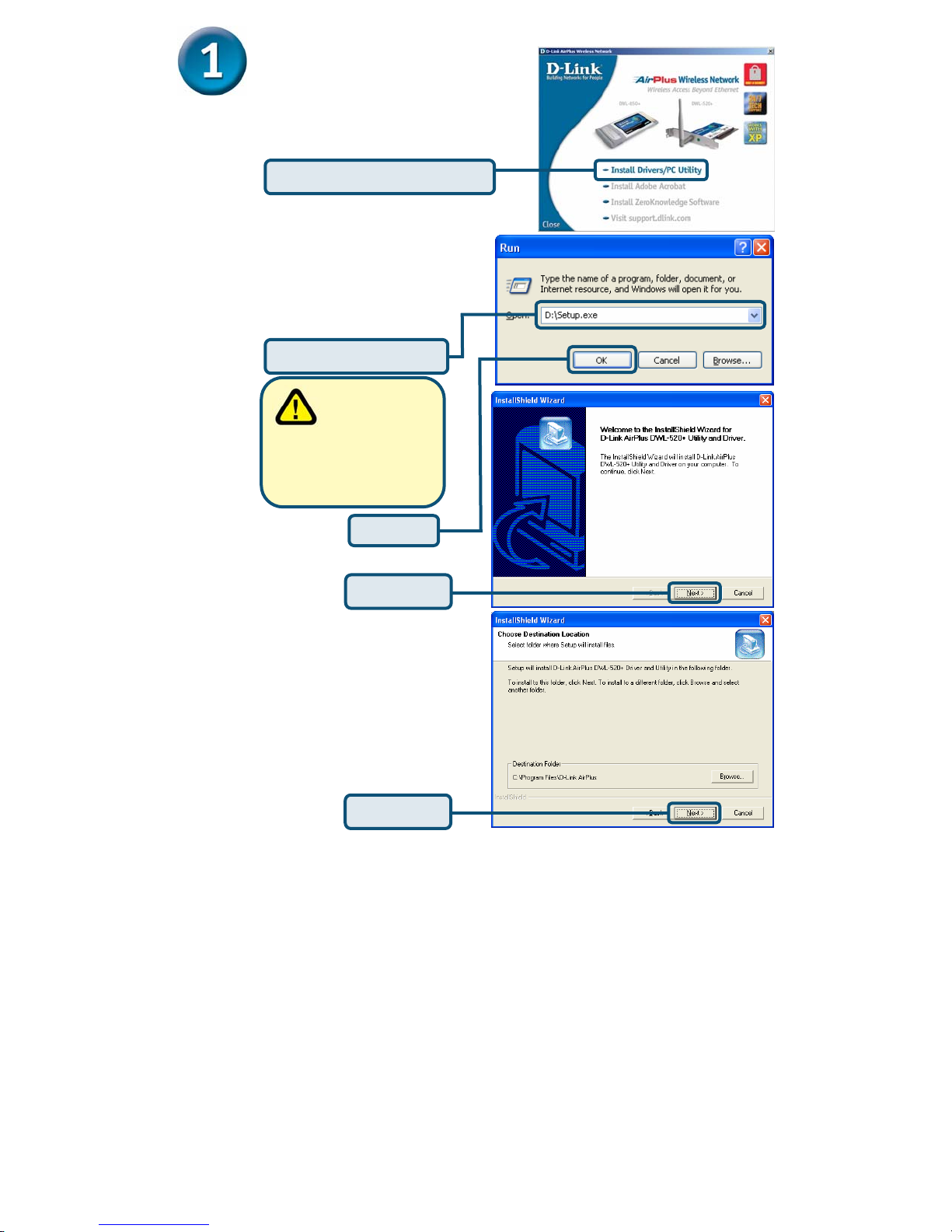

Insert the D-Link CD
(continued)
The Install Screen will appear.
If the CD Autorun function on
your computer does not
automatically start, type
“D:\Setup.exe.” If it does start,
proceed to the next screen.
Click Install Driver/PC Utility
Type “D:\Setup.exe.”
The letter “D”
represents the
letter of the CD-ROM
drive. Your CD-ROM
drive may be a
different drive letter.
Click OK
Click Next
Click Next

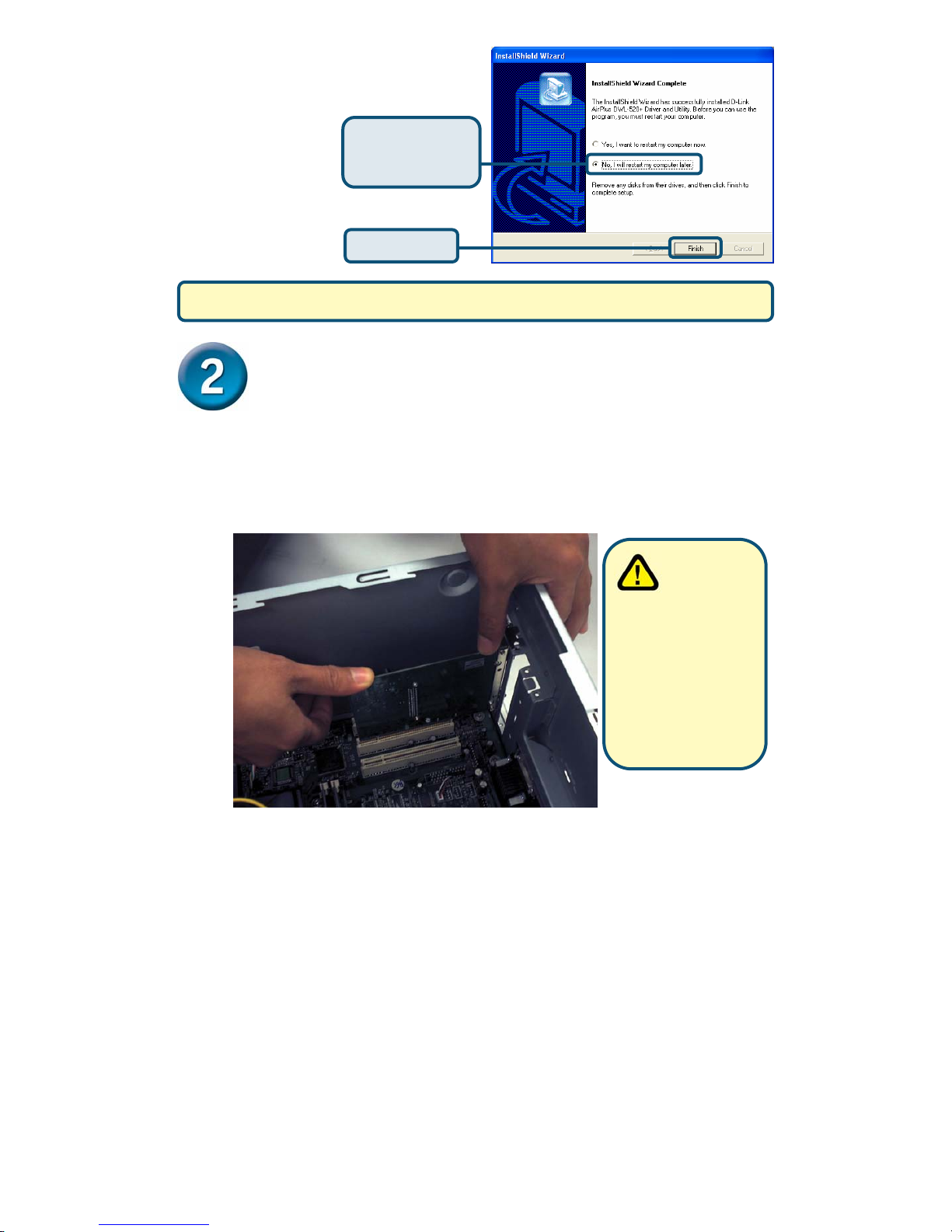

Installing the DWL-520+ Wireless PCI
Adapter Into Your Computer
A. Make sure to turn off your computer and unplug the power cord. Remove
the back cover of the computer.
B. Install the DWL-520+ carefully and firmly seat it into an available PCI slot
(which is usually “white” or “cream” colored).
C. Secure the DWL-520+ back panel shield with a screw.
D. Replace the computer’s cover.
E. Place the computer back in its normal position.
F. Attach the DWL-520+’s antenna to the socket on the back panel shield.
Click No, I will
restart my
computer later
Click Finish
Shut down your computer and unplug it
To avoid
damage
caused by
static electricity, make
sure to properly
ground yourself by
first touching a metal
part of your computer
to discharge any static
electricity before
working with the DWL-
520+ Wireless PCI
Adapter.

Installing the DWL-520+ Wireless PCI
Adapter Into Your Computer
Plug In & Restart Your Computer
When you restart your
computer this Found New
Hardware Wizard (Windows
XP) screen will appear:
Click Next
Select Install the
software
automatically
(Recommended)

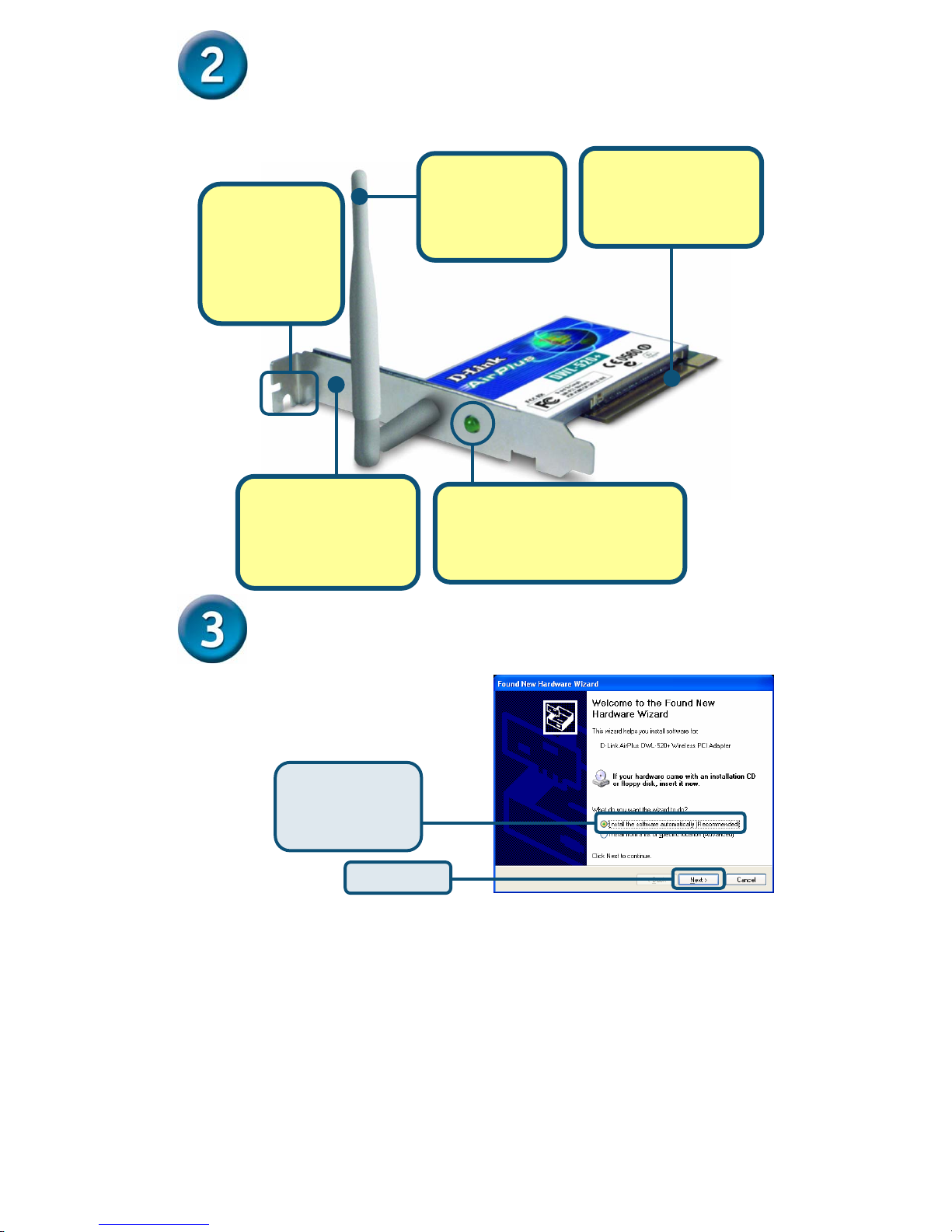

32-bit connector
This is the connector
that fits into the PCI slot
on your computer’s
motherboard
Antenna
Used to wirelessly
connect to
802.11b (AirPlus,
Air) networks.
Screw Mount
The screw to
secure the PCI
Adapter to the
back of your
computer will fit in
this slot
Back Panel Shield
Once properly installed,
this panel should be at
the back of your
computer
Link/Activity LED
Indicates that the card is properly
installed when the computer is on
and blinks when data is being
transmitted

(The D-Link driver software for this device is undergoing Windows Logo testing.
Microsoft certification is pending.)

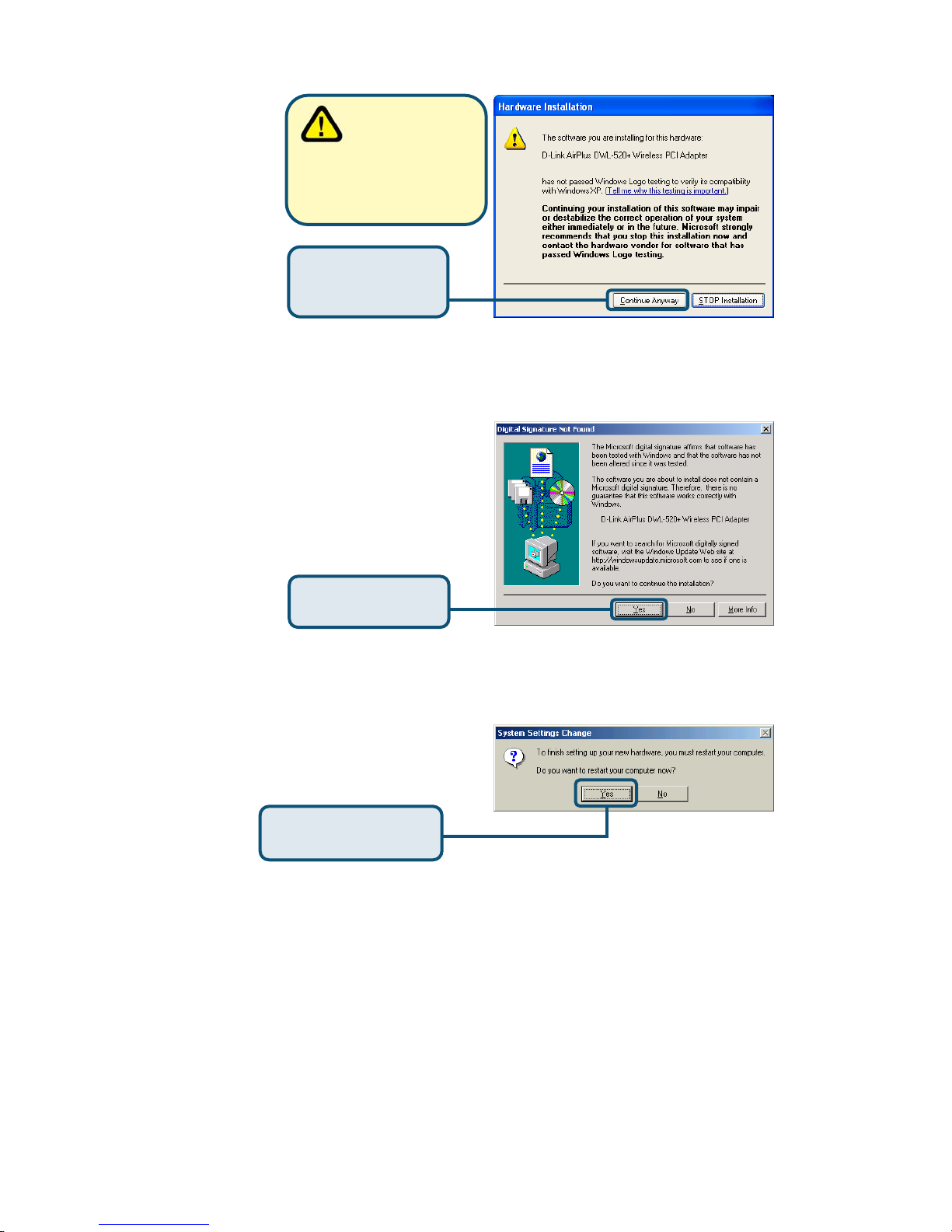

For Windows 2000, this
Digital Signature Not Found
screen may appear after your
computer restarts.
For Windows Me and 98, after
your computer restarts, this
Systems Settings Change
screen may appear.
For Windows XP:
this Hardware
Installation alert screen
may appear after the
desktop computer
restarts.
Click Continue
Anyway to finalize
the installation
Click Yes to finalize
the installation
Select Yes to finalize
the installation

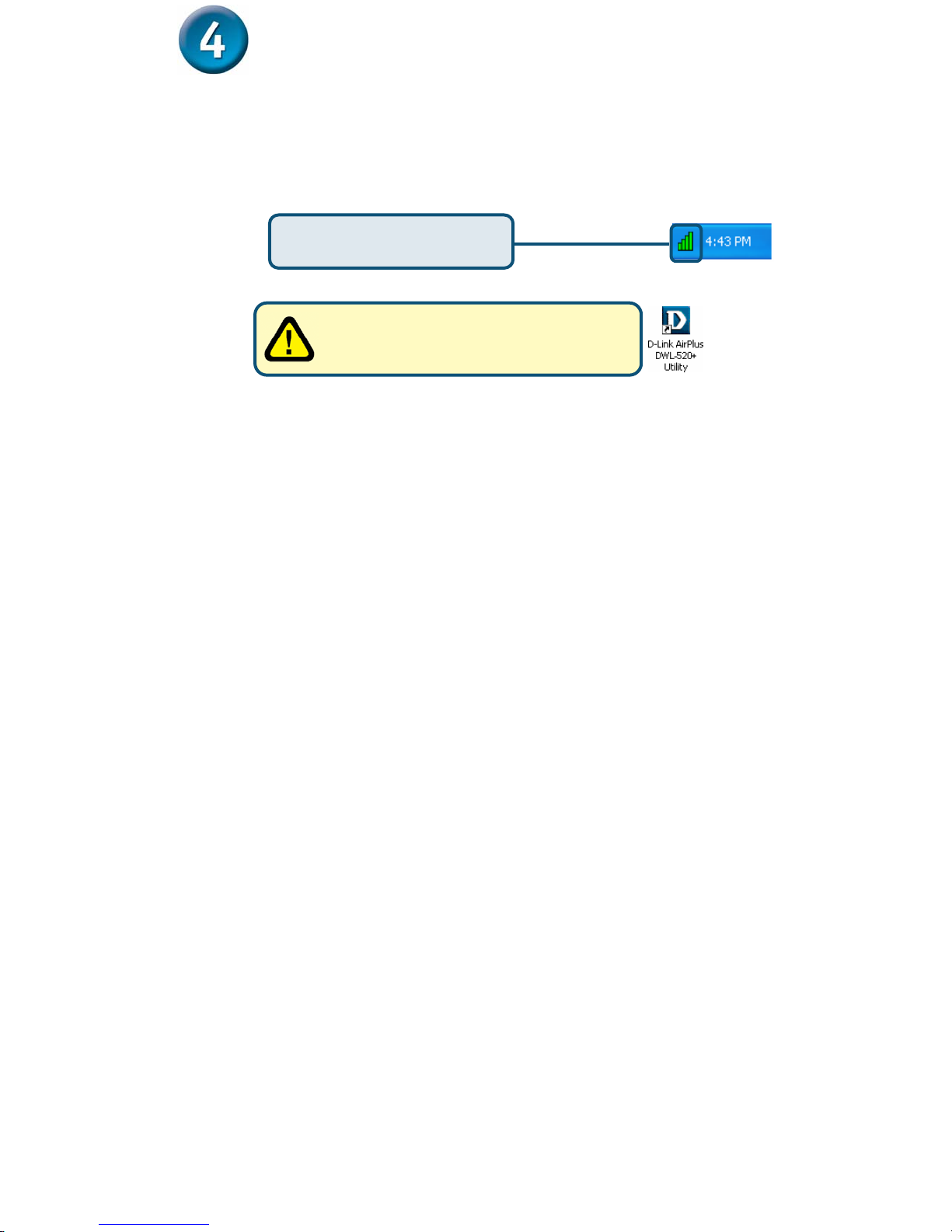

Your Installation is Complete!
After you’ve continued in Windows XP (or after the computer restarts in
the other Windows operating systems), the D-Link AirPlus DWL-520+
Configuration Utility will automatically start and the utility icon will appear
in the bottom right hand corner of the desktop screen (systray). If this
icon appears GREEN, then you have successfully installed the DWL-
520+, are connected to a wireless network and are ready to
communicate!
Double-click the utility icon to
use the configuration utility.
If the utility icon does not appear, double-
click the shortcut icon that has appeared
on your desktop.

APPENDIX

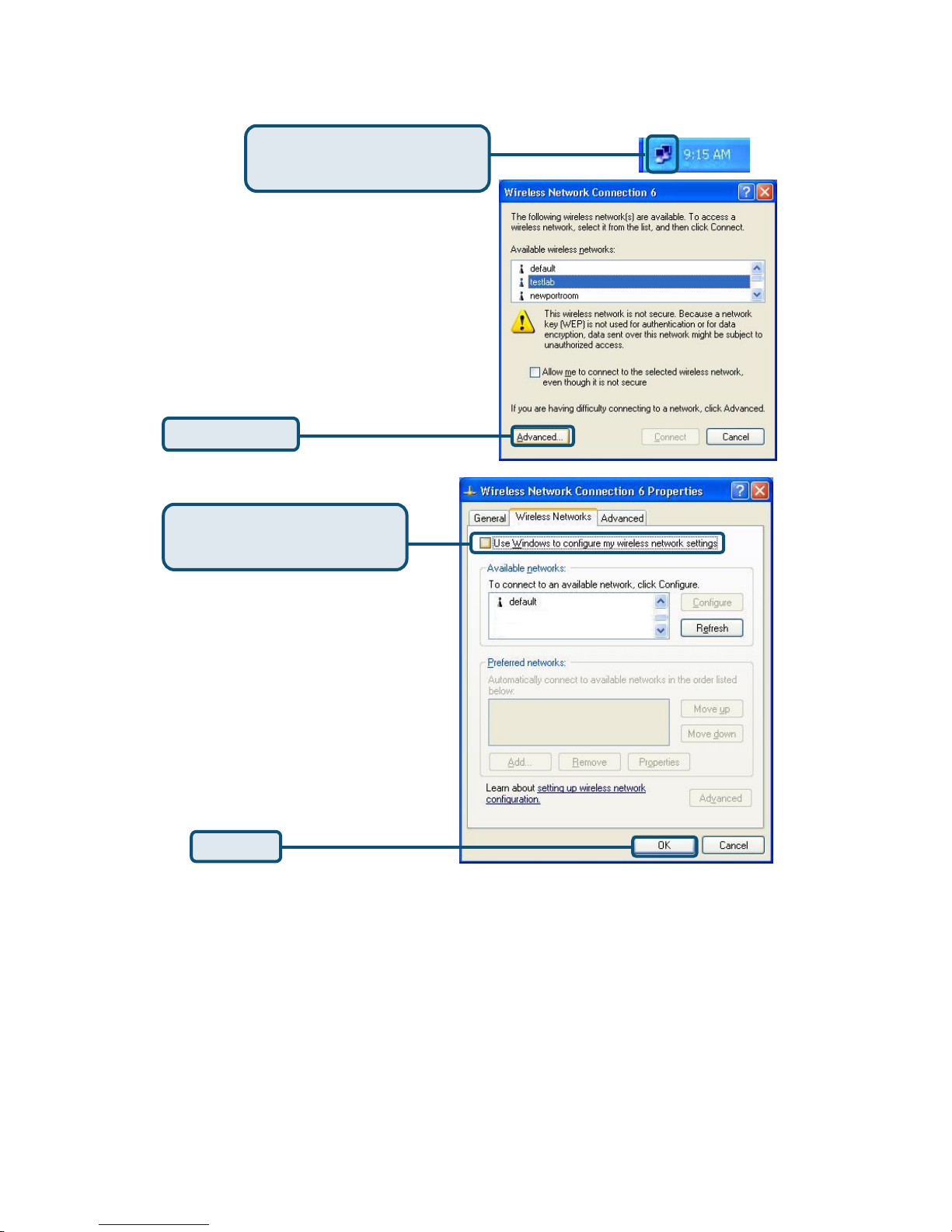

For Windows XP, if you wish to use the DWl-520+ utility, please do the following steps.
Click the XP Networking icon to
use the Zero Configuration
Wireless Settings.
Click Advanced
Click OK
Uncheck “Use Windows to
configure my wireless network
settings.

APPENDIX

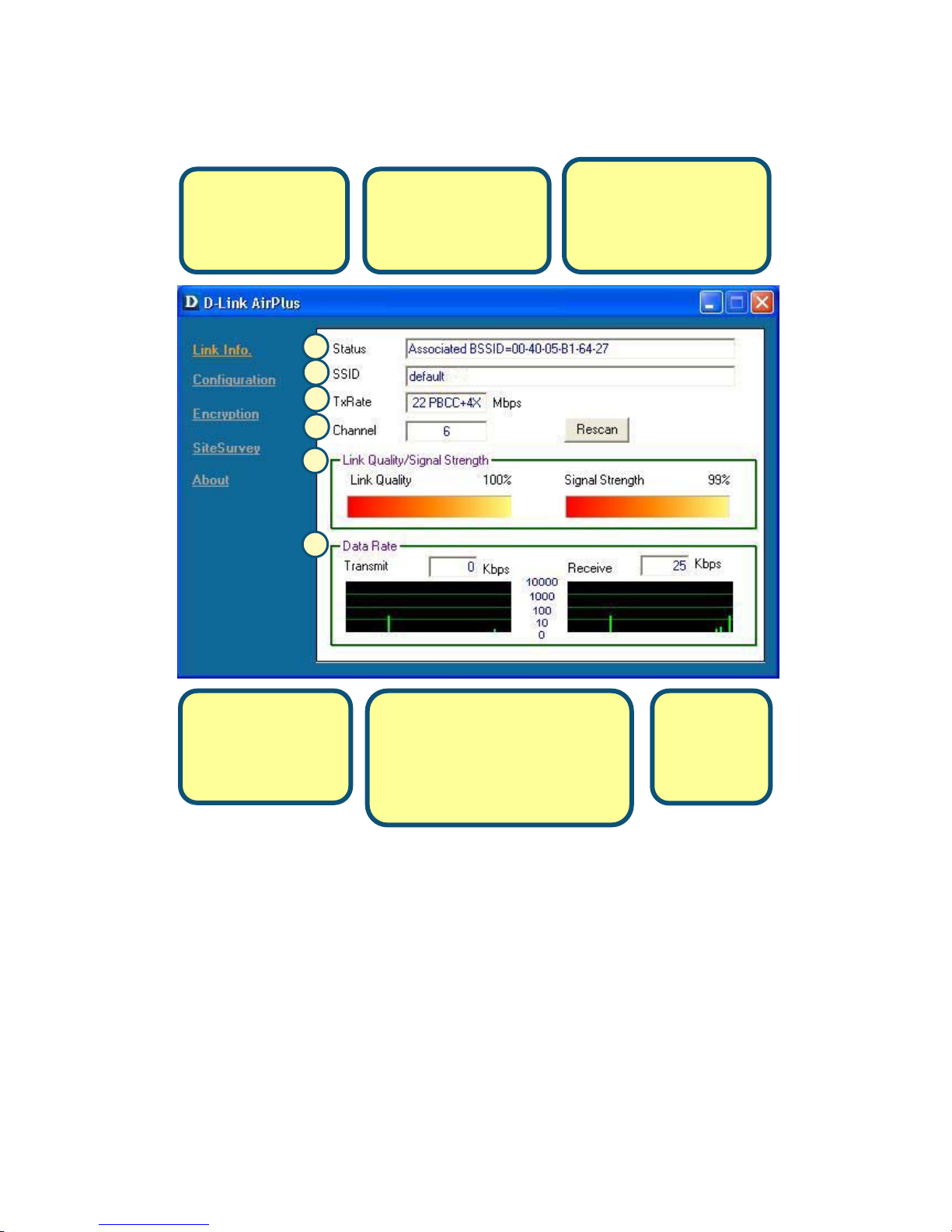

Using the Configuration Utility
The D-Link AirPlus Configuration Utility window will appear. By default, it will take
you to the Link Info section.
A. Status: Displays the
MAC Address of the
Access Point that
is associated with the
DWL-520+.
B. SSID:The Service Set
Identifier is the name
assigned to the wireless
network. The factory SSID
setting is set to default.
C. TxRate: The default
setting is 11 Mbps; however,
TxRate settings are auto-
matically determined by the
DWL-520+ depending on the
distance from the access point.
D. Channel: Displays
the channel information.
By default, the channel is
set to 6 and selection is
automatically determined
by the DWL-520+.
E. Link Quality / Signal Strength:
Displays the Link Quality for the DWL-
520+ wireless connection to the access
point. The Signal Strength represents the
wireless signal between the access point
and the DWL-520+. The percentage
coincides with the graphical bar.
F. Data Rate:
Graphically
displays the
statistics of data
transmitted and
received.
A
B
C
D
E
F

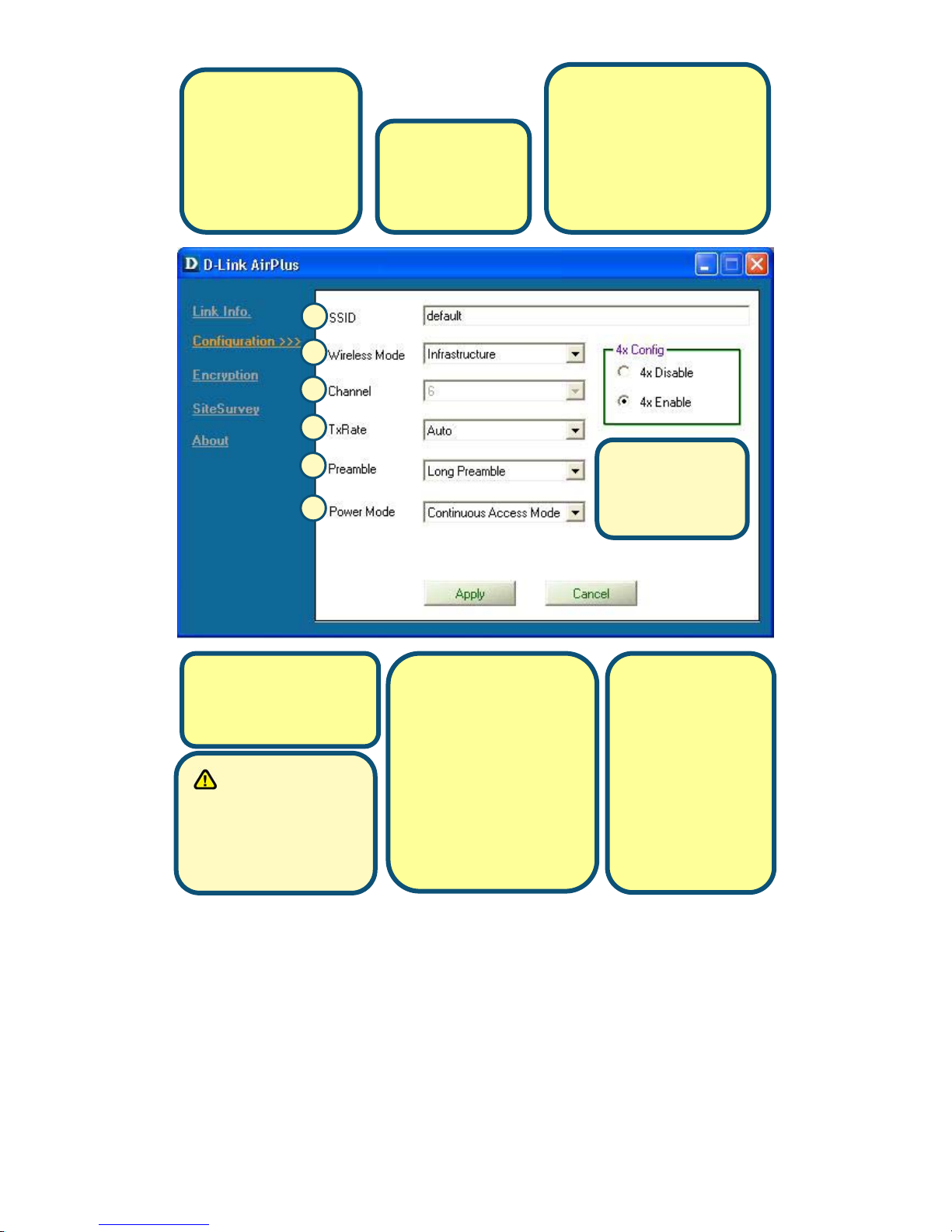

Making changes to the DWL-520+’s factory settings. By clicking on the Configuration
menu, changes can be made to the default wireless settings of the DWL-520+.
G. SSID: The Service Set
Identifier is the name
assigned to the wireless
network. The factory SSID
setting is set to default.
Make changes here to
match the SSID on
existing Wireless Router
or Access Point.
H. Wireless Mode:
The factory setting is
set to Infrastructure.
Ad-Hoc mode is used
for peer-to-peer
networking.
I. Channel: By default, the
channel is set to 6. Channel
selection is automatically
determined by the DWL-520+
depending on the channel setting
of the access point selected for
association. To change the
channel settings, the Wireless
Mode must be set to Ad-hoc.
J. TxRate: You can adjust
the transmission rate to get
the best signal possible
depending on your usage
and your environment.
K. Preamble: By default,
D-Link AirPlus Products are
set to Long Preamble. The
Preamble defines the length
of the CRC block (Cyclic
Redundancy Check is a
common technique for
detecting data transmission
errors) for communication
between the Access Point
and wireless network
adapters. High network
traffic areas should use the
shorter preamble type.
L. Power Mode: By
default, Power Mode is
set to Continuous
Access Mode.
Continuous Access
Mode — this default
setting consumes the
most power. Maximum
Power Save — this
setting consumes the
least power. Power
Save — this setting
consumes a moderate
amount of power.
G
H
I
J
K
L
The preamble
setting of the
DWL-520+ must match the
preamble setting of the
Wireless Router or Access
Point in order to communicate
on the network.
By default the 4x
feature is enabled.
To disable the 4x
feature click 4x
Disable.

APPENDIX
To connect to a network, make sure the proper
network settings are configured for DWL-520+.

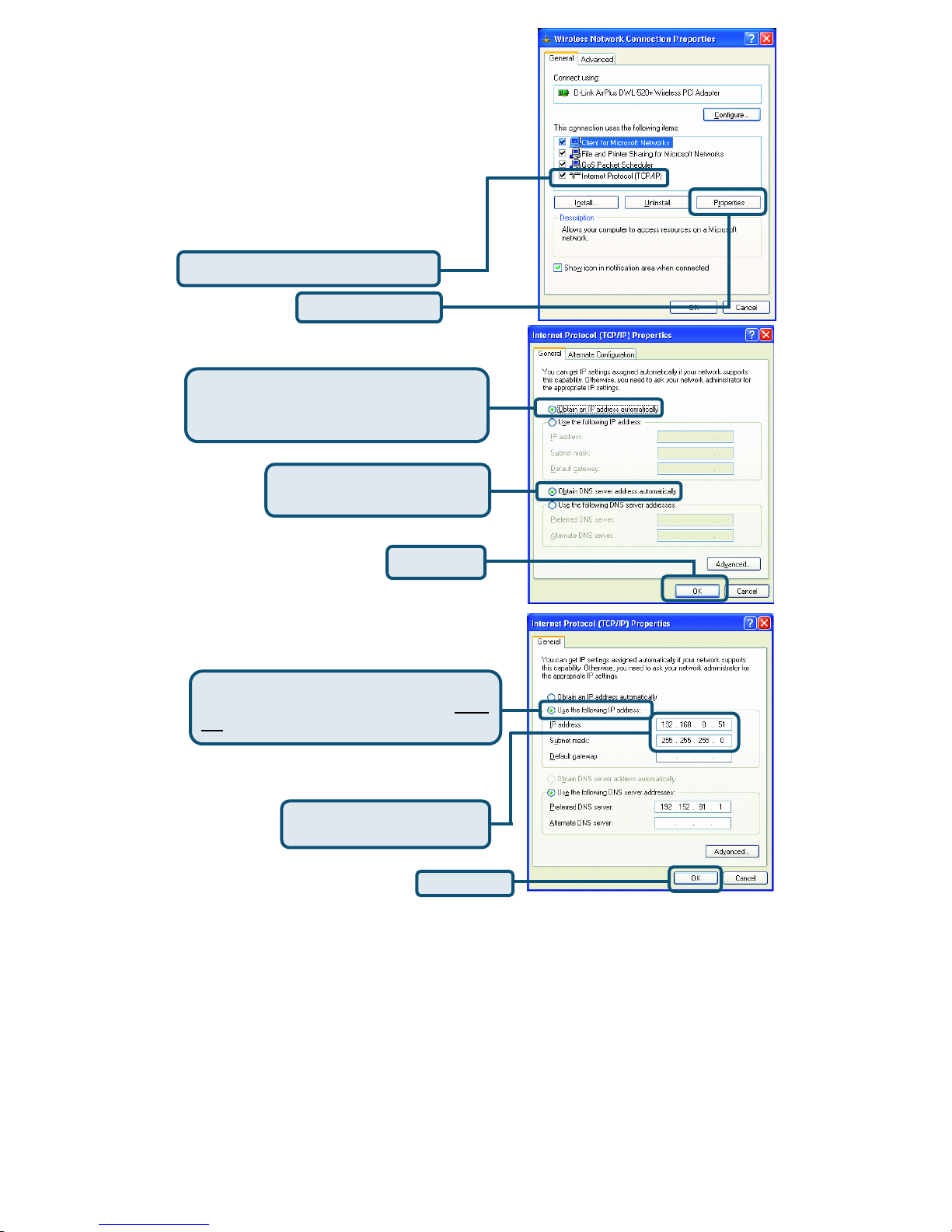

For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the DWL-520+.
Setup for wireless router or Access Point
using Static IP address.
Input a static IP address on the same network, which
will correspond with the Wireless Router or Access
Point.
Your Internet service provider provides
preferred DNS server information.
Click Properties
Select Obtain an IP address
automatically (if the Wireless Router or
Access Point has DHCP server enabled)
Click OK
Click Internet Protocol (TCP/IP)
Select Obtain DNS server
address automatically
Select Use the following IP address (if
the Wireless Router or Access Point does
not have DHCP server enabled
IP address: 192.168.0.51
Subnet mask: 255.255.255.0
Click
OK

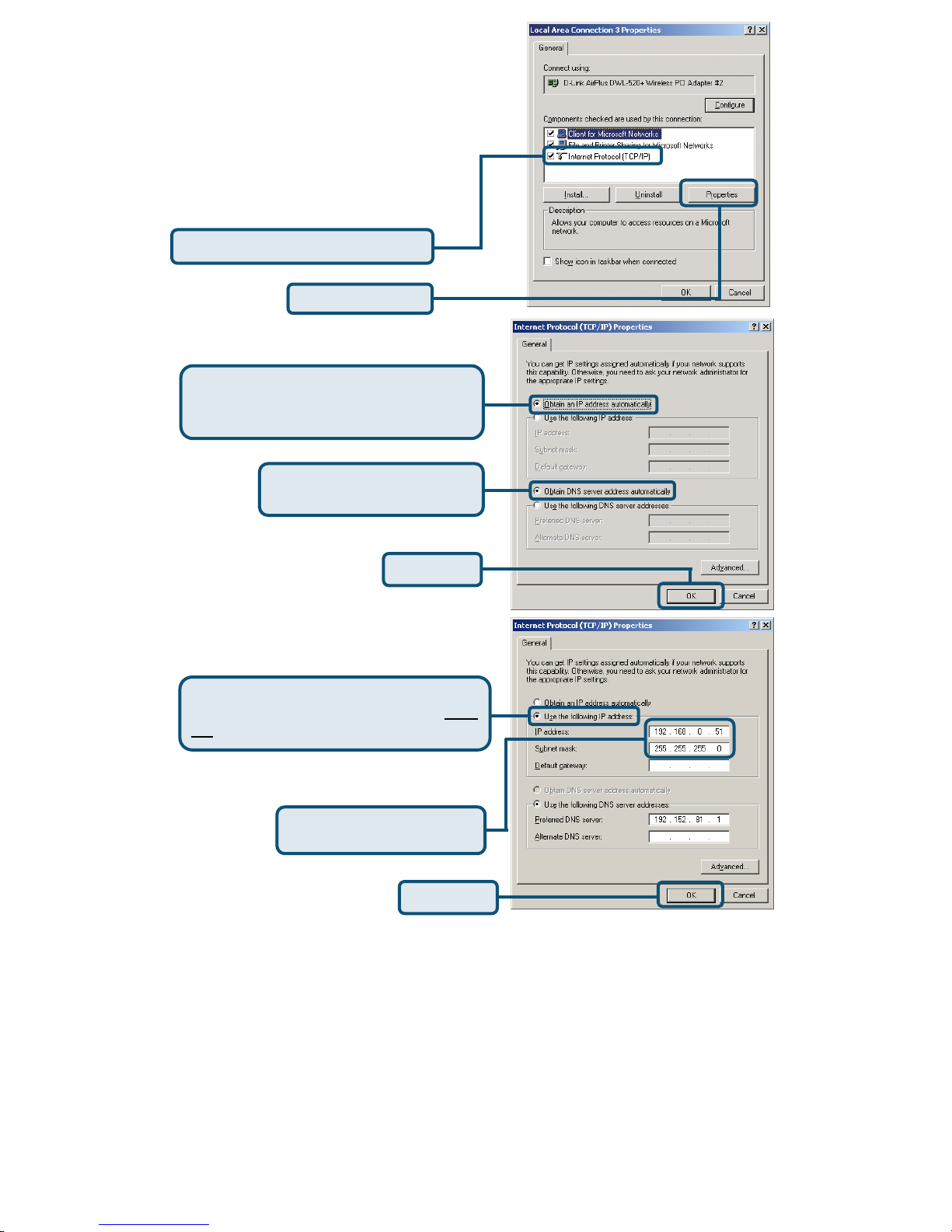

For Windows 2000 users:
Go to Start > Settings > Network and Dial-up
Connections > Double-click on the Local Area
Connection associated with the DWL-520+ >
select Properties
Setup for wireless router or Access Point
using DHCP server.
Setup for wireless router or Access Point
using Static IP address.
Input a static IP address on the same network,
which will correspond with the Wireless Router
or Access Point.
Your Internet service provider
provides preferred DNS server
information.
Select Obtain an IP address
automatically (if the Wireless Router or
Access Point has DHCP server enabled)
Click OK
Select Obtain DNS server
address automatically
IP address: 192.168.0.51
Subnet mask: 255.255.255.0
Click OK
Select Use the following IP address (if
the Wireless Router or Access Point does
not have DHCP server enabled
Click Internet Protocol (TCP/IP)
Click Properties

Technical Suppor
t
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[e-mail]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[e-mail]
