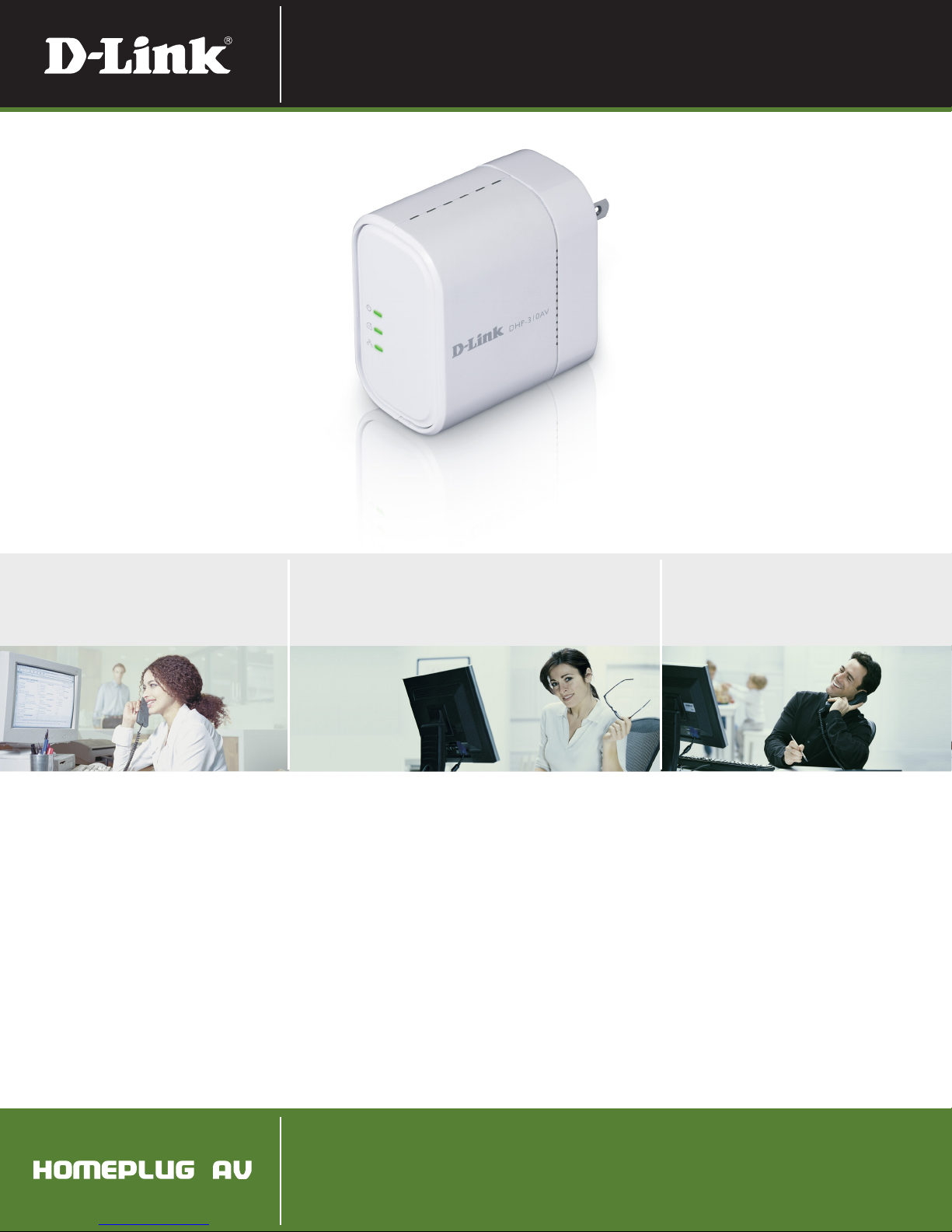

D-Link DHP-310AV User manual

WALL-TO-WALL HOME NETWORKING
NO CONFIGURATION NEEDED, JUST PLUG IN AND YOU’RE CONNECTED
Turn any electrical outlet into a home network connection. The “PowerLine AV Mini Adapter” (DHP-310AV) uses electrical wiring that’s already in your house
to provide fast, reliable speed of up to 200Mbps¹ to any room in the house. Simply connect the PowerLine AV Mini Adapter into an existing electrical outlet and
connect to your existing PowerLine network. Add a PowerLine connection anywhere you want in your home without cables or mess!
FAST CONNECTION
The Powerline AV Mini Adapter provides fast reliable speed up to 200Mbps to any room in the house. This lets you stream video, game online, or surf the web
from anywhere.
COMPACT DESIGN
With it’s compact size, you can plug it into any electrical outlet with an existing PowerLine network to get a connection anywhere in your home2. The compact
size only takes up one plug in an outlet, enabling you to plug in other devices too.
SECURITY AT THE TOUCH OF A BUTTON
Setting up a secure connection is quick and easy. Once the adapters are plugged in, press the button on each device to sync up with the other to establish a
safe, secure network connection. The adapter uses 128-bit AES data encryption to protect the network from unauthorized wire tapping. With hassle-free plug
and play installation, the PowerLine AV Mini Adapter is an ideal solution to create a wall-to-wall home network.
DHP-310AV
Simply plug into an existing
PowerLine network to add a
connection anywhere in your home²
Compact design lets you plug in
another device into the same outlet
Super fast speeds – up to 200Mbps¹ for streaming
HD video and lag-free gaming
POWERLINE AV MINI ADAPTER

FEATURES
Add a PowerLine connection to your exsiting
PowerLine Network right out of the box2
Compact elegant design
Speeds up to 200Mbps¹
Uses your home’s existing electrical wiring by
plugging into existing power outlets²
Power Saving Mode
Push and Secure encryption button
Supports 128-bit AES encryption for network security
Plug & Play Installation
24/7 Basic Installation Support³
1-Year Limited Warranty4
THINK GREEN
D-Link Green™ devices are about providing
eco-friendly alternatives without compromising
performance. They are designed to help conserve
energy, protect our environment from harmful
substances, and reduce waste by using recyclable
packaging. To learn more, visit www.dlinkgreen.com.
D-LINK GREEN™ TECHNOLOGY
+ Goes into power saving mode when no data link
is detected after 5 minutes
PROTECTING THE ENVIRONMENT
+ Complies with the European Union’s RoH
directive that restricts the use of certain
hazardous materials
+ Uses soy ink and recyclable packaging to help
reduce waste that goes into the environment
TECHNICAL SPECIFICATIONS
STANDARDS
+ IEEE 802.3
+ IEEE 802.3u
+ HomePlug AV
ETHERNET INTERFACE
+ 10/100Base-TX Ethernet Port with
Auto MDI/MDIX
+ RJ-45 Connector
MAXIMUM DATA RATE
+ 200Mbps
POWERLINE FREQUENCY BAND
+ 2Mhz to 30Mhz
POWERLINE MODULATION SCHEME
+ OFDM Symbol Modulation
SECURITY
+ 128-bit AES Data encryption
LEDS
+ Power
+ Powerline
+ Ethernet
POWER SAVING
+ Power saving mode supported
OPERATING TEMPERATURE
+ 30º to 104º F (0º to 40º C)
OPERATING HUMIDITY
+ 10% to 95% non-condensing
POWER SUPPLY
+ 110~240VAC, 50/60Hz
EMC CERTIFICATION
+ CE EMC Class B
+ FCC Part 15 Class B
SAFETY CERTIFICATION
+ UL
+ CE LVD
DIMENSIONS (L X W X H)
+ 2.68” x 2.43” x 1.64”
WEIGHT
+ 0.28lbs
WARRANTY
+ 1-Year Warranty 4
WALL-TO-WALL HOME NETWORKING
1 Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors,
including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such
as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting
systems that have a dimmer switch, short wave radios, or other powerline devices that do not follow the HomePlug Powerline Alliance standard.
2Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring conditions
and configuration may affect the performance of this product. A minimum of two D-Link PowerLine AV Network Adapters are required to create a
network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug
adapter directly into a power outlet.
324/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
41-Year Limited Warranty available only in the USA and Canada.
5Latest Software and Documentation available at http://support.dlink.com.
6Computer must adhere to Microsoft’s recommended System Requirements.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See
inside package for warranty details. D-Link PowerLine AV Network Adapters (DHP-306AV, DHP-W306AV, DHP-307AV), PowerLine AV 4-Port Switch (DHP-346AV),
PowerLine AV Wireless N Extender (DHP-W306AV), PowerLine AV 500 Adapter (DHP-500AV), and Wireless N PowerLine Router (DHP-1320) may coexist but are not
compatible or interoperable with D-Link PowerLine HD Ethernet Adapters (DHP-302, DHP-303) or D-Link PowerLine HD Network Starter Kit (DHP-303). This product is
designed for use in the USA and Canada. Use of this product in other countries might violate local laws.
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in
the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
DHP-310AV

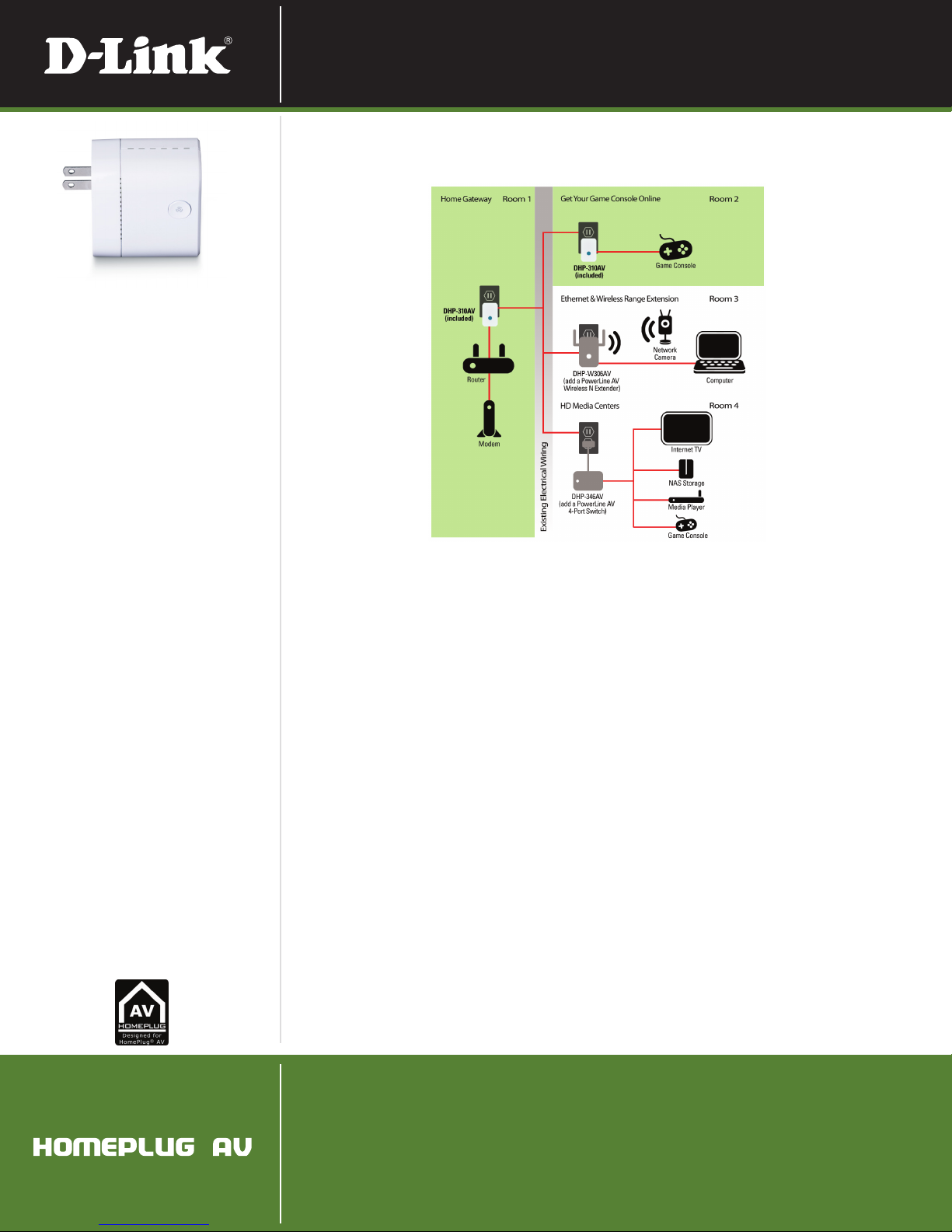

NETWORK DIAGRAM
PACKAGE CONTENTS
+ 1 PowerLine AV Mini Adapter (DHP-310AV)
+ 1 Ethernet Cable
+ CD-ROM8with:
- PowerLine AV Utility
- Product Documentation
MINIMUM REQUIREMENTS
+ Windows®76, Windows Vista®6 or
Windows®XP SP36
For Configuration Utility, Computer with:
+ 233MHz Processor
+ 10MB Disk Space
+ 64MB RAM
+ CD-ROM Drive
+ Network Interface Card
Power Supply:
+ 110~240VAC, 50/60Hz
For Internet Access:
+ Cable or DSL Modem
+ Router
+ Subscription with an Internet Service
Provider (ISP)
For Network:
+ Two or more PowerLine AV Devices
