D-Link DHP-P621AV User manual

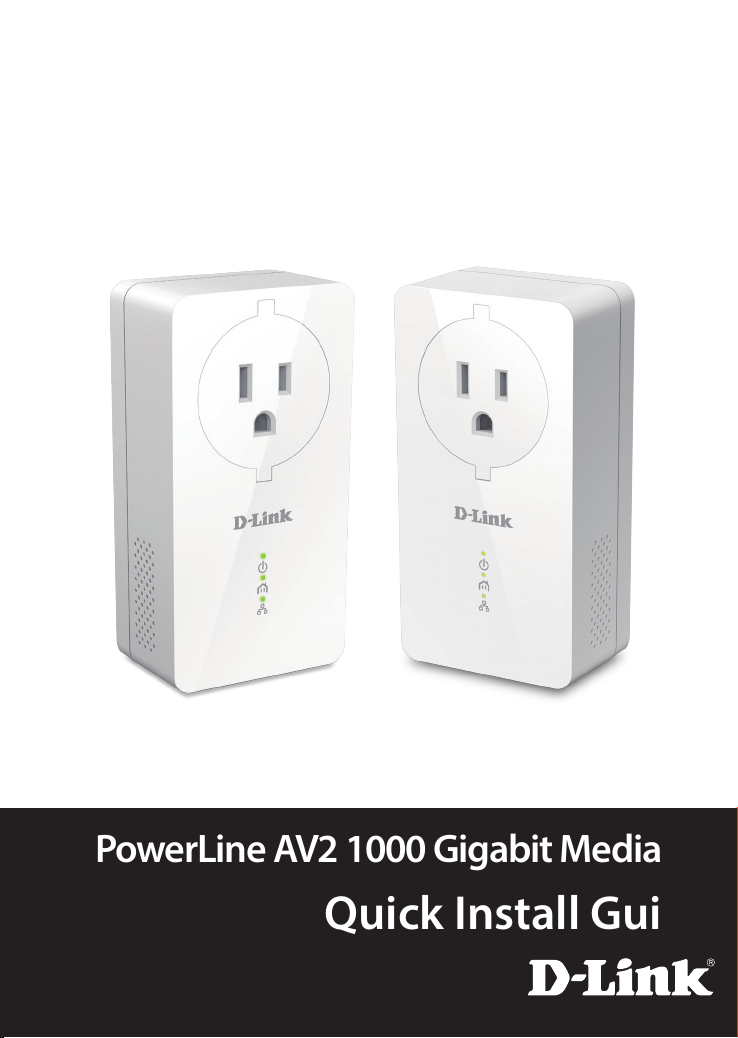

DHP-P621AV
Quick Install Guide
PowerLine AV2 1000 Gigabit Media Kit

If any of the above items are missing, please contact your reseller.
PowerLine AV2 1000 2-Port Gigabit Passthrough Adapters (DHP-P620AV)
PowerLine AV2 1000 Gigabit Passthrough Adapter (DHP-P600AV)
Two Ethernet Cables
Quick Install Guide
Package Contents
Installation Considerations
1. Connect PowerLine devices into electrical outlets that are not controlled by a
wall switch. This will help you to avoid accidentally turning o power to the
device.
2. Do not connect your PowerLine devices to extension cords, surge protectors, or
power strips. Doing this might prevent your devices from working correctly, or
may reduce network performance.
3. Avoid plugging your PowerLine devices into electrical outlets that are located
near appliances thatuse alot ofpower, suchas washers, dryers,and refrigerators.
Doing this could prevent the adapter from working correctly, or may negatively
impact network performance.
4. Verify that your PowerLine devices are electrically rated to operate with the
power available in your location.
5. Be sure to plug the power cables into properly grounded electrical outlets in
order to help prevent against electrical shock.
2

1Power LED
• Solid: The device is receiving electrical power.
• Blinking: The device is powering up or in power saving mode.
The light will also blink during the Simple Connect process.
• O: The device is not receiving electrical power.
2PowerLine LED
• Solid: The device is connected to a Powerline network.
• O: The device has not found any other compatible Powerline
devices using the same encryption key.
The color indicates the Powerline link rate:
• Green: The Powerline link rate is best.
• Amber: The Powerline link rate is better.
• Red: The Powerline link rate is good.
3Ethernet LED • Solid: The Ethernet port is linked.
• O: There is no Ethernet connection.
4Reset Button Hold the button for 10 seconds to reset to the factory default
settings.
5Simple Connect Button Press and hold the button for two seconds to secure your
network.
6Gigabit Ethernet Ports
Connect 10/100/1000 Ethernet devices such as routers,
computers, gaming consoles, network storage units, or media
players.
7Simple Connect Button/
Reset Button
Press and hold the button for two seconds to secure your
network or hold the button for 10 seconds to reset to the factory
default settings.
Product Overview
11
33
22
76654
3

• For best results, use in a regular wall outlet without any other devices plugged
in. Plugging into a power strip or a surge protector may adversely aect the
performance of this product.
• Avoid using the PowerLine adapters in an electrical outlet that is located near
an appliance that uses a lot of power, such as a washer or dryer, refrigerator,
microwave, hair dryer, or air conditioning unit.
• To verify connectivity or if you are having connection problems, plug the
adapters in the same room to verify whether your home’s electrical wiring is
contributing to the issue. The adapters’PowerLine LED indicators will illuminate
if the connection is established. Once congured you may place the adapter in
the location of your choice.
1Plug in the DHP-P600AV adapter and connect to your router
with an Ethernet cable. The Power and Ethernet LEDs should
both light up.
4 3 2 1 INTERNET
POWER
POWER PORT WPS
Router
Internet
Installation
Recommendations
4

2Plug in the DHP-P620AV adapter in
the room that you want to extend
your network. The Power LED will
turnon.Youcannowconnectup to
two devices such as a computers,
game consoles, printers, or Smart
TVs using an Ethernet cable to the
DHP-P620AV adapter. Verify that
the Ethernet LED is lit.
3Verify that the PowerLine LEDs on both adapters are lit. If they
are, the adapters are connected. If not, try another outlet.
5

4
5Your installation is completed.
(Optional) To secure your network, press the Simple Connect
button (on the bottom) for two seconds on one of the adapters.
The Power LED will start to blink. Then, within two minutes,
press the Simple Connect button on the other adapter for two
seconds. Once the Power LEDs stop blinking, verify that the
PowerLine LED is lit on both adapters (as in Step 3).This indicates
that your adapters are properly connected to each other.
DHP-600AV DHP-600AV
Simple Connect ButtonSimple Connect Button
6

FAQs
If I do not see LEDs light up?
If the Power LED is o, make sure the PowerLine devices are plugged
into outlets with power. Also make sure the PowerLine devices are not
plugged into an extension cord, power strip, or surge protector.
If the PowerLine LED is o, the devices are unable to nd each other.
You can plug in all the PowerLine adapters within the same room in
order to determine whether your home’s electrical outlets are suitable.
The adapters’ PowerLine LED will light up when a connection is
established.
If I’m having problems with conguration?
If you are having problems conguring the network with two or more
PowerLine adapters, make sure you reset all the devices and start the
conguration process again. To reset to the factory default settings,
hold the Simple Connect button/Reset Button for 10 seconds.
7

Technical Support
Thisguideisonlyforinitialconguration.Pleaserefertothe usermanual to
learn more or visit http://support.dlink.com for more information. Also
feel free to contact us. U.S. and Canadian customers can contact D-Link
Technical Support through our website. For warranty and regulatory
information, please visit http://support.dlink.com/warranty.aspx.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 1.00(CA)_90x130
Feb 09, 2017
Copyright ©2017 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link
Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners.
Product specications, size and shape are subject to change without notice, and actual product appearance may dier from that depicted
on the packaging. Visit www.dlink.com for more details. Maximum throughput based on theoretical transmission PHY rate. Actual date
throughput will vary. Network conditions and environmental factors, including volume of trac and network overhead, may lower actual
data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave
radios, or other powerline devices that do not follow the HomePlug AV and IEEE1901 standard.

DHP-P621AV
Guide d’installation rapide
Kit multimédia Gigabit CPL AV2 1000

Communiquez avec votre revendeur s'il manque l'un des éléments ci-dessus.
Deux câbles Ethernet
Guide d’installation rapide
Contenu de la boîte
Éléments à prendre en considération avant l’installation
1. Connectez les périphériques CPL dans des prises électriques qui ne sont
pas contrôlées par un commutateur mural. Cela vous évitera de couper
accidentellement l'alimentation du périphérique.
2. Ne connectez pas de périphériques CPL sur des rallonges, des parasurtenseur
ou des blocs multiprises. Cela pourrait nuire au fonctionnement de vos
pérphériques ou réduire les performances réseau.
3. Évitez de brancher les adaptateurs CPL dans une prise de courant située à
proximité d’un appareil consommant beaucoup d’énergie (par ex. un lavelinge,
un sèche-linge, un réfrigérateur, un four à microondes, un sèchecheveux, ou
un climatiseur) Cela pourrait nuire au fonctionnement de l’adaptateur ou aux
performances réseau.
4. Assurez-vous que la tension nominale des périphériques CPL correspond à
celle du réseau électrique.
5. Assurez-vous de brancher les câbles d'alimentation dans des prises
correctement reliées à la terre an d'éviter tout choc électrique.
Adaptateur d’intercommunication Gigabit à 2 ports CPL AV2 1000
(DHP-P620AV)
Adaptateur d’intercommunication Gigabit CPL AV2 1000
(DHP-P600AV)
2
