D-Link DHP-601AV User manual

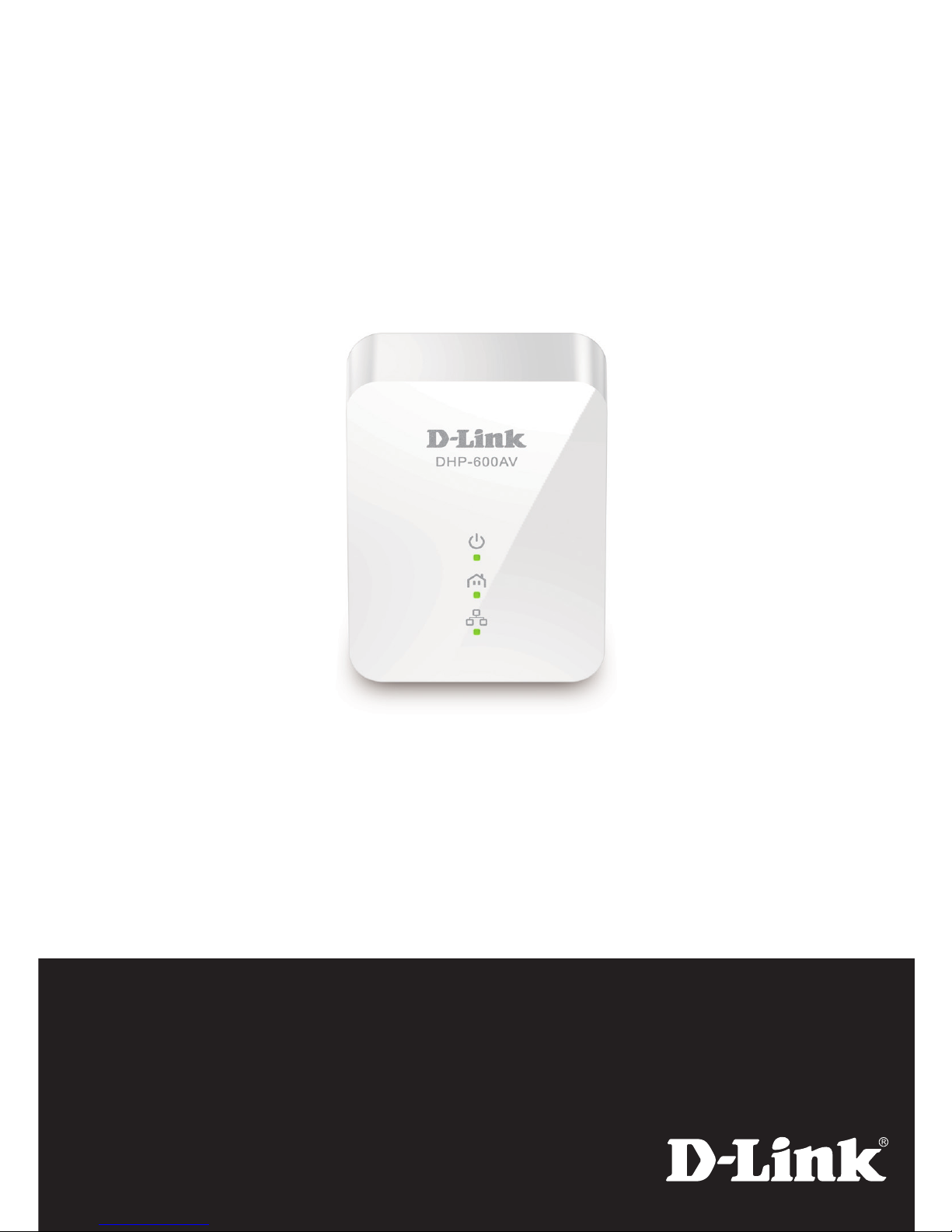

DHP-601AV
Quick Install Guide
PowerLine AV2 1000 Gigabit Starter Kit

If any of the above items are missing, please contact your reseller.

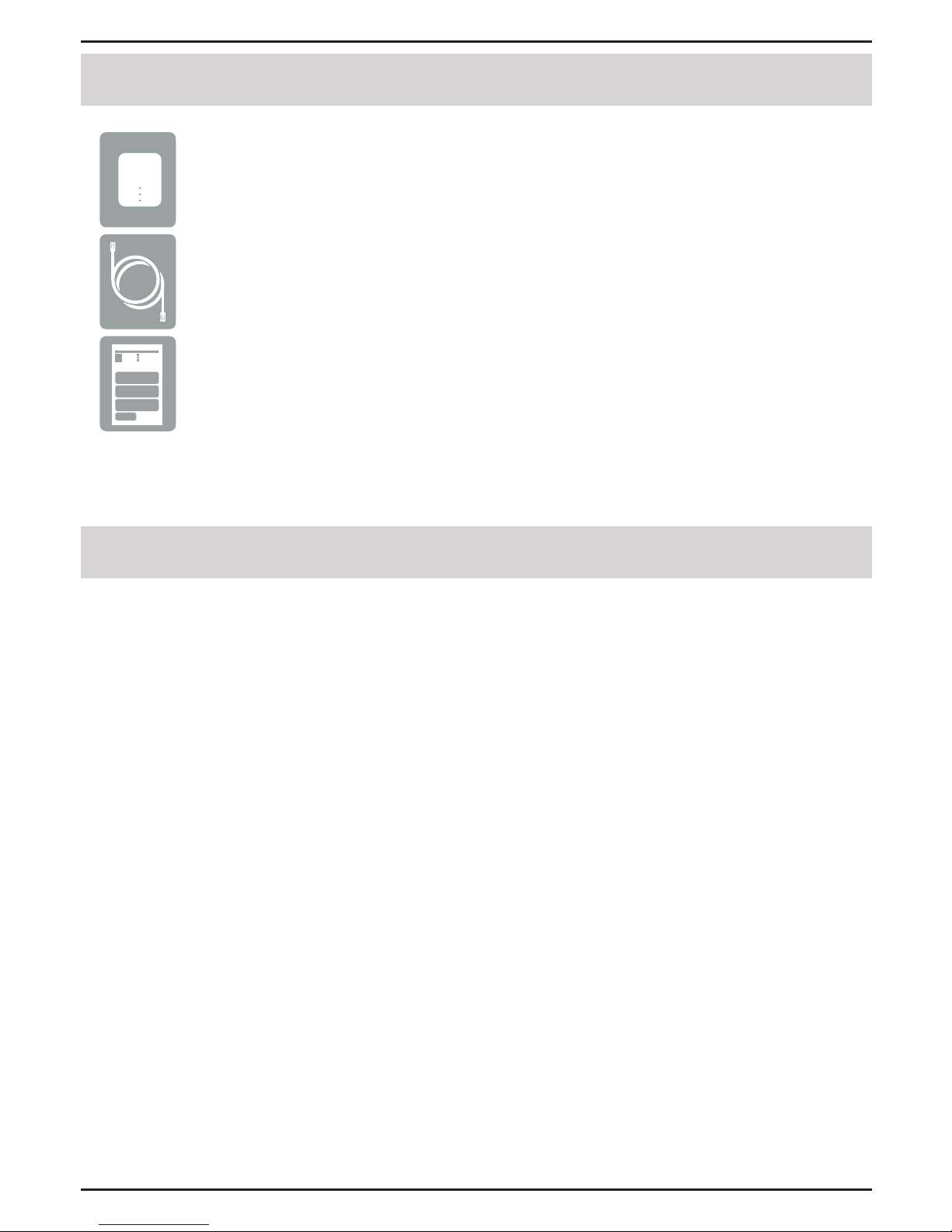

Two Powerline AV2 1000 Gigabit Adapters (DHP-600AV)
Two Ethernet Cables
Quick Install Guide
Package Contents
Installation Considerations
1. Connect PowerLine devices into electrical outlets that are not controlled by a
wall switch. This will help you to avoid accidentally turning o power to the
device.
2. Do not connect your PowerLine devices to extension cords, surge protectors, or
power strips. Doing this might prevent your devices from working correctly, or
may reduce network performance.
3. Avoid plugging your PowerLine devices into electrical outlets that are located
near appliances that use a lot of power, such as washers, dryers, and refrigerators.
Doing this could prevent the adapter from working correctly, or may negatively
impact network performance.
4. Verify that your PowerLine devices are electrically rated to operate with the
power available in your location.
5. Be sure to plug the power cables into properly grounded electrical outlets in
order to help prevent against electrical shock.
2

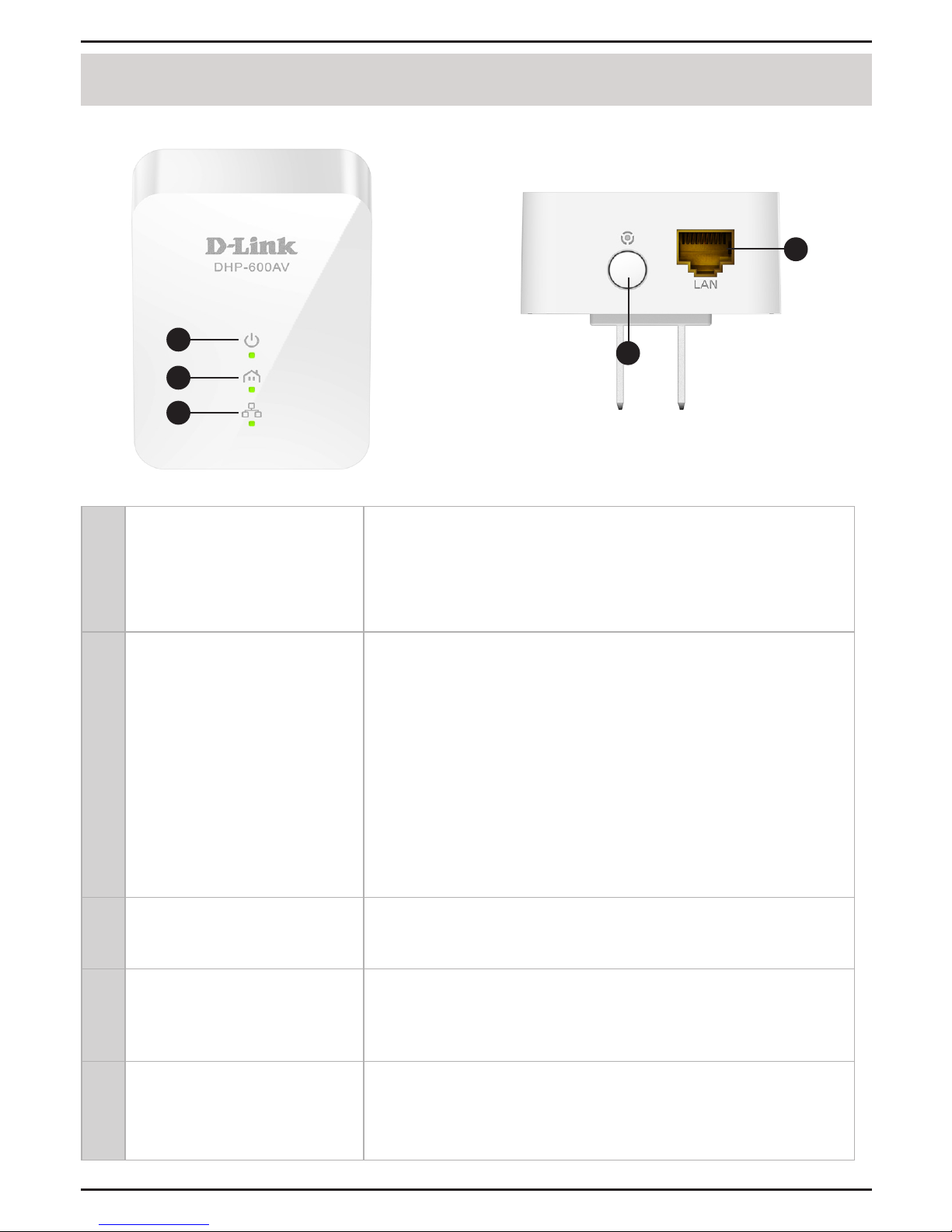

1Power LED
• Solid: The device is receiving electrical power.
• Blinking: The device is powering up or in power saving
mode. The light will also blink during the Simple
Connect process.
• O: The device is not receiving electrical power.
2PowerLine LED
• Solid: The device is connected to a Powerline
network.
• O: The device has not found any other compatible
Powerline devices using the same encryption key.
The color indicates the Powerline link rate:
• Green: The Powerline link rate is best.
• Amber: The Powerline link rate is better.
• Red: The Powerline link rate is good.
3Ethernet LED • Solid: The Ethernet port is linked.
• O: There is no Ethernet connection.
4Simple Connect Button/
Reset Button
Press and hold the button for two seconds to secure
your network or hold the button for 10 seconds to reset
to the factory default settings.
5Gigabit Ethernet Port
Connect to a 10/100/1000 Ethernet device such as a
router, computer, gaming console, network storage
unit, or a media player.
1
3
4
5
2
Product Overview
3

• For best results, use in a regular wall outlet without any other devices plugged
in. Plugging into a power strip or a surge protector may adversely aect the
performance of this product.
• Avoid using the PowerLine adapters in an electrical outlet that is located near
an appliance that uses a lot of power, such as a washer or dryer, refrigerator,
microwave, hair dryer, or air conditioning unit.
• To verify connectivity or if you are having connection problems, plug the
adapters in the same room to verify whether your home’s electrical wiring is
contributing to the issue. The adapters’PowerLine LED indicators will illuminate
if the connection is established. Once congured you may place the adapter in
the location of your choice.

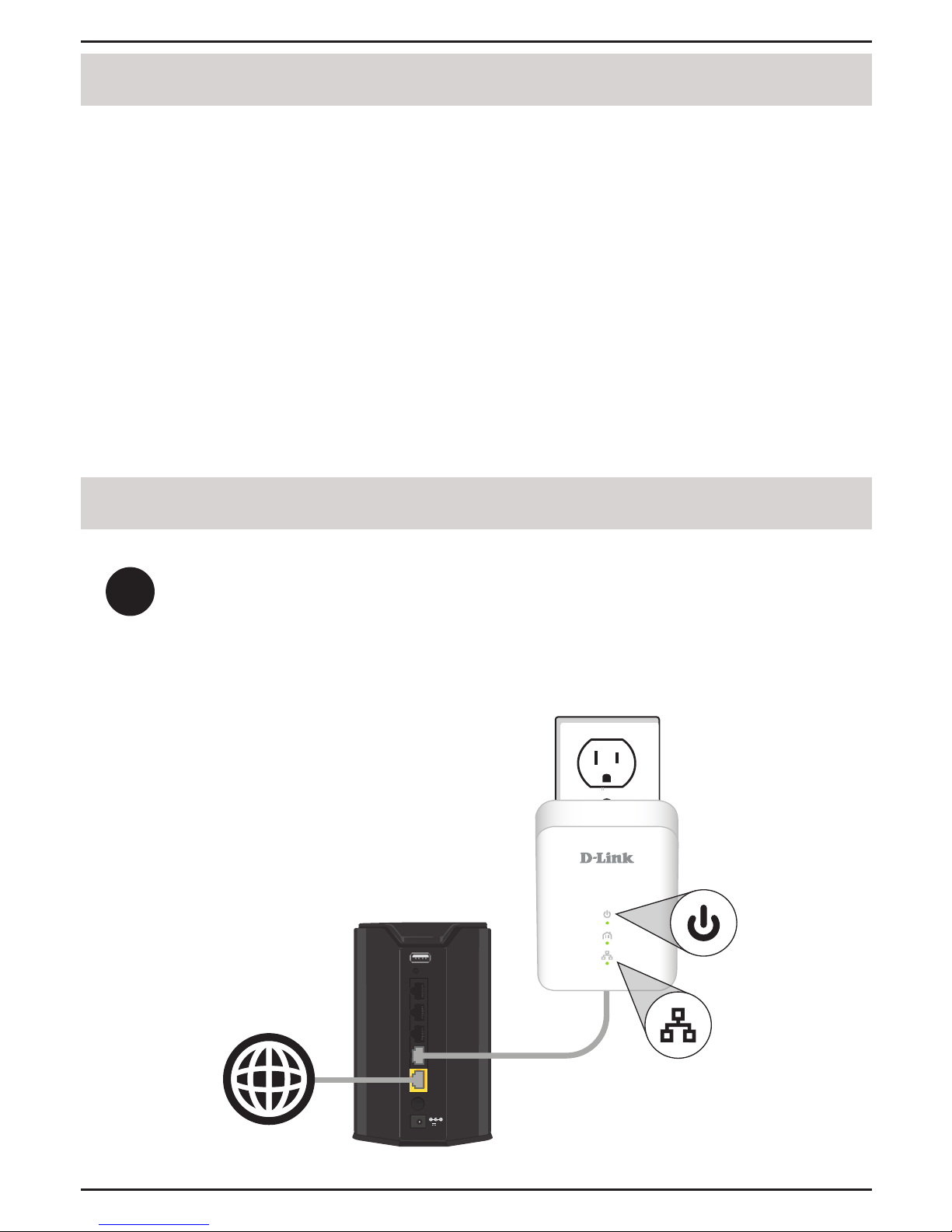

1Plug in one of the DHP-600AV adapters and connect to your
router with an Ethernet cable. The Power and Ethernet LEDs
should both light up.
5V
2.5A
USB
WPS
1
2
3
4
INTERNET
POWER
DHP-600AV
Router
Internet
Installation
Recommendations
4

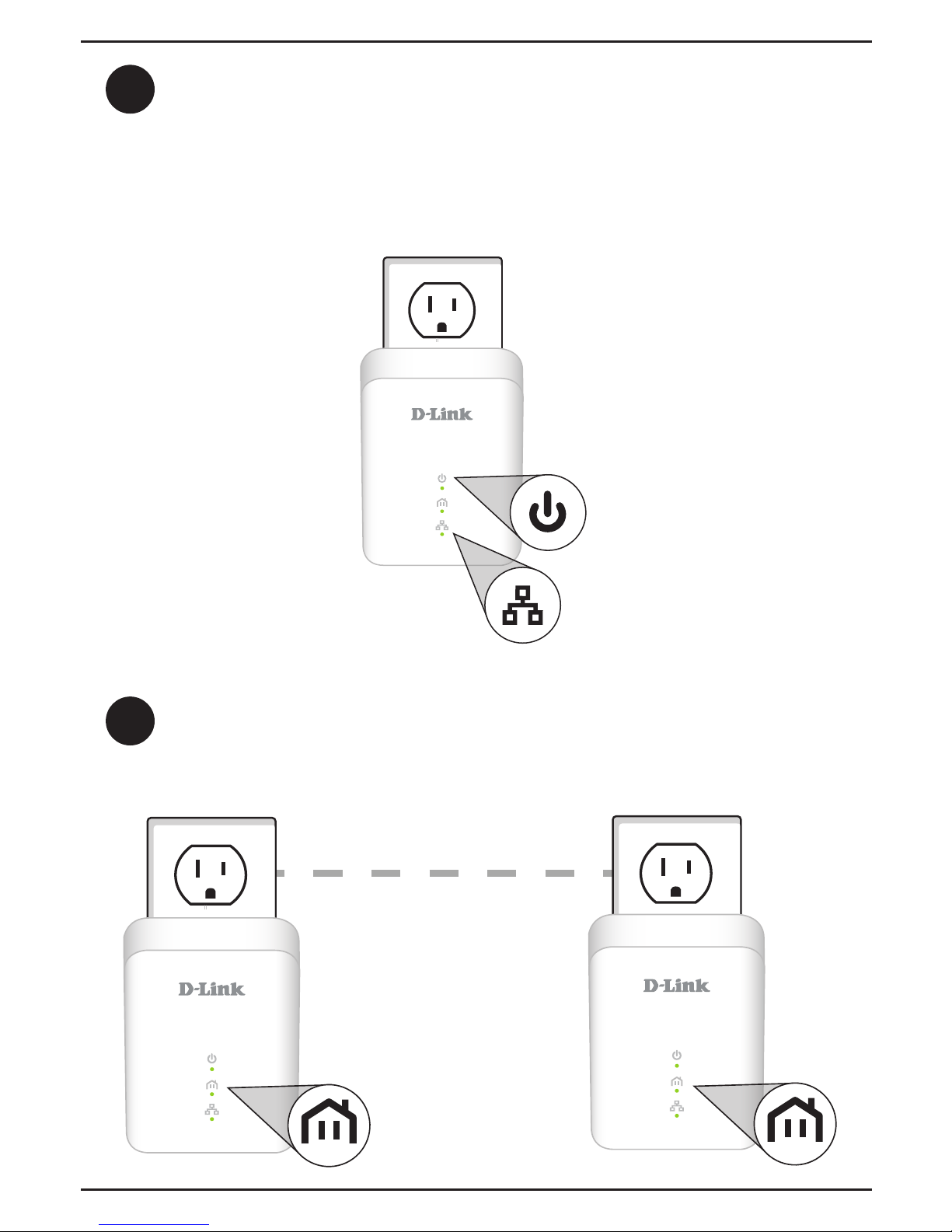

2Plug in the other DHP-600AV adapter in the room that you
want to extend your network. The Power LED will turn on.
You can now connect a device such as a computer, game
console, printer, or Smart TV using an Ethernet cable to the
DHP-600AV adapter. Verify that the Ethernet LED is lit.
3Verify that the PowerLine LEDs on both adapters are lit. If they
are, the adapters are connected. If not, try another outlet.
DHP-600AV
DHP-600AV DHP-600AV
5

4
5Your installation is completed.

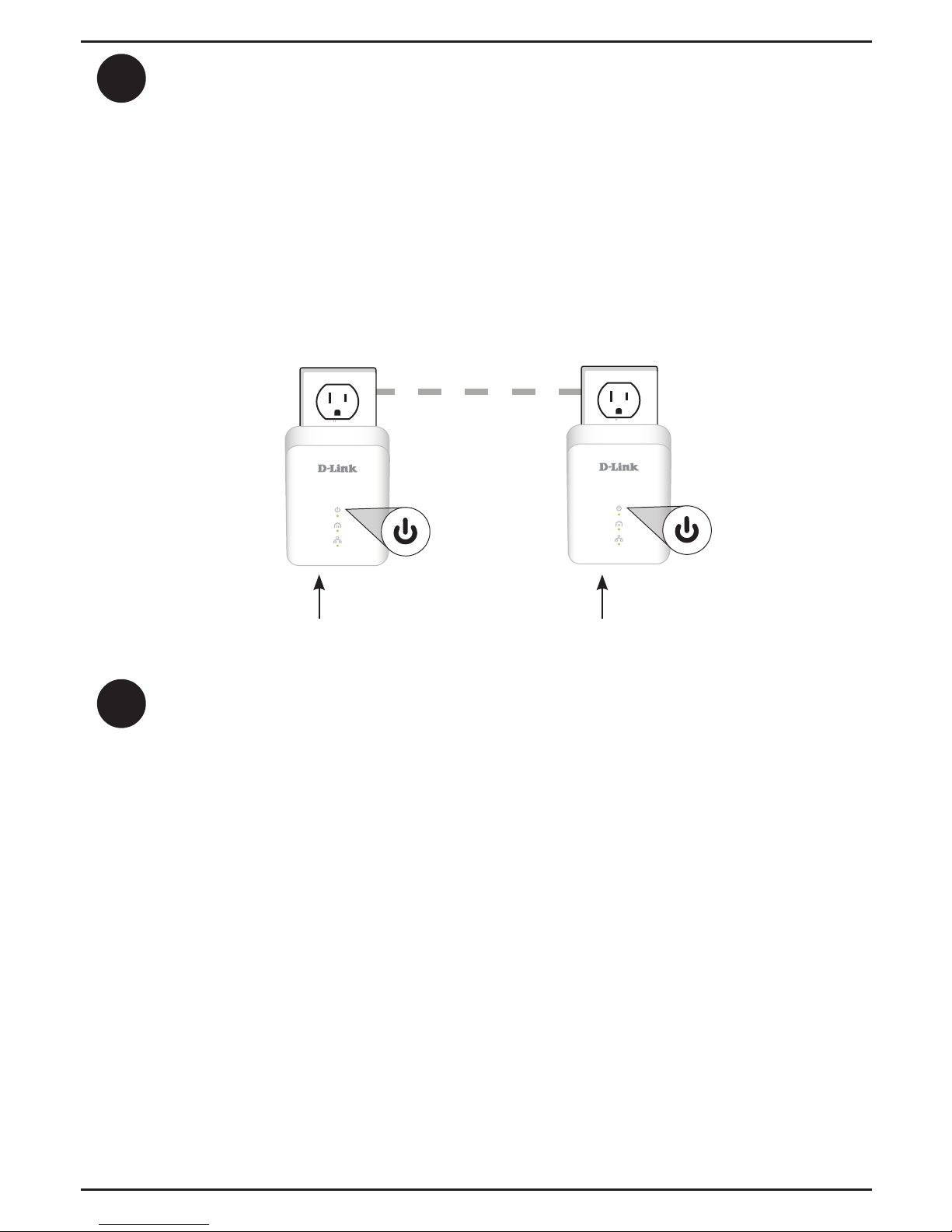

(Optional/Recommended) To secure your network, press the
Simple Connect button (on the bottom) for two seconds on one
of the adapters. The Power LED will start to blink. Then, within
two minutes, press the Simple Connect button on the other
adapter for two seconds. Once the Power LEDs stop blinking,
verify that the PowerLine LED is lit on both adapters (as in Step
3). This indicates that your adapters are properly connected to
each other.
DHP-600AV DHP-600AV
DHP-600AV DHP-600AV
Simple Connect ButtonSimple Connect Button
6

FAQs
If I do not see LEDs light up?
If the Power LED is o, make sure the PowerLine devices are plugged
into outlets with power. Also make sure the PowerLine devices are not
plugged into an extension cord, power strip, or surge protector.
If the PowerLine LED is o, the devices are unable to nd each other.
You can plug in all the PowerLine adapters within the same room in
order to determine whether your home’s electrical outlets are suitable.
The adapters’ PowerLine LED will light up when a connection is
established.
If I’m having problems with conguration?
If you are having problems conguring the network with two or more
PowerLine adapters, make sure you reset all the devices and start the
conguration process again.
If you get an error message during conguration, make sure you have
not inadvertently unplugged the PowerLine adapter.
7

Technical Support
This guide is only for initial conguration. Please refer to the user manual to
learn more or visit http://www.mydlink.com for more information. Also
feel free to contact us. U.S. and Canadian customers can contact D-Link
Technical Support through our website. For warranty and regulatory
information, please visit http://support.dlink.com/warranty.aspx.
http://support.dlink.com
USA
http://support.dlink.ca
Canada
Version 3.00
May 20, 2016
