D-Link DUB-1312 User manual

Version 1.0 | August 12, 2013
DUB-1312
User Manual
USB 3.0 Gigabit Ethernet Adapter

iD-Link DUB-1312 User Manual
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.0 August 12, 2013 • Initial release for Revision A1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.

iiD-Link DUB-1312 User Manual
Table of Contents
Preface....................................................................................................... i
Package Contents................................................................................. 1
Minimum Requirements.................................................................... 1
Introduction ........................................................................................... 2
Features ................................................................................................... 3
Hardware Overview............................................................................. 4
Software Installation ........................................................................... 5
Windows® 8 and 7 ........................................................................ 5
Windows Vista®.............................................................................. 7
Windows® XP.................................................................................. 8
Table of Contents
Mac OS® X......................................................................................11
Linux 2.6.14...................................................................................13
Connecting the Adapter to a Network .......................................15
Completing the Installation............................................................16
Troubleshooting .................................................................................17
Technical Specications...................................................................20
Contacting Technical Support.......................................................21
Warranty ................................................................................................22
Registration ..........................................................................................28

1D-Link DUB-1312 User Manual
Section 1 - Product Overview
DUB-1312 USB 3.0 Gigabit Ethernet Adapter
DUB-1312 Drivers and Manual on CD-ROM
Quick Installation Guide
Package Contents
Minimum Requirements
System Requirements
Computer with the following:
• Microsoft Windows® 8, 7, Vista®, XP SP 3, Linux, or Mac OS® X 10.6
• Pentium 2.0 GHz or higher with a minimum of 32MB RAM
• Available USB port (USB 3.0 required for Gigabit speeds)
• CD-ROM drive
If any of the above items are missing or damaged, please contact your reseller.

2D-Link DUB-1312 User Manual
Section 1 - Product Overview
Introduction
The DUB-1312 USB 3.0 Gigabit Ethernet Adapter is designed to plug into an available Universal Serial Bus (USB) port on any
desktop, laptop, or notebook computer running Microsoft Windows® 8,7, Vista®, XP, Mac OS® X, or Linux. Based on the USB
3.0 standard, the DUB-1312 can extend the transfer speeds of USB Fast Ethernet adapters to true one Gbps connectivity.*
Power is provided directly by the USB port, eliminating the need for an external power adapter. The DUB-1312 supports USB
energy-saving suspend and resume functions, in order to minimize power consumption. This is especially useful for laptop
and notebook users.
*Network congestion may aect data rates. You may experience slower transfer speeds due to heavy data trac elsewhere on the network.

3D-Link DUB-1312 User Manual
Section 1 - Product Overview
Features
Designed for versatility and performance, the DUB-1312 USB 3.0 Gigabit Ethernet Adapter has the following features:
• Compliant with the latest USB 3.0 specication
• Backwards compatible with USB 2.0/1.1/1.0 specications
• True one Gbps network connectivity
• Compliance with IEEE 802.3ab Gigabit Ethernet standards and IEEE 802.3 Ethernet standards
• Plug-and-Play installation (operating system dependent)
• Auto 10/100/1000 Mbps speed detection
• Supports half and full-duplex at 10 Mbps, half /full-duplex at 100 Mbps, and half/full duplex at 1 Gbps
• Built-in RJ-45 connector
• Auto-negotiation to the highest available speed
• Two LED indicators: Connection Speed, Link/ACT
• Driver support:
• Microsoft Windows® 8 (x86, x64)
• Microsoft Windows® 7 (x86, x64)
• Microsoft Windows Vista®
• Microsoft Windows® XP (Service Pack 3)
• Linux (kernel 2.6.14 and above)
• Macintosh OS® X (10.6 to 10.8)

4D-Link DUB-1312 User Manual
Section 1 - Product Overview

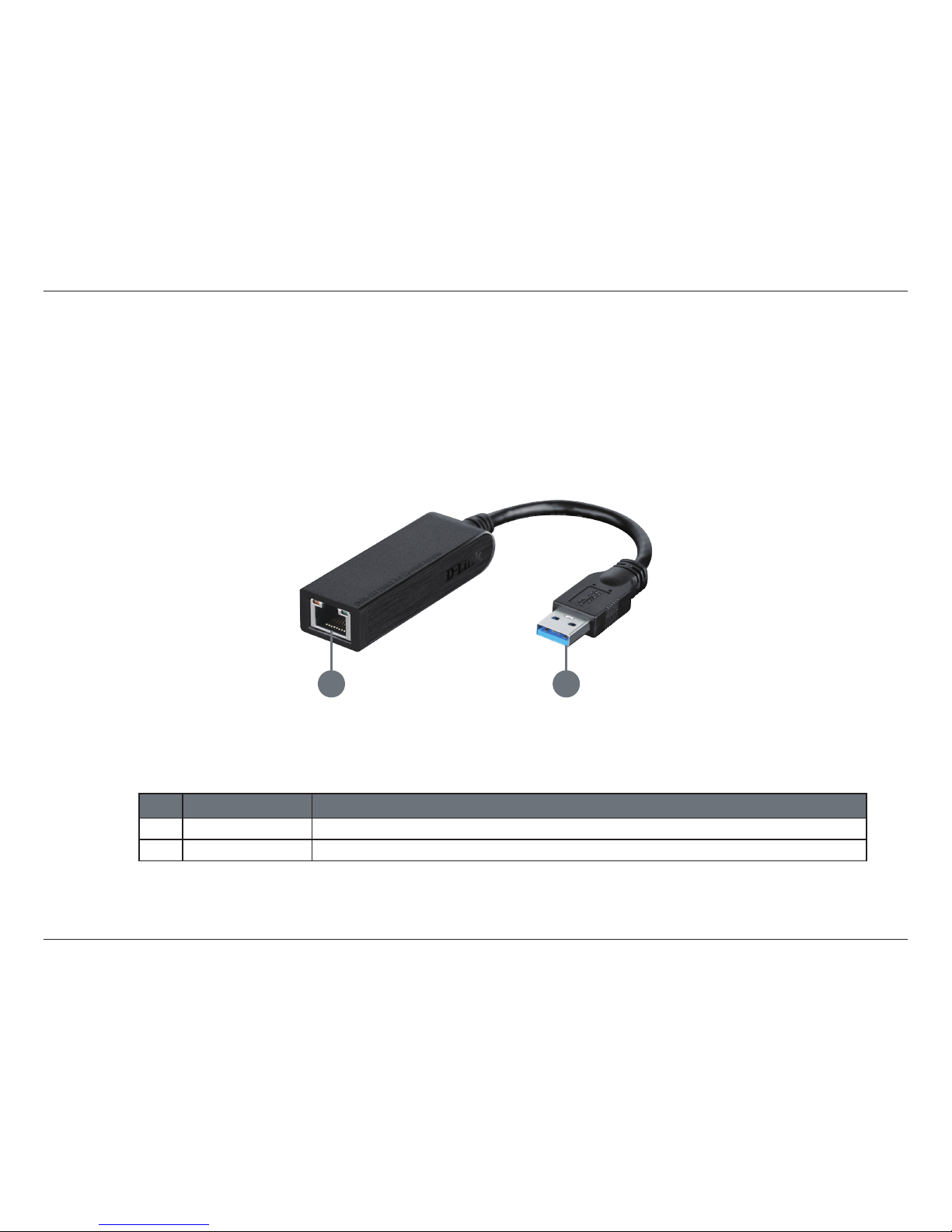

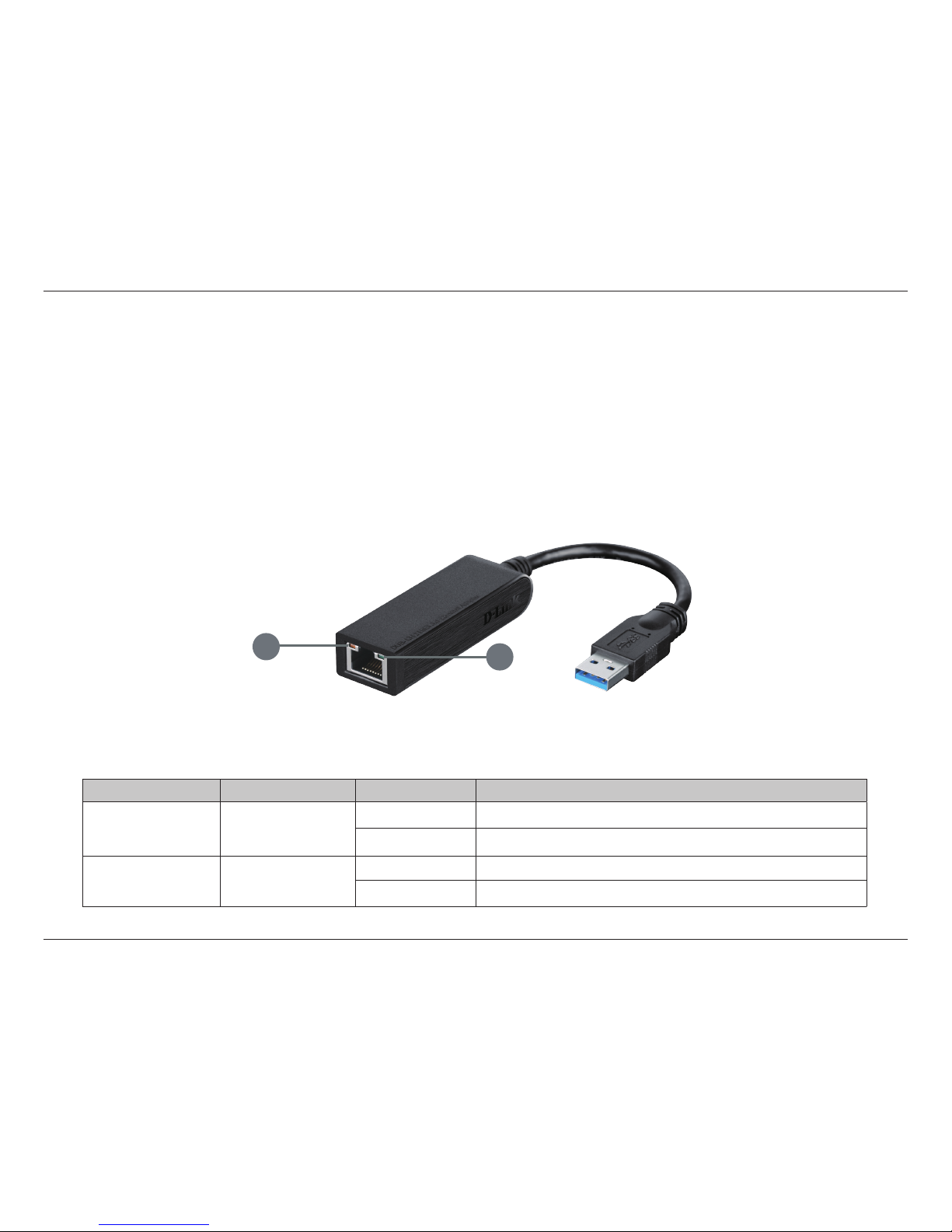

Hardware Overview
ID COMPONENT DESCRIPTION
1 Ethernet Port Plug an Ethernet cable from a switch or router into this port.
2 USB Connector Plug this connector into a USB port on your PC (use USB 3.0 for best performance).
1 2

5D-Link DUB-1312 User Manual
Section 2 - Installation
Software Installation
Insert the CD included with the DUB-1312 into your computer’s DVD or CD drive, then proceed to the corresponding installation
section according to your operating system. Skip ahead to “Windows Vista®” on page 7, “Windows® XP” on page 8, “Mac
OS® X” on page 11, or “Linux 2.6.14” on page 13.
Note:If the user interface does not start up, go to the Autorun folder in your PC’s CD drive and open Autorun.exe manually.
Although the following screen shots are from a computer with Windows 7,
screens will be similar if you are using Windows 8.

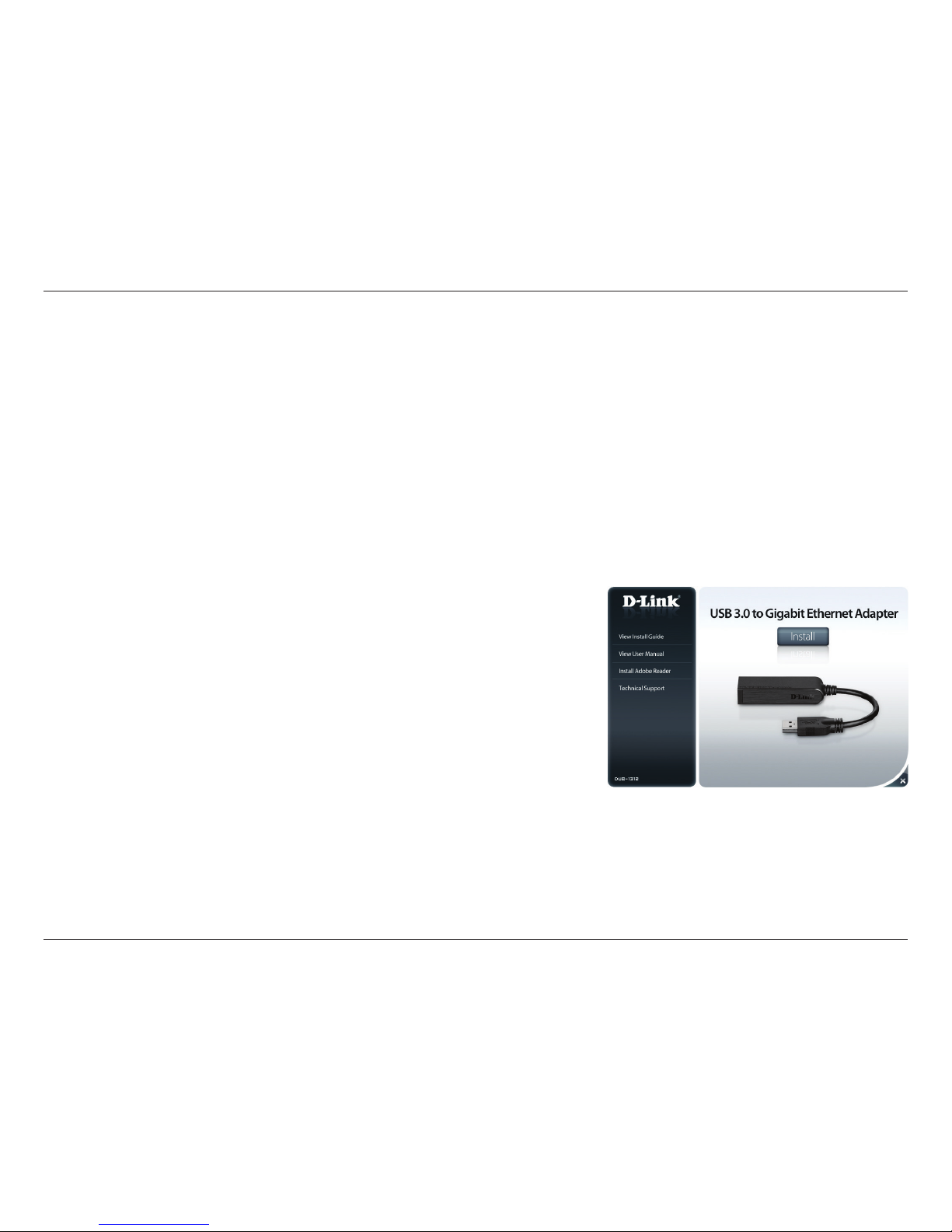

Insert the installation CD into your CD drive, and the DUB-1312 menu screen
will appear. Click Install to begin the DUB-1312 driver installation. The
InstallShield Wizard window will pop up and run automatically.
Note: The DUB-1312 user interface may dier in appearance depending on your
region.
Windows® 8 and 7

6D-Link DUB-1312 User Manual
Section 2 - Installation
When the InstallShield Wizard is nished, plug the DUB-1312’s USB cable
into an available USB port on your PC. Within a few seconds, Windows will
detect a new device and install the device driver software automatically.

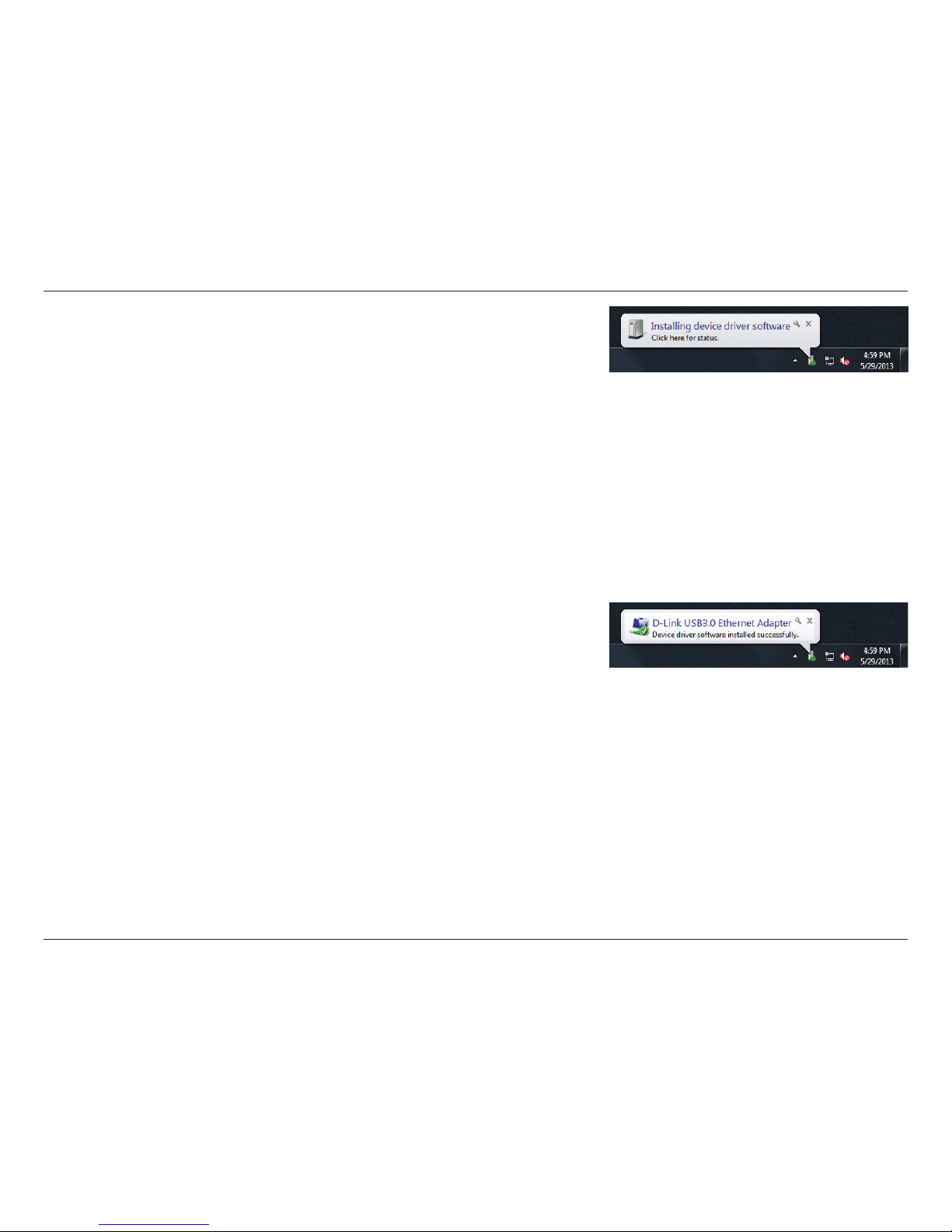

When the driver installation is complete, you will see a message that says,
“Device driver software installed successfully.” Proceed to “Connecting the
Adapter to a Network” on page 15.

7D-Link DUB-1312 User Manual
Section 2 - Installation
Windows Vista®

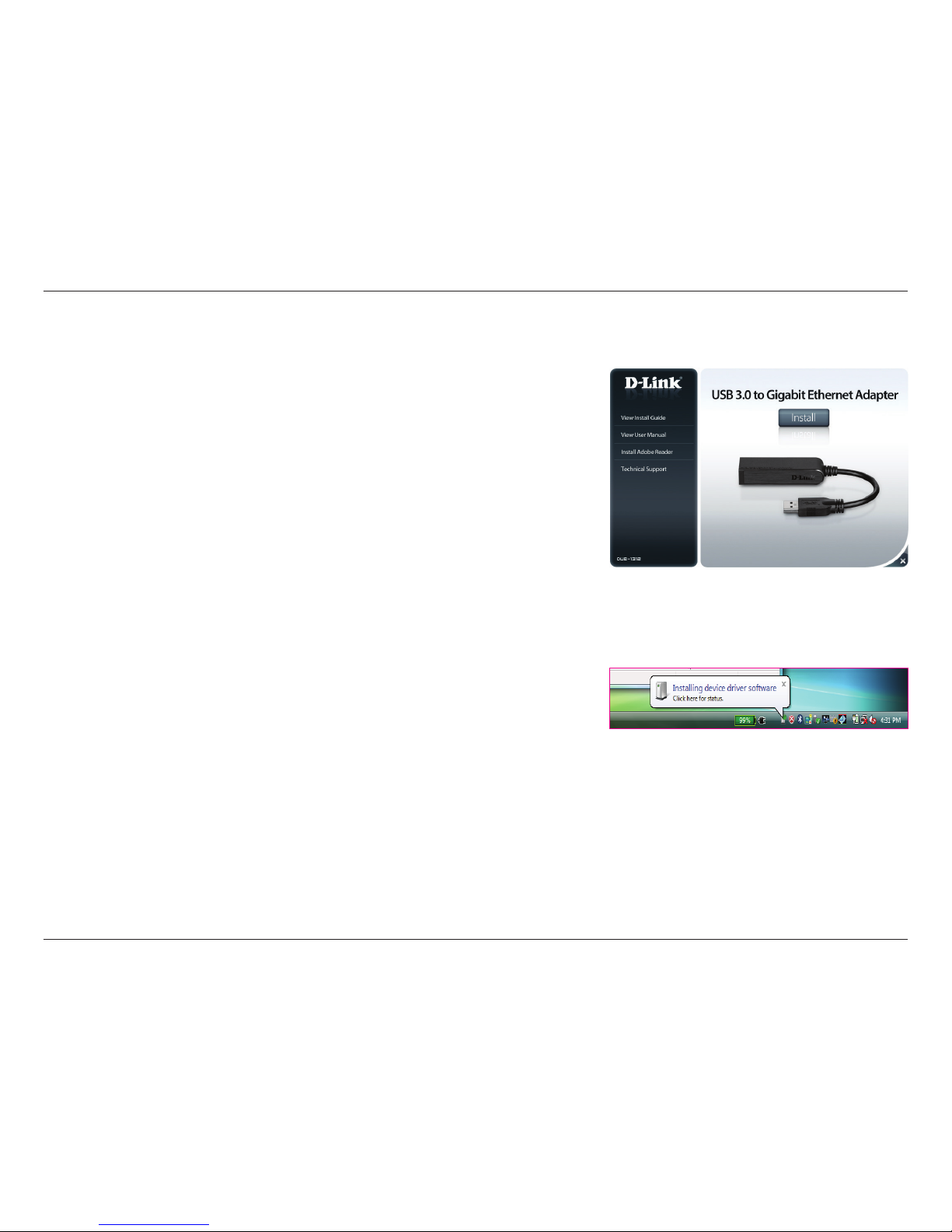

After you insert the CD into the CD drive, the DUB-1312 menu screen
will appear. Click Install to begin the DUB-1312 driver installation. The
InstallShield Wizard window will pop up.
This driver does not have WHQL digitally signed certication. If you see a
warning message regardingWHQL status, you must accept unsigned driver
installation in order to continue. Windows Vista x64 users should disable
WHQL checking in order to install the driver.
Note: The DUB-1312 user interface may dier in appearance for dierent regions.
When the InstallShield Wizard is complete, plug the DUB-1312’s USB cable
into an available USB port on your PC. Within a few seconds, Windows will
detect a new device and install the device driver software automatically.
When the driver installation is complete, proceed to“Connecting the Adapter
to a Network” on page 15.

8D-Link DUB-1312 User Manual
Section 2 - Installation
After you insert the CD into the CD drive, the DUB-1312 menu screen
will appear. Click Install to begin the DUB-1312 driver installation. The
InstallShield Wizard window will pop up.
This driver does not have WHQL digitally signed certication. If you see a
warning message, you must accept the unsigned driver installation in order
to continue. Windows XP x64 users should disable WHQL checking in order
to install the driver.
Note: The DUB-1312 user interface may dier in appearance for dierent regions.
Windows® XP
Plug the DUB-1312’s USB cable into an available USB port on your PC. Within
a few seconds,Windows will detect a new device.You will see the Found New
Hardware message in the pop-up window.

9D-Link DUB-1312 User Manual
Section 2 - Installation

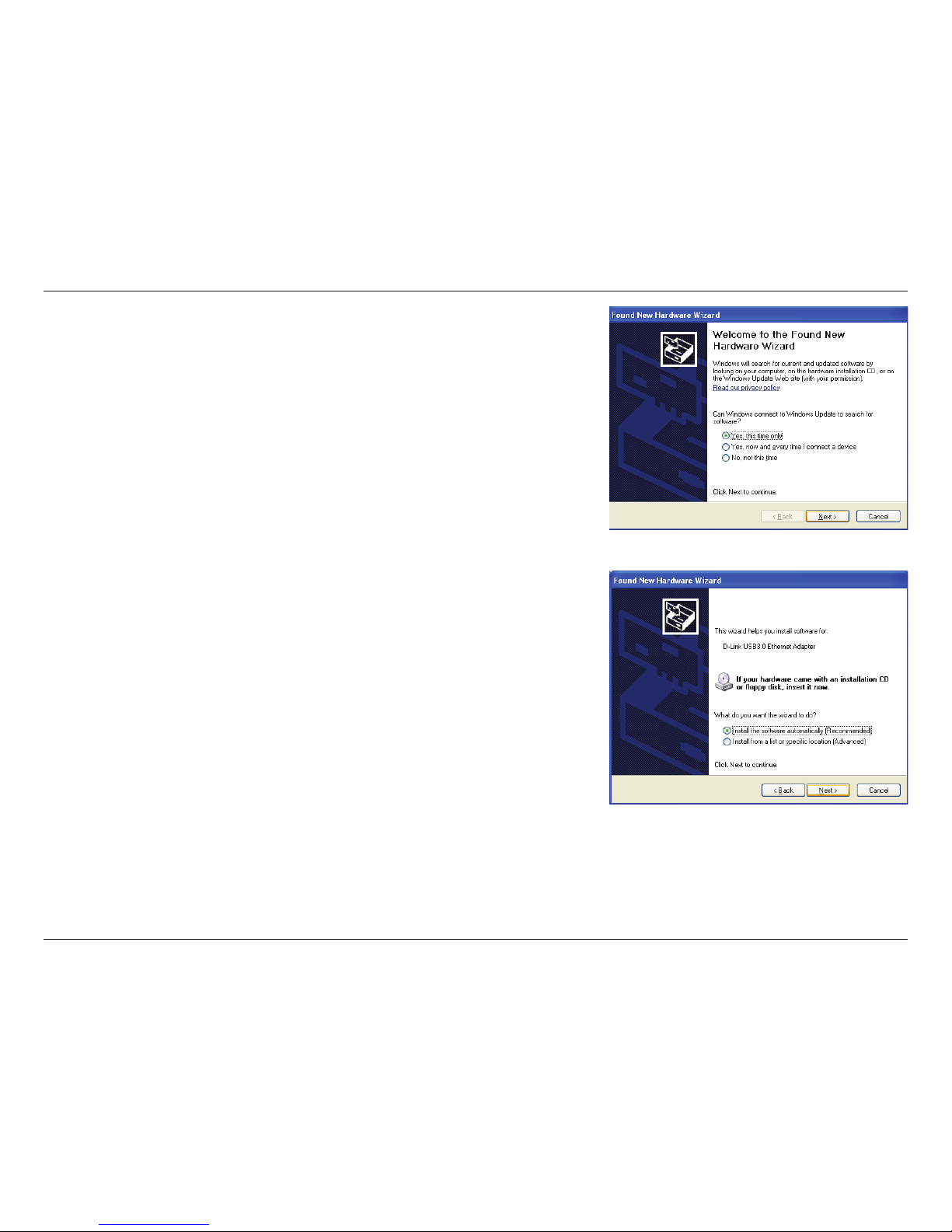

Click Install the software automatically and click Next to continue.

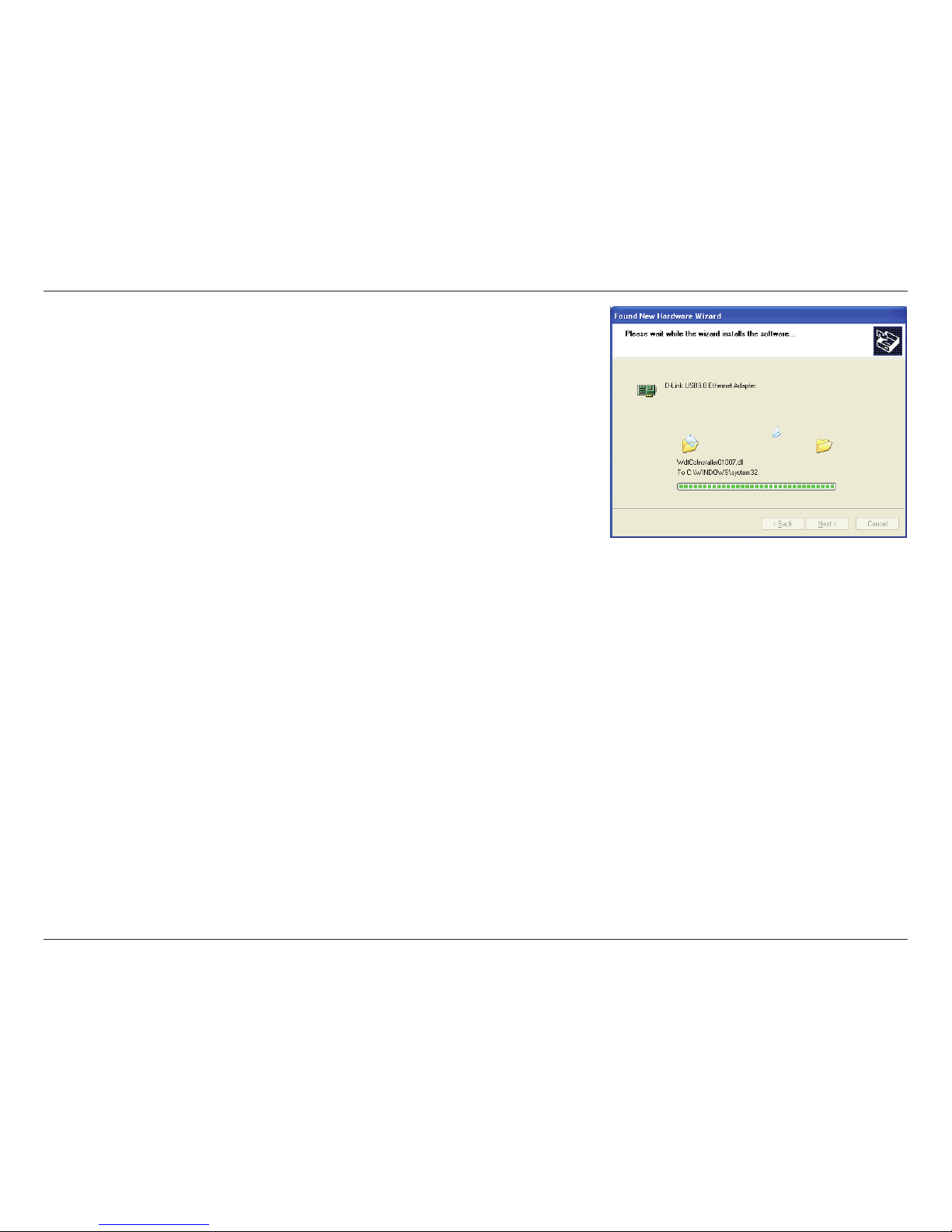

The Found New Hardware Wizard window will open. Select Yes, this time
only and click Next to continue.

10D-Link DUB-1312 User Manual
Section 2 - Installation
When the device driver installation is complete, proceed to“Connecting the
Adapter to a Network” on page 15.

11D-Link DUB-1312 User Manual
Section 2 - Installation

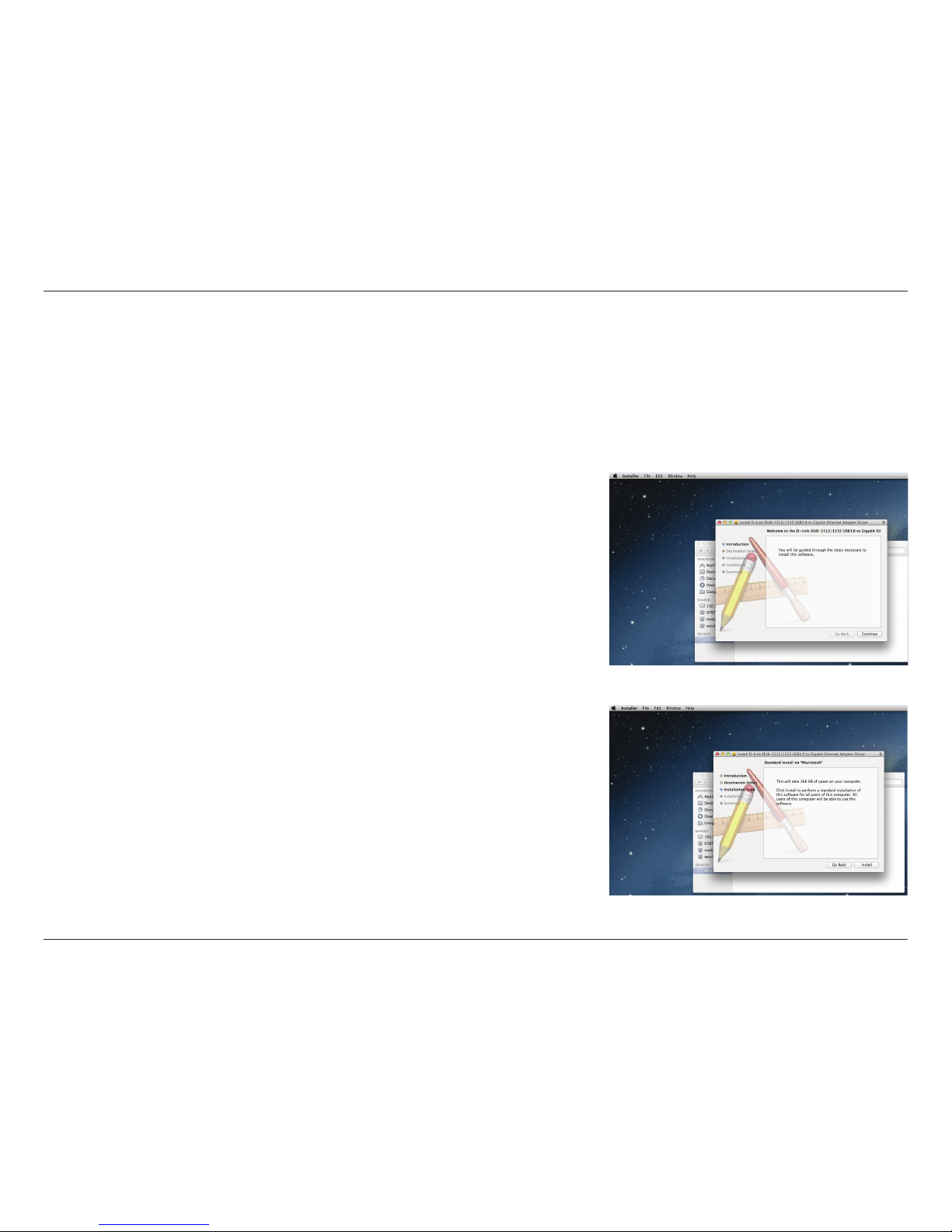

Insert the DUB-1312 CD into your computer’s DVD or CD drive, then go to
the DUB-1312 folder and navigate to \Drivers\Mac. Double-click DUB-
13X2_v1.4.0.pkg. Click Continue.
Although the following screen shots were taken from Mac OS X 10.6, the steps are similar using other versions of OS X. Your
operating system should be version 10.6 or above.
Mac OS® X

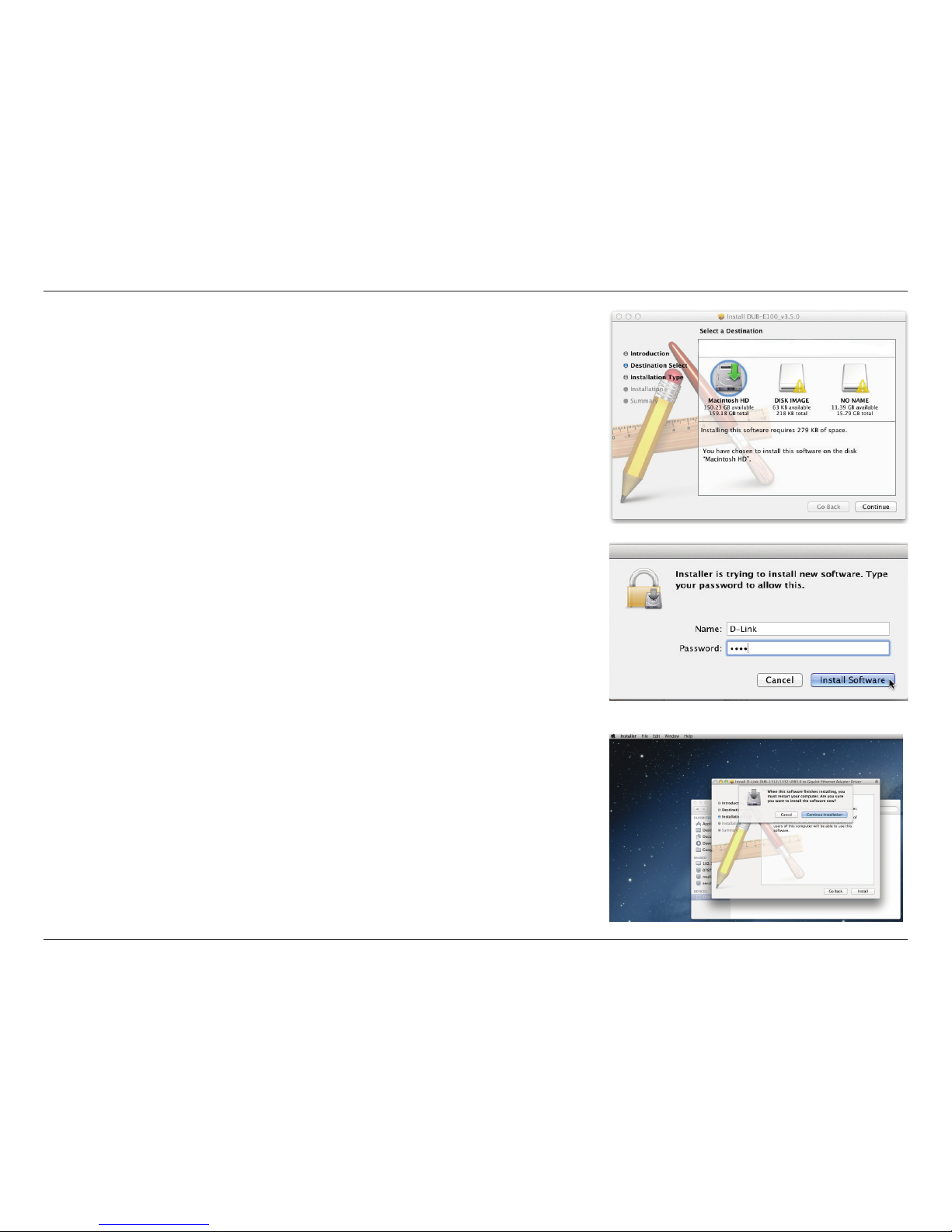

Click Install to perform a standard installation. If you wish to change the
drive where the installation will take place, click Change Install Location.

12D-Link DUB-1312 User Manual
Section 2 - Installation
Enter the Name and Password for a user with administrative rights.
Click Install Software.
You will see a reminder you that you must restart your computer once the
installation has been completed. Click Continue Installation to proceed. The
computer will then restart itself after the installation is complete. Proceed
to “Connecting the Adapter to a Network” on page 15.
If you clicked Change Install Location, you will see the Select a Destination
screen. Select a Destination Volume, then click Continue.

13D-Link DUB-1312 User Manual
Section 2 - Installation
Linux 2.6.14
This driver is designed for Kernel 2.6.14.x or above. To compile the provided Linux driver, you need the Linux 2.6 Kernel source.
Also, please make sure the kernel is built with“Support for Host-side, EHCI, OHCI, and UHCI”option. Please follow these steps:
1. Insert the CD into the CD drive of your computer and go to the Drivers\Linux\ directory.
2. Copy the Linux Driver folder from the CD to your temporary directory.
3. Go to the Linux Driver folder in your temporary directory and execute the following command to compile the driver:
[root@localhost template]# tar -xf DRIVER_SOURCE_PACKAGE.tar.bz2
4. The driver source les should be extracted under the current directory. Execute this command to compile the driver:
[root@localhost template]# make
5. If the compilation is successful, the DUB-13X2.ko will be created under the current directory.
If you wish to use the modprobe command to mount the driver, execute the following command to install the driver:
[root@localhost template]# make install

14D-Link DUB-1312 User Manual
Section 2 - Installation
If you wish to load the driver manually, go to the driver directory and execute the following commands:
[root@localhost template]# modprobe usbnet
[root@localhost template]# insmod DUB-13X2.ko
If you wish to unmount the driver, execute the following command:
[root@localhost anywhere]# rmmod DUB-13X2
Proceed to “Connecting the Adapter to a Network” on page 15.

15D-Link DUB-1312 User Manual
Section 2 - Installation
1. Attach an Ethernet cable to the Ethernet port on the DUB-1312.
2. Attach the other end of the Ethernet cable to your network switch or router.
Note: If your switch or router has ports with gigabit capability, make sure you use one of these ports to achieve maximum data
transfer speeds.
Connecting the Adapter to a Network

16D-Link DUB-1312 User Manual
Section 2 - Installation
After installation, the Connection Speed LED on the DUB-1312 will illuminate solid orange only if the device is connected to
a 1 Gbps network. It will remain o if the DUB-1312 is connected to a 10/100 Mbps network. The Link/ACT LED will be solid
green when a connection is present, and will ash green when data is being transmitted or received.
If both LEDs are unlit, there may be a problem with the physical connection. Check the connection and cables between the
DUB-1312 and your switch or router. Also verify that your network switch or router is powered on.
Completing the Installation
Number Indication Status Description
1 Connection Speed
Solid 1 Gbps connection present
O 10/100 Mbps connection present
2 Link/ACT
Solid An active connection is present
Flashing Data is being transmitted/received
12

17D-Link DUB-1312 User Manual
Section 3 - Troubleshooting
Troubleshooting
Do I need to use a crossover cable or straight-through cable?
With most of D-Link’s switches/routers, the Ethernet ports are Auto MDI-II/MDI-X. This means the port will auto-detect the
cable type. Auto MDI-II/MDI-X ports may react dierently if the Ethernet cable is not properly pinned. If you make your own
cables, it is very important that they follow the industry standard pin-out (568A and 568B).
Computer connections to a hub, switch, or router typically use a straight-through cable. When connecting a computer to
another computer or to an uplink port then a cross-over cable is typically required. Rule of thumb: ”If there is a link light, the
cable is right.”
Why isn’t my DUB-1312 achieving one Gbps speed?
1 Gbps (1,000 Mbps) is the theoretical maximum speed of the gigabit Ethernet standard, and actual speeds may vary. Gigabit
connectivity is dependent on a number of factors, and just one weak link in your network can reduce data speeds. If you are
not achieving gigabit speeds, you should check the following:
• Ensure that the DUB-1312 is plugged in to a USB 3.0 port, and that the drivers for this port are correctly installed.
• Check your network cable. A cable with specication for Category 5e (enhanced) or above is required for gigabit speeds,
with a maximum length of 100 metres. Also check your cable for damage, or for wear and tear.
• If you are connected to a switch, hub, or router, ensure that this device is also gigabit-capable.
• Network congestion can aect data rates. You may experience slower speeds due to heavy data trac elsewhere on
the network.
