D-Link DGL-4300 - GamerLounge Wireless 108G Gaming... User manual

Table of Contents
2 D-Link Systems, Inc.
Contents
Package Contents ............................................................................... 6
Minimum System Requirements .............................................................. 6
Introduction ...................................................................................... 7
Features and Benefits .......................................................................... 8
Hardware Overview ............................................................................. 9

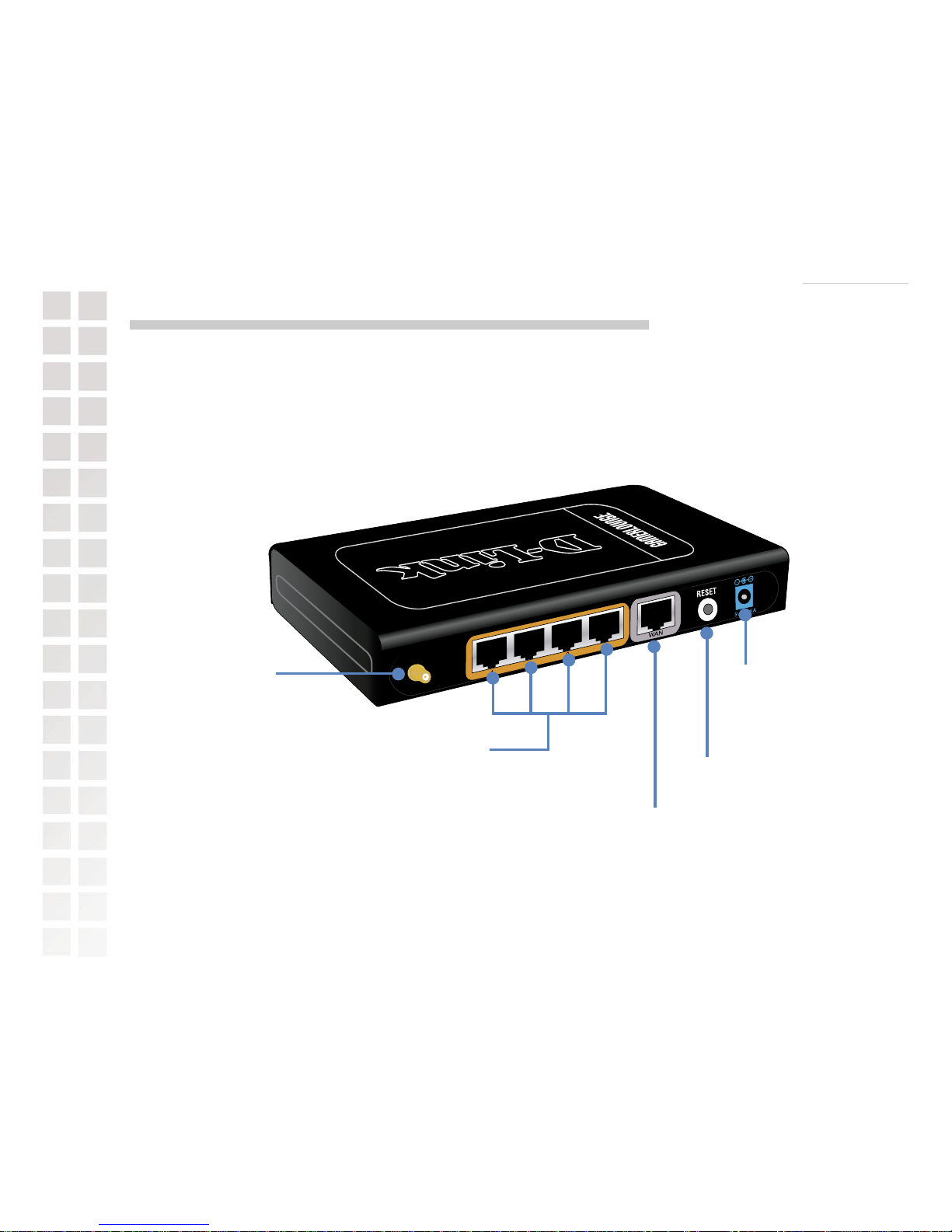

Connections .........................................................................................................9
LEDs ...................................................................................................................10
Wireless Basics ................................................................................11
Standards-based Technology .............................................................................12
Installation Considerations .................................................................................12

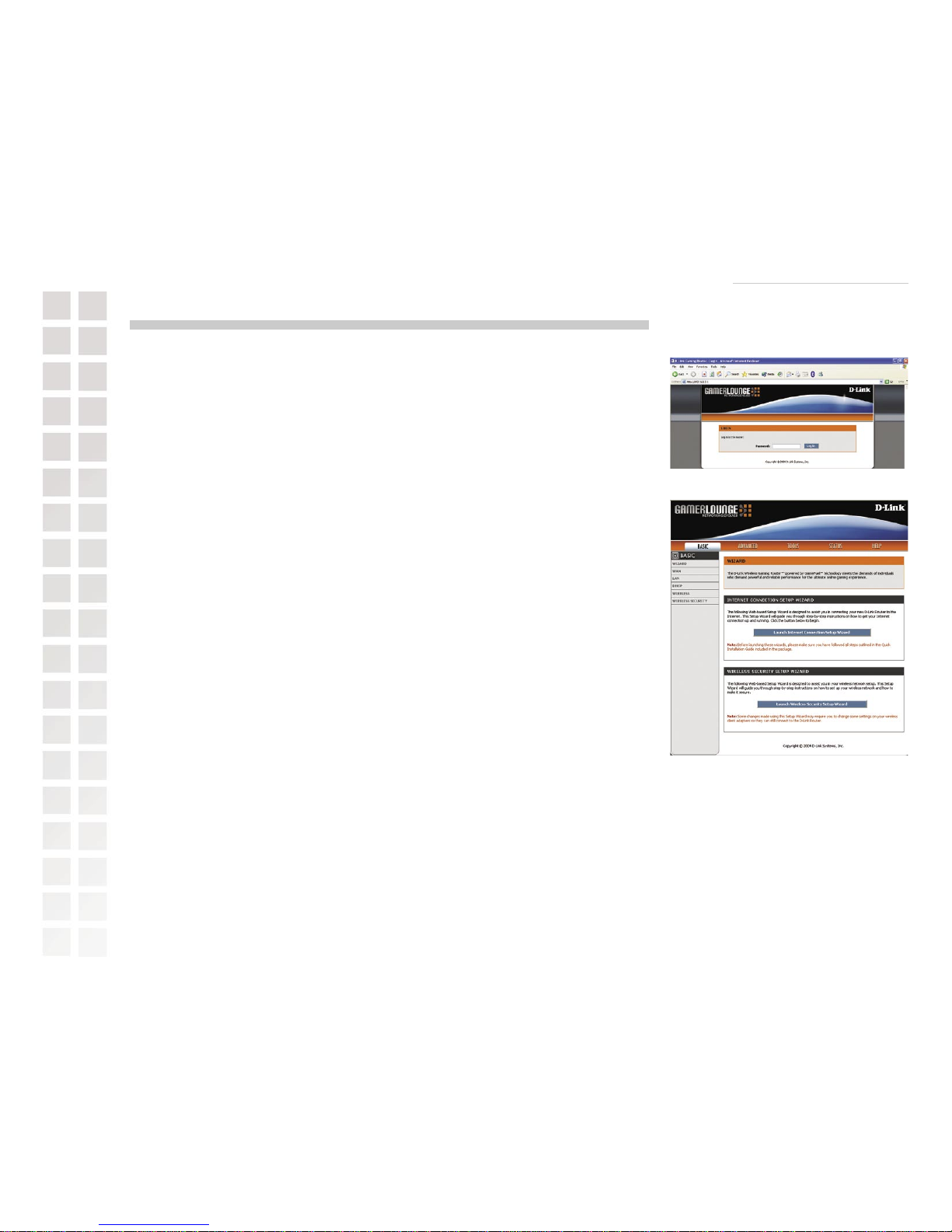

Using the Configuration Interface ........................................................... 13
Basic ..................................................................................................................13
Wizard ..........................................................................................................13

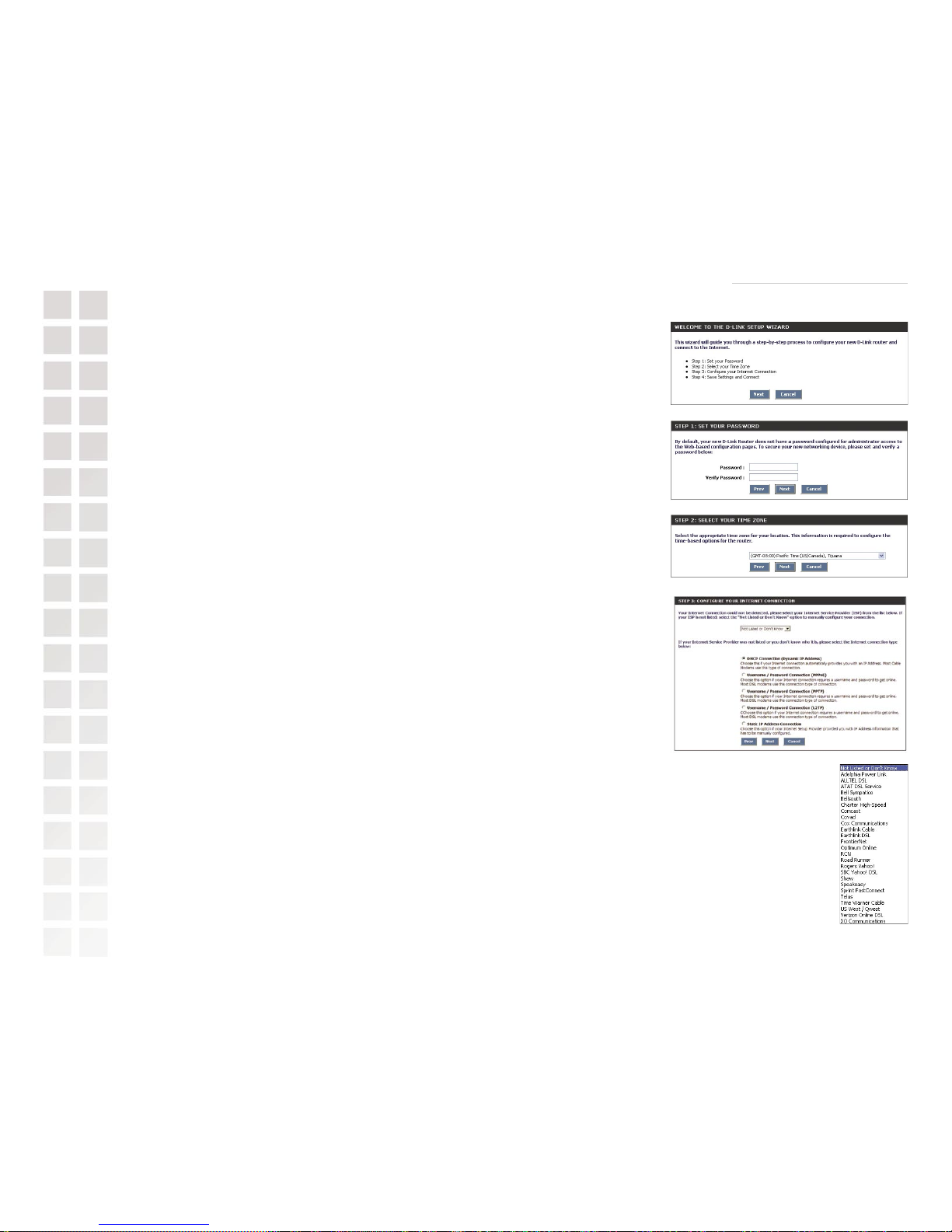

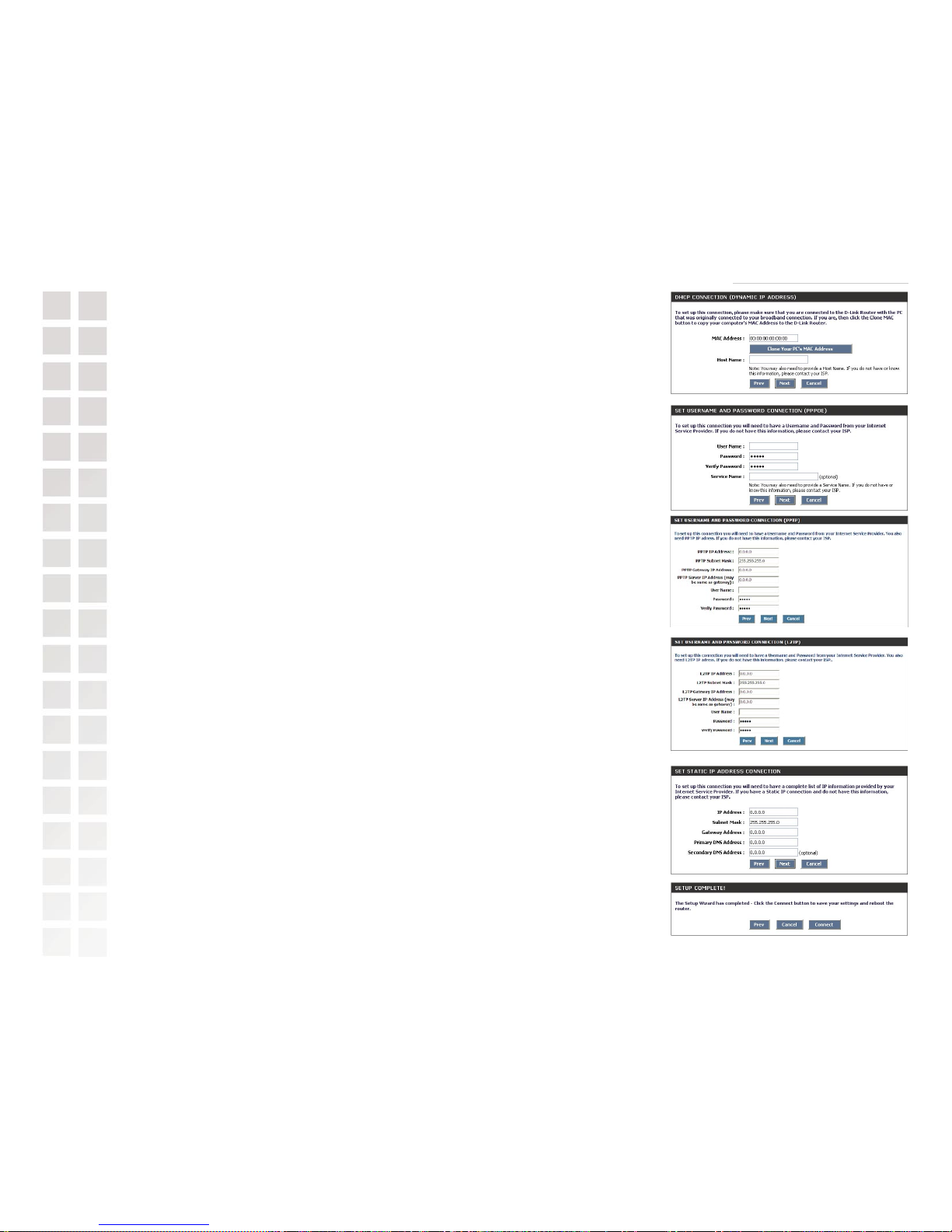

Internet Connection Setup Wizard ...........................................................14

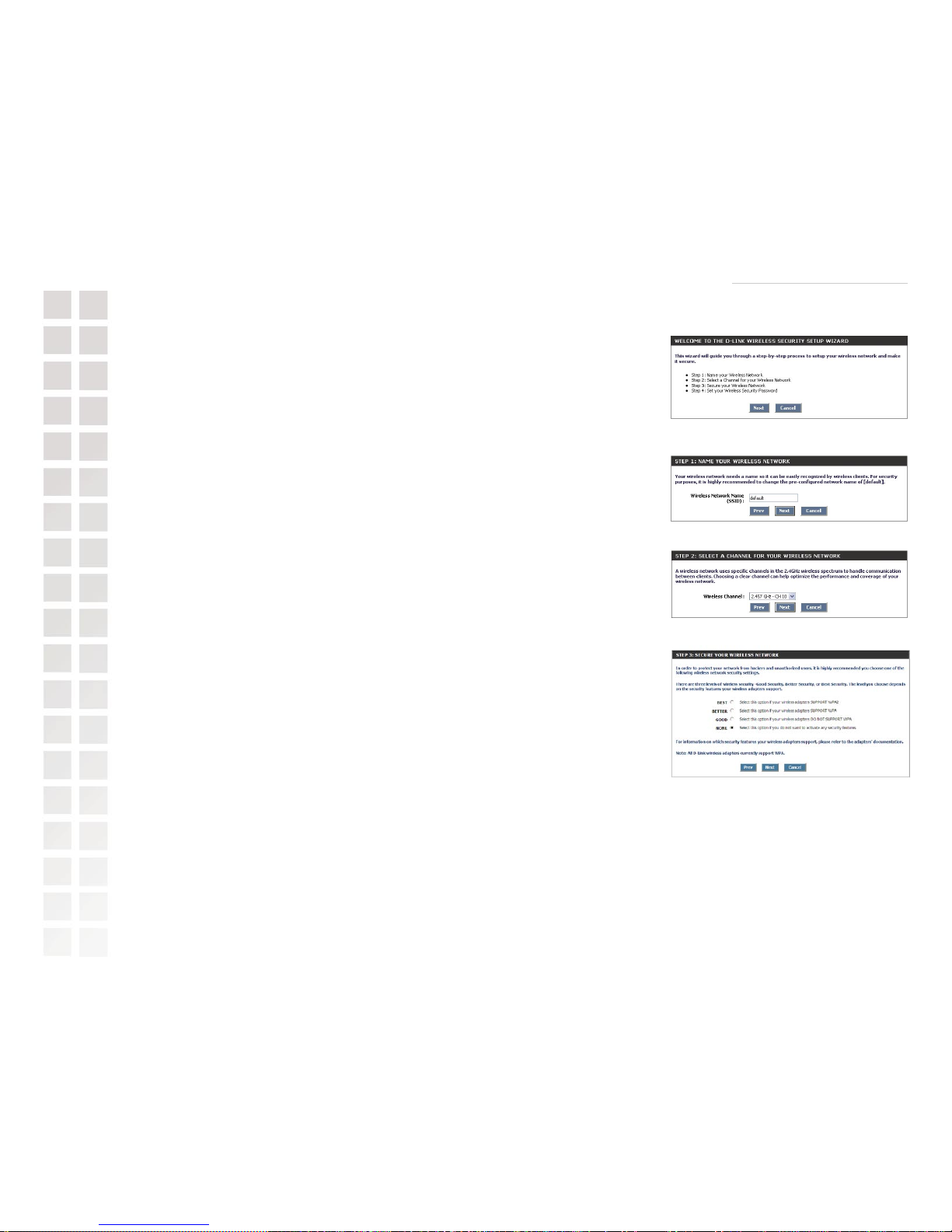

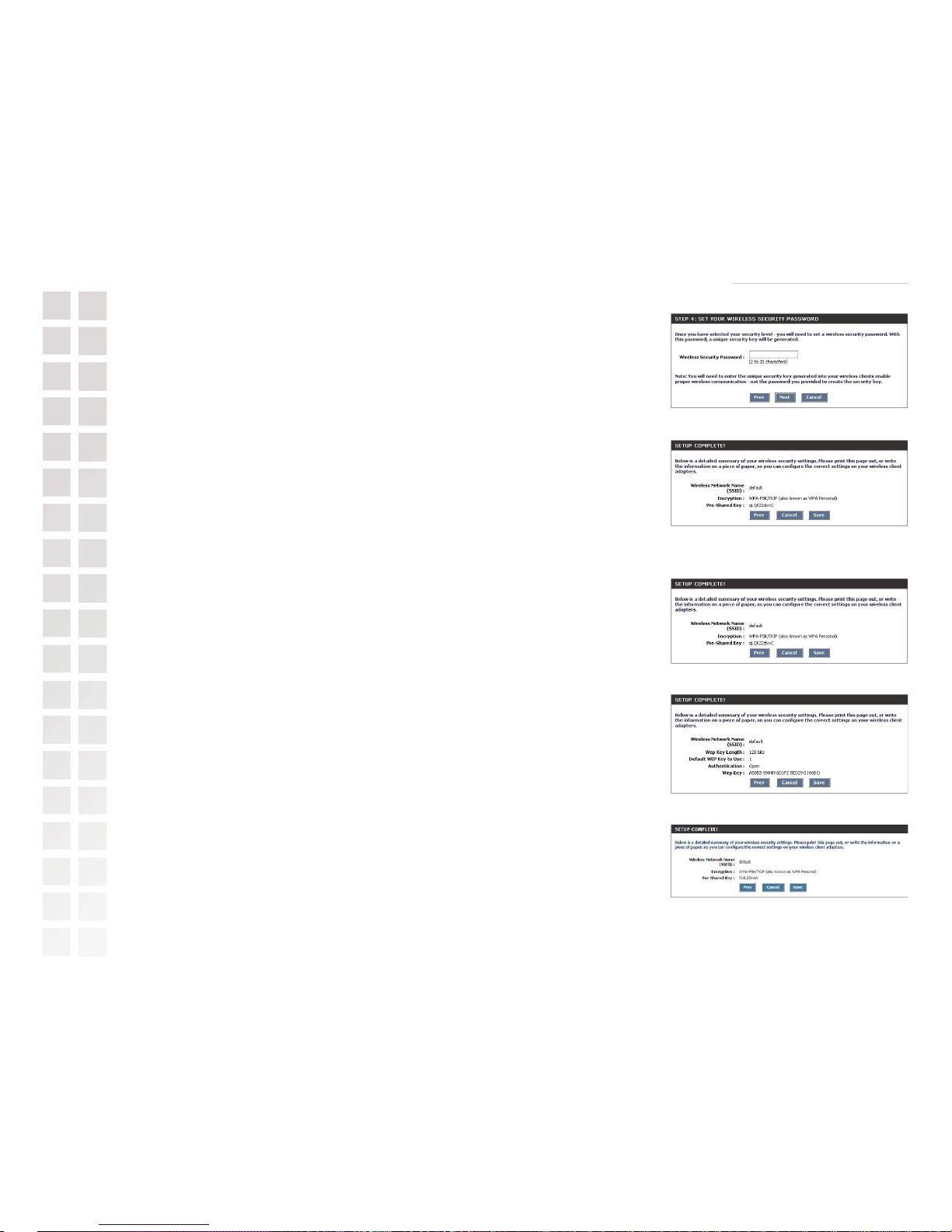

Wireless Security Setup Wizard ..............................................................16
WAN .............................................................................................................18
Modes ....................................................................................................18
Advanced ...........................................................................................19

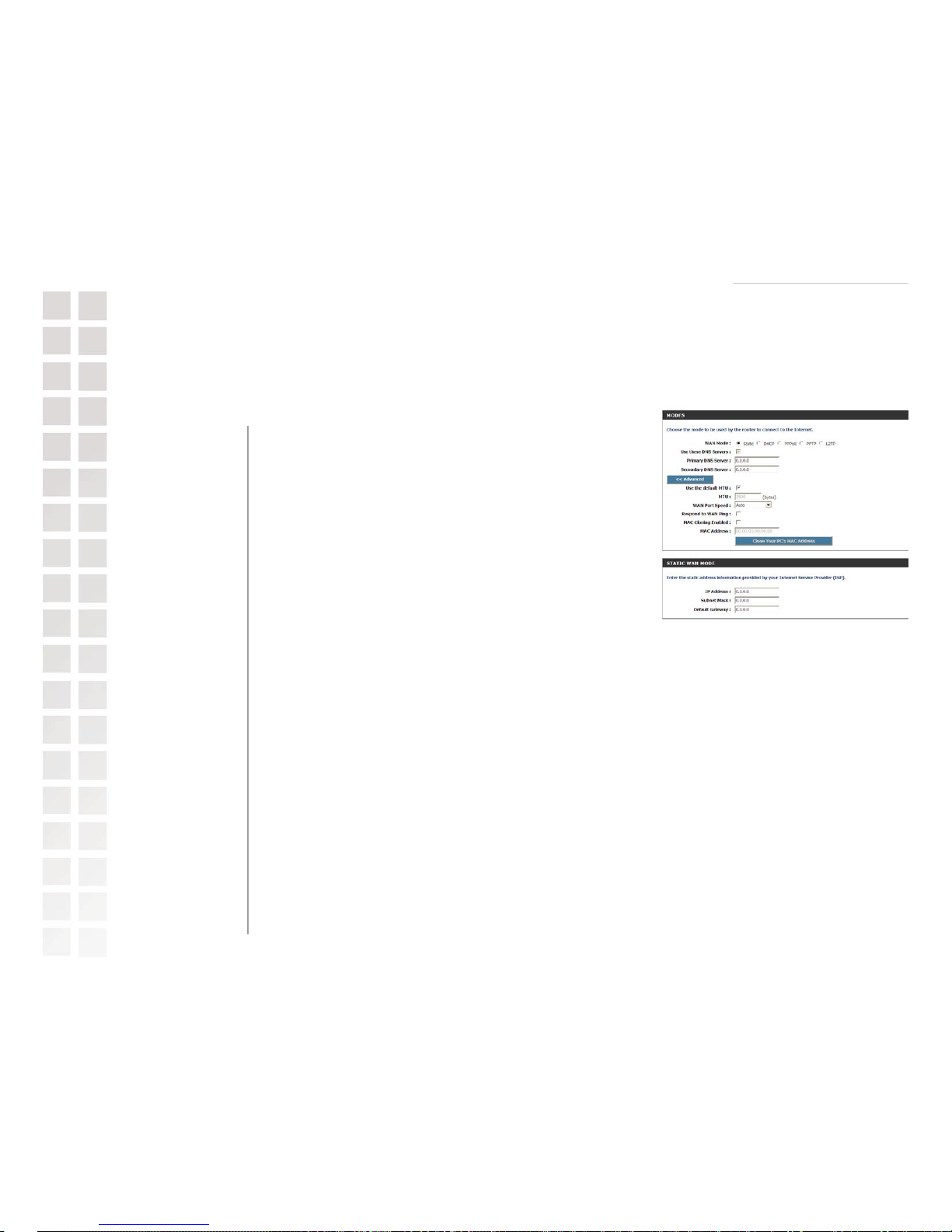

Static WAN Mode ....................................................................................20
DHCP WAN Mode ....................................................................................20
PPPoE WAN Mode ..................................................................................21
PPTP WAN Mode ....................................................................................22
L2TP WAN Mode .....................................................................................23
LAN ...............................................................................................................23
LAN Settings ...........................................................................................23
DHCP ............................................................................................................24
DHCP Settings .........................................................................................24
Number of Dynamic DHCP Clients ..........................................................24
Add Static DHCP Client ...........................................................................25

Table of Contents
3 D-Link Systems, Inc.
Static DHCP Client List ............................................................................25
Wireless ........................................................................................................26
Basic Wireless Settings ...........................................................................26
Wireless Security Mode ................................................................................27
WEP ........................................................................................................27
WPA-Personal .........................................................................................28
WPA-Enterprise .......................................................................................28
Advanced ...........................................................................................................29
Virtual Server ...............................................................................................29
Add/Edit Virtual Server ............................................................................30
Virtual Servers List ..................................................................................30
Special Applications ......................................................................................31
Application Level Gateway (ALG) Configurations ...................................31
Add/Edit Special Applications Rule ...............................................................32
Special Applications Rules List .....................................................................32
Gaming .........................................................................................................33
Add/Edit Game Rule ..............................................................................33
Game Rules List ......................................................................................33
GameFuel™ ...................................................................................................34
GameFuel™ Setup ...................................................................................34
Add/Edit GameFuel™ Rule .......................................................................35
GameFuel Rules List ................................................................................35
Routing .........................................................................................................36
Add/Edit Route ........................................................................................36
Route List ................................................................................................36
Access Control ..............................................................................................37
Enabled ...................................................................................................37
Add/Edit Access Control Rule .................................................................37
Access Control Rules List .......................................................................38
Web Filter .....................................................................................................38
Add/Edit Web Site ...................................................................................38
Allowed Web Site List .............................................................................38

Table of Contents
4 D-Link Systems, Inc.
Mac Address Filters ......................................................................................39
Filter Settings ..........................................................................................39
Add MAC Address ...................................................................................39
MAC Address List ....................................................................................39
Firewall .........................................................................................................40
Firewall Settings ......................................................................................40
Inbound Filters ..............................................................................................41
Add/Edit Inbound Filter Rule ...................................................................41
Inbound Filter Rules List .........................................................................41
Configuring an Inbound Filter Rule ..........................................................42
Advanced Wireless .......................................................................................43
Advanced Wireless Settings ....................................................................43
Tools ..................................................................................................................44
Admin ...........................................................................................................44
Password ................................................................................................44
Administration .......................................................................................44
Save and Restore Configuration ..............................................................44
Time ..............................................................................................................45
Time Configuration ..................................................................................45
Set the Date and Time .............................................................................45
Schedules .....................................................................................................46
Add/Edit Schedule Rule ..........................................................................46
Schedule Rules List .................................................................................46
Syslog ...........................................................................................................47
Email .............................................................................................................47
Email Settings .........................................................................................47
Email Log When Full or on Schedule .......................................................47
System .........................................................................................................48
System Commands .................................................................................48
Firmware .......................................................................................................49
Firmware Information ..............................................................................49
Firmware Upgrade ...................................................................................49

Table of Contents
5 D-Link Systems, Inc.
Firmware Upgrade Notification Options ...................................................49
Dynamic DNS ...............................................................................................50
Status .................................................................................................................51
Device Info ....................................................................................................51
General ....................................................................................................51
WAN ........................................................................................................51
LAN .........................................................................................................51
Wireless LAN ...........................................................................................52
Wireless ........................................................................................................52
Routing .........................................................................................................52
Logs .............................................................................................................53
Log Options .............................................................................................53
Log Details ..............................................................................................53
Statistics .......................................................................................................53
Network Traffic Stats ...............................................................................53
LAN Statistics ..........................................................................................54
WAN Statistics ........................................................................................54
Wireless Statistics ...................................................................................54
Active Sessions .............................................................................................54
Appendix ......................................................................................... 55
Securing Your Network .....................................................................................55
Glossary .............................................................................................................57
Technical Specifications ...................................................................... 67
Contacting Technical Support ................................................................ 69
Warranty ......................................................................................... 70
Registration ..................................................................................... 74

Package Contents
6 D-Link Systems, Inc.

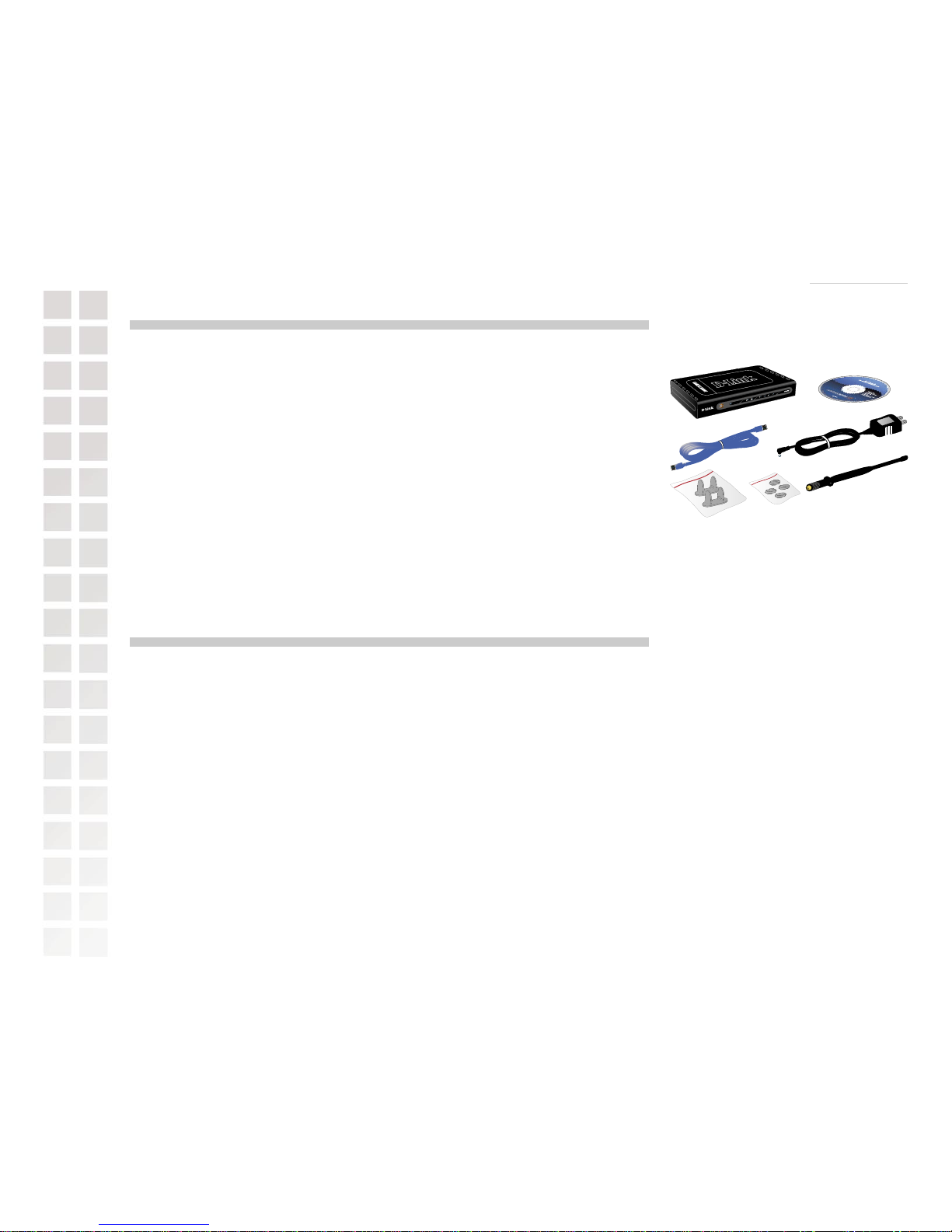

Package Contents
 D-Link® DGL-4300 GamerLounge™ Gaming Router
 Detachable Antenna
 Cat5 Ethernet Cable
 Power Adapter (5.0V, 2.5A)
 CD-ROM with Manual
 Quick Installation Guide
 Vertical Stands
 Rubber Feet
Note: Using a power supply with a different voltage than the one included with your product
will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Minimum System Requirements
 Ethernet-Based Cable or DSL Modem
To Change Default Settings
 PC with
 1.2GHz Processor
 256MB Memory
 CD-ROM Drive
 Ethernet Adapter with TCP/IP Protocol Installed
 Windows® XP/2000 or Mac® OS X v10.3/v10.2/v10.1
 Internet Explorer v6 or Netscape® Navigator v7

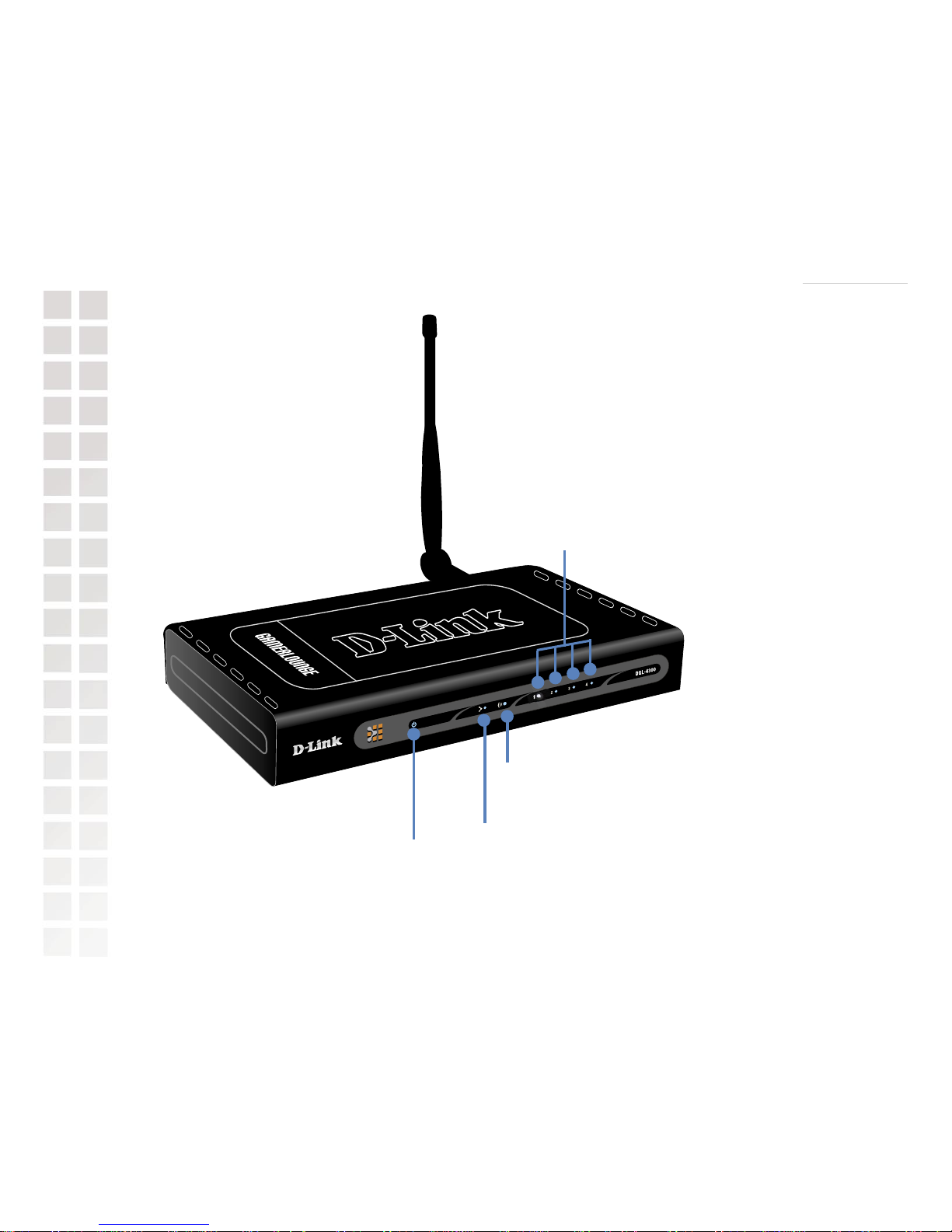

D-Link® DGL-4300 Gaming Router
Power Adapter
Ethernet Cable
Vertical Stands
Rubber Feet
Detachable Antenna
CD-ROM with Manual

Introduction
7 D-Link Systems, Inc.
Introduction
The D-Link GamerLounge™ DGL-4300 High-Speed Wireless Gaming Router is an 802.11g high-
performance, wireless router that supports high-speed wireless networking and is designed to provide
maximum gaming performance.
With top-notch maximum wireless signal rates of up to 108Mbps1 and Gigabit Ethernet support for
10/100/1000Mbps LAN connections, rest assured enough bandwidth is available for all your gaming
needs.
The DGL-4300 incorporates GameFuel™ Technology designed to provide the uninterrupted and
flawless gaming experience serious online gamers expect.
The DGL-4300’s high-performance CPU supports up to 6000 concurrent connections, making it
ideal for P2P applications and multiplayer interactivity.
1Maximum wireless signal rate derived from IEEE Standard 802.11a/11b/11g specifications. Actual data throughput will vary.
Network conditions and environmental factors lower actual data throughput rate.

Features and Benefits
8 D-Link Systems, Inc.
Features and Benefits
 Loaded with game-centric features boasting maximum flexibility for configuration and
performance
 Designed for the Gamers Network
 GameFuel Priority powered platform delivers fully-loaded features boosting network efficiency
and performance
 Enhanced wireless technology for optimal range and connectivity – up to 108Mbps1
 High-Performance CPU – ideal for P2P applications and multiplayer interactivity
 Automatically prioritizes and intelligently manages network traffic to better execute bandwidth-
sensitive applications such as VoIP and multimedia streaming
 Enables multi-tasking between other applications without degradation in game connection
 Pre-configured ports to accommodate up to 256 policies for games and applications
 Customizable settings to add or modify new applications or game configurations
 New firmware upgrade notification keeps your D-Link Gaming Router up-to-date
 Next Generation hardware with one Fast Ethernet 10/100 WAN port and four Gigabit Ethernet
10/100/1000 auto-sensing LAN ports
 Shamelessly attractive chassis – chrome-plated front panel, hypnotizing blue LEDs
 5dBi high-gain antenna for exceptional wireless signal
 Smooth GUI design for seamless device management
 Protect your wireless data with both Wi-Fi Protected Access (WPA) and 128-bit Wired Equivalent
Privacy (WEP)
 Integrated Stateful Packet Inspection (SPI) firewall and Network Address Translation (NAT)
firewall help protect against hackers, wardrivers, and other unauthorized users
 Create versatile Access Control policies to control network access based on time, date, websites,
and/or applications
 Disable SSID Broadcast and MAC Filtering features help increase your level security to protect
against unauthorized access to your wireless network
 Supports Virtual Private Network (VPN) pass-through to create a secure connection to your day
job
1Maximum wireless signal rate derived from IEEE Standard 802.11a/11b/11g specifications. Actual data throughput will vary.
Network conditions and environmental factors lower actual data throughput rate.

Hardware Overview
9 D-Link Systems, Inc.
Hardware Overview
Connections
All Ethernet Ports (WAN and LAN) are auto MDI/MDIX, meaning you
can use either a straight-through or a crossover Ethernet cable.
Auto MDI/MDIX LAN ports
automatically sense the cable type
when connecting to Ethernet-enabled
computers.
The Auto MDI/MDIX WAN
port is the connection for the
Ethernet cable to the Cable or
DSL modem.
Receptor for the
Power Adapter
Pressing the Reset Button
restores the router to its
original factory default
settings.
Antenna Connector
for wireless antenna

Hardware Overview
10 D-Link Systems, Inc.
WAN LED
A solid light indicates connection on the WAN
port. This LED blinks during data transmission
POWER LED
A solid light indicates a proper
connection to the power supply
LOCAL NETWORK LEDs
A solid light indicates a connection
to an Ethernet-enabled computer on
ports 1-4. This LED blinks during data
LEDs
WLAN LED
This LED will blink to indicate activity on the
wireless network

Wireless Basics
11 D-Link Systems, Inc.
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible
high-speed wireless connectivity within your home, business, or on public access wireless networks.
D-Link wireless products will allow you access to the data you want, when and where you want it.
You will be able to enjoy the freedom that wireless networking brings.
A WLAN is a cellular computer network that transmits and receives data with radio signals instead of
wires. WLANs are used increasingly in both home and office environments, and public areas such
as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping
people to work and communicate more efficiently. Increased mobility and the absence of cabling
and other fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards
used on laptop and desktop systems support the same protocols as Ethernet adapter cards.
People use wireless LAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location within the operating
range of the WLAN. Management decisions based on real-time information can significantly improve
worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change and relocate. Networks
that frequently change can benefit from WLANs ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and easy and can
eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network
to go where wires cannot go - even outside the home or office.
Scalability – WLANs can be configured in a variety of topologies to meet the needs of specific
applications and installations. Configurations are easily changed and range from peer-to-peer
networks suitable for a small number of users to larger infrastructure networks to accommodate
hundreds or thousands of users, depending on the number of wireless devices deployed.
Inexpensive Solution - Wireless network devices are as competitively priced as conventional
Ethernet network devices.

Wireless Basics
12 D-Link Systems, Inc.
Standards-based Technology
The DGL-4300 Wireless Broadband Router utilizes the new 802.11g standard.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the data rate up
to 54Mbps within the 2.4GHz band, utilizing OFDM technology.
This means that in most environments, within the specified range of this device, you will be able
to transfer large files quickly or even watch a movie in MPEG format over your network without
noticeable delays. This technology works by transmitting high-speed digital data over a radio
wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by
splitting the radio signal into multiple smaller sub-signals that are then transmitted simultaneously
at different frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in
signal transmissions.
The DGL-4300 is backwards compatible with 802.11b devices. This means that if you have an
existing 802.11b network, the devices in that network will be compatible with 802.11g devices at
speeds of up to 11Mbps in the 2.4GHz range.
Installation Considerations
The D-Link DGL-4300 lets you access your network, using a wireless connection, from virtually
anywhere within its operating range. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.
Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic guidelines:
 Keep the number of walls and ceilings between the DGL-4300 and other network devices to a
minimum - each wall or ceiling can reduce your D-Link wireless product’s range from 3-90 feet
(1-30 meters). Position your devices so that the number of walls or ceilings is minimized.
 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters),
at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks
over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a
wall or ceiling (instead of at an angle) for better reception.
 Building Materials can impede the wireless signal - a solid metal door or aluminum studs may
have a negative effect on range. Try to position wireless devices and computers with wireless
adapters so that the signal passes through drywall or open doorways and not other materials.
 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances

Using the Configuration Interface
13 D-Link Systems, Inc.
Using the Configuration Interface
The Configuration Interface can be accessed from your Web browser. Open up your Web browser
and type http://192.168.0.1 in the address field and press Enter. The Configuration Interface login
screen will appear. By default, there is no password. Click on the Log In button to access the
Configuration main screen.
Note: If you are online you will see status.
Basic
The Basic settings tab contains the Setup Wizards, Internet connection, and network setting
options.
Wizard
The Wizard screen contains two wizards that assist you with the configuration of your D-Link®
Gaming Router.
Basic > Wizard

Using the Configuration Interface
14 D-Link Systems, Inc.
Internet Connection Setup Wizard
The Internet Connection Setup Wizard will assist you with connecting your D-Link® Gaming RouterTM
to the Internet. The step by step guide will prompt you for the necessary information to get you
connected. The Internet Connection Setup Wizard guides you through the following basic router
setup steps:
To begin, click on the Launch Internet Connection Setup Wizard button.
 The Welcome To The D-Link Setup Wizard screen appears, click Next to continue.
 Step 1: Set Your Password prompts you to enter a password for the Web-based configuration
interface. You must also enter the password in the Verify Password prompt.
 Step 2: Select Your Time Zone prompts you to select your time zone from the pull-down
menu.
 Step 3: Configure Your Internet Connection prompts you to select your Internet Service
Provider from the pull-down menu. If your Internet Service Provider is not listed or you do not
know who it is, you can select the connection type manually.

Using the Configuration Interface
15 D-Link Systems, Inc.

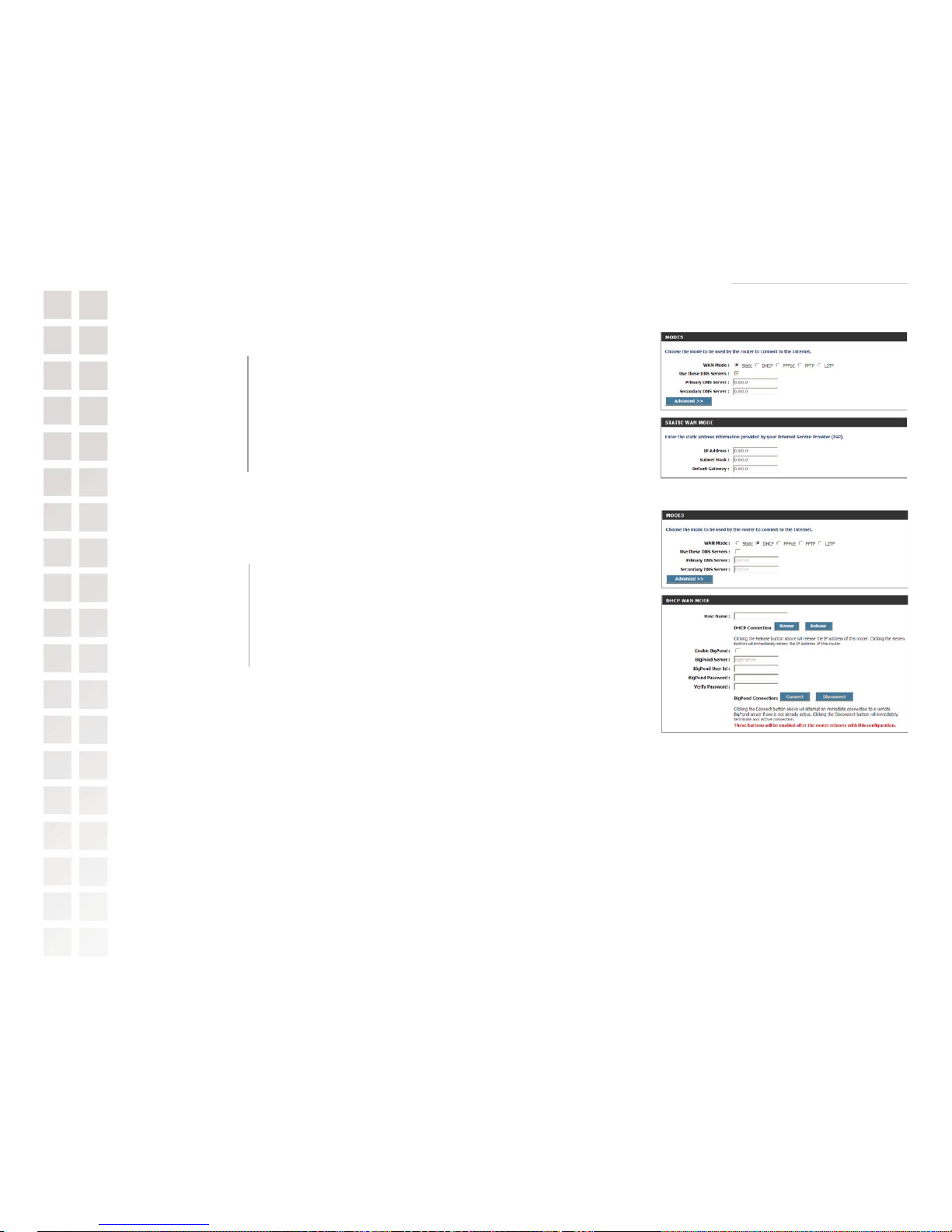

Depending upon your Internet Service Provider or the type of connection you selected in the previous
step, one of five screens will appear. If you are unsure of any of the information, please contact your
Internet Service Provider (ISP) for details.
 DHCP Connection (Dynamic IP Address) requires you to enter the MAC address of the
computer that was originally connected to your broadband modem. If you are using that computer,
click on the Clone Your PC’s MAC Address button and the MAC address is automatically
copied. If your ISP requires you to enter a Host Name, please do so.
 Set Username and Password Connection (PPPoE) prompts you to enter your Username
and Password. You must also verify the Password. If your ISP requires a Service Name entry,
please enter it here.
 Set Username and Password Connection (PPTP) prompts you to enter your PPTP IP Address,
PPTP Subnet Mask, PPTP Gateway IP Address, PPTP Server IP Address, Username, and
Password. You must also verify the Password.
 Set Username and Password Connection (L2TP) prompts you to enter your L2TP IP Address,
L2TP Subnet Mask, L2TP Gateway IP Address, L2TP Server IP Address, Username and
Password. You must also verify the Password.
 Set Static IP Address Connection prompts you to enter the IP address, Subnet Mask, Gateway
Address, Primary and Secondary DNS address information.
 Setup Complete will appear after all of the settings have been entered. Click Connect to save
your settings and reboot the router.

Using the Configuration Interface
16 D-Link Systems, Inc.
Wireless Security Setup Wizard
The Wireless Security Setup Wizard will assist you with setting up your wireless network. The step by
step guide will ask you for the necessary information to secure your wireless network. The Wireless
Security Setup Wizard guides you through the following steps:
To begin, click on the Launch Wireless Security Setup Wizard button.
 The Welcome To The D-Link Wireless Security Setup Wizard screen appears, click Next to
continue.
 Step 1: Name Your Wireless Network prompts you to enter a wireless network name for your
network. This name is also referred to as SSID. For security purposes, it is highly recommended
that you do not use the default name.
 Step 2: Select A Channel for your Wireless Network prompts you to select the channel that
will be used by your router to communicate to wireless devices.
 Step 3: Secure Your Wireless Network prompts you to select the level of security that you
want to use on your wireless network.

Using the Configuration Interface
17 D-Link Systems, Inc.
Depending upon your selection in Step 3, you will see one of the following screens.
 Step 4: Set Your Wireless Security Password prompts you to enter a wireless security
password between 2 and 20 characters in length.
 If you selected Best security in step 3, this screen will appear providing you your pre-shared
key information.
 If you selected Better security in step 3, this screen will appear providing you your pre-shared
key information.
 If you selected Good security in step 3, this screen will appear providing you your WEP key
information.
 If you selected None security in step 3, this screen will appear providing you your wireless
network name.

Using the Configuration Interface
18 D-Link Systems, Inc.

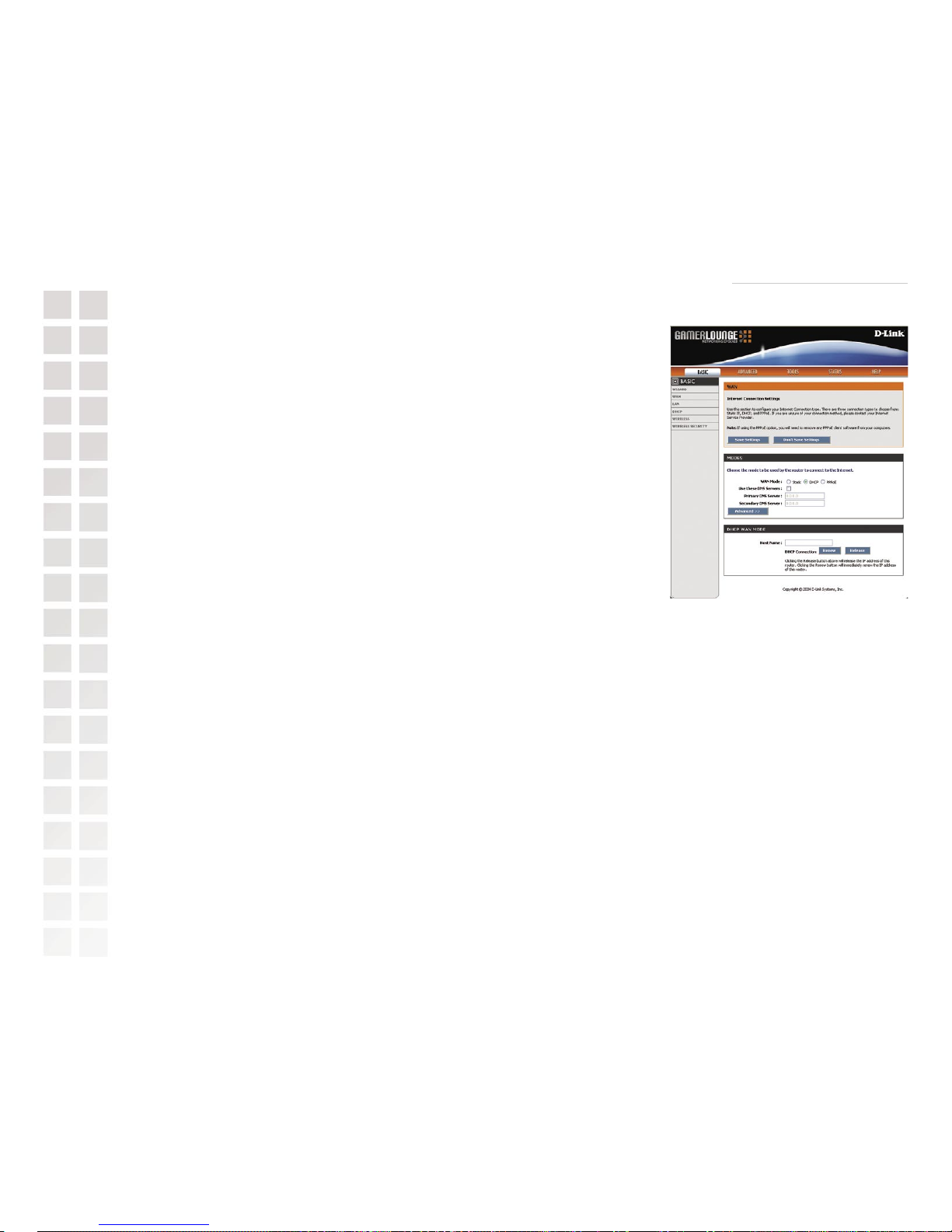

WAN
The WAN section is where your Internet Connection mode is selected. Your Internet Service Provider
(ISP) determines the type of connection that you use.
Modes
There are five connection modes to choose from as shown below. If you are unsure of your connection
settings, contact your Internet Service Provider (ISP) and you can enter the necessary information on
the QIG or print this page and write the settings for future reference.
Primary DNS Server: _____._____._____._____
Secondary DNS Server: _____._____._____._____
 Static: Used when your ISP provides you a set IP address that does not change. The IP information
is manually entered in your IP configuration settings.
IP Address: _____._____._____._____
Subnet Mask: _____._____._____._____
Default Gateway: _____._____._____._____
 DHCP: A method of connection where the ISP assigns your IP address when your computer
requests one from the ISP’s server. Some ISP’s require you to make some settings on your side
before your computer can connect to the Internet.
Host Name:______________________
 PPPoE: A method of connection that requires you to enter a Username and Password (provided
by your Internet Service Provider) to gain access to the Internet.
Username:______________________
Password:______________________
Service Name (Optional):______________________
 PPTP: A method of connection that requires you to enter information provided by your Internet
Service Provider to gain access to the Internet.
PPTP IP Address: _____._____._____._____
PPTP Subnet Mask: _____._____._____._____
PPTP Gateway IP Address: _____._____._____._____
PPTP Server IP Address: _____._____._____._____
Username:______________________
Password:______________________
 L2TP: A method of connection that requires you to enter informatiom provided by your Internet
Service Provider to gain access to the Internet.
L2TP IP Address: _____._____._____._____
L2TP Subnet Mask: _____._____._____._____
L2TP Gateway IP Address: _____._____._____._____
L2TP Server IP Address: _____._____._____._____
Username:______________________
Password:______________________
Basic > WAN

Using the Configuration Interface
19 D-Link Systems, Inc.
All five modes have some common configuration options. The Primary and Secondary DNS Server
settings are required for Static configurations and optional for DHCP and PPPoE configurations. The
Advanced options on the following page can be modified for any of the five connection modes.
You should be able to get the Primary DNS and Secondary DNS Servers settings from your
router configuration settings, ISP, or your network administrator. Only the primary DNS server
address is required, though it is best to have both the primary and secondary addresses.
Advanced
The Advanced options apply to all WAN modes.
This option is enabled by default allowing the router to select the typical
MTU settings for the selected WAN interface. If this option is unchecked,
the router will use the value assigned in the MTU field.
The MTU (Maximum Transmission Unit) is a parameter that determines
the largest packet size (in bytes) that the router will send to the WAN. If
LAN devices send larger packets, the router will break them into smaller
packets. Ideally, you should set this to match the MTU of the connection
to your ISP. Typical values are 1500 bytes for an Ethernet connection and
1492 bytes for a PPPoE connection. If the router’s MTU is set too high,
packets will be fragmented downstream. If the router’s MTU is set too low,
the router will fragment packets unnecessarily and in extreme cases may be
unable to establish some connections. In either case, network performance
can suffer.
The WAN Port Speed is set to auto by default. If you have trouble connecting
the WAN port, you can select the connection type (10 or 100Mbps).
This option is disabled by default. By disabling the WAN ping, the router
will not respond to requests from a ping command received via the Internet.
Pinging public WAN IP addresses is a common method used by hackers
to test whether your WAN IP address is valid.
Some ISP’s may check your computer’s MAC address. Each networking
device has it’s own unique MAC address defined by the hardware
manufacturer. Some ISP’s record the MAC address of the network adapter
in the computer used to initially connect to their service. The ISP will then
only grant Internet access to requests from a computer with this particular
MAC address. The D-Link router has a different MAC address than the
computer that initially connected to the ISP. To resolve this problem, enable
this option.
When MAC Cloning is enabled, you can enter in a MAC address manually
in this field or click the Clone Your Computer’s MAC Address button.
When this button is clicked, the WAN port will use the MAC Address of the
network adapter in the computer that you are using to access the router.
Use the Default MTU:
MTU:
WAN Port Speed:
Respond to WAN Ping:
MAC Cloning Enabled:
MAC Address:
Clone Your PC’s MAC
Address:
Basic > WAN > Advanced

Using the Configuration Interface
20 D-Link Systems, Inc.
Static WAN Mode
Used when your ISP provides you a set IP address that does not change. The IP information is
manually entered in your IP configuration settings.
Input the IP Address provided from your router configuration settings, ISP
or network administrator.
Input the Subnet mask provided from your router configuration settings,
ISP or network administrator.
Input the Gateway address provided from your router configuration settings,
ISP or network administrator.
DHCP WAN Mode
A method of connection where the ISP assigns your IP address when your computer requests one
from the ISP’s server. Some ISP’s require you to make some settings on your side before your
computer can connect to the Internet.
Some ISP’s may check your computer’s HOST name. The HOST name
identifies your system to the ISP’s server. This way they know your computer
is eligible to receive an IP address. In other words, they know that you are
paying for their service.
The Release button will release the current IP address of the router. The
Renew button will request an IP address.
IP Address:
Subnet Mask:
Default Gateway:
Host Name:
DHCP Connection:
Basic > WAN > Static
Basic > WAN > DHCP
Basic > WAN > DHCP
