FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
Technical Support Setup Procedure
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using
the D-Link Connection Manager
Release date : 21/05/2013
Model Support : DWM-156
H/W:A6
S/W: 6.02

-2-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
Technical Support Setup Procedure
D-Link Connection Manager
(AIS3G: 2100 MHz
Note : 
1. SIM Card DWM-156 
2. SIM Card AIS-3G (2100 MHZ) 

http://www.ais.co.th/g/th/new-g-ais.aspx#tips
status 52003 
1 :USB USB 
2 : StartD-Link Connection Manager
3 :D-Link Connection Manager 

-3-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
4 :DWM-156 D-Link Connection Manager 
Profile AIS3G(2100 MHz)

-4-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
5 :Profile Management 

Profile Name : Profile Name ais-3g-2100)
APN : internet
Account Number : *99***1#
Username :
Password : 
Authentication type : None
Save 

-5-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
 6 :Profile Default Set as default 


-6-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
 7 :Connection 


-7-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
8 :Connect 


-8-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
 9 :
Connected 

-9-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
 10 :

-10-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
Technical Support Setup Procedure
How to Connect to the AIS3G (2100 MHz) Internet using the D-
Link Connection Manager
Note :
1. Make sure that the sim card is inserted in the sim tray of the DWM-156
2. Your SIM Card already open AIS-3G (2100 MHZ) you can see more
information from below link
http://www.ais.co.th/g/th/new-g-ais.aspx#tips
Status should show 52003 (look like below picture)
Step 1: Plug the USB adapter into any of the available USB port.
Step 2: Click on Start on your computer then Look for D-Link Connection Manager

-11-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

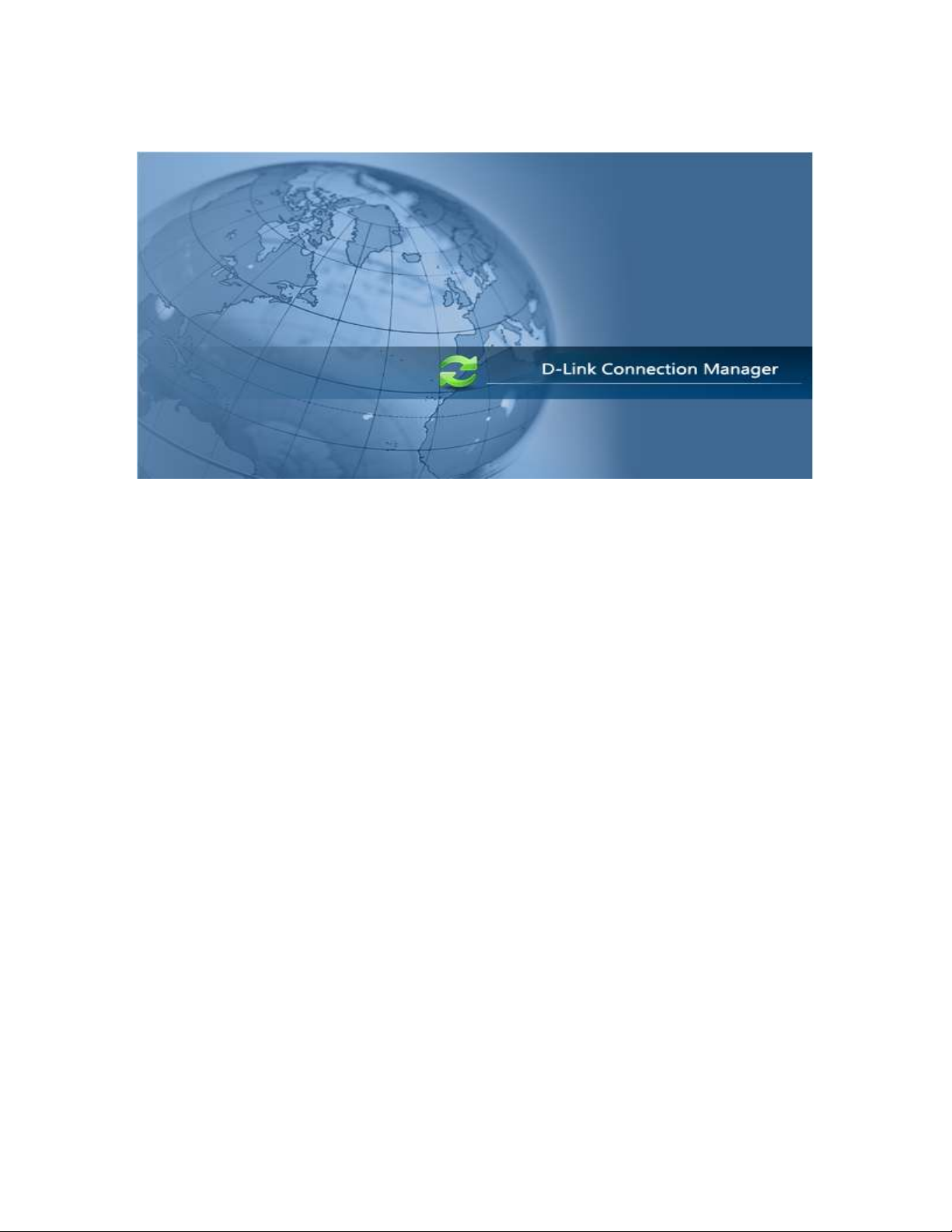

Step 3: The ‘D-Link Connection Manager’ will appear on your screen.

-12-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

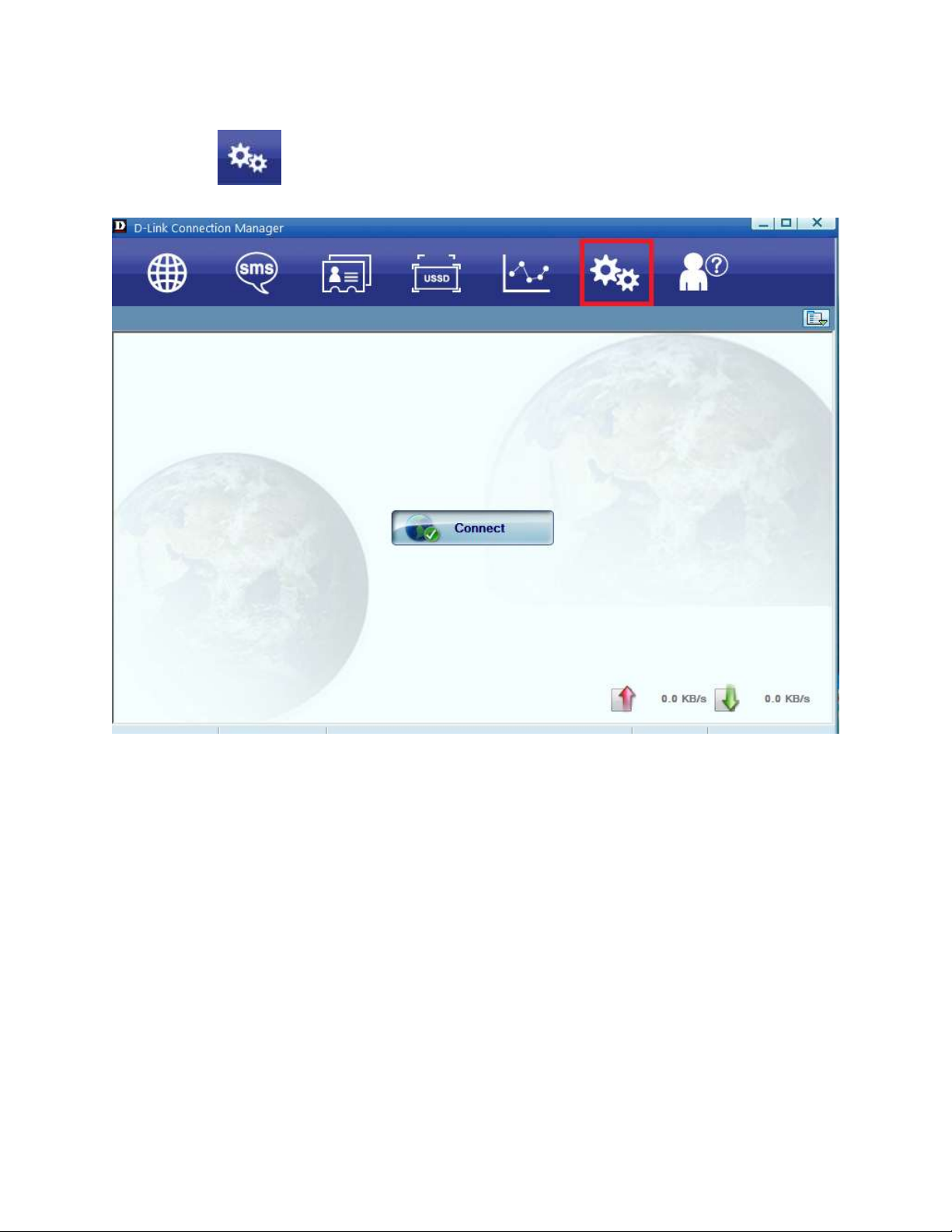

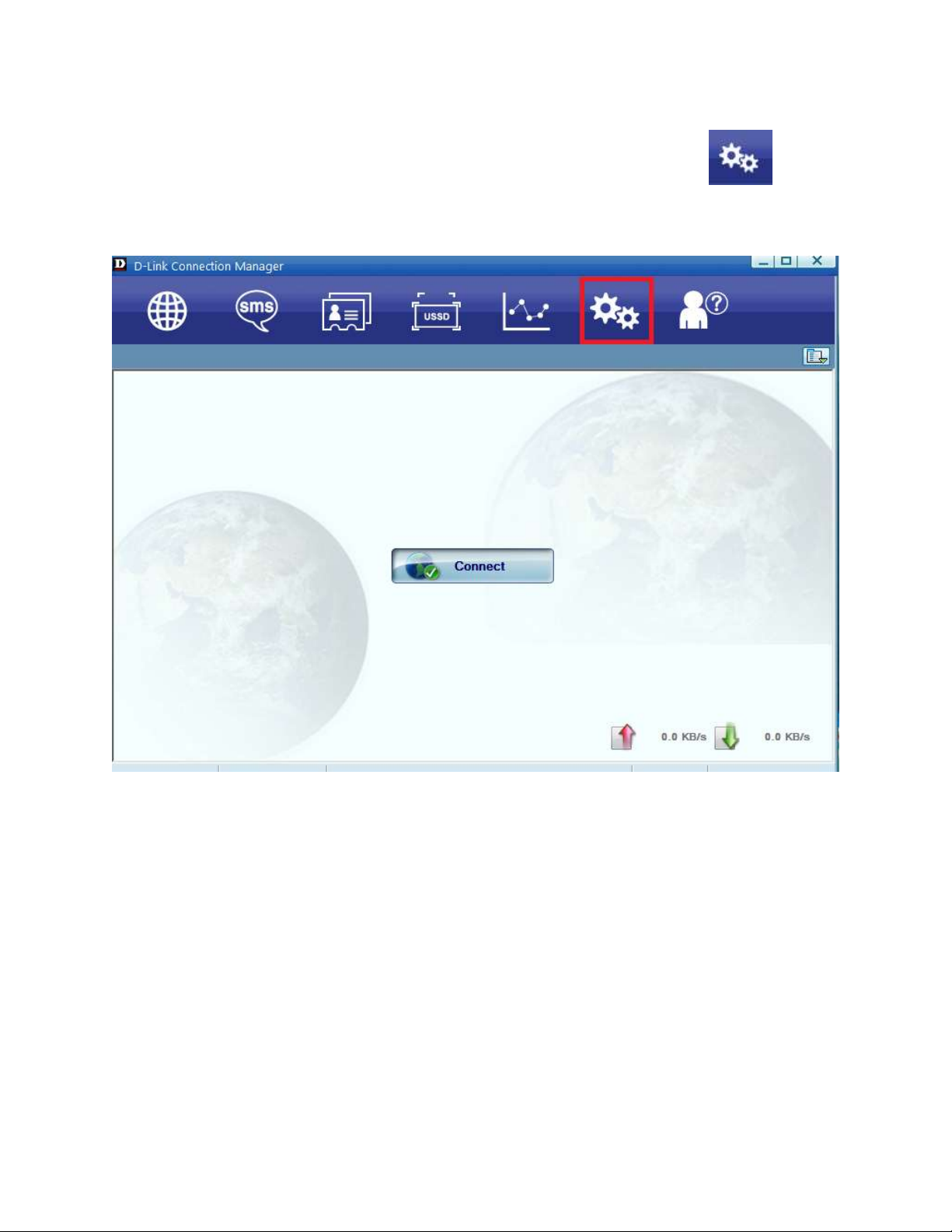

Step 4 :DWM-156 D-Link Connection Managerwill show screen to you please you click at
setting button for setup Profile AIS3G(2100 MHz)

-13-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

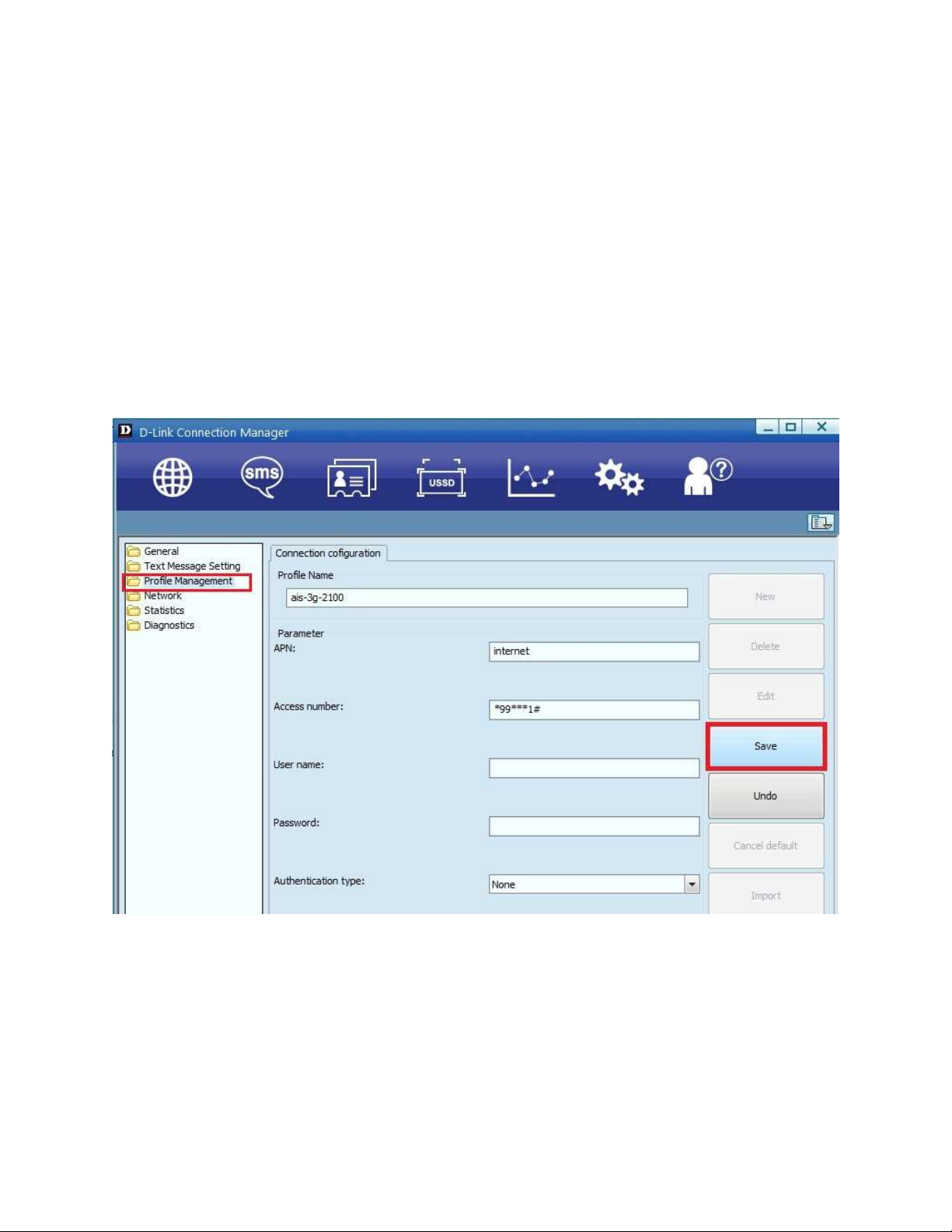

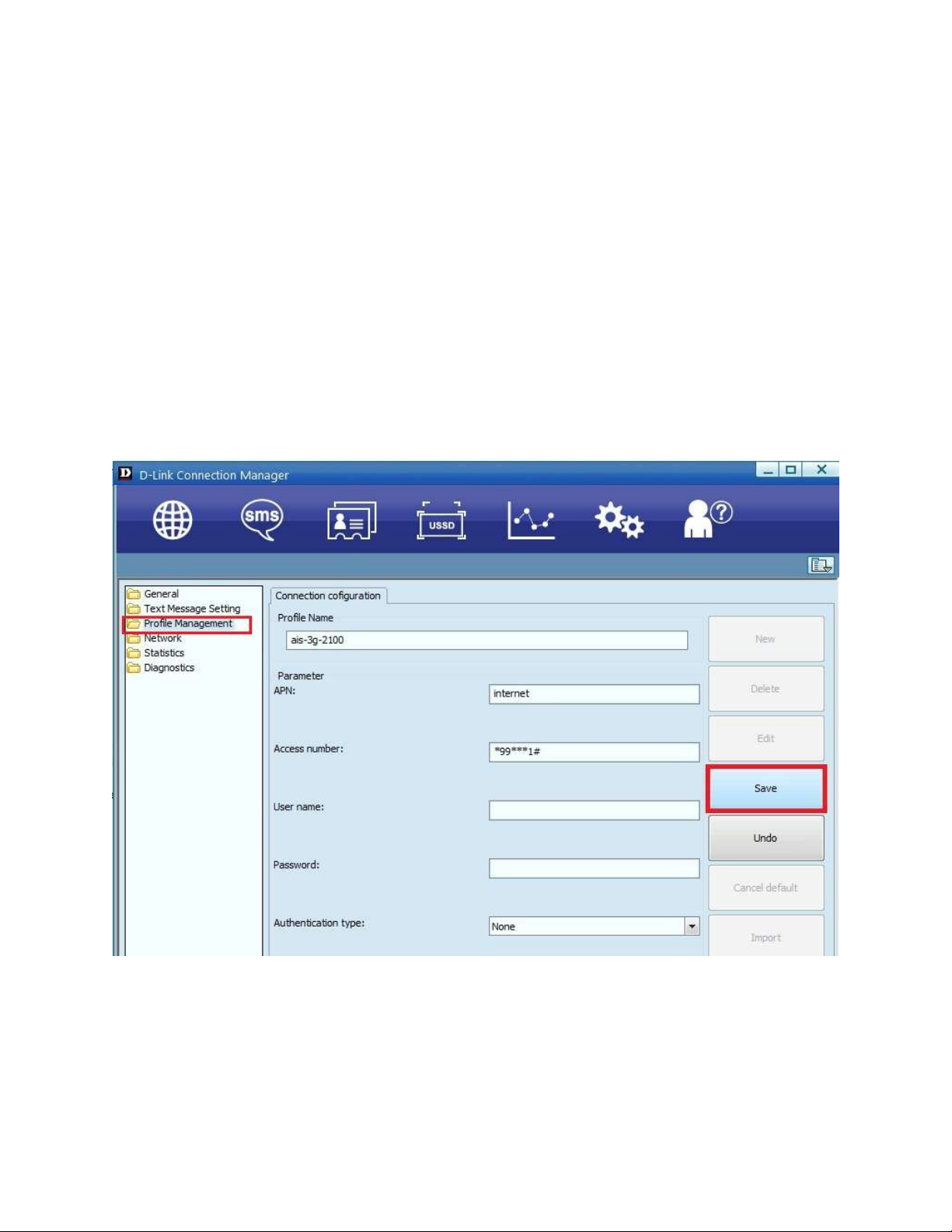

Step 5 : After that you will see submenu , go to submenu profile management and setup
parameter look like this example
Profile Name : You can setup any name to Profile Name For this example
use: ais-3g-2100)
APN : internet
Account Number : *99***1#
Username :Leave Bank
Password : Leave Bank
Authentication type : None
After you finish setup, Click Save Button on the right hand side

-14-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

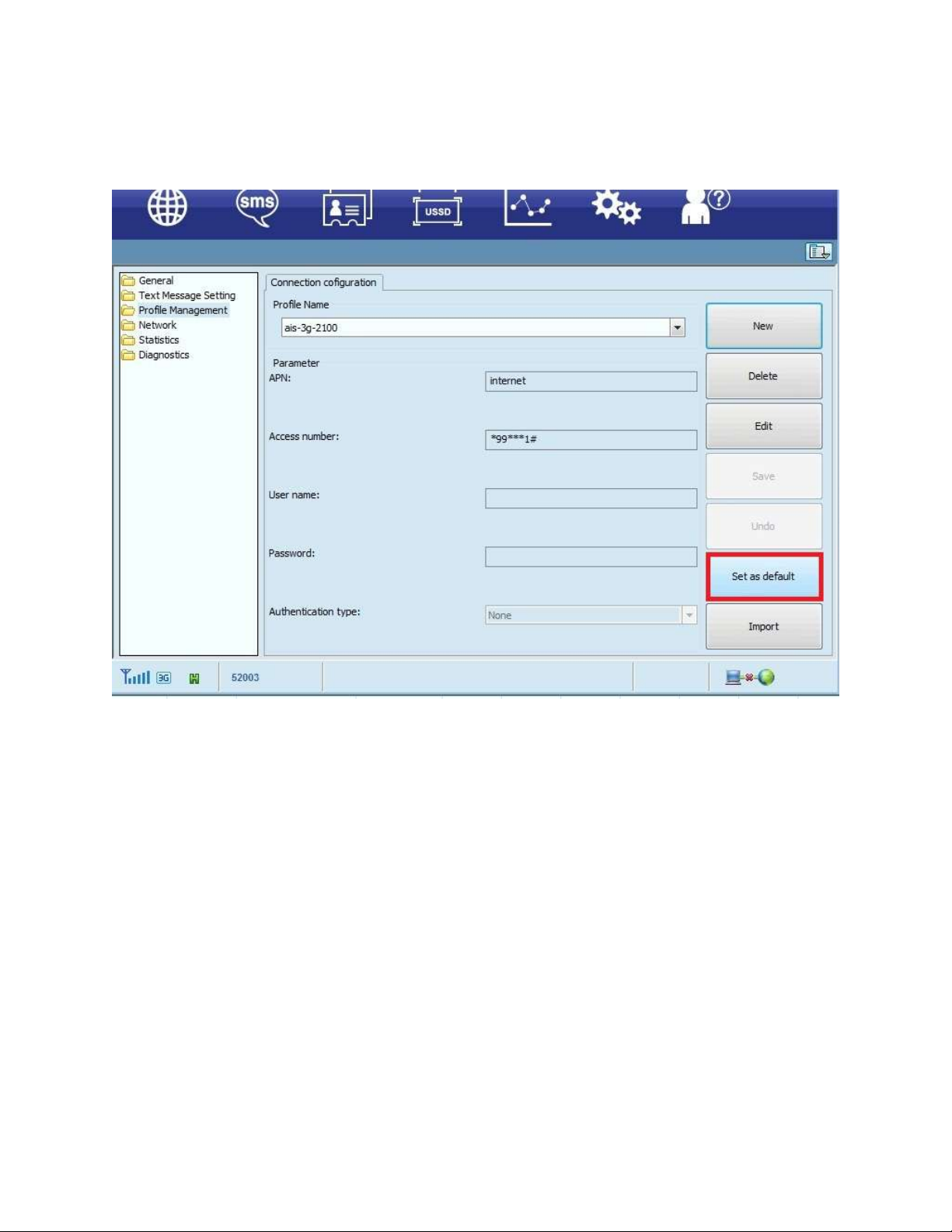

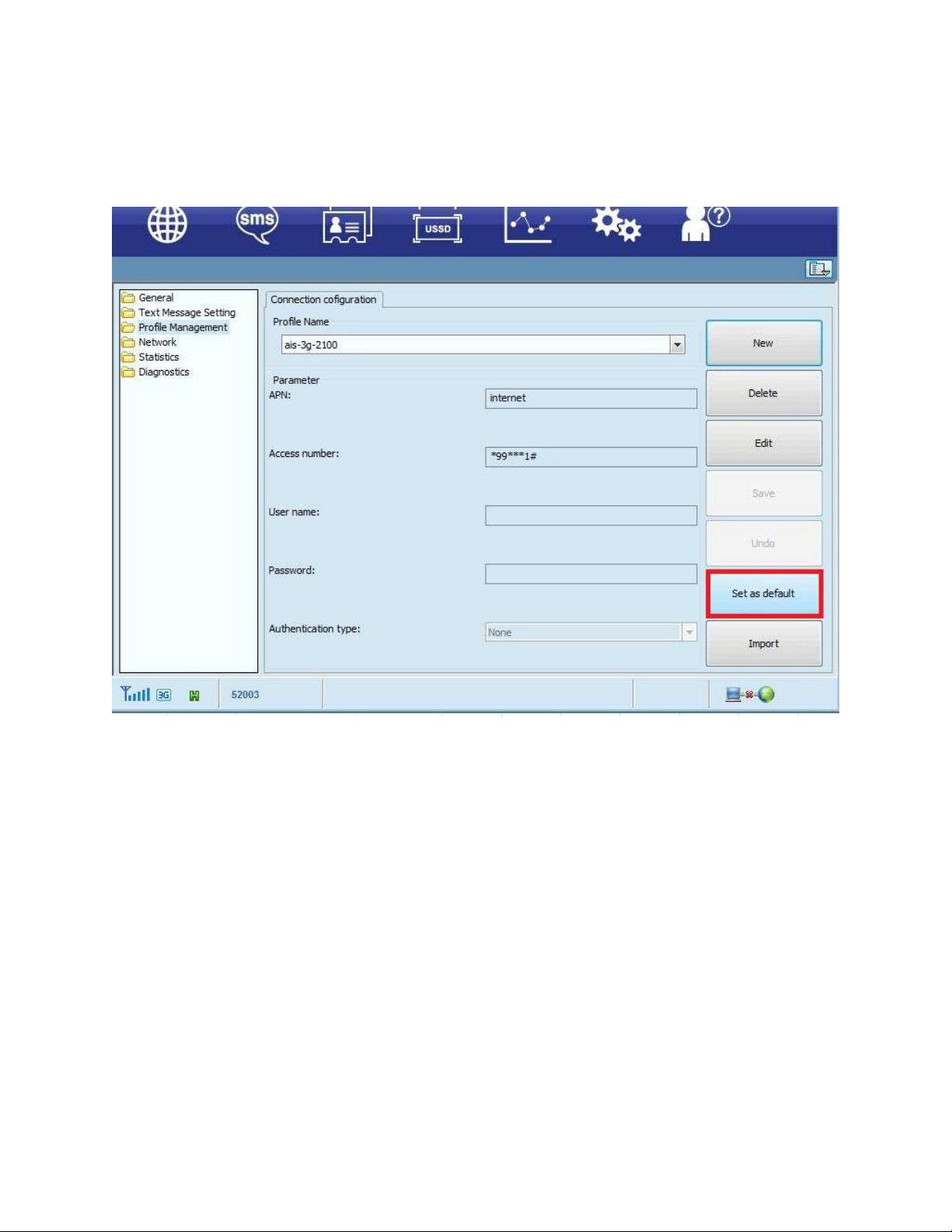

Step 6 :If you want to use this setting is default , please you click on Set as default button
(Detail on the below picture)

-15-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

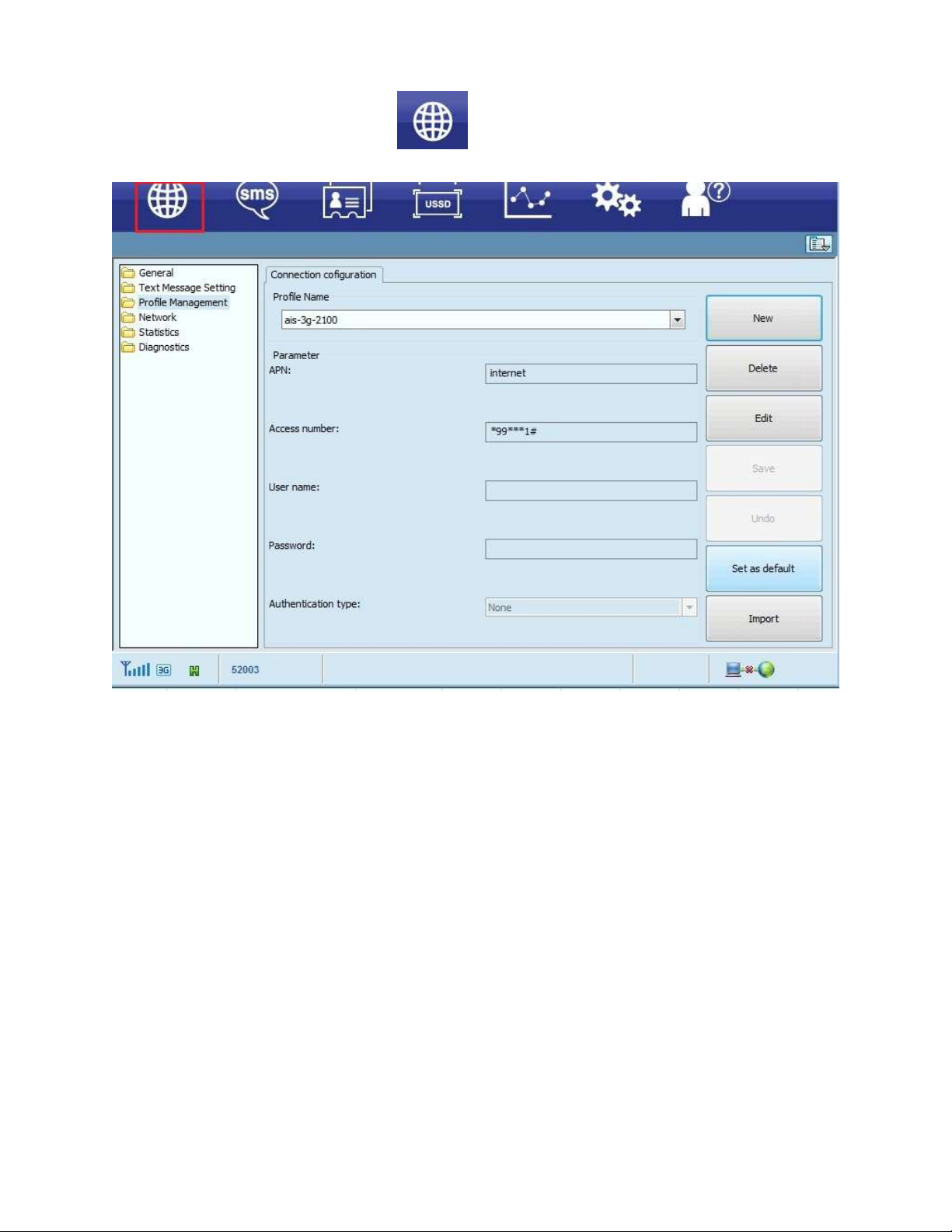

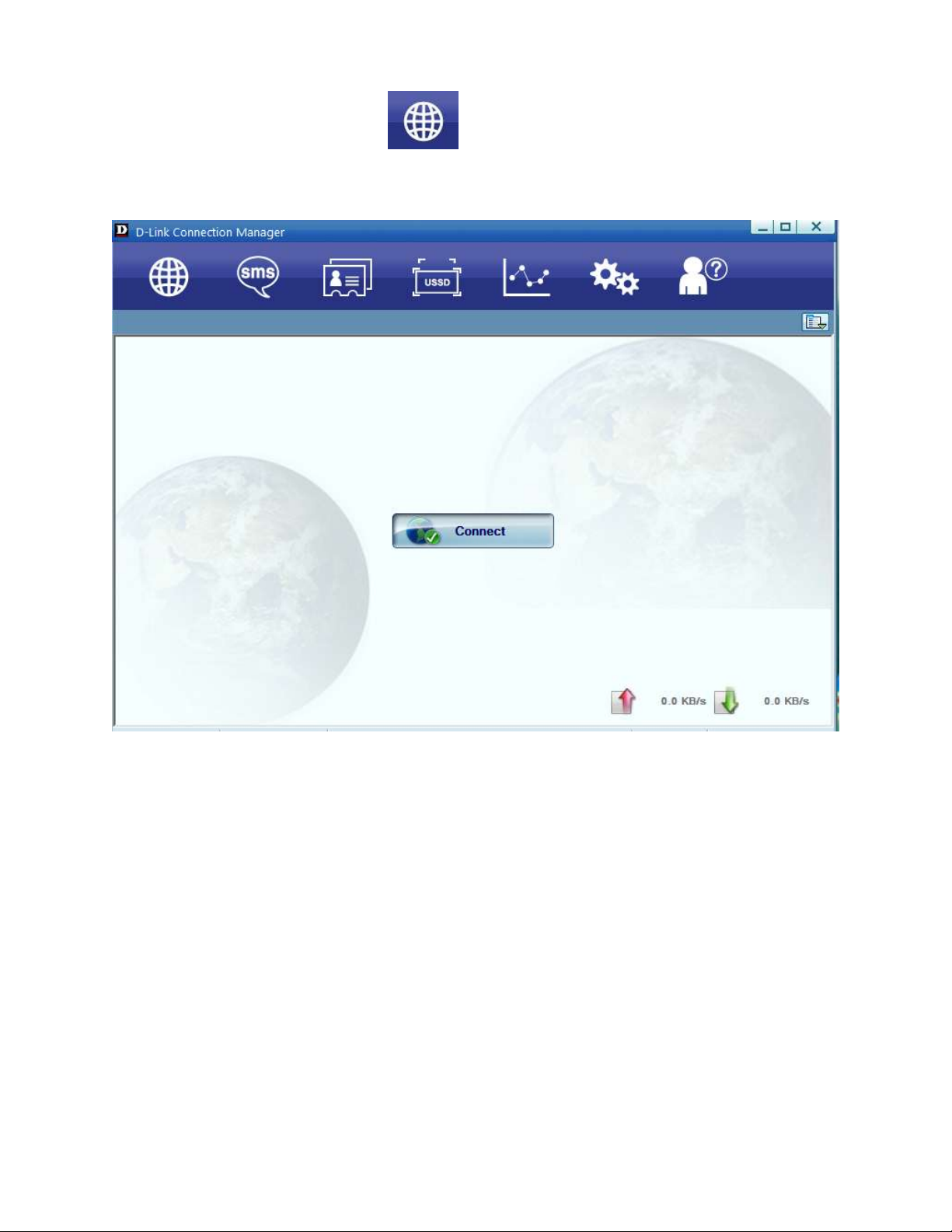

Step 7 :Click on Connection Button on the top of screen

-16-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

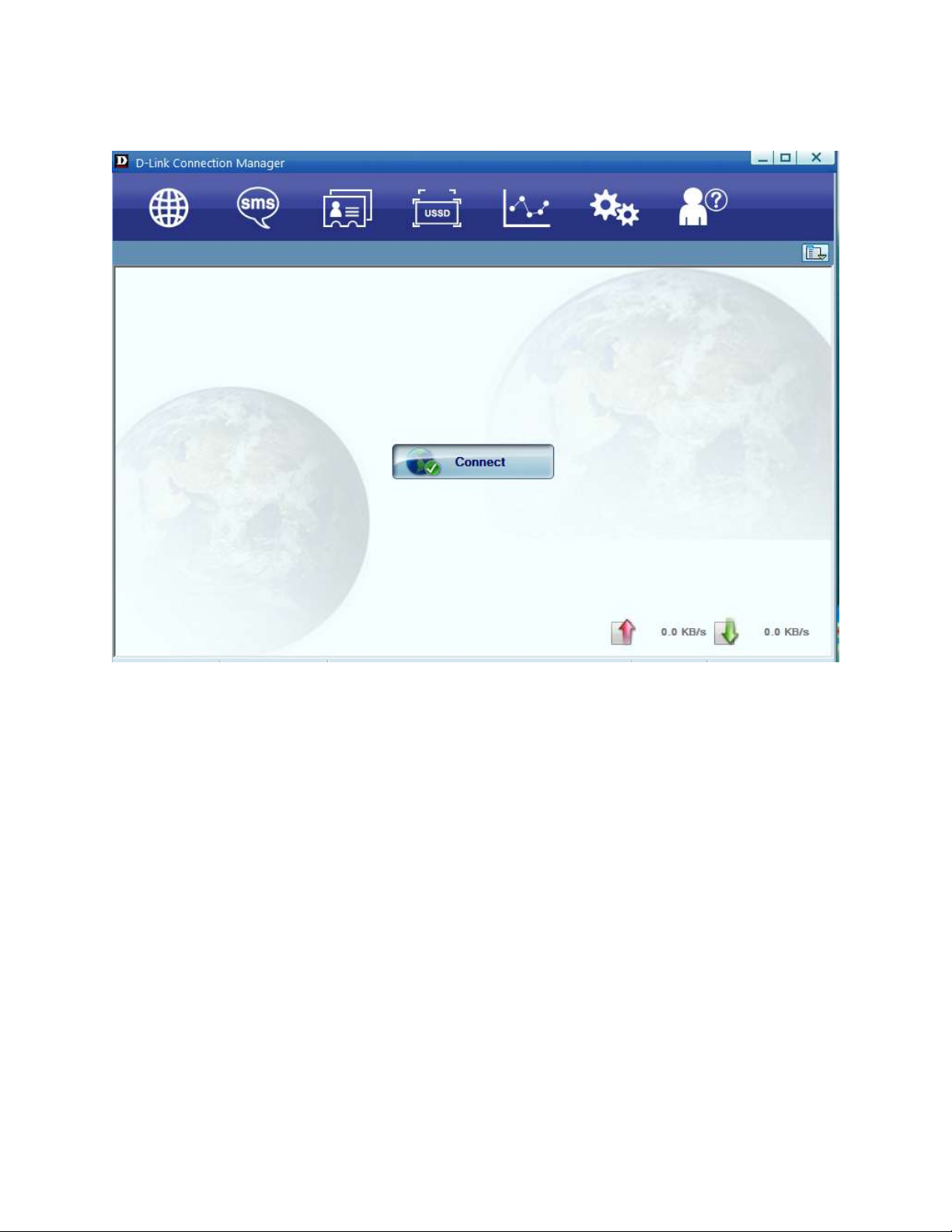

You will see Connect button, Click the Connect button

-17-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

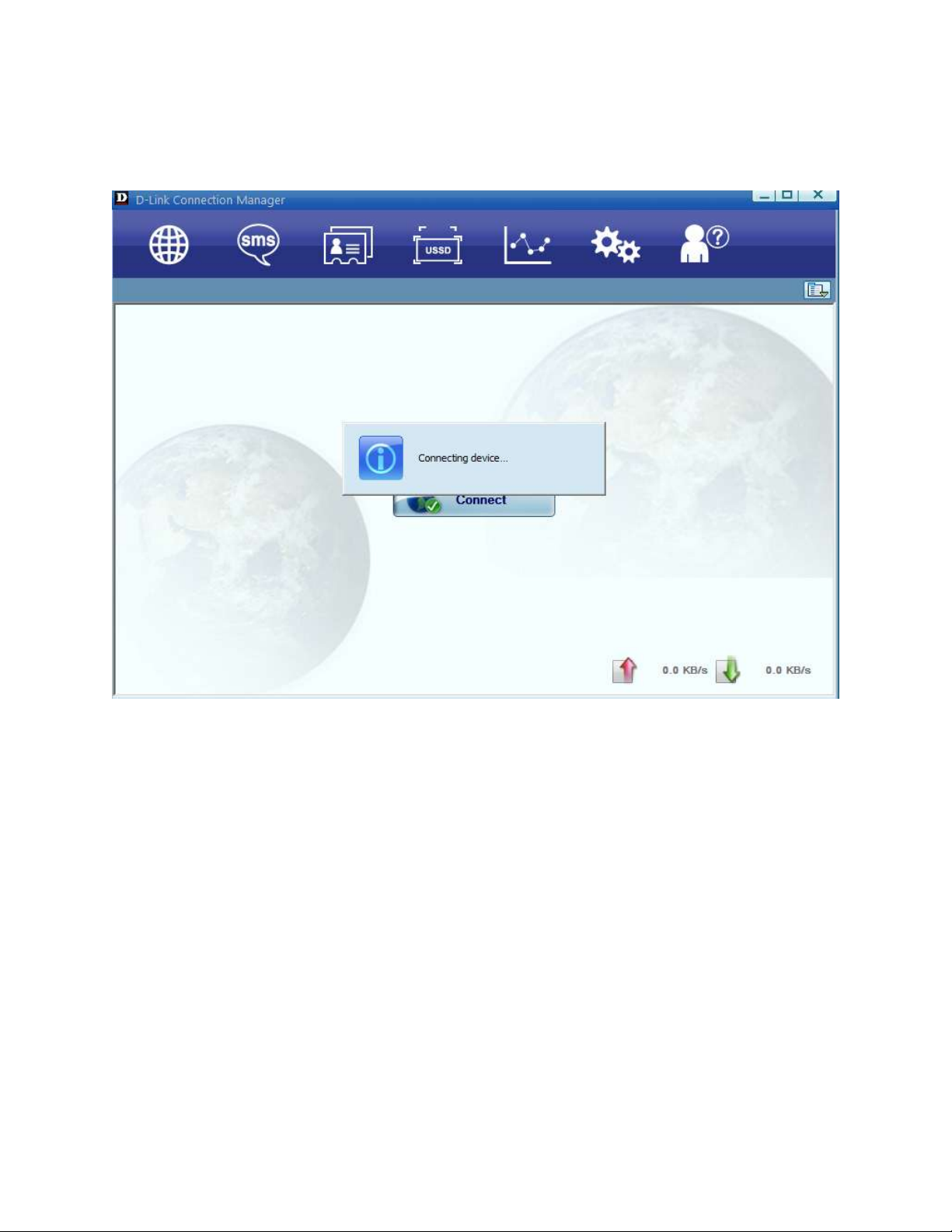

Step 8: After you click on ‘Connect’ button, it will register and authenticate to get connected.

-18-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

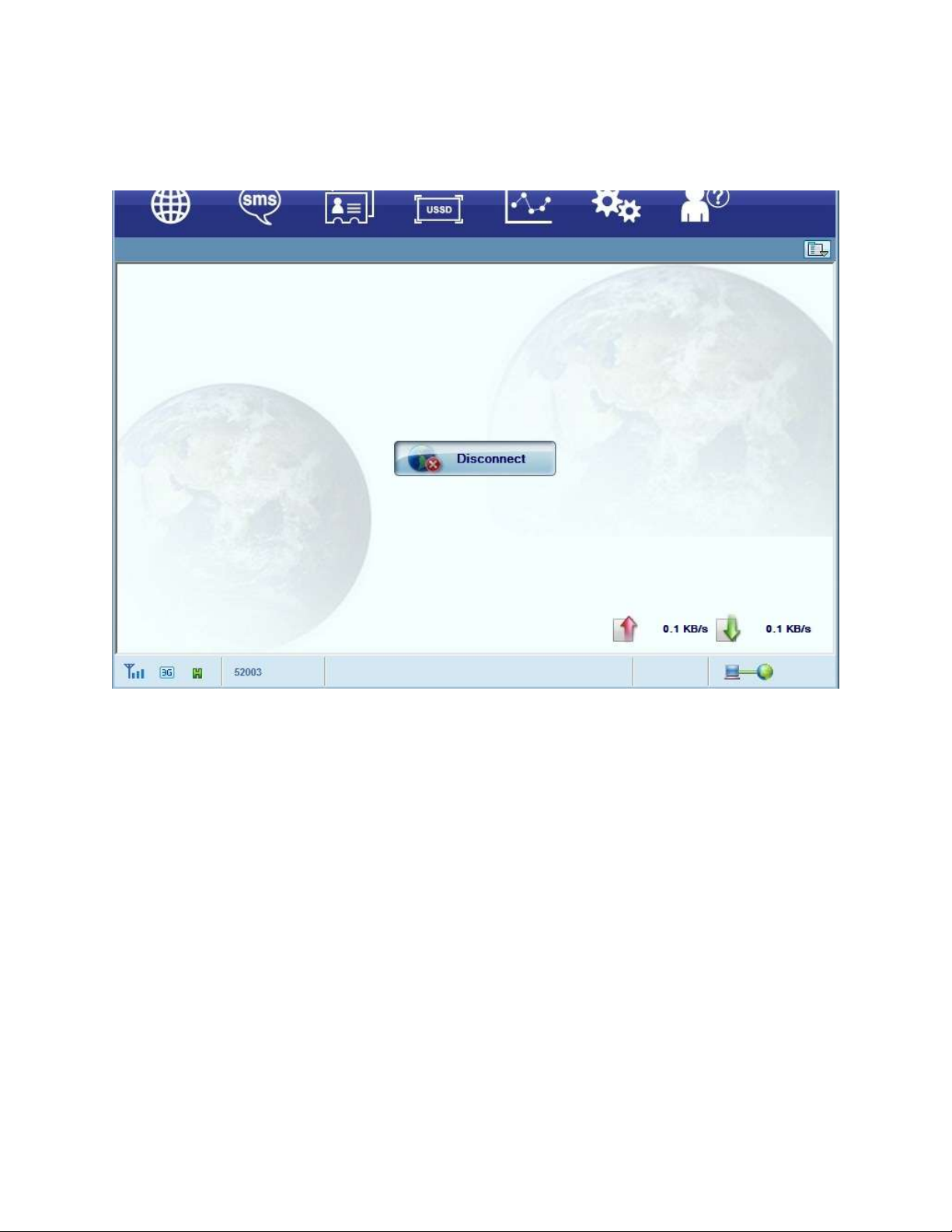

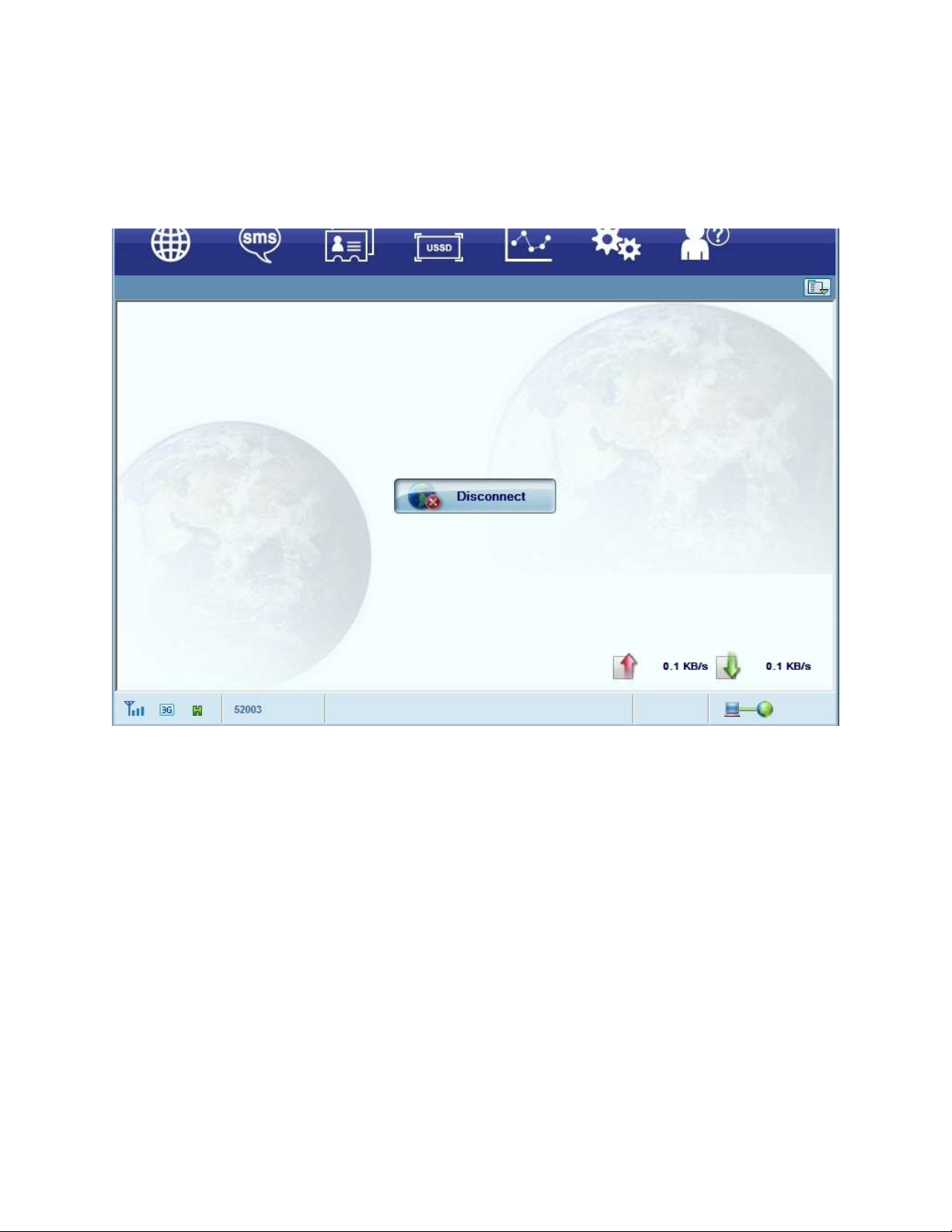

Step 9: Once connection is successful, the ‘Status’ on the very right bottom of the screen should
show ‘Connected’. You may check the data transmitted and received on the same window.

-19-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager

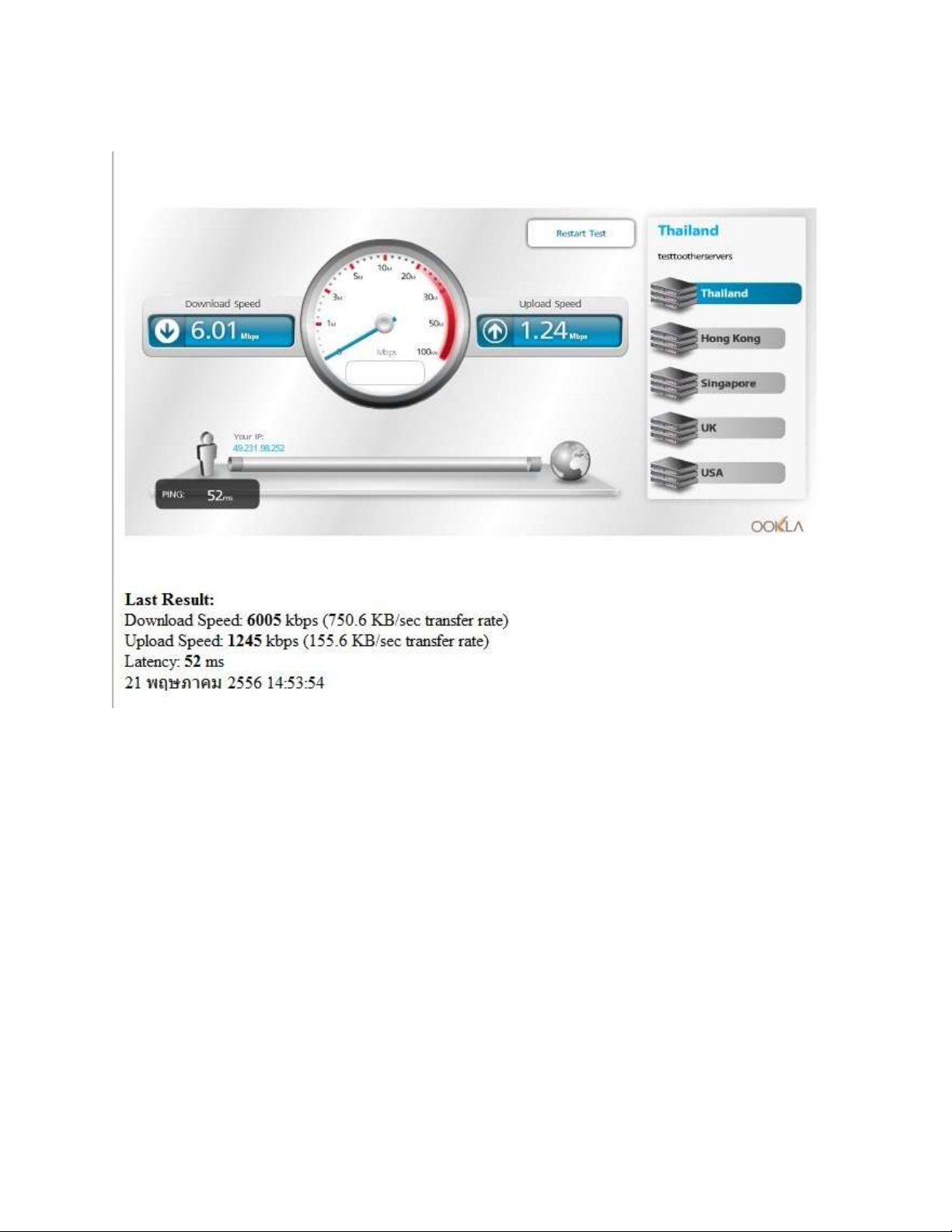

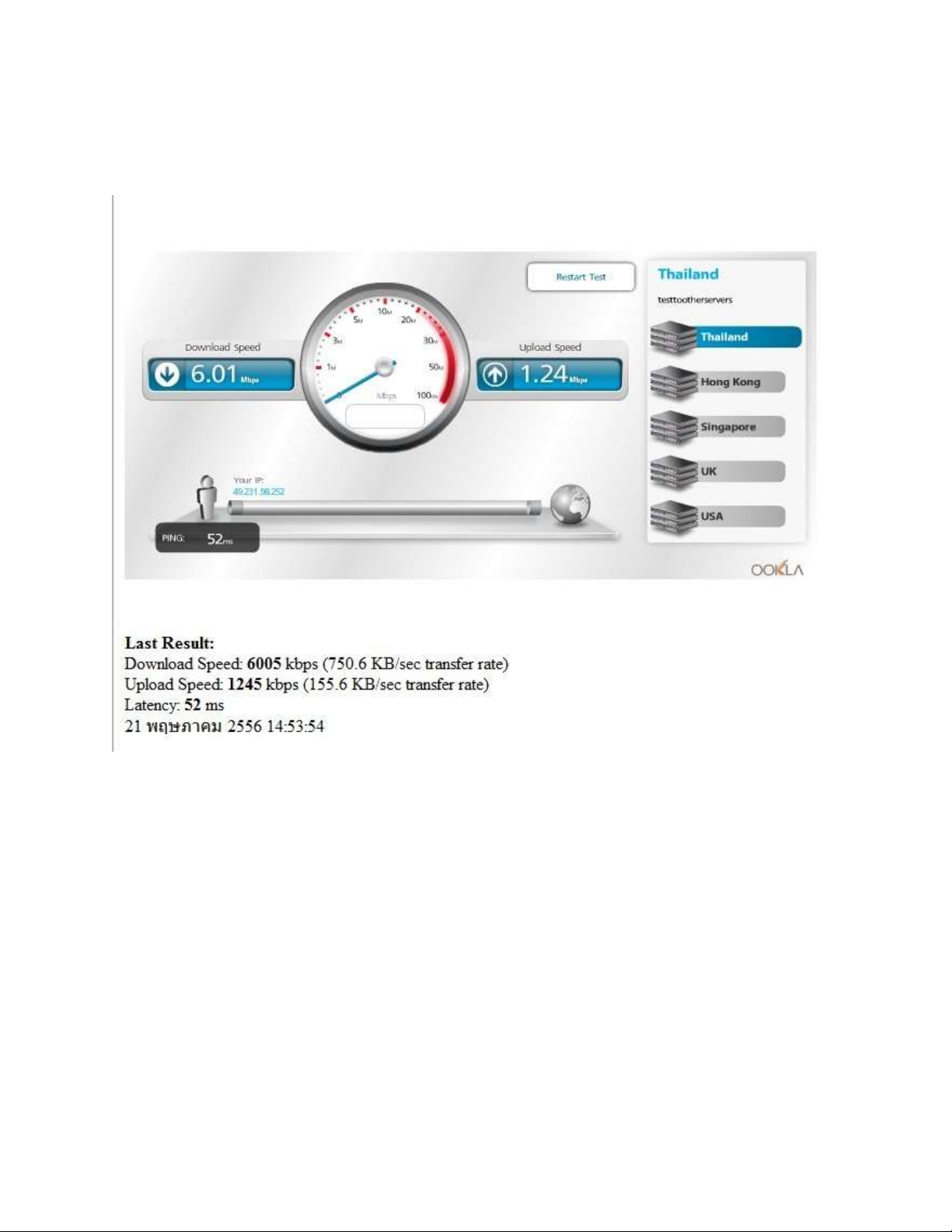

Step 10 :You should can access internet

-20-
FAQ : How to Connect to the AIS3G (2100 MHz) Internet using the D-Link Connection Manager
 
Call Center  02-6617997
: 9.00 –18.00 
Thai: Mon –Fri : Time 9.00 –18.00.
: 18.00 
English : Sat –Sun , Public Holiday and after 18.00 weekday.
Website : www.dlink.co.th
email: [e-mail]
Facebook : http://www.facebook.com/DLinkThailandFans
