D-Link DFL-1100 - Security Appliance User manual

DFL-1100
INSTALLATION GUIDE
Package Contents
• D-Link®DFL-1100 NETDEFEND™Network Security Firewall
• CAT5 UTP Straight-Through Ethernet Cable
• CAT5 UTP Crossover Cable
• RS-232 Console Interface Cable
• CD-ROM (Containing Manual)
• Power Cord
System Requirements
• Computer with an Ethernet adapter and a Windows, Mac, or Unix based operating system.
• Internet Explorer or Netscape Navigator, version 6.0 or above, with JavaScript enabled.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DFL-1100. 06162004

2
Hardware Overview
DFL-1100 Installation Guide
Front Panel
Hardware Overview
Rear Panel
LED Function
Link Solid green indicates a good connection on the associated port number.
Act The Act LED flashes during data transmission on the associated port number.
Power A solid light indicates a proper connection to the power supply.
Status LED should flash to indicate anactive system. (If the status LED is lit solid and not flashing, please
contact D-Link® Technical Support.)
Port Description
Console Direct connection to your computer’s serial port using an RS-232 cable for firewall configuration.
(The console settings are: Bits per second: 9600, Data bits: 8, Parity: None, Stop bits: 1)
WAN Attaches to your external router, DSL modem, or cable modem.
LAN Connects to your internal network.
DMZ Connects to internal servers that will be visible from the Internet (FTP, SNMP, HTTP, and DNS).
ETH4/Sync Can be used as an extra LAN port, DMZ port, or Sync interface when using High Availability.
Item Description
Power Connector The power cord attaches here.
Power Switch Powers the unit off and on.
Cooling Fans Be sure to keep the unit in a well ventilated area and do not block the cooling fan vents.

3
Hardware Installation
DFL-1100 Installation Guide
Hardware Installation
1.Connect the power cord to the power connector on the rear panel of the DFL-1100. Plug the other end of the power
cord to a wall outlet or power strip.
2.Turn on the power switch on the rear panel of the DFL-1100. The Power LED will illuminate.
3.Power off your broadband modem. Some modems may not have an on/off switch and will require you to unplug the
poweradapter.
4.Connect an Ethernet cable to the Ethernet jack of your broadband modem and then connect the other end of the
Ethernet cable to the WAN port on the front panel of the DFL-1100.
5.Power on the broadband modem. It may take a few seconds for your modem to initialize but then the WAN port LED
should illuminate to indicate a proper connection.
6.Connect an Ethernet cable to the LAN port on the front panel of the DFL-1100. Connect the other end of the Ethernet
cable to your network hub or switch. The LAN port LED should illuminate to indicate a proper connection.
7.Connect the computer that you will use to configure the DFL-1100 to the network hub or switch (if it isn’t already
connected). Be sure that the configuration PC is setup to obtain an IP address automatically. It may be necessary to
release and renew the IP address.

4
The Setup Wizard
DFL-1100 Installation Guide

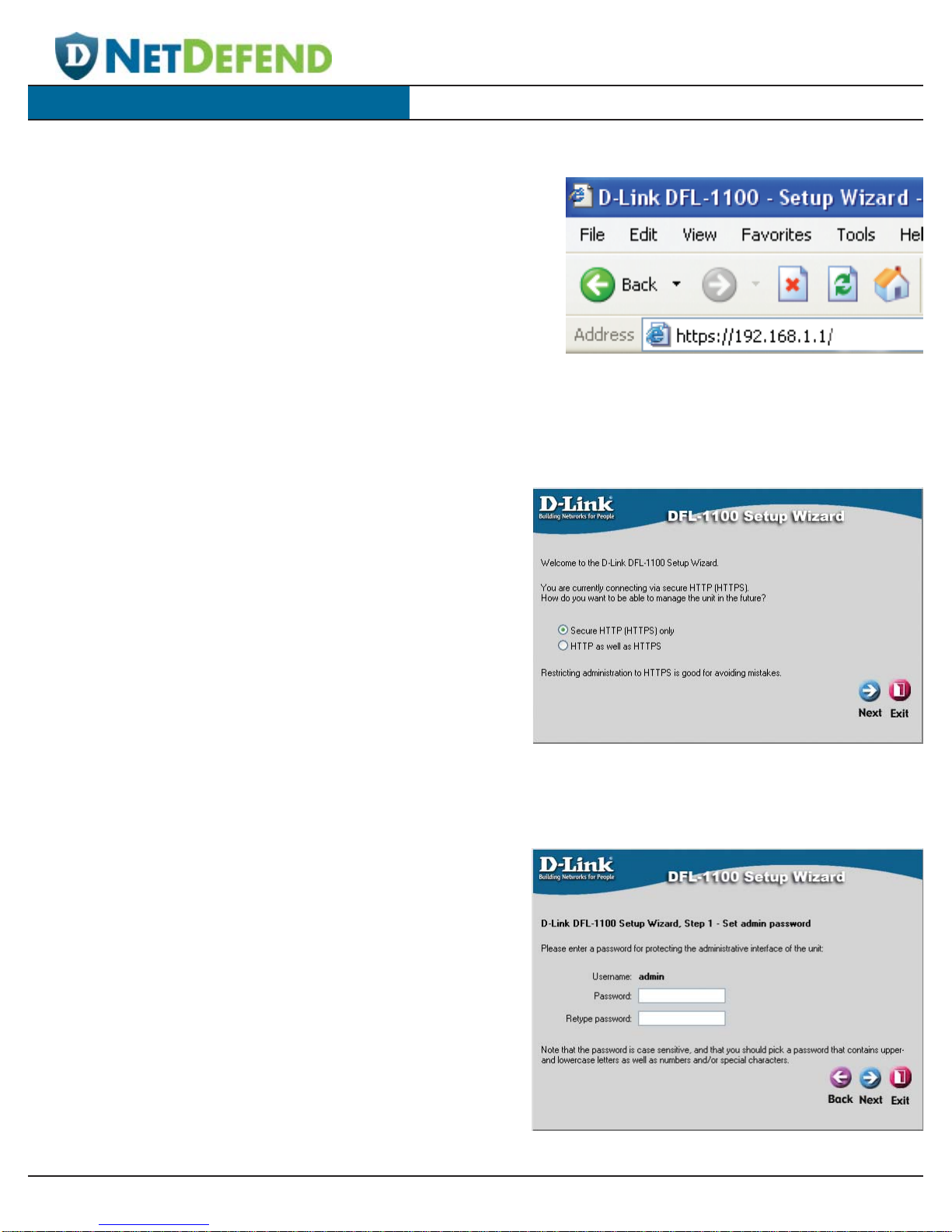

The Setup Wizard
TheDFL-1100provides Webbasedconfiguration.You
can configure your DFL-1100 using Internet Explorer
or Netscape Navigator version 6.0 or above with
JavaScript enabled. To access the configuration
screen, launch your Web browser and enter the IP
addressoftheDFL-1100 intheaddress fieldandpress
enter.Ifusing the DFL-1100’sdefaultIP address,you
would enter https://192.168.1.1 (Note: Include the
“s”atthe endofhttps to ensurea secureconnection).
Once you’ve connected to the DFL-1100, the Setup
Wizard automatically begins. It is recommended that
youconnect tothe DFL-1100 usingsecure HTTPonly.
To do so, select Secure HTTP (HTTPS) only and
click Next.
Step 1 - Set admin password
Enter a password for the admin account and retype it
for confirmation. Click Next to continue.

5
The Setup Wizard
DFL-1100 Installation Guide

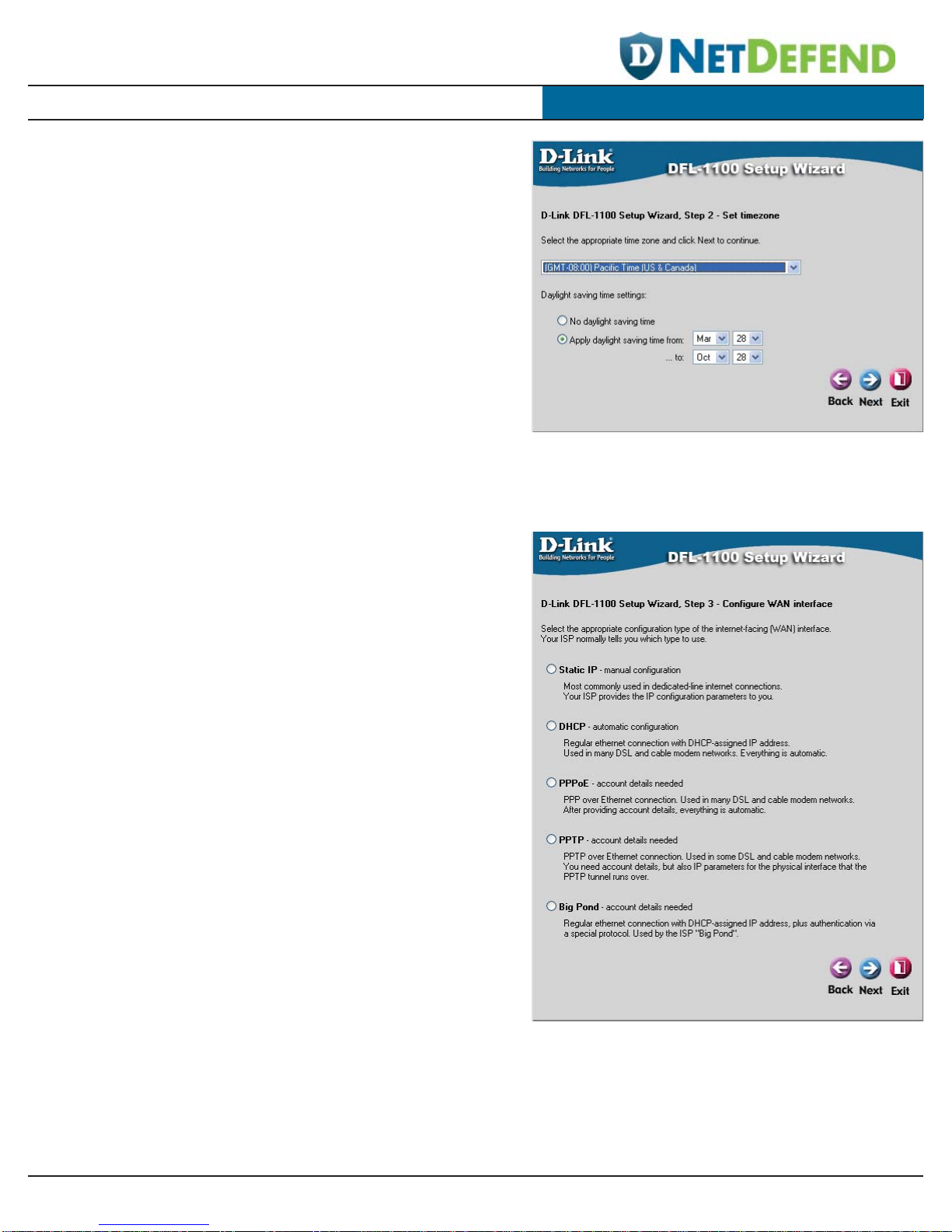

Step 2 - Set timezone
Select your time zone and daylight savings time
settings. Click Next to continue.
Step 3 - Configure WAN interface
Select the type of Internet connection that you have. If you
are unsure of which to select, please contact your Internet
Service Provider. Click Next to continue. If you selected
DHCP, proceed to step 4 on page 8.

6
The Setup Wizard
DFL-1100 Installation Guide

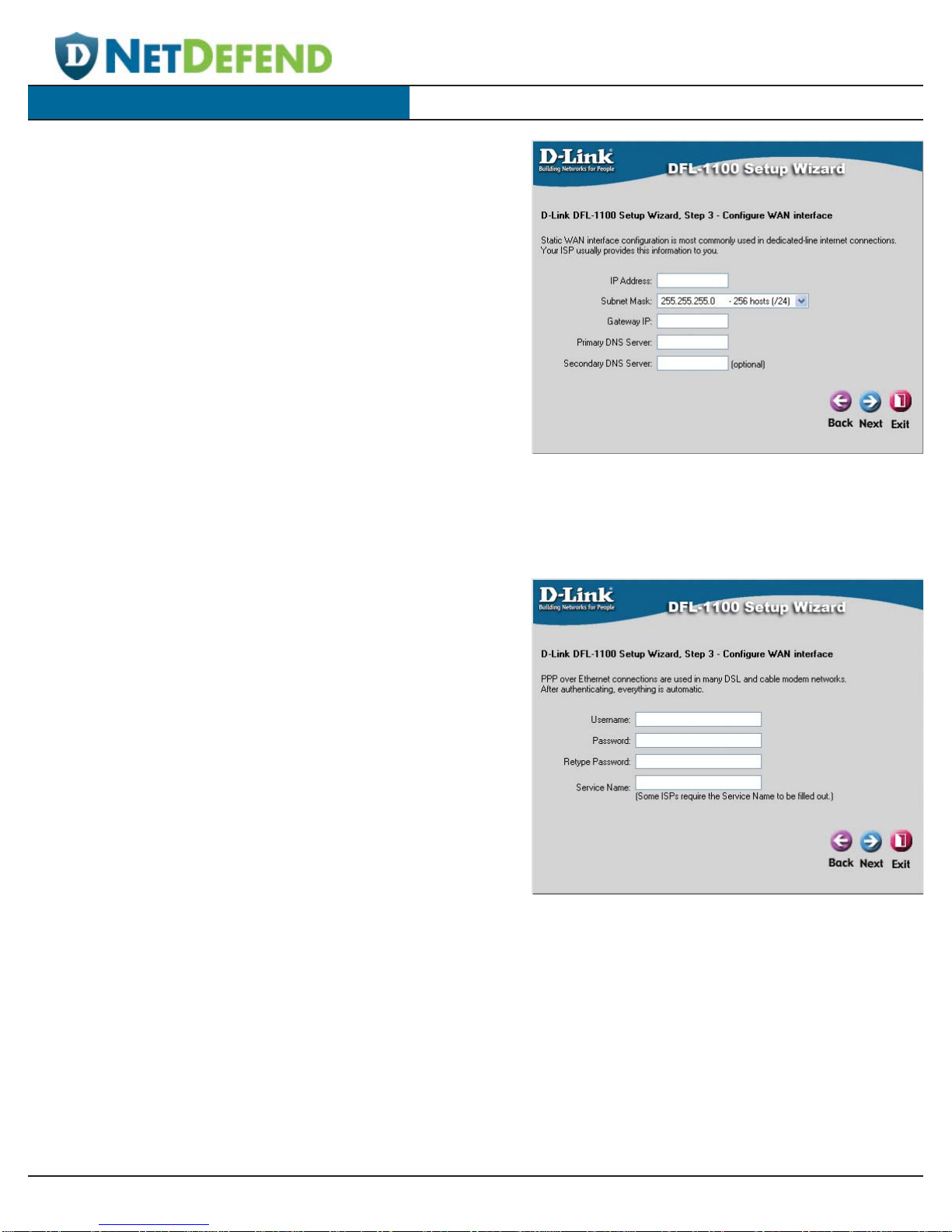

Step 3 - Static IP
IfyouselectedStaticIP,entertheIPaddressinformation
provided by your Internet Service Provider. You must
complete all of the fields except for Secondary DNS
Server. Click Next and continue to Step 4 on page 8.
Step 3 - PPPoE
If you selected PPPoE, you will have to fill out the user
name and password provided by your Internet Service
Provider. Leave the PPPoE Service Name field blank
unless instructed by your Internet Service Provider.
Click Next and continue to Step 4 on page 8.

7
The Setup Wizard
DFL-1100 Installation Guide

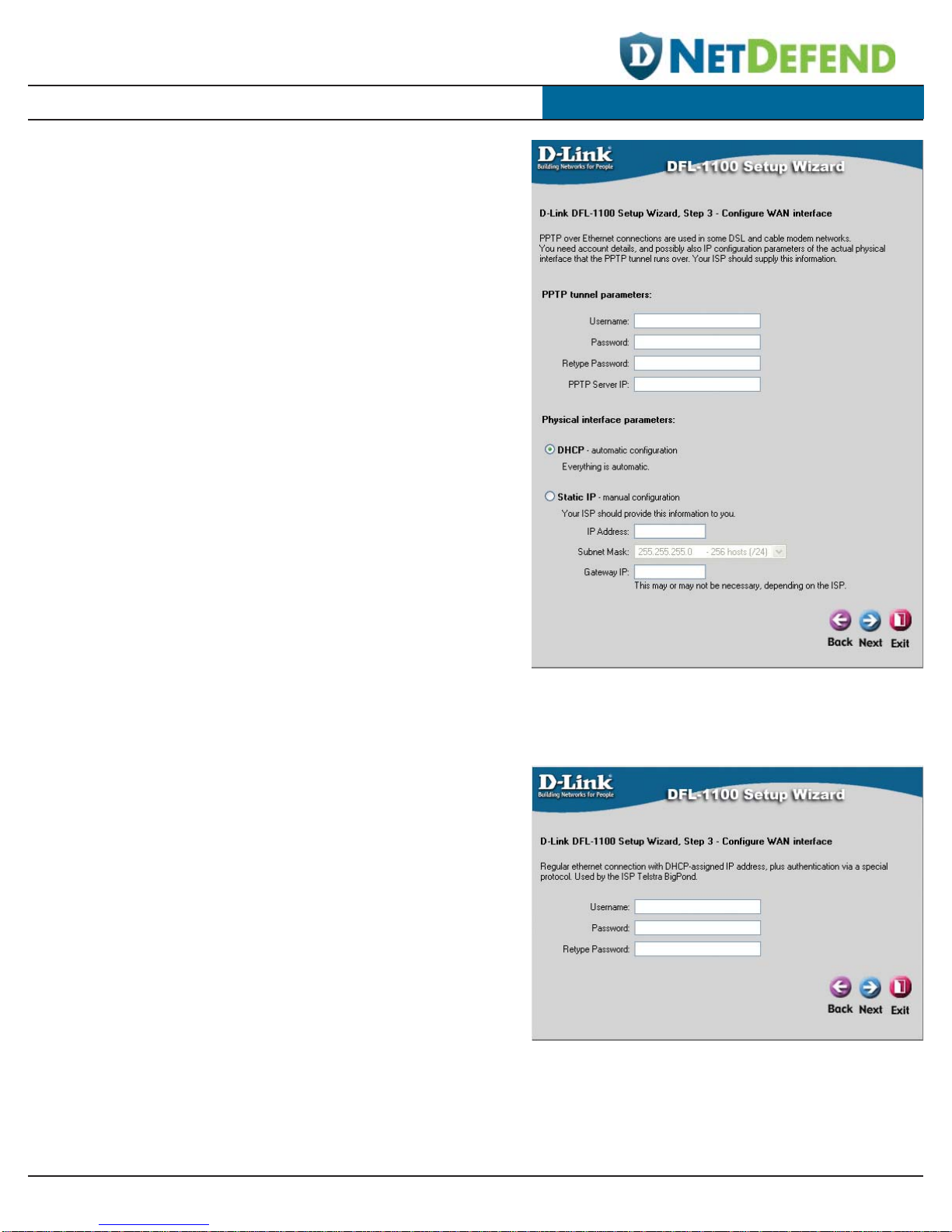

Step 3 - Big Pond
If you selected Big Pond, fill out the username and
password and then retype the password. This
information is provided to you from your Internet
Service Provider. Click Next to continue.
Step 3 - PPTP
If you selected PPTP, you will need to specify both
the tunnel parameters and the physical interface
parameters. Click Next and continue to Step 4 on
page 8.

8
The Setup Wizard
DFL-1100 Installation Guide

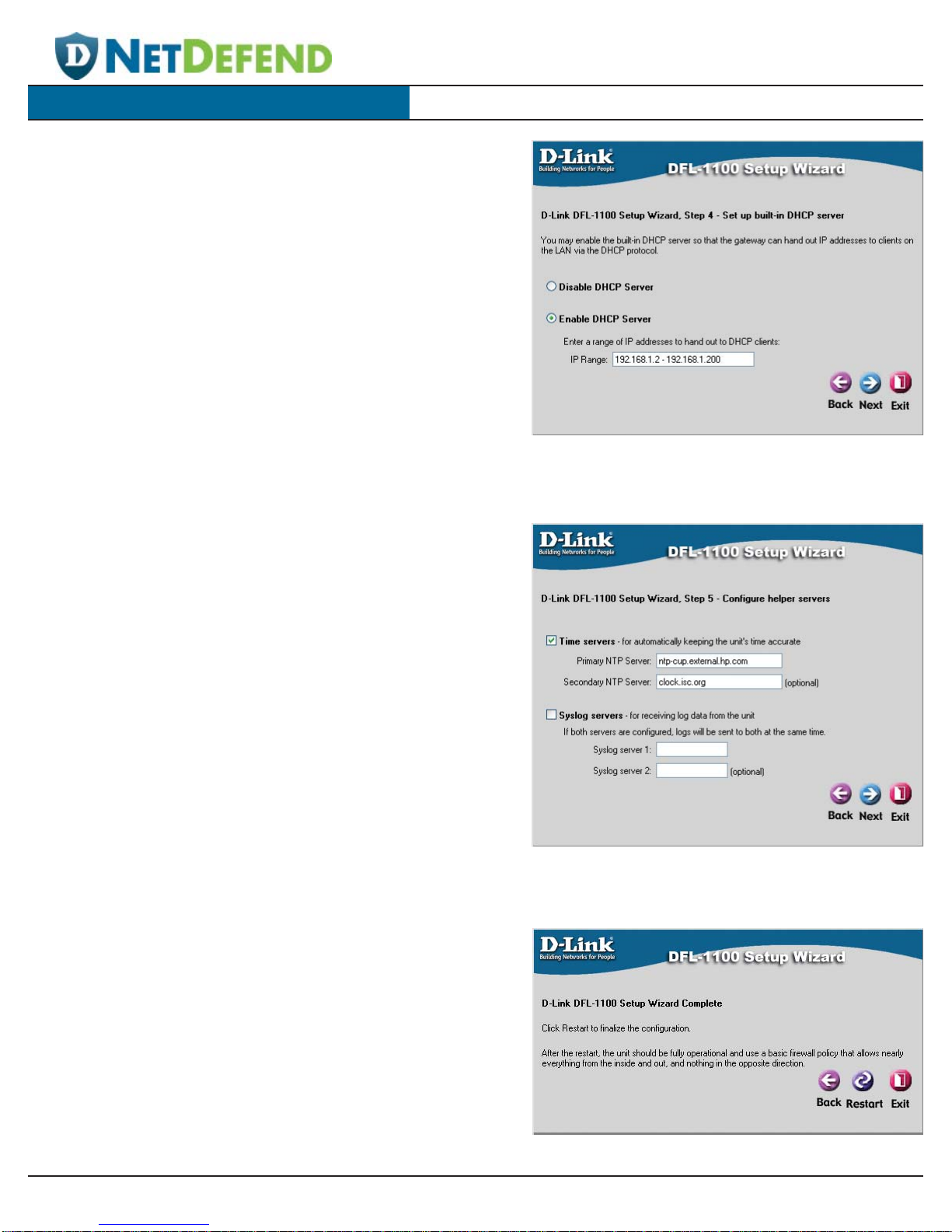

Step 4 - Set up built-in DHCP
Server
• Disable DHCP Server: If this option is disabled,
then LAN clients must be configured with an IP
address manually.
• Enable DHCP Server: When enabled, this allows
theDFL-1100toautomatically providethenecessary
IP information to all LAN clients configured for
DHCP. The IP range defines the beginning and
ending addresses to provide the clients.
Be sure the IP range does not conflict with any
manually configured network devices or the IP
address of the DFL-1100.
Step 5 - Configure helper
servers
• Time Servers: When enabled, the firewall time will
besynchronized withthe NTPservers enteredhere.
• Syslog Servers: When enabled, the DFL-1100 will
log data to the specified servers.
Setup Wizard Complete
Click on Restart to finalize the configuration.

9
The Setup Wizard
DFL-1100 Installation Guide

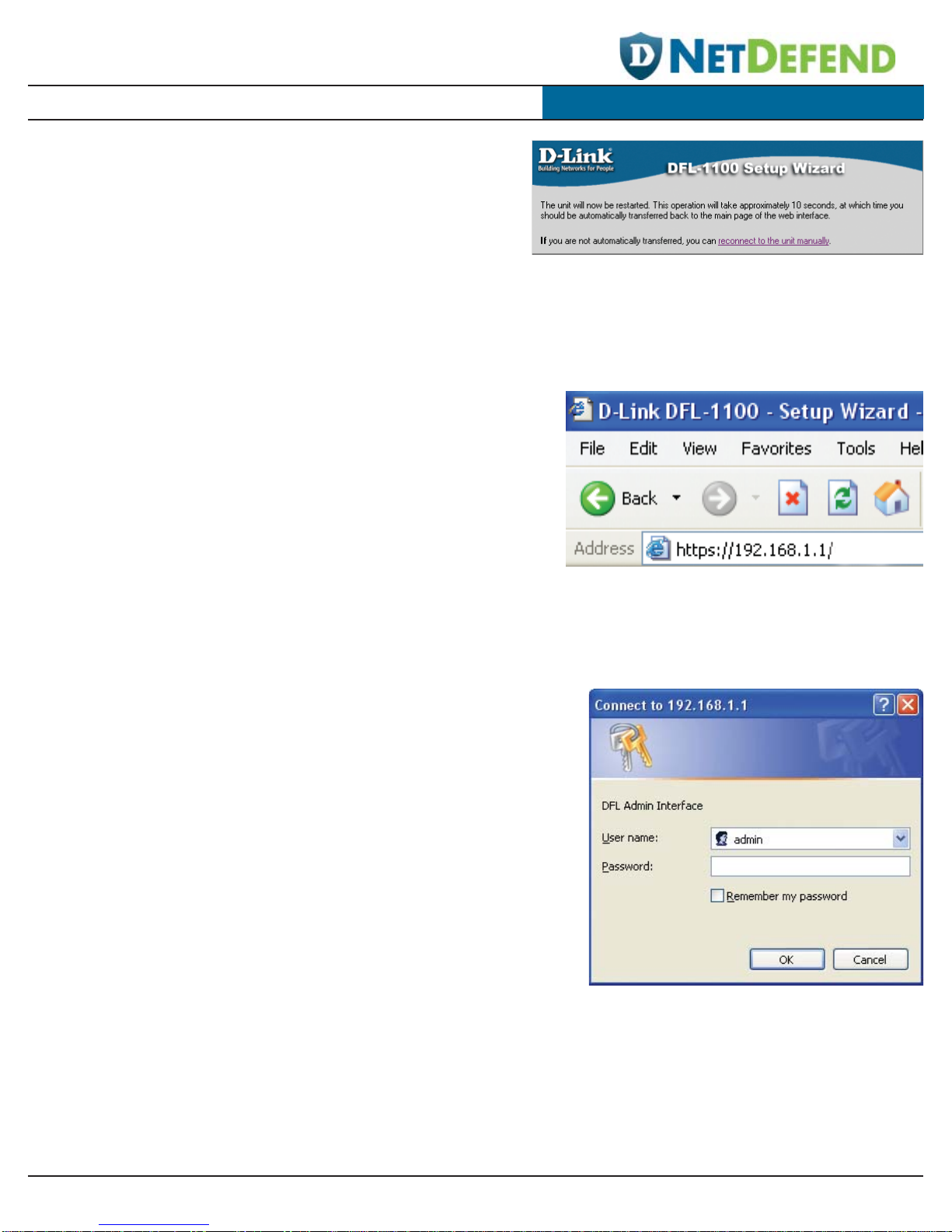

A message will appear indicating that the unit is
restarting.
Afteryou’veconfiguredtheunit,you willneedtoreconnect
tothe web browserinterface.Typeinhttps://192.168.1.1
Be sure to include the “s”in https.
Type in the admin username and the password that you
defined during the Setup Wizard.

10
The Setup Wizard
DFL-1100 Installation Guide

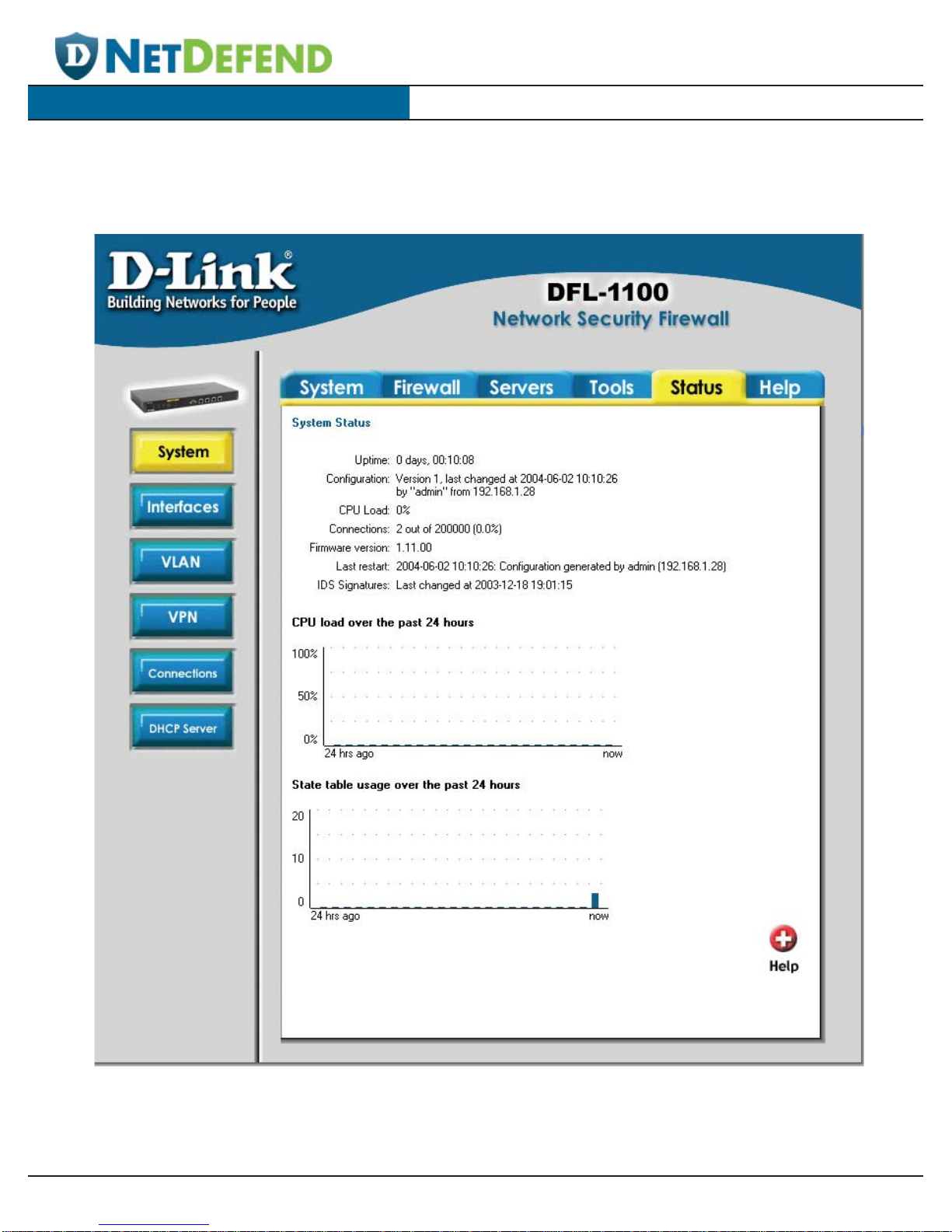

Installation is complete!
You should see the System Status screen after reconnecting to the DFL-1100.

11
Activating Changes
DFL-1100 Installation Guide

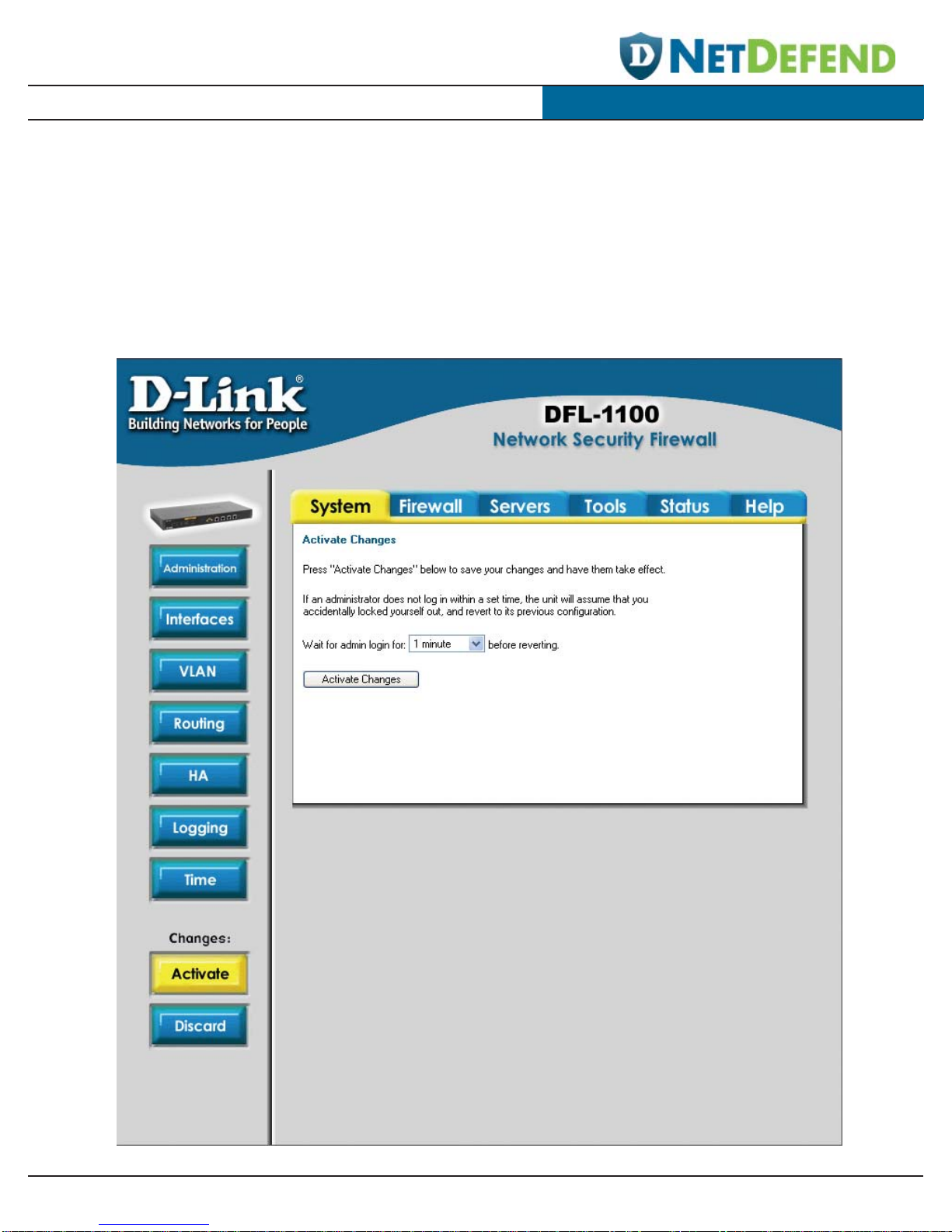

Activating Changes to the D-Link®DFL-1100
When changes are made to the configuration of the DFL-1100, two new buttons appear below the existing menu buttons.
Once all changes to the configuration of the DFL-1100 have been made, click on the Activate button to go to theActivate
Changes window. Once the changes are activated, the admin account must login within the timeout period configured on
this page. If not, the changes will be discarded and the previous configuration will be used. Once you’ve set the desired
timeout period, click the Activate Changes button to activate the configuration changes. The DFL-1100 will save the
configuration, reload it, and the new changes will take effect. To ensure the configuration changes are permanent, you
must login with the admin account within the established time period.

12
Administration Settings
DFL-1100 Installation Guide

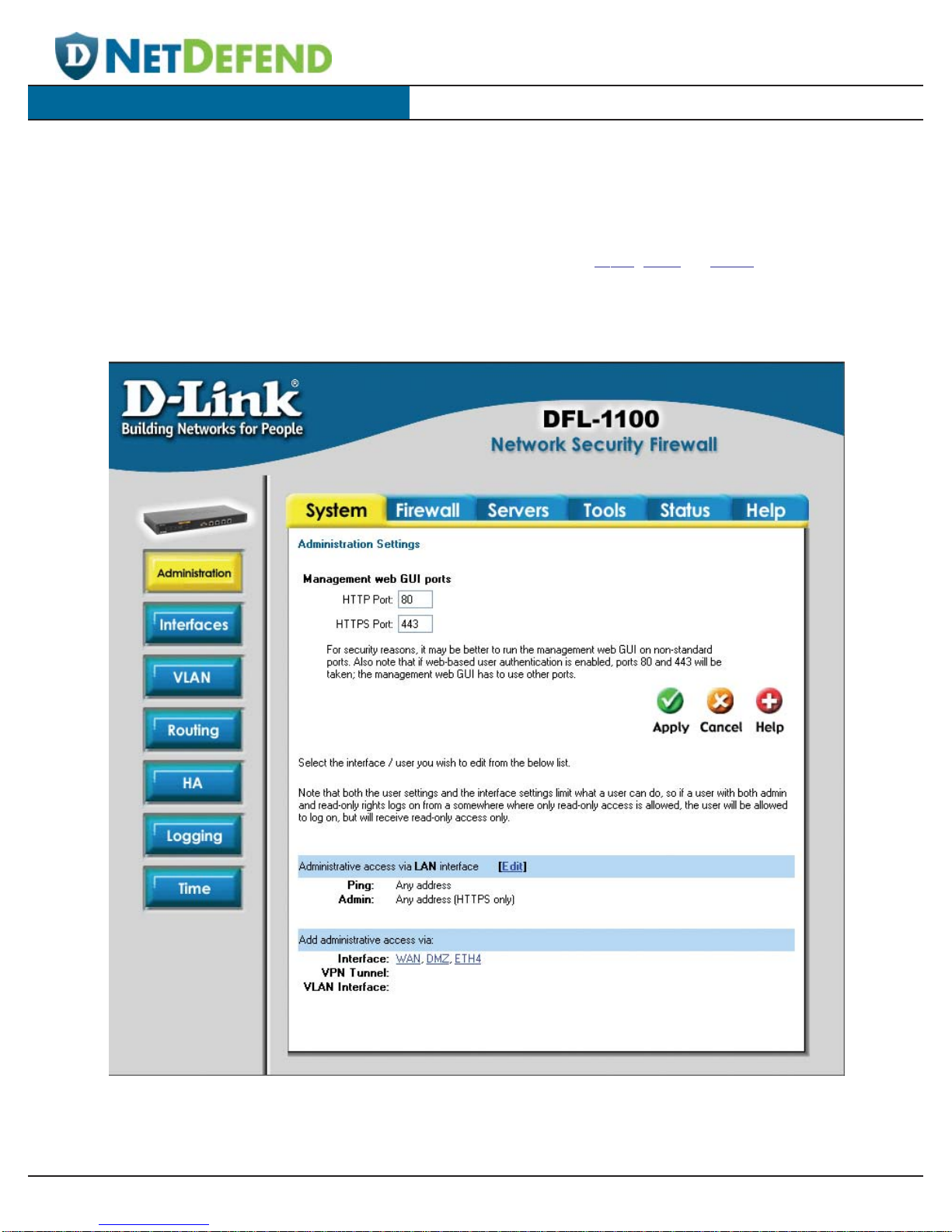

Administration Settings
TheAdministration settings screen can be found by clicking on the System tab and selecting the Administration button.
By default, administrative access is limited to the LAN interface. The selection you made during the Setup Wizard
determines whether you can access the DFL-1100 via HTTP and HTTPS or only via HTTPS.Additional interfaces can be
configured for administrative access by selecting the appropriate interface (WAN, DMZ, or ETH4).
Management web GUI ports: These are the HTTP and HTTPS ports being utilized by the DFL-1100 for web-based
configuration. The default settings are the standard port 80 for HTTP and port 443 for HTTPS. For security reasons, you
may want to use non-standard port numbers.

13
Administration Settings
DFL-1100 Installation Guide

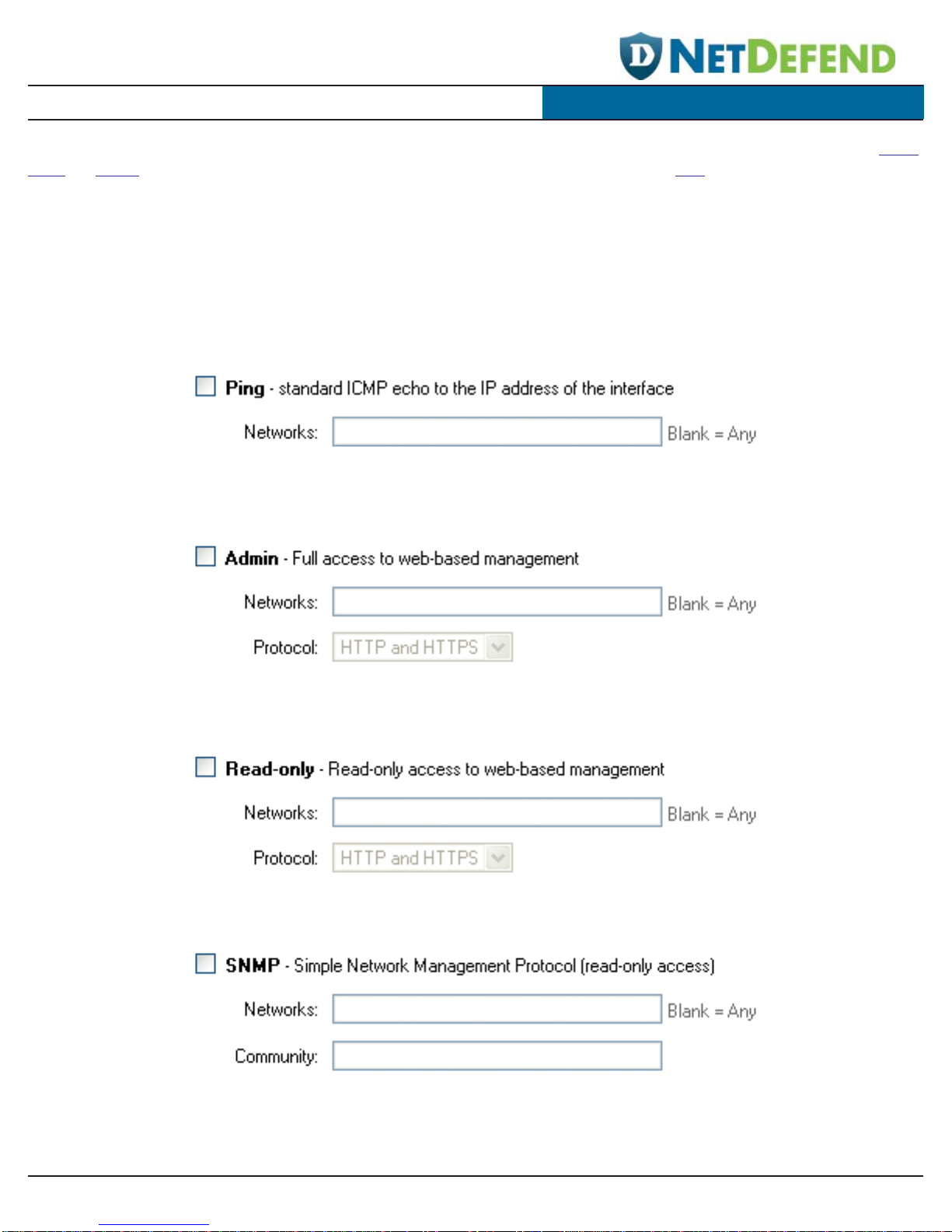

You may selectively add administration features to any of the interfaces. To do so, click on the desired interface (WAN,
DMZ, or ETH4) under the heading titled Add administrative access via: or click on Edit next to an interface that has
alreadybeenconfigured.
Ping: If enabled, specifies the IP addresses/range that can ping the interface of the DFL-1100.The default setting allows
everyone to ping the interface IP.
Admin: If enabled, allows users with admin rights to access the specified interface with full access to the web-based
configuration. Configuration via HTTP and HTTPS or only HTTPS can also be configured.
Read-Only: If enabled, allows users to view but not modify the DFL-1100 configuration from the specified interface.
Viewing via HTTP and HTTPS or only HTTP can also be configured.
Note: User settings and interface settings limit what a user can do. So if a full admin user logs on via an
interface configured with read-only access, the user will only receive read-only access.
SNMP: Specifies if SNMP should be allowed or not for the specified interface. The DFL-1100 supports read-only access.
Any of the settings below can be limited to specific IP addresses (192.168.0.0/24, 10.0.0.5 - 10.0.0.9) by entering the
ranges in the Networks: field. When left blank there are no IP address restrictions.

14
WAN Interface Settings
DFL-1100 Installation Guide

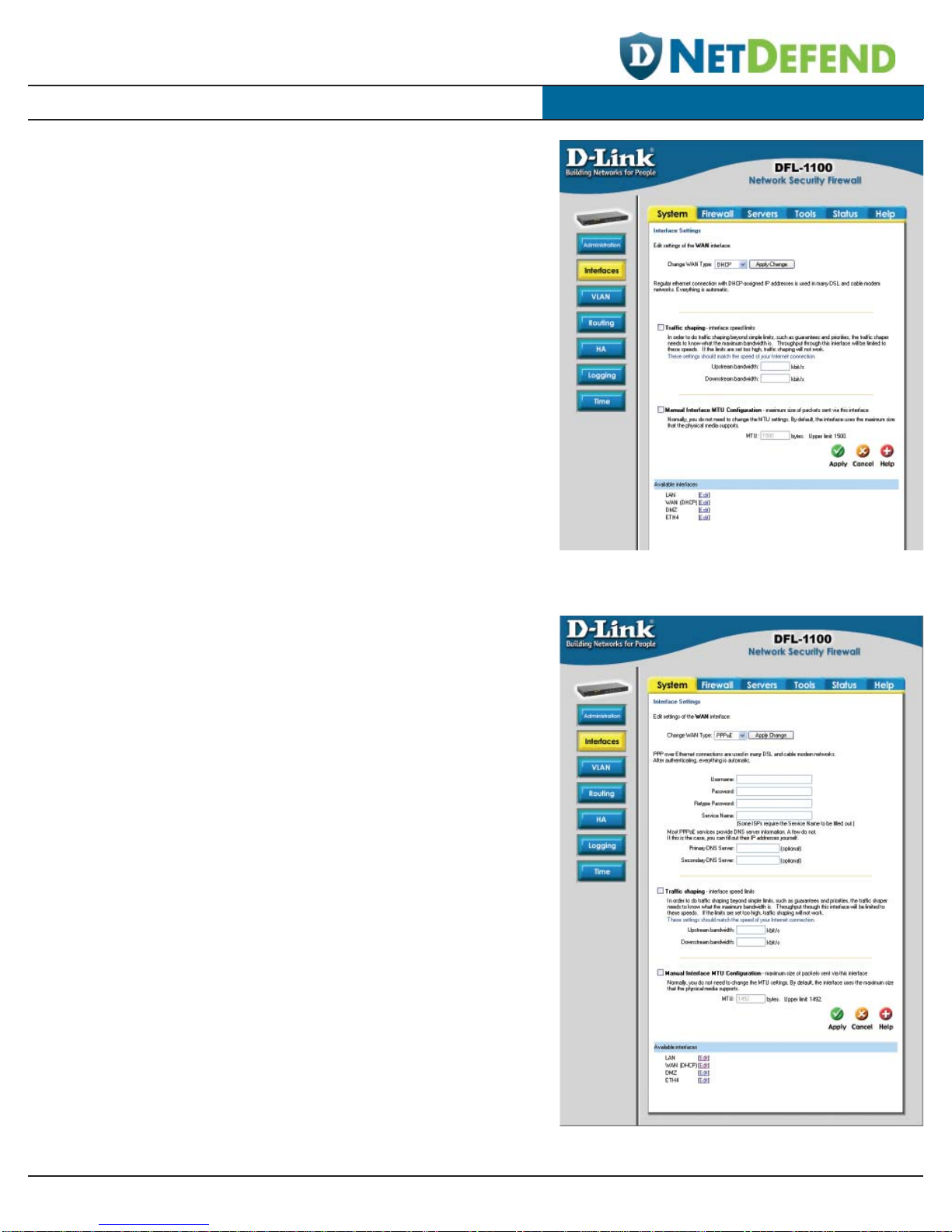

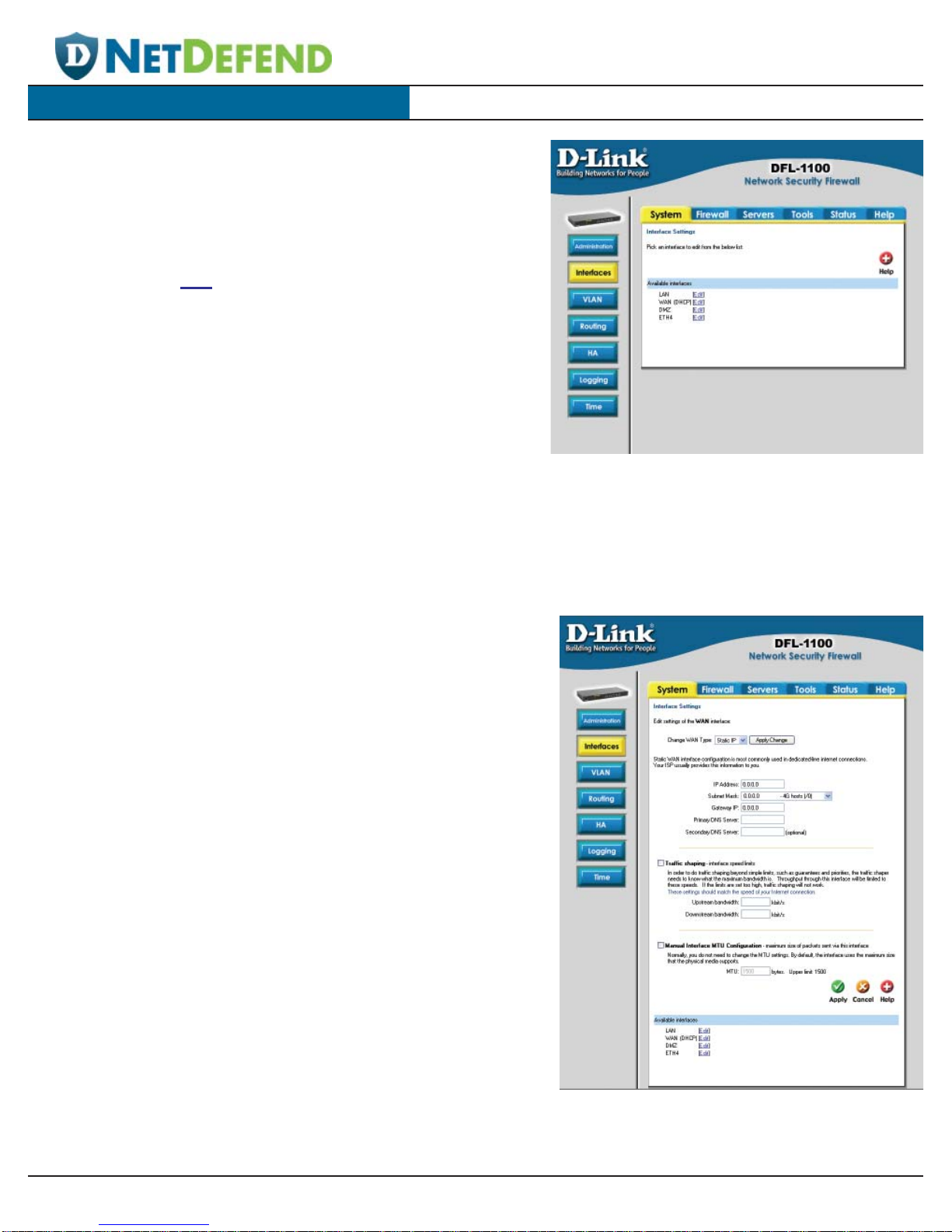

WAN Interface Settings
When you first connect to the DFL-1100, the Setup Wizard guides
you through configuring the basic firewall settings. Your WAN
settings are configured at that time. Should you need to modify
these settings, go to the System tab and click on the Interfaces
button. Click on the Edit option next to WAN.
Static IP
Ifyour Internetconnectionuses aStaticIPAddress,thisinformation
is provided to you by your Internet Service Provider. All fields are
mandatory except for the Secondary DNS Server.
IP Address: The IP Address of the WAN interface. This is the
address that is used to ping the firewall, remotely control it, and as
a source address for dynamically translated connections.
Subnet Mask: Network and subnet identifier.
Gateway IP: Specifies the IP address of the default gateway used
to reach the Internet.
Primary and Secondary DNS Server: The IPaddress(es) of your
DNS Server(s). Only the Primary DNS Server is required.

15
WAN Interface Settings
DFL-1100 Installation Guide
DHCP
If using DHCP, there is no need to enter any values.
PPPoE
Ifyouare usingaPPPoEconnection,youmustentertheusername
and password, retype the password, and enter any other
information your Internet Service Provider (ISP) requires.
Username: The login or username supplied by your ISP.
Password:The passwordassociatedwiththe loginor username.
Service Name: Only use this option if required by your ISP. They
will provide you the Service Name to enter.
Primary and Secondary DNS Server: The IPaddresses of your
DNSservers.Theseareoptionalandoftenprovidedby thePPPoE
service.

16
Logging
DFL-1100 Installation Guide

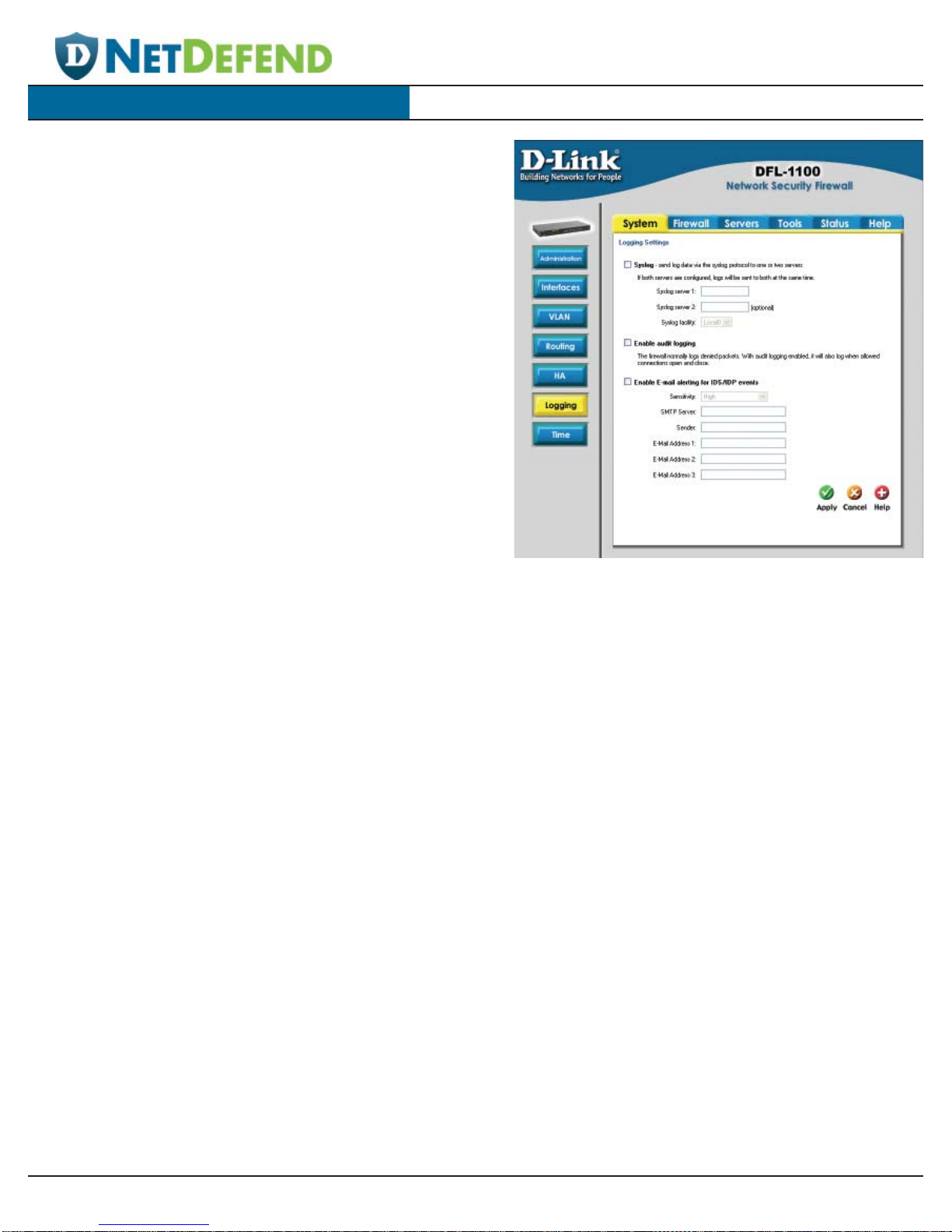

Logging
Togotothelogging configurationscreen,selecttheSystem
tab and click on the Logging button.
Logging allows you to track events such as startup,
shutdown, and the opening and closing of connections.
The startup and shutdown events are always logged.
Events such as the opening and closing of allowed
connections are user configurable. The DFL-1100 sends
the log data to one or two Syslog servers. An e-mail alert
for IDS/IDP events can be generated for up to three e-mail
addresses.
To Enable Logging
1. Place a checkmark in the Syslog box.
2. Enter the name of your first Syslog server in the Syslog server 1 text box. If you have a second Syslog server, enter
the server name in the Syslog server 2 text box.At least one Syslog server must be entered for logging to work.
3. Specify what facility to use by selecting the appropriate Syslog facility. The Syslog facility is a label to identify where a
message originated from. The facility value is used by the PC running the Syslog Daemon to sort messages. Local0
is the default value, as this is the usual value assigned to a firewall.
4. Click Apply to apply the settings or click Cancel to disregard the changes.
To Enable Audit Logging
To start auditing all firewall traffic, simply place a checkmark in the Enable audit logging box. Be sure to click Apply
to apply the setting or click Cancel to discard the changes.
To Enable E-mail alerting for IDS/IDP events
1. Place a checkmark in the Enable E-mail alerting for IDS/IDP events box.
2. Select a Sensitivity level. There are five levels of sensitivity for IDS/IDP e-mail reporting. Very High (top level) will
issue an e-mail alert for any type of attack in the IDS signature file. Lower sensitivity settings will reduce the amount
of e-mail alerts but will not reduce the level of IDS protection.
3. In the SMTP Server field, type in the address of the SMTP server that the DFL-1100 should use to send e-mail.
4.TheDFL-1100willsend oute-mail alertsto upto3 valide-mail addresses.Enterthe e-mailaddressesin theappropriate
textbox.
5. Click Apply to apply the settings or click Cancel to disregard the changes.

17

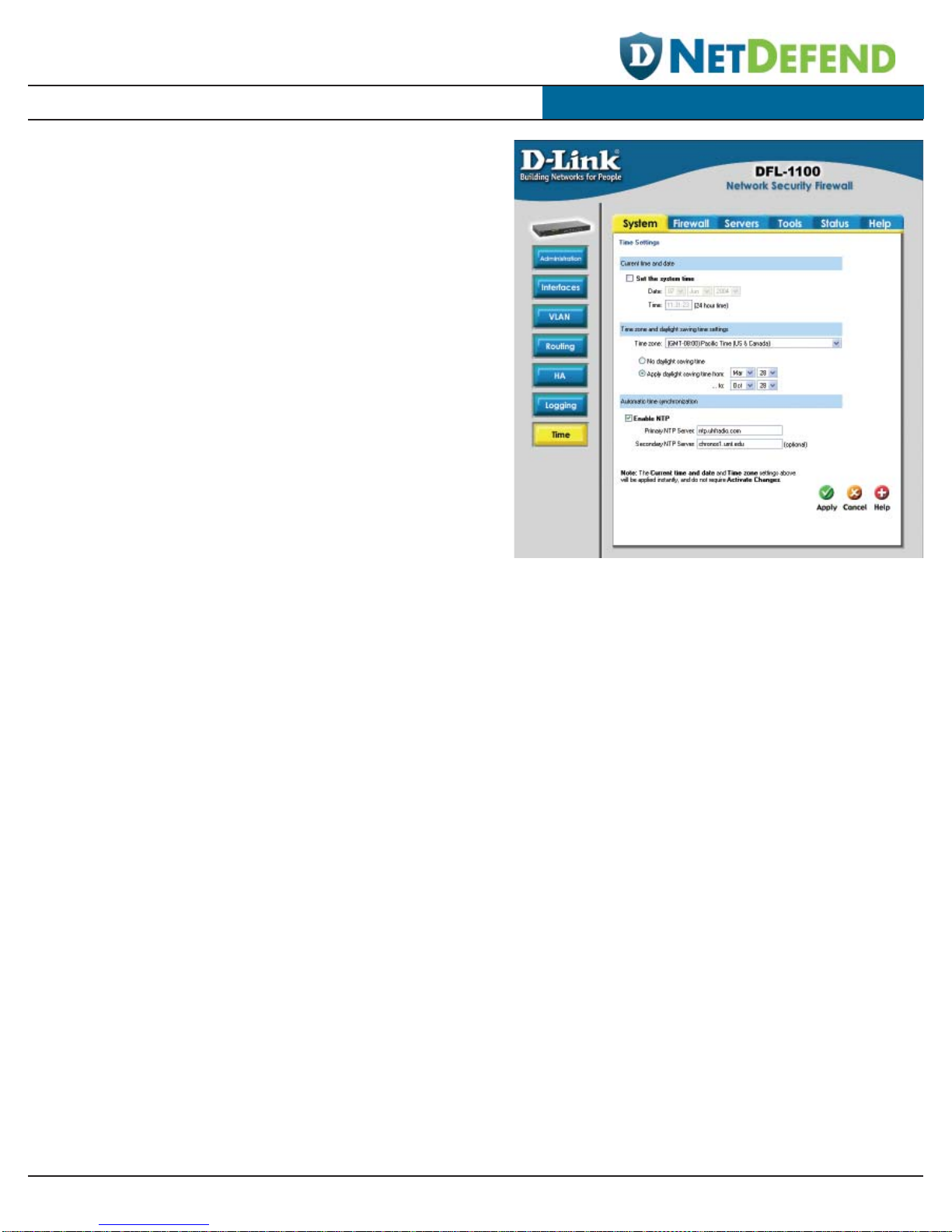

Time
DFL-1100 Installation Guide
Time
The time configuration screen can be found by
selecting the System tab and then clicking on the
Time button. The time can be set manually or
synchronized to an Internet Network Time Server.
Changing the Time Zone
1. Select the correct time zone from the dropdown menu.
2. Specify your daylight savings time or select no daylight savings time by selecting the appropriate radio button.
3. Click Apply to apply the settings or click Cancel to disregard the changes.
Using NTP to Sync Time
1. Enable synchronization by checking the Enable NTP box.
2. Enter the server IP address or server name with which you want to synchronize.
3. Click Apply to apply the settings or click Cancel to disregard the changes.
Setting the Time and Date Manually
1. Place a checkmark in the Set the system time box.
2. Select the correct date from the dropdown boxes.
3. Enter the correct time in 24-hour format.
4. Click Apply to apply the settings or click Cancel to disregard the changes.

18

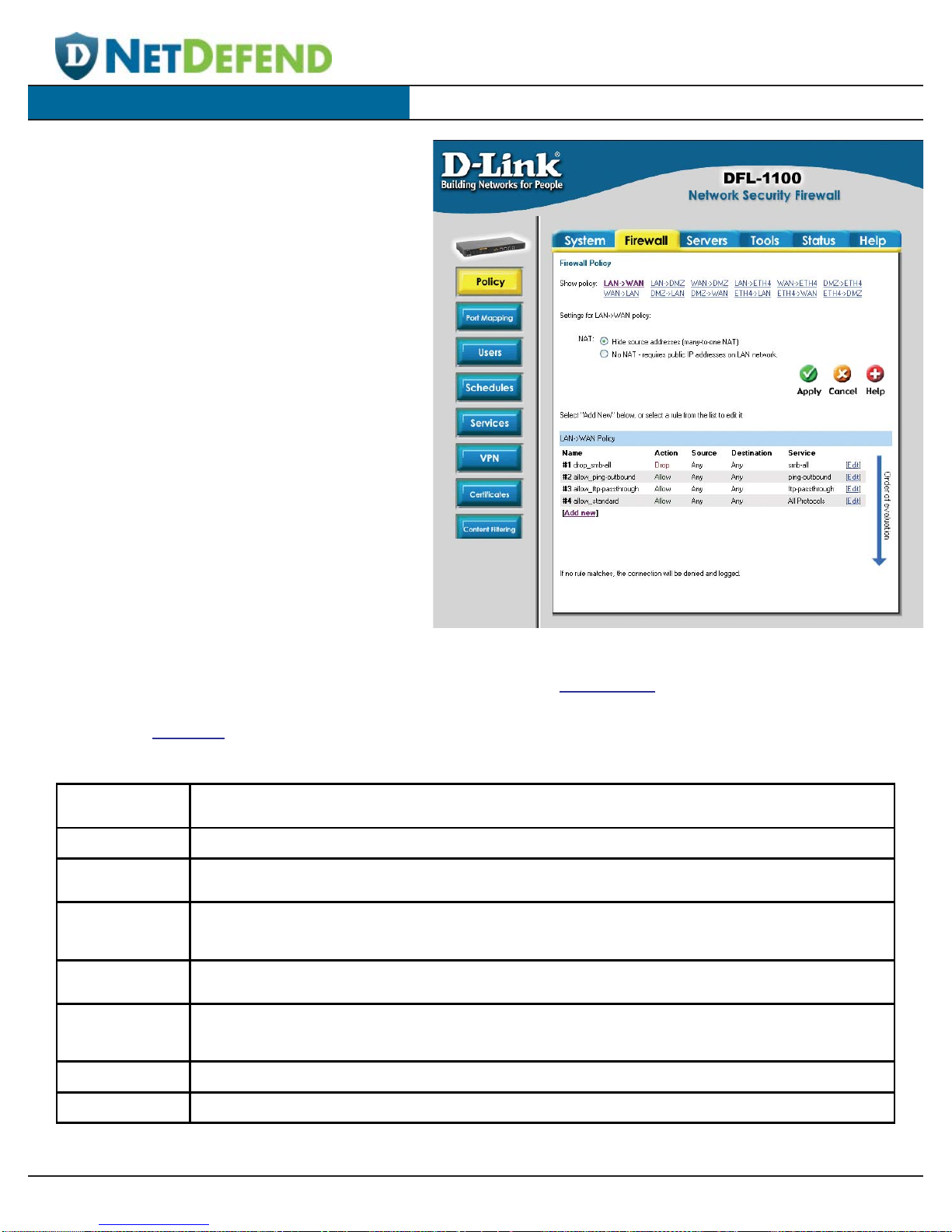

Firewall Policy
DFL-1100 Installation Guide
Firewall Policy
The DFL-1100 allows you to configure policies to
handle data being transmitted and recieved via the
variousinterfaces.Thepolicy configurationwindow
can be found by going to the Firewall tab and the
Policy button is the default selection.
Adding a New Policy
1. Select the desired interfaces to create a policy for. For instance, LAN > WAN would create a policy for data from the
internal LAN to the Internet.
2. Click on the Add new link.
3.Fill in the appropriate values for the following options:
4.Click Apply to apply the settings or click Cancel to disregard the changes.
Name Create a name for the policy. This name is used mainlyas a rule reference in log data and for easy reference in
the policy list.
Action Select the action to be performed with the specified data.
Source Nets Specifies the sender span of IP addresses to be compared to the received packet. Leave this blank to match
everything.
Source
Users/Groups Here you can specifythat a username, group, or any authenticated user must be the source for the action to
occur. A list of usernames canbe entered, separated by a comma, or write Any to represent any authenticated
user. If it’s left blank there is no need for authentication for this policy.
Destination Nets Specifies the span of IP addresses to be compared to the destination IP of the received packet. Leave this blank
to match everything.
Destination
Users/Groups A specific username can be specified for this policy to match. A list of usernames canbe entered, separated by
a comma, or write Any for any authenticated user. If it’s left blank there is no need for authentication for this
policy.
Service A predefined service can be selected from the dropdown menu or a custom service canbe created.
Schedule Select what schedule should be used for this policy to match. Choose Always for no scheduling.

19

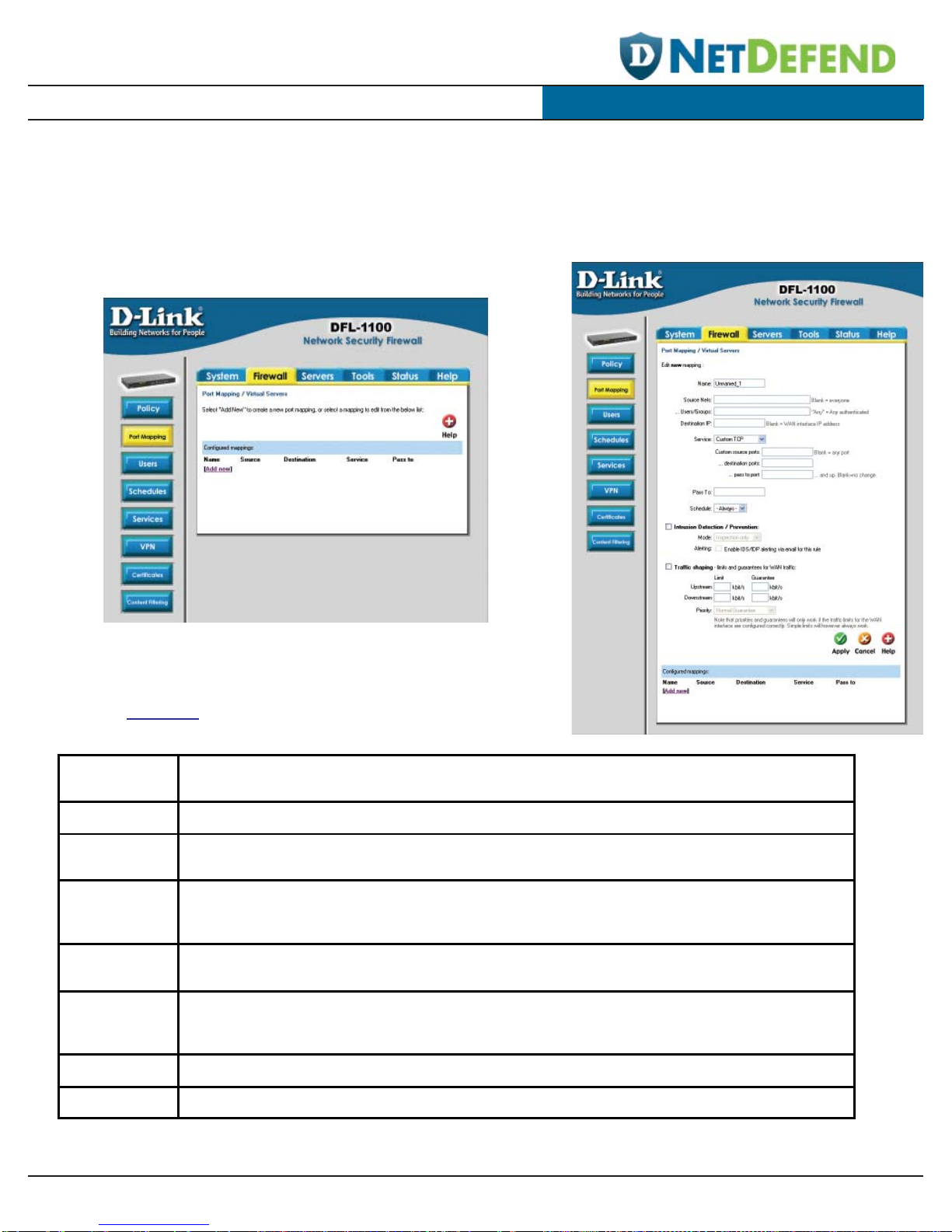

Port Mapping
DFL-1100 Installation Guide
Port Mapping / Virtual Servers
The Port Mapping / Virtual Servers configuration section allows you to configure virtual servers such as Web servers.
Mappings are read from top to bottom. The first matching mapping is carried out. The Port Mapping / Virtual Servers
configuration screen can be found by going to the Firewall tab and clicking on the Port Mapping button.
Adding a New Mapping
1.Click the Add new link.
2.Fill in the following values:
e
4.If using Traffic Shaping, fill in the appropriate information. If not, skip this step.
5.Click Apply to apply the settings or click Cancel to disregard the changes.
Name Create a name for the policy. This name is used mainly as a rule reference in log data and for easy
reference in the policy list.
Action Select the action to be performed with the specified data.
Source Nets Specifies the sender span of IP addresses to be compared to the received packet. Leave this blank to
match everything.
Source
Users/Groups
Here you can specify that a username, group, or any authenticated user must be the source for the action to
occur. A list of usernames canbe entered, separated by a comma, or write Any to represent any
authenticated user. If it’s left blank there is no need for authentication for this policy.
Destination
Nets Specifies the span of IP addresses to be compared to the destination IP of the received packet. Leave this
blank to match everything.
Destination
Users/Groups
A specific username can be specified for this policy to match. A list of usernames can be entered,
separated by a comma, or write Any for any authenticated user. If it’s left blank there is no need for
authentication for this policy.
Service A predefined service canbe selected from the dropdown menu or a custom service canbe created.
Schedule Select what schedule should be used for this policy to match. Choose Always for no scheduling.

20

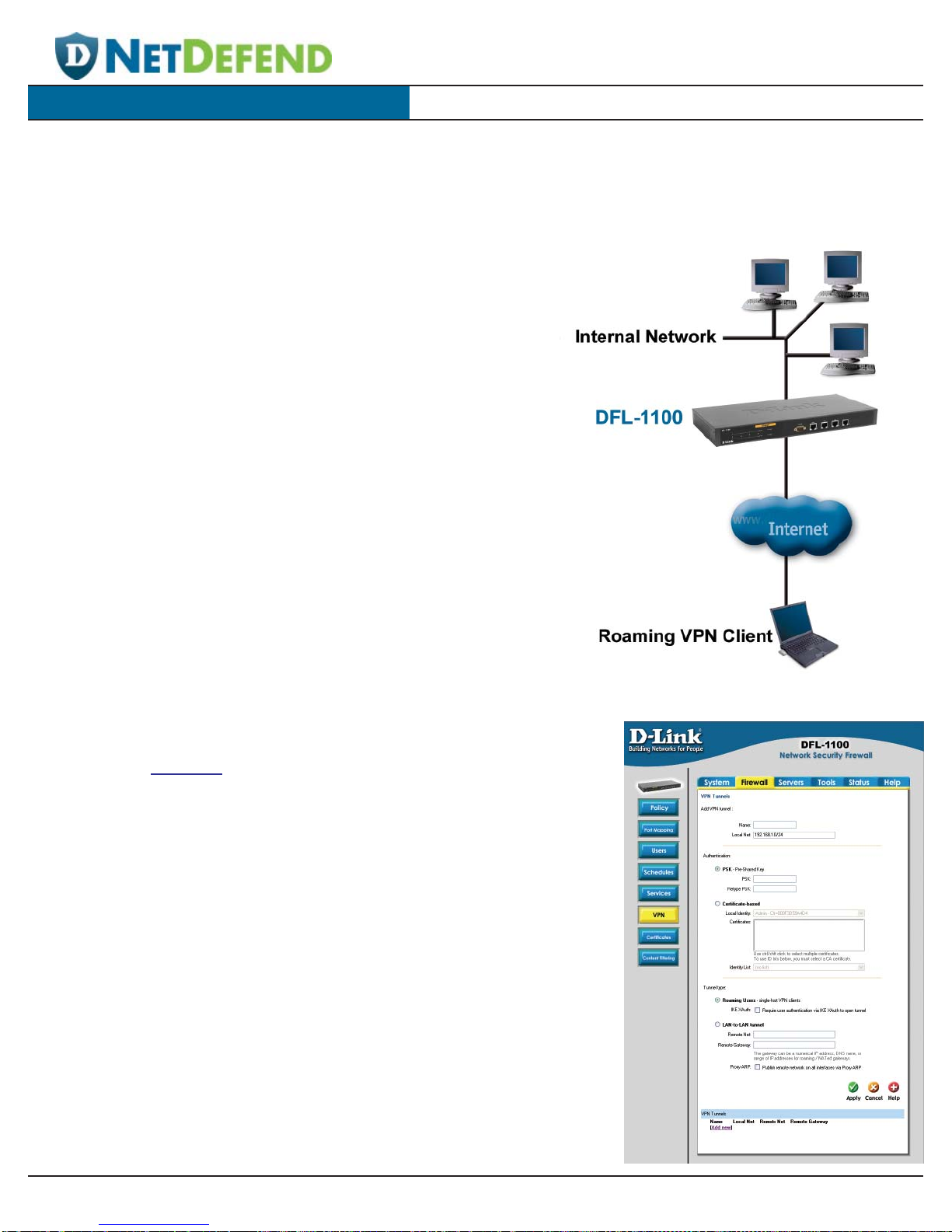

IPSec VPN Configuration
DFL-1100 Installation Guide
IPSec VPN Configuration
The VPN configuration screen can be found by going to the Firewall tab and selecting the VPN button.
Creating a Roaming Users VPN Tunnel
1.Click on the Add new link.
2.Enter a name for the new tunnel in the name field. The name can
contain numbers (0-9), upper and lower case letters (A-Z, a-z),
dash (-), or underscore (_).
3.In the Local Net field, enter the local network that your roaming
VPN clients will be connecting to.
4.Choose the authentication type, either PSK (Pre-shared Key) or
Certificate-based.If youselectPSK, besurethe clientsuseexactly
the same PSK.
5.Select Roaming Users as the Tunnel Type.
6.Click Apply to apply the settings or click Cancel to disregard the
changes.
IPSec VPN Between a Client and an
Internal Network
UserscanconnecttothemainofficeinternalnetworkfromanyInternet
connection. Communication between the client and the internal
network takes place in an encrypted VPN tunnel that connects the
DFL-1100 and the roaming users across the Internet. The client can
connect to an internal network or the DMZ network.
