D-Link DFL-210 - NetDefend - Security Appliance User manual

Network
Security Firewall
This Quick Guide will guide you through the installation Process. You are
only moments away from using your new D-Link Network Security Product
Building Networks for People
DFL-210

1.Before You Begin
1.1 Check Your Package Contents....................................................................1
2.Indentifying Components
2.1 FrontView.................................................................................................2
2.2 Rear View.................................................................................................2
2.3 LED Indicators...........................................................................................3
2.4 DefaultInterface AttributeDefinition..........................................................3
3.Connecting the DFL-210
3.1 Setting up Firewall to your Network...........................................................4
4.Configure DFL-210
4.1 Configure your Computer’s IP...................................................................5
4.2 UsingtheSetupWizard..............................................................................6
5.Appendix

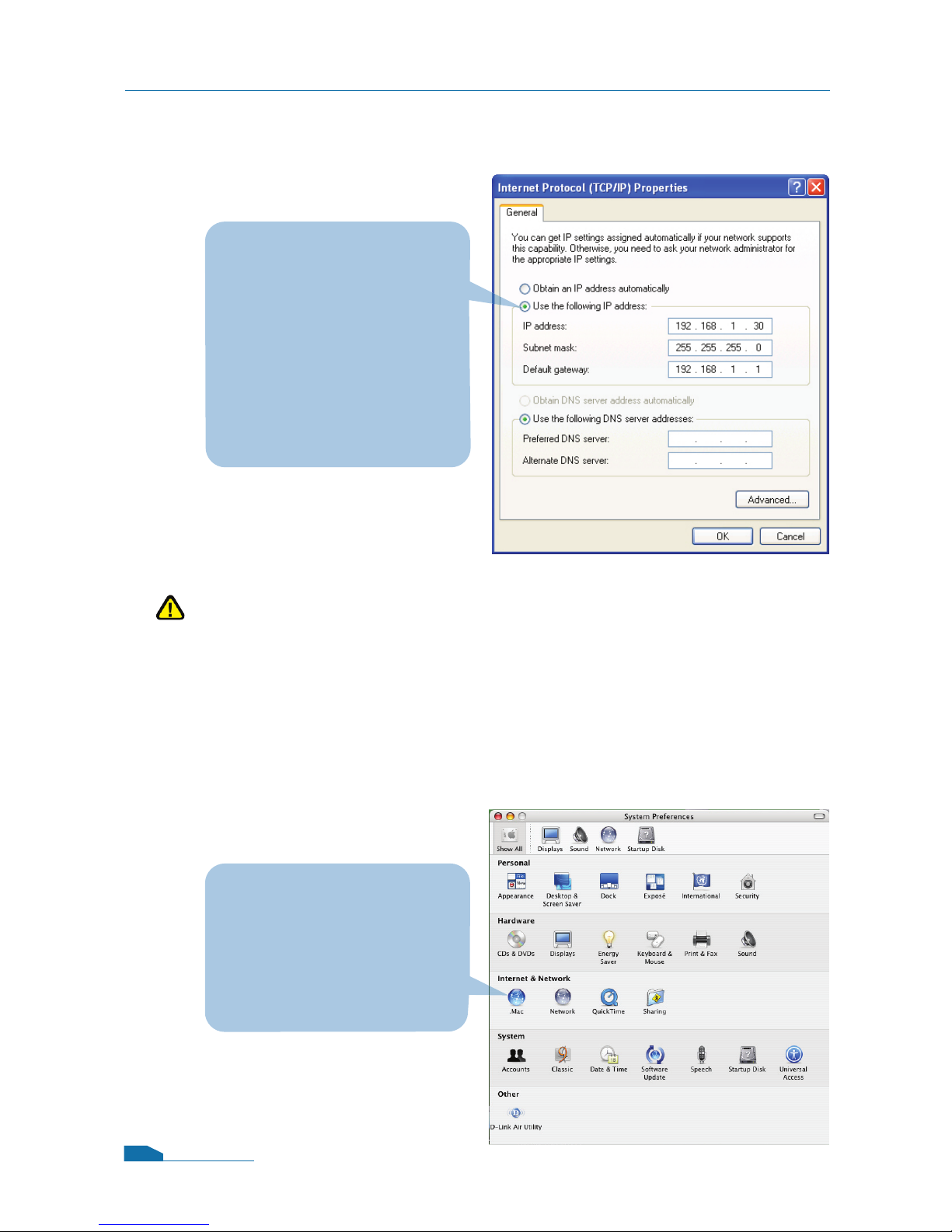

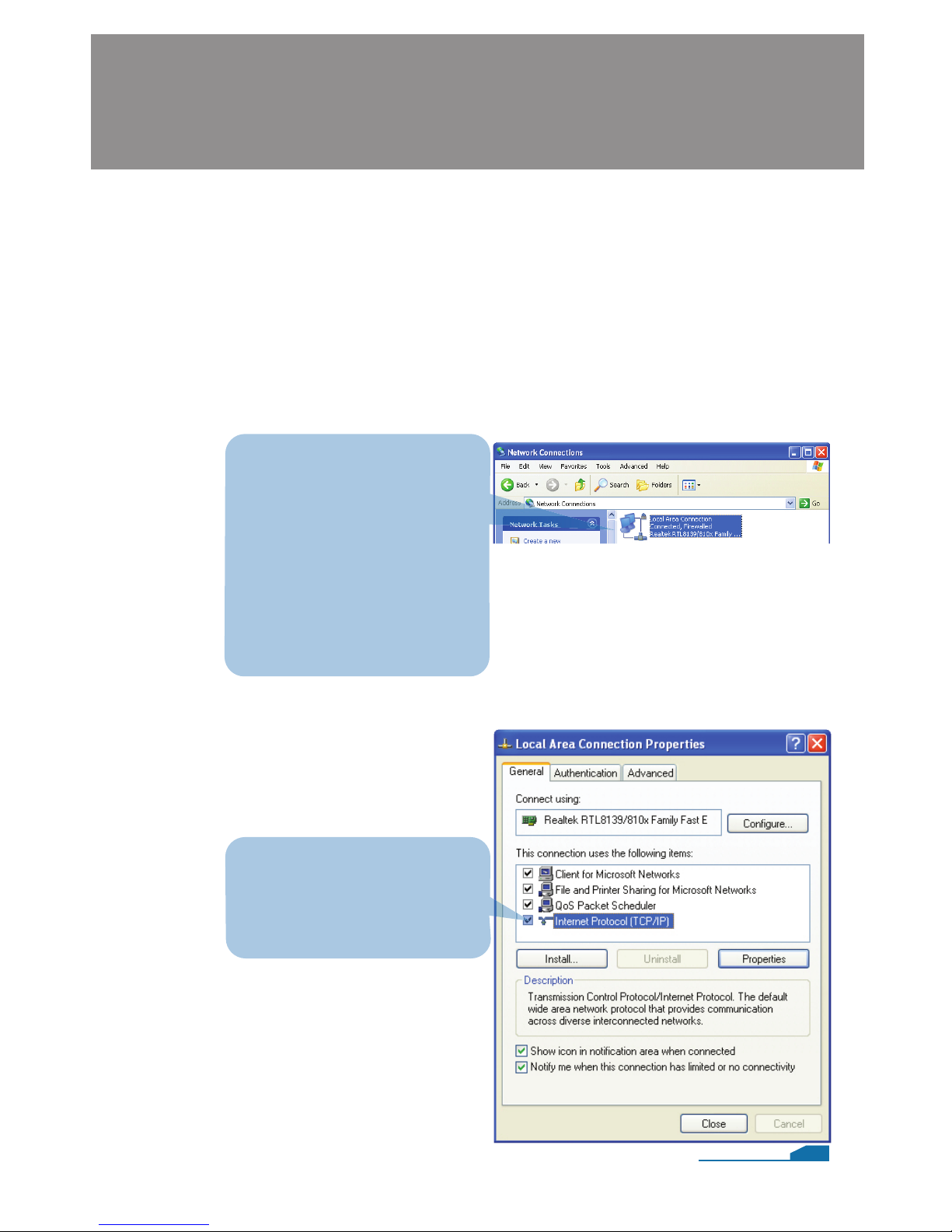

5.1 How to Configure Static IP Manually on Microsoft Windows XP...............14

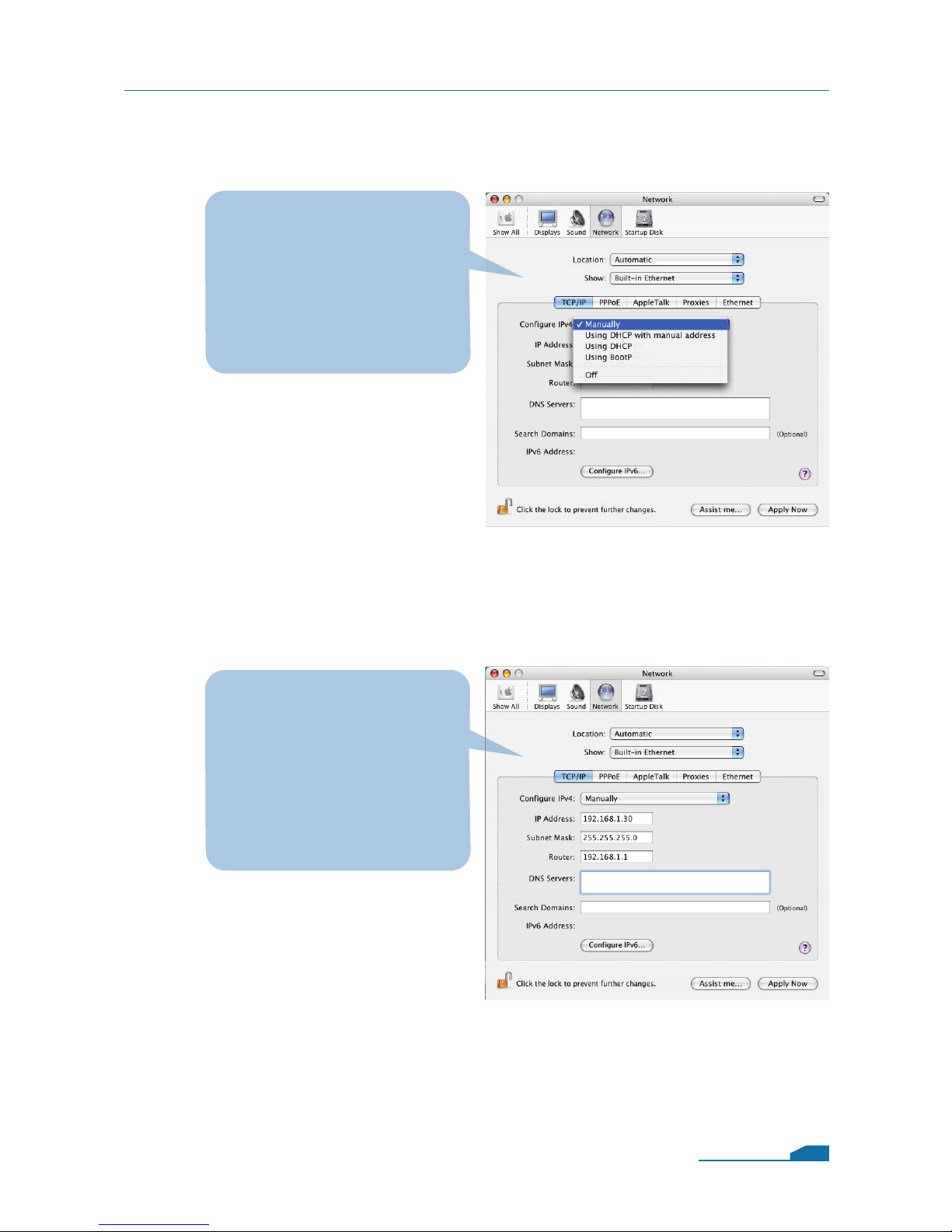

5.2 How to Configure Static IP Manually on Apple MAC OS X............................15
6.WARRANTY
DFL-210 Quick Installation Guide

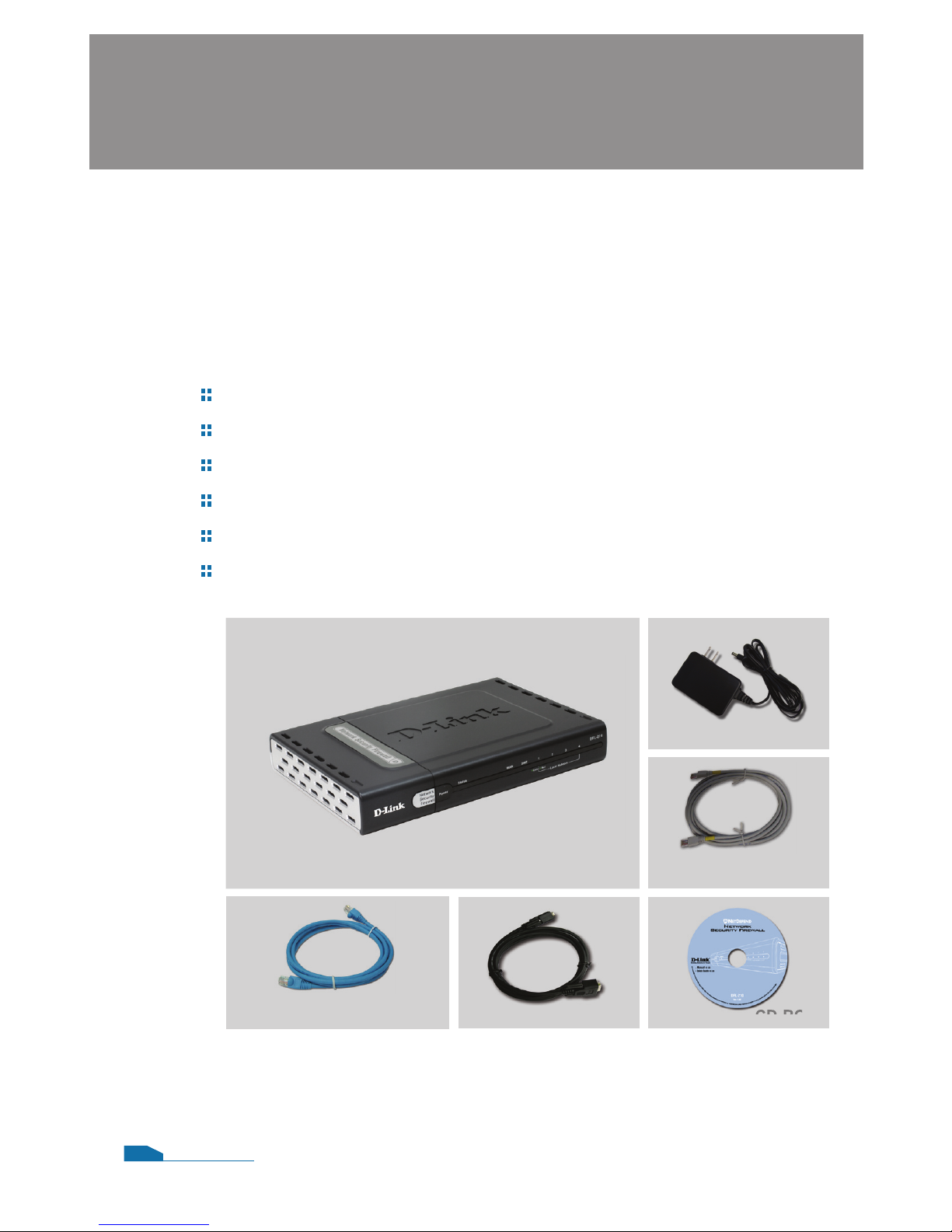

1.1 Check Your Package Contents
Your NetDefend Network Security Firewall package should
contain all the items listed below. If any of these items is found
damaged or missing in your package, report it to your reseller
immediately for replacement.
One (1) DFL-210 NetDefend™ Network Security Firewall
One (1) 5V DC Power Adapter
One (1) Console Cable (RS-232 cable)
One (1) Ethernet (CAT5 UTP/Straight Through) Cable
One (1) Ethernet (CAT5 UTP/Cross-over) Cable
One (1) CD-ROM (containing QIG/Manual )
DFL-210
Before You Begin 1
01
DFL-210
Power Adapter
Console Cable CD-ROM
Ethernet Cable
(Cross-over)
Ethernet Cable
(Straight-Through)
CD-ROM

Identifying Components 2

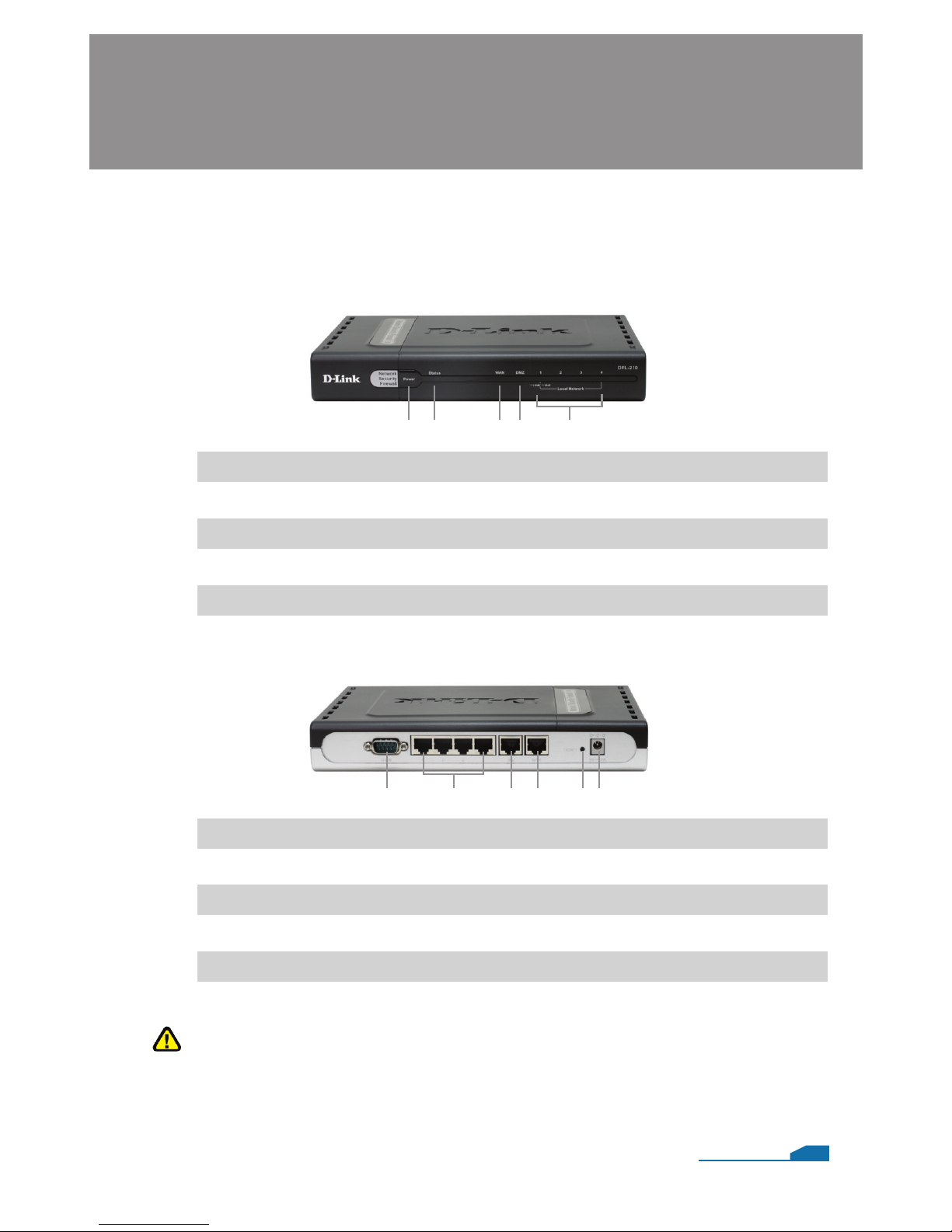

The following illustrates the front panel of the DFL-210 and
explains the front panel’s key components:
2.1 Front View
02
1. Power LED
2. Status LED
3. WAN LED
4. DMZ LED
5. LAN LED
Power indication of the DFL-210.
System status indication of the DFL-210.
WAN port status indication of the DFL-210.
DMZ port status indication of the DFL-210.
LAN port status indication of the DFL-210.
Note:
WAN interface do not support Auto MDI/MDI-X
(Automatic cable detection for Straight-through and Crossover
function).
1 2 3 4 5
2.2 Rear View
1. Console Port
2. LAN Ports
3. DMZ Port
4. WAN Port
5. Reset
6. Power Receptor
Connects to RS-232 console cable that connects to PC.
These are for the connection of Ethernet cables to the internal network.
This is for the connection of an Ethernet cable to an DMZ network.
This is for the connection of an Ethernet cable to a Cable or DSL modem.
This is for resetting system con guration to factory defaults.
This is for the connection of the power adaper to a wall outlet or power strip.
1 3 4 62 5

2.4 Default Interface Attribute definition
Note:
For security reason, default only allow LAN interface (192.168.1.1)
that can login into rewall GUI from Web browser. You also can
modify this conguration after login into rewall GUI. About the
detail set up procedure, please refer to the user’s manual.
DFL-210 Quick Installation Guide
03
Wording on
Front plate
Default name
in rewall
Default interface
type denition
Default interface
IP Address
Default
DHCP Status
WAN WAN Static IP 192.168.110.254/24 Disable
DMZ DMZ Static IP 172.17.100.254/24 Disable
Ports: 1~4 LAN Static IP 192.168.1.1/24 Disable
2.3 LED Indicators
Status
Solid green
Light off
Solid green
Light off
Blinking green
Solid green
Blinking green
Light off
Solid green
Blinking green
Light off
Solid green
Blinking green
Light off
Description
The device is powered on.
The device is powered off.
System is operating properly.
The device is not working.
System is defective, such rmware
upgrade fail.
Link present
Port is sending or receiving data.
No link
Link present
Port is sending or receiving data.
No link
Link present
Port is sending or receiving data.
No link
Color
Green
Green
Green
Green
Green
LED
Power
Status
WAN
DMZ
LAN

3.1 Connecting Firewall to Your Network
A. First, connect the power cord to the receptor at the back panel
of the DFL-210 and then plug the other end of the power cord to
a wall outlet or power strip. Now the Power LED will turn ON to
indicate proper operation.
B. 1. Powered off your Cable or DSL modem; some devices may
not have a on/off switch and will require you to unplug the power
adapter. Now, the DFL-210 should be powered on and the Cable
/ DSL modem should be turned off.
2. Cable / DSL modem (Powered Off) - DFL-210 (Powered On)
Connect an Ethernet cable to the Ethernet jack located on
the Cable / DSL modem. After the Ethernet cable is securely
connected, powered on the Cable / DSL modem by turning on
the unit or plugging in the power adapter.
3. Cable / DSL modem (Powered On) - DFL-210 (Powered On)
Insert the other end of the Ethernet cable to one of the Ethernet
ports on the rear panel of the DFL-210. The WAN port LED
light will illuminate to indicate proper connection. If the LED
light is not illuminated, please go back to step B and repeat its
instructions.
C. Insert an Ethernet cable to the LAN1 port on the rear panel of
the DFL-210 and connect it to a port on your network hub or
switch. The LAN port LED light on the DFL-210 will illuminate to
indicate proper connection
D. Connecting the computer that you will use to congure the
DFL-210 to the network hub or switch.
Connecting the DFL-210 3
04

4.1 Configure Your Computer’s IP Address
Make sure that the network adapter in your computer is congured
to use a static IP address with 192.168.1.1 as default gateway and
255.255.255.0 as netmask. Instructions on how to congure the
network adapter can be found in the appendix.

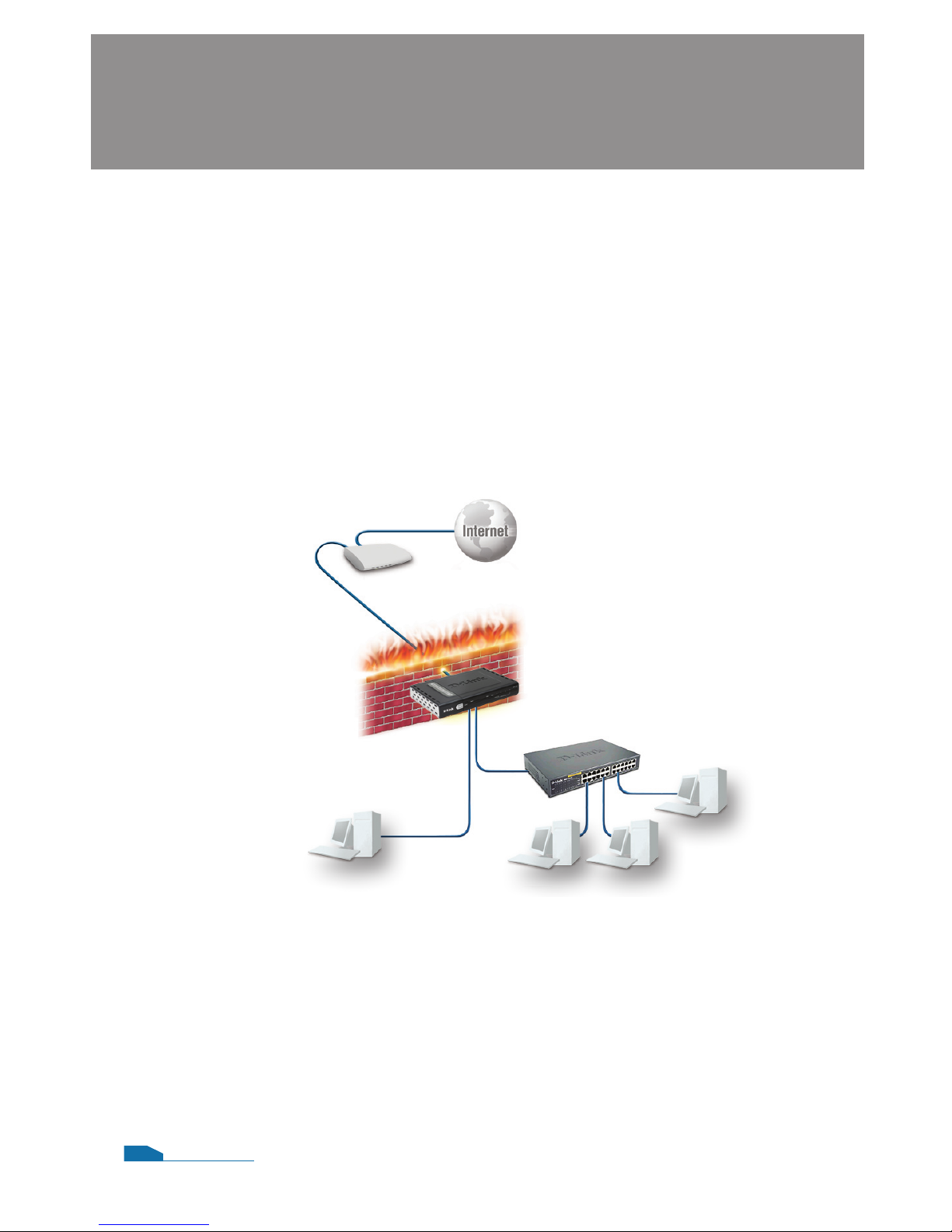

When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Configure DFL-210 4
05
Cable/DSL Modem
DFL-210
Switch
Internal
Network
DMZ
Network
(optional)
Computer1 Computer2

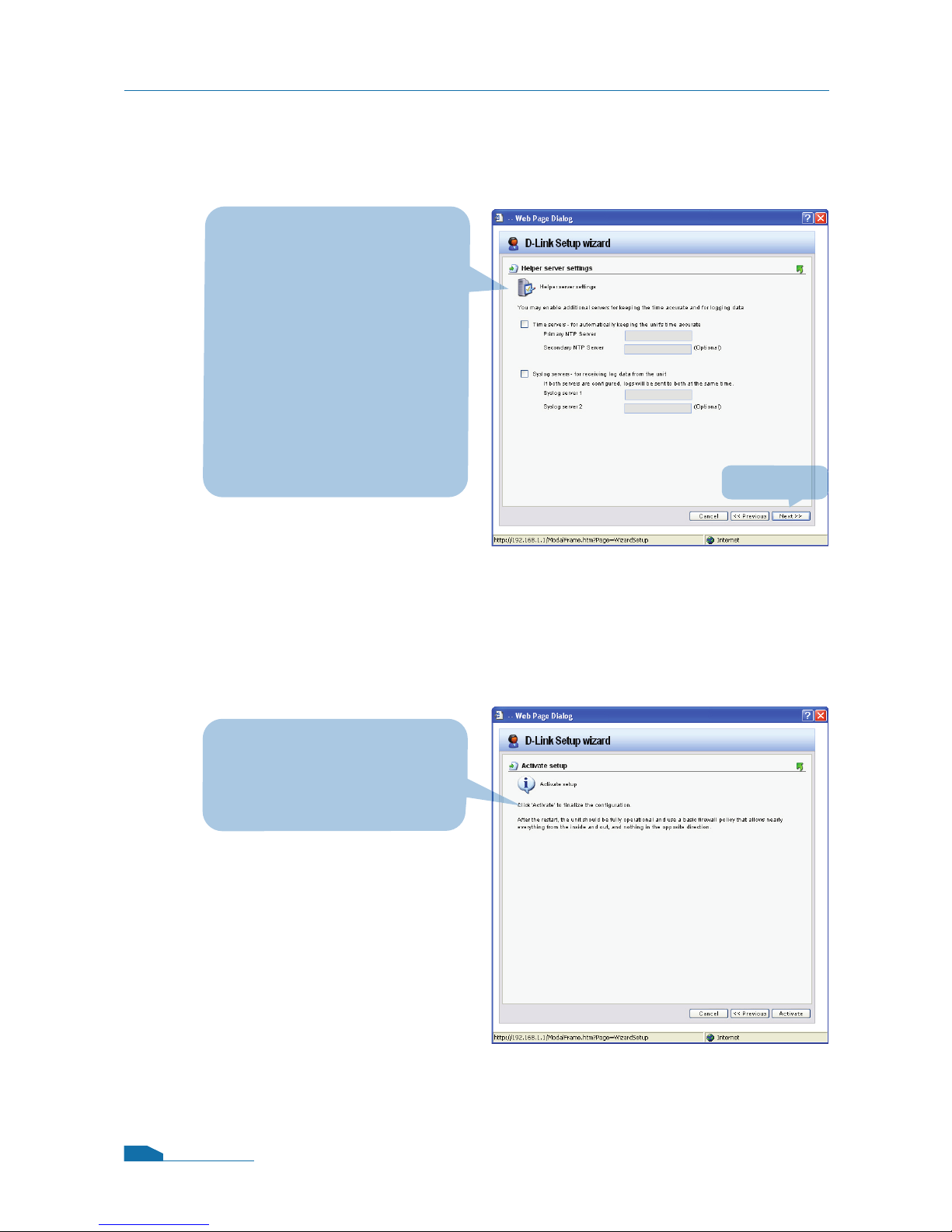

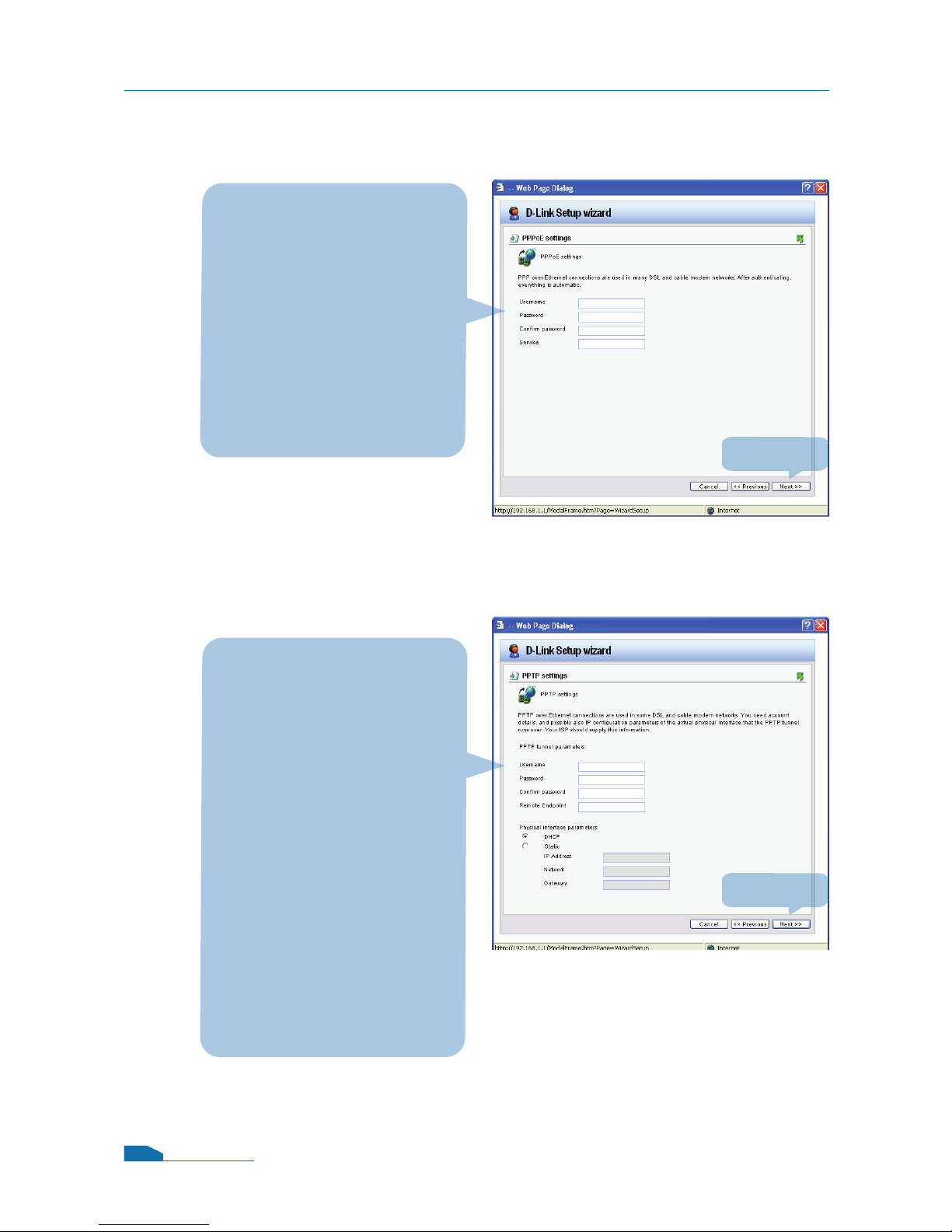

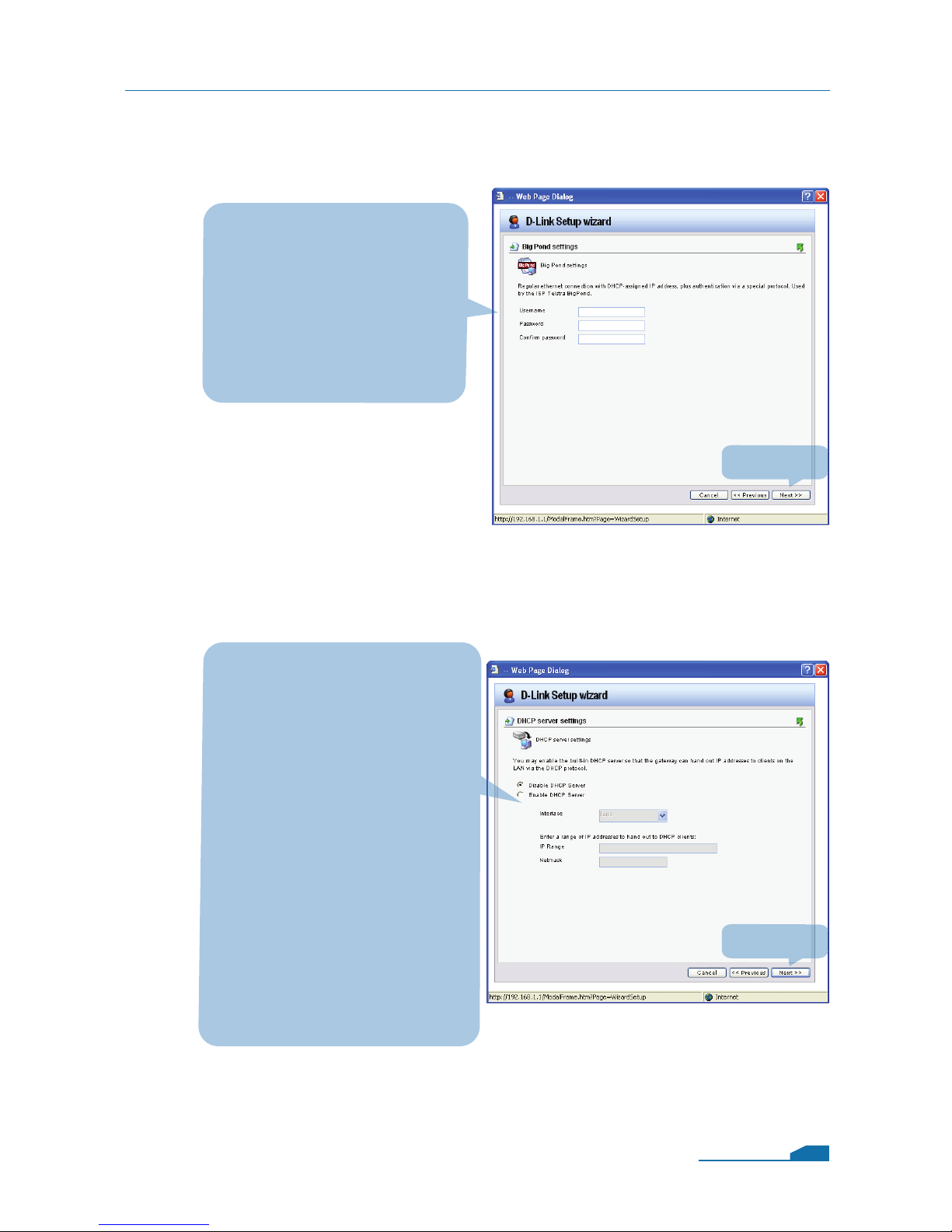

4.2 Using the Setup Wizard
The DFL-210 provides Web based con guration. You can
con gure your DFL-210 through Internet Explorer 6 or Firefox
1.0 browser in MS Windows, Macintosh or UNIX based
platforms.
Activate your browser. Then type the IP address of the
DFL-210 into the Location (for Netscape) or Address (for IE)
 eld and press “Enter.” For example: http://192.168.1.1.
(The IP Address shown in the example above is the default
setting. If you have changed the IP Address of the DFL-210
to conform to a network, then input that IP Address in the web
browser, instead of the default IP Address shown.)
Log on to the DFL-210 web interface.
To start using the DFL-210 web interface you need to log on
using the default username and password.
DFL-210 Quick Installation Guide

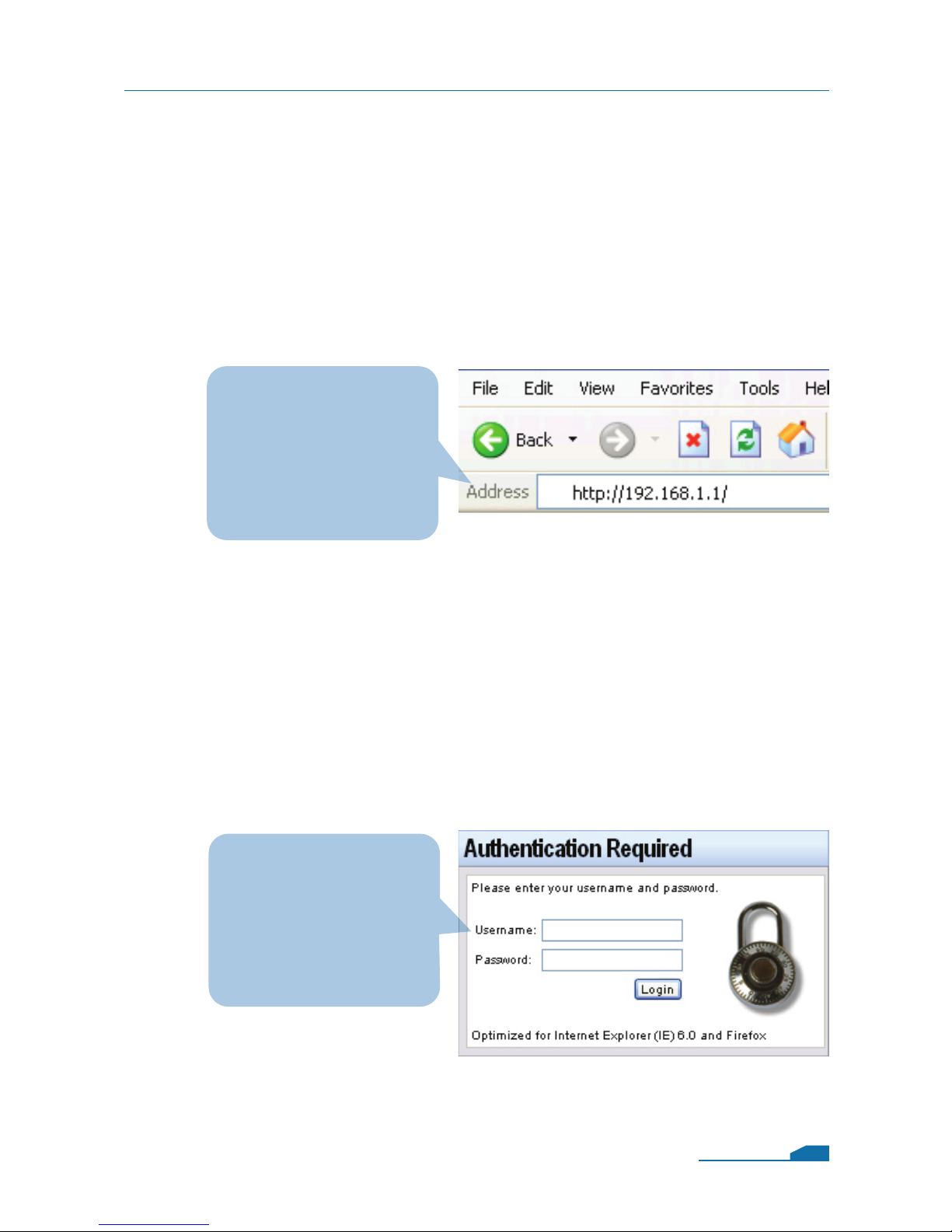

Open your Web
browser and type
http://192.168.1.1 /
into the URL address
box. Then press the
Enter or Return key.
Type the default
Username/Password
Username: admin
Pasword: admin
and click Login
06

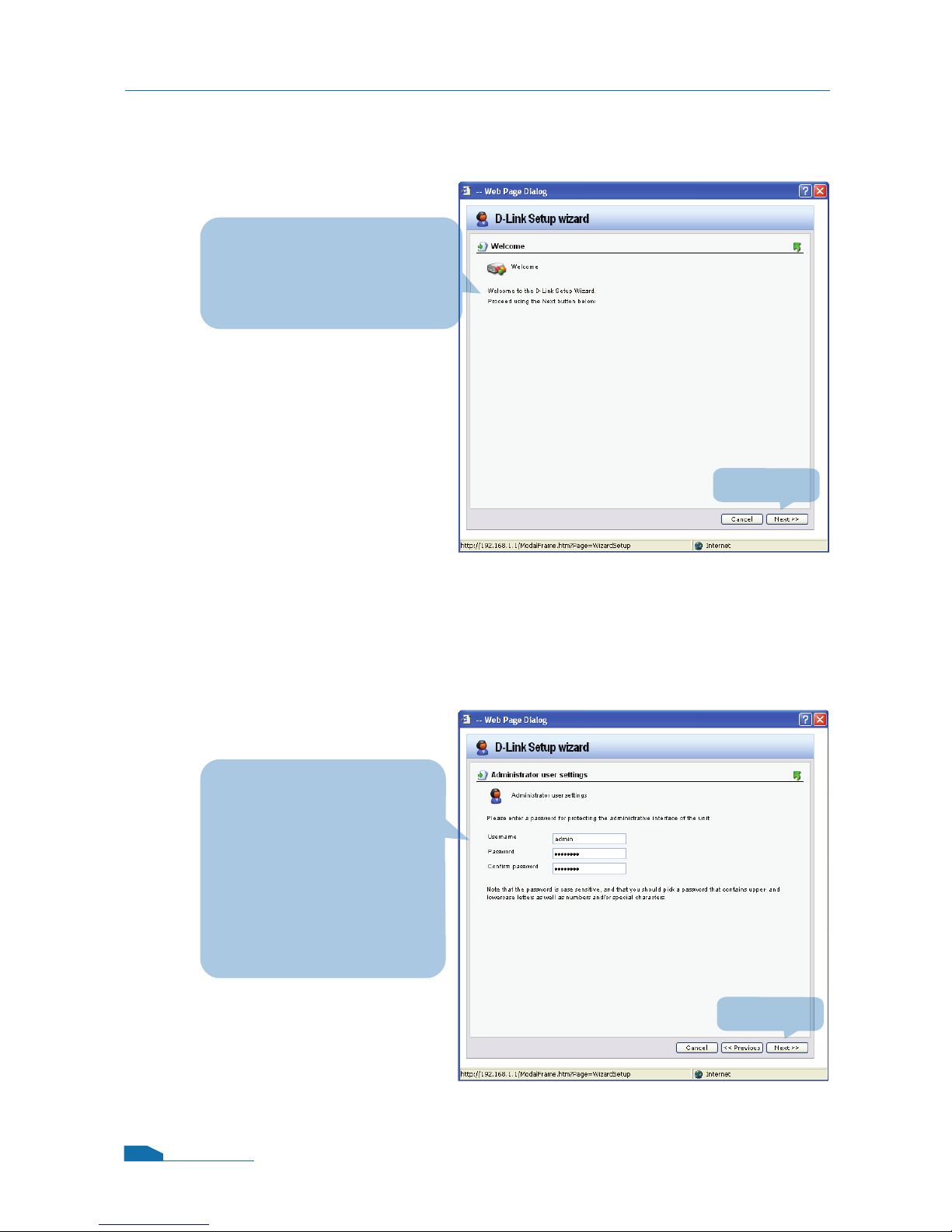

Step1 - Welcome to the DFL-210 setup wizard!
Step2 - Set up  rewall administrator password
First Enter the
username that you want
to use for the admin
account.
Enter the password
that you want to use
for the admin account.
DFL-210 Quick Installation Guide
This wizard will guide
you through the setup of
your DFL-210
Click Next
07
Click Next

2

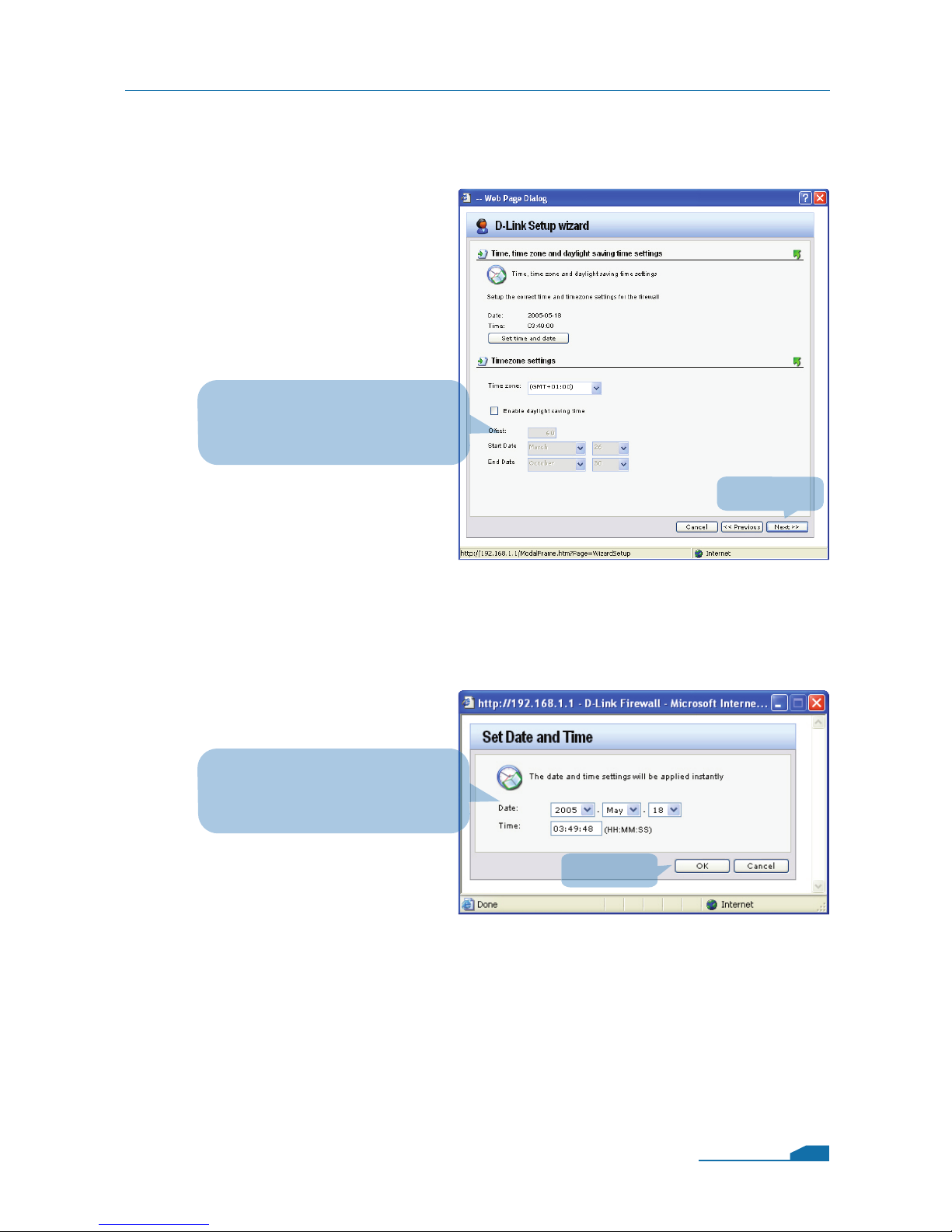

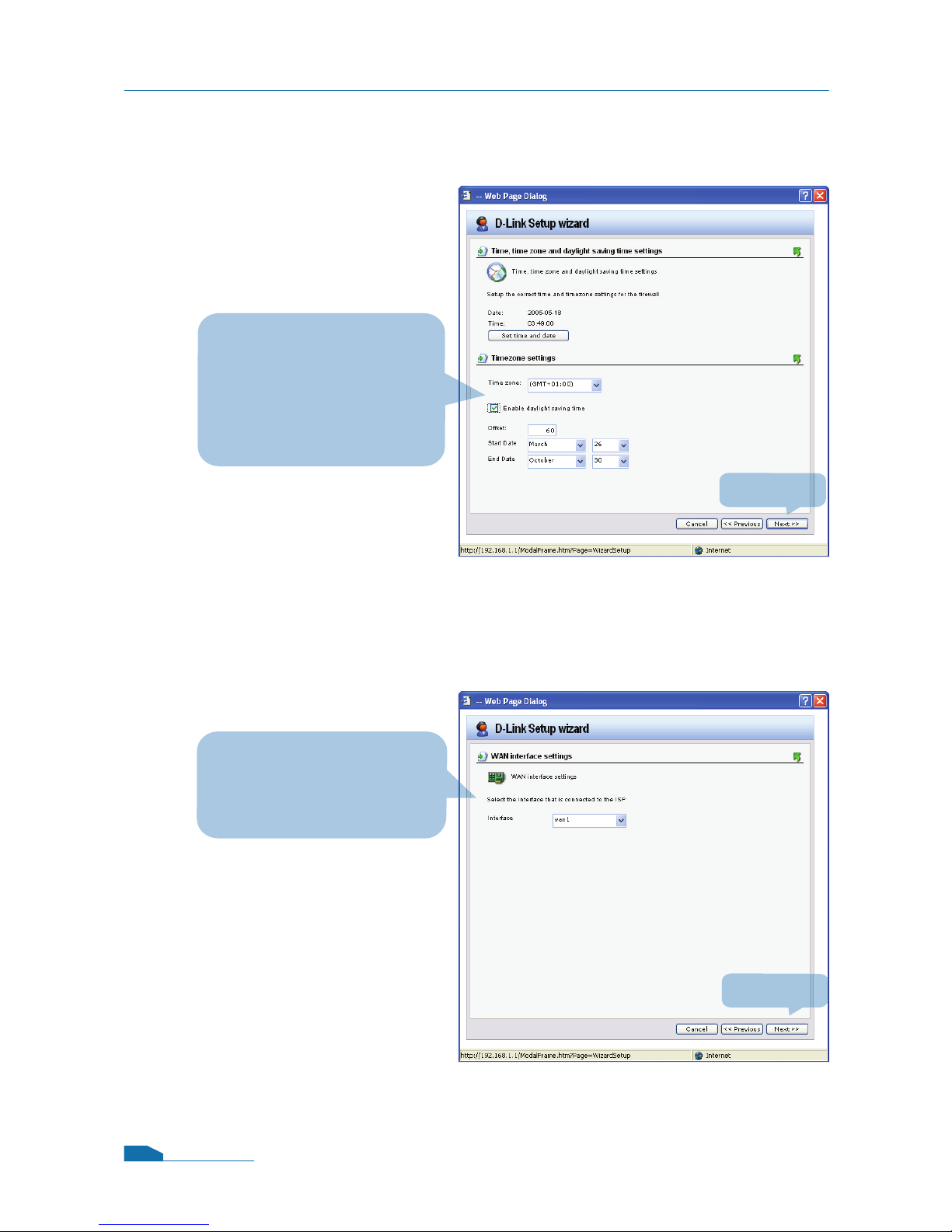

Step 3 - Set up time and date
Click Set time and date
button for setting device
08
Click Next
Select the appropriate date
Enter the appropriate time
Click OK
DFL-210 Quick Installation Guide
