D-Link DCS-4622 User manual

User Manual
Version 1.01 | 02/24/2017
DCS-4622
Vigilance 360° Full HD PoE Network Camera

2D-Link DCS-4622 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change.
Manual Revisions
Revision Date Description
1.00 09/13/2016 DCS-4622 Revision A1 with rmware version 1.00
1.01 02/24/2017 Minor updates
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2017 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Preface

3D-Link DCS-4622 User Manual
Table of Contents
Product Overview........................................................ 4
Package Contents.................................................................4
Introduction............................................................................ 5
System Requirements .........................................................5
Features....................................................................................6
Hardware Overview.............................................................7
Installation...................................................................9
Mounting the Camera.........................................................9

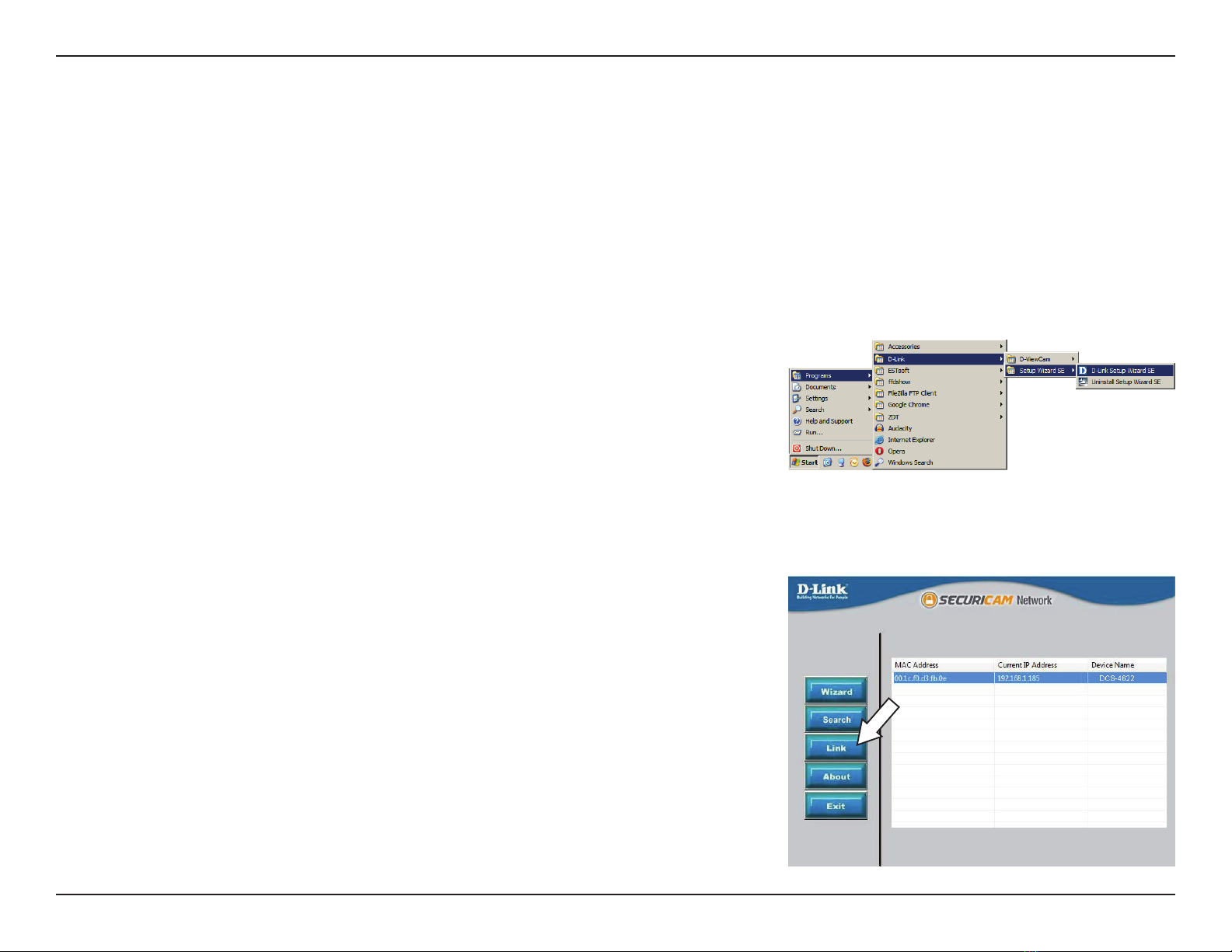

Software Installation......................................................12
Conguration ............................................................15
Using the Conguration Interface................................15

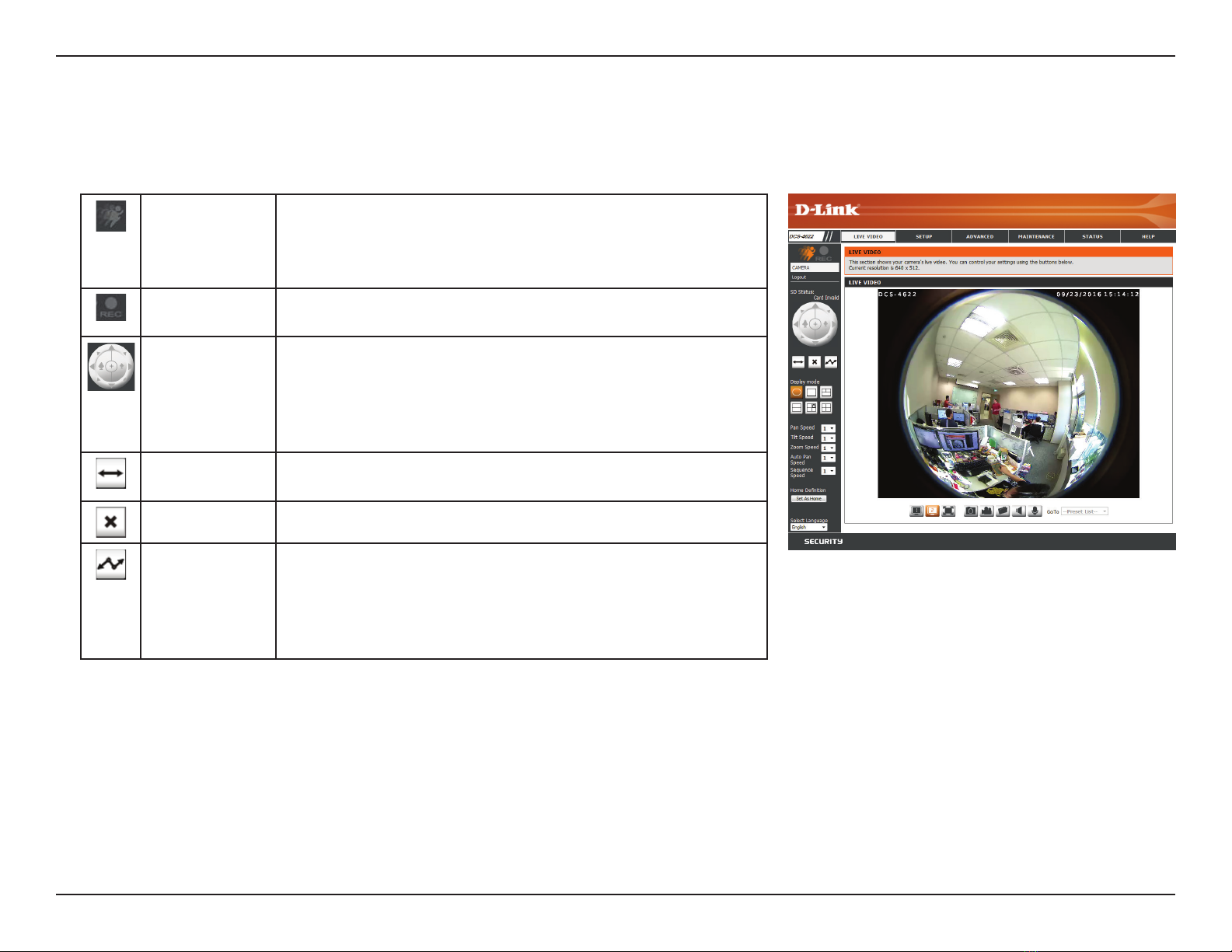

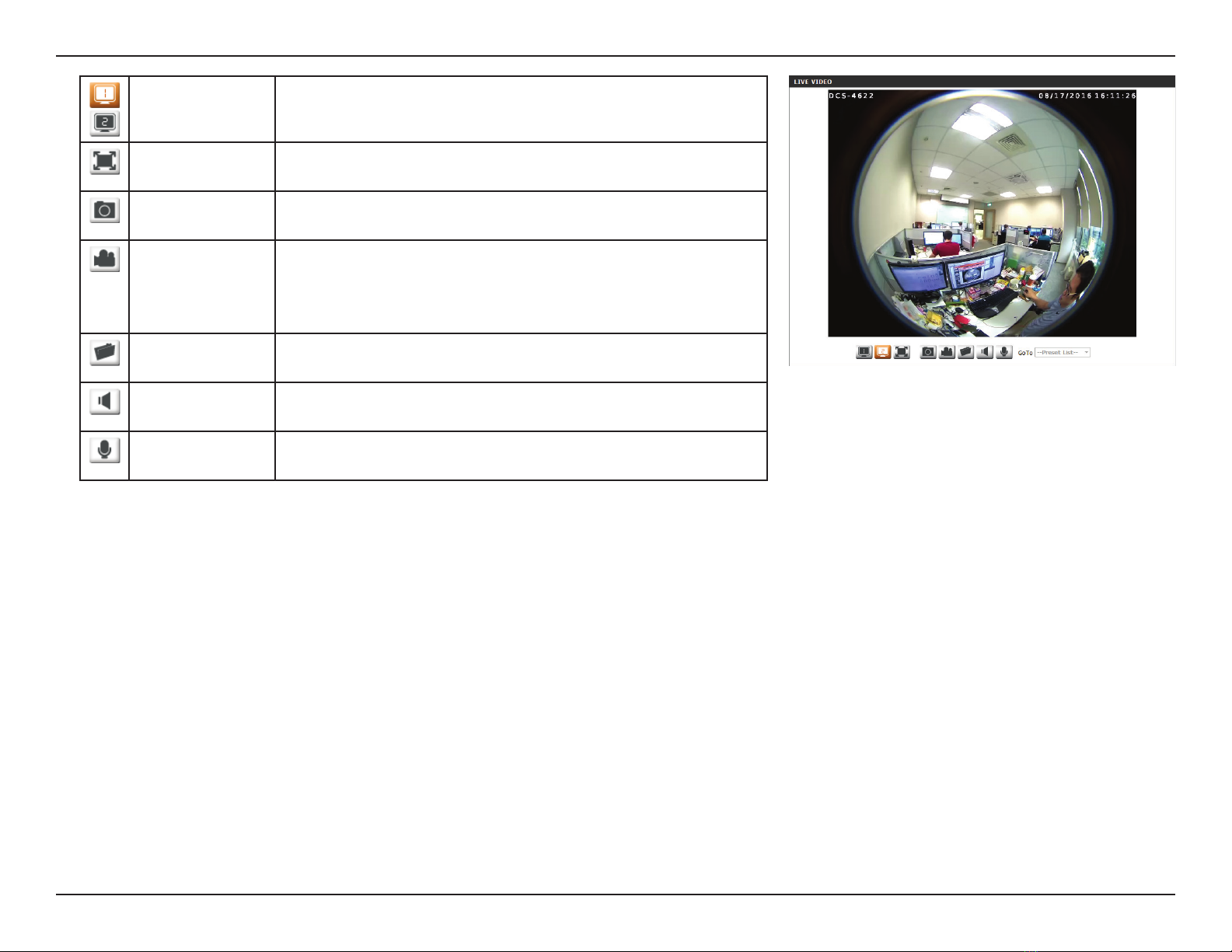

Live Video ..............................................................................17
Setup.......................................................................................20
Setup Wizard ....................................................................20
Network Setup.................................................................25
Dynamic DNS ...................................................................28
Image Setup .....................................................................29
Audio and Video..............................................................31
Preset...................................................................................32
Motion Detection ...........................................................33
Time and Date..................................................................34
Event Setup.......................................................................35
SD Card...............................................................................42
Advanced...............................................................................43
ICR and IR...........................................................................43
HTTPS..................................................................................44
Access List..........................................................................45
SNMP...................................................................................46
Maintenance.........................................................................48
Device Management .....................................................48
System ................................................................................49
Firmware Upgrade..........................................................50
Status ......................................................................................51
Device Info ........................................................................51
Logs .....................................................................................52
Help......................................................................................53
Technical Specications............................................54
Regulatory Information............................................57

4D-Link DCS-4622 User Manual
Section 1: Product Overview
Product Overview

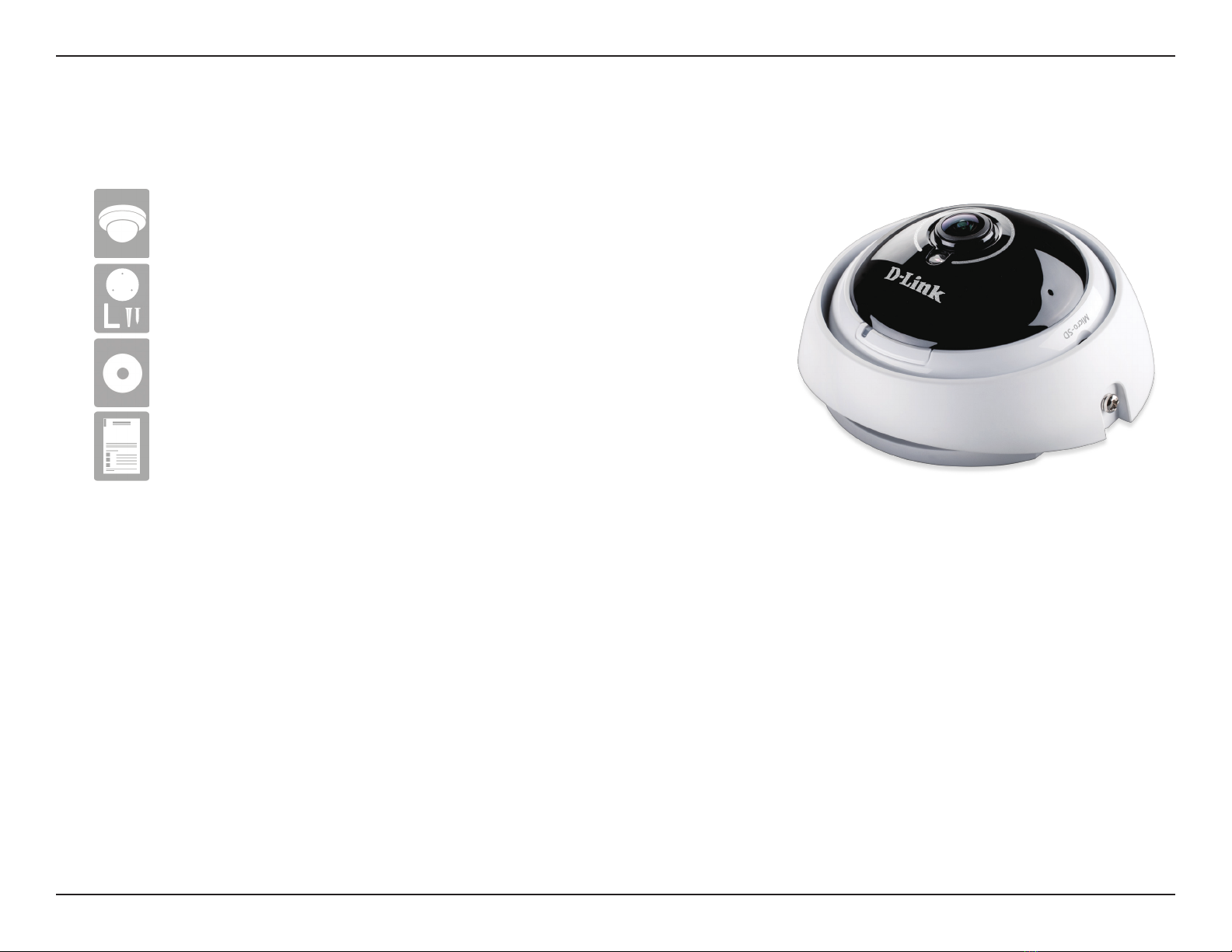

Package Contents
If any of the above items are missing, please contact your reseller.
Safety Notice: Installation and servicing should be done by certied technicians so as
to conform to all local codes and prevent voiding your warranty.
DCS-4622 Vigilance 360° Full HD PoE Network Camera
Mounting Kit
CD-ROM with User Manual and software
Quick Installation Guide

5D-Link DCS-4622 User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-4622Vigilance 360° Full HD PoE Network Camera.The DCS-4622 is a professional
surveillance and security solution for small, medium, and large enterprises alike.The DCS-4622 uses a Full HD progressive scan
CMOS sensor; the professional sensor results in low noise and high sensitivity capabilities ideal for surveillance applications.
The DCS-4622 is a complete system with a built-in CPU and incorporates a web server, allowing it to transmit excellent real-
time Full HD resolution video for security and outdoor surveillance.
The DCS-4622 can be accessed remotely, controlled and congured from any PC/Notebook over your local network or through
the Internet via a web browser. The simple installation and intuitive web-based interface oer easy conguration across the
full range of its advanced feature set, including granular control over multiple video streams with dierent congurations and
multicast video streams which helps you manage your network load.
The built-in removable IR-cut lter and IR LEDs give the DCS-4622 the capability to view up to 8M at night. The DCS-4622
also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for
supplemental power cabling. The combination of an IR-Cut Filter, IR LEDs, and PoE make the DCS-4622 an ideal solution for a
dependable and cost-eective 24 hour surveillance solution with easy clutter-free installation.
• Computer with Microsoft Windows® 10, 8, 7, or Vista® (for CD-ROM Setup Wizard), Mac OS X, or Linux
• Internet Explorer 7, Firefox 20, or Safari 6 or higher
• Existing 10/100 Ethernet-based network with an available 802.3af Power over Ethernet (PoE) port
System Requirements

6D-Link DCS-4622 User Manual
Section 1: Product Overview
360 Degree Surveillance
The built-in sheye lens gives you a full 360 degrees of coverage, allowing it to monitor an entire room with ease. It can also be placed on a wall for
180 degree coverage of a hallway. Distortion correction gives you a panoramic view or a normal corrected image that you can pan across easily.
Supports a Variety of Platforms
With support for TCP/IP networking, HTTP, and other Internet related protocols, the DCS-4622 can also be integrated easily into other Internet/
Intranet applications because of its standards-based features. The DCS-4622 works with any 10/100 Ethernet network, making the DCS-4622 easy
to integrate into your existing network environment.
Advanced Event Management
The DCS-4622 can be set up to send e-mail notications with snapshots when an event occurs, such as when motion is detected. Events can be
triggered from several sources, such as motion detection and time based events.
IR LEDs for Day and Night Functionality
The built-in infrared LEDs enable night time viewing of up to 20 meters.
PoE (Power over Ethernet) for Flexible Installation
The DCS-4622 can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
Features

7D-Link DCS-4622 User Manual
Section 1: Product Overview

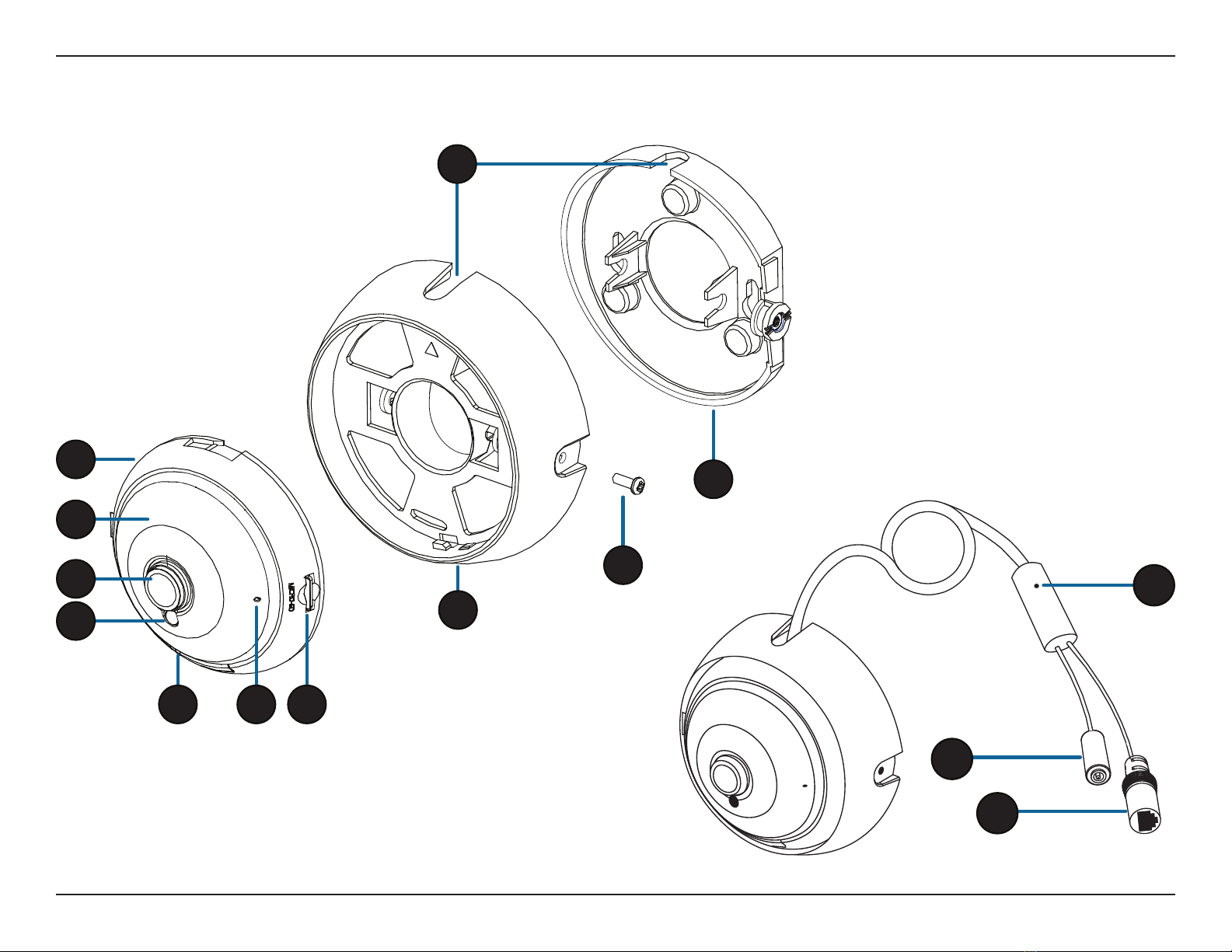

Hardware Overview
9
4
5
3
6 7
8
10
2
11
12
13
14
1

8D-Link DCS-4622 User Manual
Section 1: Product Overview
1 Speaker (on back) Onboard speaker for 2-way communication.
2 IR LEDs (behind cover) Provide illumination for low-light environments.
3 Camera Lens Fixed lens to record video of the surrounding area.
4 Light Sensor The light sensor measures the lighting conditions and switches between color and infrared
accordingly.
5 Power/Status LED
Red: Camera is on, but not connected to the network
Green: Camera is on and is connected to the network
Flashing Green: Camera is currently streaming video
6 Microphone Records audio from the surrounding area.
7 microSD Card Slot You can insert a microSD card to save snapshots and video to it.
8 Camera Mount Remove the camera from the camera mount by turning the camera counter-clockwise. Lock the
camera in the camera mount by turning the camera clockwise.
9 Tilt Adjustment Screw Can be loosened to adjust camera angle, or removed when separating the camera cover from the
mounting plate.
10 Mounting Plate Use the holes on the mounting plate to mount the camera to a ceiling or wall.
11 Cable Channels The camera cable can be passed through the cable channels or the center of the camera mount
when mounting it.
12 Power Connector Connects to an optional 12 V / 1.5 A power adapter (not included).
13 Ethernet Jack RJ-45 connector for Ethernet to connect the camera to your network.
14 Reset Button Press and hold for 10 seconds to reset camera back to the factory default settings.

9D-Link DCS-4622 User Manual
Section 2: Installation
Installation
Mounting the Camera
It is highly recommended that you congure and test your camera before mounting it.

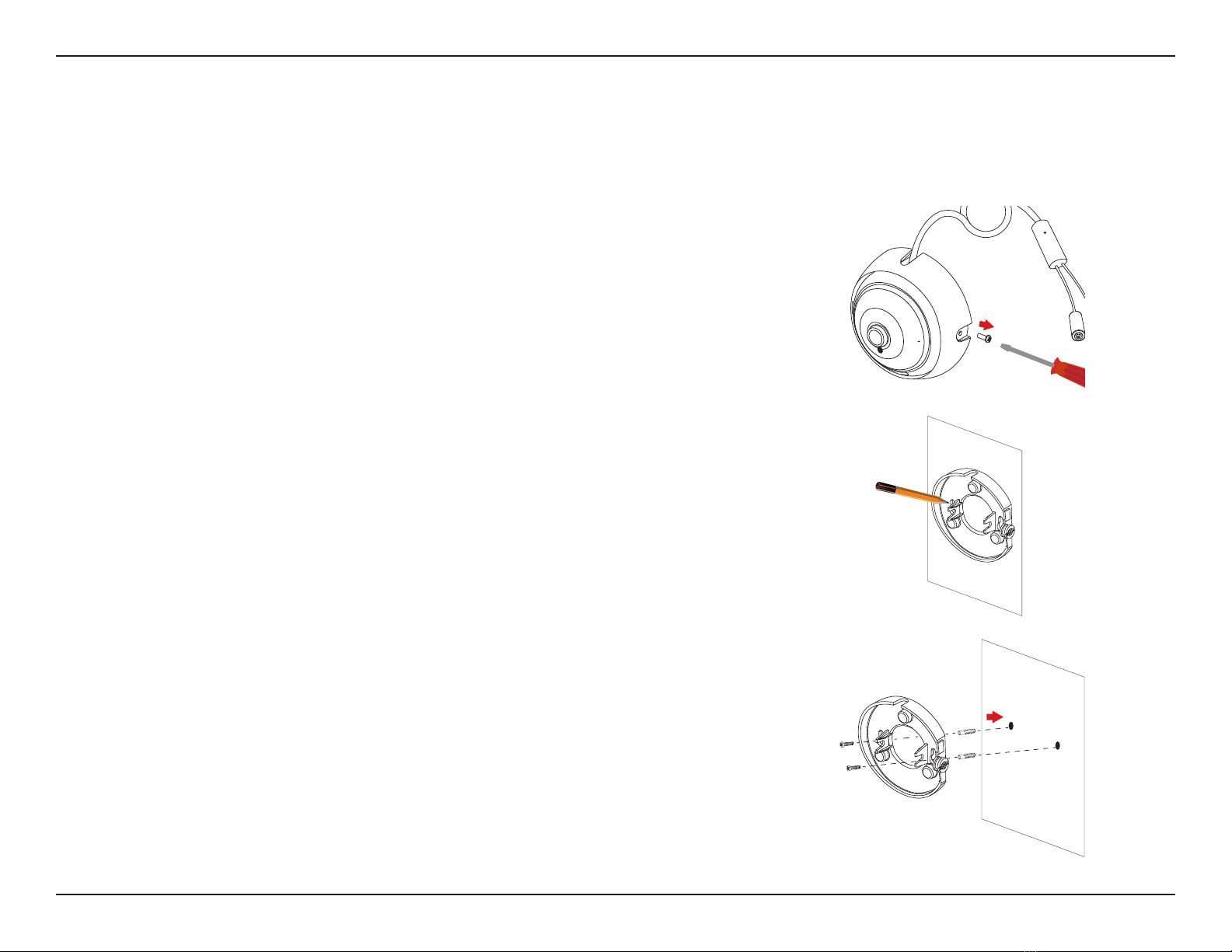

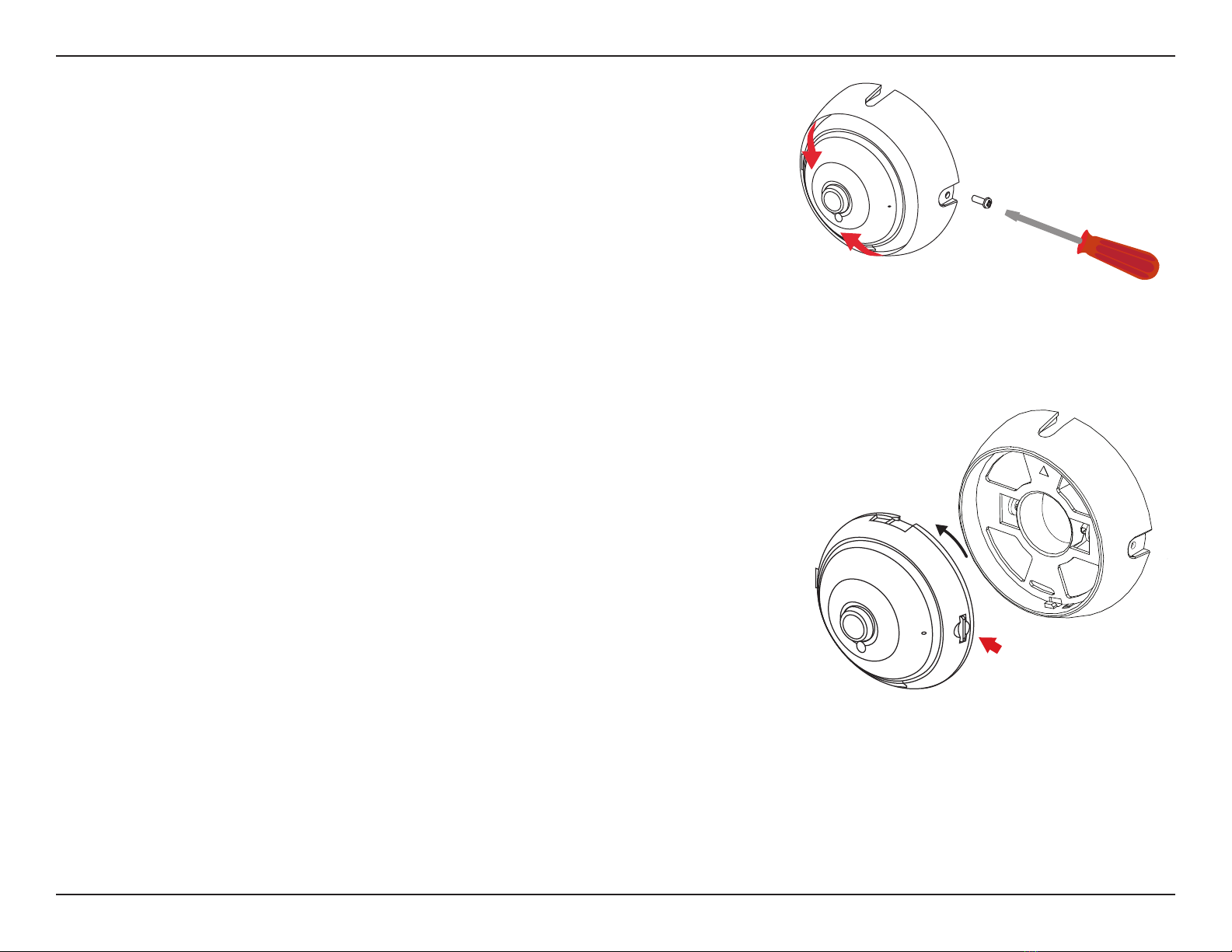

Use a screwdriver to unscrew the tilt adjustment screw. Pull the mounting plate
away from the camera mount.
Place the mounting plate where you want to position the camera and use a pencil
to mark the two mounting holes.
If you wish to run the camera cables through the wall or ceiling, mark the
center hole as well.
Use a 6 mm drill bit to make the required holes approximately 25 mm deep, then
insert the wall anchors into the holes. Use the screws provided to attach the
mounting bracket to the wall.
If you wish to run the camera cables through the wall or ceiling, drill the
center hole for the camera cables to pass through.

10D-Link DCS-4622 User Manual
Section 2: Installation

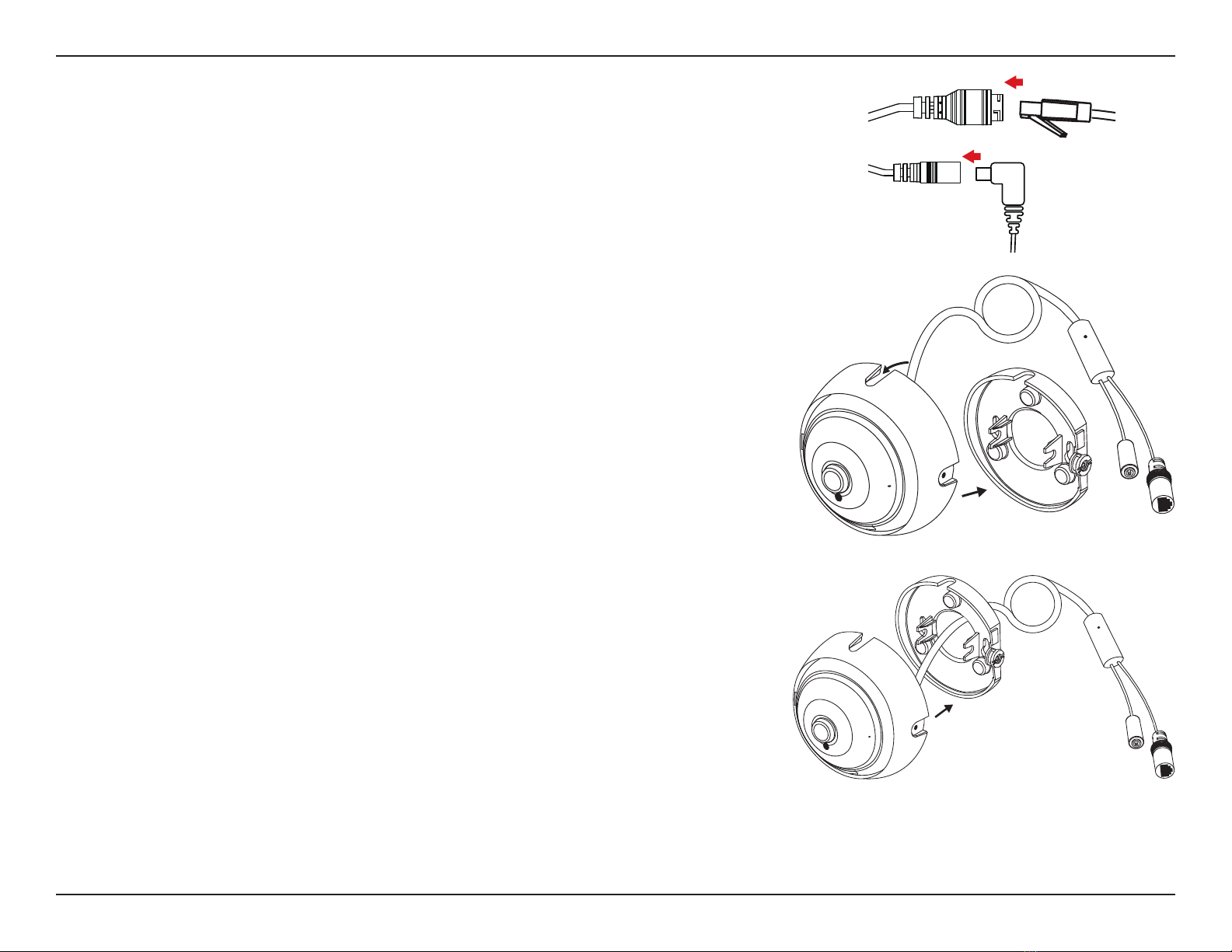

Use an Ethernet cable to connect the camera's Ethernet jack to your PoE switch
or injector. If you are not using PoE to power the camera, you may connect a 12V
1.5A power adapter to the power connector.
Attach the camera mount to the mounting plate.
If you are running the camera cables out the side of the camera, guide the
camera cables through the cable channel on the camera mount.
If you wish to run the camera cables through the wall or ceiling, pull the
cables through the hole.
