D-Link DSL-502T User manual

Before You Begin
1. If you purchased this Router to share your high-speed Internet connection with
other computers, you must have an established Internet account from an
Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your ISP for configuring
the DSL-502T Wireless ADSL Router. The DSL-502T acts as a DHCP server and
will assign all the necessary IP address information on your network. See at the
Quick Installation Guide or the Manual on the CD-ROM for setting each network
adapter to automatically obtain an IP address.
Check Your Package Contents
•ADSL Cable (Standard telephone cable)
•DSL-502T
•Ethernet Cable
(CAT5 UTP Straight-Through)
•12V, 1.2A
Power Adapter
•USB Cable
.
This product can be setup using
any current web browser, i.e.,
InternetExplorer6orNetscape
Navigator 6.2.3. DSL-502T
A
DSL Route
r
Using a power adapter with
a different voltage rating
will damage and void the
warranty for this product.
•CD-ROM
Containing Manual and Warranty
1

2
Connecting the Router to your
Computer
For Ethernet
1. First, connect the power adapter to the power input at the back
panel of the DSL-502T and then plug the other end of the
power adapter to a wall outlet or power strip. Press the On/Off
button. On the front of the device, the Power LED will turn ON
to indicate proper operation.
2. Insert one end of the Ethernet cable into the Ethernet port on
the back panel of the DSL-502T and the other end of the cable
to an Ethernet Adapter or available Ethernet port on your
computer.
3. Insert the telephone cable included with the Router into the
ADSL port, and then connect the cable to your telephone line.
(Line must be activated for ADSL use)
4. Check the LED display on the front of the Router to confirm
that the connections have been made. (This will be shown with
solid lights for the corresponding port)

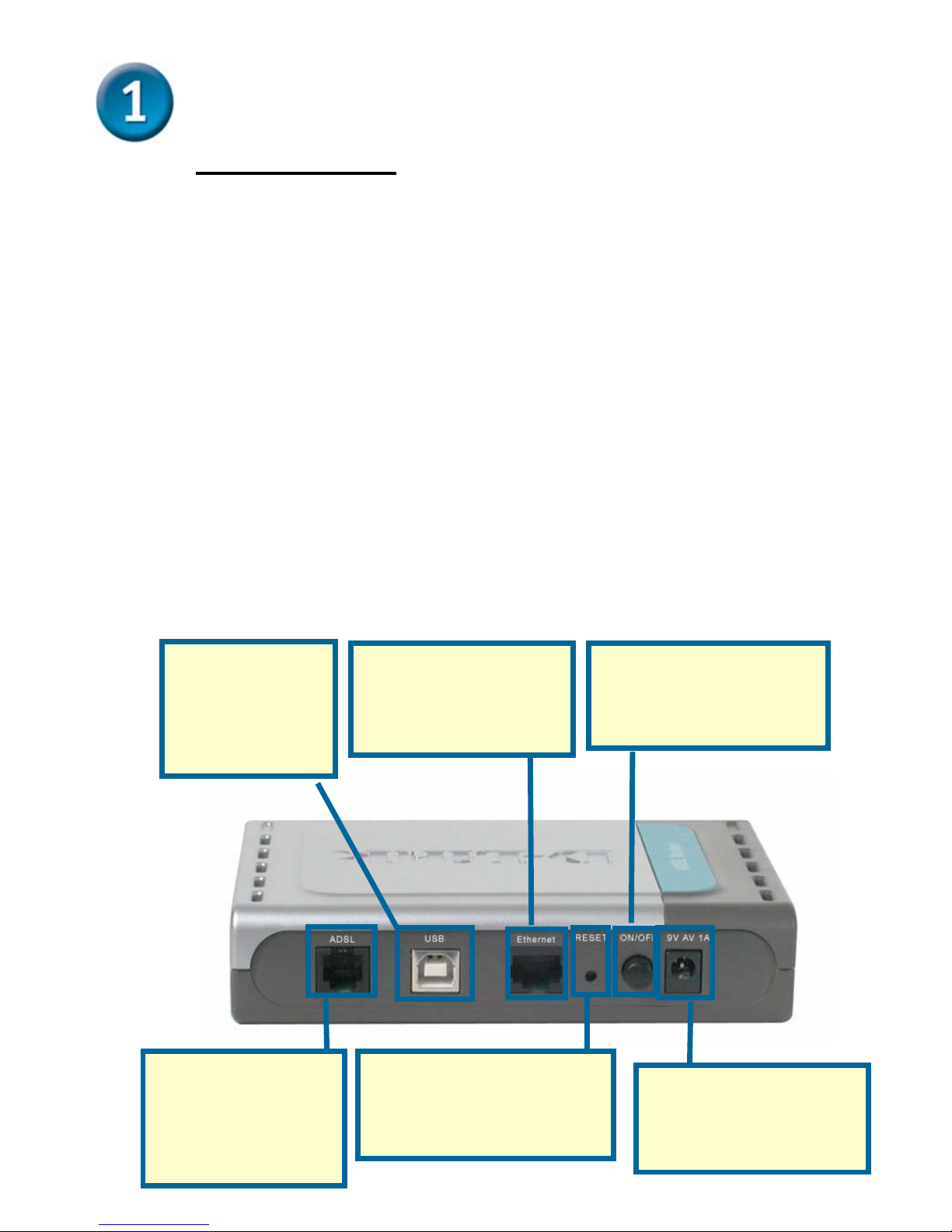

ADSL Port
Connect to
your ADSL
p
hone line
USB Port
Connect
USB Cable
here
Ethernet Port
Connect to
Ethernet cable
Power input
Connect to
p
ower ada
p
ter
Reset
Push to return to
factor
y
settin
g
s
On / Off
Push to turn
p
ower on or of
f

Connecting the Router to your
Computer cont…
For USB
IMPORTANT: Do not connect the USB cable to the computer before
completing the below steps.

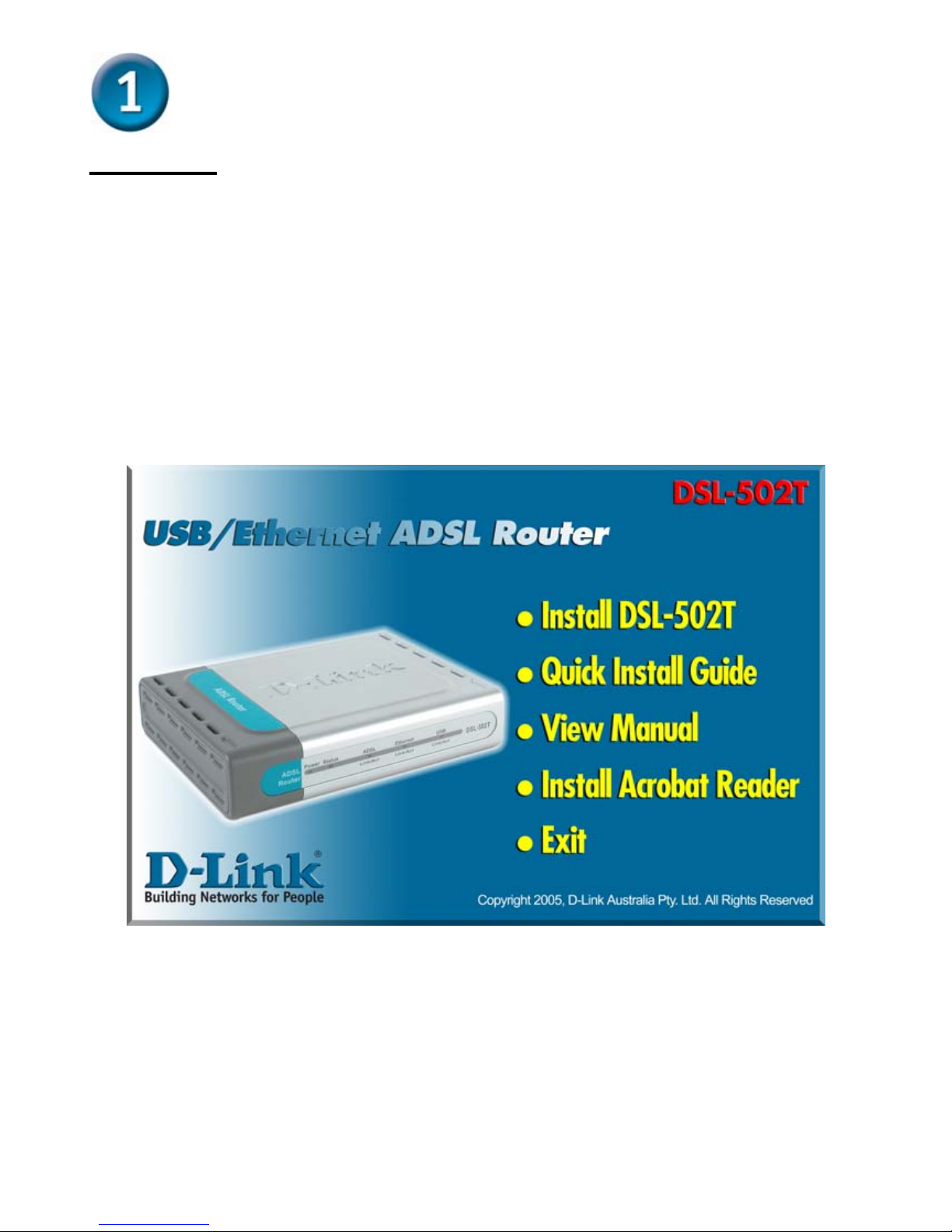

Insert DSL-502T CD-ROM into the CD-ROM drive. Within a few seconds
you should see the dialog box shown below. If you do not see the
auto-run dialog box shown below, explore the CD-ROM and double-
click the setup application file autorun.exe. The auto-run USB driver
setup must be completed before connecting the router to your PC with
the USB cable. To install the driver follow these instructions:

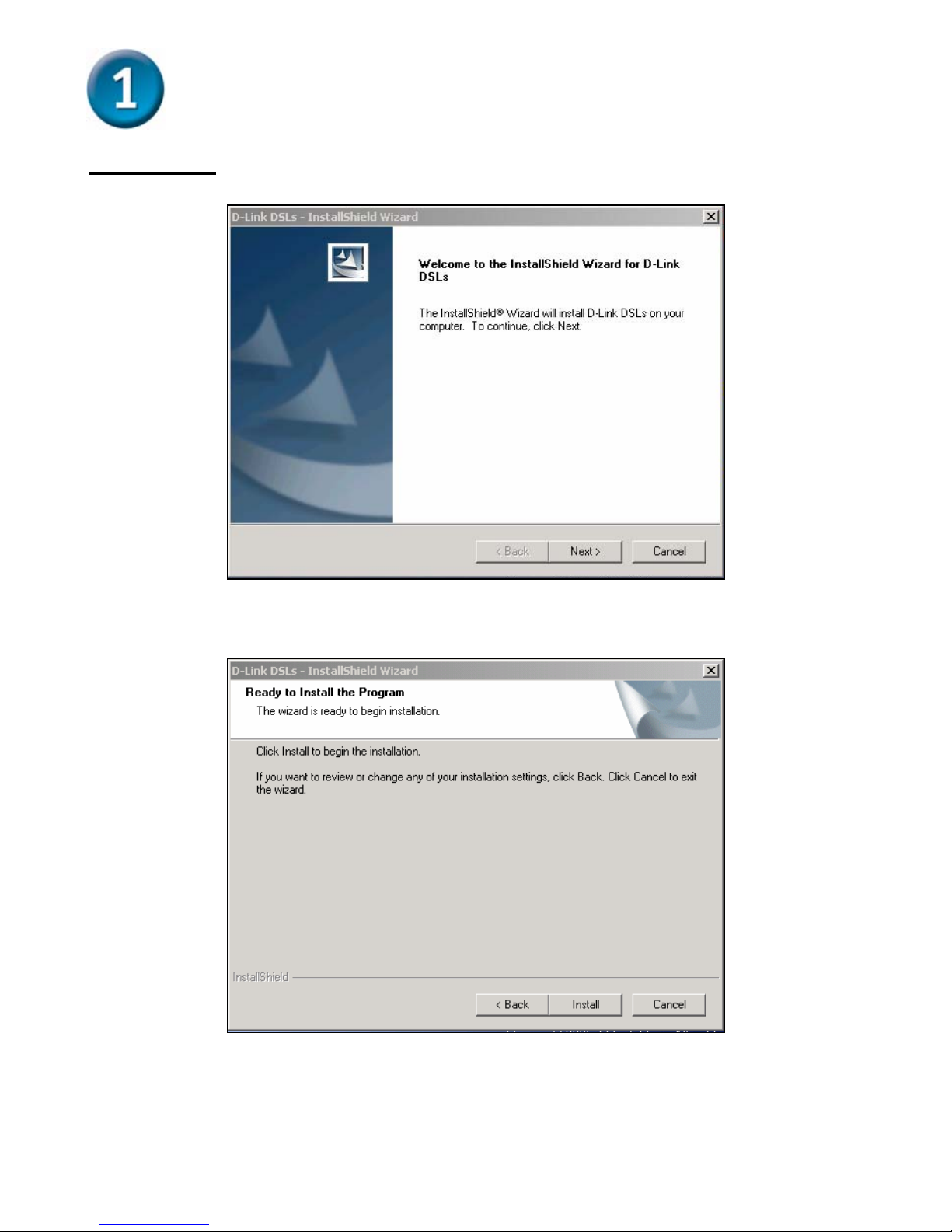

1. Click the Install DSL-502T link to launch the USB driver
installation software.
3

Connecting the Router to your
Computer cont…
For USB
2. Click Next on the installshield dialog box.
3. Click Install to begin the installation.
4

Connecting the Router to your
Computer cont…
For USB

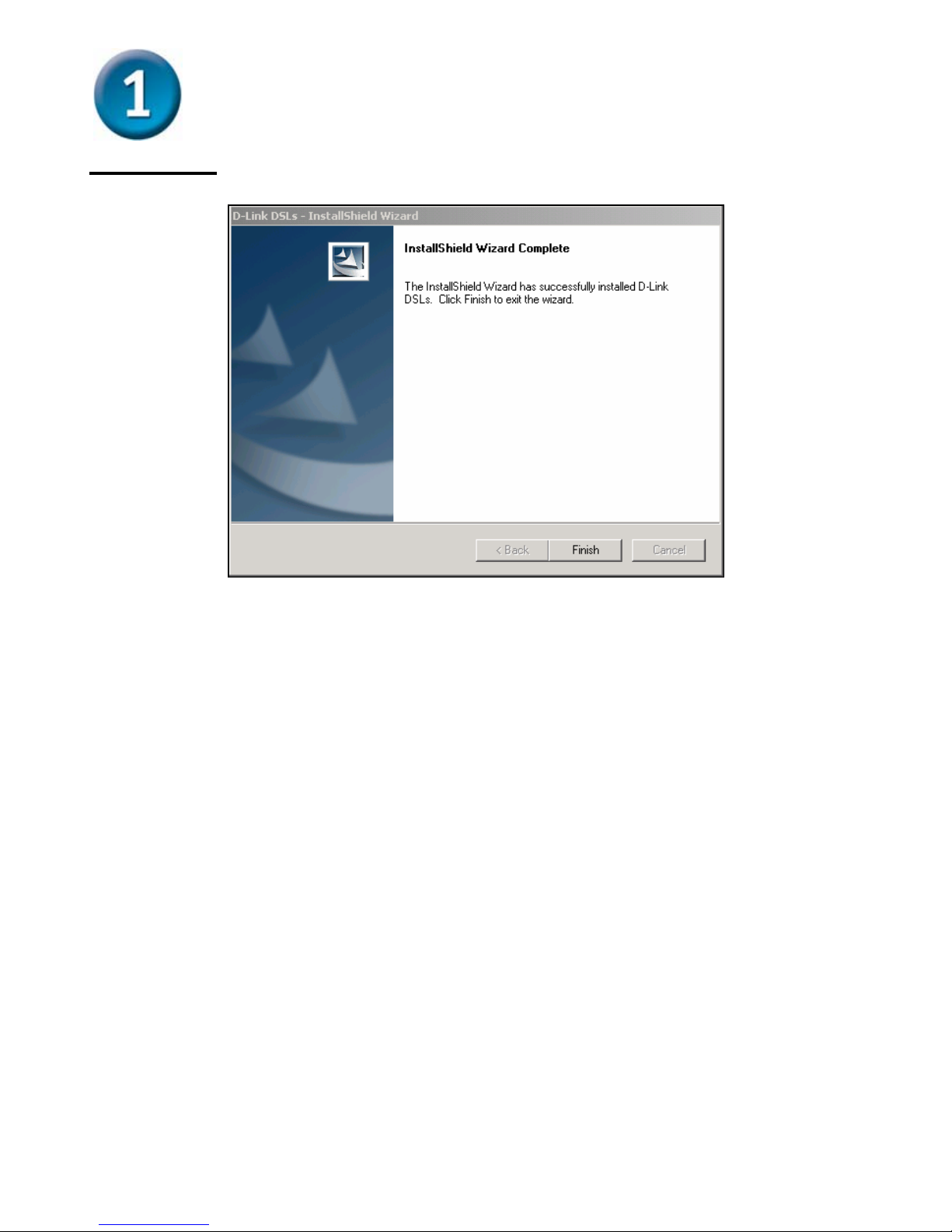

4. Click Finish to complete the Installshield wizard.
When the USB driver has been installed, insert one end of the USB
cable included with the router into the DSL-502T router’s USB port.
Insert the other end of the USB cable into a USB port on your PC.
Connect the power adapter to the power input at the back panel of the
DSL-502T and then plug the other end of the power adapter to a wall
outlet or power strip. On the front of the device, the Power LED will
turn ON to indicate proper operation. Insert the telephone cable
included with the Router into the ADSL port, and then connect the
cable to your telephone line. Check the LED display on the front of the
Router to confirm that the connections have been made.
5

Configure IP Settings
To connect to the network, make sure the network adapter in your
computer is configured properly. The following section describes
how to configure the network adapter to obtain an IP address
automatically for the DSL-502T ADSL Router.

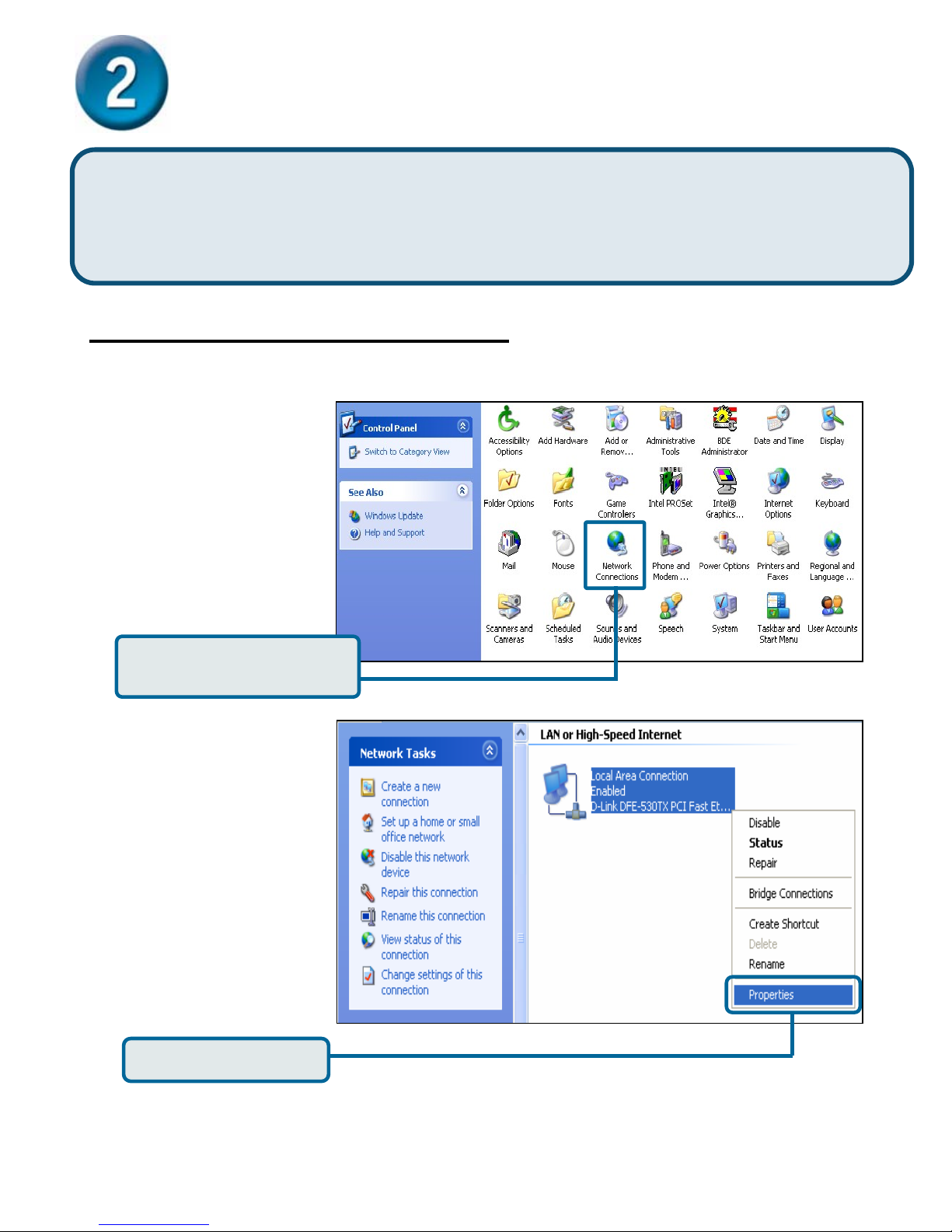

For Microsoft Windows XP
Double-click on
Network Connections
Go to Start > select
Settings > click
Control Panel >
Double-click on the
Network
Connections icon
Right-click the
Local Area
Connection icon,
and then select
Properties.
Select Properties
6

Configure IP Settings cont…
The dialog box displays with
a list of currently installed
network items.
7

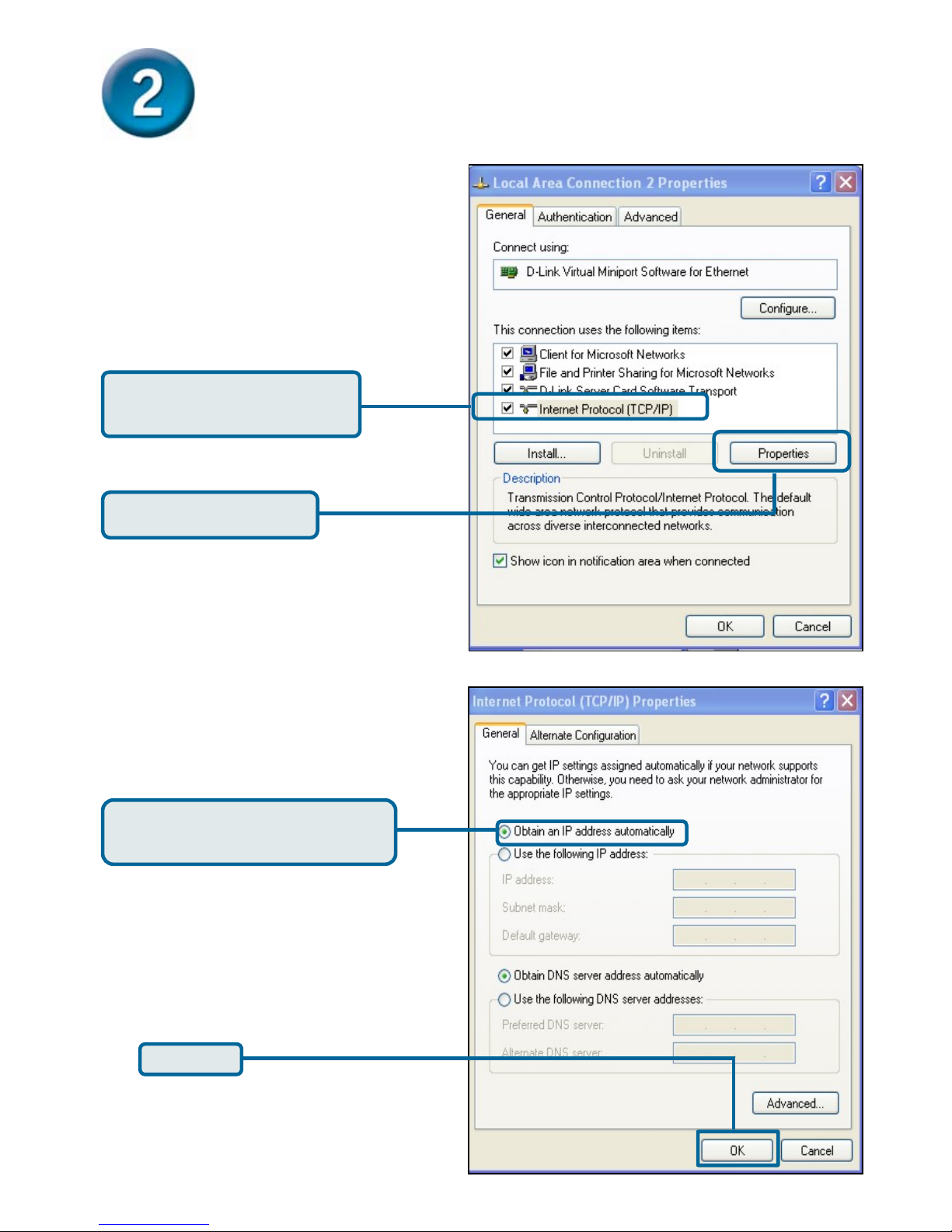

Click Properties
Click Internet Protocol
(TCP/IP)
Make the choice to get IP
settings assigned
automatically.
Select Obtain an IP
address automatically
Click OK

Configuring the Router
To use your Web browser to access the web pages used to setup the
Router, your computer must be configured to “Obtain an IP address
automatically”, that is, you must change the IP network settings of
your computer so that it is a DHCP Client. If you are using Windows
XP and do not know how to change your network settings, refer to
Step 2. You may also read the User Manual for instructions on
changing IP settings for computers running Windows operating
systems.

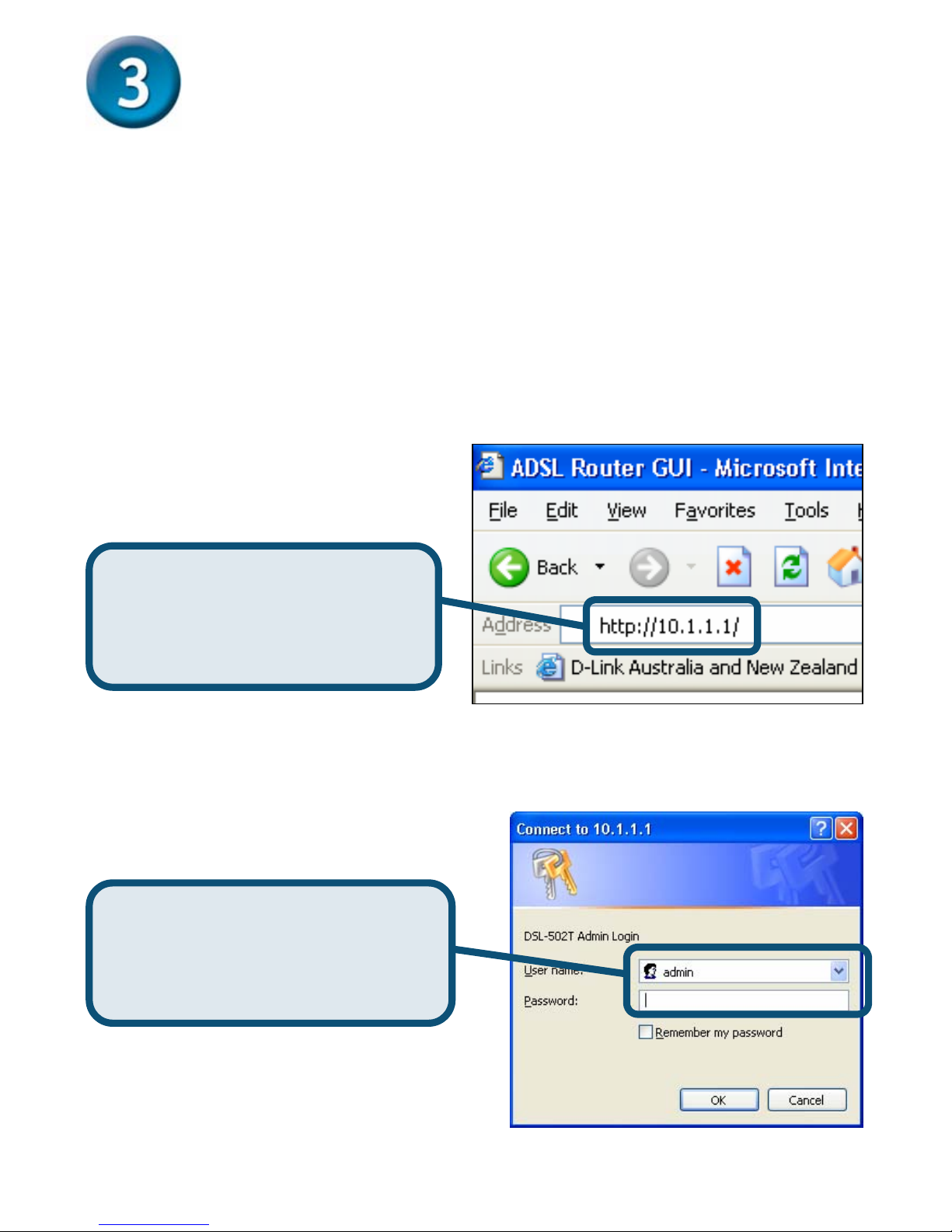

The Login page appears
Open your Web browser and
type http://10.1.1.1 into the
RL address box. Press Enter or
Return.
U
When you first log in, your Login
ame is admin; your password is
also admin. These may be
changed later.
N
8

Configuring the Router cont…
9

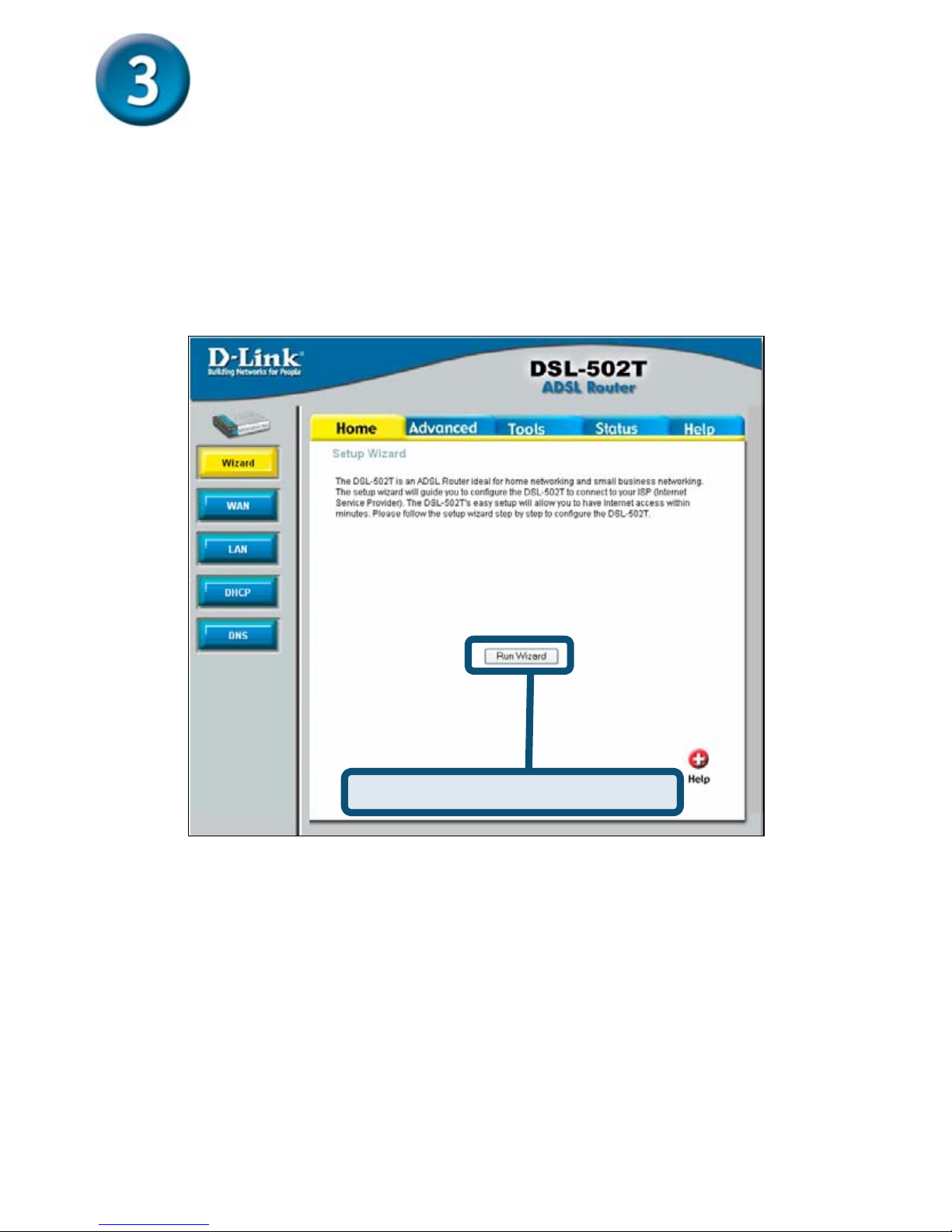

Once you have logged in, the Home directory tab is prominent with
the setup Wizard menu displayed. Most users will be able to use the
setup wizard to establish the ADSL connection to your ADSL Internet
Service Provider (ISP). To begin using the setup wizard, click on the
Run Wizard button in the middle of the web page.
Click the Run Wizard button.

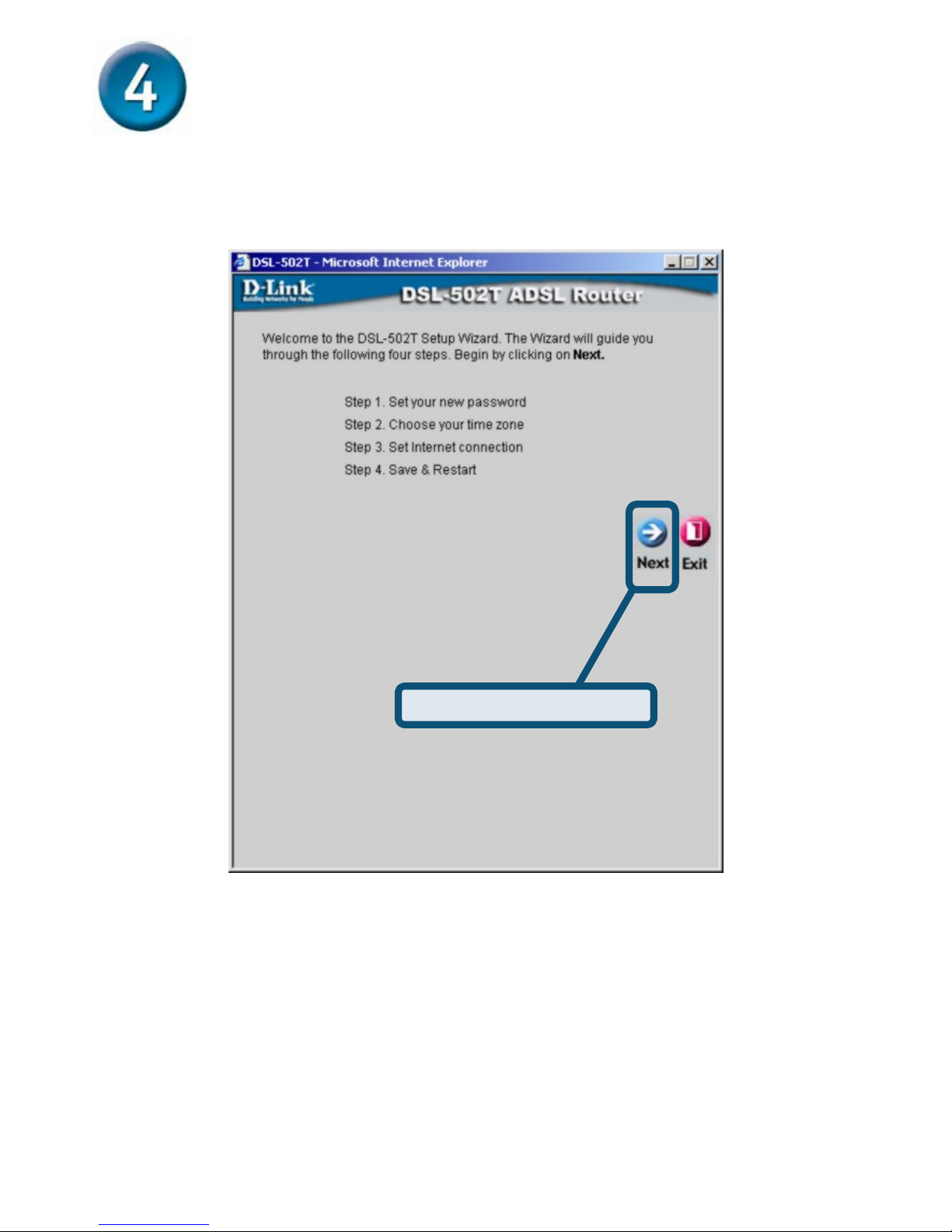

A pop-up menu will appear. This pop-up menu is the Setup Wizard.
The Setup Wizard procedure consists of four general steps:
1. Set your new password
2. Choose your time zone
3. Set Internet connection
4. Save & Restart
When you setup the Internet connection, you will need to enter the
information provided to you from your ISP. The type of information you
need depends on the type of connection you are setting up.

Configuring the Router cont…
The first Setup Wizard menu lists a summary of the steps required to
complete the setup. Click the Next button to begin setup.
Click the Next button.
10

Configuring the Router cont…

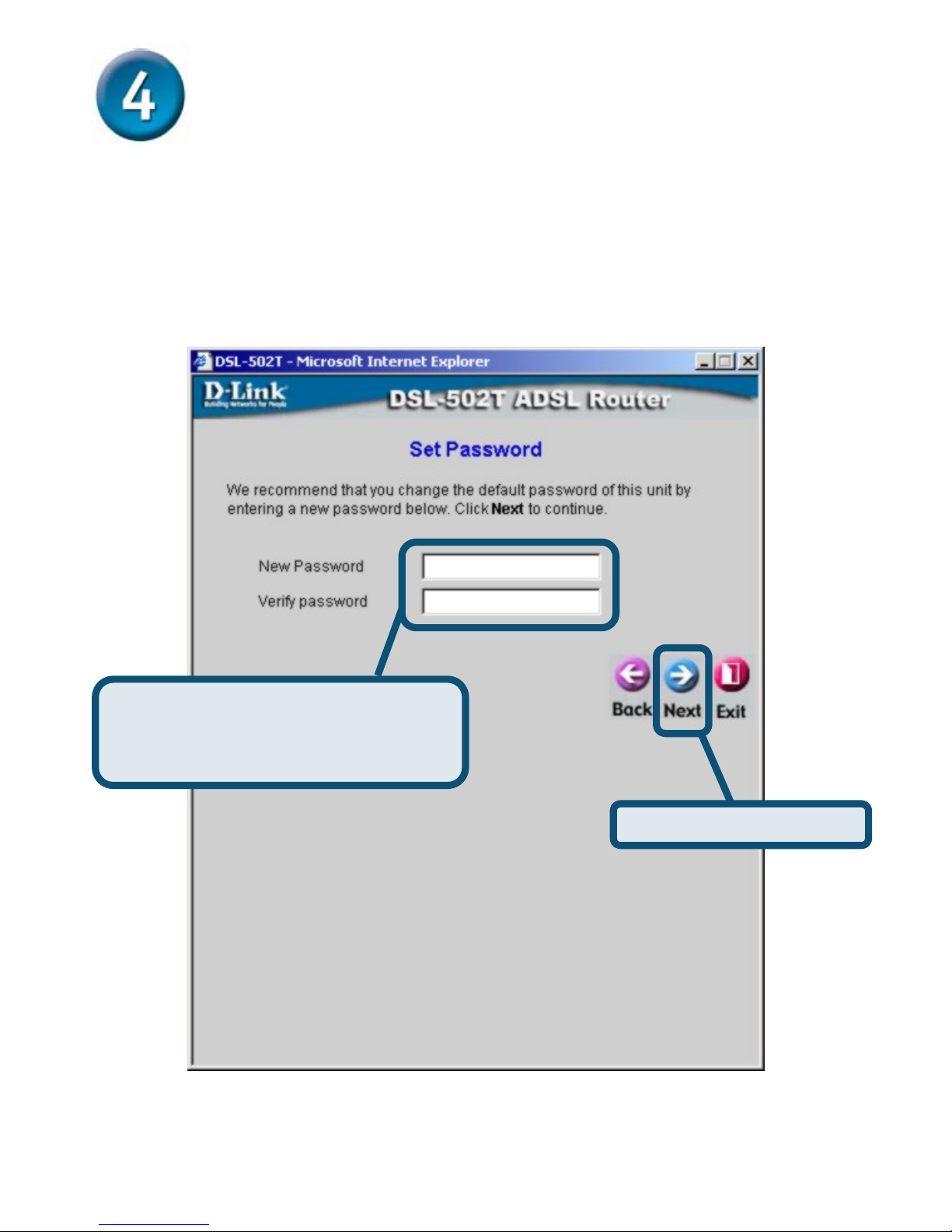

Set the new Password used by the administrator to configure the
Router. You have already used the default Password “admin” to access
the web manager. You can choose another Password. The login User
Name “admin” cannot be changed. Type in the new Password and type
it a second time to Verify Password. Click Next to continue.
Click the Next button.
Type the new Password used by
the Router administrator and type
it again in Verify Password.
11

Configuring the Router cont…

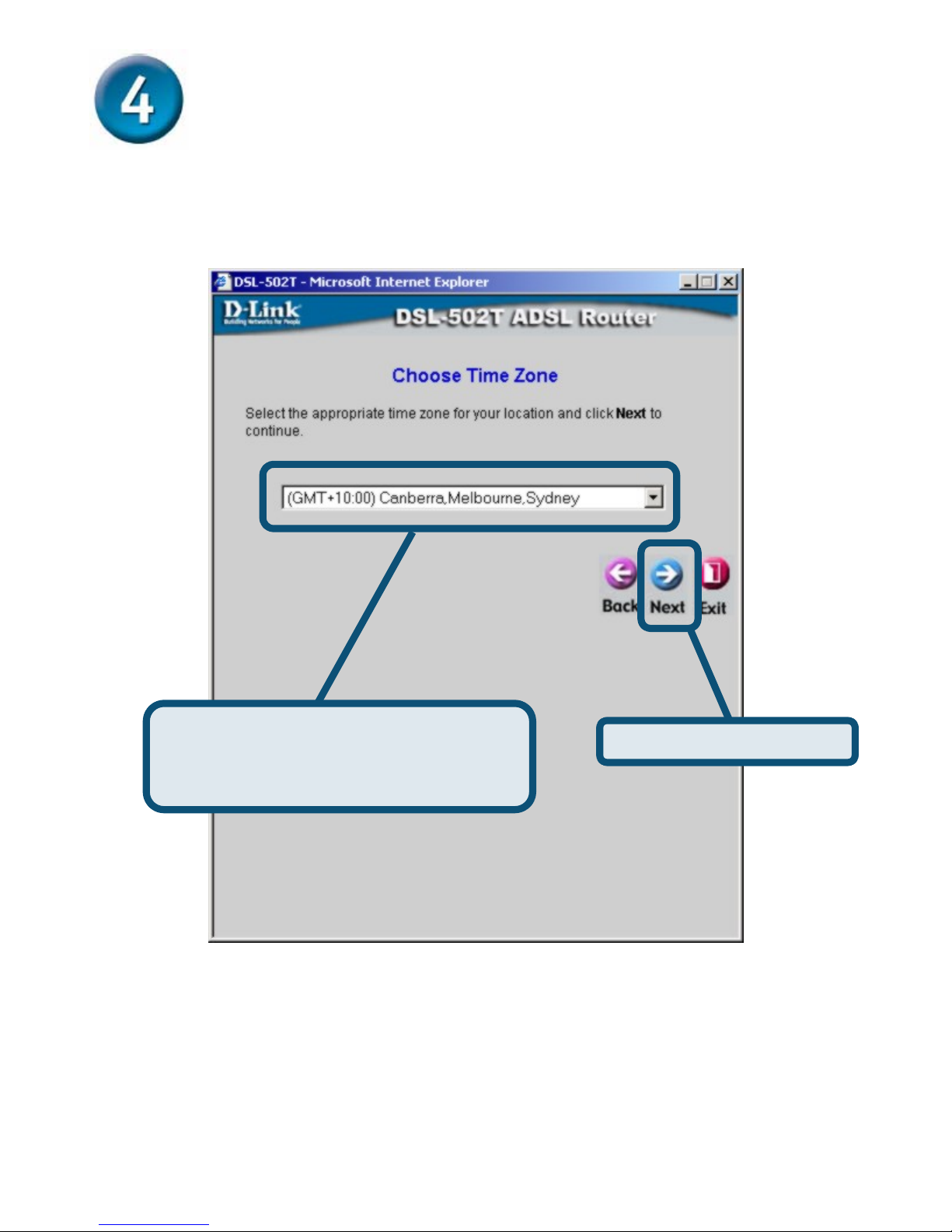

Now configure the Time Zone used for the Router’s system clock.
Select the appropriate time zone and Daylight Saving Time setting
for your location.
Click the Next button.
Select the Time Zone you are
located and set the appropriate
Daylight Savings Time (On/Off).
Next you will Set the Internet Connection Type for the WAN
interface. Your ISP should have given this information to you. If you do
not know what type of connection to use, exit the Setup Wizard and
contact your ISP for the information. The Setup wizard menu that
appears when you click the Next button depends on what connection
type you select.
12

Configuring the Router cont…
PPPoE / PPPoA Connections
You will need to select either PPPoE or PPPoA for your connection
type in this menu. Type in the Username and Password used to
identify and verify your account to the ISP. Select the Connection
Type used for encapsulation on your ADSL service. Click Next to
continue. If you are not sure what Connection Type,please check
with your ISP.
Select the Connection
Type as instructed by
your ISP account.
Click the Next button.
Type the Username
and Password for
your ISP account.
13

Configuring the Router cont…
Setup Completed

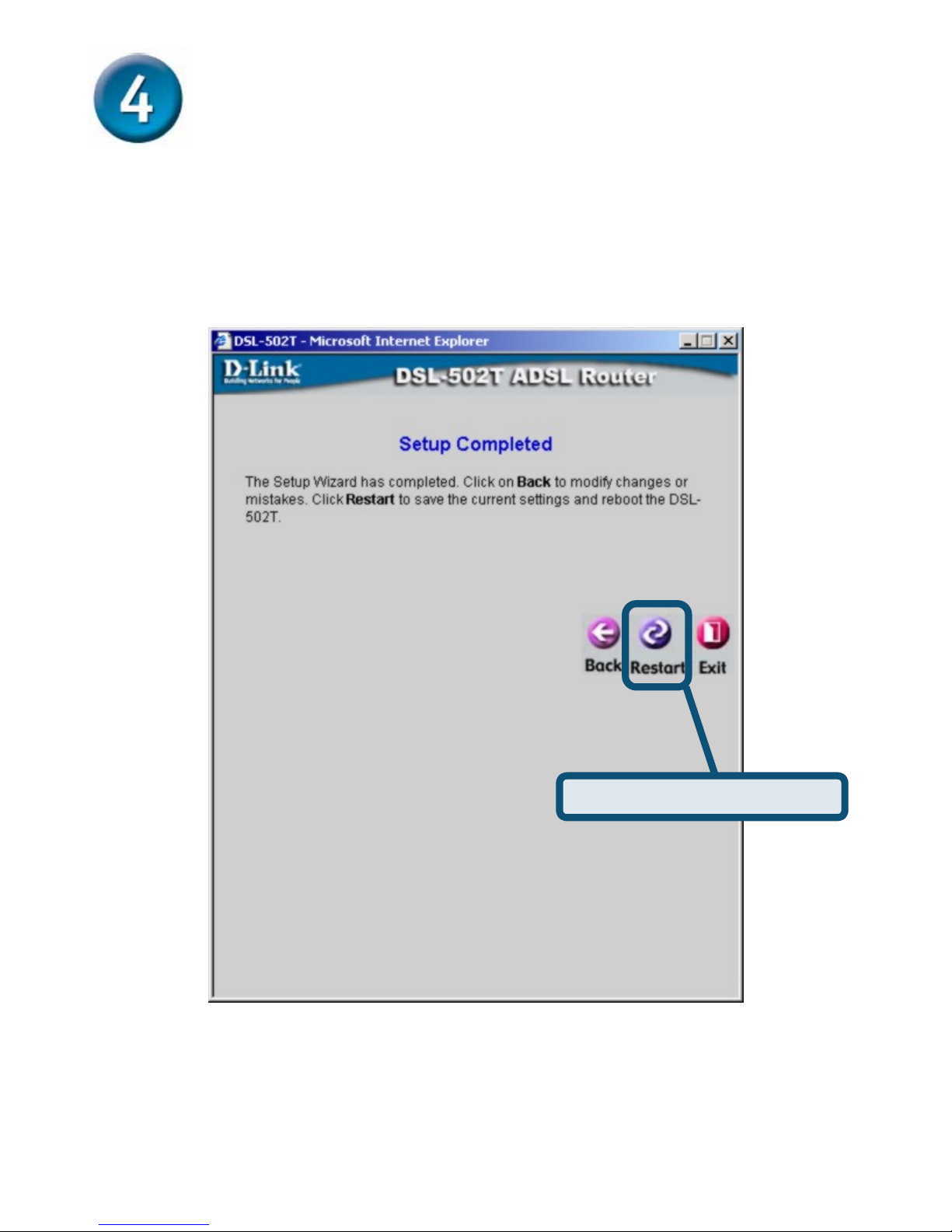

All the settings for the connection are now completed. Click the
Restart button to save the new settings and restart the Router. It will
take about two minutes to restart the Router.
Click the Restart button.
Do not turn off the Router while it’s restarting.
A message will appear informing you that “The device has rebooted
successfully”. You can now launch your web browser to access the
Internet.
14
