D-Link DVX-2002F User manual

DVX-2002F / DVX-2005F IPPBX
1
Table of Contents
Chapter 1 Feature Codes ...............................................................................................2
1.1 Blacklist ...........................................................................................................................2
1.2 Pickup Call.......................................................................................................................2
1.3 Call Parking......................................................................................................................2
1.4 Call Transfer.....................................................................................................................3
1.5 Conference.......................................................................................................................3
1.6 Voicemail .........................................................................................................................4
Chapter 2 Before Leaving Office .................................................................................6
2.1 Extension User Login System..........................................................................................6
2.2 Call Forward ....................................................................................................................6
2.3 Follow Me........................................................................................................................7
Chapter 3 Fax.................................................................................................................8
3.1 Send Fax...........................................................................................................................8
3.2 Receive Fax......................................................................................................................8
Chapter 4 Management.................................................................................................9
4.1 Recording List..................................................................................................................9
4.2 Voicemail List ..................................................................................................................9
4.3 Call Logs..........................................................................................................................9

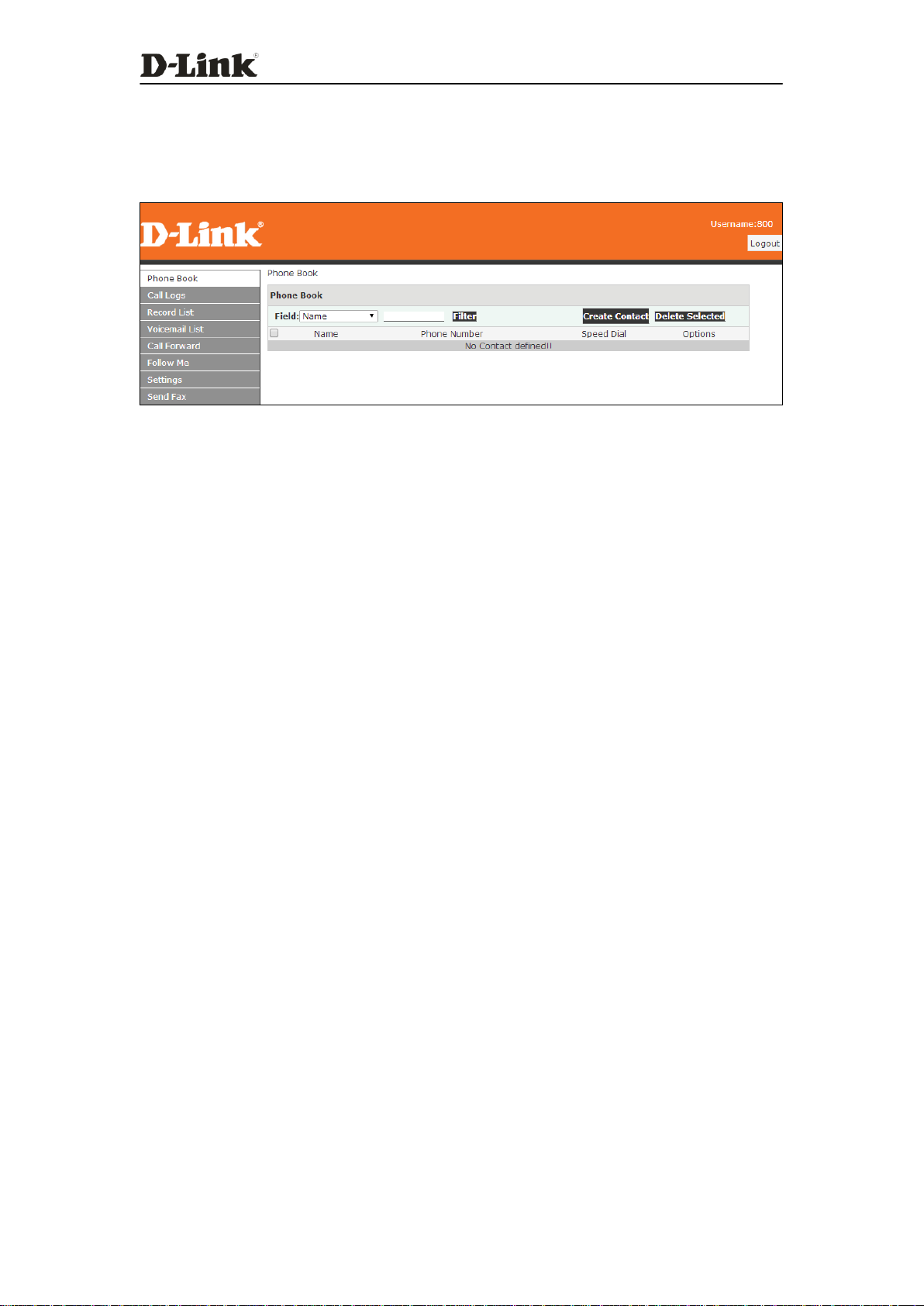

Chapter 5 Phone Book..................................................................................................10

DVX-2002F / DVX-2005F IPPBX
-2 -
Chapter 1 Feature Codes
The feature codes introduced below are factory default. This chapter will introduce the
commonly used feature codes such as Blacklist, Pickup Call, Call Parking, Call Transfer,
Conference, and Voicemail.
If operation with feature codes failed, please contact administrator to check the feature
codes settings.
1.1 Blacklist
You can intercept the specified number after this number is added to Blacklist.

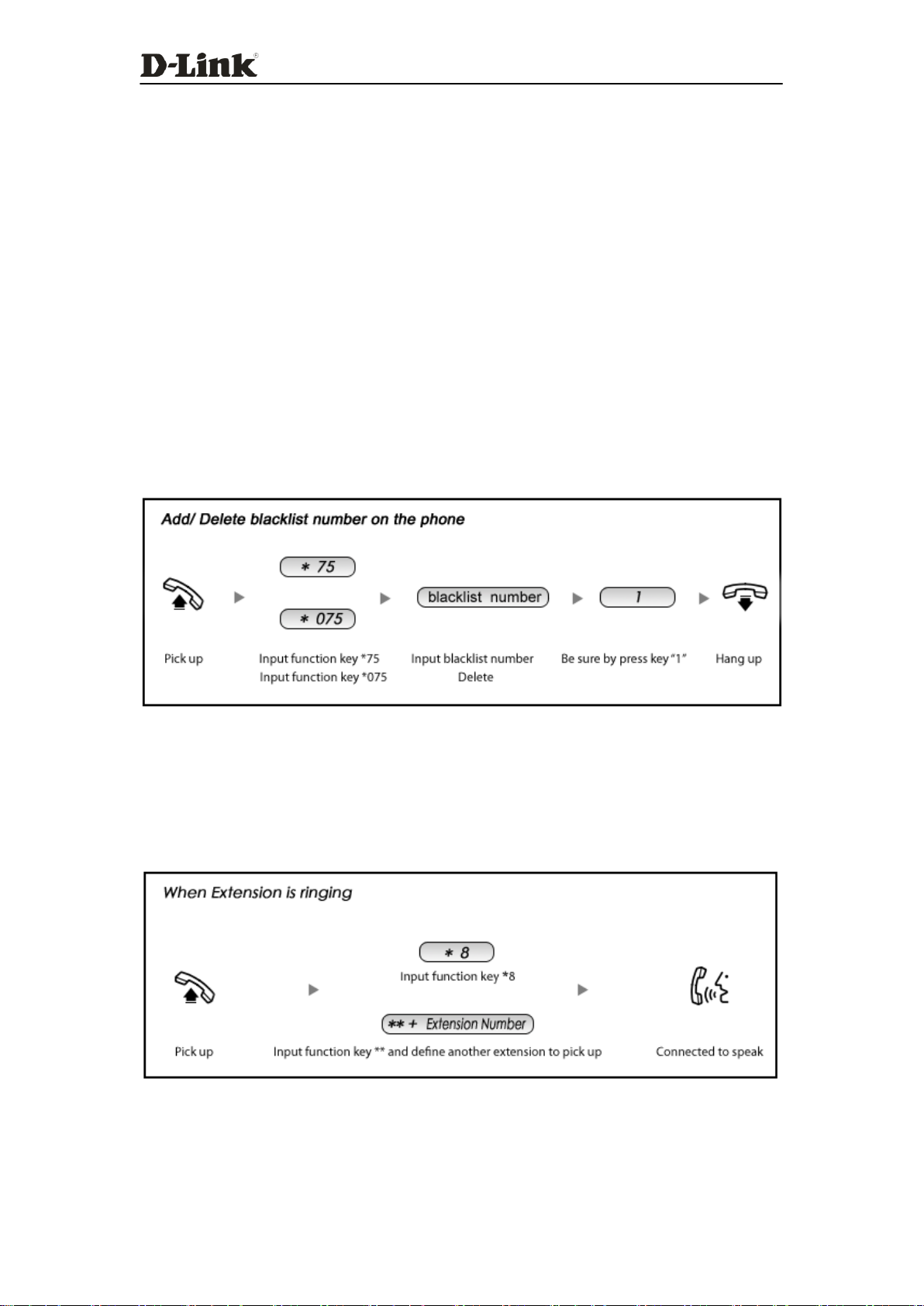

Please learn from the following diagram:
1.2 Pickup Call
If an extension user is away from his/her desk, other extension users can pickup the call by
function key on the phone. Please learn from the following diagram:
1.3 Call Parking
If you picked up a call at your seat, but you couldn’t answer the call for some reasons; now

DVX-2002F / DVX-2005F IPPBX
-3 -
you can input 700 to park this call, the system will tell you a parking number 701 which you

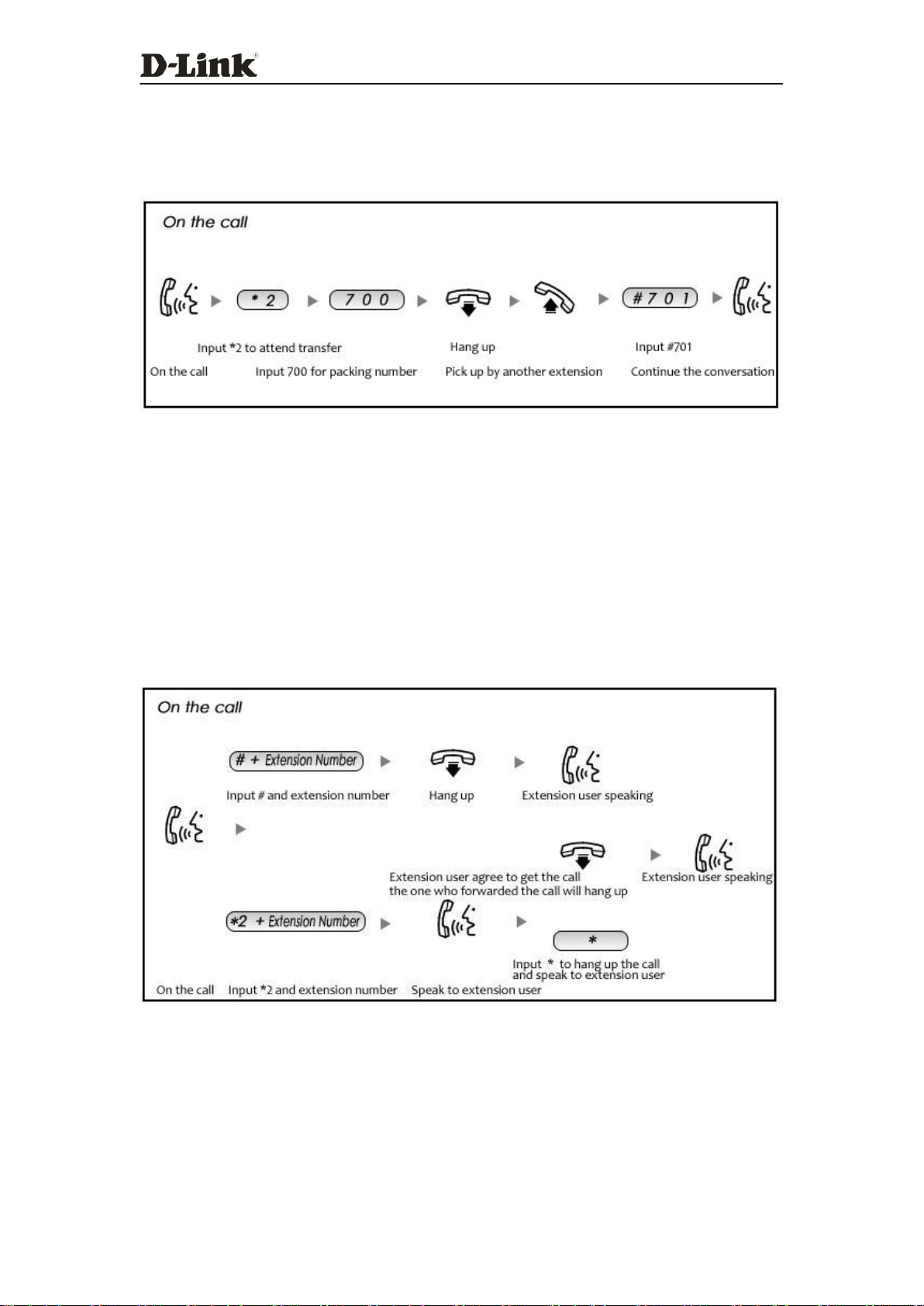

or someone else can input for continuing conversation later. Please learn from the diagram
as below.
1.4 Call Transfer
If an incoming call asked to speak to your colleague, you can transfer the call directly to your
colleague or transfer the call after being agreed by your colleague. Please learn from the
diagram as below.
1.5 Conference
If you want to create a conference room for some extension users or with external lines, you
can input conference room number 900, input conference room password 1234 (Admin's

DVX-2002F / DVX-2005F IPPBX
-4 -
password is 2345), then enter conference room. DVX-2002F/DVX-2004F IP PBX support 3
conference rooms.

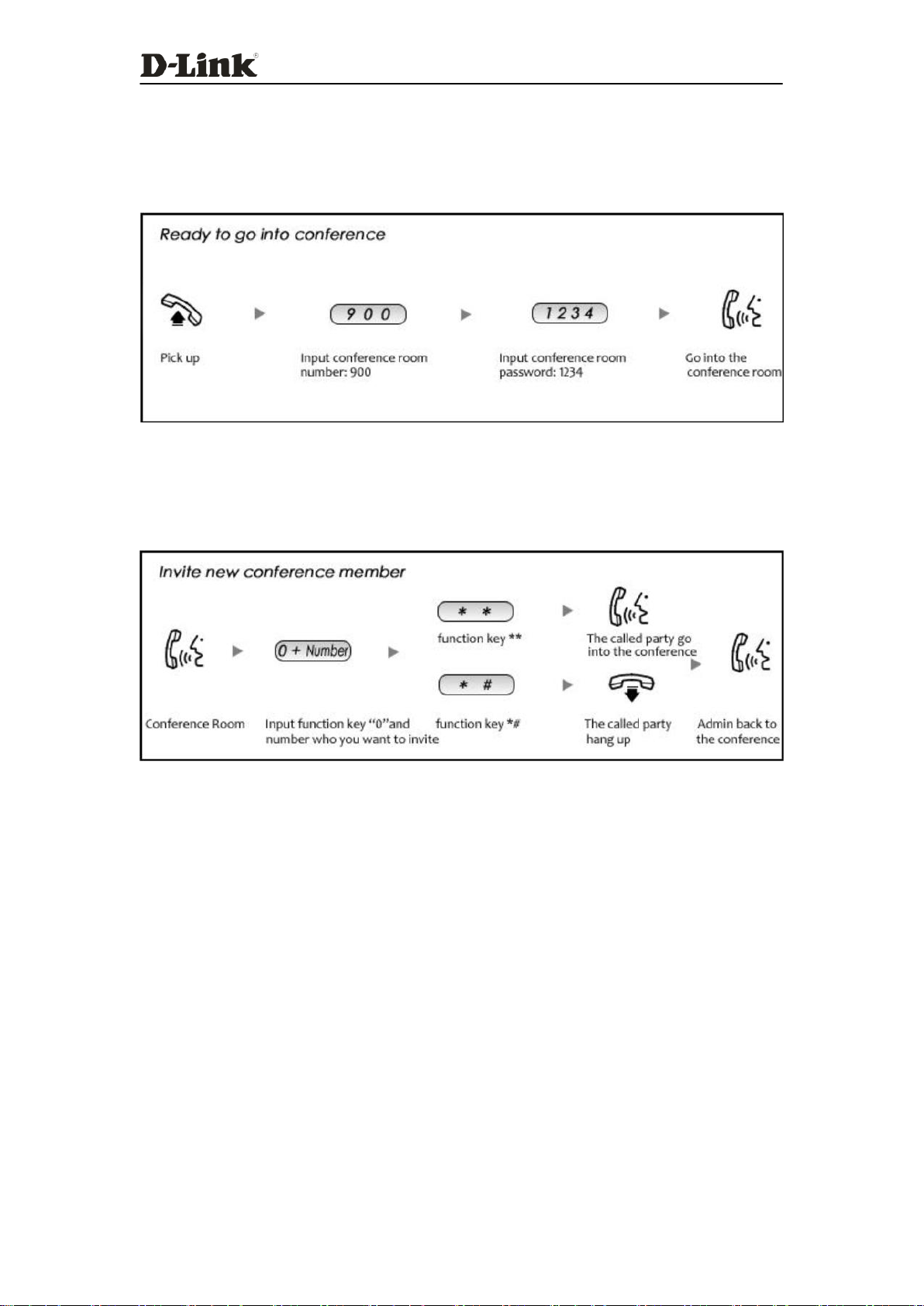

Learn how to enter the conference from the following diagram:
In the conference, the administrator can invite new guest (extension user or external
number) into the conference. (Default password for admin is 1234)
Learn how to invite new guest in the conference from the diagram as below:
1.6 Voicemail
This feature must be enabled and configured by administrator from the admin management
panel.
If no answer from the incoming call, when the default ring time is over, the system will play:
“please leave your message and press the “#” key”. Then voicemail will be sent to the
specified mailbox by email.

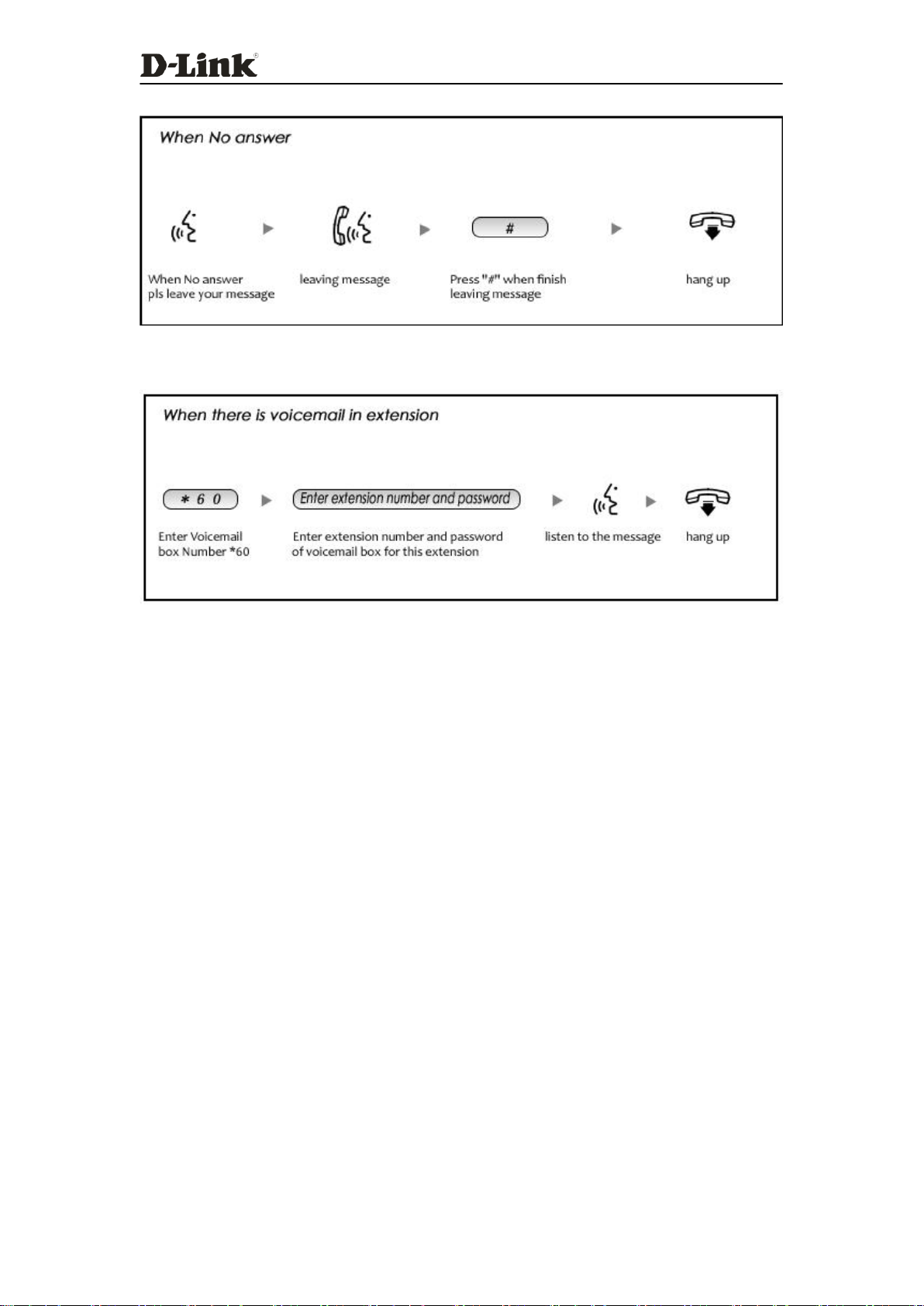

Please learn how to leave the message and listen to the message from diagrams as below:
Leave a Message:

DVX-2002F / DVX-2005F IPPBX
-5 -
Listen to the message:

DVX-2002F / DVX-2005F IPPBX
-6 -
Chapter 2 Before Leaving Office
This chapter will introduce you how to configure Call Forward and Follow Me.
2.1 Extension User Login System

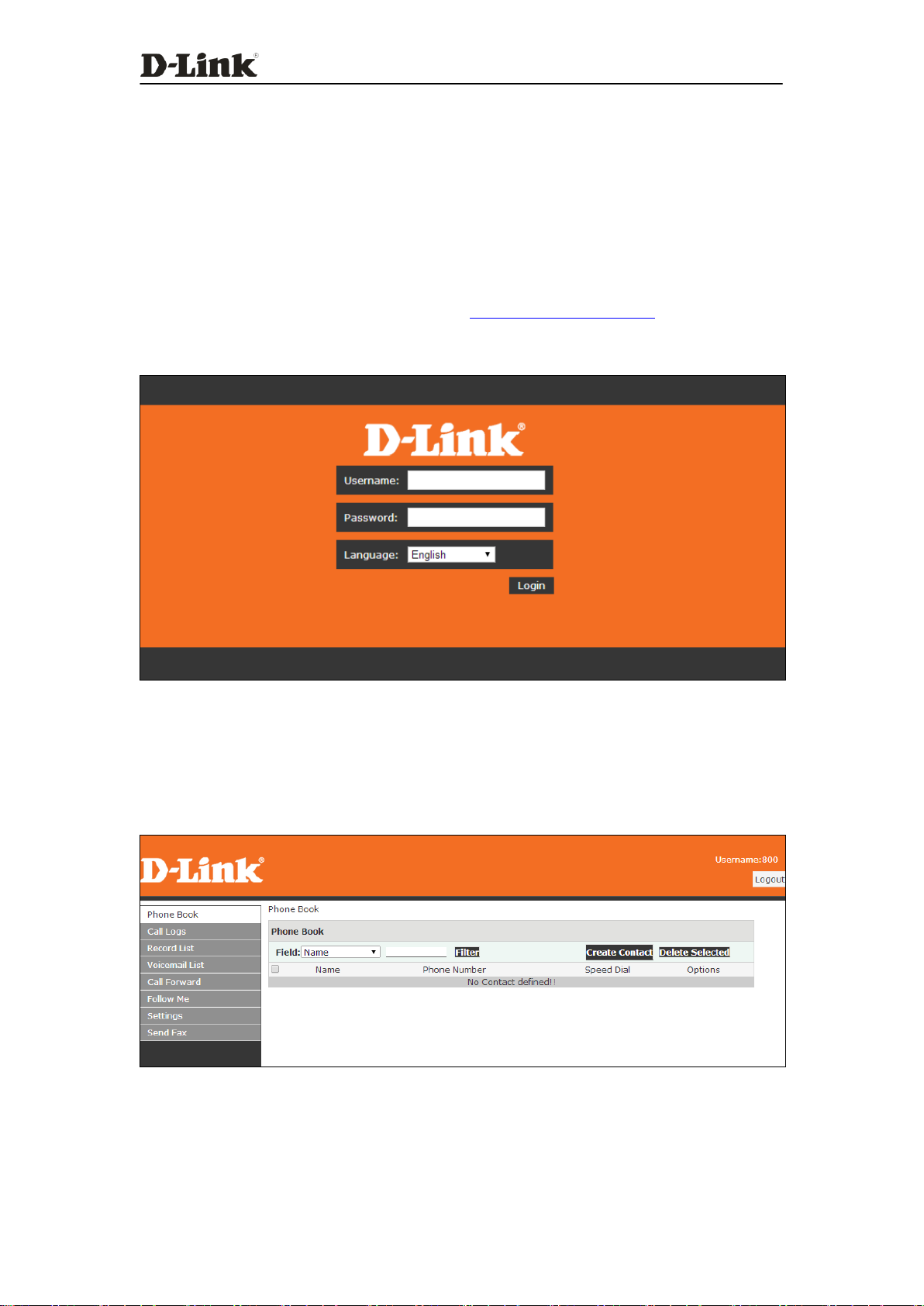

Enter IP address in the browser (Default IP is http://192.168.1.100:9999)
Login Web Interface:
Enter extension number and password, click "login”, you will see the following extension’s
management panel.
Note: Password is your voicemail password
Extension’s Management Panel:
2.2 Call Forward

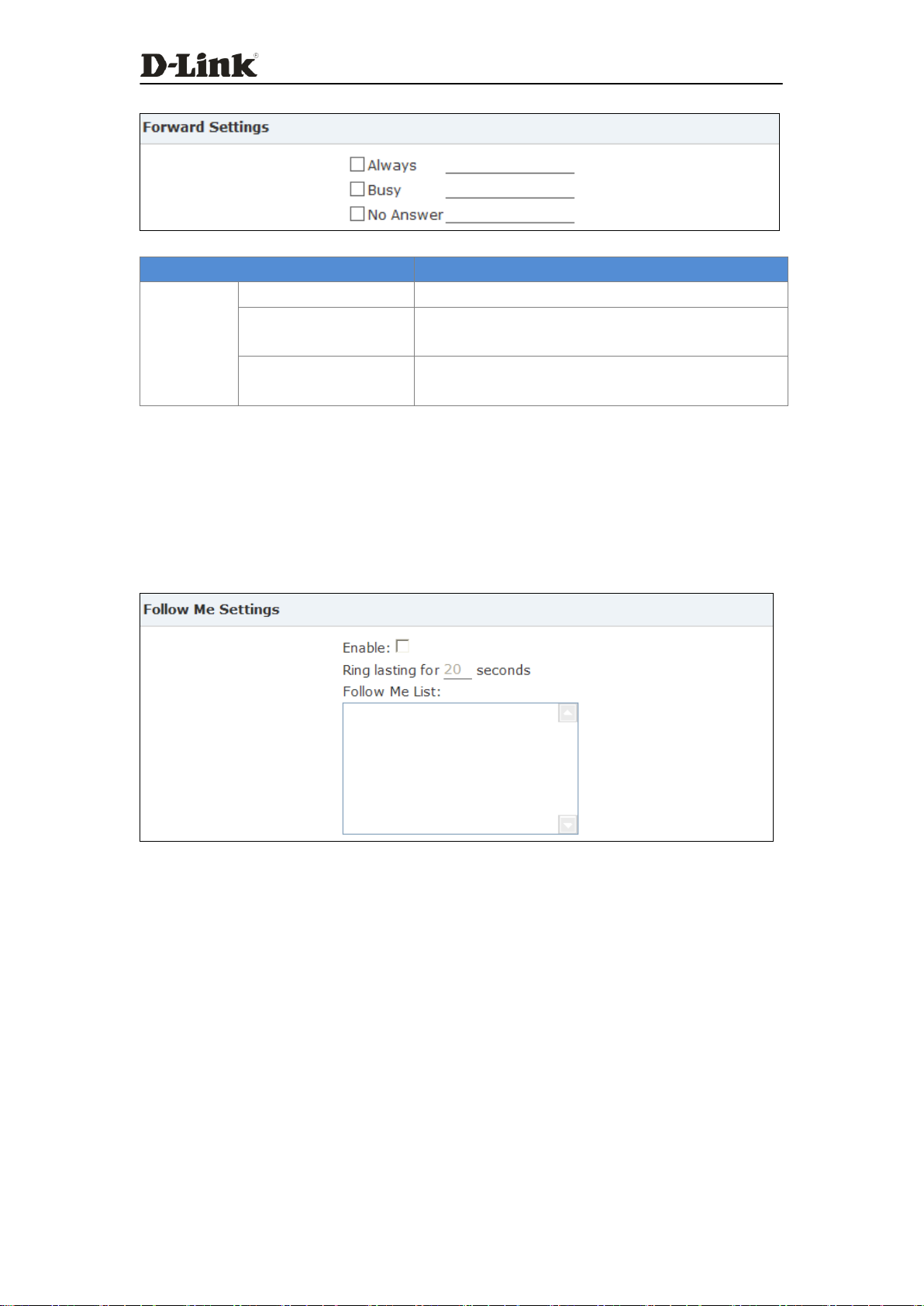

If you don’t want to miss any call, please configure this function, and all incoming calls will
be forwarded to the specified number. Click【Call Forward】:

DVX-2002F / DVX-2005F IPPBX
-7 -
Reference
Item
Explanation
Status
Always
All incoming calls will be forwarded.
Busy
Incoming calls will be forwarded when extension is
busy.
No Answer
Incoming calls will be forwarded when no answer
from extension.
2.3 Follow Me
If no answer from extension, when the ring times out, the calls will be forwarded one by one
to the number listed in <Follow Me List>.
Click【Follow Me】:
Format of Follow Me List: Extension Number, Ring Duration(sec)
E.g.: 806,30
808,20
After30 seconds ringing, the call will be forwarded from extension 806 to 808.

DVX-2002F / DVX-2005F IPPBX
-8 -
Chapter 3 Fax
This chapter will introduce you how to receive/ send fax by DVX-2002F/DVX-2005F IP PBX.
3.1 Send Fax
The fax can be sent by WEB and Email. Fax format must be .tif or .tiff.
Send Fax by WEB

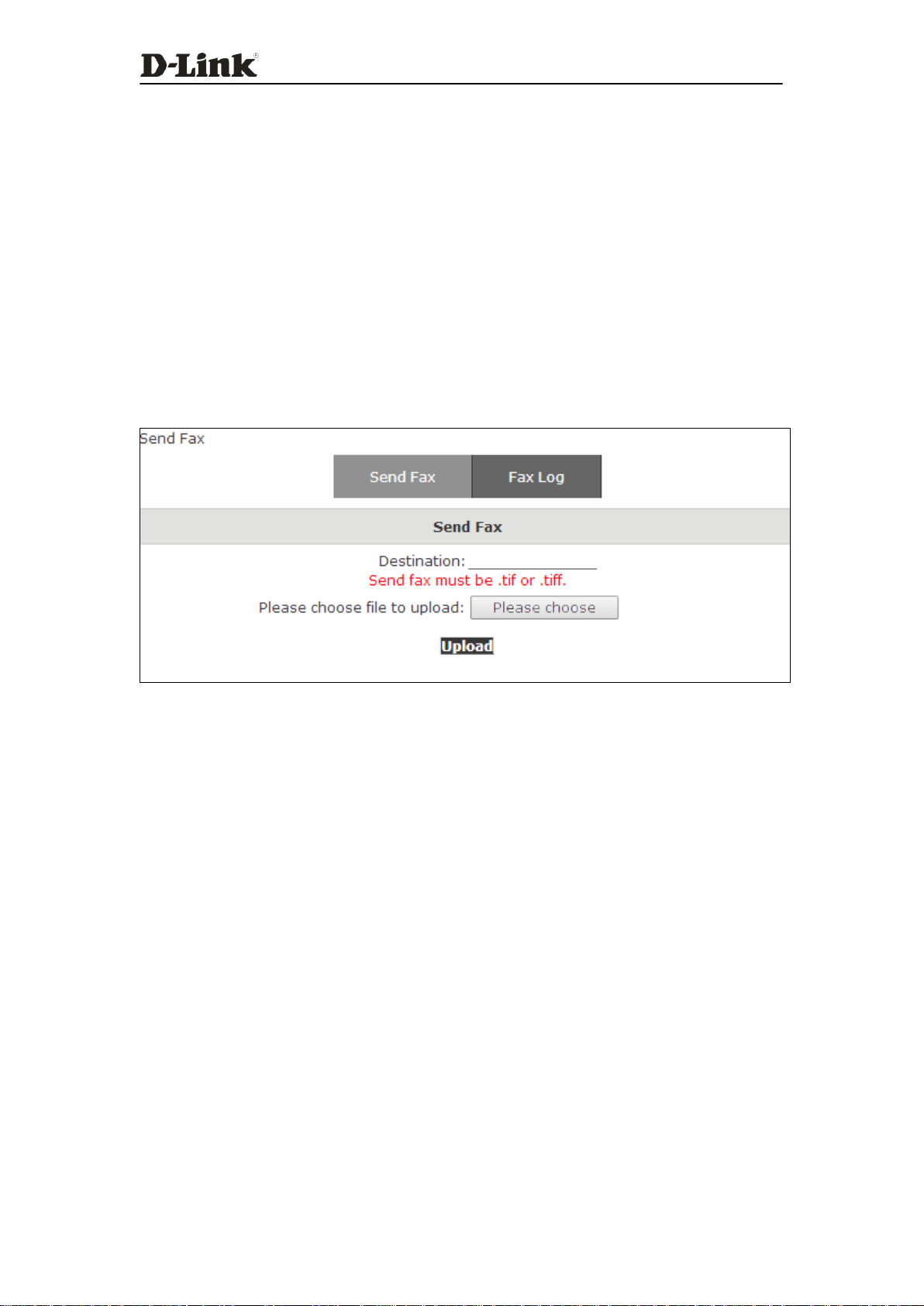

Upload the fax file from WEB to send fax, click【Send Fax】:
Enter the receiver’s fax number in【Destination】, click【browse】to select the fax file, then
【Upload】.
Send Fax by Email
Operation Example:
Send fax to 85337096, add prefix “9” based on the dial rule, so the subject of the email is
“985337096”, and send the fax as attachment.
If there is extension, e.g.: fax number 85337096 ext.800, the subject of email should be
985337096-800
If fax failed, email will receive the failure message.
3.2 Receive Fax
It can work after administrator configures the email and relative mailbox of extension.
Received fax will be sent to specified mailbox.

DVX-2002F / DVX-2005F IPPBX
-9 -
Chapter 4 Management

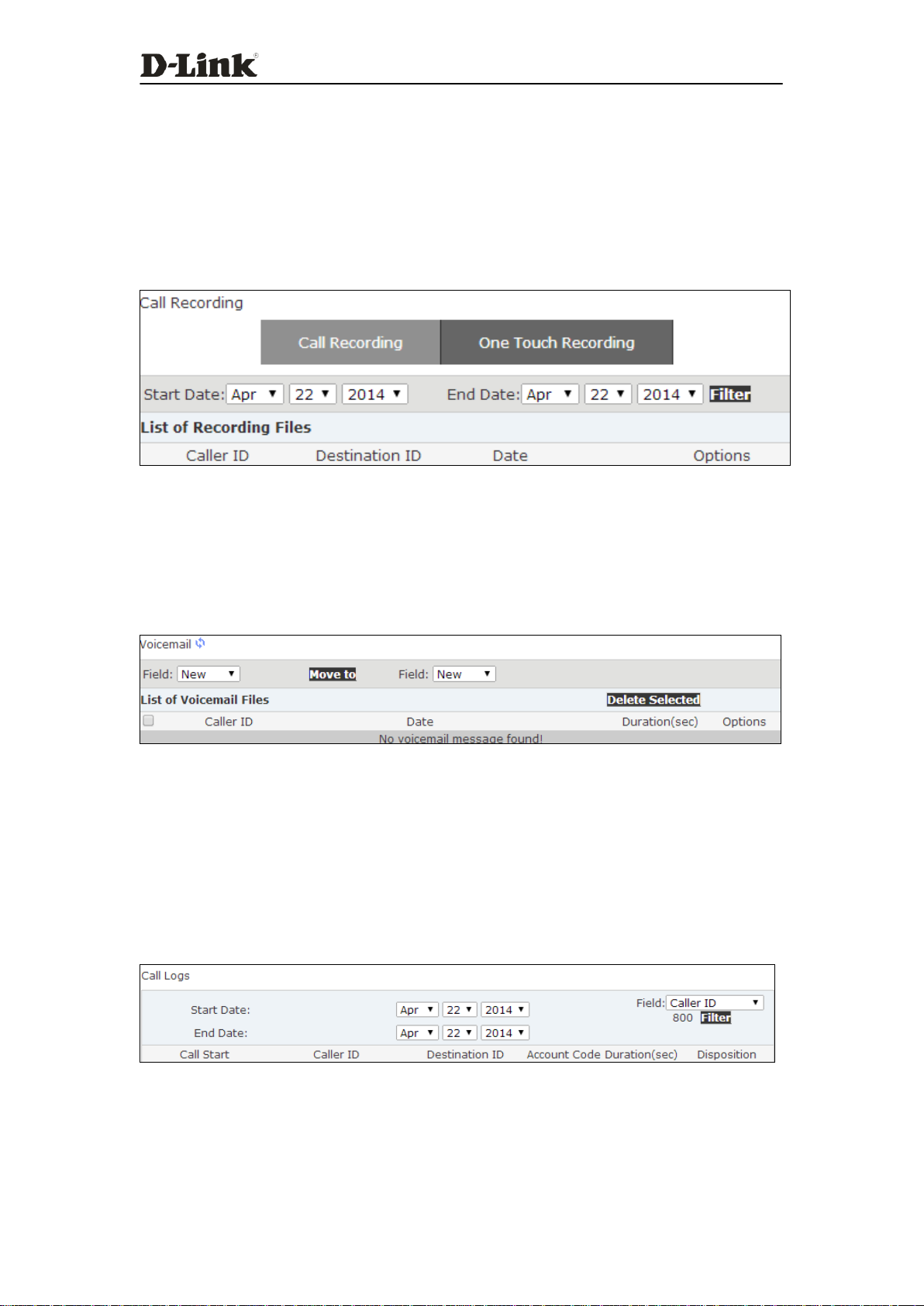

4.1 Recording List
Caller ID, Destination ID, Date will be displayed in the list.
4.2 Voicemail List
Click【Move to】to move the voicemail to another field.
Check one voicemail file, click【Delete Selected】to delete the selected voicemail file; or click
【Delete】after the voicemail file to delete the voicemail.
4.3 Call Logs
The number in the call logs can be added into the contacts list, and dial it directly.
