DP-101P+
Multi-protocol Ethernet
Pocket Size Print Server
User’s Manual
Rev. 01 (June, 2001)
Made In Taiwan
RECYCLABLE

DP-101P+ Print Server User’s Manual
2About this Guide
TABLE OF CONTENTS
0ABOUT THIS GUIDE ...............................................................................3
1INTRODUCTION......................................................................................4
SERVICE FEATURES.......................................................................................4
EXTERNAL FEATURES ...................................................................................6
Front End..................................................................................................6
Rear End...................................................................................................7
2UNPACKING AND INSTALLATION.....................................................9
UNPACKING AND INSPECTING .......................................................................9
INSTALLING THE DP-101P+........................................................................10
POWER-UP AND SELF-TEST.........................................................................11
LED Test Series.......................................................................................11
Component Test Series............................................................................11
Operational Test .....................................................................................12
3PRODUCT SPECIFICATIONS..............................................................13
4PORT PINOUTS......................................................................................15
5

DP-101P+ Print Server User’s Manual
About this Guide 3
0 ABOUT THIS GUIDE
This manual describes the D-Link DP-101P+ Multiprotocol
Ethernet Print Server, including full descriptions of its features,
detailed installation procedures, and troubleshooting information.
Your DP-101P+ package includes important software components,
and additional user manuals. The software components, and
procedures for installation and setup of the software, are covered
in the PS Admin User’s Guide.

DP-101P+ Print Server User’s Manual
4Introduction
1
1 INTRODUCTION
The DP-101P+ Print Server is a compact pocket-sized print server
which connects your Ethernet network directly to your printer,
wherever it is. It manages the flow of print files from your
workstations or file servers to its connected printers, delivering
print jobs to high-performance printers much faster than a file
server or a PC acting as a print server can.
Service Features
DP-101P+ print servers improve network printing services in three
ways:
♦The DP-101P+ picks up the workload of managing print file
traffic to its connected printers. This provides workload relief to
your file servers, and allows the file servers' full capacity to be
used for file access or other direct services to network users. On
peer-to-peer networks, workstations can print directly to the
DP-101P+ without increasing the load of another workstation or
server.
♦The DP-101P+'s IEEE 1284 compliant high-speed bi-directional
parallel printer port can transmit to high-speed laser printers
much faster than a PC's parallel printer port. A high-speed
laser printer can be driven at its full capacity.

DP-101P+ Print Server User’s Manual
Introduction 5
♦Because the DP-101P+ is very portable (pocket-sized) and
inexpensive compared to a PC-based print server, and because
the DP-101P+ connects to your file servers through the
network, the printer can be stationed at the location of
maximum convenience to users.
The DP-101P+ offers extraordinary flexibility, operating with all
major network operating systems and protocols:
♦TCP/IP
UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM
AIX)
Windows NT/2000
NetWare 5.x NDPS LPR remote printing
♦NetBEUI
Windows NT/2000, Windows 95/98/Me, Windows for
Workgroups, Microsoft LAN Manager, IBM LAN Server
♦AppleTalk
MacOS EtherTalk
Your D-Link DP-101P+ package includes PS Admin, a Windows-
based setup and administration program, which makes
configuration and management of your D-Link print servers quick
and easy in a Windows environment. The DP-101P+ also has a
Telnet interface for management communications. If Windows is
not available on the station you choose for print server
administration, then all configuration and management commands
may be issued to the DP-101P+, and all console messages and
management report information will be returned, via Telnet.

DP-101P+ Print Server User’s Manual
6Introduction
External Features
This section describes the external features of the DP-101P+ print
server.

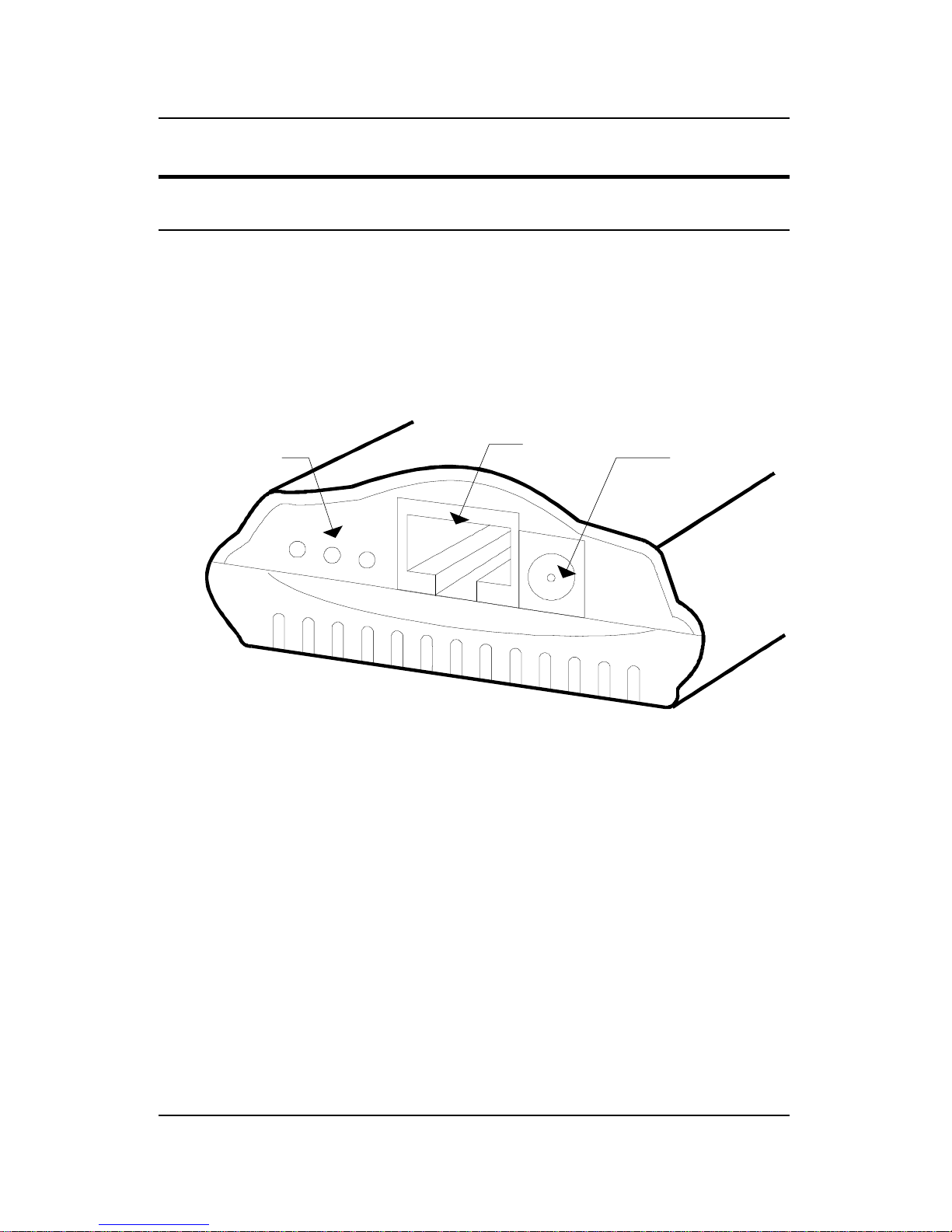

Front End
The network port, power input socket, and LED indicators are all
located at the front.
Led Indicators
Network Port
DC Power
Input
DP-101P+ Front End
Network Port
The network port (RJ-45 receptacle) provides for connection to the
network through 10Base-T Ethernet cabling.
DC Power Input
The DC power input socket uses a 7.5V power supply.
The power supply included in your DP-101P+ package is correct for
the DP-101P+. Substitution of other equipment may void warranty.

DP-101P+ Print Server User’s Manual
Introduction 7
LED Indicators
The front of the DP-101P+ includes three LED indicators. See
"Power-up and Self-Test," Chapter 2, for LED indications upon
starting up the DP-101P+. During operations following a normal
startup, the LED indicators provide the following status signals:
♦Pw/Tx
Steady or flashing green confirms power on.
This indicator blinks (briefly dark) when the DP-101P+ is
transmitting to the network.
♦Lk/Rx
Steady or flashing green confirms that the DP-101P+ has a good
connection to the Ethernet network.
This indicator blinks (briefly dark) when the DP-101P+ is
receiving from the network.
♦LPT
This indicator shows steady green while the DP-101P+ is
transferring print data through its printer port.

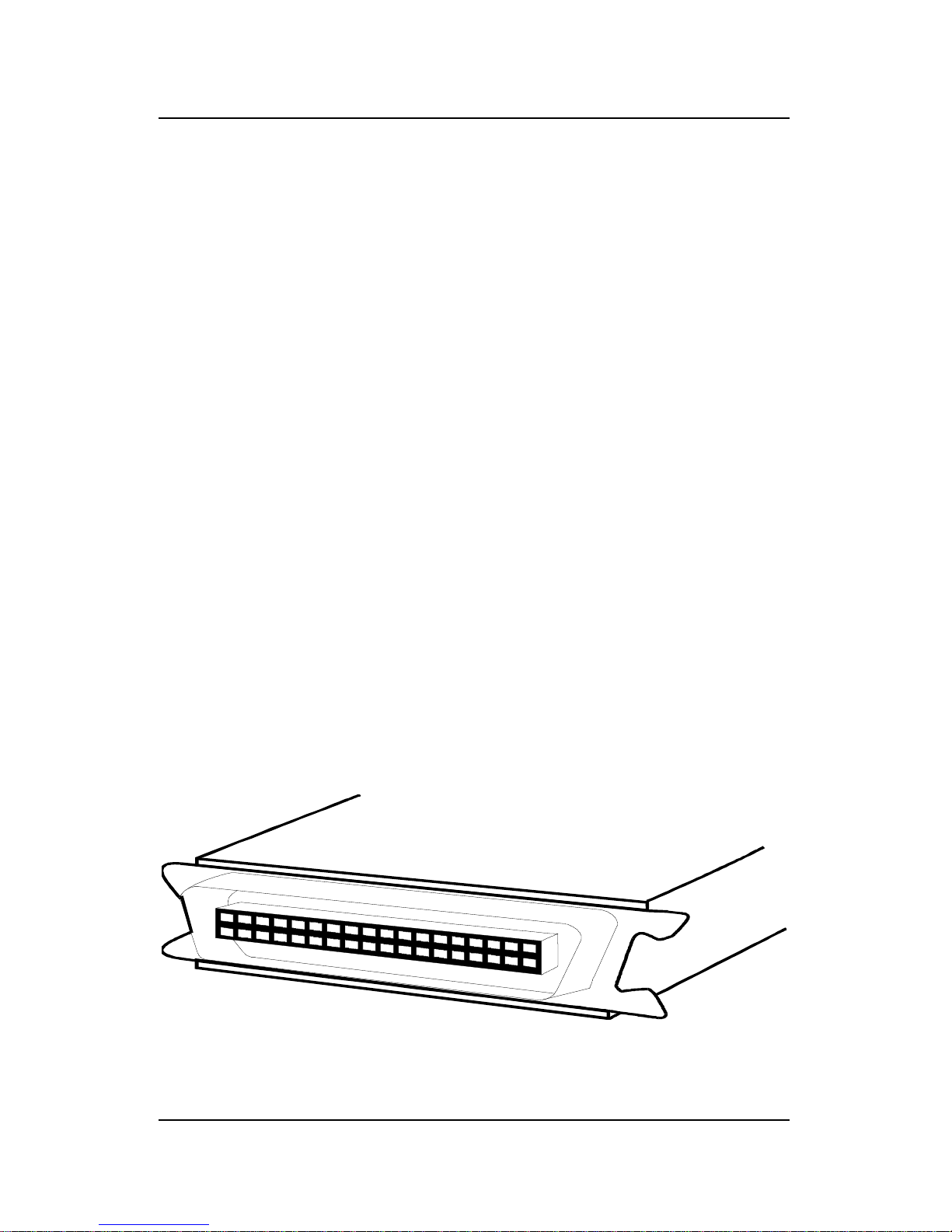

Rear End
The DP-101P+ printer port is located at the rear.
DP-101P+ Rear End

DP-101P+ Print Server User’s Manual
8Introduction
Printer Port
The printer port, is configurable by commands in the PS Admin
program, or by commands issued to the DP-101P+ via Telnet. See
the PS Admin User’s Guide for configuration procedures.
The print server also supports web configuration permitting users
to configure settings through the web browser. DP-101P+ default
IP address as follows:
♦Default IP address –192.168.0.1
♦Subnet Mask –255.255.255.0
Note:-
The PC’s IP address must correspond with the print server’s IP
address in the same segment for the two devices to communicate.

2
2 UNPACKING AND
INSTALLATION
This chapter explains how to install your DP-101P+ print server
and connect it to the network. It also describes the automatic
power-on self test.
Unpacking and Inspecting
Carefully remove all items from the package. In addition to this
Hardware Guide, be certain that you have:
♦One DP-101P+ print server
♦One AC Power adapter suitable for your electric power service
♦One Installation CD-ROM
♦One Multi-language Quick Installation Guide
If any item is missing, or if you find any damage or mismatch,
promptly contact your dealer for assistance.

DP-101P+ Print Server User’s Manual
10 Unpacking and Installation
Installing the DP-101P+
Follow these steps for a trouble-free start of print-server operations
with your DP-101P+. Please take particular notice of the warning
in step 4: the network connection should be made before supplying
power to the DP-101P+.
1. Confirm proper operation of the printer to be connected to the
DP-101P+.
2. When you have confirmed proper operation of the printer,
switch its power off.
3. Confirm that your network is operating normally.
4. Connect the DP-101P+ to the network (through the RJ-45
receptacle on the print server’s rear end).
WARNING:Configuration problems may result if the DP-101P+
is powered up without first establishing its network
connection. Follow this procedure to avoid
complications at the configuration stage.
5. While the printer is power off, connect the DP-101P+ print
server directly to the printer parallel port.
6. Switch printer power on.
7. Plug the AC Power adapter’s output plug into the DC power
input socket on the rear end of the DP-101P+.
8. Plug the AC Power adapter into an electric service outlet. This
will supply power to the DP-101P+. (The DP-101P+ has no
power switch.) The DP-101P+’s self-test routines will proceed
automatically.

DP-101P+ Print Server User’s Manual
Unpacking and Installation 11
Power-up and Self-Test
Whenever the DP-101P+ is powered up, two kinds of testing
procedures follow automatically. The first procedure is just a
programmed series of LED flashes, to confirm proper operation of
the three LED indicators. The second procedure comprises
programmed tests of each of the DP-101P+'s major components. If
any fault is found during the component test series, testing is
halted and a continuous pattern of LED flashes signals the nature
of the fault.
LED Test Series
Immediately upon power-up, all three of the LED indicators will
show steady green for several seconds. Then the LPT indicator
will flash three times while Pw/Tx and Lk/Rx remain steady.
Irregularity of any of the LEDs during this LED test series
indicates that there is a problem with the LEDs themselves.
Contact your dealer for correction of any LED problems before
proceeding.
Component Test Series
The actual component tests immediately follow the LED tests. A
normal (no fault) result is signaled by three flashes of the LPT
indicator and the start of normal print server operation.
If any error condition is found during the component test series,
then the test will halt with the LPT LED continuously signaling
the particular error according to the following table.

DP-101P+ Print Server User’s Manual
12 Unpacking and Installation
LPT Flash Pattern Error Type
steady long flashes Firmware Reload Required
continuous on DRAM Error
One long, two short flashes Timer INT Error
One long, three short flashes Flash Protected
One long, four short flashes Flash ID Error
One long, five short flashes Flash Erase / Program Error
One long, six short flashes LAN Controller Error
One long, seven short flashes LAN Memory Error
One long, eight short flashes Parallel Controller Error
One long, nine short flashes LPT Error
steady short flashes EEPROM Error
One long, eleven short flashes LAN I/O Base error
In the event of a Firmware Reload Required error at startup,
proceed according to instructions given in the PS Admin User’s
Guide ("PS Admin Administration" section, under the heading
"Upgrading the Print Server's Internal Firmware").
In the event that any of the other listed error conditions is
encountered on startup, contact your dealer for correction of the
fault.
Operational Test
The PS Admin software includes a Print Test function for
confirmation of connections and functions. That operational test
can be performed after you have completed installation of the PS
Admin software, and the PS Admin procedures for configuring the
DP-101P+. See instructions given in the PS Admin User’s Guide
("Getting Started Setting up Your Print Server" section, under the
heading "Testing your Print Server").

DP-101P+ Print Server User’s Manual
Product Specifications 13
A
3 PRODUCT
SPECIFICATIONS
Printer Connection
Printer Port: IEEE 1284 standard bidirectional parallel
interface with 36-pin connector.
Bidirectional Communication: Hewlett-Packard PJL (Printer
Job Language) standard for bidirectional communication.
Network Connection
Network Standards: IEEE 802.3 10Base-T Ethernet .
Network Data Transfer Rate: 10Mbps (megabits per second) .
Network Connector: RJ-45 connector for 10Base-T twisted pair
connection .
Network Protocols
Ethernet Frame Types: 802.2, 802.3, Ethernet II, SNAP (auto-
switching)
Transport Protocols: TCP/IP, NetBEUI, AppleTalk/EtherTalk
TCP/IP Protocols Supported: BOOTP, SNMP, Telnet, TFTP,
FTP, lpd, RARP, DHCP

DP-101P+ Print Server User’s Manual
14 Product Specifications
Management and Diagnostics
Standard: SNMP
MIBs: MIB-II (RFC 1213)
Diagnostic LED Indicators: Pw/Tx, Lk/Rx, LPT
Environmental and Physical
Power Supply: External power supply providing 7.5VDC/
500mA
Dimensions:92.8mm ×58mm ×25.3mm
Weight: approx. 65g
Operating Temperature: 0 to 50°C
Storage Temperature: -25 to 55°C
Humidity: 5% to 95% non-condensing
Emissions: FCC Class A, CISPR 22 Class A, VCCI Class 1,
AS/NZS 3548:1995 Class A
Safety: UL (UL 1950), CSA (CSA950), TUV/GS (EN60950)

B
4 PORT PINOUTS
The following table lists the pinouts of the DP-101P+'s 36-pin
parallel port connector (identical to the parallel port connector
used on most printers.)
Signal names beginning with nare active-low signals.
Pin # Signal Source
1nStrobe H
2Data 1 ♣Bi-Di♠
3Data 2 Bi-Di♠
4Data 3 Bi-Di♠
5Data 4 Bi-Di♠
6Data 5 Bi-Di♠
7Data 6 Bi-Di♠
8Data 7 Bi-Di♠
9Data 8♦Bi-Di♠
10 nAck P
11 Busy P
12 PError P
13 Select P
14 nAutoFd H
15 Not Defined
16 Logic Gnd
17 Chassis Gnd
♣Least Significant Bit
♠Data signals will be driven by some , but not all peripheral devices.
♦Most Significant Bit

DP-101P+ Print Server User’s Manual
16 Port Pinouts
18 Peripheral Logic High P
19 Signal Ground (nStrobe)
20 Signal Ground (Data 1)
21 Signal Ground (Data 2)
22 Signal Ground (Data 3)
23 Signal Ground (Data 4)
24 Signal Ground (Data 5)
25 Signal Ground (Data 6)
26 Signal Ground (Data 7)
27 Signal Ground (Data 8)
28 Signal Ground (PError, Select, nAck)
29 Signal Ground (Busy, nFault)
30 Signal Ground (nAutoFd, nSelectIn, nInit)
31 nInit H
32 nFault P
33 Not Defined
34 Not Defined
35 Not Defined
36 nSelectIn H

DP-101P+ Print Server User’s Manual
5 OFFICES
AUSTRALIA D-LINK AUSTRALASIA
Unit 16, 390 Eastern Valley Way, Roseville, NSW 2069, Australia
TEL: [phone] FAX: [phone]
TOLL FREE: 1800-177-100 (Australia), 0800-900900 (New Zealand)
URL: www.dlink.com.au E-MAIL: [e-mail], [email protected]
CANADA D-LINK CANADA
2180 Winston Park Drive, Oakville, Ontario L6H 5W1 Canada
TEL: [phone] FAX: [phone] BBS: 1-965-279-8732 FREE CALL: 1-800-354-6522
URL: www.dlink.ca E-MAIL: [email protected]
CHILE D-LINK SOUTH AMERICA
Isidora Goyenechea #2934 of.702, Las Condes, Santiago, Chile
TEL: [phone] FAX: [phone] URL: www.dlink.cl
CHINAD-LINK CHINA
2F., Sigma Building, 49 Zhichun Road, Haidian District, 100080 Beijing, China
TEL: [phone] FAX: [phone]
URL: www.dlink.com.cn
DENMARK D-LINK DENMARK
Naverland 2, DK-2600 Glostrup, Copenhagen, Denmark
TEL:[phone] FAX:[phone] URL: www.dlink.dk
E-MAIL: [email protected]
EGYPT D-LINK MIDDLE EAST
7 Assem Ebn Sabet Street, Heliopolis Cairo, Egypt
TEL: [phone] FAX: [phone] URL: www.dlink-me.com
E-MAIL: [e-mail]
FRANCE D-LINK FRANCE
Le Florilege #2, Allee de la Fresnerie
78330 Fontenay Le Fleury France
TEL: [phone] FAX: [phone] URL: www.dlink-france.fr
E-MAIL: [e-mail]
GERMANY D-LINK GERMANY
D-Link Central Europe / D-Link
Deutschland Gmbh
Schwalbacher Stra_e 74
65760 Eschbom
TEL: ++49-6196/7799-0 FAX: ++49-6196/7799-300
INDIA D-LINK INDIA
Plot No.5, Kurla-Bandra Complex Road,
Off Cst Road, Santacruz (E), Bombay -400 098 India
TEL: [phone] FAX: [phone] URL: www.dlink-india.com
E-MAIL: [email protected]
ITALY D-LINK ITALIA
Via Nino Bonnet No. 6/b, 20154 Milano, Italy
TEL: [phone] FAX: [phone] URL: www.dlink.it
E-MAIL: [e-mail]
JAPAN D-LINK JAPAN
10F, 8-8-15 Nishi-Gotanda, Shinagawa-ku, Tokyo 141 Japan
TEL: [phone] FAX: [phone] URL: www.d-link.co.jp
RUSSIA D-LINK RUSSIA
Michurinski Prospekt 49, 117607 Moscow, Russia
TEL: [phone] FAX: [phone]
SINGAPORE D-LINK INTERNATIONAL
1 International Business Park, #03-12 The Synergy, Singapore 609917
TEL: [phone] FAX: [phone]
URL: www.dlink-intl.com E-MAIL: [email protected]
S. AFRICA D-LINK SOUTH AFRICA
Unit 2, Parkside 86 Oak Avenue
Highveld Technopark Centurion, Gauteng, Republic of South Africa
TEL: [phone] FAX: [phone]
SWEDEN D-LINK SWEDEN
P.O. Box 15036, S-167 15 Bromma Sweden
TEL: [phone] FAX: [phone] E-MAIL: [email protected]
URL: www.dlink.se
TAIWAN D-LINK TAIWAN
2F, No. 119 Pao-Chung Road, Hsin-Tien, Taipei, Taiwan, R.O.C.
TEL: [phone] FAX: [phone] URL: www.dlinktw.com.tw
U.K. D-LINK EUROPE
4th Floor, Merit House, Edgware Road, Colindale, London, NW9 5AB, U.K.
TEL: [phone] FAX: [phone]
URL: www.dlink.co.uk E-MAIL: [email protected]
U.S.A. D-LINK U.S.A.
53 Discovery Drive, Irvine, CA 92618 USA
TEL: [phone] FAX: [phone] INFO LINE: 1-800-326-1688
BBS: 1-949-455-1779, 1-949-455-9616
URL: www.dlink.com E-MAIL: [email protected], supp[email protected]

LIMITED WARRANTY
D-Link provides this limited warranty for its product only to the person or entity
who originally purchased the product from D-Link or its authorized reseller or
distributor.
Limited Hardware Warranty: D-Link warrants that the hardware portion of the
D-Link products described below (“Hardware”) will be free from material defects in
workmanship and materials from the date of original retail purchase of the
Hardware, for the period set forth below applicable to the product type (“Warranty
Period”) if the Hardware is used and serviced in accordance with applicable
documentation; provided that a completed Registration Card is returned to an
Authorized D-Link Service Office within ninety (90) days after the date of original
retail purchase of the Hardware. If a completed Registration Card is not received
by an authorized D-Link Service Office within such ninety (90) period, then the
Warranty Period shall be ninety (90) days from the date of purchase.
Product Type Warranty Period
Product (excluding power supplies and fans) One (1) Year
Power Supplies and Fans One (1) Year
Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware at no
charge to the original owner. Such repair or replacement will be rendered by D-
Link at an Authorized D-Link Service Office. The replacement Hardware need
not be new or of an identical make, model or part; D-Link may in its discretion may
replace the defective Hardware (or any part thereof) with any reconditioned
product that D-Link reasonably determines is substantially equivalent (or
superior) in all material respects to the defective Hardware. The Warranty Period
shall extend for an additional ninety (90) days after any repaired or replaced
Hardware is delivered. If a material defect is incapable of correction, or if D-Link
determines in its sole discretion that it is not practical to repair or replace the
defective Hardware, the price paid by the original purchaser for the defective
Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which
the purchase price is refunded, shall become the property of D-Link upon
replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the
product (“Software”) will substantially conform to D-Link’s then current
functional specifications for the Software, as set forth in the applicable
documentation, from the date of original delivery of the Software for a period of
ninety (90) days (“Warranty Period”), if the Software is properly installed on
approved hardware and operated as contemplated in its documentation. D-Link
further warrants that, during the Warranty Period, the magnetic media on which
D-Link delivers the Software will be free of physical defects. D-Link’s sole

DP-101P+ Print Server User’s Manual
obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for
the Software. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and
conditions of the license granted by D-Link for the Software. The Warranty
Period shall extend for an additional ninety (90) days after any replacement
Software is delivered. If a material non-conformance is incapable of correction, or
if D-Link determines in its sole discretion that it is not practical to replace the non-
conforming Software, the price paid by the original licensee for the non-conforming
Software will be refunded by D-Link; provided that the non-conforming Software
(and all copies thereof) is first returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.
What You Must Do For Warranty Service:
Registration Card. The Registration Card provided at the back of this manual
must be completed and returned to an Authorized D-Link Service Office for each D-
Link product within ninety (90) days after the product is purchased and/or
licensed. The addresses/telephone/fax list of the nearest Authorized D-Link
Service Office is provided in the back of this manual. FAILURE TO PROPERLY
COMPLETE AND TIMELY RETURN THE REGISTRATION CARD MAY AFFECT
THE WARRANTY FOR THIS PRODUCT.
Submitting A Claim. Any claim under this limited warranty must be submitted in
writing before the end of the Warranty Period to an Authorized D-Link Service
Office. The claim must include a written description of the Hardware defect or
Software nonconformance in sufficient detail to allow D-Link to confirm the same.
The original product owner must obtain a Return Material Authorization (RMA)
number from the Authorized D-Link Service Office and, if requested, provide
written proof of purchase of the product (such as a copy of the dated purchase
invoice for the product) before the warranty service is provided. After an RMA
number is issued, the defective product must be packaged securely in the original
or other suitable shipping package to ensure that it will not be damaged in transit,
and the RMA number must be prominently marked on the outside of the package.
The packaged product shall be insured and shipped to D-Link, 53 Discovery Drive,
Irvine CA 92618, with all shipping costs prepaid. D-Link may reject or return any
product that is not packaged and shipped in strict compliance with the foregoing
requirements, or for which an RMA number is not visible from the outside of the
package. The product owner agrees to pay D-Link’s reasonable handling and
return shipping charges for any product that is not packaged and shipped in
accordance with the foregoing requirements, or that is determined by D-Link not to
be defective or non-conforming.
What Is Not Covered:
This limited warranty provided by D-Link does not cover:
