D-Link DPR-1061 User manual

This product can be set
up using any current web
browser,i.e., InternetExplorer
6 or Netscape Navigator 7.0
DPR-1061
Wired Multi-Function
Print Server
5V DC, 2.5A Power Adapter
Before You Begin
Check Your Package Contents
DPR-1061 Wired Multi-Function Print Server
CD-ROM (Software, Manual and Warranty)
Ethernet (CAT5 UTP) Cable
If any of the above items are missing, please contact your reseller.
Using a power supply
with a different voltage
rating will damage this
product and void its
warranty.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specications subject to change without notice.
The Quick Installation Guide provides you with the step-by-step instructions to set up your
MFP Server, and lets you start your printing tasks. The model you have purchased may be
slightly different from those described in the illustrations. For more detailed information on the
MFP Server, its components, making network connections and technical specications, please
refer to the User’s Guide that is included in your MFP Server’s Installation CD.
NOTE: The illustrations or setting values in this manual are FOR YOUR REFERENCE ONLY.
The actual settings and values depend on your MFP Server, system and network.

2
EXTERNAL FEATURES
Port Connectors
The DPR-1061’s three printer ports are located on its rear panel. Two USB and one
parallel ports are labeled USB1, USB2, and LPT. These printer ports can be independently
congured using the Web Conguration Interface. The Print Server’s Web conguration
permits users to congure settings through the web browser.
Default IP Address of DPR-1061 is set as automatically getting from DHCP server or
Router which build-in DHCP server.
NOTE : The PC’s IPAddress must be in the same subnet as the Print Server’s IPAddress
for the two devices to communicate. (For example, if MFP server’s IP Address
is 192.168.0.10, with a subnet mask of 255.255.255.0, then your computer’s IP
Address should be 192.168.0.x, where x is a value between 1-254, excluding
10.)

3

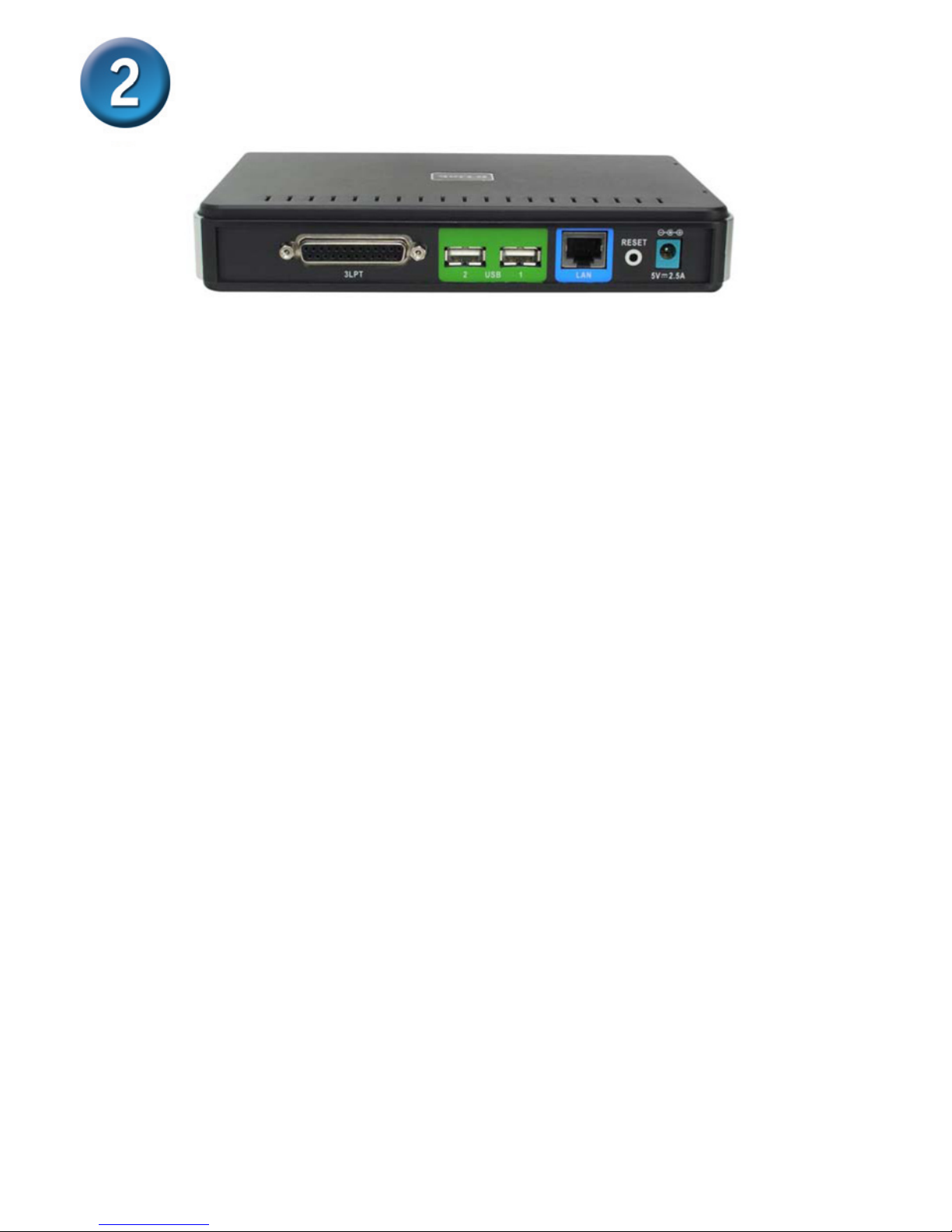

Rear Panel Connectors
Network Cable Connector
The Print Server’s rear panel feature an RJ-45 connector for connection to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to
automatically detect or negotiate the transmission speed of the network.
Reset Button
Press and release this button to reset the MFP Server; or press and hold this button for
three seconds until the USB1, USB2, and LPT LEDs on the front panel light up and then
release the button, The MFP Server will then resume the default factory settings.
DC Power Connector
The DC power input connector is located on the Print Server’s rear panel and is labeled
DC 5V.

4

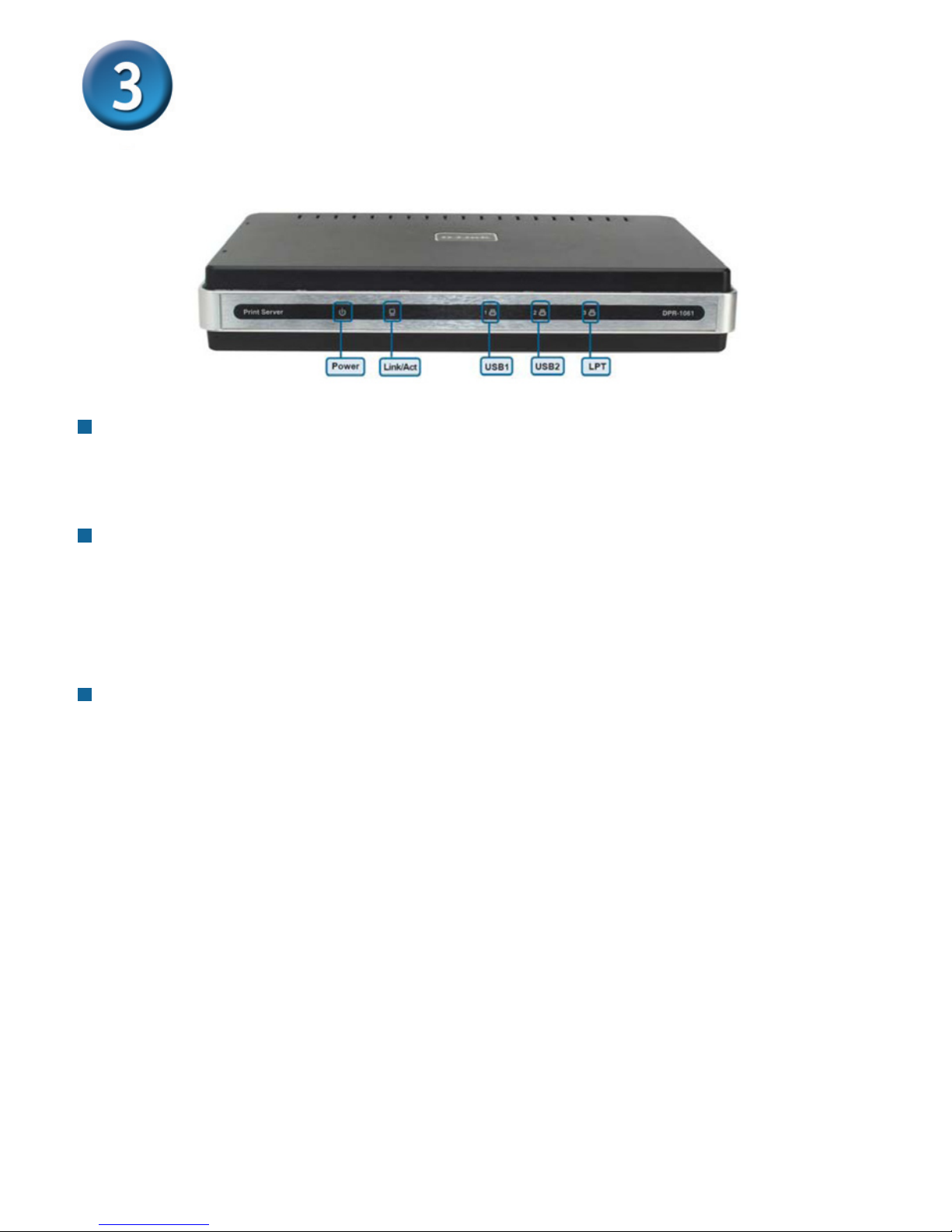

LED Indicators
The front panel of the Print Server features ve LED indicators:
Power
Steady green conrms that the Print Server is powered ON.
Link/Act
Steady green conrms that the Print Server has a good connection to the Ethernet or
Fast Ethernet network. The indicator blinks off briey to indicate that the Print Server is
receiving or transmitting from the network.
USB1, USB2, LPT
When the LEDs light in steady green, it indicates the print’s status as currently online.If
the LEDs light in blinking green, it indicates that data is being transferred between print
server and printer.
These three indicators are also used by the Print Server’s Power-ON Self Test (POST)
to indicate any hardware failures.

5
HARDWARE INSTALLATION
Follow these steps for a trouble-free start of MFP Server operations with your MFP
Server.
1. Conrm proper operation of each of the printers to be connected to the DPR-
1061.
2. When you have conrmed proper operation of each printer, switch its power OFF.
3. Conrm that your network is operating normally.
4. Connect the DPR-1061 RJ-45 Connector to the network, using an Ethernet CAT5
cable.
WARNING: Conguration problems may result if the MFP Server is powered up
without rst establishing its network connection. Please follow this procedure to avoid
complications at the conguration stage.
5. While each printer is powered OFF, install the corresponding parallel or USB printer
cable to connect the printer’s parallel port or USB port to the printer port of the Print
Server.
6. Switch on each connected printer.
7. Plug the AC power adapter’s DC output plug into the DC 5V power socket on the
rear panel of the Print Server.
8. Plug the power adapter into a power outlet. This will supply power to the Print Server,
as it has no external power switch. The green Power LED on the Print Server’s front
panel should illuminate steadily, and the Print Server’s Self-Test will proceed.
NOTE: Default IP Address of DPR-1061 is set as automatically getting from DHCP
server or Router which build-in DHCP server.

6
PS SOFTWARE INSTALLATION
PS Software contains these useful programs: PS-Link and PS-Wizard. Installing
the PS Software is quite simple - To do so, insert the Installation CD-ROM into your
computer’s CD-ROM drive to initiate the Auto-Run program.
Auto-Run Installation
The content of the Installation CD-ROM includes:
• Acrobat Reader – click to launch Acrobat Reader for the viewing and printing of
PDF les in the Installation CD-ROM.
• Install PS Software – click to install PS Software, which contains PS-Link and PS-
Wizard, to complete further settings for the MFP Server, such as:
- Changing IP address
- Supporting multi-function tasks (Print/Scan/Fax) of a MFP printer, printing of GDI
printer, and even other multimedia software of any MFP/GDI printer.
- To easily add new or additional printers on your computer.
For the detail operation, please refer to the user’s guide.
• View Quick Installation Guide - click to preview the Quick Installation Guide in PDF
format for step-by-step instructions of the MFP Server Installation.
• View Manual – click to preview the User's Guide in PDF format for detailed information
of the MFP Server.
• Install Acrobat Reader – click to launch Acrobat Reader for the viewing and printing
of PDF les in the Installation CD-ROM.
• Exit – click to close the Auto-Run program.

Technical Support
You can nd software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 7:30AM to 9:00PM EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]

Ver. 1.00(WW)
