D-Link DCS-2103/UPA User manual

HD Cube Network Camera
Сетевая HD-камера с
поддержкой PoE и ночной
съемки
DCS-2103/UPA
Quick Installation Guide
Краткое руководство по установке

D-Link DCS-2103/UPA Quick Install Guide
2
ENGLISH
DCS-2103/UPA Quick Install Guide
This installation guide provides basic instructions for installing the DCS-2103/UPA
Network Camera on your network. For additional information about how to use the
camera, please see the User’s Manual which is available from the D-Link support
website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
° DCS-2103/UPA Network Camera
° Camera Stand
° CAT5 Ethernet Cable
° Quick Install Guide
If any of the above items are missing, please contact your reseller.

D-Link DCS-2103/UPA Quick Install Guide
3
ENGLISH

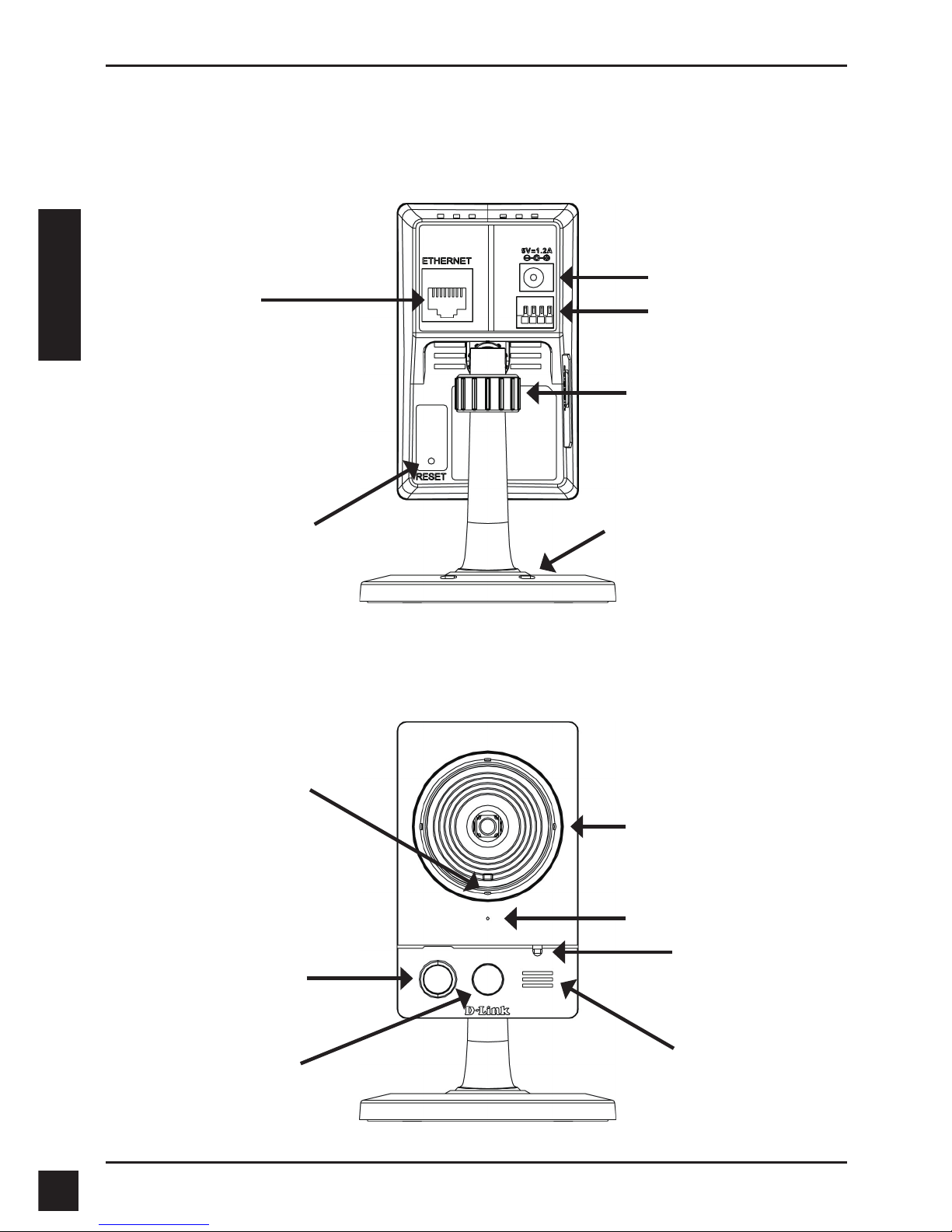

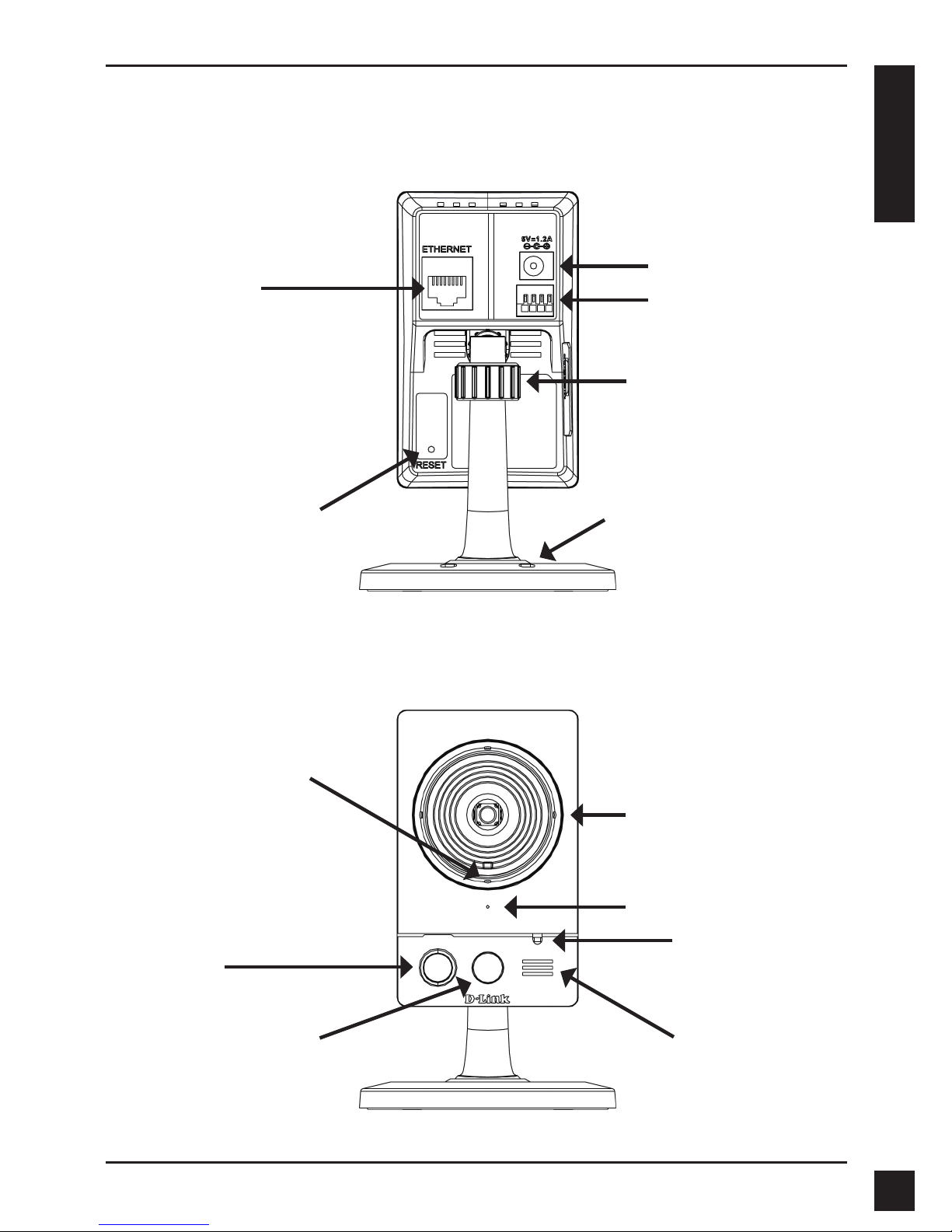

Status LED
Indicates the camera's
current status
PIR
Passive Infrared
sensor for
motion detect
ICR Sensor
The IR-Cut Removable
sensor judges lighting
conditions and switches from
color to infrared accordingly
Infrared LED
Used to illuminate the camera's
eld of view at night
Microphone
Records audio from the
surrounding area
Speaker
Audio output
Camera Lens
Records video of the
surrounding area
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Reset
Press and hold this button
for 10 seconds to reset
the camera
Ethernet
RJ-45 connector for Ethernet
which can also be used to
power the camera using
Power over Ethernet (PoE)
Power Connector
Connects to DC 5 V
power adapter (not
included in package)
I/O Connector
I/O connectors for
external devices
2. Hardware Overview
Rear Panel
Front Panel

D-Link DCS-2103/UPA Quick Install Guide
4
ENGLISH

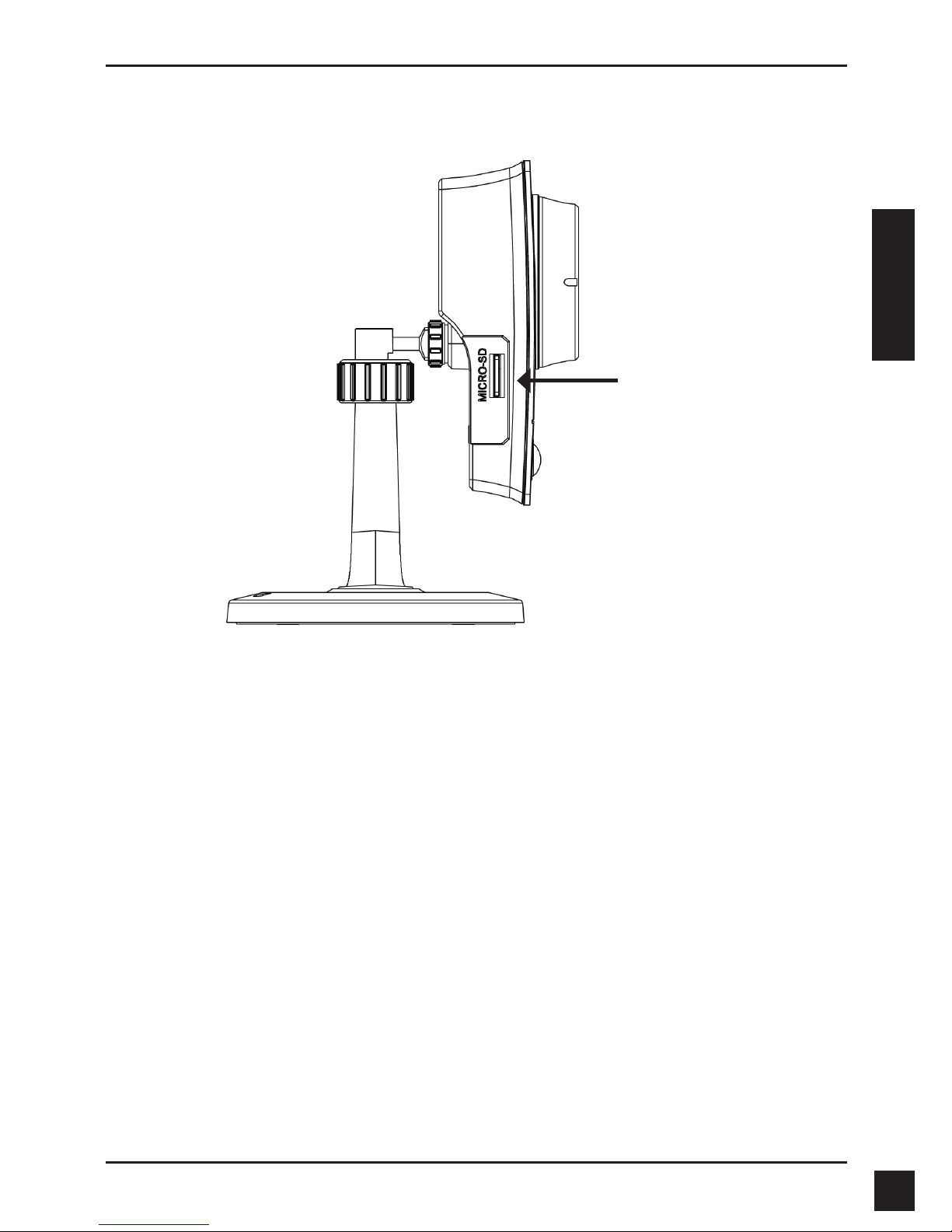

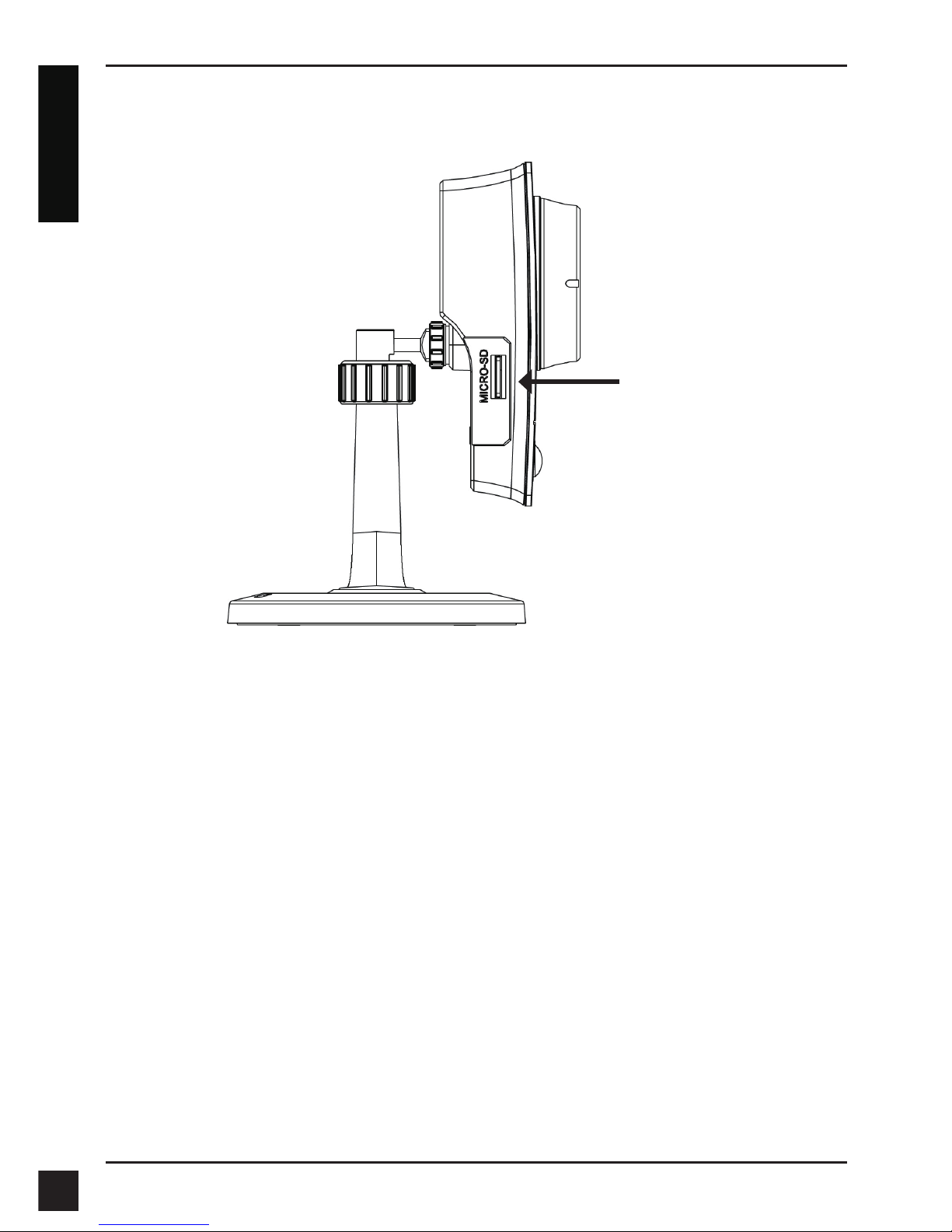

Micro SD Card slot
Local storage for storing
recorded image and video
Left Panel

D-Link DCS-2103/UPA Quick Install Guide
5
ENGLISH
3. Hardware Installation

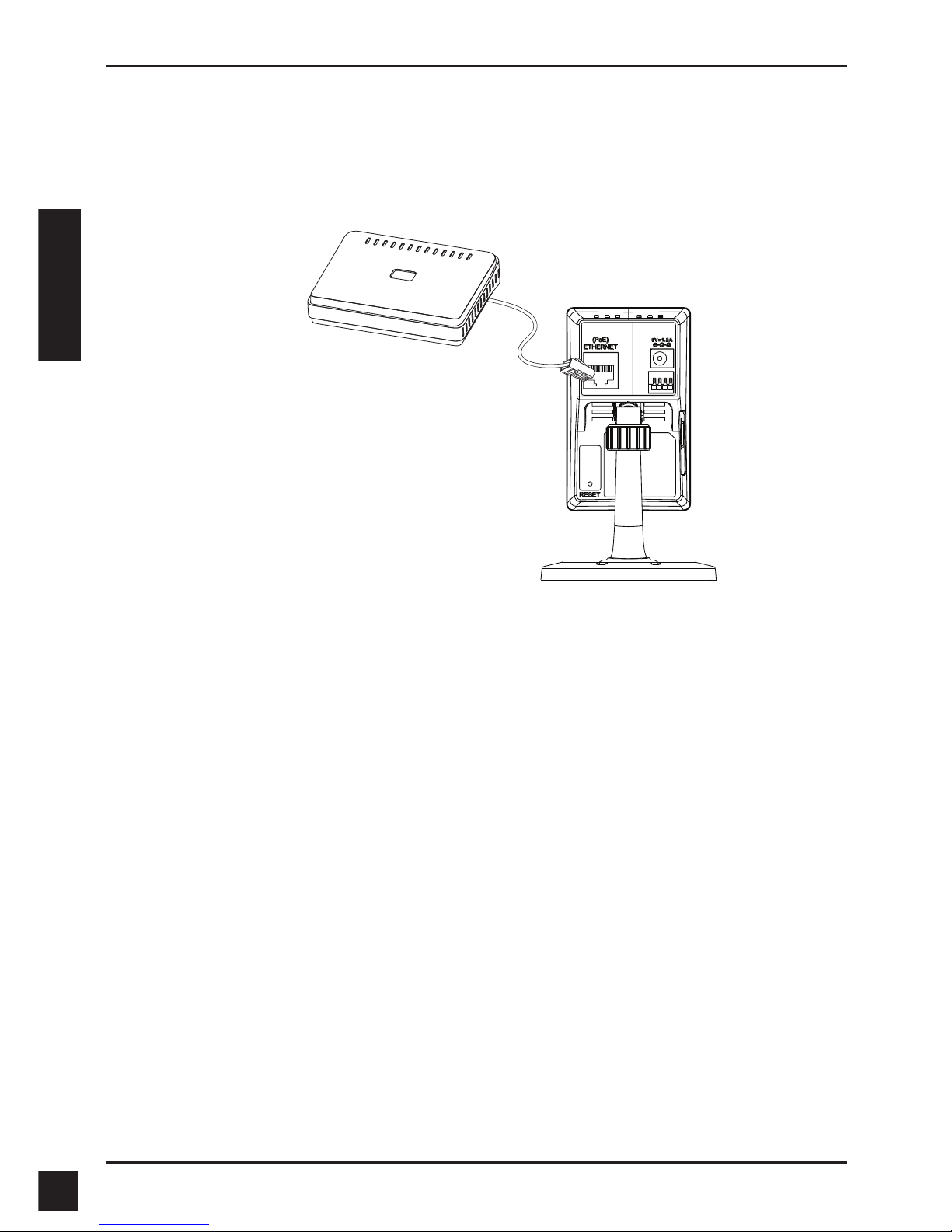

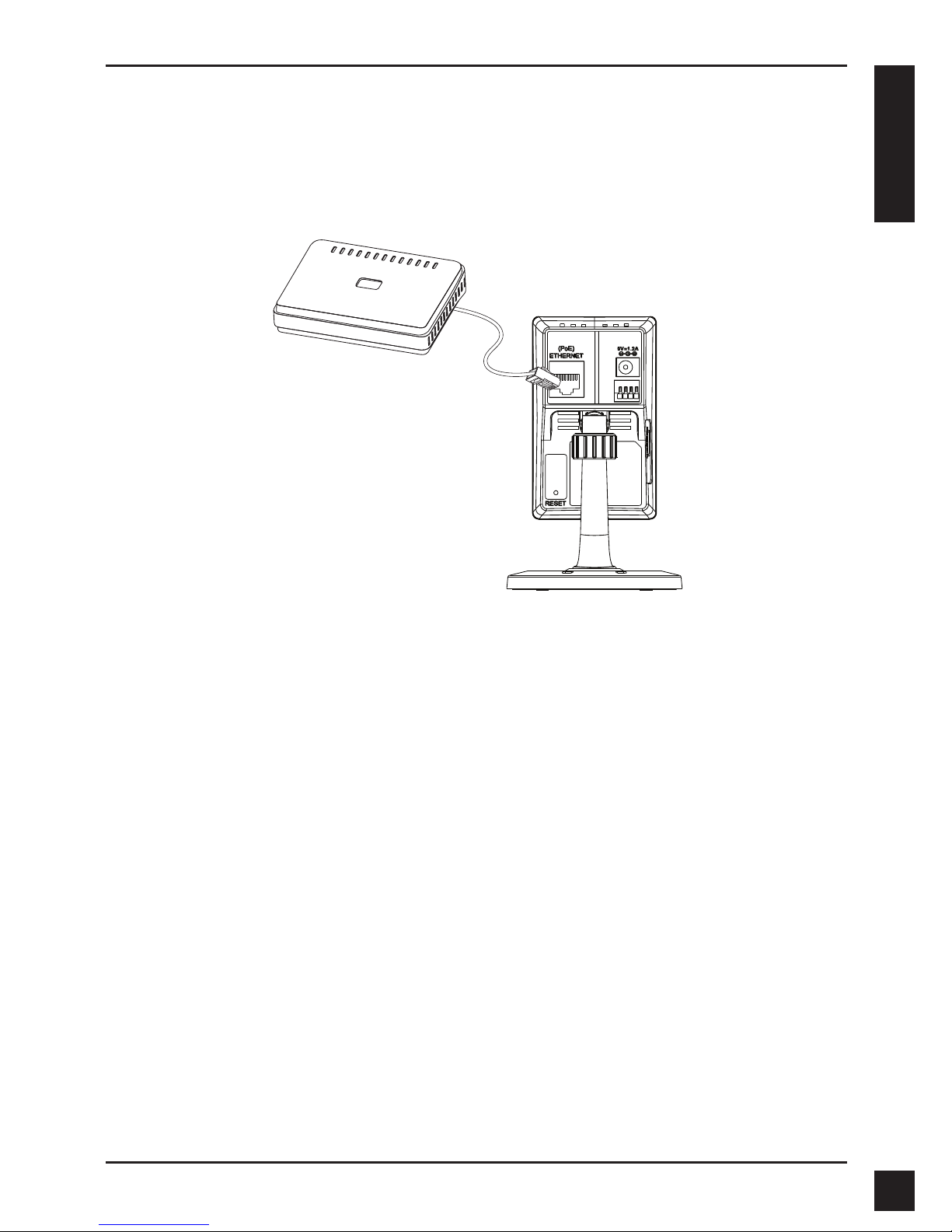

Connection Using a PoE Switch
If using a PoE switch or router, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has
obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-2103/UPA Quick Install Guide
6
ENGLISH

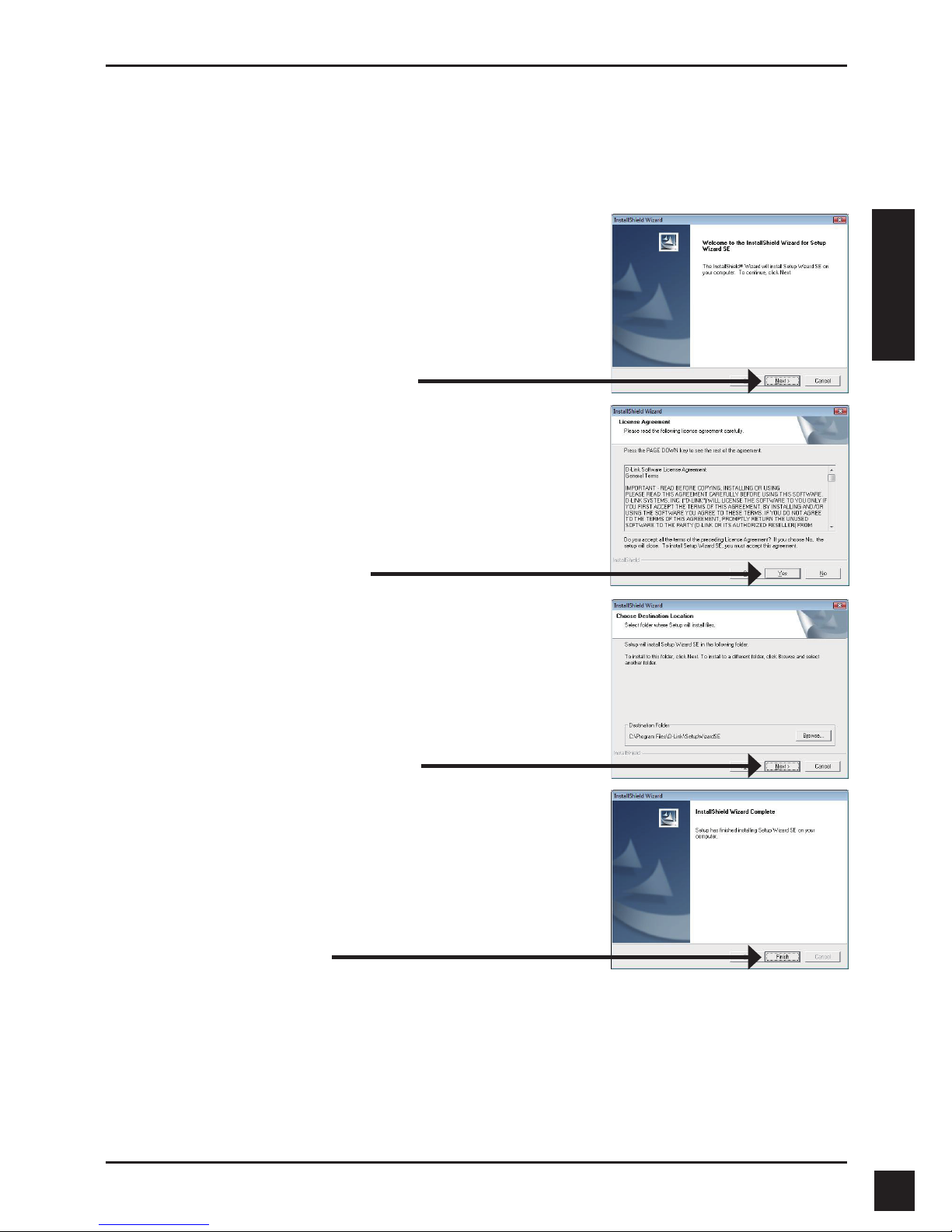

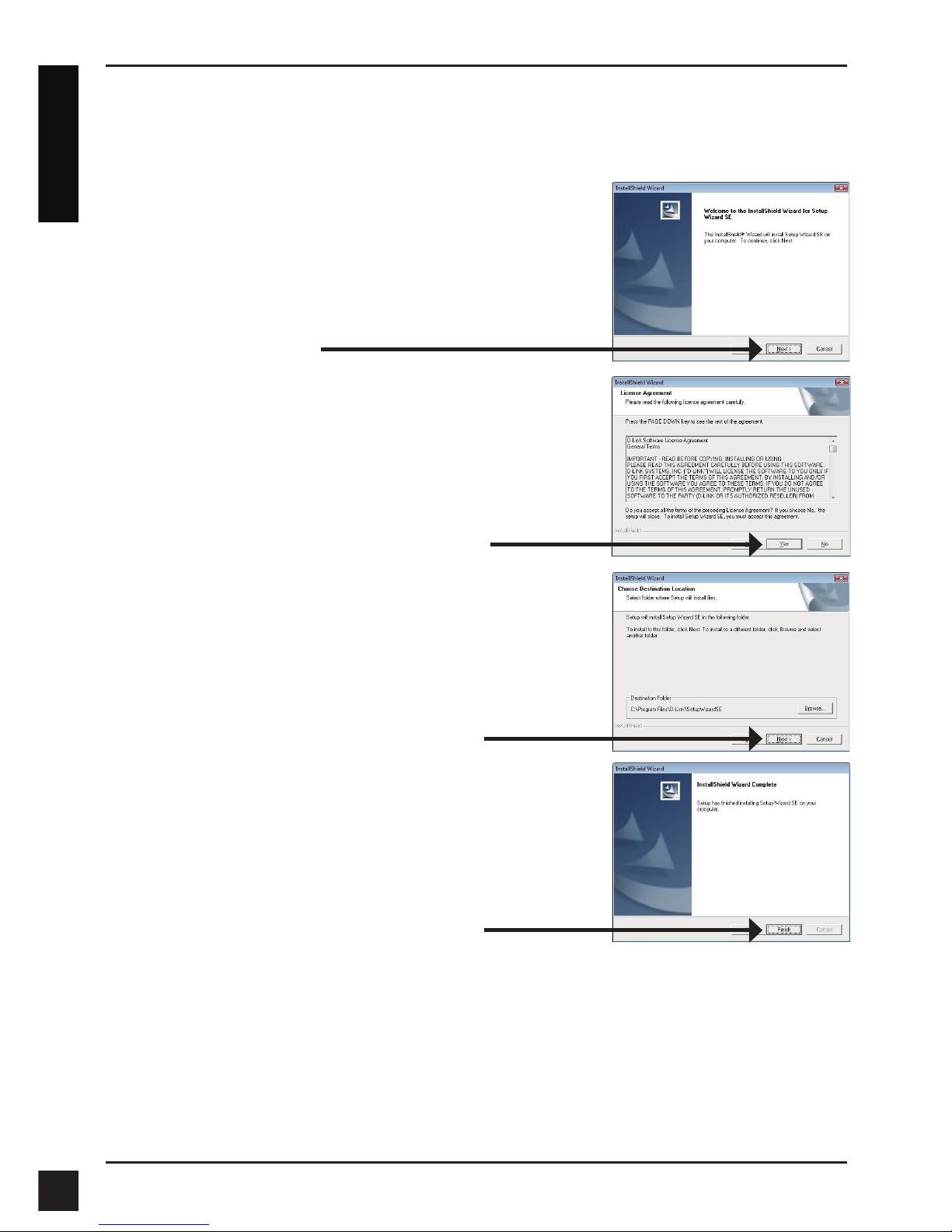

4. Conguration with Wizard
After clicking Setup Wizard, the following window
will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes
to nish.

D-Link DCS-2103/UPA Quick Install Guide
7
ENGLISH

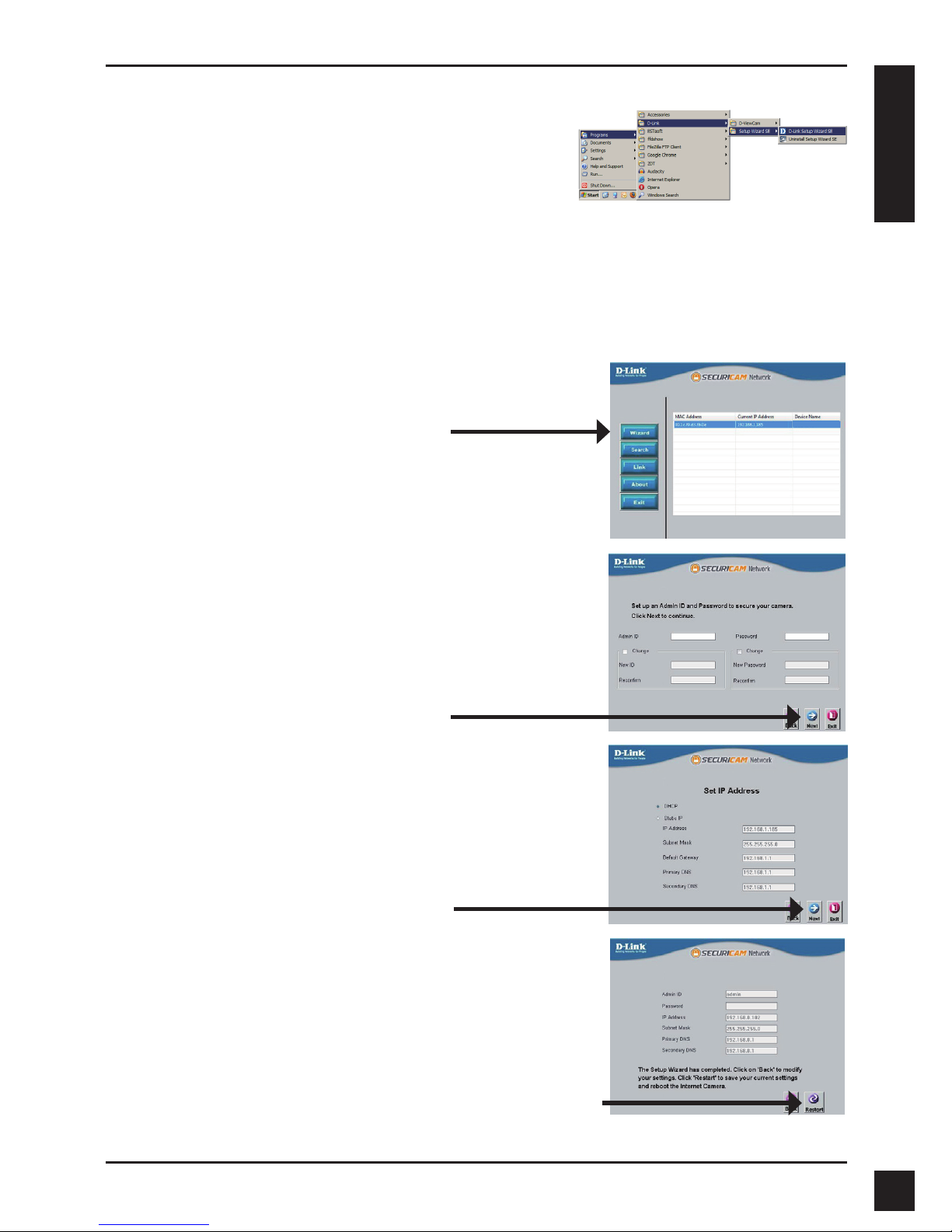

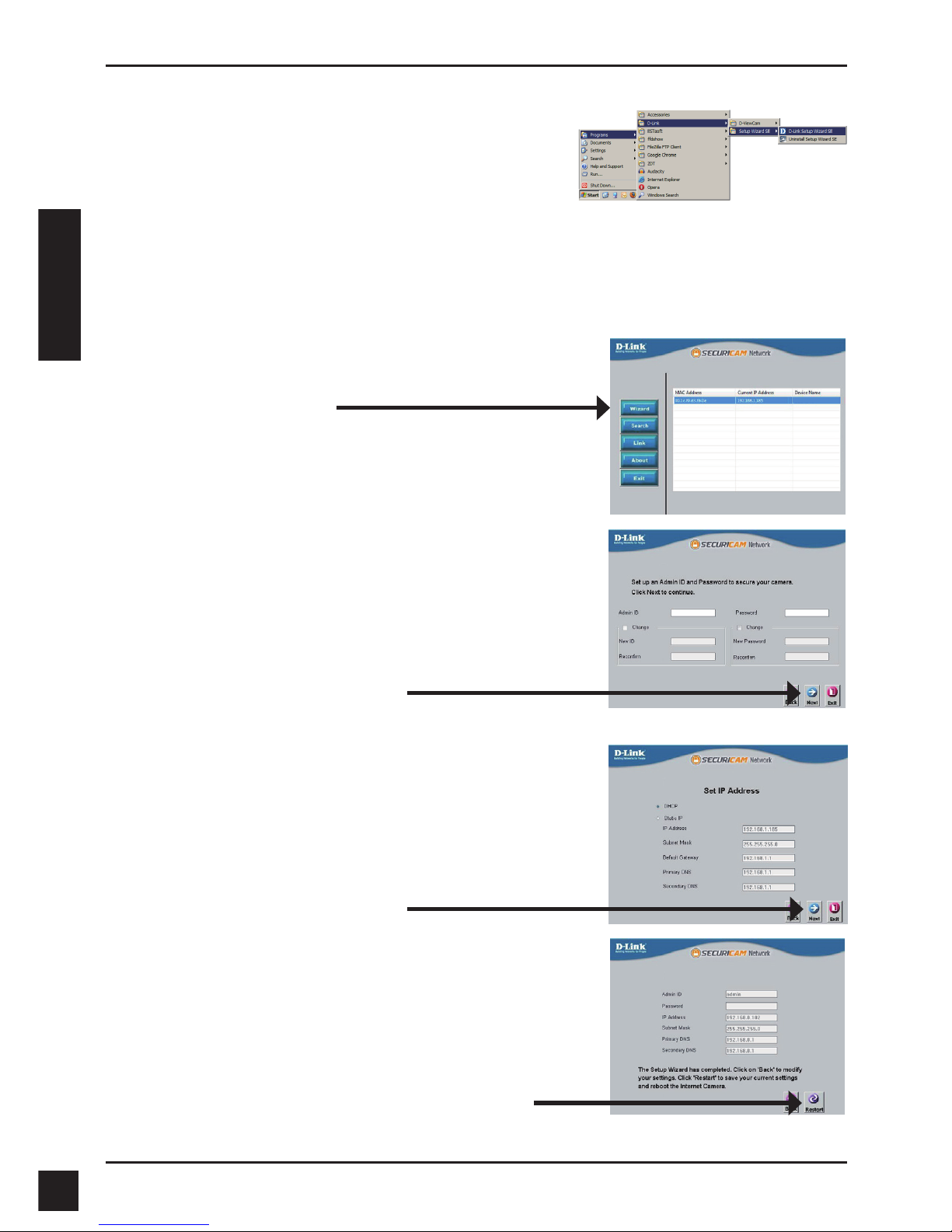

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.
DCS-2103

D-Link DCS-2103/UPA Quick Install Guide
8
ENGLISH

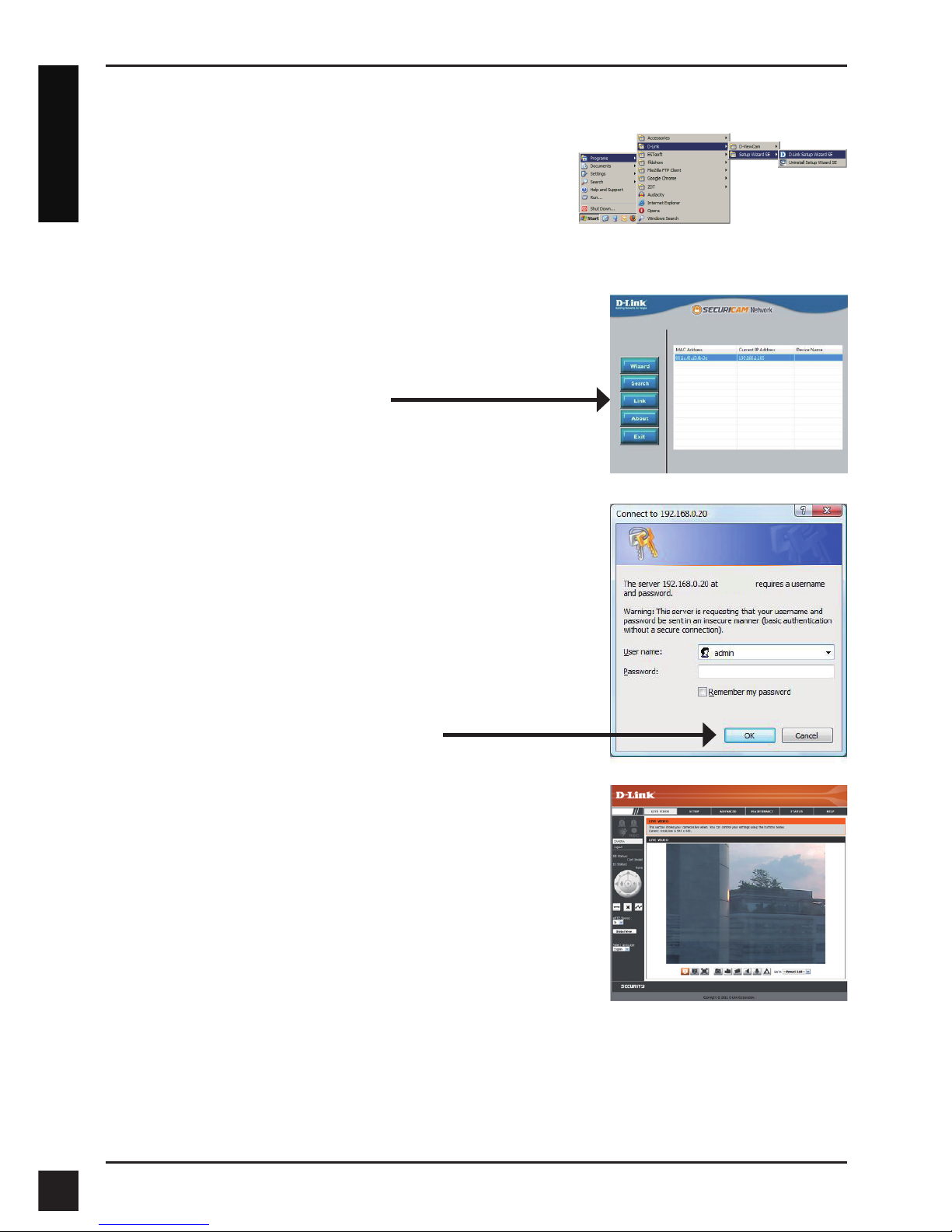

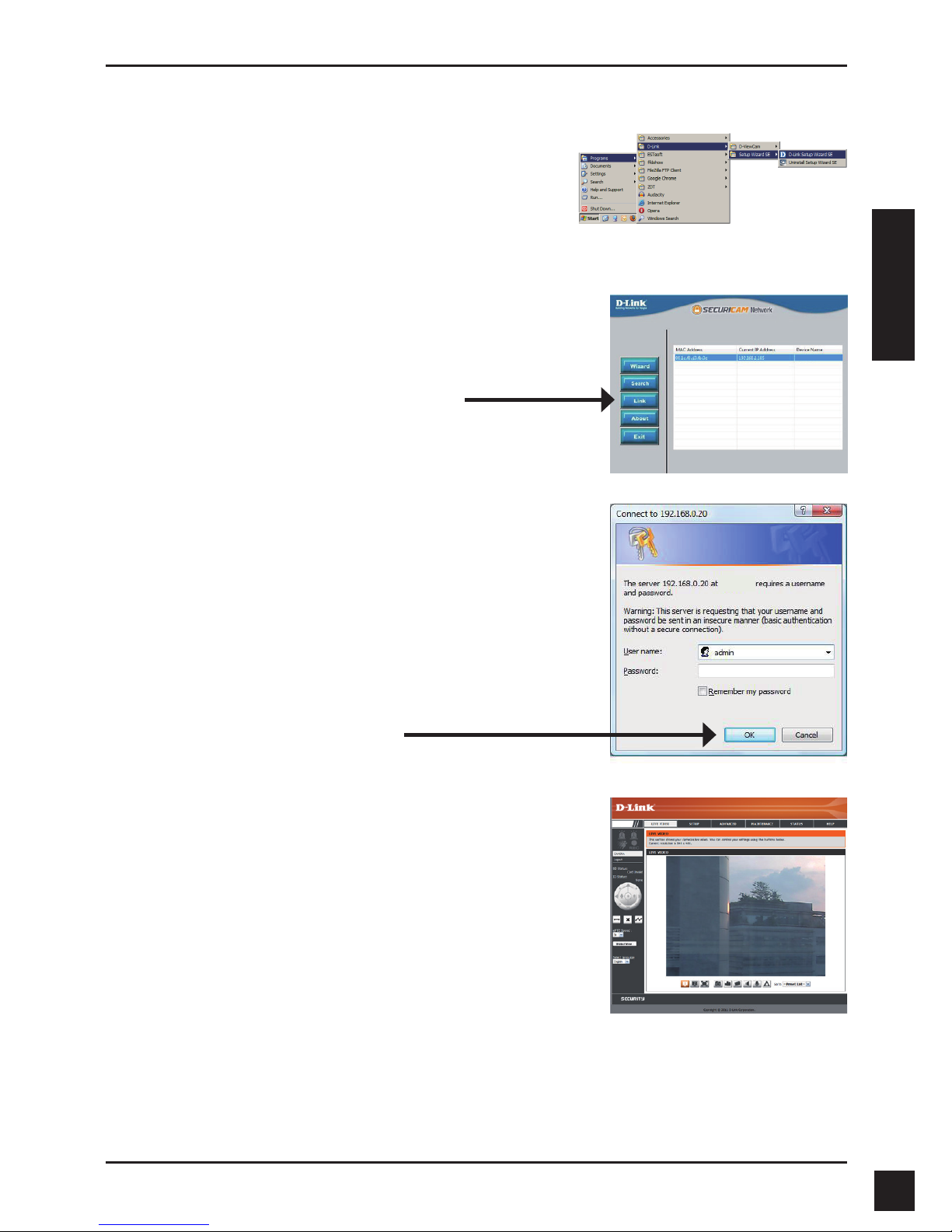

Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
DCS-2103
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
configuration, please refer to the user manual on the
D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
DCS-2103
DCS-2103

D-Link DCS-2103/UPA Quick Install Guide
9
ENGLISH
TECHNICAL SUPPORT
Australia:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.com.au
E-mail: [email protected]
India:
Tel: [phone]
Toll Free 1800-233-0000
Web: www.dlink.co.in
E-Mail: [email protected]
Singapore, Thailand, Indonesia,
Malaysia, Philippines, Vietnam:
Singapore - www.dlink.com.sg
Thailand - www.dlink.co.th
Indonesia - www.dlink.co.id
Malaysia - www.dlink.com.my
Philippines - www.dlink.com.ph
Vietnam - www.dlink.com.vn
Korea:
Tel : [phone]
Monday to Friday 9:00am to 6:00pm
Web : http://d-link.co.kr
E-mail : [email protected]
New Zealand:
Tel: [phone]
24/7 Technical Support
Web: http://www.dlink.co.nz
E-mail: [email protected]
South Africa and Sub Sahara
Region:
Tel: [phone]
08600 DLINK (for South Africa only)
Monday to Friday 8:30am to 9:00pm South
Africa Time
Web: http://www.d-link.co.za
E-mail: [email protected]
D-Link Middle East - Dubai, U.A.E.
Plot No. S31102,
Jebel Ali Free Zone South,
P.O.Box 18224, Dubai, U.A.E.
Tel: [phone]
Fax: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Egypt
1, Makram Ebeid Street - City Lights Building
Nasrcity - Cairo, Egypt
Floor 6, ofce C2
Tel.: [phone]
Technical Support: [phone]
General Inquiries: [email protected]
Tech Support: [email protected]
Kingdom of Saudi Arabia
Ofce # 84 ,
Al Khaleej Building ( Mujamathu Al-Khaleej)
Opp. King Fahd Road, Olaya
Riyadh - Saudi Arabia
Tel: [phone]
Technical Support:
[phone]
General Inquiries: info.sa@ dlinkmea.com
Tech Support: support.sa@ dlinkmea.com
Pakistan
Islamabad Ofce:
61-A, Jinnah Avenue, Blue Area,
Suite # 11, EBC, Saudi Pak Tower,
Islamabad - Pakistan
Tel.: [phone]
Fax: [phone]
Karachi Ofce:
D-147/1, KDA Scheme # 1,
Opposite Mudassir Park, Karsaz Road,
Karachi – Pakistan
Phone: [phone]
Fax: [phone]
Technical Support: [phone], 34305069
General Inquiries: [email protected]
Tech Support: [email protected]
You can nd software updates and user documentation on the D-Link website.
