D-Link DCS-3010 User manual

This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-3010
Documentation also available
on CD and via the D-Link
Website
Quick Install Guide
HD PoE Network Camera
Quick Install Guide

D-Link DCS-3010 Quick Install Guide
2
ENGLISH
DCS-3010 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-3010 Network Camera
on your network. For additional information about how to use the camera, please refer to the
User Manual which is available on the CD included in this package or from the D-Link support
website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
• DCS-3010 HD PoE Network Camera
• Camera Stand
• User Manual and Software on CD-ROM
• CAT5 Ethernet Cable
• Power Adapter
• Lens Back Focus Tool
• Allen Wrench
• Quick Install Guide
If any of the above items are missing, please contact your reseller.

D-Link DCS-3010 Quick Install Guide 3
ENGLISH
2. Hardware Overview

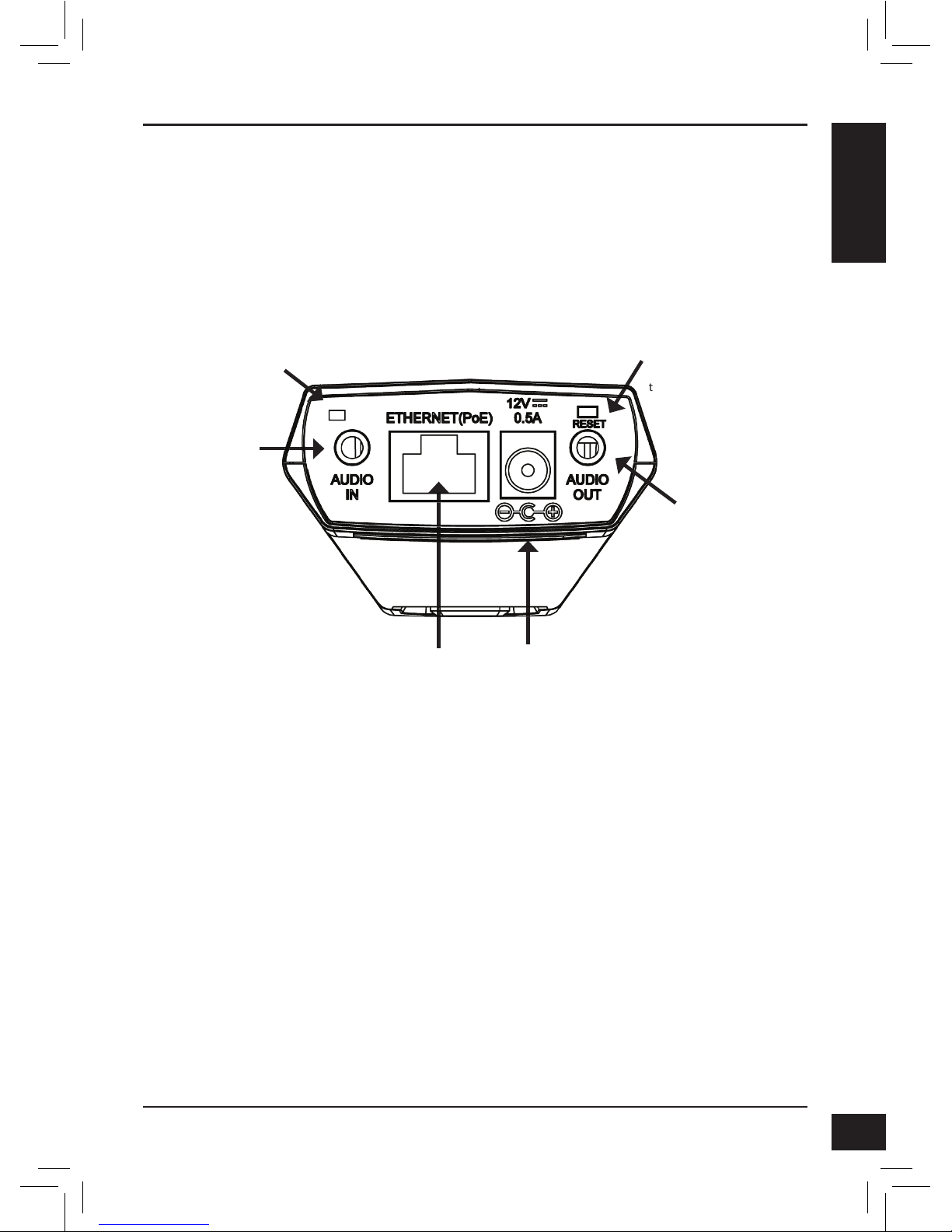

Rear Panel
Ethernet (PoE)
RJ-45 connector for Ethernet which
can also be used to power the
camera using PoE
Microphone Port
Use to Connect an
external microphone
Reset
Press and hold this button for
10 seconds to reset the camera
to factory default settings
Speaker Port
Use to connect an
external speaker
DC Power
12V DC
LED
Power and network
indicator

D-Link DCS-3010 Quick Install Guide
4
ENGLISH

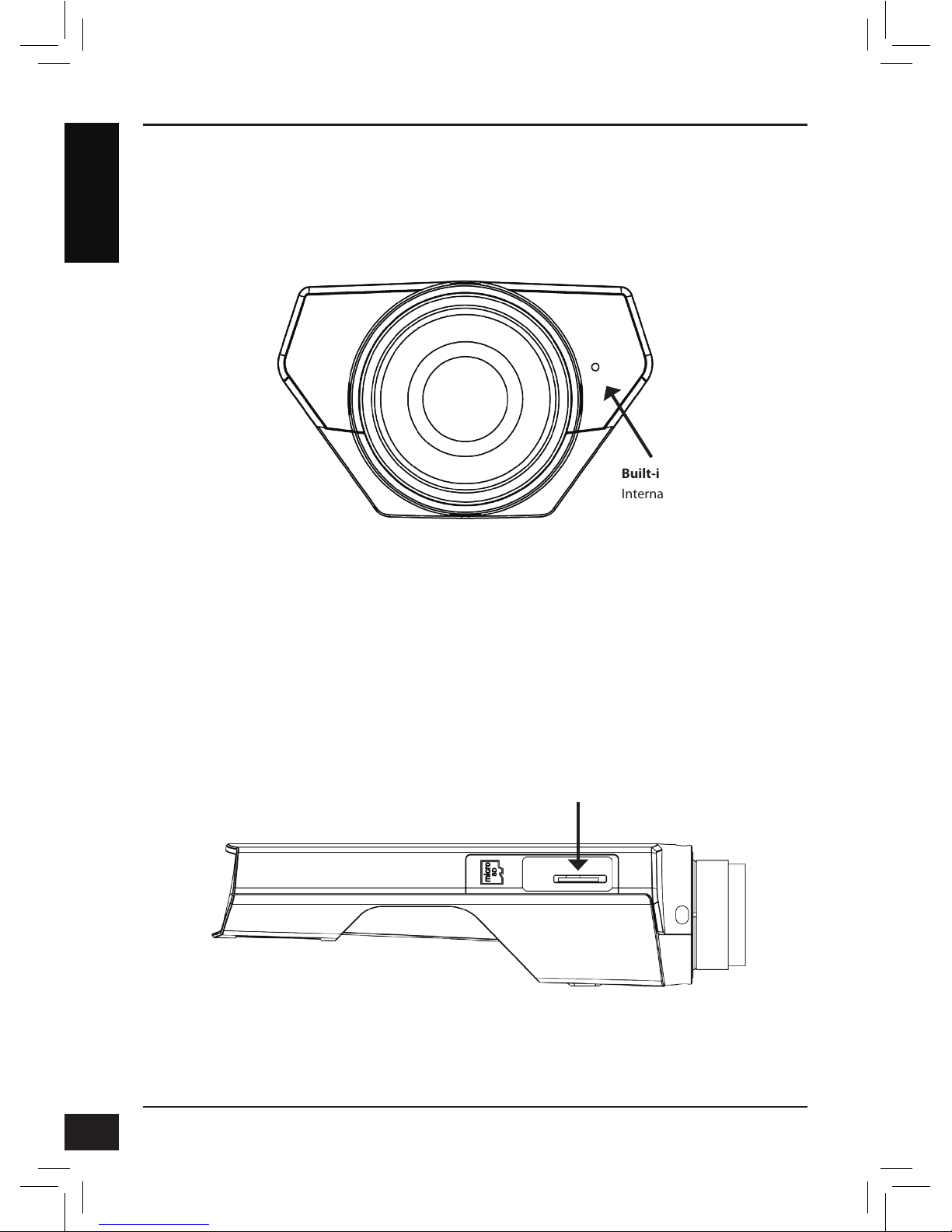

microSD Card Slot
Local microSD card for storing
recorded images and video
Side Panel
Front Panel
Built-in Mic
Internal microphone

D-Link DCS-3010 Quick Install Guide 5
ENGLISH

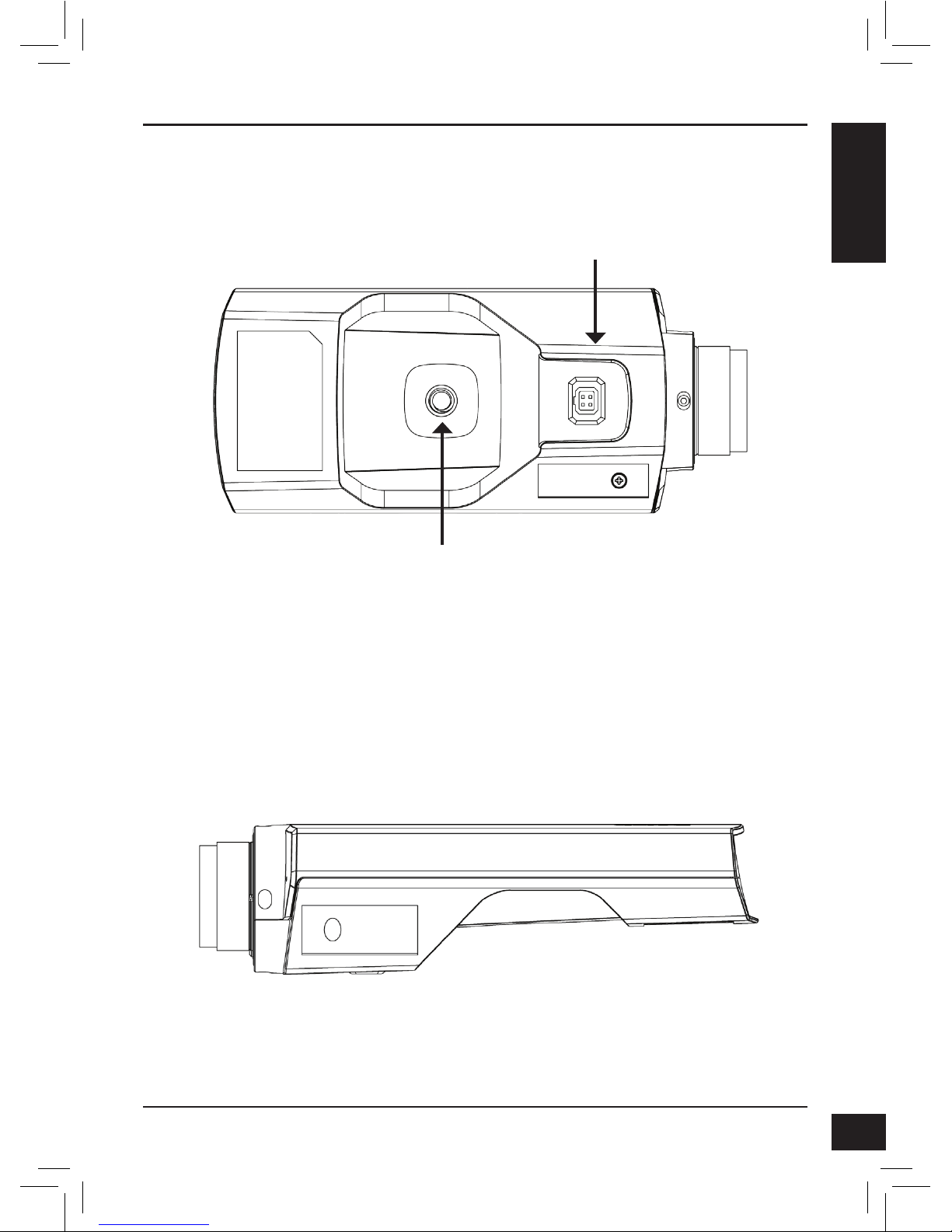

DC-Iris Connector
Connector for DC auto iris lens
Right Panel
Bottom Panel
Mounting Nut
1/4' x 20 nut for axing camera
to mounting bracket

D-Link DCS-3010 Quick Install Guide
6
ENGLISH
3. Hardware Installation

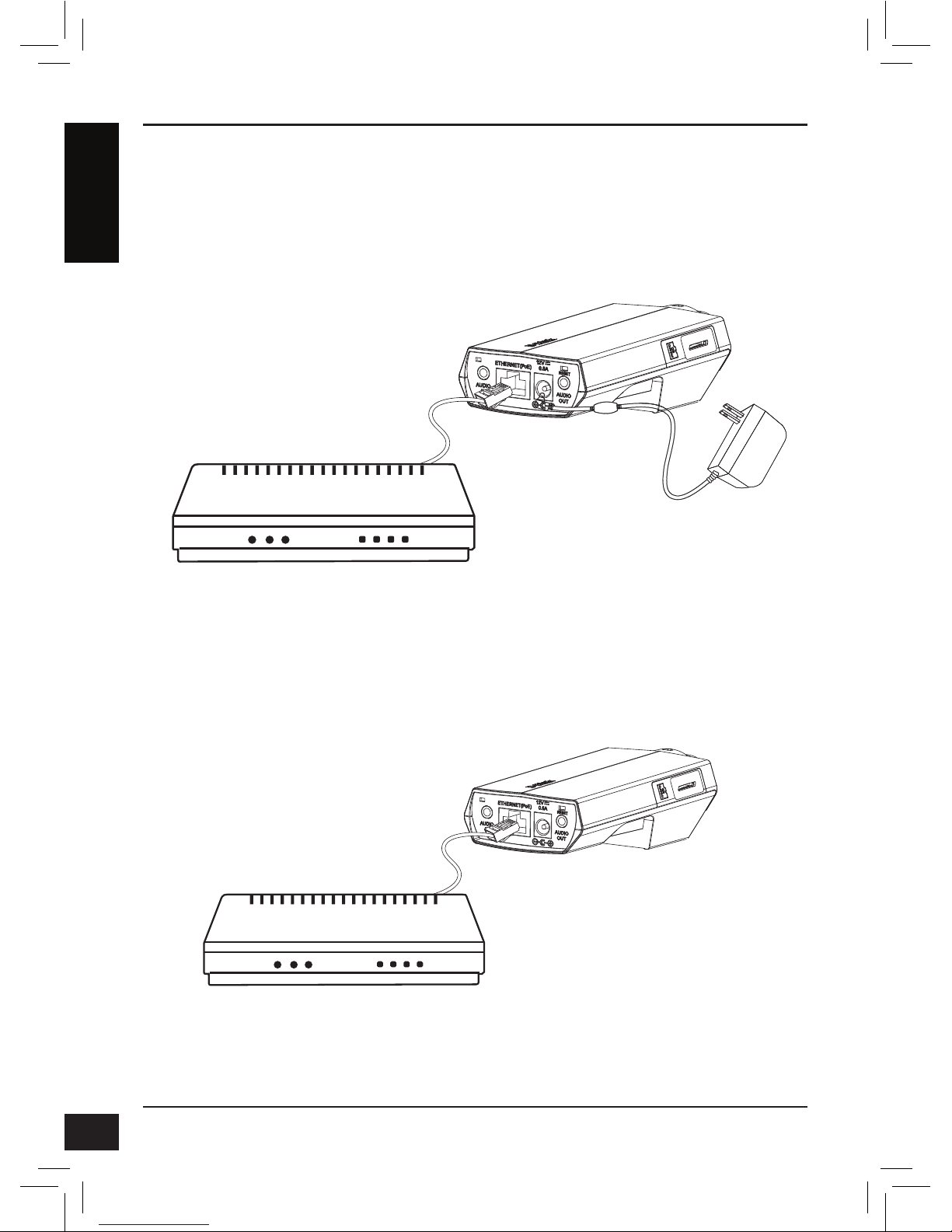

Basic Connection (without PoE)
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch
If using a PoE switch, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has obtained an IP
address and is accessible, the LED will turn green.

D-Link DCS-3010 Quick Install Guide 7
ENGLISH
4. Conguration with Wizard

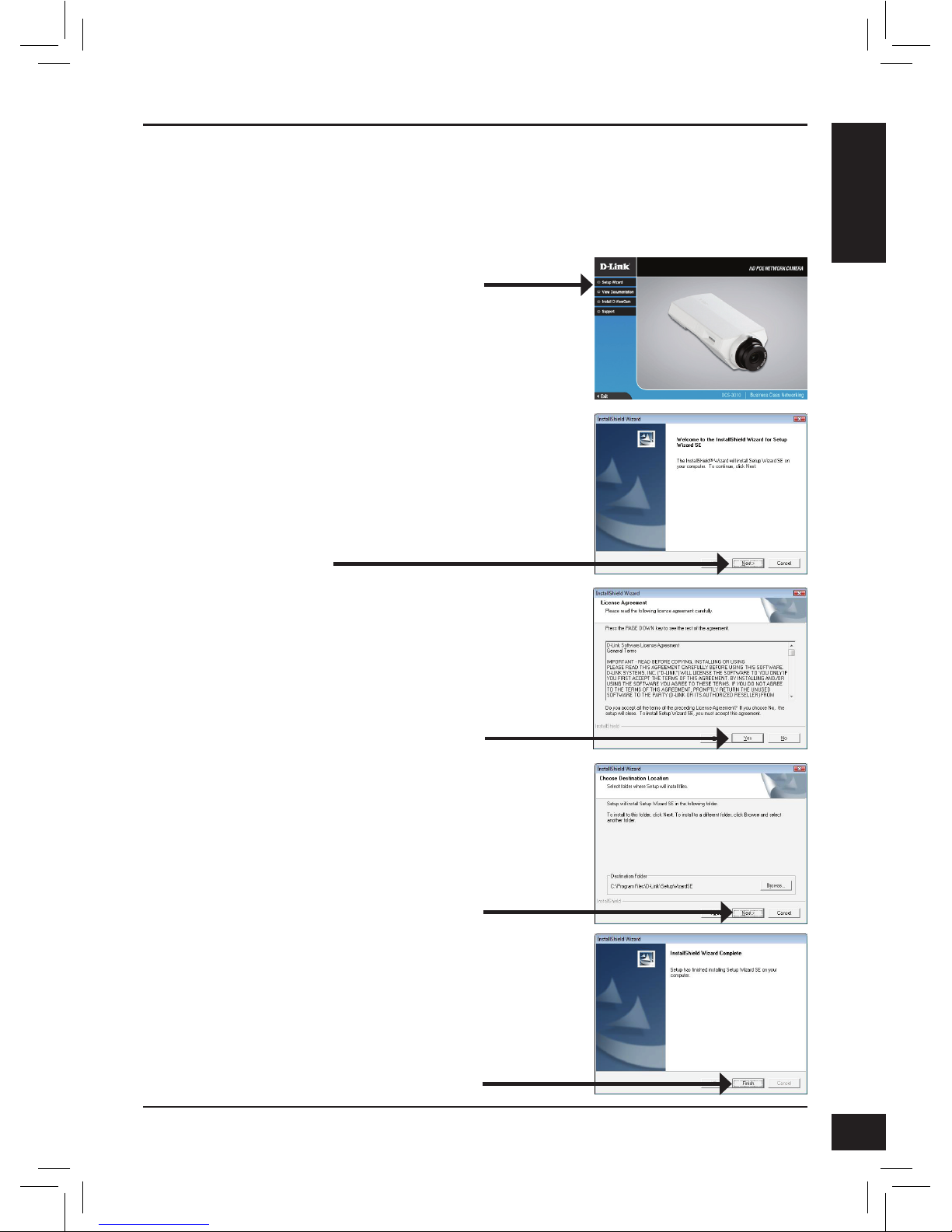

Click Setup Wizard to begin the installation.
Insert the DCS-3010 CD into your computer's CD-ROM drive to begin the installation. If the Autorun
function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click
Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to nish.

D-Link DCS-3010 Quick Install Guide
8
ENGLISH

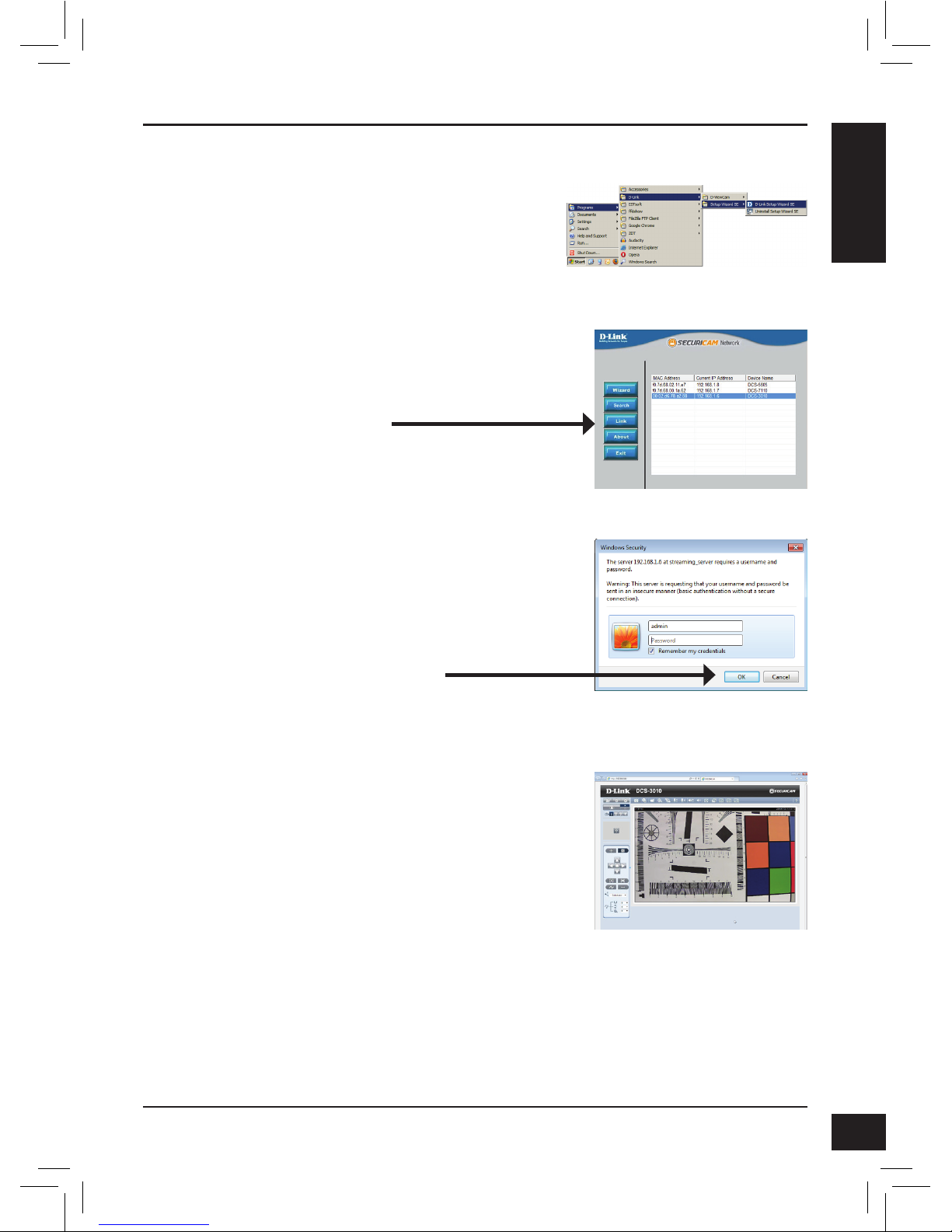

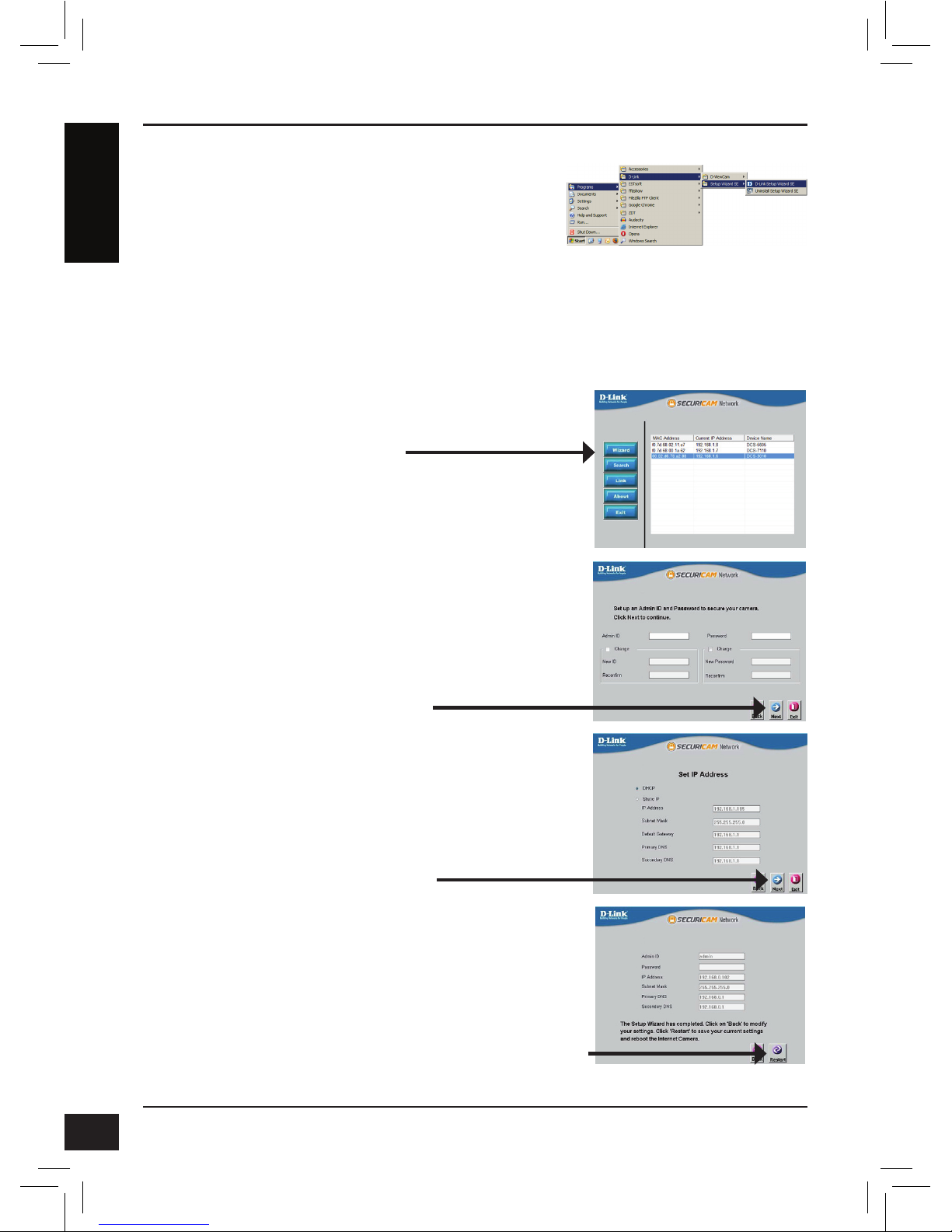

Click on the D-Link Setup Wizard SE icon that was created
in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select Static IP if the
camera will use the same IP address each time it is started.
Click Next to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin and leave the
password blank.
Click Next to proceed to the next page.
The Setup Wizard will appear and display the MAC address
and IP address of your camera(s). If you have a DHCP server
on your network, a valid IP address will be displayed. If your
network does not use a DHCP server, the network camera's
default static IP 192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-3010 Quick Install Guide 9
ENGLISH
Click on the D-Link Setup Wizard SE icon that was created
in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You can select
your video prole and view or operate the camera. For
additional information about web conguration, please refer
to the user manual included on the CD-ROM or the D-Link
website.
Enter admin as the default user name and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled Link to
access the web conguration.
The Setup Wizard will automatically open your web browser
to the IP address of the camera.

D-Link DCS-3010 Quick Install Guide
10
ENGLISH
Notes

D-Link DCS-3010 Quick Install Guide 11
ENGLISH
Notes
