D-Link DPH-128MS Utility User Manual
The DPH-128MS Utility helps to facilitate the quick and easy management of Advanced
settings for your D-Link®DPH-128MS Multiline IP Phone(s). You can use it to:
• Upload MP3 Hold/Ringtone music.
• Change banner screens.
• Modify the administrator’s name and/or password.
• Customize the list of Internet radio stations.
• Enable/Disable each feature for a single or all DPH-128MS IP Phones selected.
Note: For VPN Topologies, D-Link recommends that the DPH-128MS Utility be executed
from a computer that is physically located in the same LAN as the DPH-128MS Multiline IP
Phone(s).

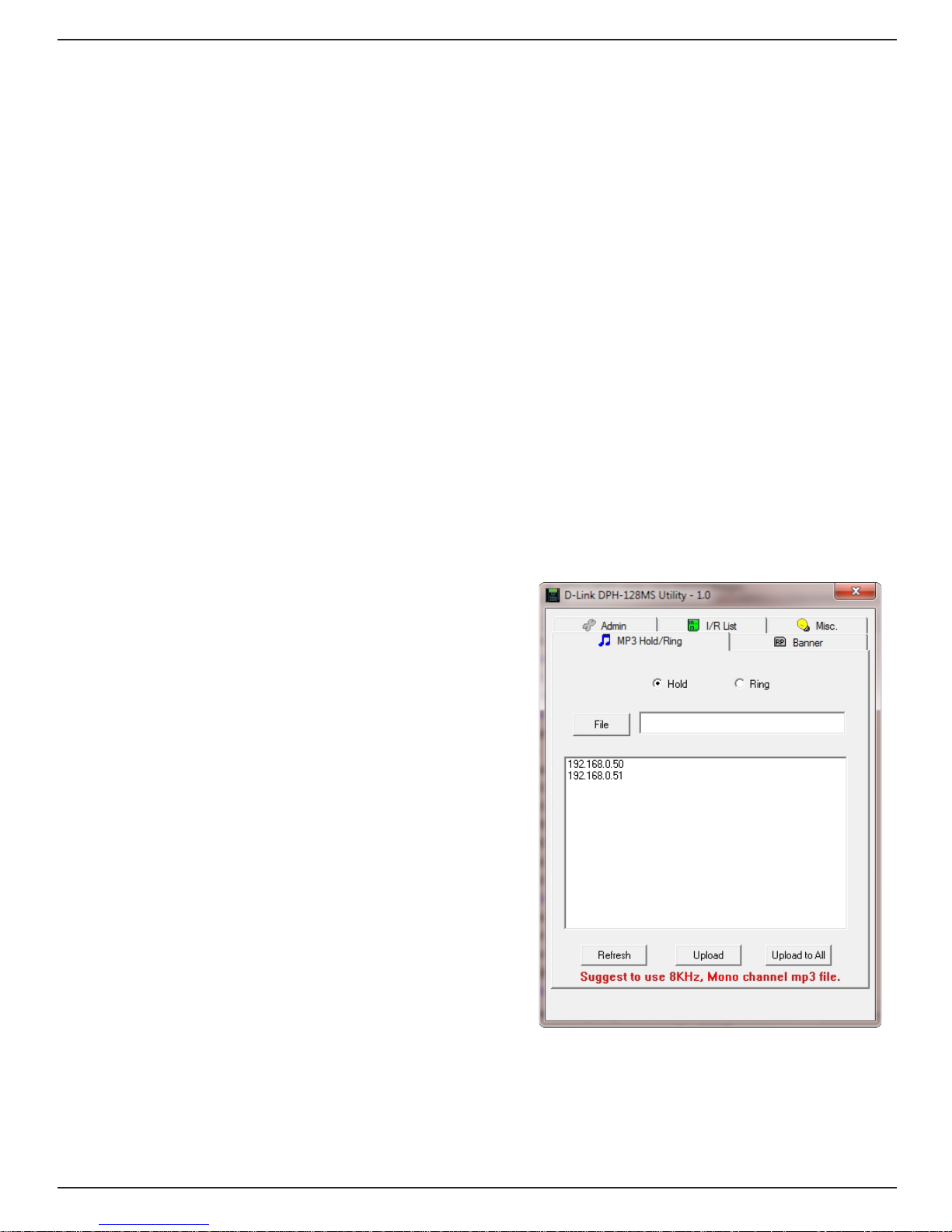

MP3 Hold/Ring
D-Link®DPH-128MS Utility
Use the radial button to select which feature
the uploaded mp3 file will be used for.
Browse and select a new mp3 file that you
want to upload.
List all DPH-128MS IP Phones in your local
network environment.
Upload the mp3 file to the selected device
in the list.
Upload the mp3 file to all devices in the list.
Hold/Ring:
File:
Refresh:
Upload:
Upload All:
Note: The recommended MP3 file format is 8KHz sample and Mono Channel.

2
D-Link DPH-128MS Utility User Manual

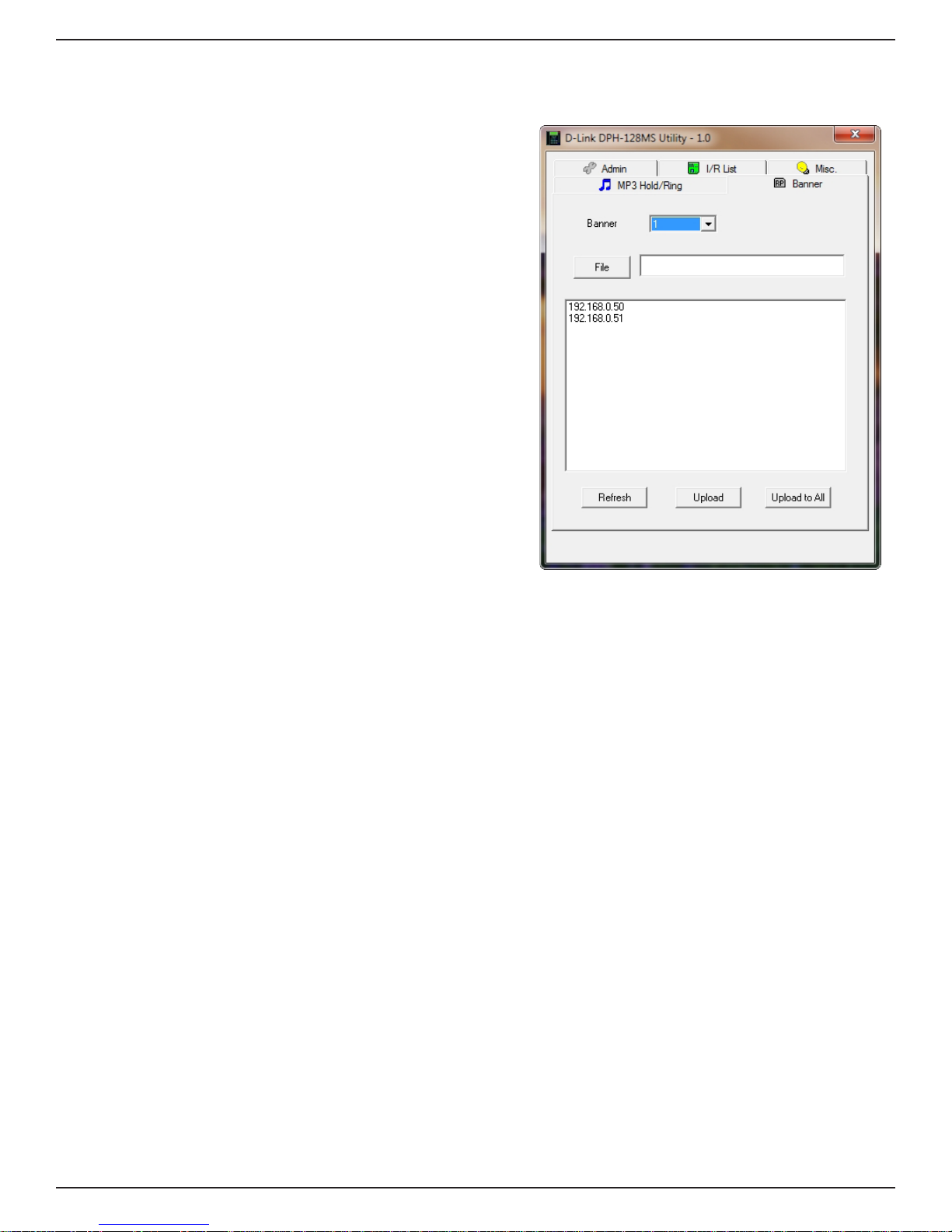

Banner
Select the numbered position for uploading
the bitmap file.There are a total of six banner
screens.
Browse and select a new bitmap file that you
want to upload.
List all DPH-128MS IP Phones in your local
network environment.
Upload the bitmap file to the selected device
in the list.
Upload the bitmap file to all devices in the
list.
Banner:
File:
Refresh:
Upload:
Upload All:
Note: The DPH-128MS only supports monochrome, uncompressed bitmap files. Its width
and height should be limited to 128 by 64 pixels.

3D-Link DPH-128MS Utility User Manual

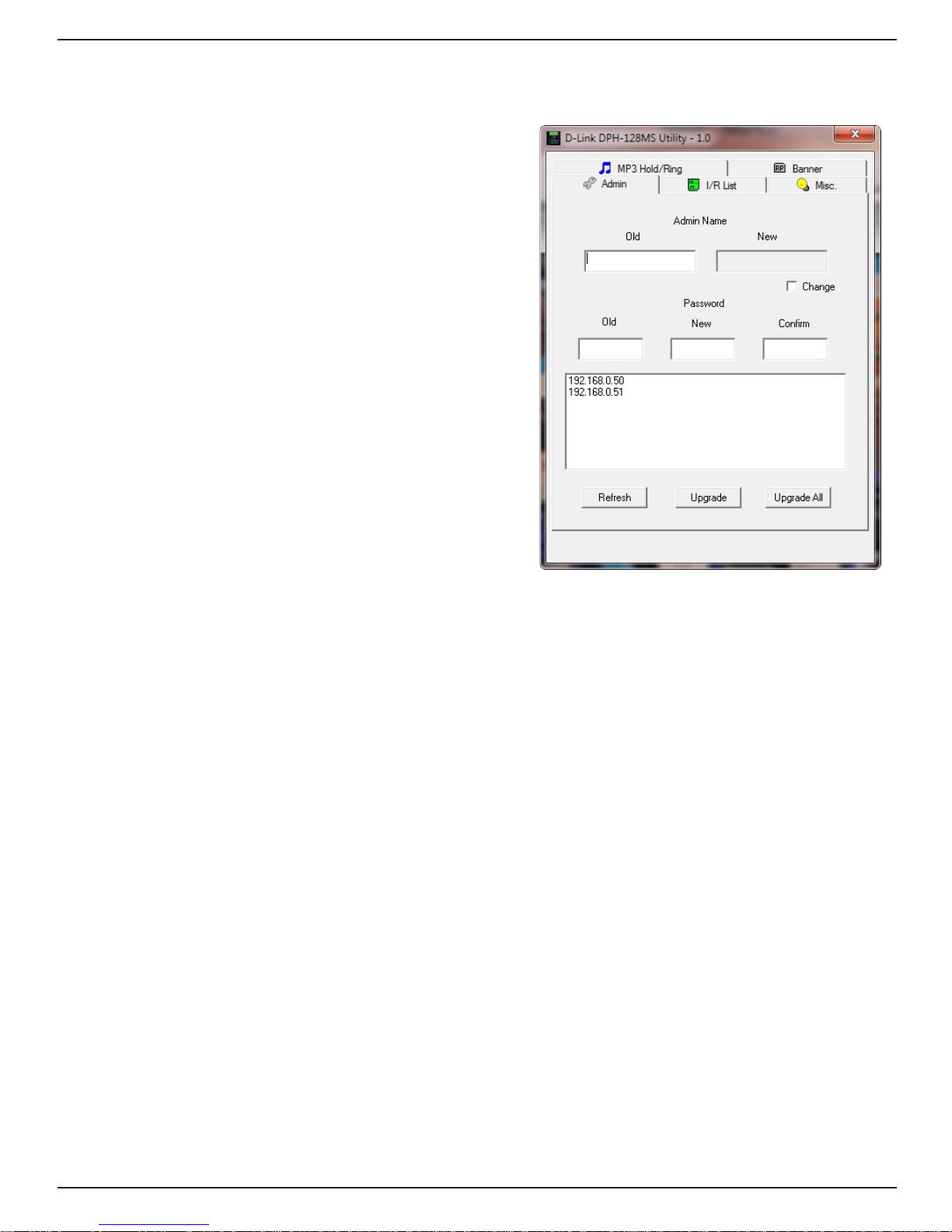

Admin
The current name of the “administrative
account” on the device.
The new name you want to set. (This field
only works when the “Change” button is
checked.)
The current “administrative account” password
of the device.
The new password you want to set.
Re-type the new password for confirmation
purposes.
List all DPH-128MS IP Phones in your local
network environment.
Upgrade the administrator’s name and password for a selected device.
Upgrade the administrator’s name and password for all devices in the list.
Old:
New:
Admin Name
Old:
New:
Confirm:
Refresh:
Upgrade:
Upgrade All:
Password
Note: The Administrator’s name and password only accepts A~Z, a~z, and/or 0~9 (ASCII
Symbols are not accepted).

4D-Link DPH-128MS Utility User Manual

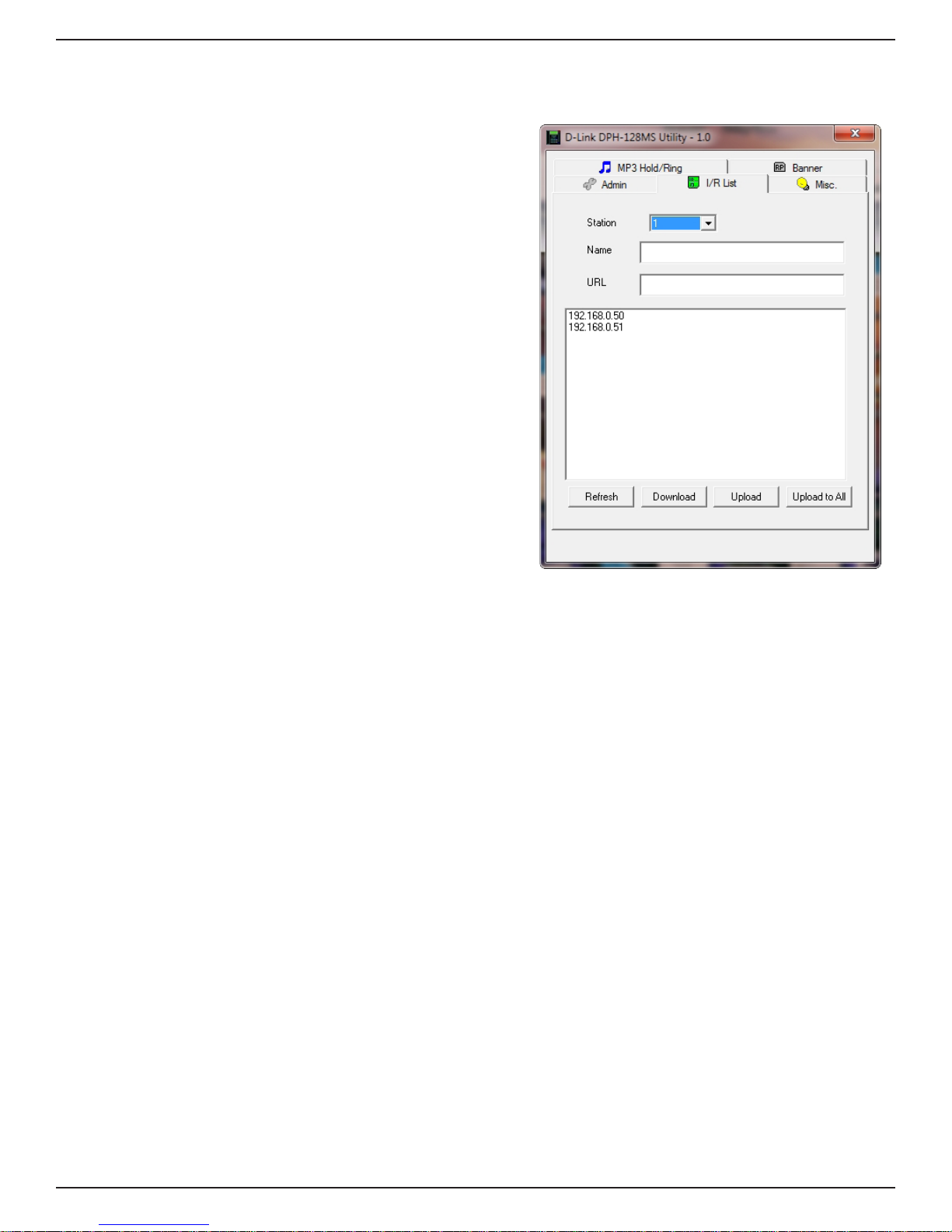

I/R List
Select the station position you want to modify.
It can be No. 1~20.
The name of station. (Cannot be left blank if
you want to use it).
The URL address of the station. (Only the
http protocol is supported).
List all DPH-128MS IP Phone in your local
network environment.
Download the I/R list from a selected device.
Upload I/R list to a selected device.
Upload I/R list to all devices in list.
Station:
Name:
URL:
Refresh:
Download:
Upload:
Upload to All:
Note: Be sure to update all requested station positions (1-20) prior to clicking the “Upload”
or “Upload to All” button. The DPH-128MS Utility will re-sort your I/R list before the upload
to remove empty station positions. After the upload, the previous I/R list of the target
phone will be replaced.

5D-Link DPH-128MS Utility User Manual

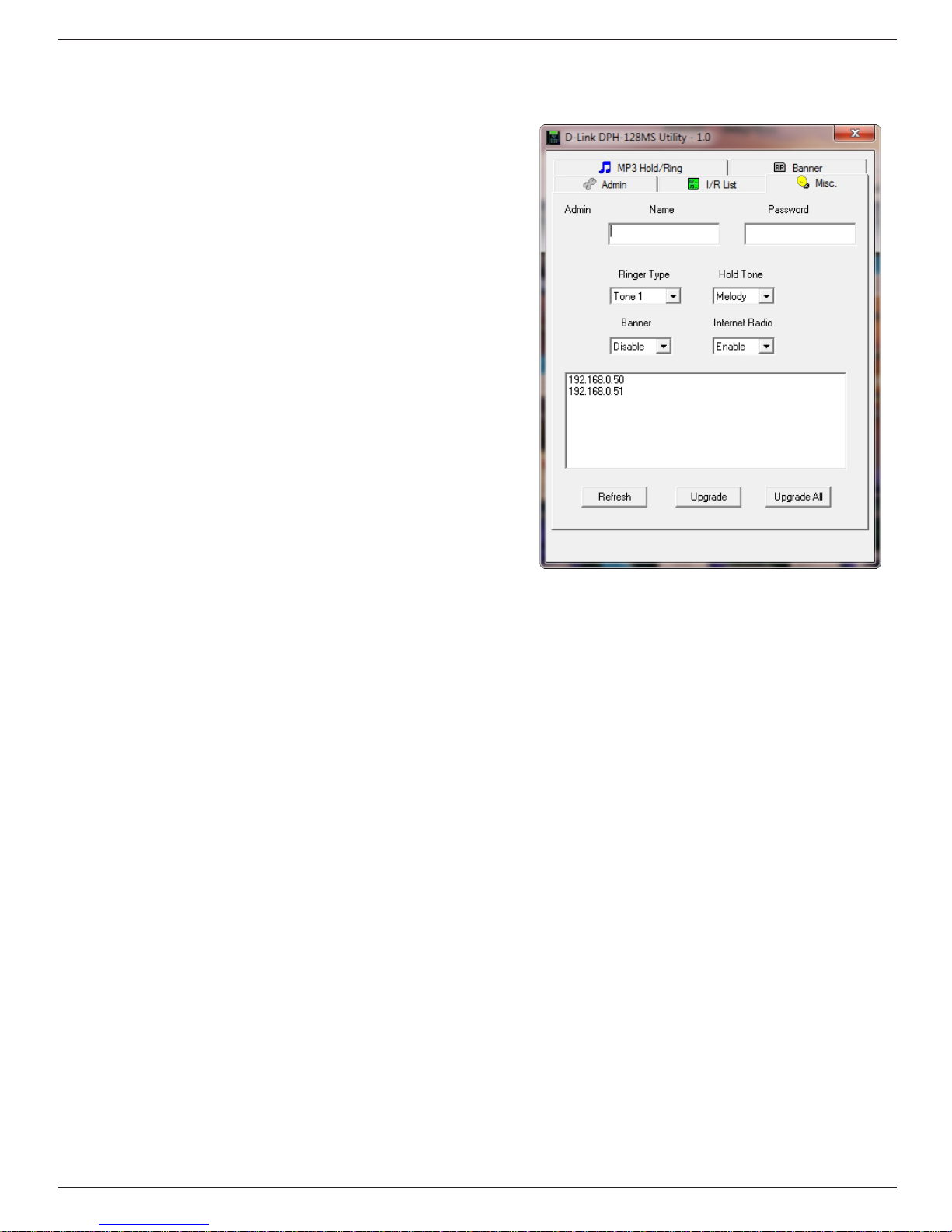

Misc.
The current name of the “administrative
account” on the device.
The current account password of the
administrator on the device.
List all DPH-128MS IP Phones in your local
network environment.
Update the specified configuration changes
to the selected device.
Update the specified configuration changes
to all devices in the list.
Name:
Password:
Refresh:
Upgrade:
Upgrade All:

6D-Link DPH-128MS Utility User Manual
