D-Link DIR-632 User manual

User Manual
DIR-632

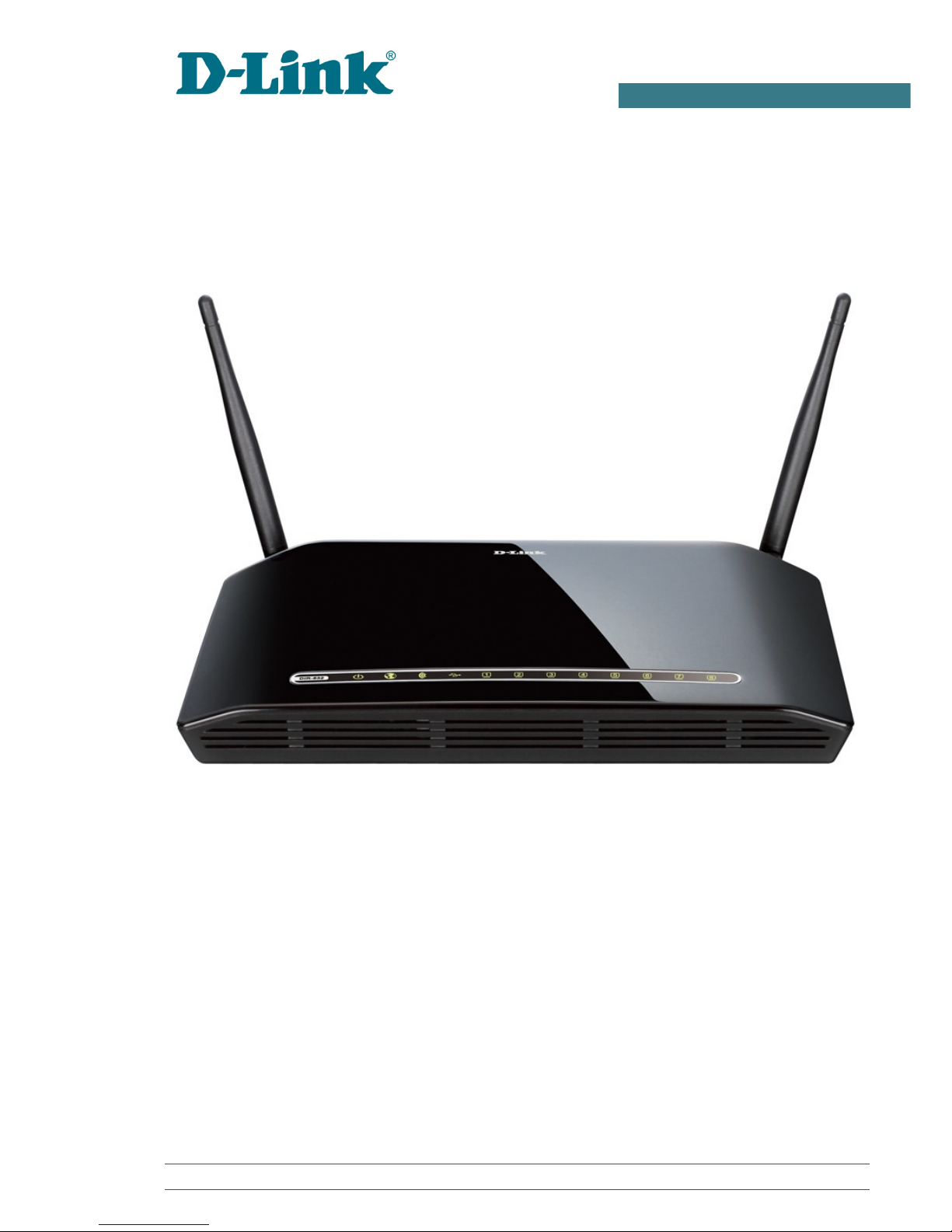

Multifunction Wireless Router
Supporting WiMAX, 3G GSM/CDMA
wit Built-in 8-port Switc
August 2012

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Contents
Chapter 1. Introduction..........................................5
Contents and Audience.......................................................5
Conventions.................................................................5
Document Structure..........................................................5
Chapter 2. Overview..............................................6
General Information.........................................................6
Specifications..............................................................
Product Appearance.........................................................13
Top Panel and Right Side Panel...........................................13
Back Panel...............................................................14
Delivery Package...........................................................15
Chapter 3. Installation and Connection..........................16
Before You Begin...........................................................16
Connecting to PC...........................................................18
PC with Ethernet Adapter.................................................18
Obtaining P Address Automatically in OS Windows XP......................18
Obtaining P Address Automatically in OS Windows 7.......................21
PC with Wi-Fi Adapter....................................................26
Configuring Wi-Fi Adapter in OS Windows XP...............................27
Configuring Wi-Fi Adapter in OS Windows 7................................28
Connecting to Web-based Interface..........................................30
Web-based Interface Structure..............................................32
Saving and Restoring Settings..............................................36
Chapter 4. Configuring via Web-based Interface..................38
Click'n'Connect............................................................38
Creating WAN Connection..................................................41
PPPoE Connection.......................................................41
Static IP Connection...................................................46
Dynamic IP Connection..................................................50
PPTP or L2TP Connection................................................54
PPTP + Static IP or L2TP + Static IP Connection........................58
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................67
3G Connection..........................................................75
Checking nternet Availability...........................................79
Configuring Wireless Connection..........................................80
Configuring PTV.........................................................81
Wireless Network Settings Wizard...........................................82
Virtual Server Settings Wizard.............................................88
IPTV Settings Wizard.......................................................90
Page 2 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Status.....................................................................91
Network Statistics.......................................................91
DHCP.....................................................................92
Routing Table............................................................93
LAN Clients..............................................................94
Net........................................................................95
WAN......................................................................95
Creatin 3G WAN Connection.............................................96
Creatin PPPoE WAN Connection..........................................99
Creatin Static IP WAN Connection.....................................103
Creatin Dynamic IP WAN Connection....................................106
Creatin PPTP or L2TP WAN Connection..................................109
Creatin PPTP + Static IP or L2TP + Static IP WAN Connection..........113
Creatin PPTP + Dynamic IP or L2TP + Dynamic IP WAN Connection........119
LAN.....................................................................125
Wi-Fi.....................................................................128
Common settings.........................................................128
Basic Settings..........................................................129
Security Settings.......................................................131
MAC Filter..............................................................135
Station List............................................................137
WPS.....................................................................138
Usin WPS Function via Web-based Interface............................140
Usin WPS Function without Web-based Interface........................140
Additional Settings.....................................................142
WMM.....................................................................144
Advanced..................................................................146
VLAN....................................................................147
UPnP....................................................................150
DDNS....................................................................151
DNS.....................................................................153
Routing.................................................................154
Remote Access...........................................................156
GMP....................................................................158
Firewall..................................................................159
P Filters..............................................................159
Virtual Servers.........................................................162
DMZ.....................................................................165
MAC Filter..............................................................166
USB Modem.................................................................168
nformation.............................................................168
P N.....................................................................169
Page 3 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
WiMAX.....................................................................1 1
nformation.............................................................171
USB Storage...............................................................1 3
nformation.............................................................173
Filebrowser.............................................................174
Print Server............................................................175
FTP.....................................................................176
Control...................................................................1
URL Filter..............................................................177
System....................................................................180
Administrator Password..................................................181
Configuration...........................................................182
System Log..............................................................184
Firmware Upgrade........................................................186
NTP Client..............................................................188
Traceroute..............................................................189
Telnet..................................................................190
Users...................................................................191
Chapter 5. Operation Guidelines................................193
Supported USB Modems......................................................193
Safety Instructions.......................................................194
Wireless Installation Considerations......................................194
Connecting to Cable or DSL Modem..........................................195
Chapter 6. Abbreviations and Acronyms..........................196
Page 4 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Introduction
CHAPT R 1. INTRODUCTION
Contents and Audience
This manual describes the router DIR-632 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts who create an in-home
local area network and system administrators who install and configure networks in offices.
Conventions
xample Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu menu item control (field checkbox drop-down
list button etc.).
192.168.0.1 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features describes its
appearance and the package contents.
Chapter 3 explains how to install the router DIR-632 and configure a PC in order to access its web-
based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safety instructions and tips for networking and connecting additional equipment.
Chapter introduces abbreviations and acronyms used in this manual.
Page 5 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
CHAPT R 2. OV RVI W
General Information
The DIR-632 device is a multifunction wireless router supporting WiMAX 3G GSM and CDMA
with a built-in switch. It provides a fast and simple way to create a wireless and wired network at
home or in an office.
The router is equipped with a USB port for connecting a USB modem1 which can be used to
establish connection to the Internet. In addition to the USB port of the router you can connect a
USB storage device which will be used as a network drive or a printer.
Also you are able to connect the multifunction wireless router DIR-632 to a cable or DSL modem
or to a private Ethernet line and use a high-speed Internet connection to successfully fulfill a wide
range of professional tasks. The built-in 8-port switch enables you to connect Ethernet-enabled
computers game consoles and other devices to your network.
Using the DIR-632 device you are able to quickly create a wireless network at home or in your
office which lets your relatives or employees connect to your wireless network virtually anywhere
(within the operational range of your wireless network). The router can operate as a base station
for connecting wireless devices of the standards 802.11b 802.11g and 802.11n (at the rate up to
300Mbps).
The router supports multiple functions for the wireless interface: several security standards (WEP
WPA/WPA2) MAC address filtering WPS.
The multifunction wireless router DIR-632 includes a built-in firewall. The advanced security
functions minimize threats of hacker attacks prevent unwanted intrusions to your network and
block access to unwanted websites for users of your LAN.
You can configure and manage the settings of the multifunction wireless router DIR-632 via the
user-friendly web-based interface (the interface is available in several languages).
1 Not included in the delivery package. D-Link does not guarantee compatibility with all USB modems. Please refer
to the Supported USB Modems section page 193.
Page 6 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Specifications*
WAN Interface:
•1 10/100BASE-TX Ethernet port for cable or DSL modem or private Ethernet line.
LAN Interface:
•8 10/100BASE-TX Ethernet ports.
WLAN Interface:
•IEEE 802.11b/g/n.
USB Interface:
•USB 2.0 type A port for USB modem storage or printer.
Network Functions:
•WAN connection types:
◦3G
◦PPPoE
◦Static IP
◦Dynamic IP
◦PPTP/L2TP
◦PPTP/L2TP + Static IP
◦PPTP/L2TP + Dynamic IP
•Support of IEEE 802.1X for Internet connection
•DHCP server and client
•DNS relay
•VPN pass-through (PPTP/L2TP)
•Dynamic DNS
•Static IP routing
•Remote management
•Network statistics for each interface
•IGMP Proxy
•RIP
•UPnP
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation visit www.dlink.ru.
Page 7 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
•Support of VLAN
•WAN ping respond.
USB Modem2:
•Auto connection to available type of supported network (3G/2G)
•Enabling/disabling PIN code check changing PIN code.
USB Storage:
•Built-in FTP server
•Print server
•Access to storage via accounts
•Access control (for ext2/3 file systems).
Wireless Connection:
•Supported security settings:
◦WEP
◦WPA/WPA2 Personal
•MAC filter
•PIN and PBC methods of WPS
•WMM (Wi-Fi QoS)
•Advanced settings.
Fre uency Range:
•802.11b: 2400 ~ 2497MHz ISM band
•802.11g: 2400 ~ 2497MHz ISM band
•802.11n: 2400 ~ 2483.5MHz ISM band.
Data Rate:
•802.11b:
◦11 5.5 2 and 1Mbps
•802.11g:
◦54 48 36 24 18 12 9 and 6Mbps
•802.11n:
◦6.5~300Mbps.
2 The listed functions are available for GSM USB modems only.
Page 8 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Transmitter Output Power:
•802.11b:
◦typical 18dBm +/-1.5 dB at 11 5.5 2 and 1Mbps at 25 °C
•802.11g:
◦typical 17dBm +/-1.5dB at 6~18Mbps at 25 °C
◦typical 16dBm +/-1.5dB at 24~36Mbps at 25 °C
◦typical 14dBm +/-1.5dB at 48~54Mbps at 25 °C
•802.11n:
◦typical 16dBm +/-1.5dB at MCS 0~4 8~10 at 25 °C
◦typical 14.5dBm +/-1.5dB at MCS 5 13 at 25 °C
◦typical 12.5dBm +/-1.5dB at MCS 6 14 at 25 °C
◦typical 8.5dBm +/-1.5dB at MCS 7 15 at 25 °C.
EIRP (Effective Isotropic Radiated Power):
•802.11b:
◦18dBm (typical)
•802.11g:
◦16dBm (typical)
•802.11n:
◦16dBm for MCS 7 (typical)
◦8.5dBm for MCS 15 (typical).
Receiver Sensitivity:
•802.11b (typical at PER = 8%):
◦–83dBm at 11Mbps
◦–89dBm at 2Mbps
Page 9 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
•802.11g (typical at PER = 10% (1000-byte PDUs)):
◦–82dBm at 6Mbps
◦–81dBm at 9Mbps
◦–79dBm at 12Mbps
◦–77dBm at 18Mbps
◦–74dBm at 24Mbps
◦–70dBm at 36Mbps
◦–66dBm at 48Mbps
◦–65dBm at 54Mbps
•802.11n (typical at PER = 10% (1000-byte PDUs)):
◦HT20:
◦–82dBm at BPSK coding rate 1/2 (MCS-0)
◦–79dBm at QPSK coding rate 1/2 (MCS-1)
◦–77dBm at QPSK coding rate 3/4 (MCS-2)
◦–74dBm at 16-QAM coding rate 1/2 (MCS-3)
◦–70dBm at 16-QAM coding rate 3/4 (MCS-4)
◦–66dBm at 64-QAM coding rate 2/3 (MCS-5)
◦–65dBm at 64-QAM coding rate 3/4 (MCS-6)
◦–64dBm at 64-QAM coding rate 5/6 (MCS-7)
◦HT40:
◦–79dBm at BPSK coding rate 1/2 (MCS-8)
◦–76dBm at QPSK coding rate 1/2 (MCS-9)
◦–74dBm at QPSK coding rate 3/4 (MCS-10)
◦–71dBm at 16-QAM coding rate 1/2 (MCS-11)
◦–67dBm at 16-QAM coding rate 3/4 (MCS-12)
◦–63dBm at 64-QAM coding rate 2/3 (MCS-13)
◦–62dBm at 64-QAM coding rate 3/4 (MCS-14)
◦–61dBm at 64-QAM coding rate 5/6 (MCS-15).
Page 10 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Firewall Functions:
•Network Address Translation (NAT)
•Stateful Packet Inspection (SPI)
•IP filters
•URL filter
•MAC filter
•DMZ
•Prevention of ARP and DDoS attacks
•Virtual servers.
Configuration and Management:
•Multilingual web-based interface for configuration and management
•Access via TELNET
•Firmware update via web-based interface
•Saving/restoring configuration to/from file
•Support of remote logging
•Automatic synchronization of system time with NTP server
•Traceroute utility.
LEDs:
•Power
•Internet
•WLAN
•USB
•8 LAN LEDs
•WPS.
Power:
•External power adapter DC 5V/2.5А
•Reset to Factory Defaults button.
Operating Temperature:
•from 0 to 40 0C (from 32 to 104 0F).
Storage Temperature:
•from -20 to 65 0С (from -4 to 149 0F).
Page 11 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Operating Humidity:
•from 10% to 90% non-condensing.
Storage Humidity:
•from 5% to 95% non-condensing.
Page 12 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Product Appearance
Top Panel and Right Side Panel

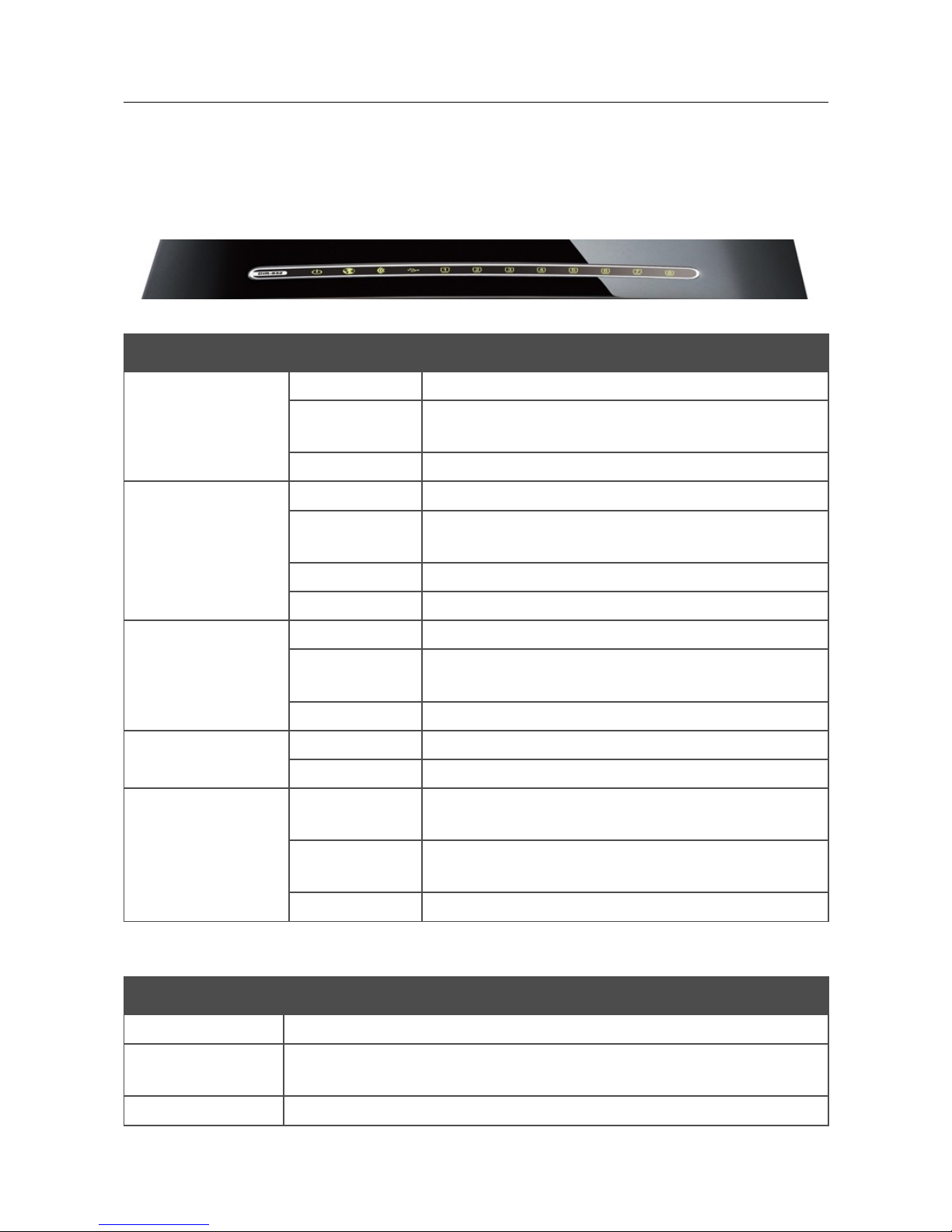

Figure 1. Top panel view.
L D Mode Description
Power
Solid green The router is powered on.
Solid yellow When powered on: the router is being loaded; when
loaded: a malfunction of the router.
No light The router is powered off.
Internet
Solid green The Internet connection is on.
Blinking green The WAN interface is active (upstream or downstream
traffic).
Solid orange The Internet connection is being established.
No light The Internet connection is off.
WLAN
Solid green The router's WLAN is on.
Blinking green The WLAN interface is active (upstream or downstream
traffic).
No light The router's WLAN is off.
USB
Solid green A USB device is connected to the router's USB port.
No light No USB device.
LAN 1-8
Solid green A device (computer) is connected to the relevant port
the connection is on.
Blinking green The LAN port is active (upstream or downstream
traffic).
No light The connection is off.
The WPS button located on the right side panel of the router is designed to quickly add wireless
devices to the router's WLAN. A separate LED is located on the WPS button.
Mode Description
Blinking blue Attempting to add a wireless device via the WPS function.
Solid blue The wireless device is connected to the router's WLAN (lights for several
minutes).
No light The WPS function is not in use.
Page 13 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Back Panel

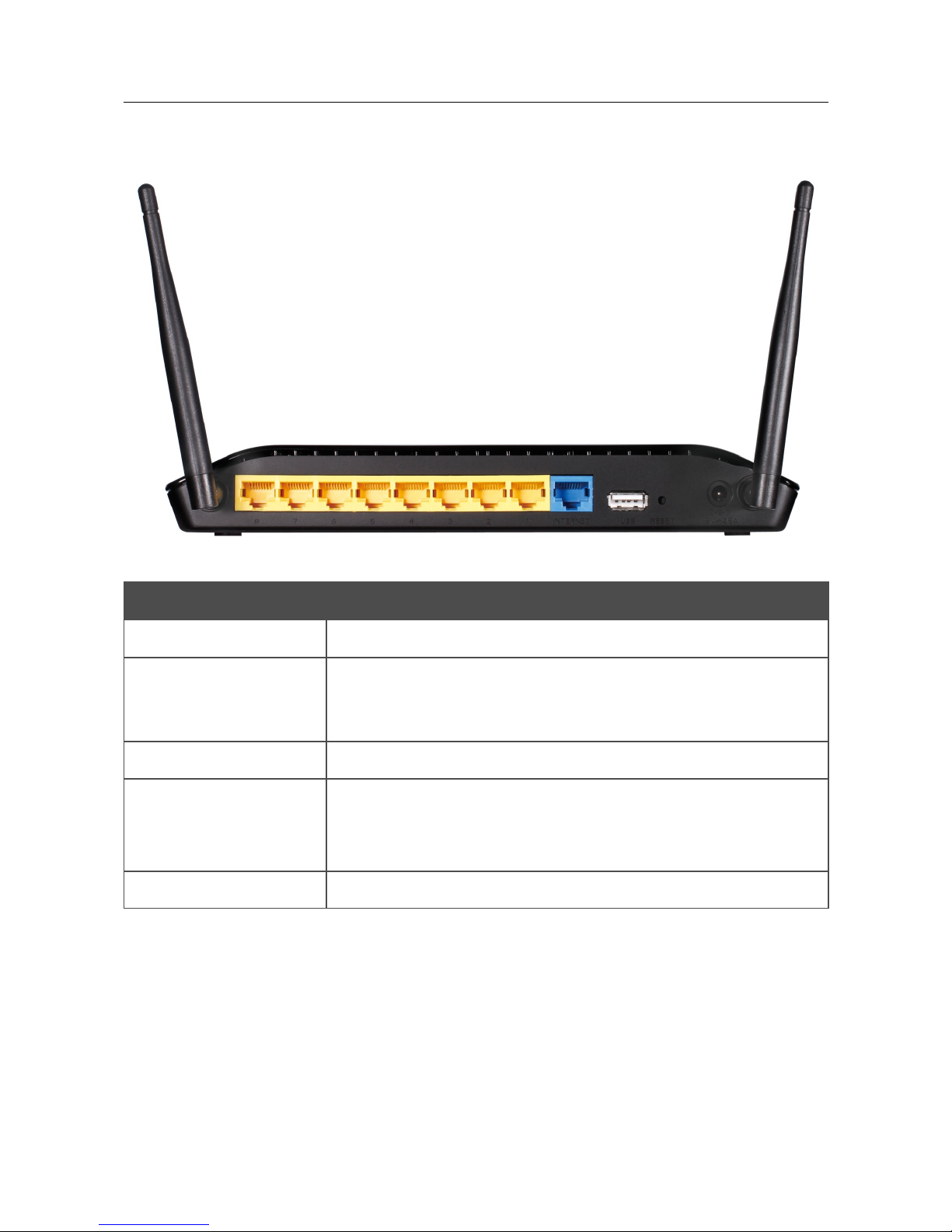

Figure 2. Back panel view.
Port Description
LAN 1-8 8 Ethernet ports to connect computers or network devices.
INT RN T
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
package).
USB A port for connecting a USB modem a USB storage or a printer.
R S T
A button to restore the factory default settings.
To restore the factory defaults push the button (with the device turned
on) hold it for 10 seconds and then release the button.
5V=2.5A Power connector.
The router is also equipped with two detachable antennas with RP-SMA connector.
Page 14 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Overview
Delivery Package
The following should be included:
•Wireless router DIR-632
•Power adapter DC 5V/2.5A
•Ethernet cable (CAT 5E)
•Two detachable antennas
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents in Russian and English are
available on D-Link website (see ftp.dlink.ru/pub/Router/DIR-632/Description/).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
Page 15 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Installation and Connection
CHAPT R 3. INSTALLATION AND CONN CTION
Before You Begin
Please read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the multifunction wireless router DIR-632 supporting WiMAX 3G GSM and
CDMA with a built-in switch (hereinafter referred to as “the router”) is performed via the built-in
web-based interface. The web-based interface is available from any operating system that supports a
web browser.
Web Browser
The following web browsers are recommended: Windows Internet Explorer Mozilla Firefox or
Opera.
For successful operation JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
Wired or Wireless NIC (Ethernet or Wi-Fi Adapter)
Any computer that uses the router should be equipped with an Ethernet or Wi-Fi adapter (NIC). If
your computer is not equipped with such a device install an Ethernet or Wi-Fi adapter prior to using
the router.
Wireless Connection
Wireless workstations from your network should be equipped with a wireless 802.11b g or n NIC
(Wi-Fi adapter). In addition you should specify the values of SSID channel number and security
settings defined in the web-based interface of the router for all these wireless workstations.
Page 16 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Installation and Connection
USB Modem
To connect to a WiMAX 3G GSM or CDMA network you should use a USB modem. Connect it to
the USB port of the router then access the web-based interface of the router and you will be able to
configure a connection to the Internet3.
!
WiMAX USB modem
Some WiMAX operators require subscribers to activate their WiMAX USB modems prior
to using them. Please refer to connection guidelines provided by your operator when
concluding the agreement or placed on its website.
3G USB modem
Your USB modem should be equipped with an active identification card (SIM or R-UIM)
of your operator.
For CDMA USB modems it is required to disable the PIN code check on the identification
card prior to connecting the USB modem to the router.
3 Contact your operator to get information on the service coverage and fees.
Page 17 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between any of LAN ports located on the back panel of the router
and the Ethernet port of your PC.
3. To connect via a WiMAX 3G GSM or CDMA network: connect your USB modem to the
USB port4 located on the back panel of the router.
!If you need to connect or change a USB modem to another one when the router is powered
on power off the router connect the modem to the USB port and power on the router.
4. Connect the power cord to the power connector port on the back panel of the router then
plug the power adapter into an electrical outlet or power strip.
5. Turn on your PC and wait until your operating system is completely loaded.
Obtaining IP Address Automatically in OS indows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.

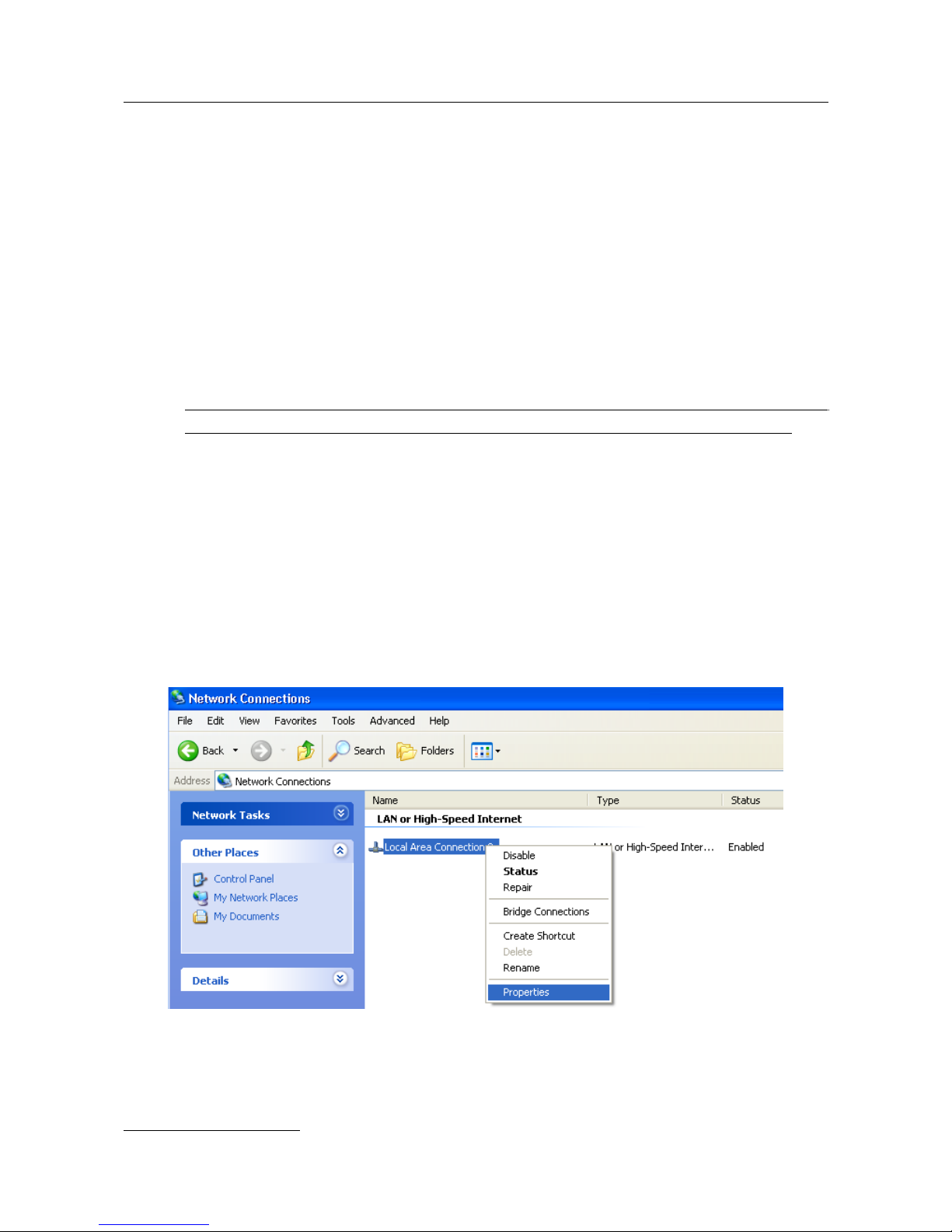

Figure 3. The Net ork Connections window.
4 It is recommended to use a USB extension cable to connect a USB modem to the router.
Page 18 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Installation and Connection
3. In the Local Area Connection Properties window on the General tab select the
Internet Protocol (TCP/IP) line. Click the Properties button.

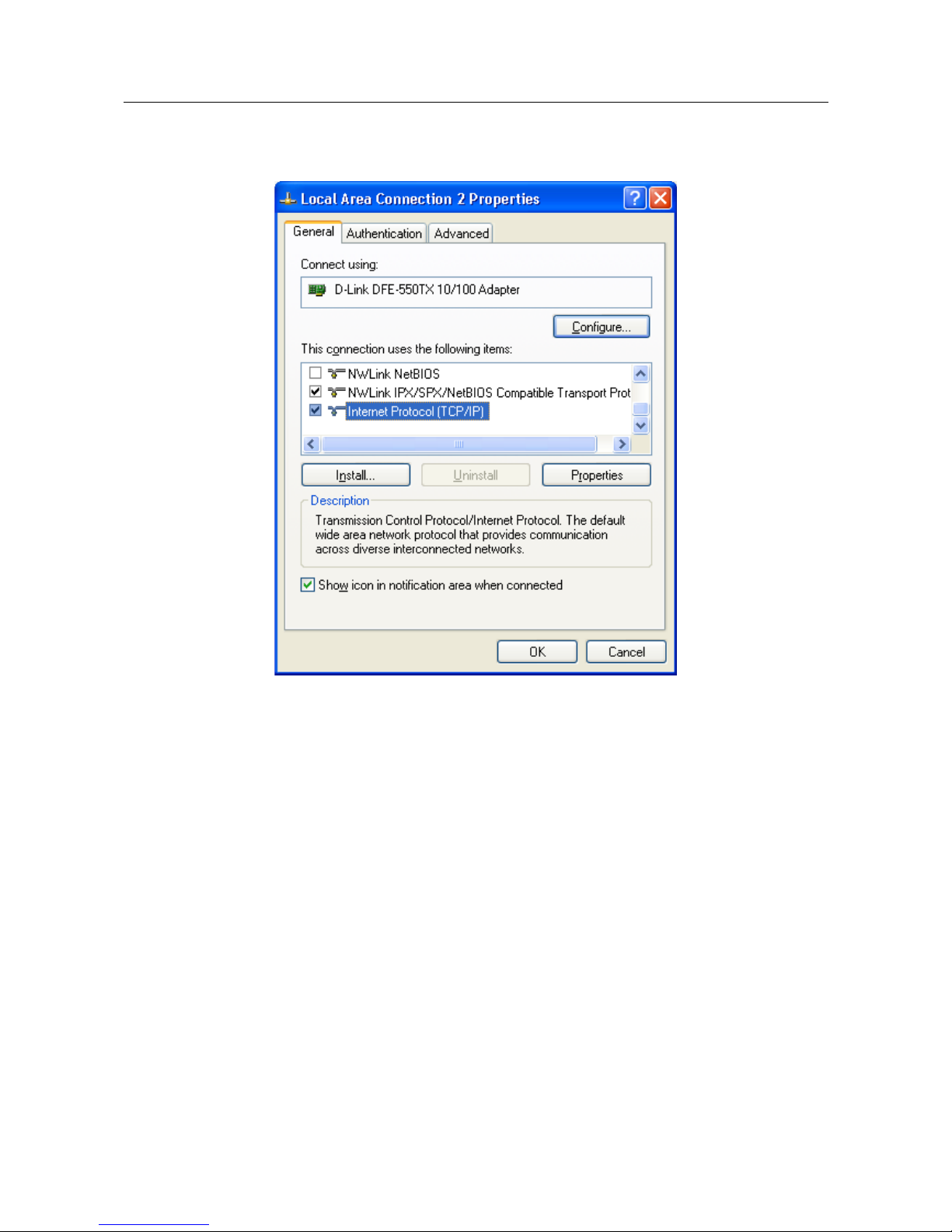

Figure 4. The Local Area Connection Properties window.
Page 19 of 197

DIR-632 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in 8-port Switch
ser Manual
Installation and Connection
4. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.

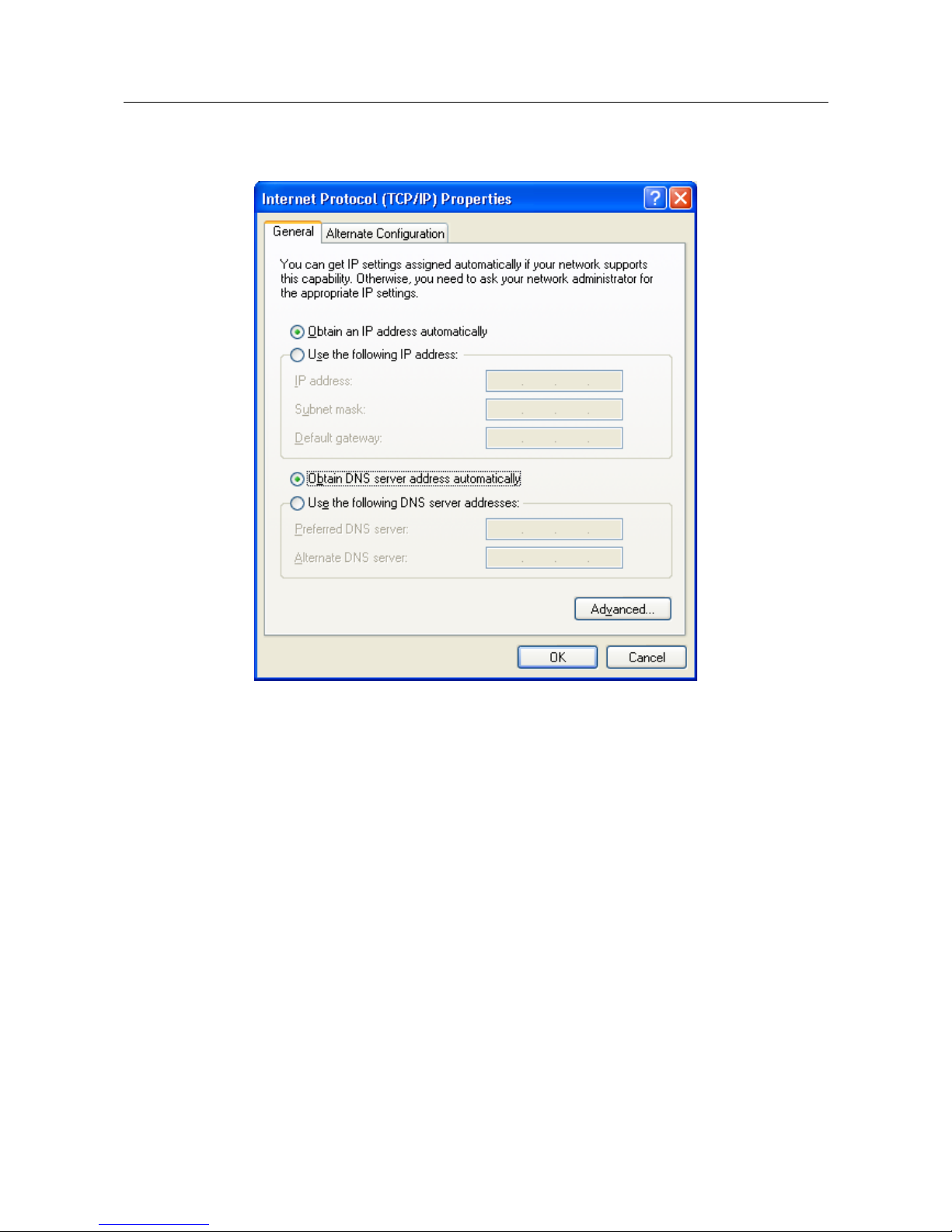

Figure 5. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
Page 20 of 197
