1D-Link DIR-510L User Manual
Section 1 - Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-510L will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
DIR-510L SharePort™ Go III Portable Router and Charger
Quick Install Guide
Power Adapter

2D-Link DIR-510L User Manual
Section 1 - Product Overview
System Requirements • Smartphone, tablet or computer with Wi-Fi capability
• iOS 5.0 or Android 2.3.3 or higher
Network Requirements
• An Ethernet-based Cable or DSL modem, a 3G/4G USB adapter, or
a wireless hotspot
• IEEE 802.11ac, 802.11b, 802.11g, or 802.11n wireless clients
Web-based Conguration
Utility Requirements
• Windows® 8, 7, Vista®, XP, or Mac OS® X (10.4)
• iOS 5.0 or Android™ 2.3.3 mobile device
Browser Requirements:
• Internet Explorer® 8 or higher
• Firefox® 12.0 or higher
• Safari® 5.0 or higher
• Chrome™ 20 or higher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
For Internet Access
• Subscription with an Internet Service Provider (IS)
• 3G/4G USB Adapter for Internet Connection in Mobile Router Mode
• Access to a Wi-Fi Connection in Hotspot Mode
SharePort Mobile • Windows® 8/RT device
Minimum Requirements

3D-Link DIR-510L User Manual
Section 1 - Product Overview
Introduction
Create a secure wireless network to share photos, music, and video on-the-go, with the D-Link DIR-510L SharePort™ Go III
Wi-Fi AC750 Portable Router and Charger. Stay connected wherever you are, and share an Internet connection from your home or hotel
room, a 3G/4G mobile USB adapter, or even another wireless network. When you connect to a Wi-Fi hotspot you can share your Internet
access with your friends securely.
For convergence with convenience, the DIR-510L also supports UPnP and DLNA protocols for easy sharing of media to certied devices.
With the mydlink SharePort and SharePort Mobile apps, your iOS, Android, and Windows 8/RT devices can easily access les and stream
media either remotely or locally from a USB drive attached to the portable router.
The DIR-510L provides the latest Wireless AC 750 technology for smooth performance during data transmission and multimedia
streaming. The device supports all of the latest wireless security features to prevent unauthorized access. It makes no dierence if you
are connected to the Internet via a wired or wireless connection. Support for WPA2 standards ensures that you’ll be able to use the
best possible encryption method, regardless of your client devices. WPS 2.0 Wi-Fi Protected Setup enables an easy and secure wireless
connection. The Guest Zone feature provides a separate subnet for guests to access the Internet. In addition, this router allows VPN pass
through via PPTP, L2TP, or IPSec for secure tunnel connections.
The DIR-510L can charge mobile devices such as phones, tablets, and other devices via its universal USB ports. This feature oers peace
of mind when you are away from home with devices that are low on battery, and you’ve forgotten to bring along your devices’chargers.
Never again be stuck with a dying smartphone.

4D-Link DIR-510L User Manual
Section 1 - Product Overview
• Advanced Wireless ACTechnology - The DIR-510L provides up to 750 Mbps1wireless speeds with other 802.11ac wireless
clients using dual frequency bands to free up network congestion. This gives you smooth performance during video
streaming, audio playback, and online gaming for multiple clients.

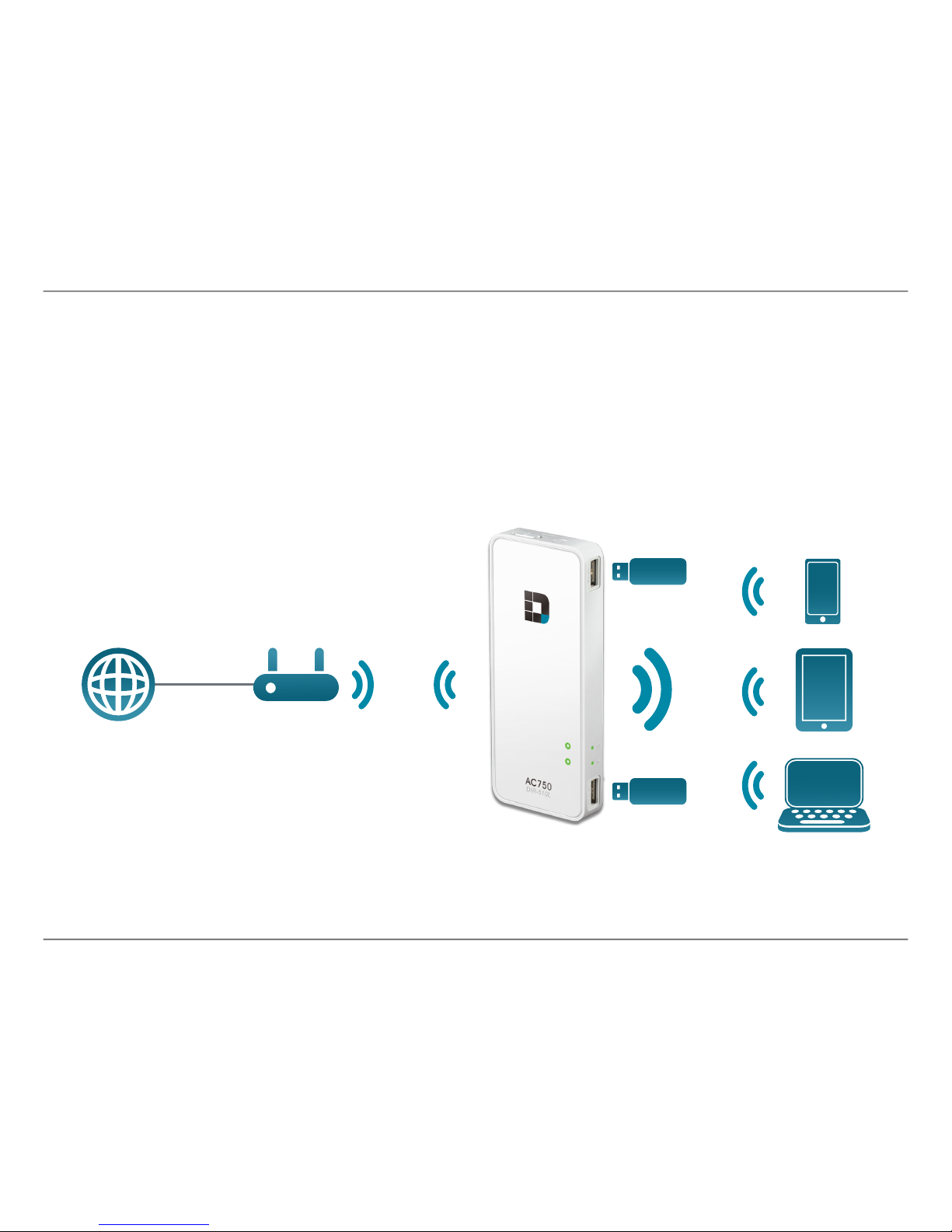

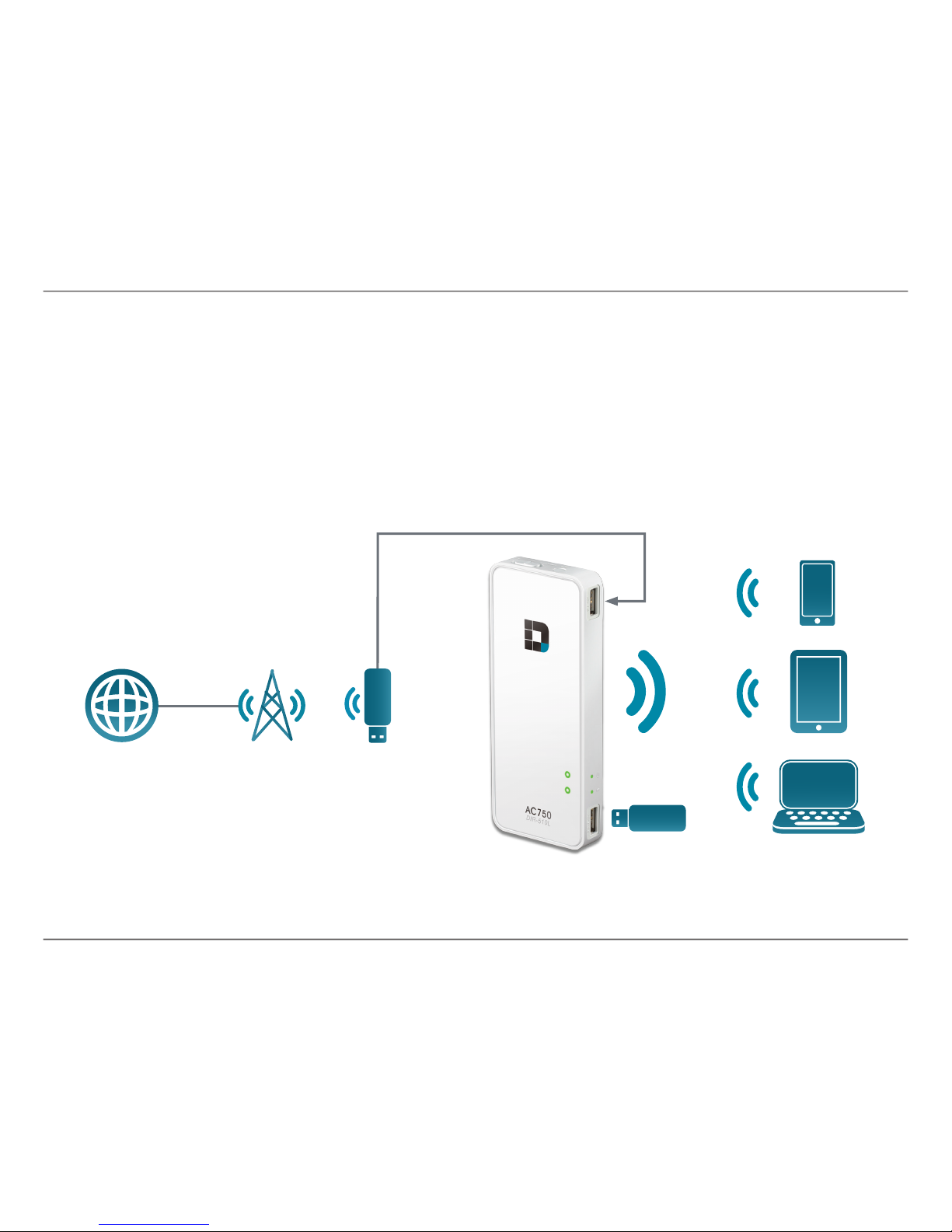

• Access the Internet - The DIR-510L allows you to connect all of your wireless devices to the Internet via wired Broadband,
3G/4G, or wireless hotspot.

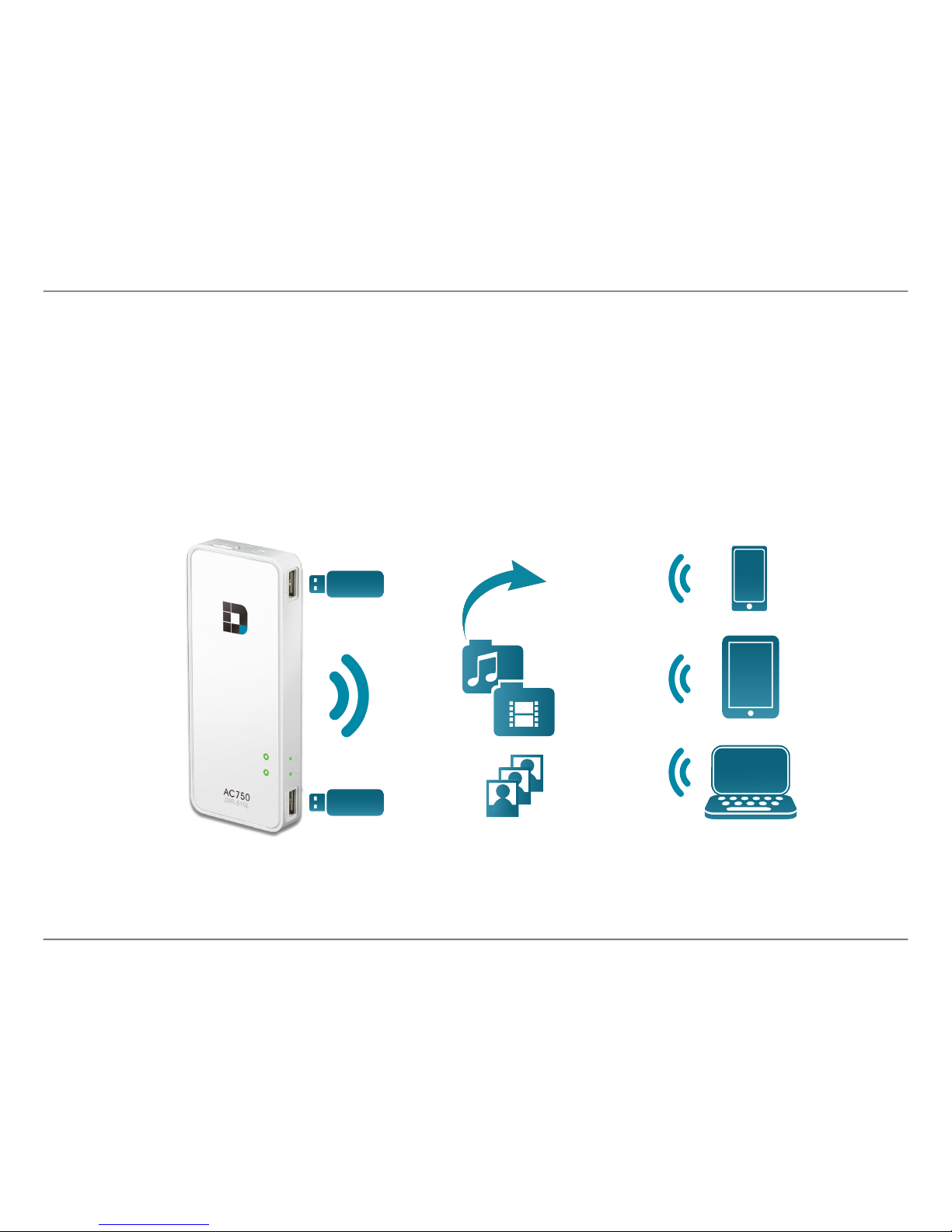

• Multimedia On-The-Go - The DIR-510L is designed as the media hub for all of your mobile needs with the following features:
• Dual USB Interfaces2- Easily store and share music, videos, photos, and les on your USB drive while charging
another device.
• UPnP and DLNA Support3- Compliant with the latest DLNA certication requirements, the DIR-510L can stream
many compatible media formats to other DLNA devices wirelessly.
• mydlink SharePort app - Stream your media and upload les locally or remotely through the Internet to your iPhone®,
iPad® or Android™ device.
• Built-in Charger4- A 4000 mAh lithium-ion internal battery with Over Current Protection (OCP), Over Voltage
Protection (OVP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) lets you charge your mobile
devices on-the-go.
• Compatible with 802.11n, 802.11g and 802.11b Devices - The DIR-510L is still fully backward-compatible with the IEEE
802.11n, 802.11g and 802.11b standards, so it can connect with existing devices using these standards.
1Maximum wireless signal rate derived from IEEE Standard specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of
network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
2The battery may be drained if a high-power 2.5”or 3.5” USB hard drive is attached to the USB ports.
3DLNA support will be available in a future rmware update.
4Actual usable capacity may vary depending on charging conditions.
Features

5D-Link DIR-510L User Manual
Section 1 - Product Overview

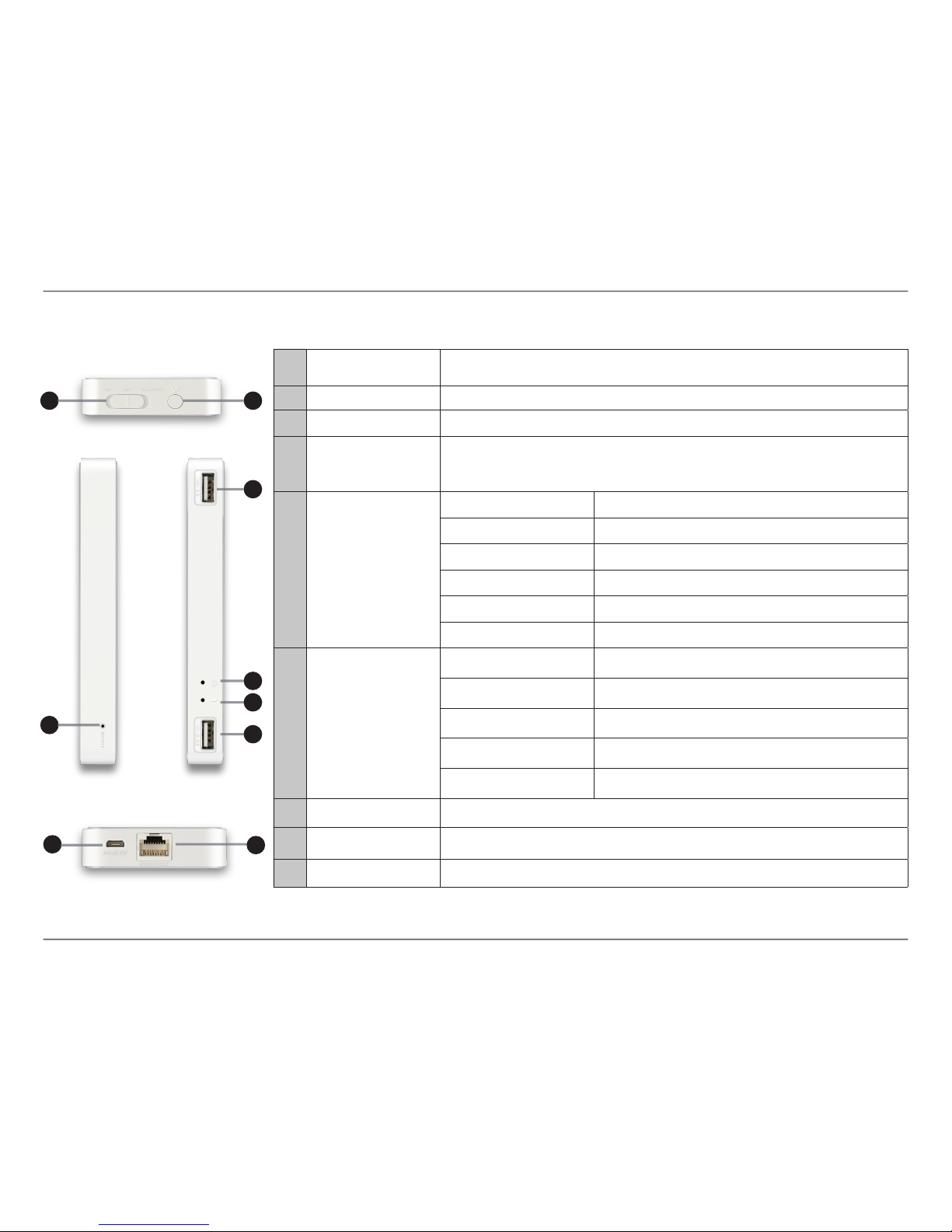

Hardware Overview
1ON/OFF/CHARGER
Switch
Slide the switch to ON to operate the DIR-510L in Router Mode.
Slide the switch to CHARGER to charge devices connected via USB.1
2WPS Button Press the WPS button to automatically connect additional devices to the unit securely.
3Reset Button Press the Reset button reset the router to its original factory default settings.
4USB Port (1A)
Connect a 3G/4G USB adapter to use Mobile Router Mode to share your Internet broadband.
Connect a USB drive to share locally using mydlink SharePort and SharePort Web Access.
Connect a device (high-power support) via USB cable to charge it.2
5Power/Status LED
Green (Solid) The device is connected and working properly.
Green (Blinking) The device is currently connecting via WPS.
Orange (Solid) The device is powering up or resetting.
Orange (Blinking) The device cannot connect to the Internet or is in Recovery Mode.
Red (Solid) The system is defective.
O The device is turned o or in Charging Mode.
6Battery LED
Green (Solid) Battery capacity is 80% or more.
Orange (Solid) Battery capacity is between 15% and 80%.
Red (Solid) Battery capacity is 15% or less.
Red (Blinking) Battery is defective.
O Charging is complete (when connected to a power supply) or the
device is out of battery.
7USB Port (0.5 A) Connect a USB drive to share media locally using mydlink SharePort and SharePort Web Access.
8Power Receptor
(Micro USB) Connect the included power adapter to power and charge the unit.
9Internet Port Connect an Ethernet cable to a cable or DSL modem to use Broadband Router Mode.
1 2
3
4
6
7
5
1If you attach one or more USB devices (like a 2.5”USB drive) that draws a total of 0.7 A or more power, the power adapter will not supply enough voltage to charge your DIR-510L while
simultaneously powering the USB device(s).
2The DIR-510L only supports charging other devices on USB port (1A) in CHARGER Mode.
89

6D-Link DIR-510L User Manual
Section 1 - Product Overview

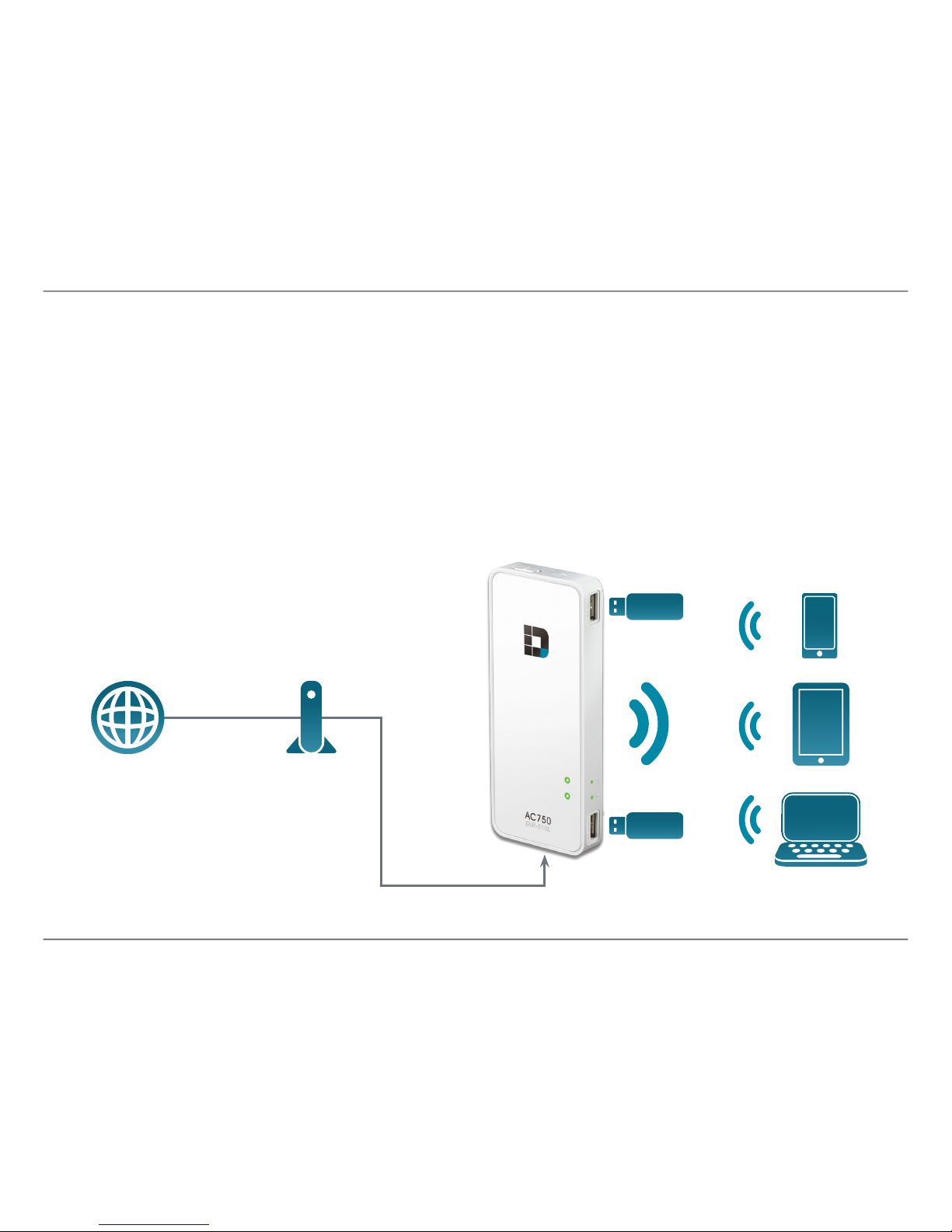

What Mode Should I Use to Connect?
Router Mode
Ethernet cable
Computer
iPad
Smartphone
USB drive
USB drive
Internet Modem
Cable or DSL line
In Router Mode, the DIR-510L connects to your cable modem, DSL modem, or other Internet source with an Ethernet cable,
and wirelessly shares your Internet connection with other devices. Use it for Internet access while you are staying at a hotel, or
provide access for an entire home or oce. You can also connect a USB drive to share les with the devices on your wireless
network by using SharePort. Refer to “Sharing Files Using mydlink SharePort” on page 49.
Note:For best performance when using SharePort, we recommend you limit the number of simultaneous users to ve.

7D-Link DIR-510L User Manual
Section 1 - Product Overview
Mobile Router Mode
In Mobile Router Mode, you must use a compatible 3G/4G USB adapter and be within your Internet Service Provider’s cellular
coverage area. Once connected, you can wirelessly share your Internet connection with other devices when you are on-the-
go. You may also share les with other devices on your wireless network by inserting a USB drive and using SharePort. Refer
to “Sharing Files Using mydlink SharePort” on page 49.
Note: Refer to the D-Link website for more information on compatible 3G/4G USB adapters.
Computer
iPad
Smartphone
3G/4G cell
tower
3G/4G USB
adapter
Internet
USB drive

8D-Link DIR-510L User Manual
Section 1 - Product Overview
Wi-Fi Hotspot Mode
Computer
iPad
Smartphone
USB drive
USB drive
Wi-Fi
Hotspot
Internet
You can set up your DIR-510L to share a Wi-Fi hotspot (for example, at a hotel, airport, or coee shop) wirelessly with other
devices. In Wi-Fi Hotspot Mode, the DIR-510L connects to an existing wireless network and then wirelessly shares your Internet
connection with other devices. You must have the Wi-Fi Network name and password for the access point you are connecting
the DIR-510L to.
Note: In public environments, it is highly recommended that you password protect the shared Internet connection to the DIR-510L.

9D-Link DIR-510L User Manual
Section 1 - Product Overview
LAN Sharing
Even without Internet access, you can connect other Wi-Fi devices wirelessly to the DIR-510L by creating a private network
anywhere. You may connect one or two USB drives to locally share les with devices on your wireless network using SharePort.
Refer to“Sharing Files Using mydlink SharePort” on page 49.
Note: In public environments, it is highly recommended that you password protect the private LAN (local area network) on the DIR-510L.
Computer
iPad
Smartphone
USB drive
USB drive

10D-Link DIR-510L User Manual
Section 2 - Installation
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall
or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of
walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears
to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that
the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try
to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base
is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
Installation
Wireless Installation Considerations

11D-Link DIR-510L User Manual
Section 2 - Installation

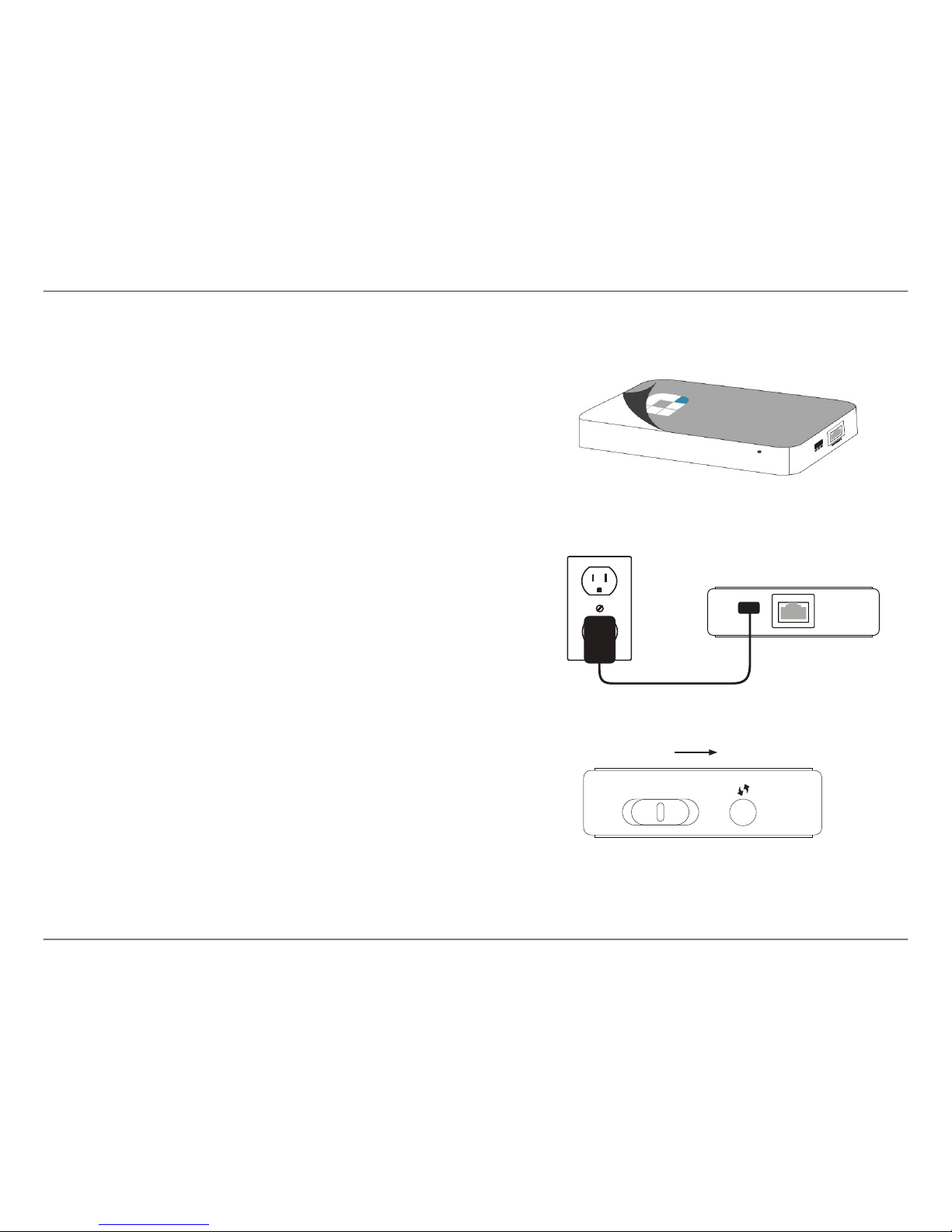

First Time Setup
• Peel off the protective film from the top and bottom of the
device.
• Connect one end of the supplied power adapter to the DIR-510L
and the other end to a wall outlet.
INTERNET
DC IN 5V
Note: For more information on charging the device, refer to “Hardware Overview” on page 5.
• Make sure the ON/OFF/CHARGER switch is in the CHARGER
positon. Charge the device for at least four hours or until the
battery LED indicator is solid green or o. ON OFF CHARGER
CHARGER

12D-Link DIR-510L User Manual
Section 2 - Installation

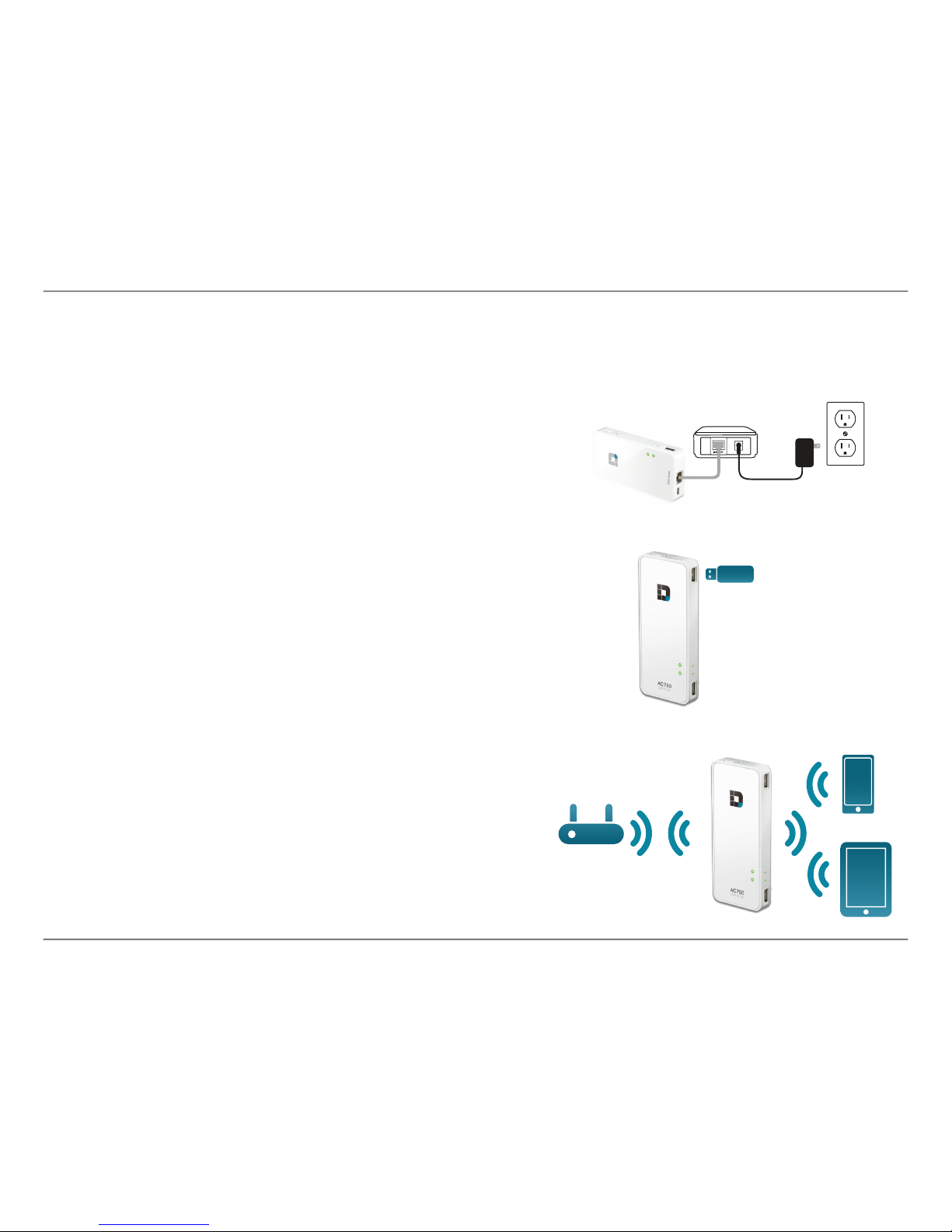

Using Broadband Ethernet: You need an Ethernet cable connection
to your cable or DSL modem.
• Connect one end of an Ethernet cable to your modem and the
other end to the Internet port on the DIR-510L.
Connecting Your Equipment
Connecting to a Wi-Fi Hotspot: You need the Wi-Fi network name
and password of the hotspot you want to connect to.
Using a 3G/4G USB Adapter: You need a compatible* 3G/4G USB
adapter with an active SIM card.
• Plug the 3G/4G USB adapter into the USB port on the DIR-510L.
*Note: Refer to the D-Link website for more information on compatible
3G/4G USB adapters.
Depending upon available resources, the DIR-510L can be set up from the device of your choice with Wi-Fi and a web browser.
3G/4G USB Adapter
Wi-Fi Hotspot

13D-Link DIR-510L User Manual
Section 3 - Conguration
Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• Setup Wirelessly - You can use your mobile device or pc to set up wirelessly. Refer to “Connecting to Your DIR-510L” on
page 14.
• SetupWizards - From the Home page you can access wizards for various functions including conguration. Refer to “Home”
on page 17.

14D-Link DIR-510L User Manual
Section 3 - Conguration

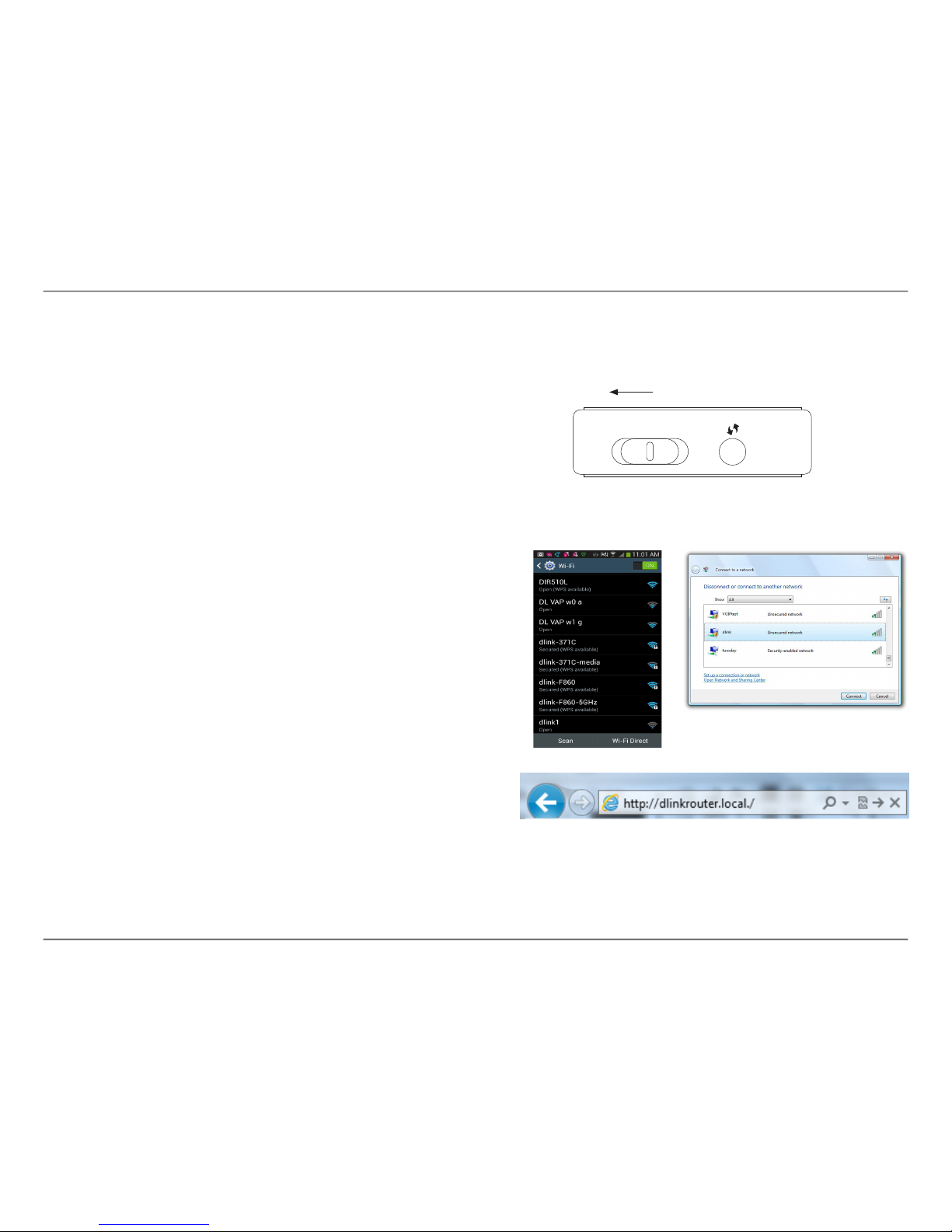

Connecting to Your DIR-510L
Before you can congure the DIR-510L, you will rst need to connect to it wirelessly from your mobile device or computer.
Mobile Desktop
Note: If you have a device that supports Wi-Fi Protected Setup, please refer to ”WPS Button” on page 107.
• Open a web browser (e.g., Internet Explorer) on your mobile
device or computer. You can enter http://dlinkrouter.local./
or http://192.168.0.1 in the address bar. XP users should
enter http://dlinkrouter.
• Make sure the DIR-510 L is either charged* or plugged in.Turn
the router on by sliding the ON/OFF/CHARGER switch to ON.ON OFF CHARGER
ON
• From your wireless computer or mobile device, connect to
the DIR-510L. Use the following settings:
• 2.4GHz Wi-Fi Network Name (SSID): DIR510L
• 5Hz Wi-Fi Network Name (SSID): DIR510L_5GHz
• Password: blank by default
*Note: The battery LED will be solid green when the battery is at
80% capacity or higher.

15D-Link DIR-510L User Manual
Section 3 - Conguration

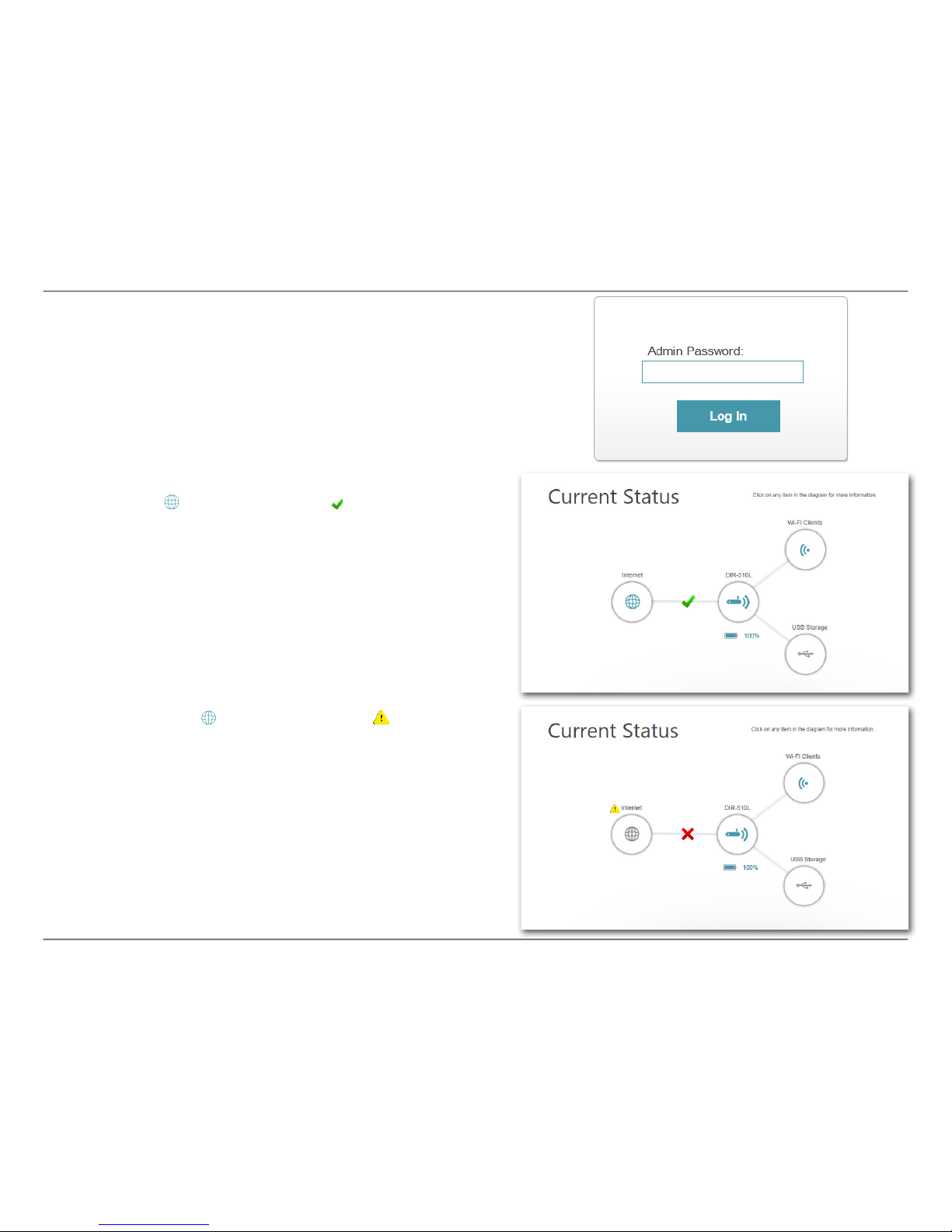

• After logging in, you will see the Current Status page. If the
Internet icon is blue and there is a check mark, you are
already connected to the Internet and the device is ready for
use!
• At the login screen , leave the Admin Password blank. Click
or tap Log In.
• If the Internet icon is grey and there is an icon, refer to :
• “xDSL Broadband (PPPoE)” on page 30 if you are using
an xDSL modem.
• “3G/4G Wireless USB” on page 31 if you are using a
3G/4G USB adapter.
• “Wi-Fi Hotspot Client”on page 32 if you are connecting
to a Wi-Fi hotspot.

16D-Link DIR-510L User Manual
Section 3 - Conguration

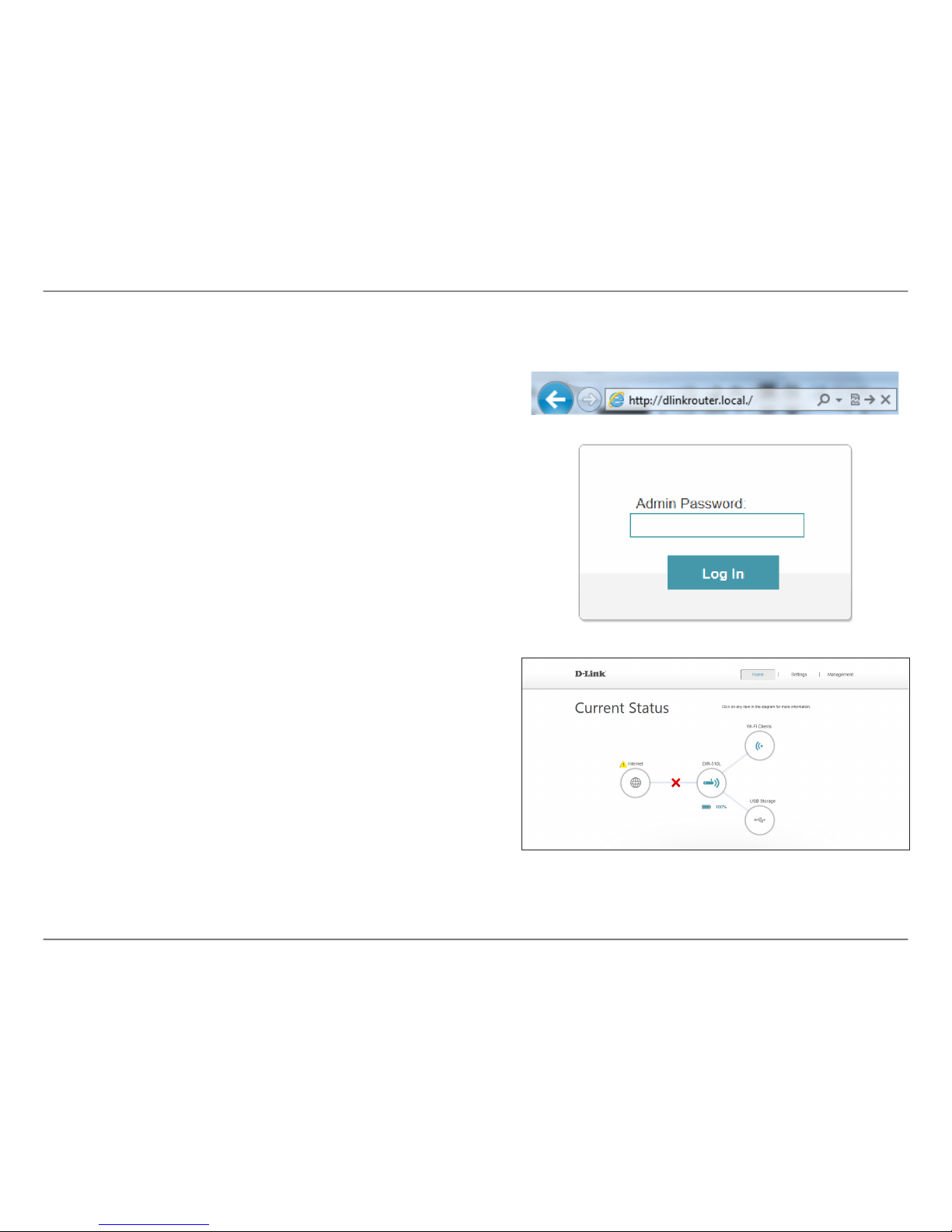

Conguration Utility
• To access the DIR-510L’s Configuration Utility, open a
web-browser and enter http://dlinkrouter.local./ or
http://192.168.0.1 in the address bar. XP users should enter
http://dlink router.
• If you did not create a Password for the Admin account, leave
it blank by default.
• Click Log In.
The router’s Home page will open. You can check on the Current
Status of the DIR-510L, or start a wizard. Refer to“Home”on page
17 for details.
The navigation bar at the top of the page provides quick access
to Settings and Management functions.
