D-Link DIR-685 - Xtreme N Storage Router Wireless User manual

iD-Link DIR-685 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2009 by D-Link Systems, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 January 26, 2009 DIR-685 Revision A1 with firmware version 1.00
Preface

iiD-Link DIR-685 User Manual
Table of Contents
Preface...........................................................................i
Manual Revisions ..................................................... i
Trademarks ............................................................... i
Product Overview ........................................................1
Package Contents....................................................1
System Requirements .............................................2
Introduction.............................................................. 3
Features................................................................... 4
Hardware Overview .................................................5

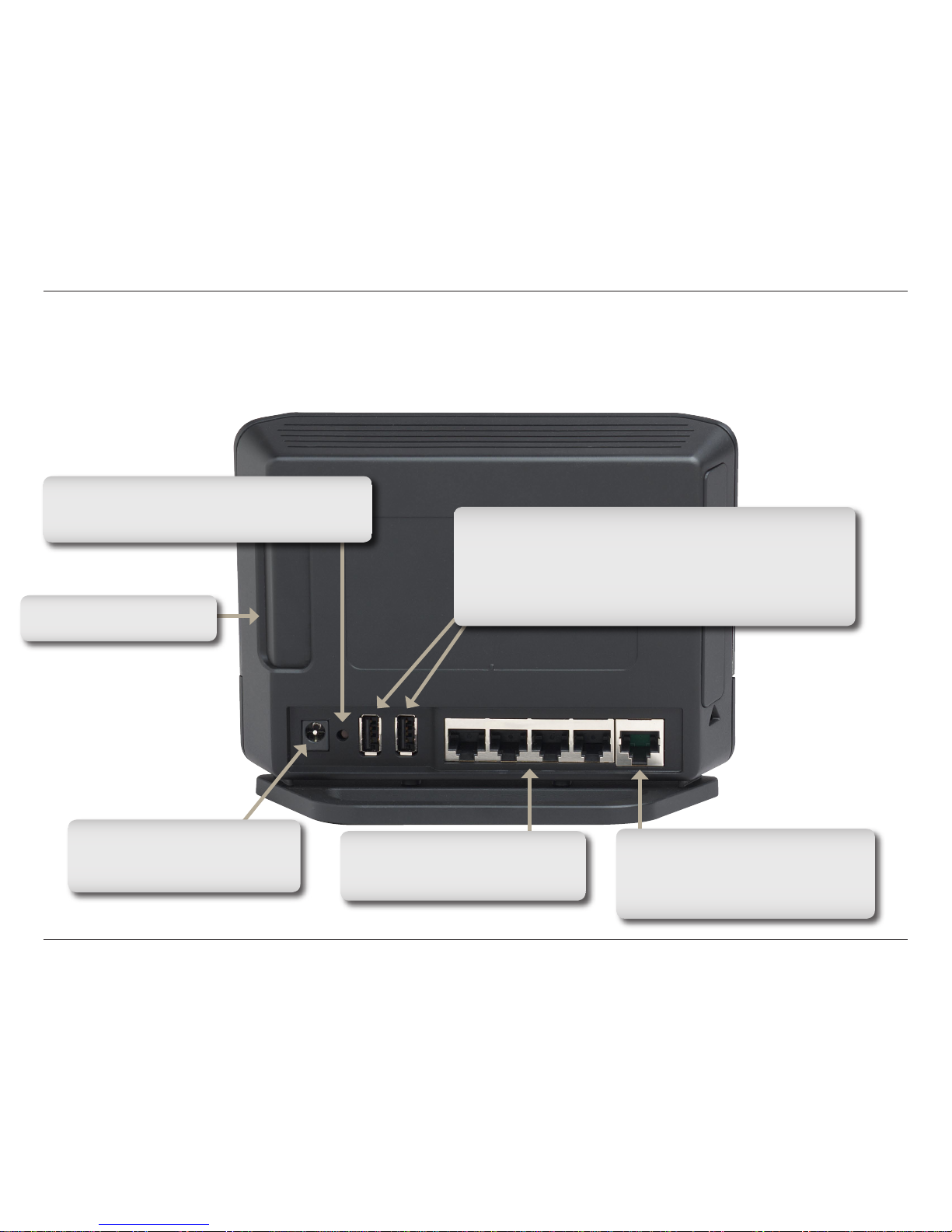

Connections....................................................... 5

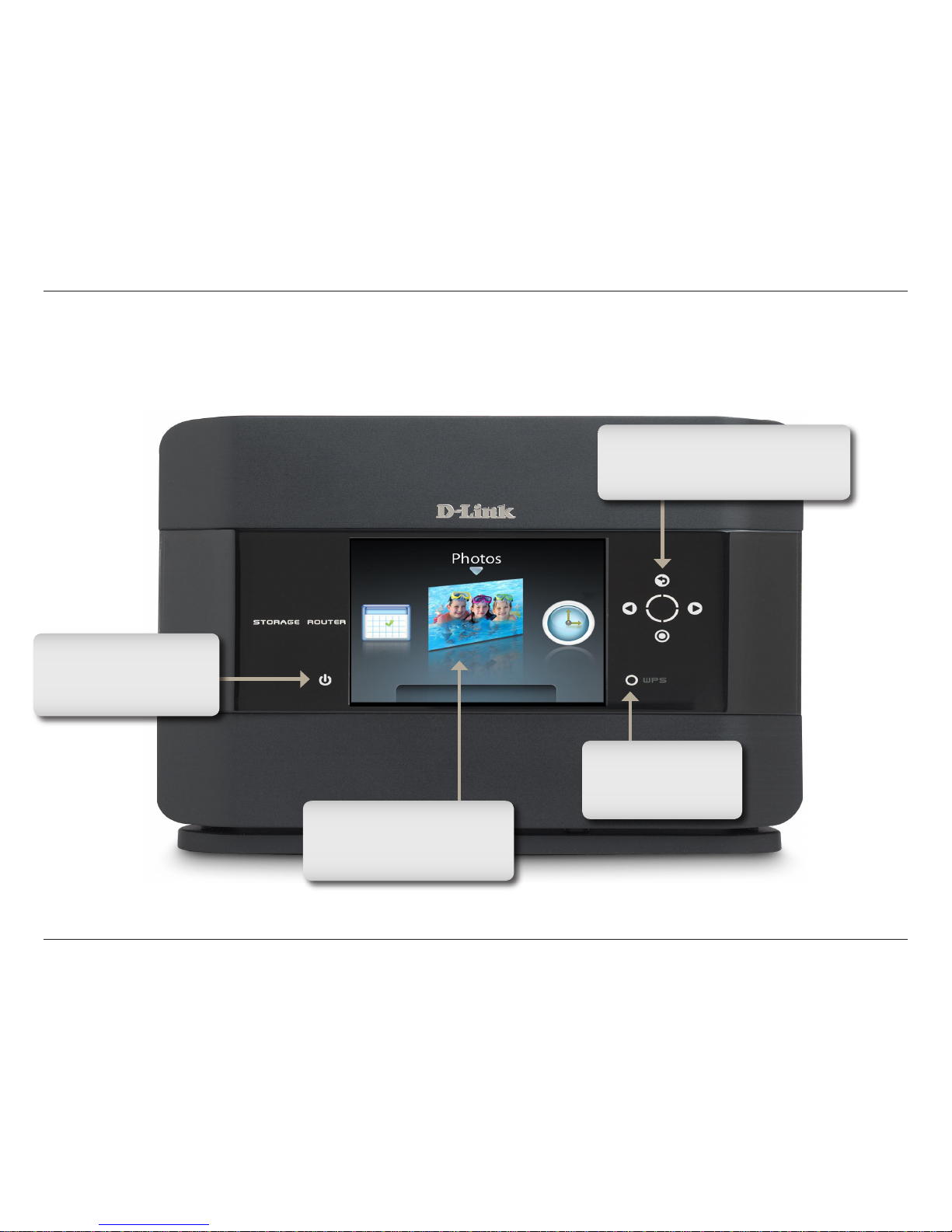

Front View ..........................................................6

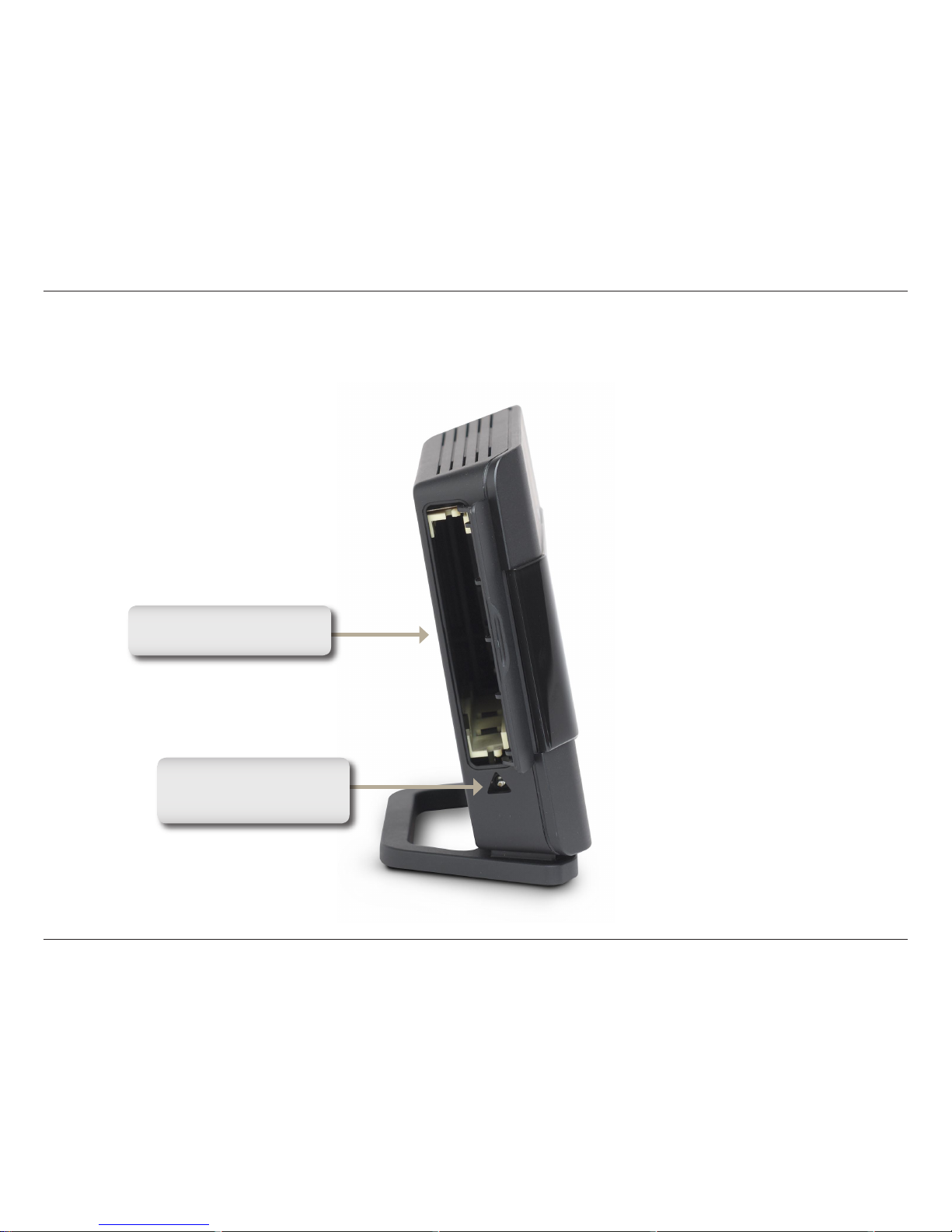

Side View ...........................................................7
Installation....................................................................8
Before you Begin .....................................................8

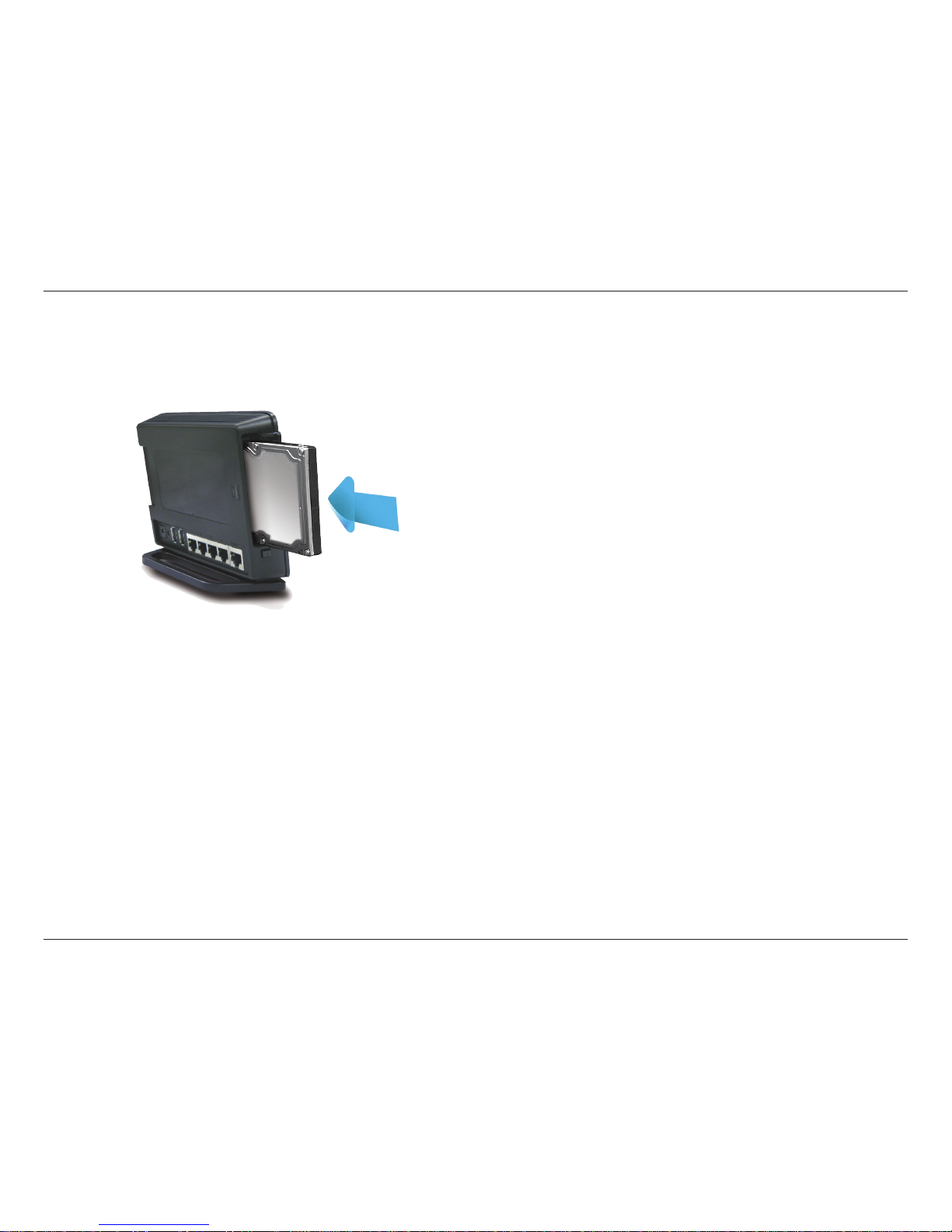

Install/Remove Hard Drive ....................................... 9
Wireless Installation Considerations......................10
Connect to Cable/DSL/Satellite Modem ................11
Connect to Another Router....................................12
Getting Started ...................................................... 14
Configuration.............................................................15
Web-based Configuration Utility ............................15
Setup Wizard ................................................... 16
Manual Configuration....................................... 20
Dynamic (Cable)...........................................20
PPPoE (DSL) ...............................................21
PPTP............................................................22
L2TP.............................................................24
Static (assigned by ISP)............................... 26
3G USB Adapter ..........................................27
Wireless Settings .............................................28
Manual Wireless Settings ................................ 29
Network Settings.............................................. 31
DHCP Server Settings .................................32
DHCP Reservation.......................................33
LCD Setup .......................................................34
Port Forwarding ...............................................35
Application Rules .............................................37
QoS Engine ..................................................... 38
Network Filter................................................... 39
Website Filters ................................................. 40
Firewall Settings............................................... 41
SPI ...............................................................41
NAT Endpoint Filter ......................................41
Anti-Spoof Check .........................................41
DMZ .............................................................41
Firewall Rules...............................................42
Routing ............................................................43
Advanced Wireless Settings ............................ 44
RTS Threshold .............................................44
DTIM Interval................................................44
WMM Function .............................................44
Table of Contents

iiiD-Link DIR-685 User Manual
Table of Contents
Advanced Network Settings............................. 45
UPnP............................................................45
WAN Ping Block ........................................... 45
WAN Port Speed ..........................................45
Multicast Streams.........................................45
Guest Zone ......................................................46
Wake on LAN................................................... 47
Disk Management............................................ 48
User / Groups ..................................................49
Network Access ............................................... 50
FTP Server ......................................................52
FTP Server Settings.....................................53
UPnP AV Server ..............................................54
iTunes®Server .................................................55
BitTorrent Download Manager ......................... 56
Administrator Settings...................................... 57
Change Password ........................................ 57
Remote Management...................................57
Time Settings................................................... 58
Log Settings..................................................... 59
Email Settings.................................................. 60
System Settings............................................... 61
Update Firmware .............................................62
Dynamic DNS ..................................................63
System Check.................................................. 64
Schedules ........................................................65
Device Information ........................................... 66
Log................................................................... 67
Statistics ..........................................................68
Internet Sessions ............................................. 69
Wireless ...........................................................71
Support ............................................................ 72
Wireless Security.......................................................73
What is WPA? ........................................................73
Wireless Connection Setup Wizard .......................74
Add Wireless Device with WPS Wizard .................76
Configure WPA-Personal (PSK)............................. 77
Connect to a Wireless Network ................................ 78
Using Windows Vista®............................................78
Configure Wireless Security .................................. 79
Connect Using WCN 2.0 in Windows Vista®......... 81
Using Windows®XP............................................... 82
Configure WPA-PSK ..............................................83
LCD Screen Options.................................................. 85
Router Statistics.....................................................85
General Router Info .........................................86
Status.....................................................................86
Internet Status ................................................. 87
Wired Status ....................................................88
Wireless Status................................................ 89
Hard Disk Status.............................................. 90
WPS.......................................................................91
Clock Display Setting .......................................92
LCD Saving Settings........................................ 92

ivD-Link DIR-685 User Manual
Table of Contents
Router Settings......................................................92
LCD Luminance Settings .................................93
Hard Drive Saving Settings.............................. 94
Photos....................................................................95
FrameChannel®......................................................96
Troubleshooting.........................................................99
Wireless Basics .......................................................103
What is Wireless? ................................................104
Tips...................................................................... 106
Wireless Modes ...................................................108
Networking Basics .................................................. 109
Check your IP address ........................................109
Statically Assign an IP address ........................... 110
Glossary ................................................................... 111
Technical Specifications.........................................114
Contacting Technical Support................................ 115
Warranty ................................................................... 116
Registration..............................................................122

1D-Link DIR-685 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a different voltage rating than the one included with the DIR-685 will cause damage and void the warranty for this product.
D-Link DIR-685
Xtreme N™
Storage Router
Power Adapter
Ethernet Cable
CD-ROM
Stand
Package Contents

2D-Link DIR-685 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n-draft or 802.11g wireless clients
• 10/100/1000 Ethernet
Web-based Configuration
Utility Requirements
Computer with the following:
• Windows®, Macintosh®, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6.0 or higher
• Mozilla 1.7.12 or higher
• Firefox 2.0 or higher
• Safari 1.0 or higher (with Java 1.3.1 or higher)
• Chrome 1.0 or higher
• Opera 6.0 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
CD Installation Wizard
Requirements
Computer with the following:
• Windows®XP with Service Pack 2 or Vista
• An installed Ethernet adapter
• CD-ROM drive
System Requirements

3D-Link DIR-685 User Manual
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines award-winning router features and Draft 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including Active Firewall and WPA2™to protect your network against outside
intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Xtreme N Storage Router is a draft 802.11n compliant device that delivers real world performance of up to 650%
faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless
network to share photos, files, music, video, printers, and network storage throughout your home. Connect the Xtreme N Storage
Router to a cable or DSL modem and share your high-speed Internet access with everyone on the network. In addition, this router
includes a Quality of Service (QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive,
providing a better Internet experience.
EXTENDED WHOLE HOME COVERAGE
Powered by Xtreme N technology, this high performance router provides superior Whole Home Coverage while reducing dead
spots. The Xtreme N Storage Router is designed for use in bigger homes and for users who demand higher performance
networking. Add an Xtreme N notebook or desktop adapter and stay connected to your network from virtually anywhere in your
home.
TOTAL NETWORK SECURITY
The Xtreme N™Storage Router supports all of the latest wireless security features to prevent unauthorized access, be it from
over the wireless network or from the Internet. Support for WPA™and WEP standards ensure that you will be able to use the
best possible encryption method, regardless of your client devices. In addition, this Xtreme N Storage Router utilizes dual active
firewalls (SPI and NAT) to prevent potential attacks from across the Internet.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely affect wireless signal range.

4D-Link DIR-685 User Manual
Section 1 - Product Overview
Features
• Faster Wireless Networking - The DIR-685 provides up to 300Mbps* wireless connection with other
802.11n wireless clients. This capability allows users to participate in real-time activities online, such as
video streaming, online gaming, and real-time audio. The performance of this 802.11n wireless router
gives you the freedom of wireless networking at speeds 650% faster than 802.11g.
• Compatible with 802.11g Devices - The DIR-685 is still fully compatible with the IEEE 802.11g standard,
so it can connect with existing 802.11g wireless adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content filtering based on MAC Address, URL, and/or
Domain Name.
• Filter Scheduling - These filters can be scheduled to be active on certain days or for a
duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-685 can pass through VPN sessions. It
supports multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-685
can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-685 lets you
control what information is accessible to those on the wireless network, whether from the Internet or from
your company’s server. Configure your router to your specific settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely affect wireless signal range.

5D-Link DIR-685 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
Reset
Pressing the Reset button restores the router to
its original factory default settings.
Gigabit LAN Ports (1-4)
Connect Ethernet devices such as
computers, switches, and hubs.
Internet Port
The auto MDI/MDIX Gigabit Internet
port is the connection for the Ethernet
cable to the cable or DSL modem.
Power Receptor
Receptor for the supplied power
adapter.
USB Ports
Connect a USB 1.1 or 2.0 flash drive to configure the wireless
settings using WCN. You may also use the USB port(s) to
connect devices such as printers, scanners, and USB external
drive/thumb drives to share on your network, or connect 3G
USB adapters.
Eject Button
Press to eject the hard drive.

6D-Link DIR-685 User Manual
Section 1 - Product Overview
Hardware Overview
Front View
Power LED
A solid light indicates a
proper connection to the
power supply.
Navigation Buttons
Press the buttons (up, down, left, right,
and center) to navigate through the
options on the screen.
WPS LED
When enabling WPS,
the light will blink during
broadcast.
LCD Screen
The LCD screen will display
pictures as well as router
statistics and features.

7D-Link DIR-685 User Manual
Section 1 - Product Overview
Hardware Overview
Side View
HDD Bay
Insert a 2.5” SATA hard drive.
Unmount Button
Press the Unmount button
before ejecting hard drive.

8D-Link DIR-685 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the
router in an enclosed area such as a closet, cabinet, or in an attic or garage.
• Please configure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using
the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable
to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call
your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software
such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to
the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD
from is connected to the Internet and online or the wizard will not work. If you have disconnected any
hardware, re-connect your computer back to the modem and make sure you are online.

9D-Link DIR-685 User Manual
Section 2 - Installation
Install/Remove Hard Drive
To install a hard drive:
1. Open the hard drive bay.The router can be powered on during
installation.
2. Insert your hard drive into the bay with the label facing towards
the back of the router.
3. Push hard drive firmly in the bay.
4. Close the hard drive bay door.
5. The Detect Hard Drive Success message will appear. Press
the center button to continue.
To remove a hard drive:
Warning: Do NOT eject the hard drive without pressing the
unmount button below the hard drive bay.
1. Open the hard drive bay door.
2. Press the unmount button.
3. Once the unmount button is amber/orange, press the eject
button located on the opposite side.
Caution: Hard drive may be hot. Use caution when handling.
4. Pull the hard drive out.

10D-Link DIR-685 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum
- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible.The base transmits
a signal even if the phone is not in use.

11D-Link DIR-685 User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down
your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the
Internet port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your
computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router
to boot.
7. Turn on your computer.
8. Skip to page 14 to configure your router.
Connect to Cable/DSL/Satellite Modem

12D-Link DIR-685 User Manual
Section 2 - Installation
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have
to do the following before connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot
accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable.
Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). (Please see the
Networking Basics section for more information). If you need to change the settings, write down your existing settings
before making any changes. In most cases, your computer should be set to receive an IP address automatically in
which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user
name to Admin and leave the password box empty. Type in the Captcha phrase and click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings
to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings
to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to
save your settings. Use this new IP address to access the configuration utility of the router in the future. Close the
browser and change your computer’s IP settings back to the original values as in Step 1.
Connect to Another Router

13D-Link DIR-685 User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug
anything into the Internet port of the D-Link router.
8. You may now use the other three LAN ports to connect other Ethernet devices and computers. To configure your
wireless network, open a web browser and enter the IP address you assigned to the router. Refer to the Configuration
and Wireless Security sections for more information on setting up your wireless network.

14D-Link DIR-685 User Manual
Section 2 - Installation
Getting Started
The DIR-685 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to
guide you quickly through the installation process.
Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown
in Windows®XP. The steps and screens are similar to those found in other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box, type
“D:\DIR685.exe” (where D: represents the drive letter of your CD-ROM drive).

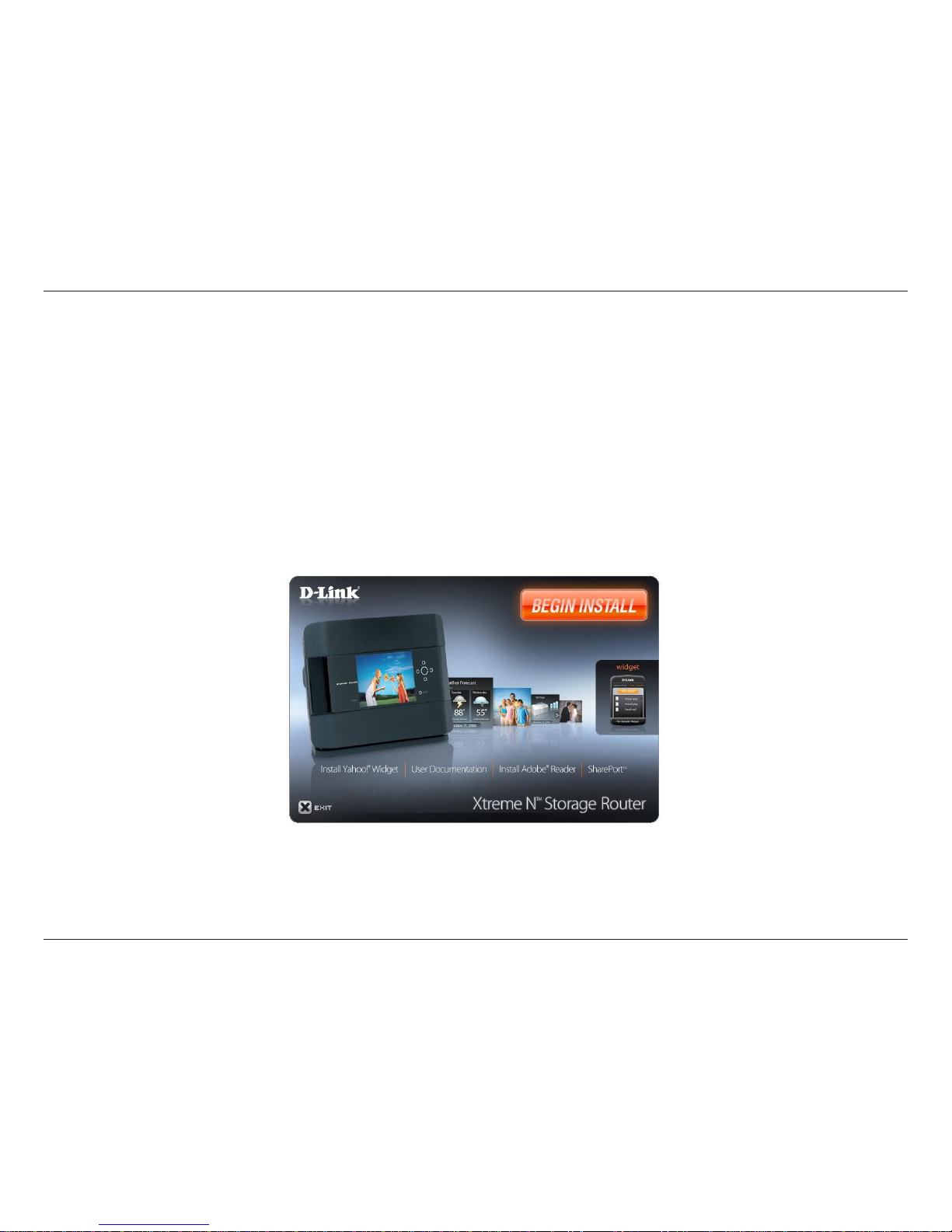

When the autorun screen appears, click BEGIN INSTALL.
Note: It is recommended to write down the login password on the provided CD holder.

15D-Link DIR-685 User Manual
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link wireless router using the web-based configuration
utility.
Web-based Configuration Utility

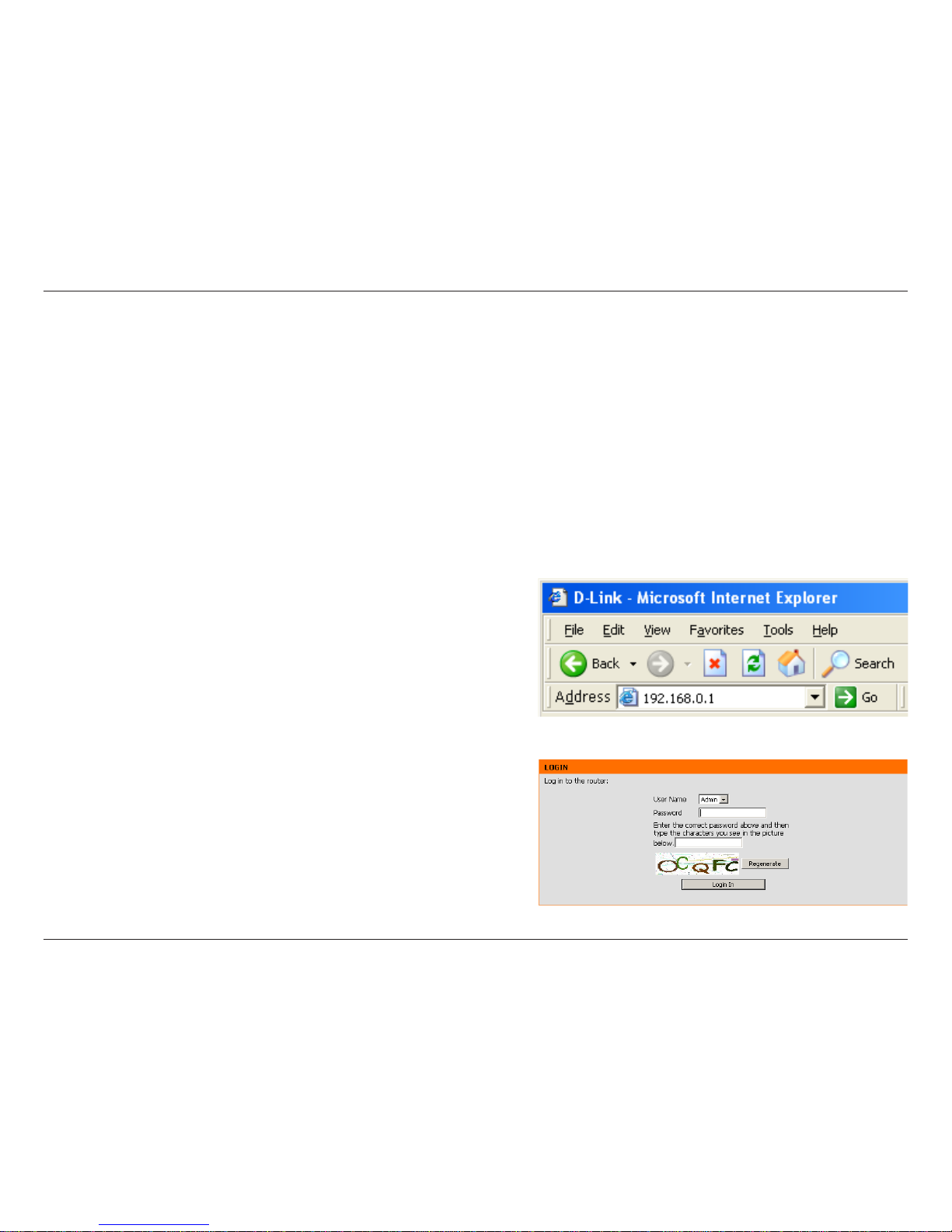

To access the configuration utility, open a web-browser such
as Internet Explorer®and enter the IP address of the router
(192.168.0.1).
Select Admin from the drop-down menu and then enter your
password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.
