D-Link 2Voice + 4SW VoIP Router DVG-1402S User manual

Broadband Phone Service VoIP Router
Manual
(09/24/04)
Building Networks for People
D-Link
DVG-1402S

2
PackageContents ................................................................................3
Introduction............................................................................................4
Connections..........................................................................................5
Features andBenefits ...........................................................................6
LEDs ....................................................................................................7
GettingStarted......................................................................................8
Connecting the DVG-1402S Directly to a Modem and Computer ............. 8
Configuring the DVG-1402S for DSL Connection............................... 10
Connecting the DVG-1402S in Front of a Router .................................... 13
Configuring the DVG-1402S for DSL Connection............................... 15
Connecting the DVG-1402S Behind a Router ......................................... 18
MACCloning forCable Connection.....................................................21
Web-basedManagement....................................................................22
FrequentlyAskedQuestions................................................................44
TechnicalSpecifications ......................................................................47
TechnicalSupport................................................................................50
Warranty..............................................................................................51
Contents

3
Contents of Package:
D-Link DVG-1402S
Broadband Phone Service VoIP Router
12V DC/1.25A PowerAdapter
CD-ROM with Manual
QuickInstallationGuide
Ethernet Cable
Standard (RJ-11) Telephone Cable
Package Contents




Note:Using a power supplywith adifferentvoltage rating than theone includedwith
theDVG-1402S will cause damageand voidthewarranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements For Configuration:
A compter with Internet Explorer or Netscape Navigator 6.x or
above with Javascript enabled.



4

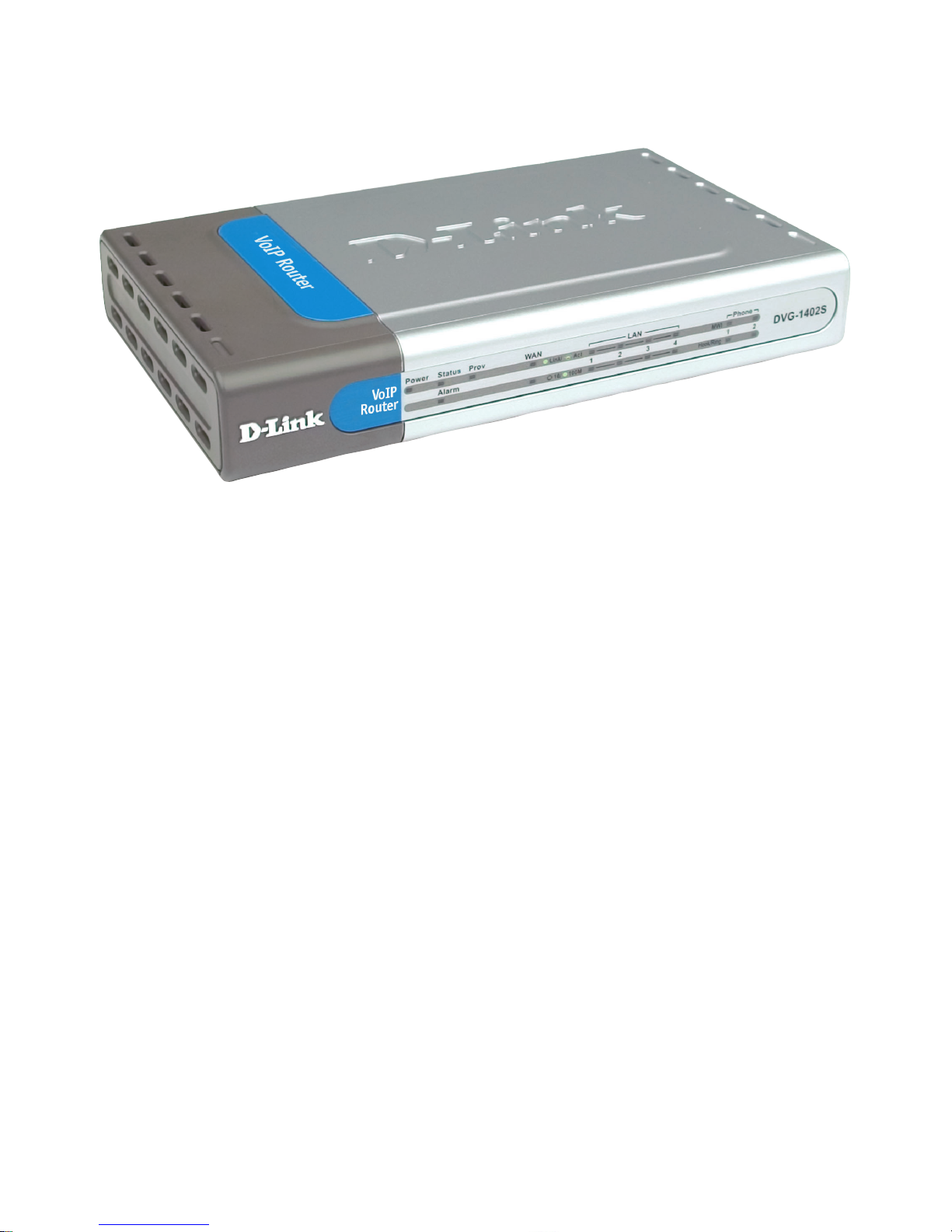

Introduction
TheD-LINK DVG-1402SBroadband PhoneServiceVoIPRouterlinkstraditional
telephony networks to IP networks with conventional telephony devices such
as analog phones or fax machines.
The DVG-1402S includes two RJ-11 telephone jacks that provide voice
communication over the IP network, and five Ethernet ports.
OneEthernetport is foraDSL/Cable Modem orotherwide area network(WAN)
devices, and the others are for connections to create a home or small office
localareanetwork (LAN).The built-in DHCPserver/clientandNetworkAddress
Translation (NAT) function automatically assign IP address for LAN users,
allowingmultipleuserstoshareasingleInternetconnection.Itcanbeconfigured/
monitored using a Web browser.
By routing calls over the Internet or any IP network, this VoIProuter can reduce
or eliminate long distance or inter-office phone charges. Corporations can also
enjoy the benefits of network consolidation and reduction of leased lines by
relying on the Internet service providers to deliver toll-quality voice
communications over the IP networks.

5

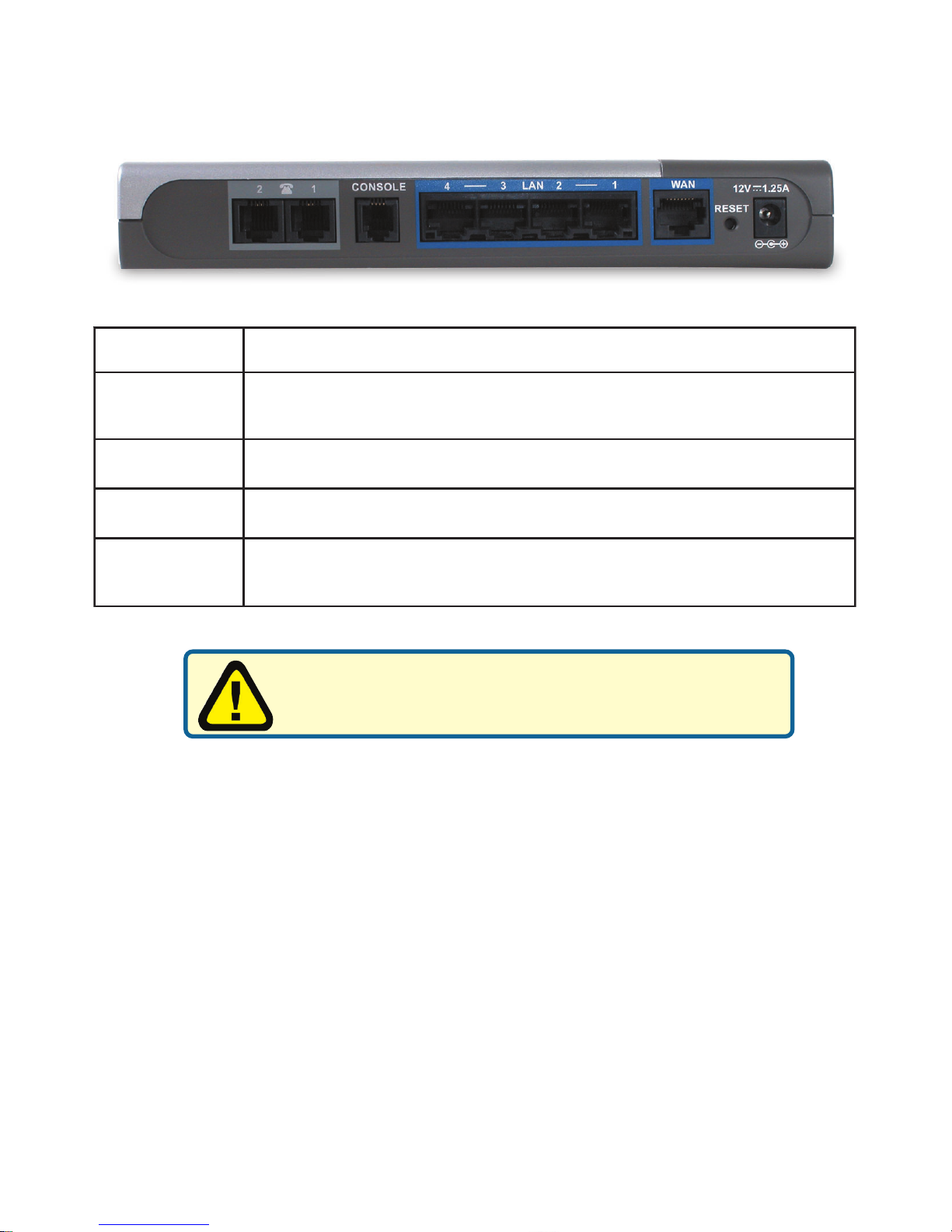

Connections
Warning! Using a different power adapter than the
oneincludedwithyourpurchase will damage the
DVG-1402Sand void thewarranty.
stroPenohP .gnilbacenohpdradnatsgnisusenohpruoyottcennoC
troPNAL tenrehtEgnisusretupmocdelbanetenrehtEruoyottcennoC .gnilbac
troPNAW .elbactenrehtEnagnisumedomdnabdaorbruoyotstcennoC
teseR .sgnittestluafedyrotcafehtottinuehtteserotdesusisihT
rewoP rotcennoC .erehsehcattaretpadarewopehT

6







Features & Benefits
Two analog RJ-11 phone connectors
One 10/100Mbps WAN port for connecting to a DSL/Cable Modem or
other WAN devices
Four 10/100Mbps LAN ports for connecting to a local network
IP address assignment using DHCP (Dynamic Host Configuration
Protocol) or static configuration
Remote software download/update
Supports IP sharing to allow multiple users to access the Internet via a
single IP address
Supports Caller ID
Supports QoS to guarantee voice quality
Optional features may be supported by your service provider such as
call waiting, caller ID, and voicemail.


7

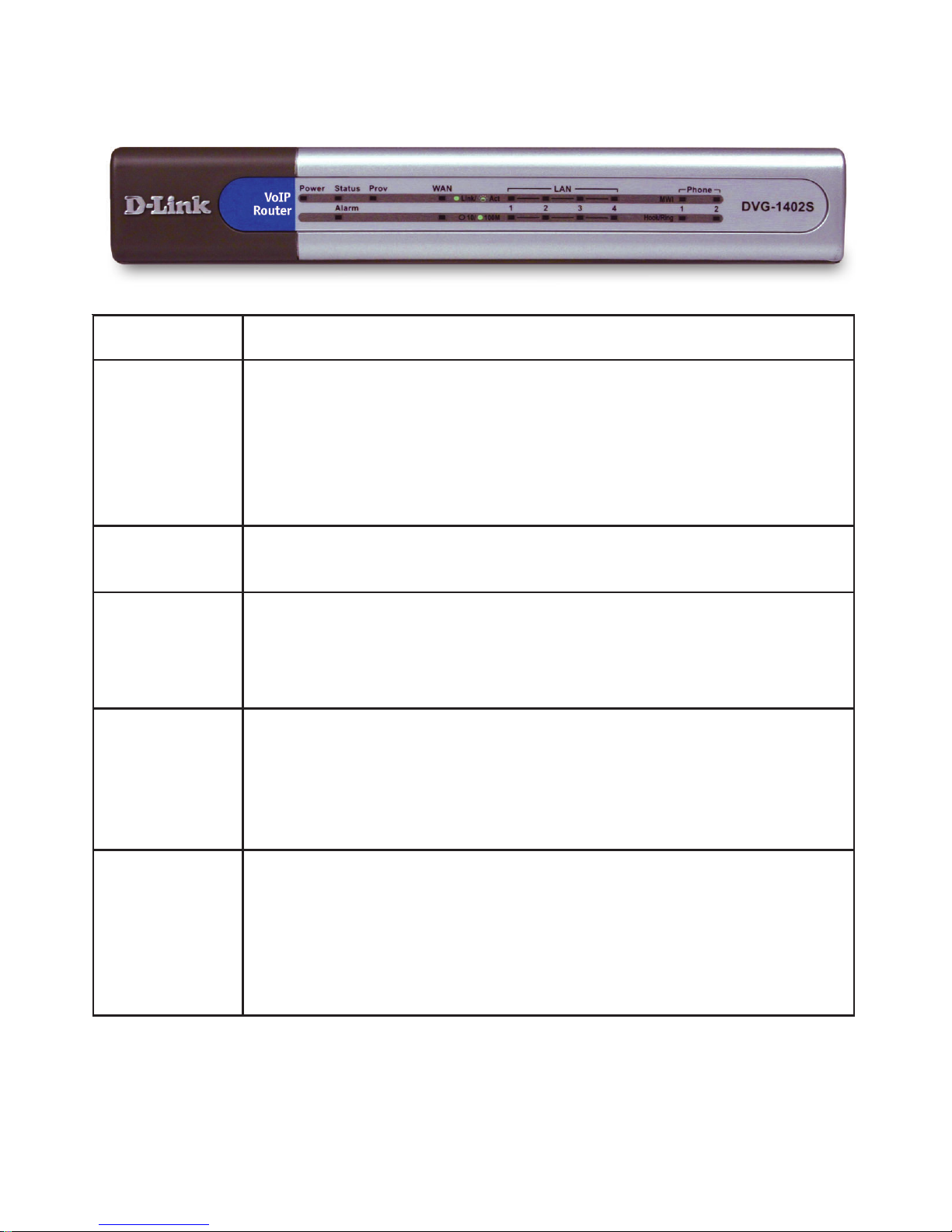

LEDS
DELrewoP .noderewopsitinuehtsetacidnI
mralA/sutatS ropugnitoob/tset-flesagnimrofrepnehwhsalflliwDELsutatSehT hsalflliwDELsutatSehT.redivorpecivresehthtiwgniretsigersi ehT.ecivresehthtiwdetcennocsimetsysehtnehwylwolsneerg ehT.sliafputoobrotset-flesehtfiderdilosthgillliwDELmralA tonnactubydaersimetsysehtnehwylwolsderhsalflliwDELmralA .ecivresehtmorftnemegdelwonkcanaeviecer
vorP noitcennocadehsilbatsesahecivedehtnehwsehsalfDELsihT .redivorpecivresruoymorfnoitazirohtuadeviecerdna
DELNAW
puthgillliwDEL001ro01ehtdehsilbatsesinoitcennocanehW DEL001ro01ehtfI.ytivitcaetatcidniotknilblliwDELehT.dilos elbacehtyfirev,detcennocsielbacanehwputhgiltonseod .noderewopsiecivedruoyerusekamdnanoitcennoc
sDELNAL puthgillliwDEL001ro01ehtdehsilbatsesinoitcennocanehW etatcidniotknilblliwsDELehT.tropetairporppaehtnodilos sielbacanehwputhgiltonseodDEL001ro01ehtfI.ytivitca ruoyerusekamdnasnoitcennocelbacehtyfirev,detcennoc .noderewoperasecived
sDELenohP ehtnoytivitcagnigniR/kooHdnasutatsPIoVehtsyalpsidDELsihT xaf/)s(enohpeletlamronruoyottcennocotdesusitahttropenohp .enilenohpeletralugerdnaenihcam :IWM aetacidniotsthgiL
.gnitiawsiliameciov :gniR/kooH enohpaotdetcennocenohpafI enohpanehW.dilosthgillliwDELsiht,esunirokoohehtffositrop .knilblliwrotacidnieht,gnignirsi

8
Getting Started

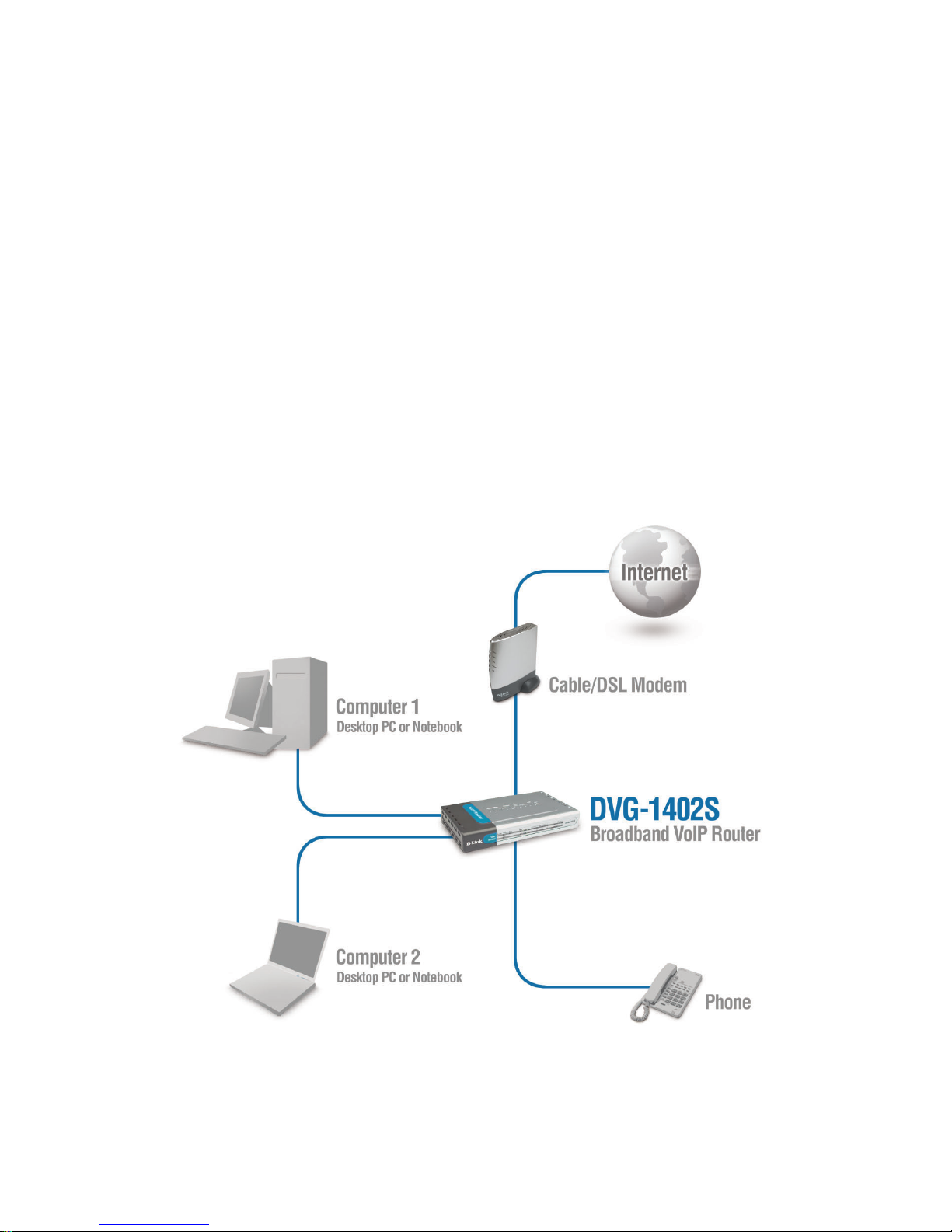

Connecting the DVG-1402S Directly to a
Modem and Computer
If your computer connects directly to a DSL or Cable modem and does not
connect to a router, follow the steps below to install your DVG-1402S.After the
stepsare completed, yoursetupshouldlook similar tothediagrambelow.Note:
This is the most common setup configuration for the DVG-1402S. If you do not
require the use of more than four LAN ports, you do not need an additional
router.

9

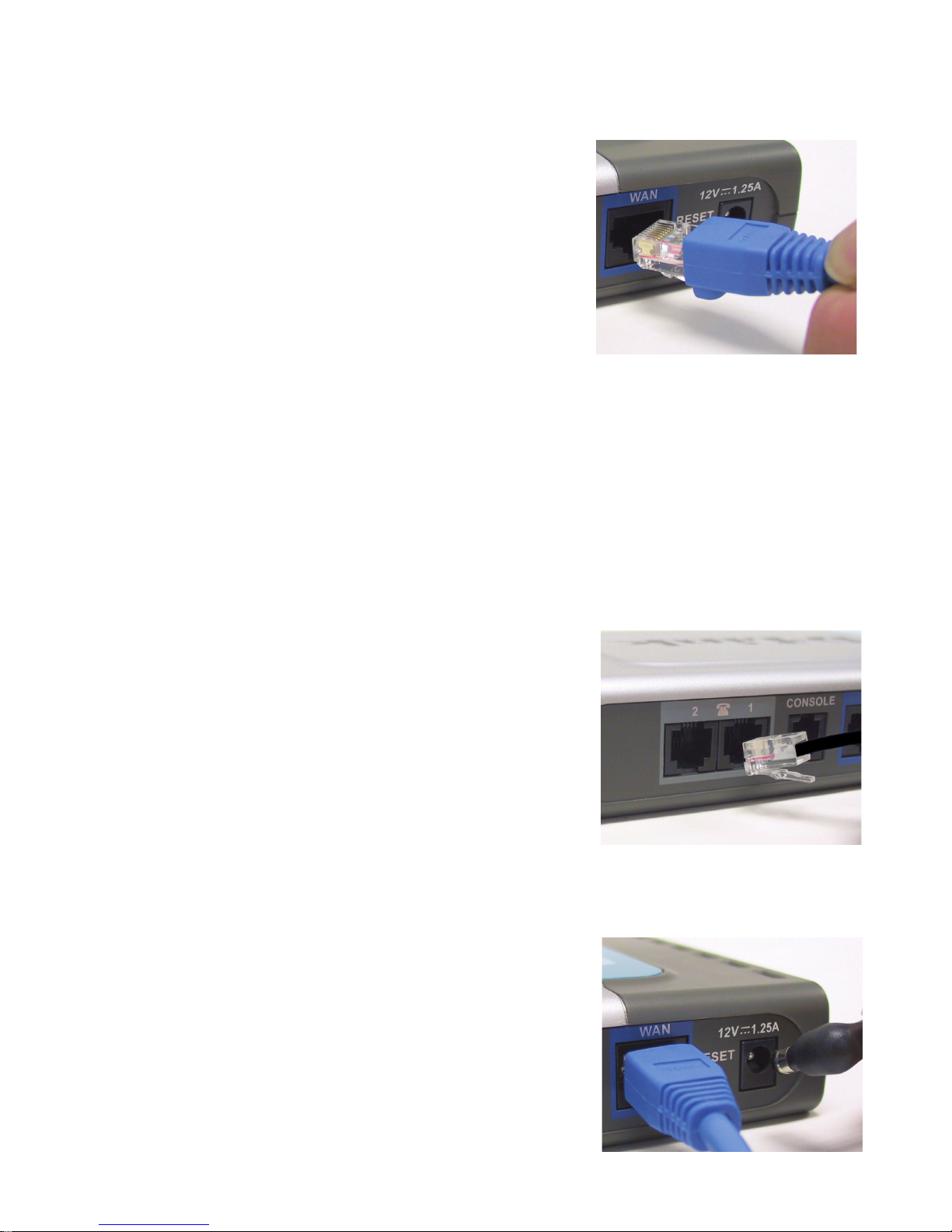

1. Turn off your Computer.
2. Disconnectthepower to yourCable/DSLModem (unplug orturnoff thepower
switch).
3. UnplugtheexistingEthernetcablethatisconnectedtoyourCable/DSLModem’s
LAN or Ethernet port. Leave the other end of this cable attached to your PC.
4. Plug the Ethernet cable connector that you just removed from the modem into
oneofthefourLANportsonthebackoftheDVG-1402S.Theotherendremains
attached to the PC.
Getting Started (continued)
5. Attach one end of the Ethernet Cable (blue) provided in this package to the
LAN or Ethernet Port on the Cable/DSL Modem.

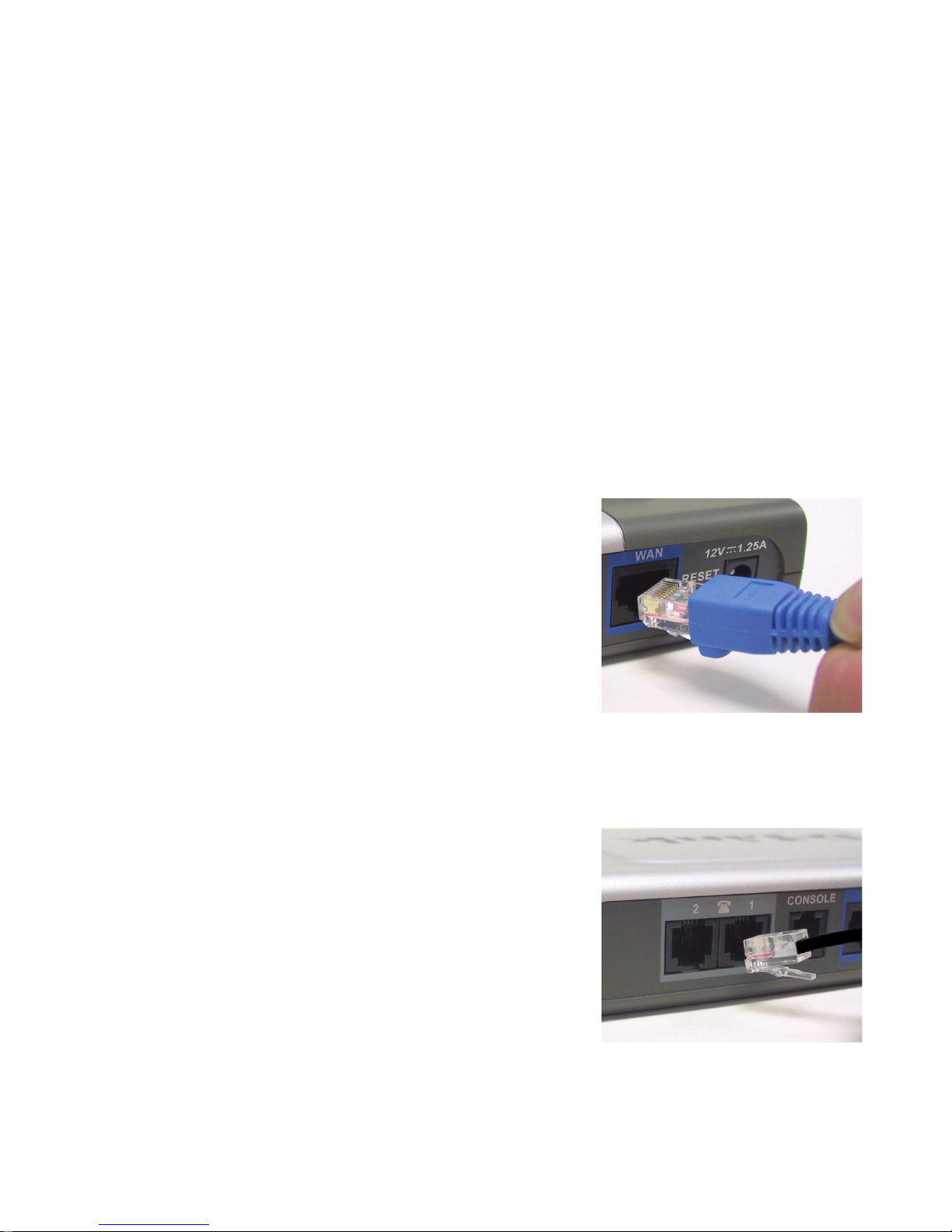

6. Attach the other end of the provided Ethernet
Cable to the WAN Port of the DVG-1402S.
7. Attach one end of the provided phone cable (black) to a standard analog
telephone.
8. Attach the other end of the phone cable to the phone port labeled 1 on the
rear panel of the DVG-1402S.
9. Reconnectthepower totheCable/DSL Modem(plugin orturnon thepower
switch).
Connecting the DVG-1402S Directly to a Modem and Computer

10

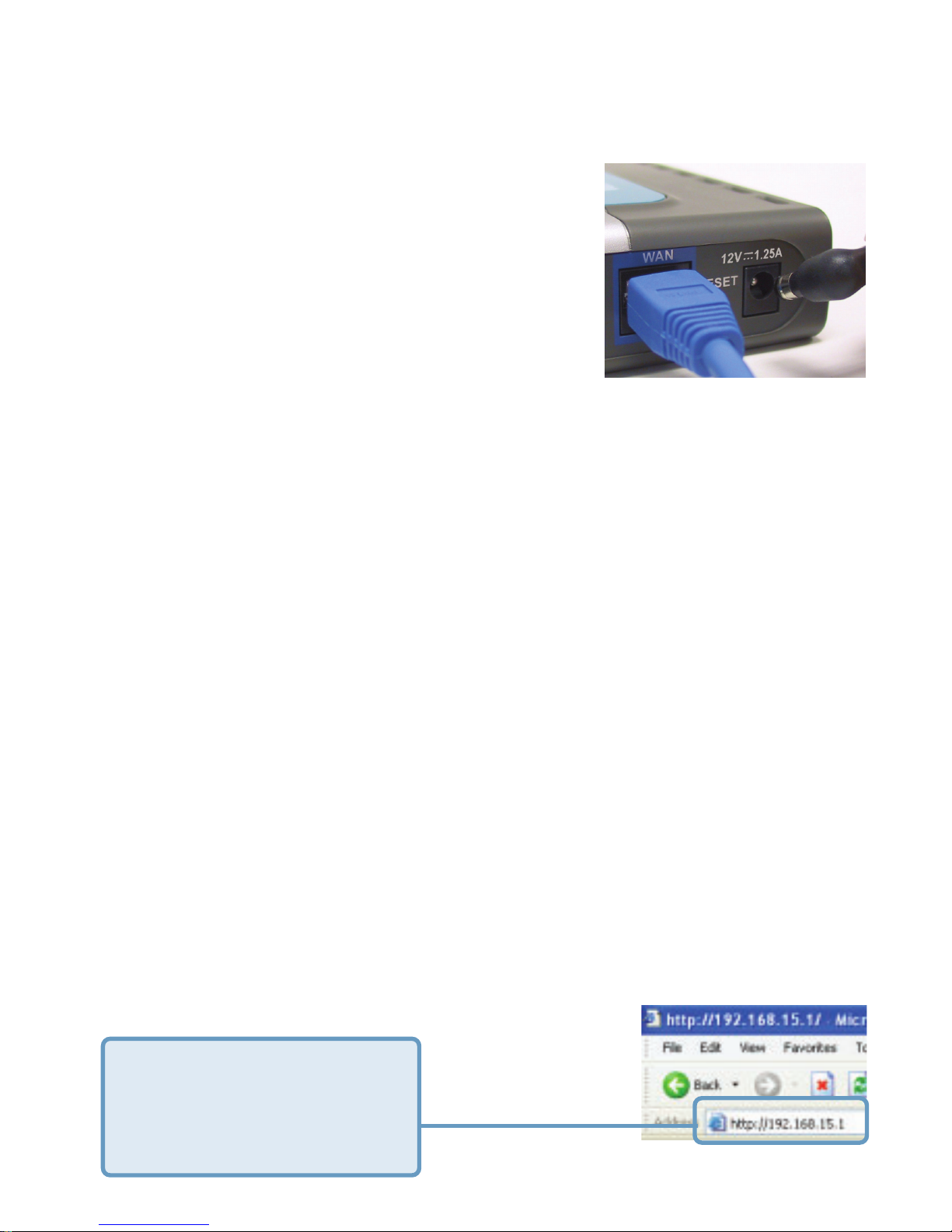

10. Connect the Power Adapter to the Power
Connecter on the DVG-1402S.
11. Connect the other end of the PowerAdapter to an available electrical outlet
(Wall Socket or Surge Protector).
12. Restart your PC.
Next you must configure your DVG-1402S. If you are using a DSL Modem with
a PPPoE or DHCP connection, you will need to continue on to the following
section. If you are using a Cable Modem, and your service provider requires a
MAC address, skip this section and refer to the section titled “MAC Cloning for
CableConnection.” Alsobesuretochangeyourcomputer’sIPsettings toDHCP
(to automatically be assigned an IP address from the DVG-1402S) regardless
of what type of internet connection you have. (Please refer to your NIC card’s
manualfordetailedinformation.) If your cable service providerdoesnotrequire
a MAC address, setup of the DVG-1402S with a modem and computer is
complete.
Getting Started (continued)
Connecting the DVG-1402S Directly to a Modem and Computer (No Router)
Configuring the DVG-1402S for DSL Connection
Some Internet Service providers use PPPoE as their method of connecting
clients. If you have a PPPoE connection, you must follow the steps below to
completetheconfigurationofyourhardware.Ifyouareunsureofyourconnection
type, please check with your Internet Service Provider.

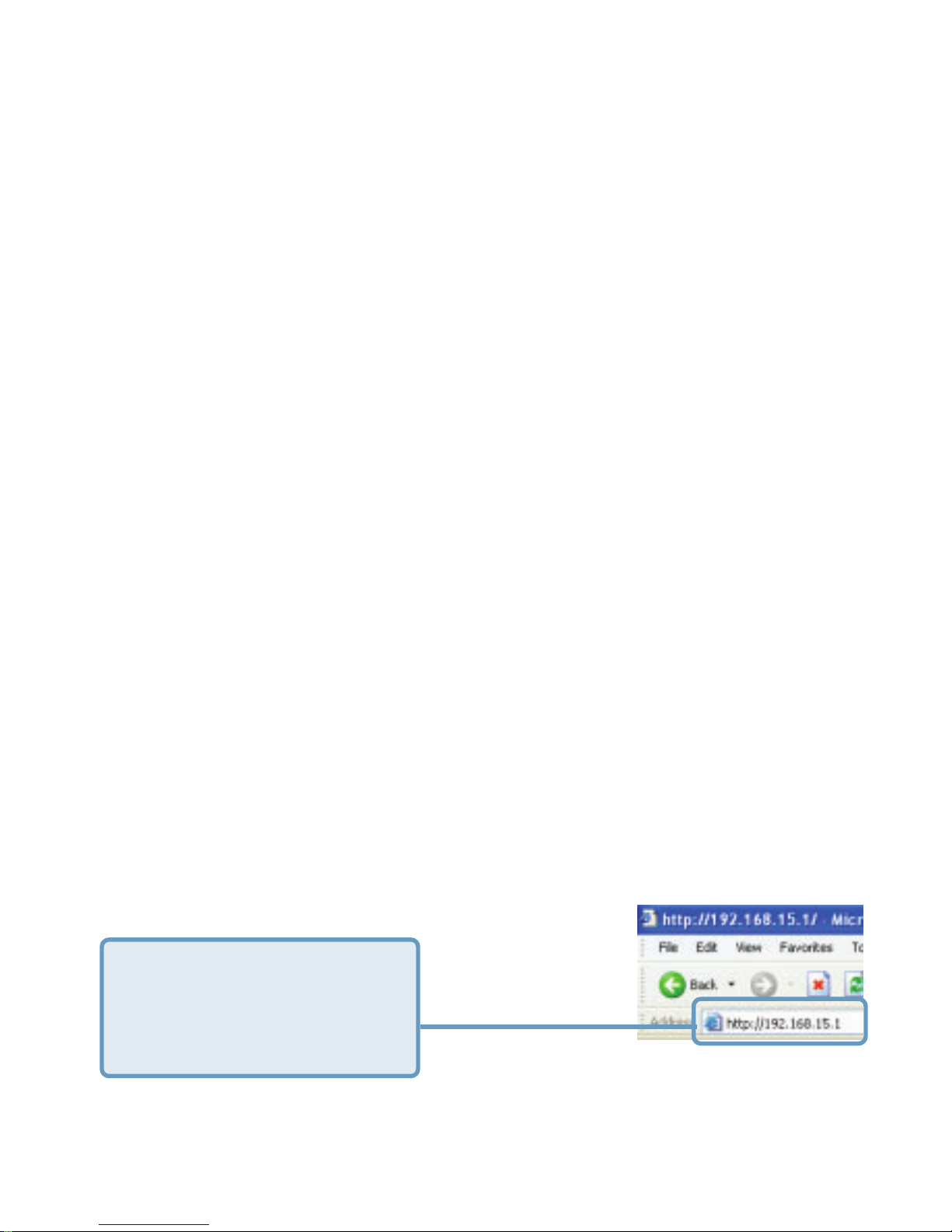

Open your Web browser and
type http://192.168.15.1 into
the URL address box. Press
the Enter or Return key.

11
Getting Started (continued)
Connecting the DVG-1402S Directly to a Modem and Computer (No Router)

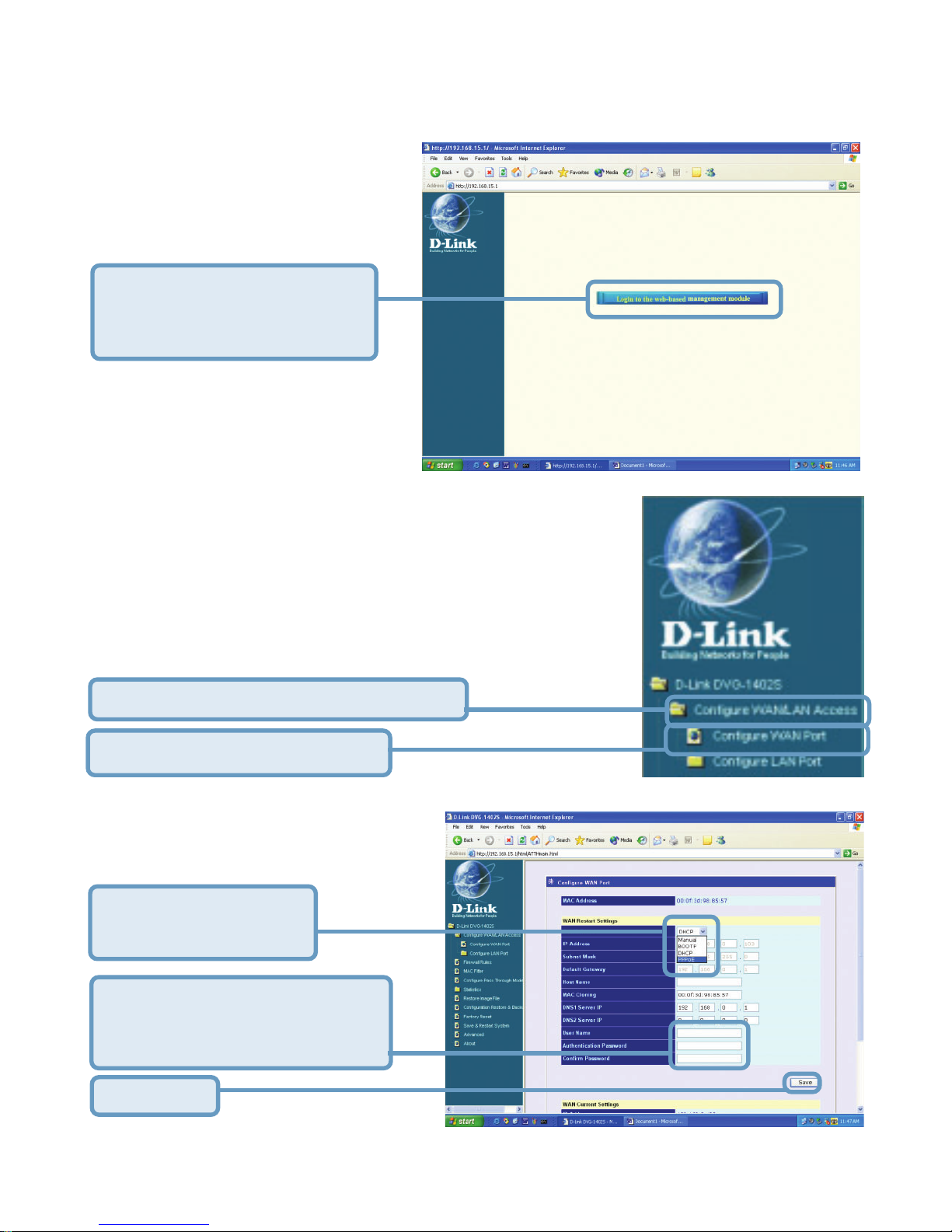

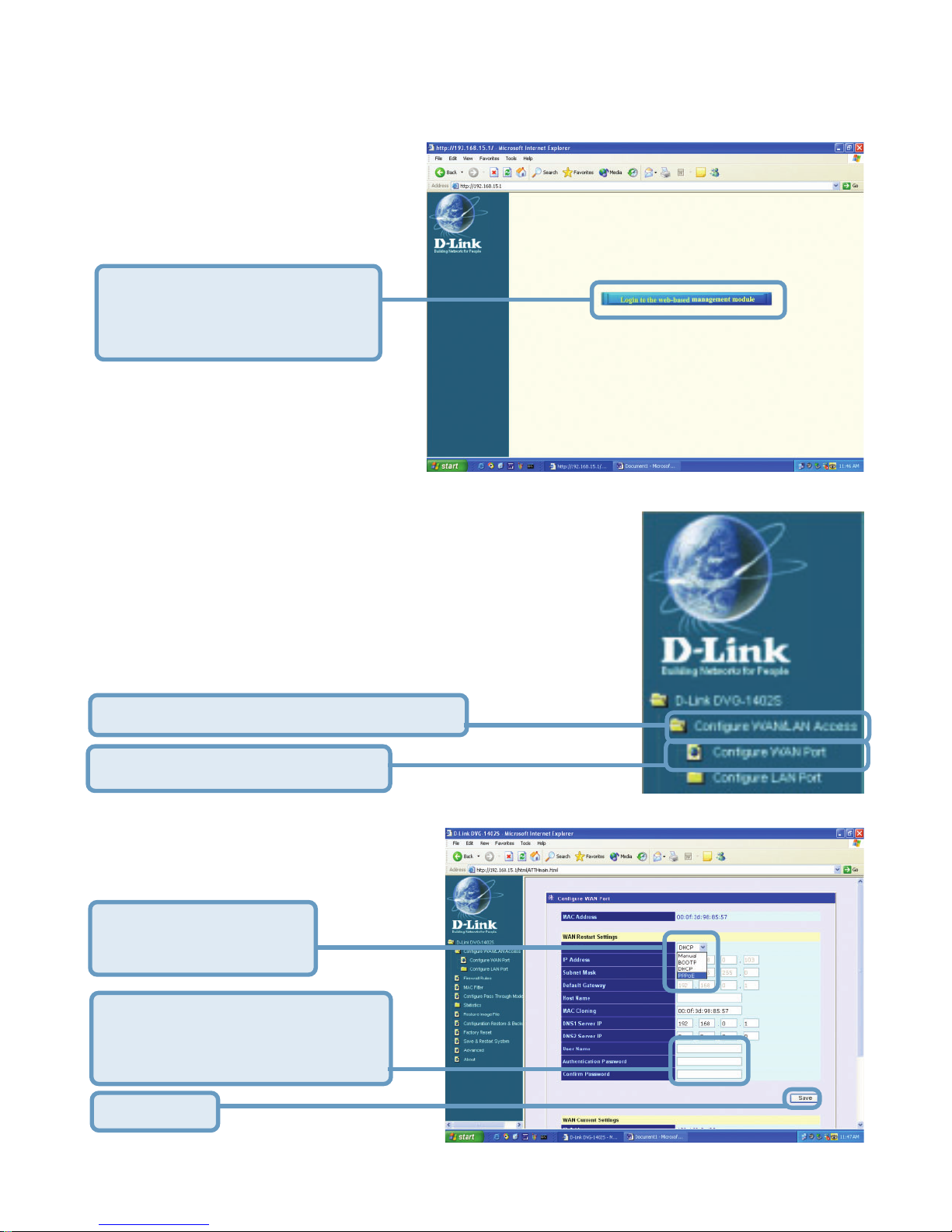

Enter your User Name and
Authentication Password
and Confirm Password.
Click Save.
Click Login to the web-
based management
module.
ClickConfigureWAN/LANAccess.
Click Configure WAN Port.
Select PPPoE from
the pull-down menu.

12

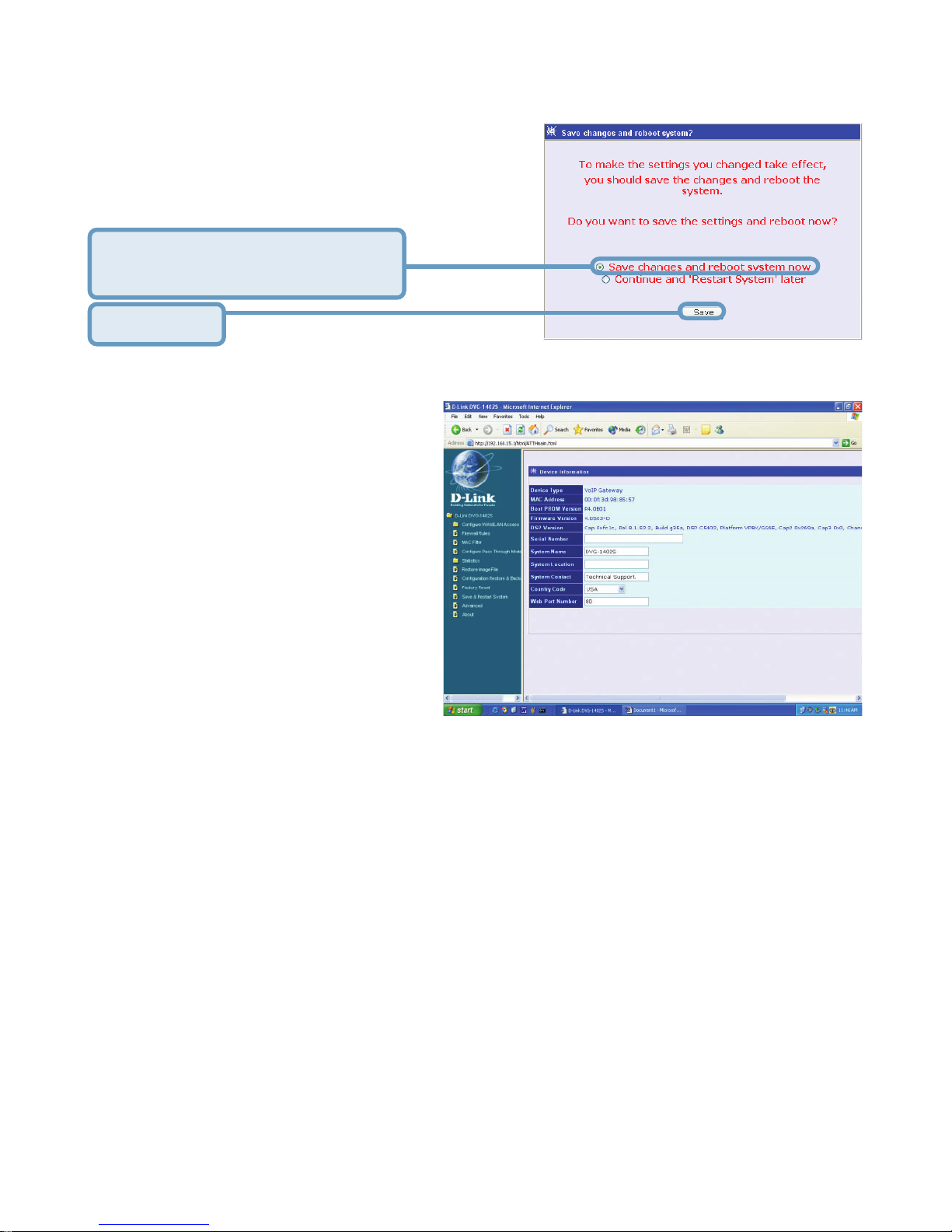

Select Save changes and
rebootsystemnow.
Click Save.
Oncetheunitrebootsyouwill
be returned to the main
screen. Check to see if the
status LED light is blinking
greenonthefrontpanelofthe
DVG-1402S.
Getting Started (continued)
Connecting the DVG-1402S Directly to a Modem and Computer (No Router)
Setup of the DVG-1402S with a DSL modem is now complete.

13
Getting Started (continued)
1. Turn off your Computer.
2. Disconnectthe powertotheCable/DSLModem(unplugor turnoff thepower
switch).
3. Disconnect the power to your existing router (unplug or turn off the power
switch).
4. Unplugthe existingCat5Ethernetcablefromthe“WAN”portofyourexisting
Router.
5. Leave the other end of this cable attached to your Cable/DSL Modem.

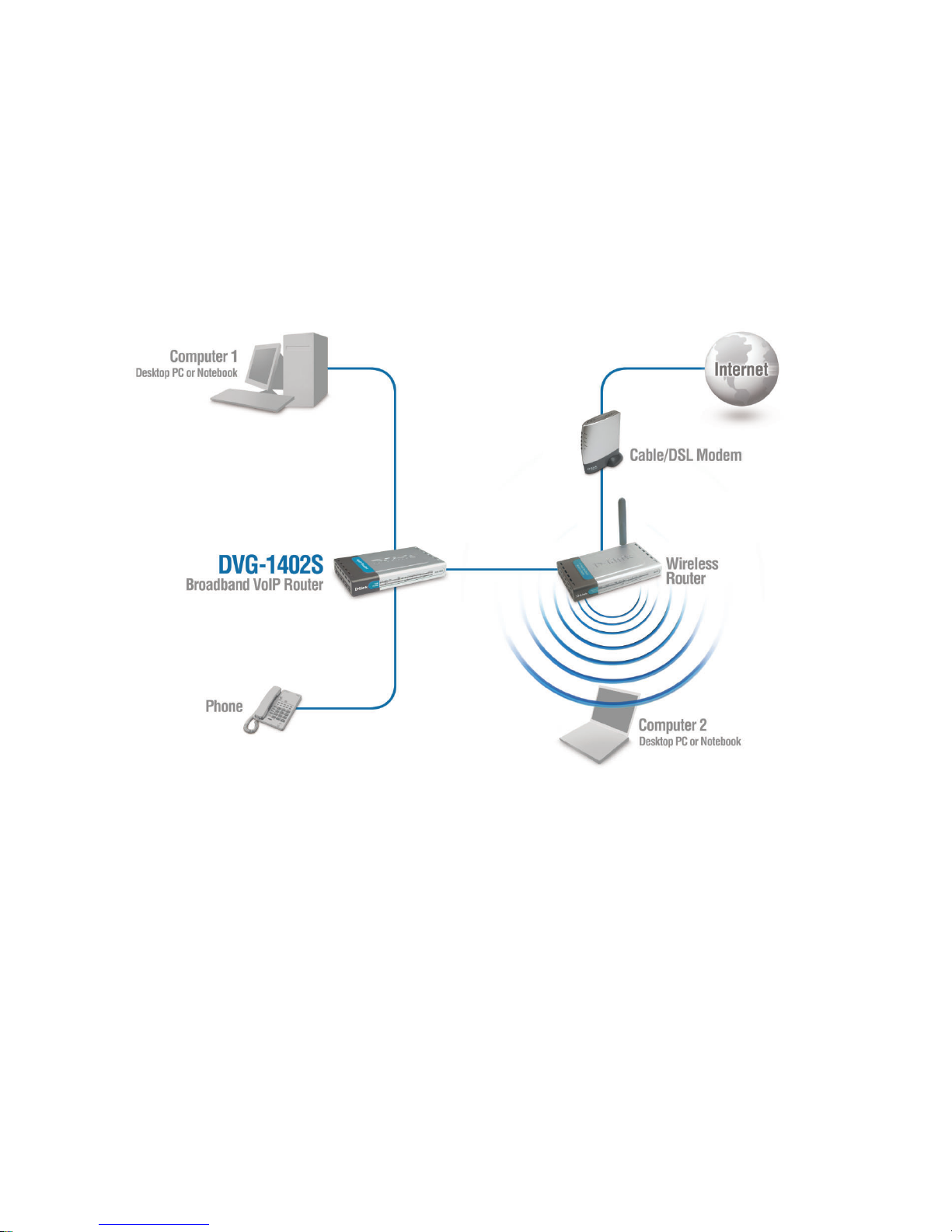

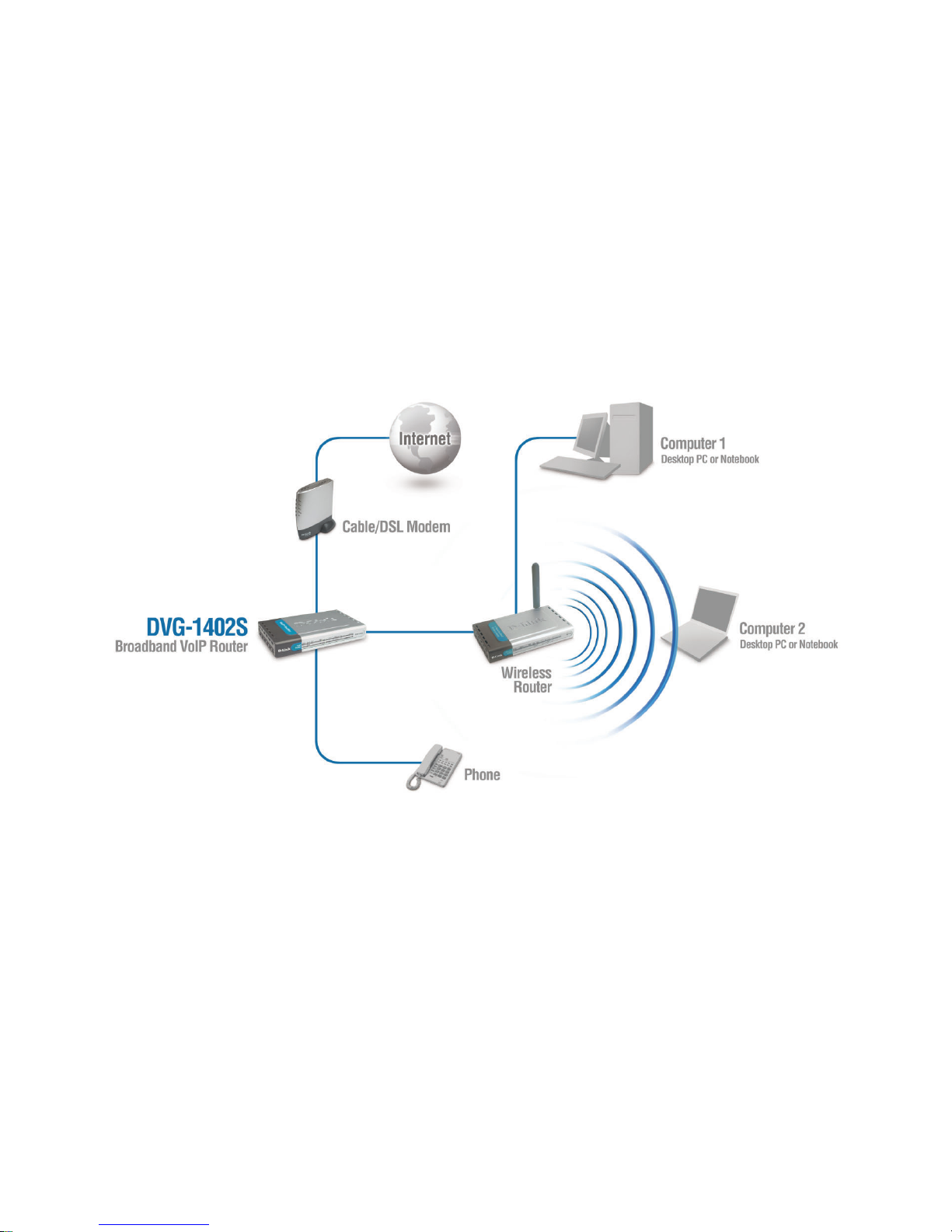

Connecting the DVG-1402S in Front of a
Router
If you wish to connect your DVG-1402S in front of a router, follow the steps
below. After the steps are completed, your setup should look similar to the
diagrambelow.Thisis therecommendedmethodforsetting upthe DVG-1402S.
This set up allows the DVG-1402S to prioritize voice traffic over data traffic,
thus providing you with greater consistency and call quality.

14

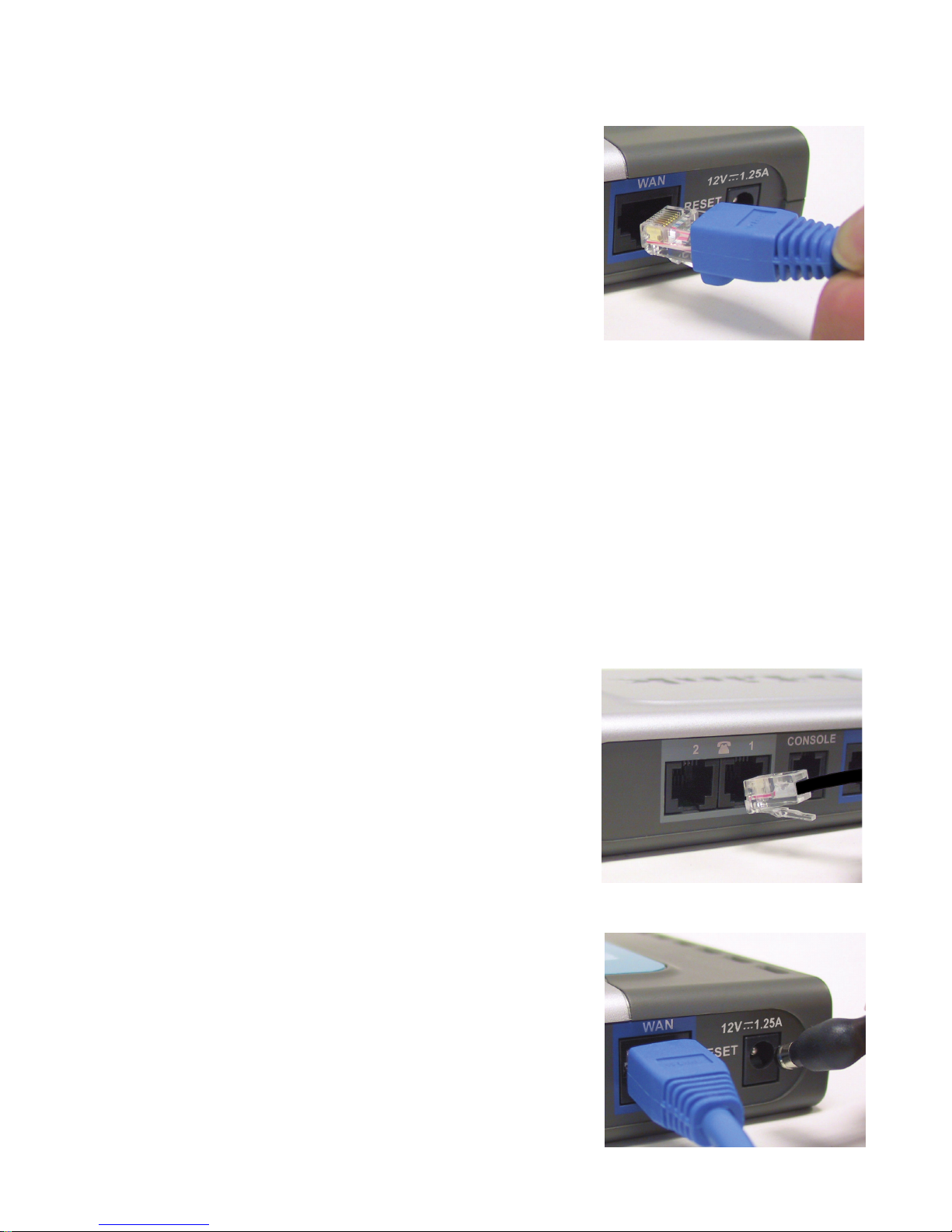

6. Plug the Cat 5 Ethernet Cable from the
Cable/DSL Modem into the “WAN” port of
the DVG-1402S.
7. Unpack the Cat 5 Ethernet Cable (blue) that came with the DVG-1402S.
8. Attach one end of this Cat 5 Ethernet Cable (blue) to one of the four “LAN”
Ports on the rear of the DVG-1402S.
9. Attachthe other end of this Cat5EthernetCable(blue) to the “WAN”portof
your existing router.
10. Be sure that the Cat 5 Ethernet Cable that is plugged into the LAN Port of
your existing router is still plugged into your PC.
11. Unpack the Telephone Cable (black) that
came with the DVG-1402S.
12. Attach one end of this cable to astandard analog telephone.
13. Attach the other end of this cable to phone port “1” on the rear of the DVG-
1402S.
14. Unpack the 12V DC Power Adapter that
came with your DVG-1402S.
15. Connect the Power Adapter to the Power
Connecter on the DVG-1402S.
16. Connecttheother end ofthePowerAdapter
toanavailableelectricaloutlet(WallSocket
or Surge Protector).
Getting Started (continued)
Connecting the DVG-1402S in Front of a Router

15
17. Reconnectthepower totheCable/DSL Modem (pluginor turnonthe power
switch).
18. Reconnect the power to your existing Router (plug in or turn on the power
switch).
19. Restart your PC.
Next you must configure your DVG-1402S and PC. If you are using a DSL
Modem with a PPPoE or DHCP connection, you will need to continue on to the
following section. If you are using a Cable Modem, and your service provider
requires a MAC address, skip this section and refer to the section titled “MAC
Cloning for Cable Connection.” Also be sure to change your computer’s IP
settings to DHCP (to automatically be assigned an IP address from the DVG-
1402S) regardless of what type of internet connection you have. (Please refer
toyour NICcard’smanualfordetailedinformation.)Ifyourcableservice provider
does not require a MAC address, setup of the DVG-1402S with a modem and
computer is complete.
Getting Started (continued)
Connecting the DVG-1402S in Front of a Router
Configuring the DVG-1402S for DSL Connection
Some Internet Service providers use PPPoE as their method of connecting
clients. If you have a PPPoE connection, you must follow the steps below to
completetheconfigurationofyourhardware.Ifyouareunsureofyourconnection
type, please check with your Internet Service Provider.
Open your Web browser and
typehttp://192.168.15.1 into
the URL address box. Press
the Enter or Return key.

16
Enter your User Name and
Authentication Password
and Confirm Password.
Click Save.
Click Login to the web-
based management
module.
ClickConfigureWAN/LANAccess.
Click Configure WAN Port.
Select PPPoE from
the pull-down menu.
Getting Started (continued)
Connecting the DVG-1402S in Front of a Router

17
Select Save changes and
rebootsystemnow.
Click Save.
Oncetheunitrebootsyouwill
be returned to the main
screen. Check to see if the
status LED light is blinking
greenonthefrontpanelofthe
DVG-1402S.
Getting Started (continued)
Setup of the DVG-1402S with a DSL modem is now complete.
Connecting the DVG-1402S in Front of a Router

18
Connecting the DVG-1402S Behind a Router
If you wish to connect your DVG-1402S behind a router, follow the steps below.
After the steps are completed, your setup should look similar to the diagram
below.
Getting Started (continued)
1. Turn off your Computer.
2. Disconnectthe powertotheCable/DSLModem(unplugor turnoff thepower
switch).
3. Disconnect the power to your existing router (unplug or turn off the power
switch).
4. Unplugtheexisting Cat5Ethernet cable fromthe“LAN” portofyourexisting
Router.
5. Leave the other end of this cable attached to your PC.

19
6. Plug the Cat 5 Ethernet Cable from the PC
into the “LAN” port of the DVG-1402S.
7. Unpack the Cat 5 Ethernet Cable (blue) that came with the DVG-1402S.
8. Attach one end of this Cat 5 Ethernet Cable (blue) to the “WAN” Port on the
rear of the DVG-1402S.
9. Attach the other end of this Cat 5 Ethernet Cable (blue) to the “LAN” port of
your existing router.
10. BesurethattheCat5 Ethernet Cable that is plugged into the“WAN” Port of
your existing router is still plugged into your Cable/DSL Modem.
11. Unpack the Telephone Cable (black) that came with the DVG-1402S.
12. Attach one end of this cable to astandard analog telephone.
13. Attach the other end of this cable to phone
port “1” on the rear of the DVG-1402S.
14. Unpack the 12V DC PowerAdapter that came with your DVG-1402S.
15. Connect the Power Adapter to the Power
Connecter on the DVG-1402S.
Getting Started (continued)
Connecting the DVG-1402S Behind a Router

20
16. Connect the other end of the PowerAdapter to an available electrical outlet
(Wall Socket or Surge Protector).
17. Reconnectthepower totheCable/DSL Modem (pluginor turnonthe power
switch).
18. Reconnect the power to your existing Router (plug in or turn on the power
switch).
19. Restart your PC.
By default the unit is already configured to work behind a router. Be sure to
change your computer’s IP settings to DHCP (to automatically be assigned an
IPaddressfrom theDVG-1402S)regardlessof whattypeofinternet connection
you have. (Please refer to your NIC card’s manual for detailed information.)
Installation behind a router is now complete.
Getting Started (continued)
Connecting the DVG-1402S Behind a Router
