D-Link AirPlus DI-714P+ User manual

This product can be set up using
any current web browser, i.e.,
Internet Explorer or Netscape
Navigator.
DI-714P+
2.4GHz Wireless Router
and Print Server
5V DC Power Adapter
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-714P+.10022002
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-714P+ Multimode Wireless Router. The DI-714P+ acts as a DHCP server
and will assign all the necessary IP address information on your network. See
Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-714P+ 2.4GHz Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.

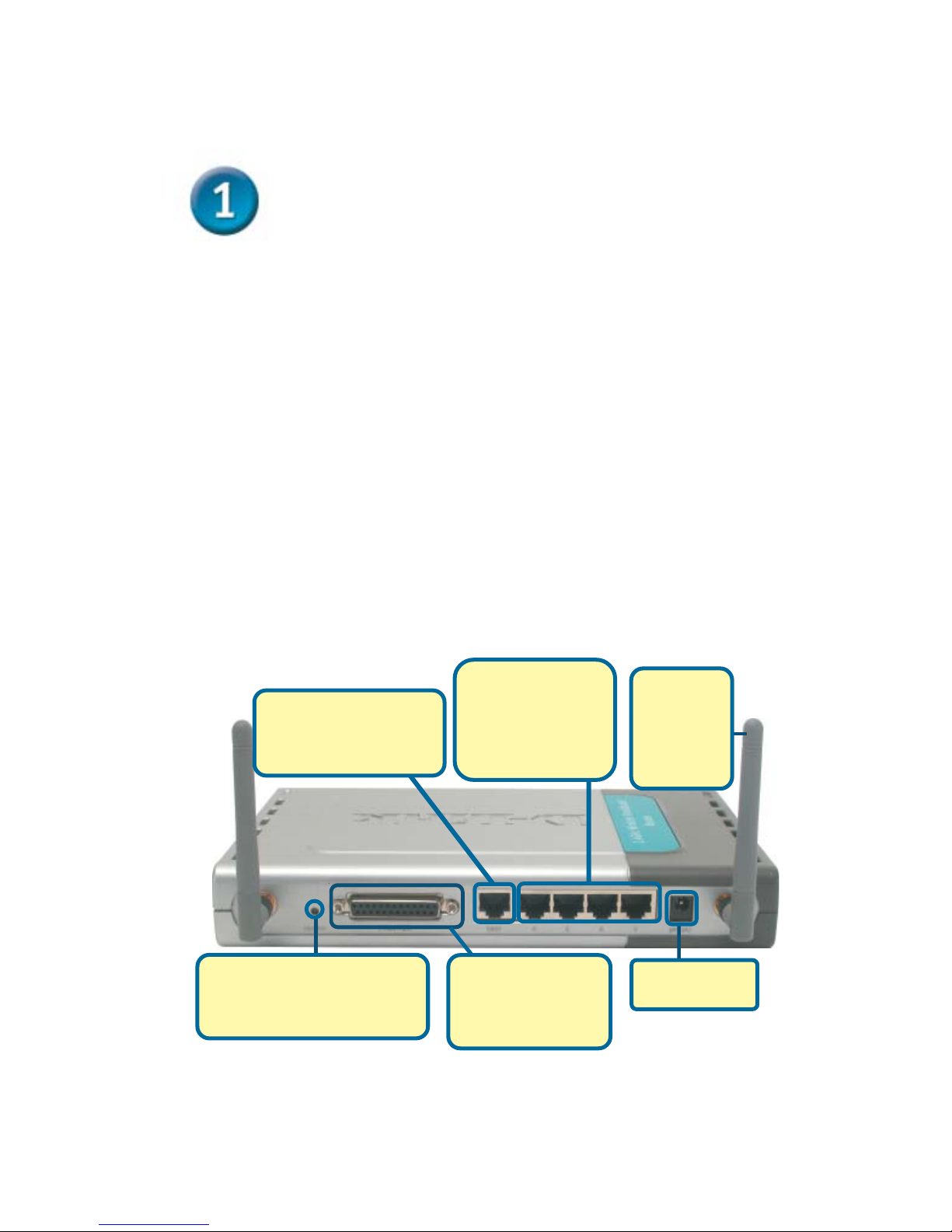

Connecting The DI-714P+ Wireless
Router To Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DI-714P+ and then plug the other end of the power adapter to a
wall outlet or power strip. The Power LED will turn ON to indicate
proper operation.
B. Insert one end of an Ethernet cable to the WAN port on the back panel
of the DI-714P+ and the other end to the Ethernet port located on your
Cable or DSL modem. The WAN LED light will illuminate to indicate
proper connection.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-
714P+ and an available Ethernet port on the network adapter in the
computer you will use to configure the DI-714P+. The LED light for LAN
Port 1 will illuminate to indicate proper connection. (Note: The LAN
Ports on the DI-714P+ are Auto-MDI/MDIX. Meaning you can use a
straight-through or crossover-cable to the LAN Ports.
D. Computers equipped with 802.11b wireless adapters will be able to
connect to the DI-714P+. The DWL-650+ AirPlus Wireless Cardbus
Adapter and the DWL-520+ AirPlus Wireless PCI Adapter will be able
to connect out of the box with the router using their default wireless
settings.
E. The parallel port on the DI-714P+ is used to connect printers only.
Connect one end of the printer cable to your printer and the other end
to the DI-714P+.
A. Receptor for
Power Adapter.
E. Printer Port
You can connect a
Printer to the
Parallel Port here.
Reset Button
Pressing this button restores
the Router to its original factory
default settings.
B. WAN PORT
This is for the connection
of an Ethernet cable to
the Cable or DSL modem
C. LAN PORTS
These are the
connections for
Ethernet cables to
Ethernet enabled
computers.
D. Antennas
Used to
wirelessly
connect to
802.11b
adapters.

Restart Your Computer
Connecting Additional Computers To
The DI-714P+
Using additional Ethernet (CAT5 UTP) cables, connect your
Ethernet-equipped computers to the remaining Ethernet LAN ports
on the back panel of the DI-714P+

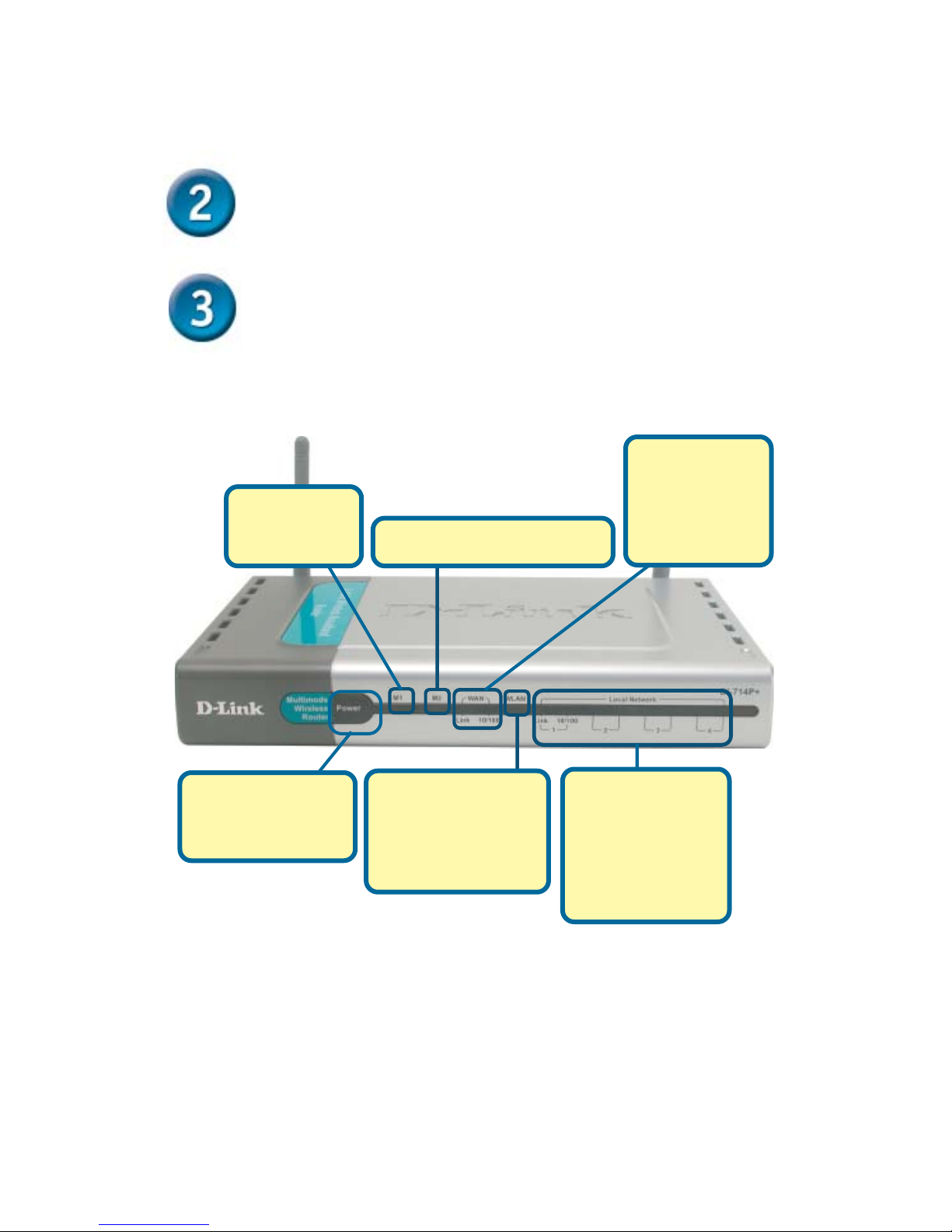

M1 LED – a solid
light indicates
that the DI-714P+
is ready.
M2 LED – A solid light indicates
that the unit is defective.
WLAN LED – a solid
light indicates that the
wireless segment is
ready. This LED blinks
during wireless data
transmission.
WAN LED – a
solid light indicates
connection on the
WAN port. This
LED blinks during
data transmission.
LOCAL NETWORK
LEDs – a solid light
on the port indicates a
connection to an
Ethernet enabled
computer on ports 1-4.
This LED blinks during
data transmission.
POWER LED – a solid
light indicates a proper
connection to the
power supply.

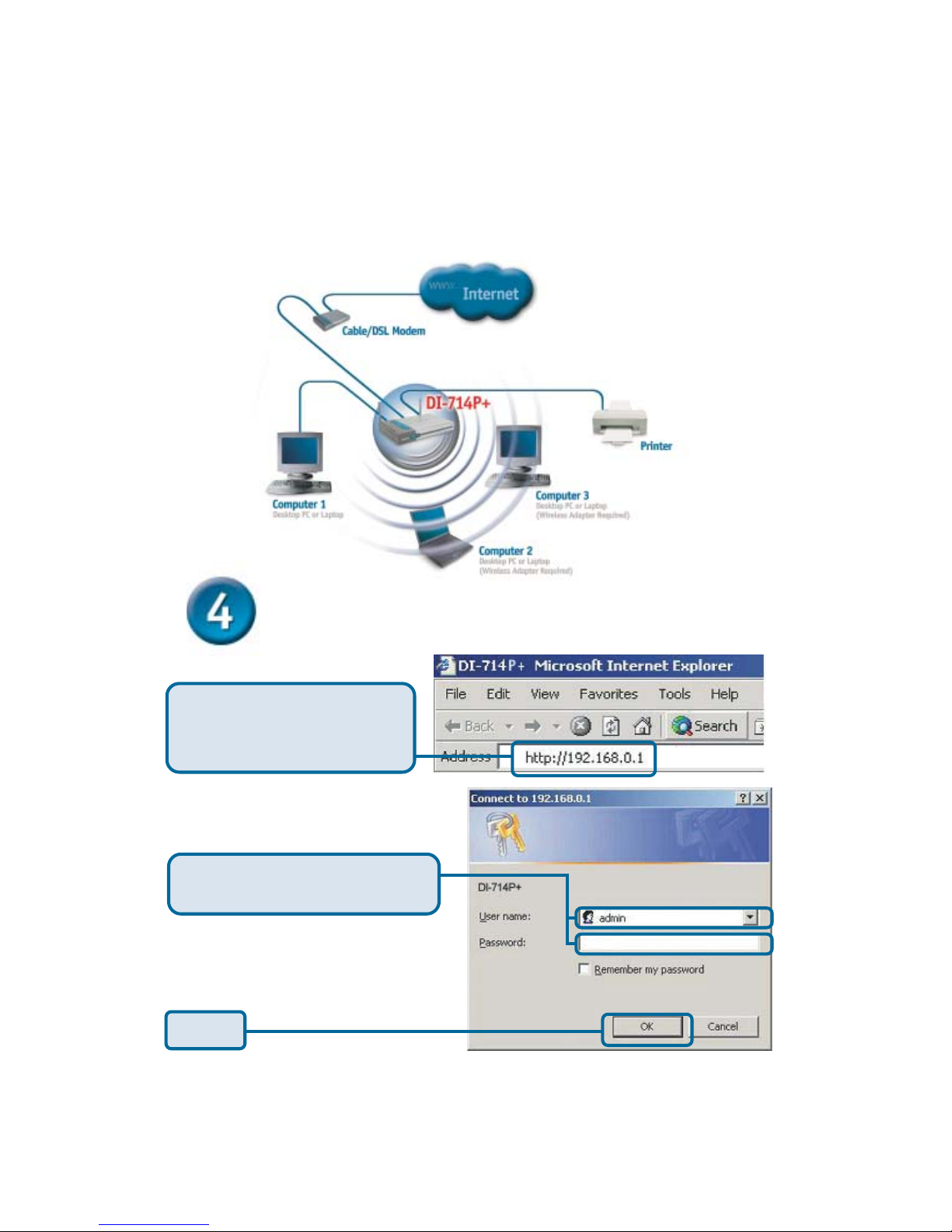

When you have completed the steps in this Quick Installation
Guide, your connected network should look similar to this:
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK

The Setup Wizard (continued)

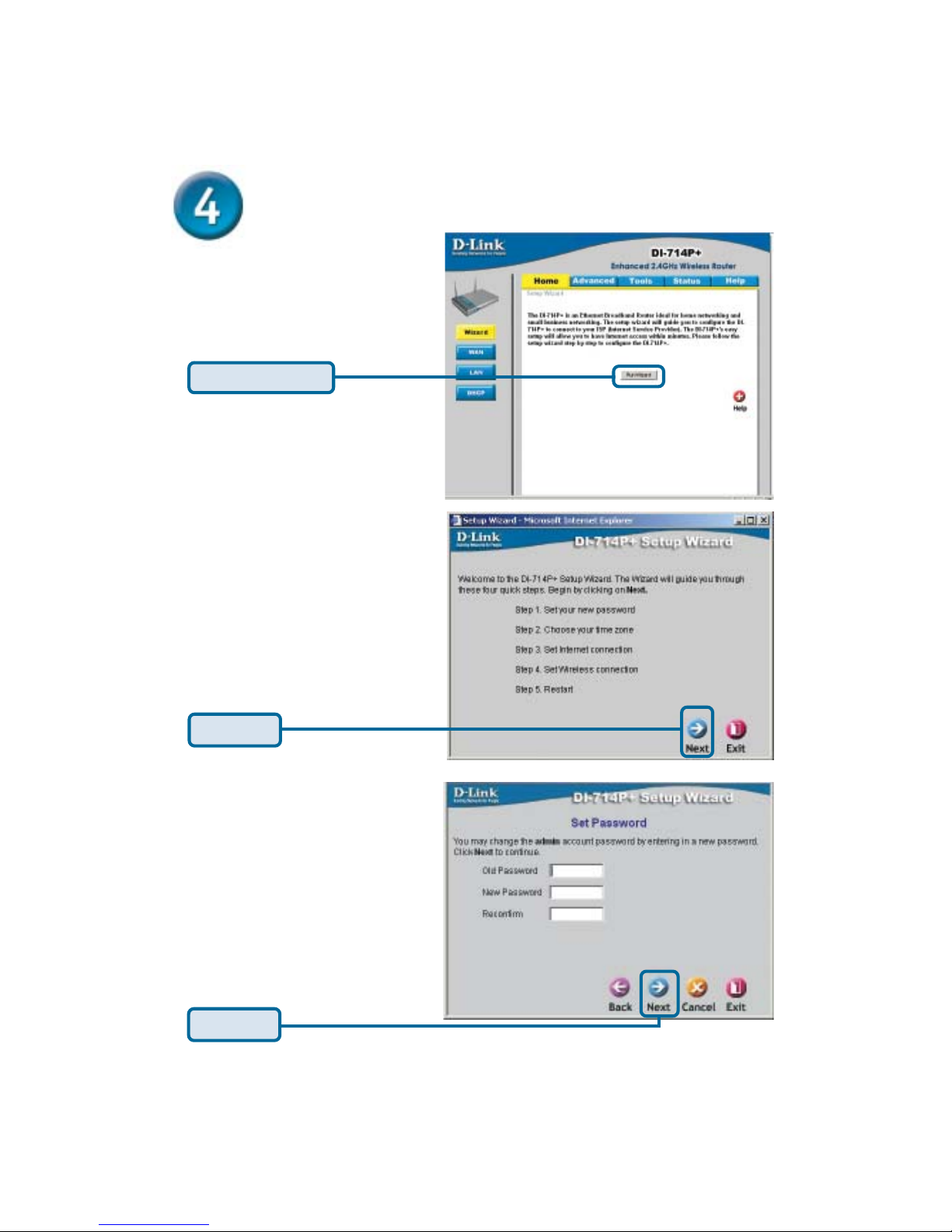

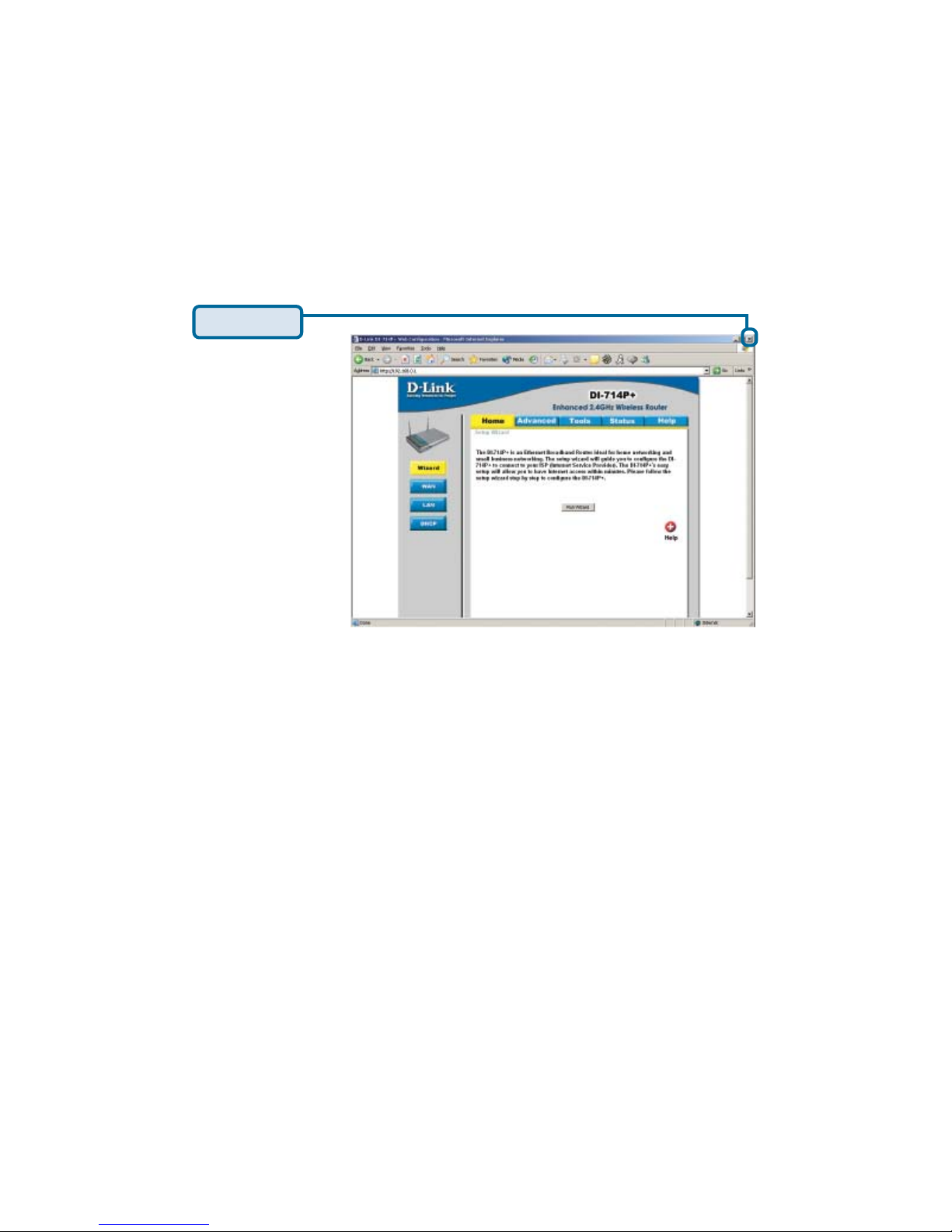

Once you have logged in, the
Home screen will appear.
You will see the following screens
Set up your new password.
You have the option to
establish a password.
Click Run Wizard
Click Next
Click Next

The Setup Wizard (continued)

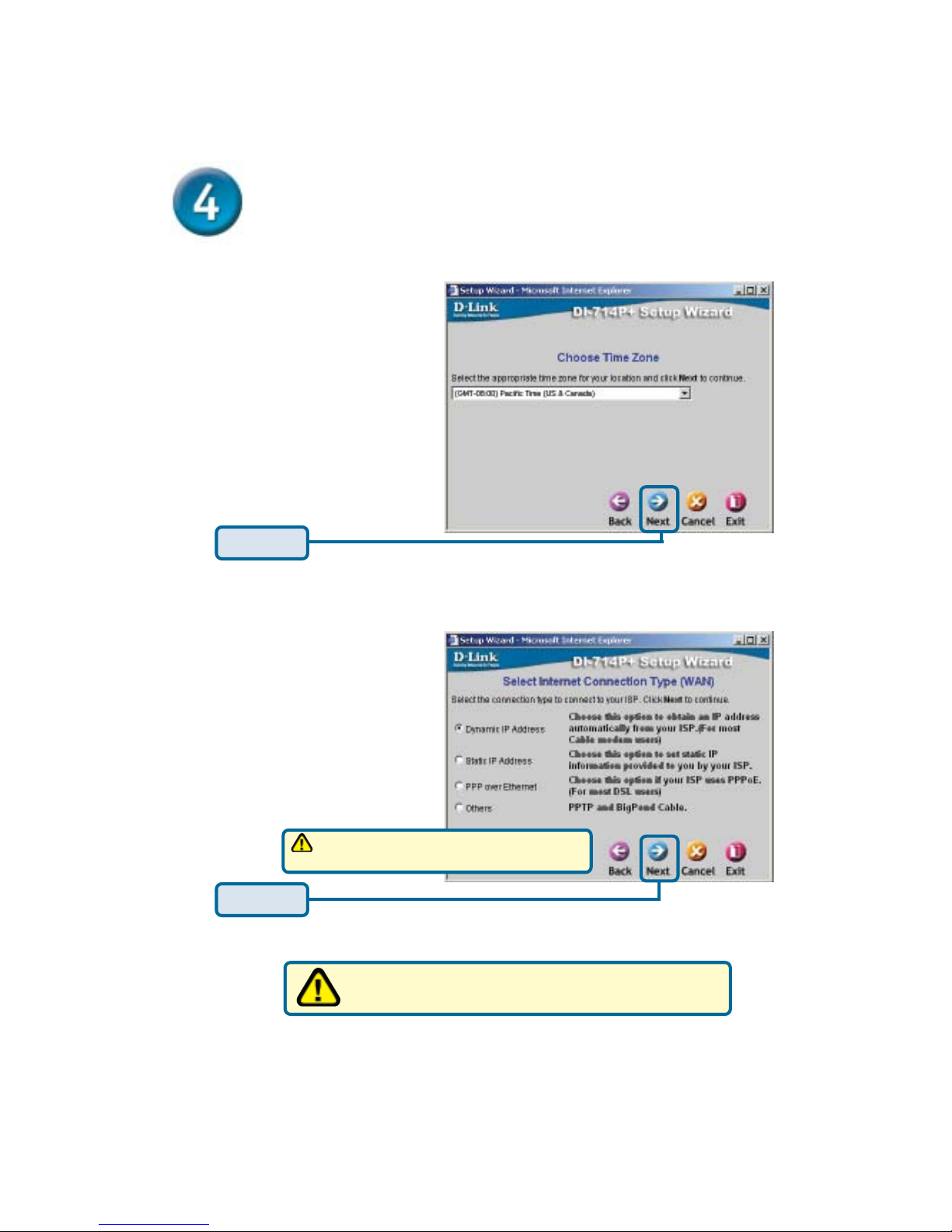

Select your Internet
Connection. You will be
prompted to select the
type of Internet connection
for your router.
Click Next
Choose your time zone from
the drop down list.
Click Next
If you are unsure of which setting to select,
please contact your Internet Service Provider.
Select Others only if you use PPTP in
Europe or Big Pond Cable in Australia.

The Setup Wizard (continued)

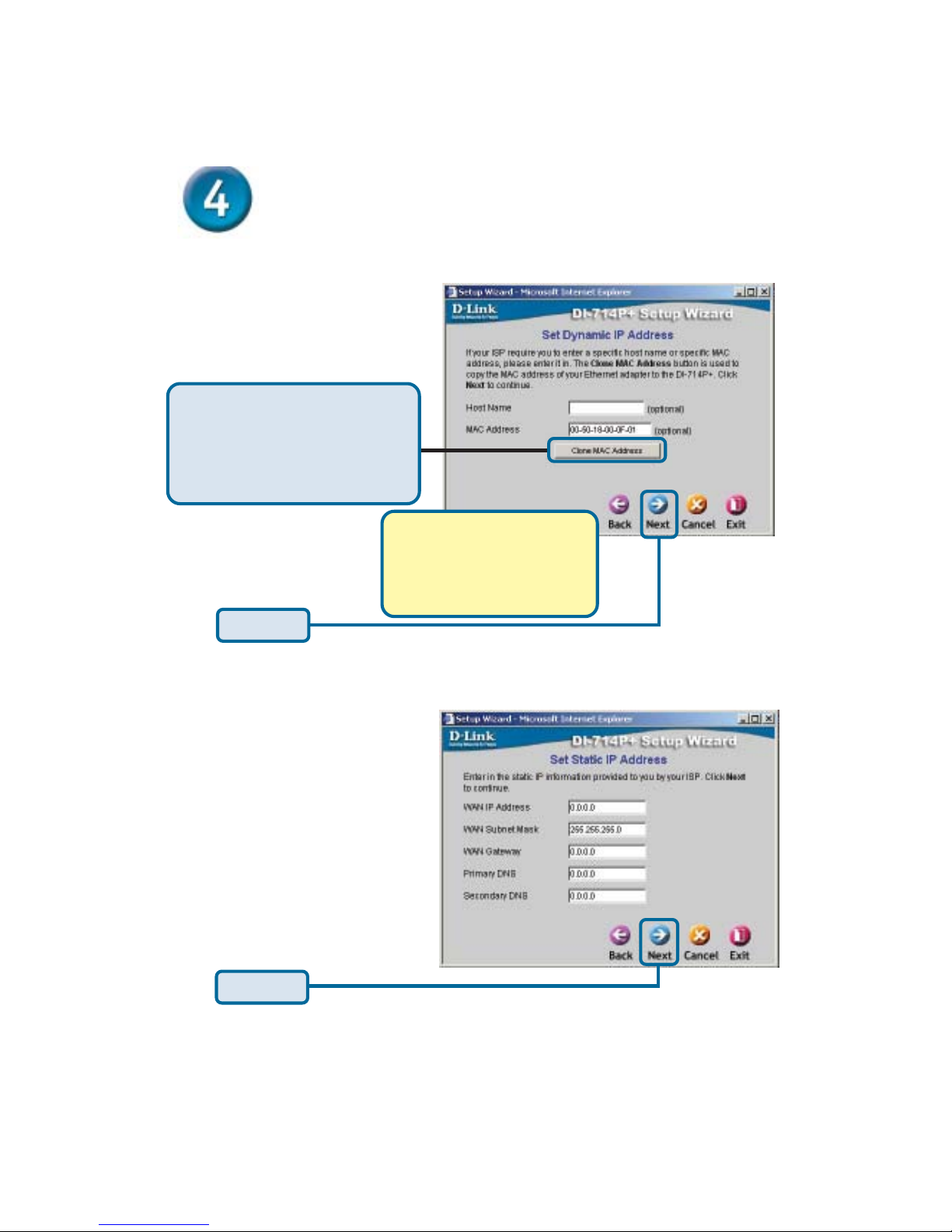

If your ISP requires a Static
IP Address, and this option
is selected, then this
screen will appear:
Enter the IP address informa-
tion originally provided to you
by your ISP. You will need to
complete all the required
fields.
Click Next
If you selected Dynamic IP
Address, this screen will
appear: (Used mainly for
Cable Internet service.)
What is a MAC address? Each
network adapter has a discrete
Media Access Control (MAC)
address. Note that some computers
and peripherals may already
include built-in network adapters.
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network
adapter in your computer. You can
also manually type in the MAC
address.
Click Next

The Setup Wizard (continued)

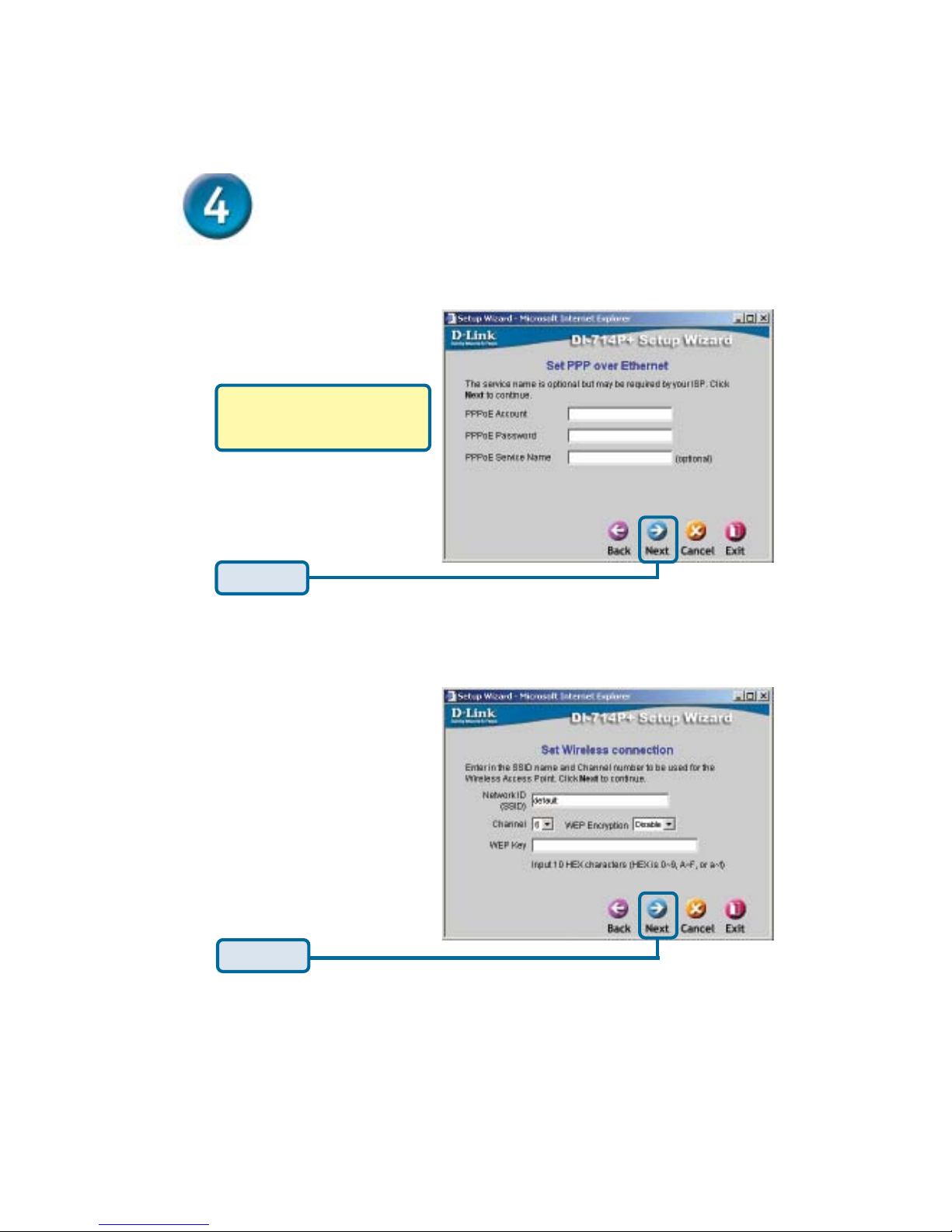

If your ISP uses PPPoE
(Point-to-Point Protocol over
Ethernet), and this option is
selected, then this screen will
appear: (Used mainly for DSL
Internet service.)

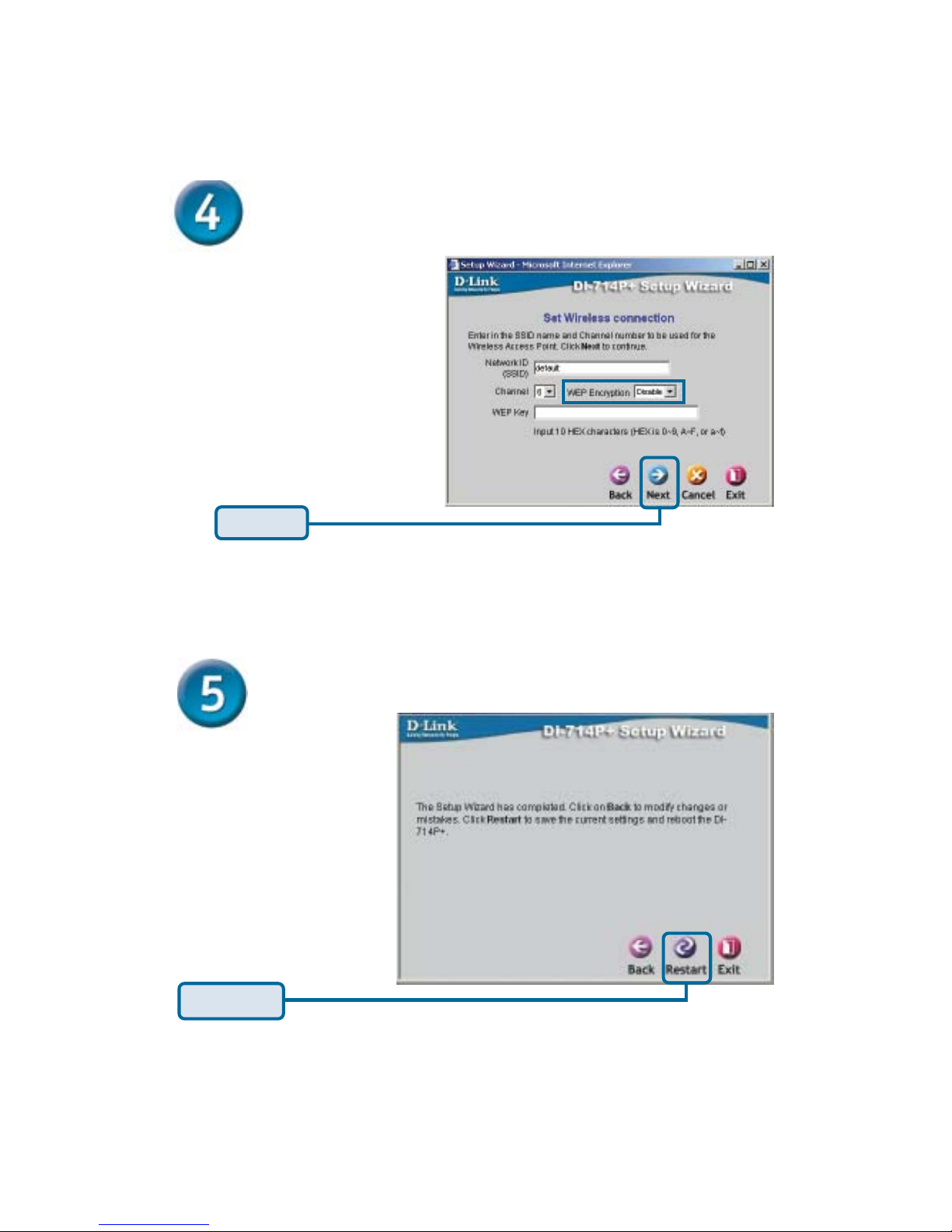

Wireless Setup.
The default wireless settings
for your 802.11b wireless
network are:
SSID = default
Channel = 6
You can change these settings
to match an existing wireless
network.
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and
password provided to you by
your ISP.
Click Next
Click Next

Your Setup is Complete!
Click Restart
If you wish to use encryption
for your 802.11b network, the
DI-714P+ is capable of three
levels of wireless encryption -
64-bit, 128-bit, and 256-bit. By
default the encryption is
disabled. You can change
the encryption settings for
more secure wireless commu-
nication.
Click Next
The Setup Wizard (continued)

Test Internet Connection.
You will be returned to the Home tab.
For additional settings
or information, refer to
the Advanced, Tools,
or Status tabs on the
web-management
interface; or to the
Manual located on the
CD.
Then relaunch your
Web browser (i.e.,
Internet Explorer or
Netscape Navigator),
to link to your favorite
Web site to test your
Internet connection.
Click to Exit

APPENDIX

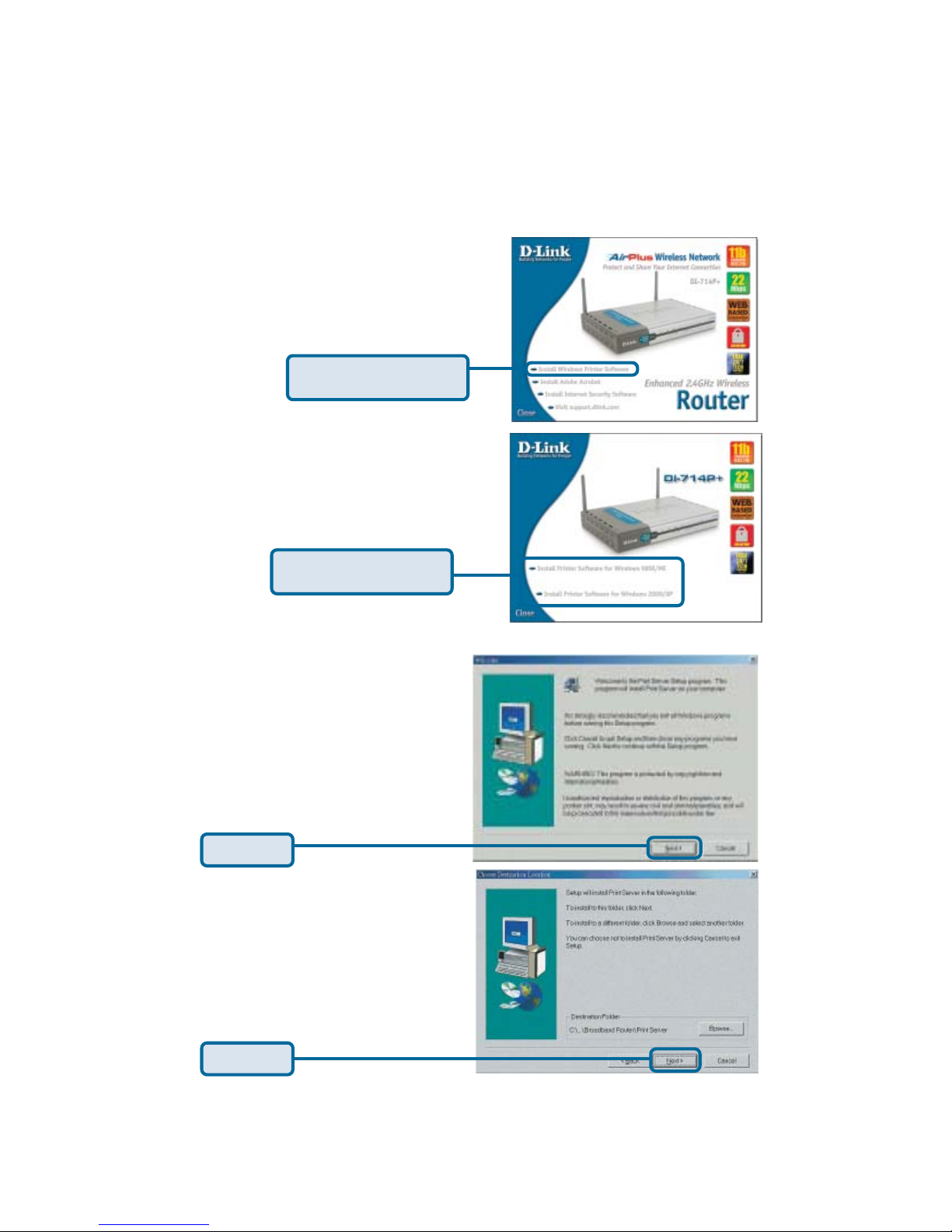

Insert the installation CD-ROM into the
CD-ROM drive. The following window
will be shown automatically. If it is not,
please run “autorun.exe” on the CD-
ROM.
Installing the Print Server Software
Wait until the following Welcome
dialog appears.
Select the destination folder.
Click Next
Click Install Windows
Printer Software
Click Next
Select your Windows
operating system

After rebooting your computer, the software installation procedure is finished.
Installing the Print Server Software (continued)
Configuring on Windows 98se/Me Platforms
After you finish the software installation
procedure, your computer will be capable
of network printing provided by the DI-
714P+. For convenience, we call the
printer connected to the printer port of the
DI-714P+ a printer server. On a Windows
95/98 platform, open the Printers window
in the My Computer menu.
Click OK
Now, you can configure the print server of
the DI-714P+:
Find out the corresponding icon of your
printer server, for example, the HP
LaserJet 6L. Right click on that icon,
and then select Properties.
The following screen appears:
Then, the setup program will begin
to install the programs into the
destination folder.

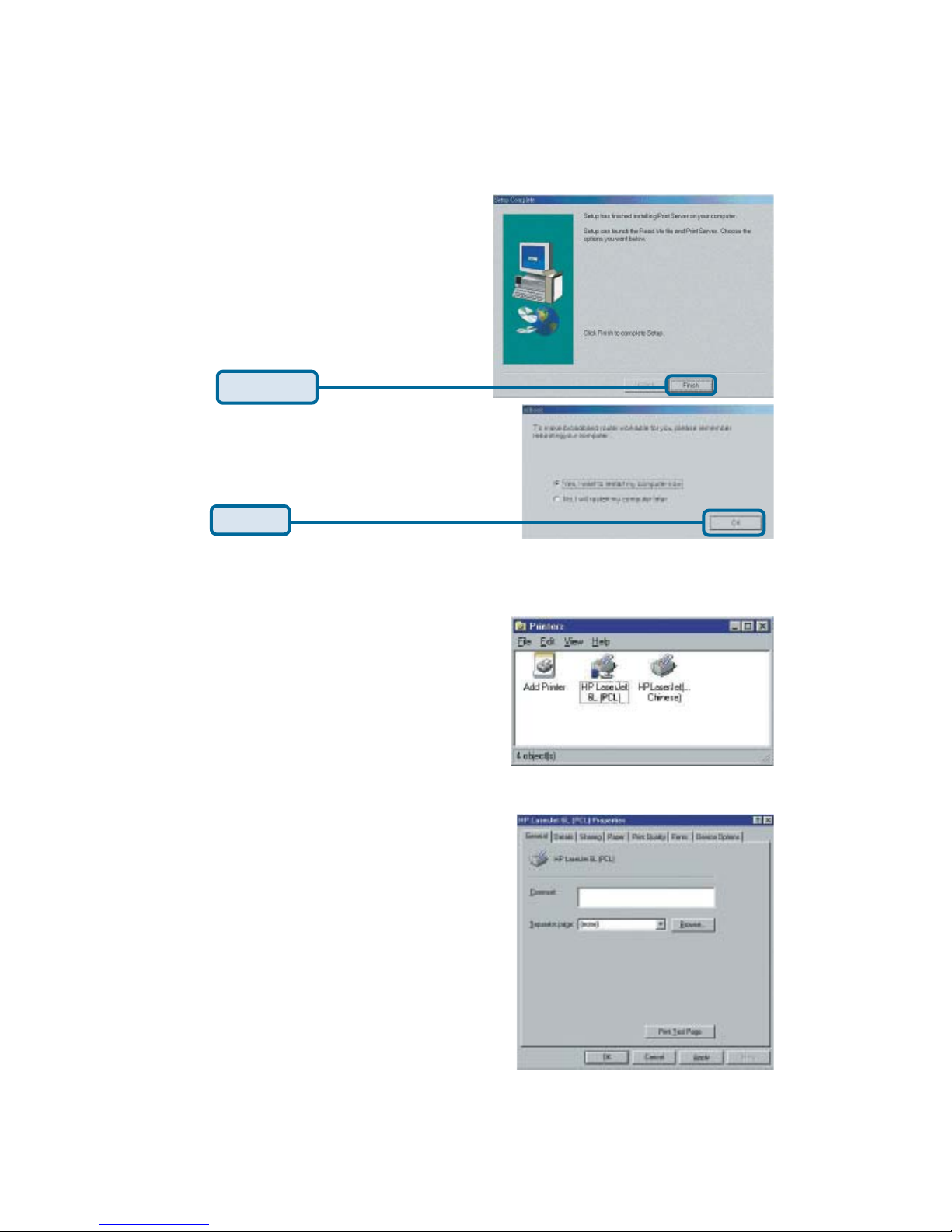

When the following window is
displayed.
Click Finish

Choose the “PRTmate: (All-in-1)”
from the list attached at the Print
To item. Be sure that the Printer
Driver item is configured to the
correct driver of your printer server.
Type in the IP address of the
DI-714P+.
Configuring on Windows 2000/XP Platforms
The configuration procedure for a
Windows 2000/XP platform is similar to
that of Windows 95/98 except the
screen of printer Properties:
(Note: Screen shots are taken in Windows 2000,
similar screens will appear in Windows XP.)
Click Port
Click Configure Port
Type in the IP address of the
DI-714P+.

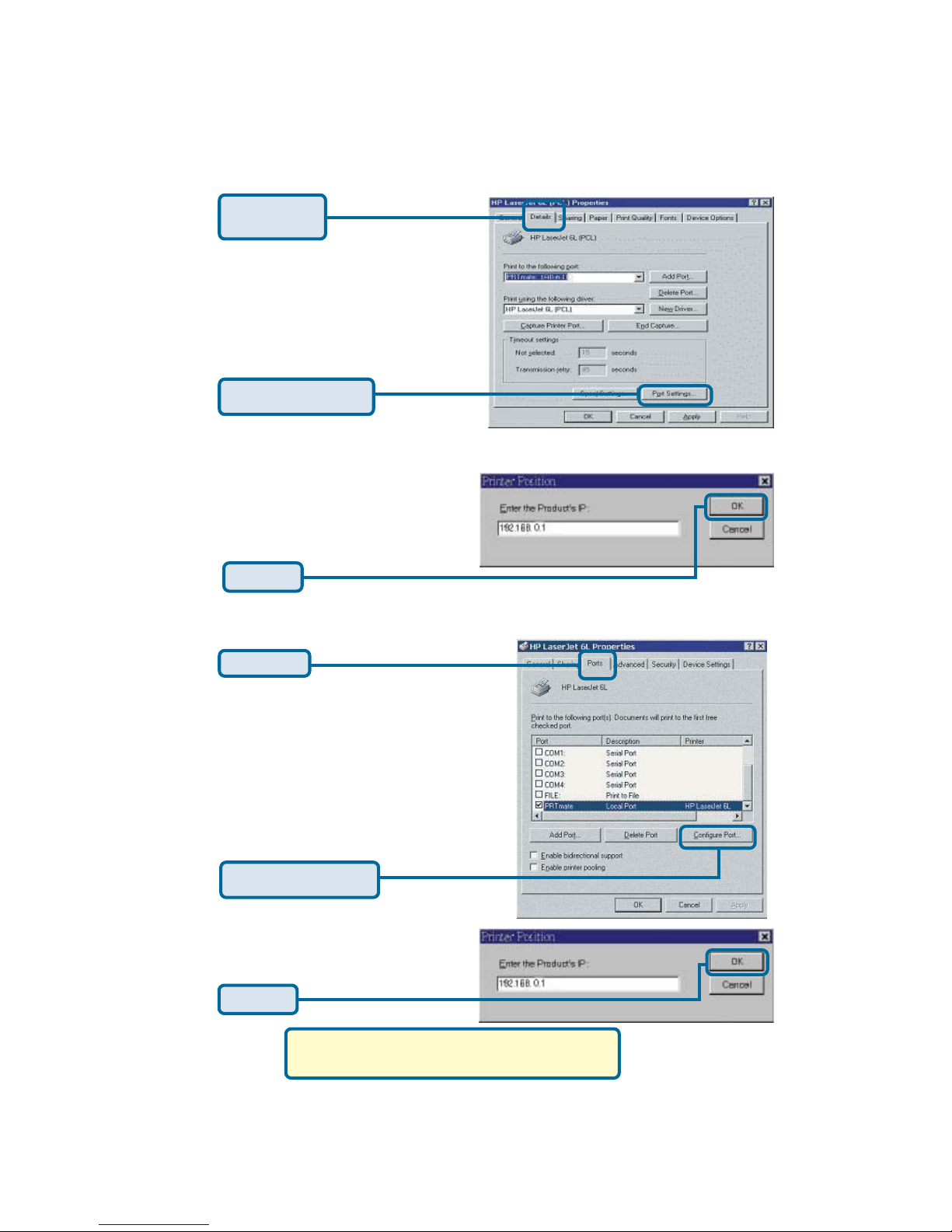

Configuring on Windows 98se/Me Platforms (continued)
Click on the
Details tab
Click Port Settings
Click OK
Click OK

To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-714P+ Broadband Router.

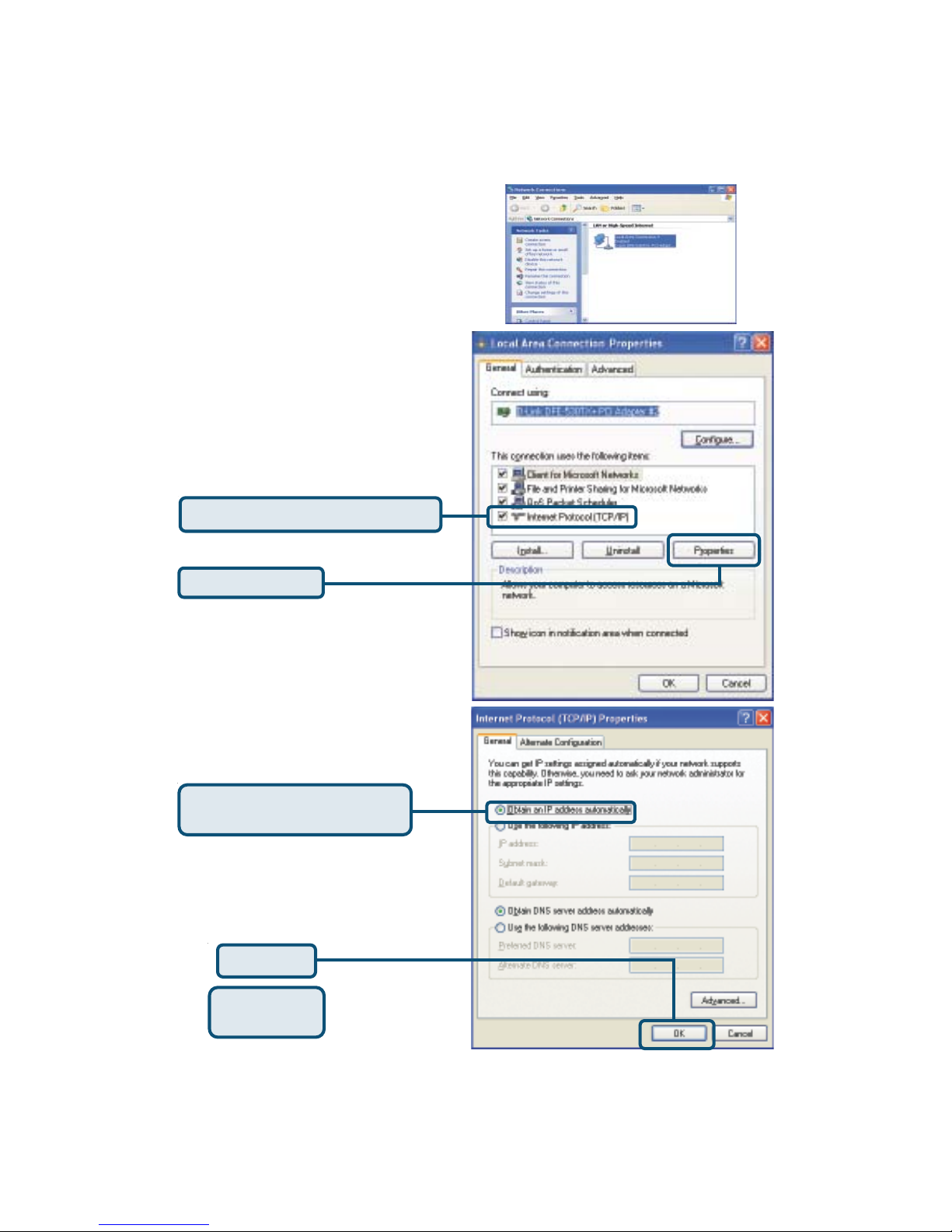

For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Click OK
Restart your
computer
APPENDIX (continued)

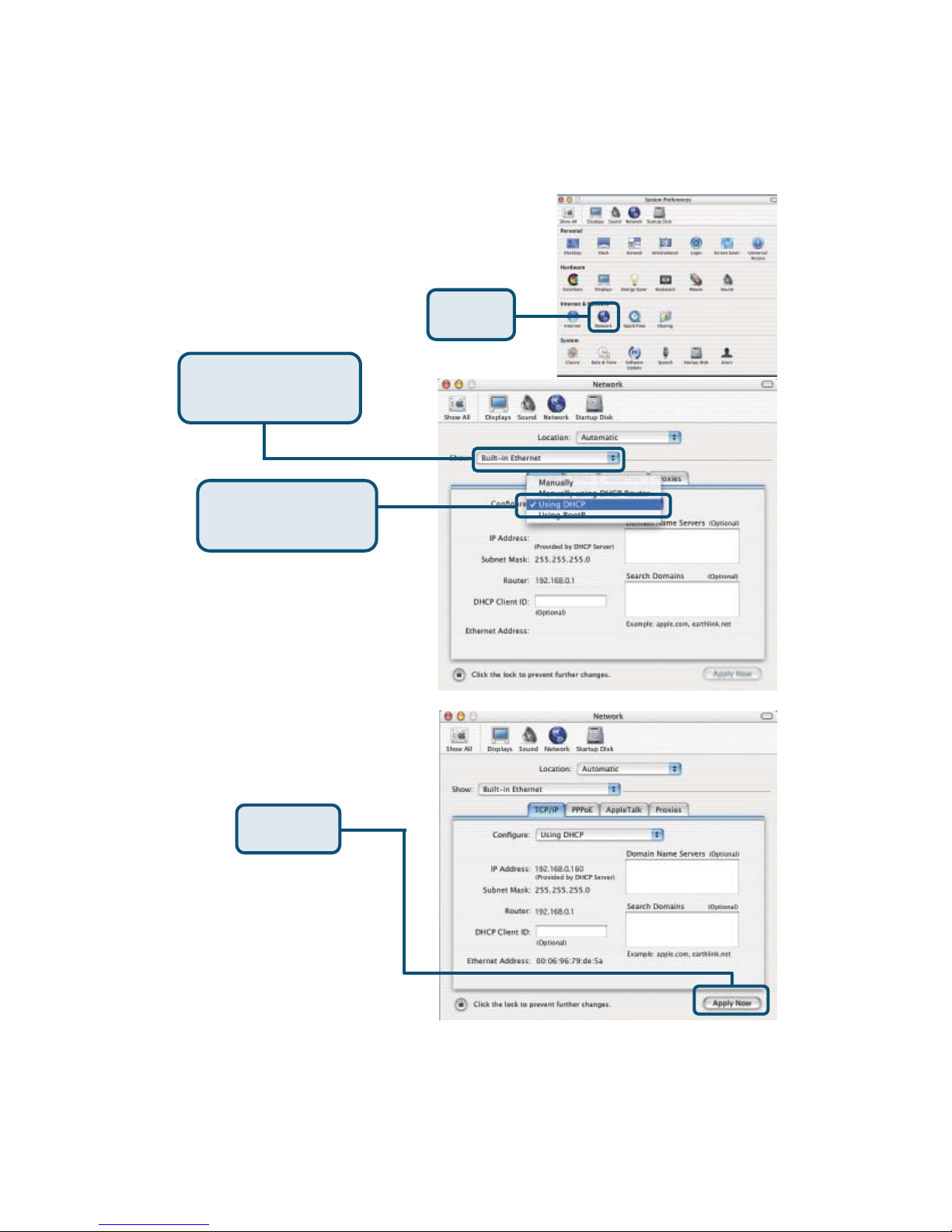

For Apple Macintosh OS X:
Go to the Apple Menu
Click on Network
and Select System
Preferences
Click on
Network
Select Built-in
Ethernet in the Show
pull-down menu
Select Using DHCP
in the Configure pull-
down menu
Click on
Apply Now
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear

Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site or
by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
