Dacor Epicure OB36 Technical manual

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 13.1
36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27” *
(686mm)
36"
(914mm)
25 1/8"
(638mm)
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" *
(686mm)
52"
(1321mm)
25 1/8"
(638mm)
OB/OBS36 OVERALL DIMENSIONS
OB/OBS52 OVERALL DIMENSIONS
9 1/8" ***
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" **
(686mm)
16"
(406mm)
OBSB162 OVERALL DIMENSIONS
NOTE:
Supply access for the rotisserie power or an alternate 120 Vac duplex outlet location.
Model Type Electrical Circuit Required Total Connected Load Gas Type Manifold Pressure Minimum Gas Supply
Pressure
Natural Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Natural 4” Water Column 5” Water Column
LP Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Propane 11” Water Column 12” Water Column
*Total depth with handle: 30” (762mm)
**Total depth with knobs: 28 5/8” (753mm)
***Total height with cover: 12” (305mm)
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
Document # PG13-001 Revised 04/07/09 Page 1/3
WARNING
Observe all governing codes and ordinances during◊
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with the◊
accompanying installation instructions.

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 13.2
36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162

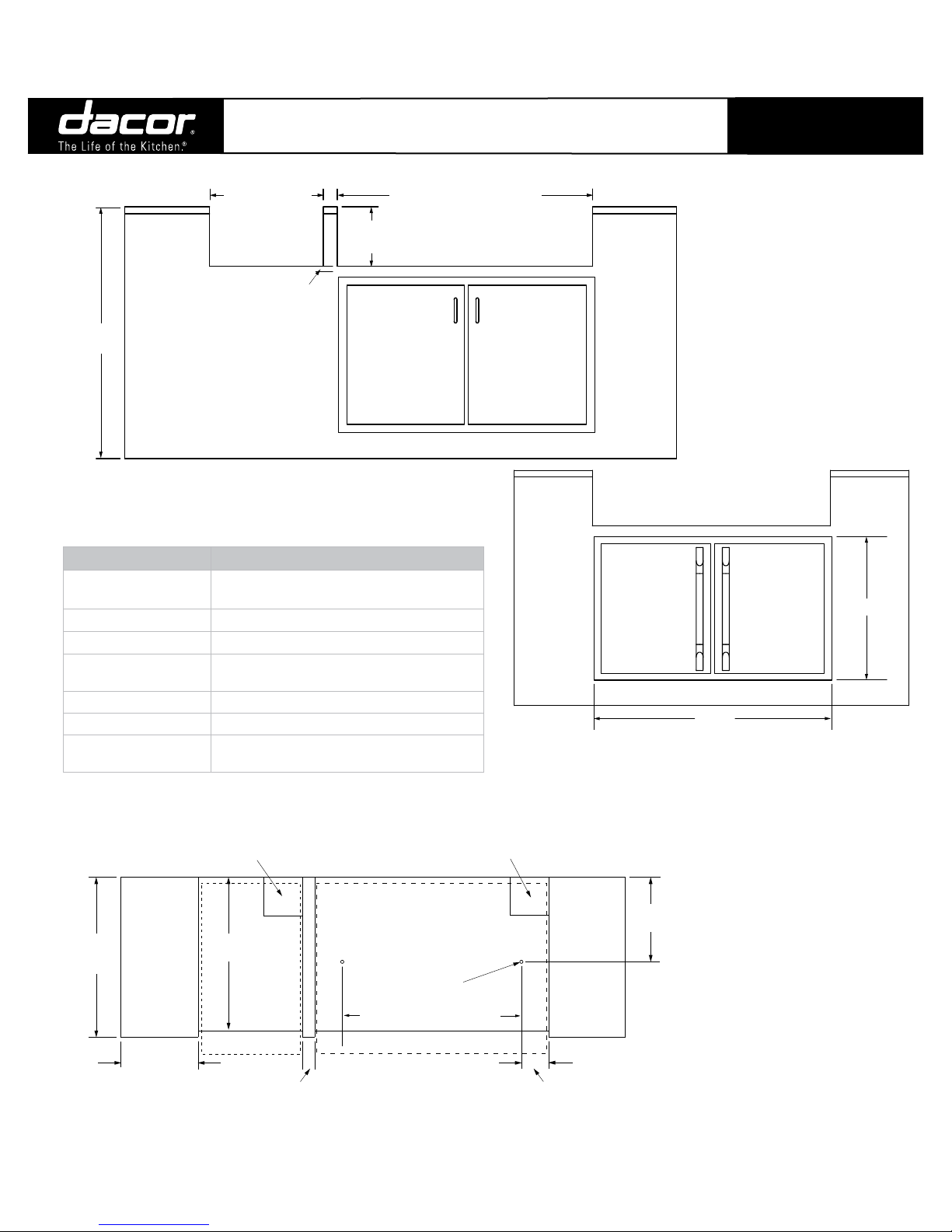

OBSB162 & OB/OBS/36/52
CUTOUT DIMENSIONS, FRONT VIEW
(OBAD 36” Accessory Door Shown)
3/4" (19mm)
Min. to any
material for
ventilation
9" (228mm)
Max.
OB(S)36 - 36 1/2" (927mm)
OB(S)52 - 52 1/2" (1334mm)
OBSB162
16 1/8" (410mm)
36"
(914mm)
3/8" (10mm)ø
Both sides
6" x 7"
(152mm x 178mm)
utility cutout
Coutertop
25"
(635mm)
24"
(610mm)
8" (203mm)
Min. to
combustibles above
the countertop surface,
both sides
1 1/2"
(38mm)
12 1/4"
(311mm)
2" (51mm)
OB(S)36 - 33 1/2" (851mm)
OB(S)52 - 49 1/2" (1257mm)
6" x 6"
(152mm x 152mm)
utility cutout
for OBSB162
OBSB162 & OB/OBS/36/52
CUTOUT DIMENSIONS, TOP VIEW
Cut-Out for Outdoor Grill
Overall Height
Overall
width
OBADXX ACCESSORY DOOR
DIMENSIONS, FRONT VIEW
(OBAD36 SHOWN)
Specifications Measurements
Overall Width OBAD20 - 19 1/2” (495mm)
OBAD36 - 35 7/8” (911mm)
Overall Height 21” (533mm)
Overall Depth 1/4” (6mm) deep return on frame edge
Cutout Width OBAD20 - 16 3/4” (425mm)
OBAD36 - 33 1/8” (841mm)
Cutout Height 18 3/4” (476mm)
Cutout Depth 3” (76mm) Minimum
Number of doors OBAD20 - 1
OBAD36 - 2
ACCESSORY DOOR CUTOUT DIMENSIONS
All tolerances: +1/16”, -0, (+1.6mm, -0) unless
otherwise stated
Document # PG13-001 Revised 04/07/09 Page 2/3

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 13.3
36”, 52” Wide Outdoor Grills
16” Wide Side Burner
OB36, OB52, OBS36, OBS52, OBSB162

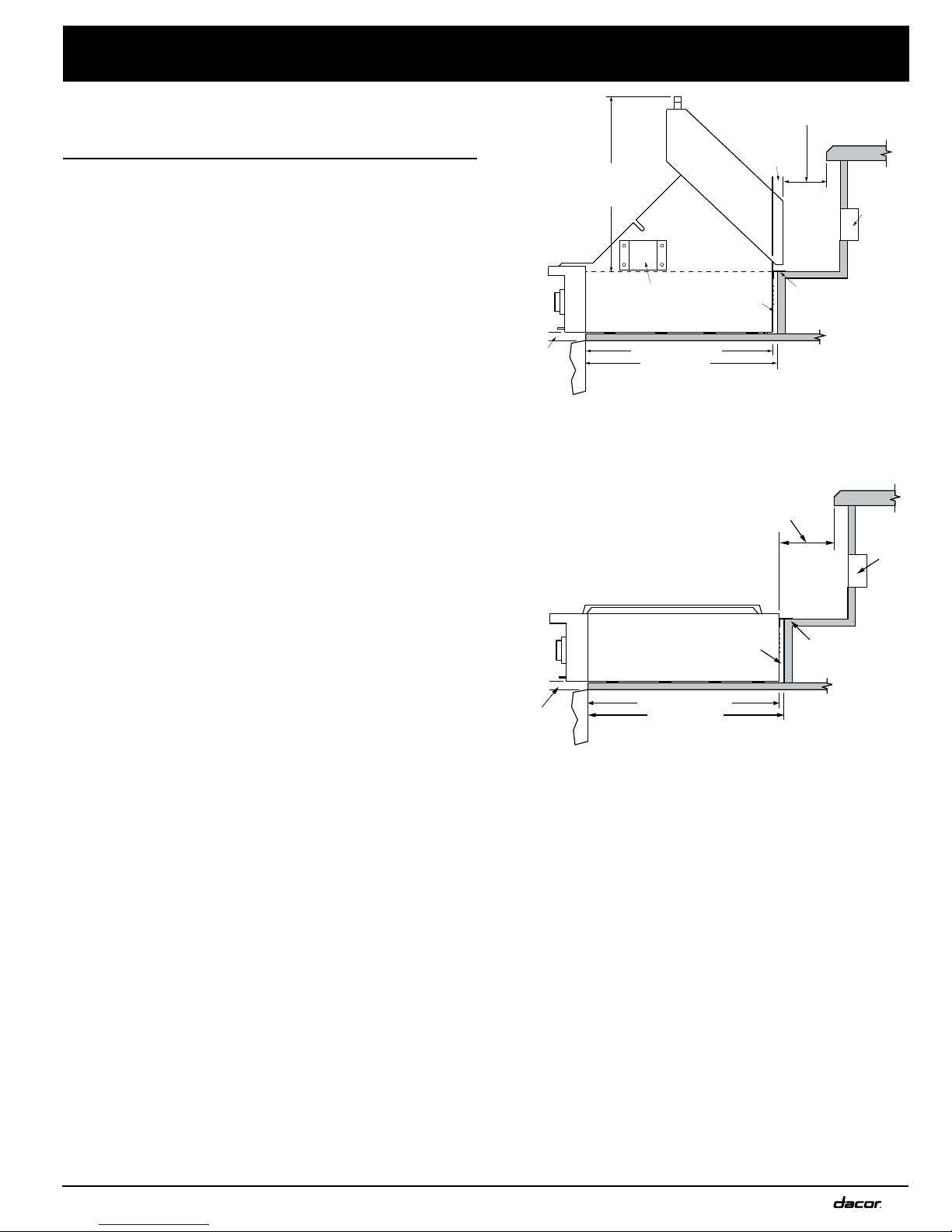

OBSB162 CUTOUT DIMENSIONS
SIDE VIEW
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
Min. to any
material*
10" (254mm) Min. to combustibles
2" (51mm) Min. to non-combustible
1/4"
(6mm)
23 3/4" (603mm)
24" (610mm)
OB36, OBS36, OB52 AND OBS52
CUTOUT DIMENSIONS, SIDE VIEW
Rotisserie mounting
bracket (factory installed)
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
min. to any
material*
1/4"
(6mm)
1 1/4"
(32mm)
10" (254mm) Min. to combustibles
1 1/4" (32mm) Min. to non-combustible
28 1/2" (724mm)
To finished
countertop
23 3/4" (603mm)
24" (610mm)
All tolerances: +1/16”, -0, (+1.6mm, -0) unless otherwise stated
Document # PG13-001 Revised 04/07/09 Page 3/3

Installation Instructions
Epicure®Outdoor Grill
Models: OB36, OBS36, OB52, OBS52 and OBSB162
Part No. 102032 Rev. J
TESTED IN ACCORDANCE WITH THE LATEST EDITION OF






Before You Begin...
Customer Service Information
All specifications subject to change without notice. Dacor assumes no liability for changes to specifications.
Important:
Installer:• In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
Customer:• Keep these installation instructions for future reference and the local electrical inspector’s use.
© 2008 Dacor, all rights reserved.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products
that are on the list of substances which are known by the State
of California to cause cancer or reproductive harm. California
law requires businesses to warn customers of potential
exposure to such substances. To minimize exposure to these
substances, always operate this unit according to the use
and care manual, ensuring you provide good ventilation when
cooking with gas.
If You Need Help...
If you have questions or problems with installation, contact
your Dacor®dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have
the model and serial number of the appliance ready. The
model and serial number are printed on the product data
label on the back of the unit. The product data label also
specifies the power supply requirements.
Dacor Customer Service
Phone: [phone]. (U.S.A. and Canada)
Monday - Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Web site: www.Dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: [phone] (U.S.A. and Canada)
Monday - Friday 6:00 a.m.to 4:00 p.m.Pacific Time
Model Identification
OB36 36-inches wide, no side burner, three (3)
U shaped burners in main compartment
OBS36 36-inches wide, no side burner, two (2)
U shaped burners and one (1) sear burner in
main compartment
OB52 52-inches wide with side burner, three (3)
U shaped burners in main compartment
OBS52 52-inches wide with side burner, two (2)
U shaped burners and one (1) sear burner in
main compartment
OBSB162 Stand alone side burner
Model numbers with “NG” are equipped (only) for use with
natural gas. Model numbers with “LP” are equipped (only)
for use with liquid petroleum (propane).
Installation Instructions.................................................. 10
Preparing for Installation ................................................ 10
Cabinet Installation......................................................... 12
Cart Installation .............................................................. 12
Connecting the Gas ....................................................... 14
Final Assembly and Test ................................................ 15
Verifying Proper Operation............................................. 17
Wiring Diagrams.............................................................. 18
Notes................................................................................. 20
Table of Contents
Before You Begin... ........................................................... 1
Important Safety Instructions .......................................... 1
Important Information About Safety Instructions.............. 1
General Safety Precautions ............................................. 2
Planning the Installation................................................... 
Product Dimensions ......................................................... 4
Location Planning - General ............................................ 6
Location Planning - Enclosed Cabinets ........................... 7
Location Planning - Cart Installations .............................. 9

1
Important Information About
Safety Instructions
The• Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or oper-
ating this or any other appliance.
Always contact Dacor Customer Service about prob-•
lems and conditions that you don’t understand.
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that  result in severe
personal injury or death.

Hazards or unsafe practices that  result in minor
personal injury or property damage.
Important Safety Instructions
DANGER
If you smell gas:
Shut off gas to the appliance.1.
Extinguish any open flame.2.
Open lid.3.
If odor continues, keep away from the appliance4.
and immediately call your gas supplier or your
fire department.
WARNING
Do not store or use gasoline or other flammable1.
liquids or vapors in the vicinity of this or any
appliance.
An LP cylinder not connected for use shall not2.
be stored in the vicinity of this or any other
appliance.
WARNING
If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage,
personal injury or death.
WARNING
NEVER use this appliance as a space heater to heat or
warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the appliance.
WARNING
This outdoor cooking appliance is not intended to be
installed in or on a recreational vehicle and/or boats.
WARNING
Use this outdoor gas cooking appliance outdoors only.
Do not use it in a building, garage or any other enclosed
area.


2
Important Safety Instructions
Read the use and care manual completely before•
using this appliance.
Use this appliance only for its intended use as•
described in the use and care manual. Use it only to
cook food. It is not designed for commercial, indus-
trial or laboratory use.
If you receive a damaged product, immediately con-•
tact your dealer or builder. Do not install or operate
an appliance that has been damaged or dropped.
This appliance must be properly installed and ground-•
ed by a qualified installer according to these instal-
lation instructions. Have the installer show you the
location of the gas shut-off valve and the electrical
outlet so that you know where and how to turn off the
gas supply and disconnect power to the appliance.
Do not repair or replace any part of this appliance•
unless specifically recommended in the literature
accompanying it. All other service should be done
by a qualified service technician. Contact the Dacor
Customer Service Team at [phone], or at
www.Dacor.com for examination, repair or adjust-
ment.
Do not install this appliance with surface (downdraft)•
ventilation systems.
Do not install this appliance under unprotected over-•
head combustible materials.
Excessive weight warning: Use two or more people to•
move and install this product.
Do not install the grill in a laminate, or synthetic, solid•
surface countertop material.
Sheet metal edges can be dangerous in heavy lifting•
situations. Wear gloves during installation.
Keep the electrical cords away and gas supply lines•
from heated surfaces.
Before performing any type of service, make sure that•
the gas shut-off valve is closed (turned off) and the
power plug is disconnected.
Failure to provide proper clearances as noted in•
these installation instructions may result in a fire haz-
ard.
DO NOT TOUCH ANY OF THE COOKING•
SURFACES DURING OR IMMEDIATELY AFTER
USE. After use, make sure these surfaces have had
sufficient time to cool before touching them.
WARNING
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precau-
tions, including the following:
To avoid the possibility of fire, do not leave the appli-•
ance unattended when in use.
To avoid the possibility of fire or burns, do not allow•
clothing, potholders, towels or rags to come into con-
tact with hot surfaces during and immediately after
use.
Do not use towels or bulky cloth as pot holders.•
Do not wear loose or hanging apparel while using this•
appliance. Do not allow clothing to come into contact
with the cooking surface.
Inspect the gas hose and regulator assemblies before•
each use of this appliance.
Keep items that could explode, such as aerosol cans•
away from the grill and burners. Do not store flam-
mable or explosive materials in adjacent cabinets or
areas.
Exercise caution when opening the canopy. Let hot•
air or steam escape before looking or reaching inside.
Do not use abrasives, caustic cleaners or detergents•
to clean this appliance. They may cause permanent
damage to surfaces. Do not use aerosol cleaners.
They may be flammable or cause corrosion of metal
parts.
Turn the knobs to the• OFF position prior to removing
them from the valve stems.
Do not operate the appliance without the knobs and•
trim rings in place.
Do not expose the knobs or trim rings to direct lame,•
hot utensils or other sources of heat.
Clean the appliance thoroughly before operating it for•
the first time.
NEVER cover any slots, holes or passages on•
the outdoor grill or its chassis. Doing so blocks air
flow and may cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a
fire hazard. Keep all slots, holes and passages clear
of grease and grime.
In the event of a power failure, use only the Dacor•
supplied match light tool or a long stemmed match to
light.
Make sure this appliance is used only by those indi-•
viduals who are able to operate it properly.
Never allow anyone, including children to sit, stand•
or climb on any part of the appliance. Doing so may
cause tipping, damage, serious injury or death.
WARNING

3
Important Safety Instructions
WARNING
Do not leave children alone or unattended in the area•
around the appliance. Do not allow children to oper-
ate it, play with the controls, pull on the handle or
touch other parts.
Do not store items of interest to children on top of•
or above the appliance. Children could be burned or
injured while climbing on it.
Keep the ventilation openings for the LP cylinder free•
and clear from debris.
Non-stick coatings, when heated, can be harmful to•
birds. Remove birds to a separate, well-ventilated
area during cooking.
Make sure that all of the appliance’s parts are dry•
before lighting a burner. Do not cover the burners and
grates with anything except properly selected uten-
sils. Decorative covers may cause a fire hazard or
damage to the unit if a burner is accidentally burned
on with the cover in place.
Keep flammable items, such as paper, cardboard,•
plastic, and cloth away from the burners and other
hot surfaces. Do not allow pot holders to touch hot
surfaces or gas burners.
Do not hang flammable or heat sensitive objects over•
or in close proximity to the appliance.
Do not use the appliance for storage.•
Make sure that all the burner parts are dry before•
lighting a side burner.
Do not allow food to sit for more than one hour before•
or after cooking. Eating spoiled food can result in
food poisoning.
Do not line the appliance with aluminum foil or other•
materials. These items can melt or burn up during
cooking.
Do not leave the canopy open when the outdoor grill•
is not in use to prevent an accumulation of water/
moisture inside. If water accumulates in the grill com-
partment the unit should not be used and a service
technician should be called to clean the inside of the
compartment.
If the appliance is left out in the rain (with the canopy•
shut), wait 30 minutes after the rain storm before
using it.
IMPORTANT• : This appliance is equipped with a
three-prong grounding electrical plug for protection
against possible electric shock hazards. It must be
plugged into a dedicated, grounded electrical outlet
that meets local codes for outdoor appliances. If only
a two-prong electrical
outlet is available, it
is the responsibility of
the customer to have it
replaced with a dedicat-
ed, properly grounded
three-prong electrical
outlet. Do not under any
circumstances:
Cut or remove the third (ground) prong from the◊
power cord.
Use an adapter plug.◊
Use a power cord that is frayed or damaged.◊
If using an extension cord, use only a grounded cord•
approved for use outdoors. Use a cord that is as
short as possible. Avoid routing it through wet areas.
TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A GREASE FIRE:
SMOTHER FLAMES with a close-fitting lid, cookie•
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be•
burned.
DO NOT USE WATER, including wet dish cloths or•
towels - a violent steam explosion may result.
Use a fire extinguisher ONLY if:•
You have a Class ABC extinguisher, and youa.
already know how to operate it.
The fire is small and contained in the area whereb.
it started.
The fire department is being called.c.
You can fight the fire with your back to an exit.d.
WARNING

4
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27” *
(686mm)
36"
(914mm)
25 1/8"
(638mm)
Product Dimensions
Planning the Installation
9 1/8"
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" *
(686mm)
52"
(1321mm)
25 1/8"
(638mm)
* Total depth from back to front of handles is 30” (762mm)
OB36 and
OBS36
OB52 and
OBS52

5
Planning the Installation
9 1/8" ***
(232mm)
23 3/4"
(603mm)
26 1/2"
(673mm)
27" **
(686mm)
16"
(406mm)
Cut-out for outdoor grill
Overall height
Overall
width
** Total depth from back to front of knobs is 28 5/8” (727mm)
*** Total height with cover is 12” (305mm)
Door depth: 1/4” 6mm)
OBSB162
OBAD SERIES ACCESSORY DOORS
(OBAD36 SHOWN)
Model
Number
Overall
Width
Overall
Height
OBAD20
(Single door)
19 1/2”
(495mm)
21”
(533mm)
OBAD36
(Dual door)
35 7/8”
(911mm)
21”
(533mm)

6
Planning the Installation
Location Planning - General
Gas and Electric Power Requirements
Prior to installation, the gas supply for natural gas or•
whole house LP installations must meet the specifica-
tions below.
For natural gas or whole house LP installations, have a•
qualified plumber or gas fitter install a 3/4 inch (19mm)
or 1/2 inch (13mm) gas supply line with a shut-off valve
(not included). Have it installed in an accessible loca-
tion that allows it to be shut off when the appliance is
installed.
Gas Supply Requirements
Model Type Manifold Pressure Minimum Gas
Supply Pressure
Natural Gas 4” Water Column 5” Water Column
LP Gas 11” Water Column 12” Water Column
Correct voltage, frequency and amperage must be sup-•
plied to the appliance from an isolated, grounded circuit
which is protected by a properly sized circuit breaker or
time-delay fuse. The required voltage, frequency, and
amperage ratings are listed on the product data plate
and are also below.
Electrical Requirements
Circuit Requirement 120 Vac, 15 Amp.
Total Connected Load 2.9 Amps, (0.35 kW)
It is the owner’s responsibility to ensure that the elec-•
trical connection to this appliance is installed by a
qualified electrician. The electrical installation, includ-
ing minimum supply wire size and grounding, must be
done in accordance with National Electric Code ANSI/
NPFA 70, (or the latest revision) or Canadian Electrical
Code CSA C22.1, and local codes and ordinances for
connection of an outdoor appliance.
Locate the electrical outlet within reach of the 48 Inch•
(1219mm) long power cord so that it will reach when
the grill is completely installed in the enclosure.
Total connected loads shown include the ignition sys-•
tem, interior lights and rotisserie motor.
The rotisserie motor should be plugged into the same•
grounded outlet power source or an alternate 120 Vac
duplex outlet located on the same circuit as the grill.
WARNING
This installation must conform to local codes or, in the•
absence of local codes, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and
Propane Installation Code, CSA B149.1, or Propane
Storage and Handling Code, B149.2.
Prevent grill combustion products from being drawn•
into a building through fresh air inlets: The venting
system of other than a direct-vent appliance must
terminate at least 4 feet (1.2m) below, 4 feet (1.2m)
horizontally from, or 1 foot (305mm) above any door,
window or gravity air inlet into any building. The bot-
tom of the vent terminal must be located at least 12
inches (305mm) above grade.
A MINIMUM clearance of 10 inches (254mm) must be•
maintained, above the countertop material, from all
combustible vertical materials on the sides and behind
the outdoor grill chassis and canopy.
On all models except OBSB162, a MINIMUM clear-•
ance of 1 1/4 inches (32mm) must be maintained,
above the countertop material, from all non-combus-
tible vertical materials on the sides and behind the
outdoor grill chassis and canopy.
On model OBSB162, a MINIMUM clearance of 2 inch-•
es (51mm) must be maintained, above the countertop
material, from all non-combustible vertical materials
on the sides and behind the chassis.
A MINIMUM clearance of 1/4 inch (6mm) must be•
maintained, inside the base enclosure below the
countertop material, from all vertical surfaces on the
sides of the appliance, except on model OBSB162.
On model OBSB162 a minimum clearance of 1/4 inch
(6mm) must be maintained in back and 1/16 inch on
the sides.
A MINIMUM clearance of 3/4 inch (19mm) must be•
maintained, from the bottom of the control panel to
any material for ventilation purposes. Failure to do so
will block air flow through the outdoor grill and may
cause carbon monoxide poisoning or improper opera-
tion.
The back edge of the grill must maintain a minimum•
clearance (10 inches/254mm) from combustible back
splash materials. Special cabinet and countertop
dimensions are required.
The electrical outlet and gas service must be installed•
only by a qualified, licensed professionals.
The maximum gas supply pressure to the regulator•
must not exceed 1/2 pound per square inch.
Use only the factory supplied gas regulator or a Dacor•
approved replacement.

7
Planning the Installation
Location Planning - Enclosed
Cabinets
Maintain all minimum clearances specified on pages 7•
and 8.
For proper outdoor grill operation, provide a flat, level•
mounting surface with minimum 3/4” thickness.
All models are designed to allow installation in combus-•
tible or non-combustible base material structures.
On installations without a LP cylinder tank located•
below the unit, plan the installation so that the gas
shut-off valve and pressure regulator are accessible
after the appliance is installed so that gas and power
can be turned off if service is required. Also, make sure
the electric plug can be disconnected easily during ser-
vice.
Optional Finish Trim Kits
The optional finish trim can be installed on the countertop
to finish the sides and back of the countertop opening. The
stainless steel finish trim can be caulked to the countertop
and should be secured to the base enclosure with flat head
screws. Center the trim within the cutout dimensions noted
in this manual, then utilizing the deck screws along with
the holes located along the vertical sides of the finish trim,
install them securely to the base enclosure countertop sub-
straight.
Enclosed Cabinet Installations with a LP
Cylinder
When using a LP-gas cylinder, it must be completely•
enclosed, It must also be ventilated by openings on
the sides, back and floor of the enclosure. Each open-
ing must have a total area of no less than 10 square
inches (254 square mm).
Plan to install the grill in a base structure that has one•
of the following structural details:
The LP cylinder shut-off valve shall be readily◊
accessible for hand operation. A door on the enclo-
sure to gain access to the valve is acceptable, pro-
vided it is non-locking and can be opened without
the use of tools.
The enclosure for the LP-gas cylinder shall isolate◊
the cylinder from the burner compartment to pro-
vide shielding from radiation, a flame barrier and
protection from foreign materials such as hot drip-
pings.
There shall be a minimum clearance of 2 inches◊
(51mm) between the floor of the LP-gas cylinder
enclosure and the ground.
The design of the outdoor cooking enclosure must•
allow the LP-gas cylinder to be connected, disconnect-
ed and the connections inspected and tested outside
the cylinder enclosure.
Connections which may be disturbed when installing•
the cylinder in the enclosure can be leak tested inside
the enclosure.
Internal mounting means shall be provided on the out-•
door gas grill for mounting the LP-gas supply cylinder.
If the outdoor grill is not in use, the gas must be turned
off at the supply cylinder.
Rotisserie mounting
bracket (factory installed)
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
min. to any
material*
1/4"
(6mm)
1 1/4"
(32mm)
10" (254mm) Min. to combustibles
1 1/4" (32mm) Min. to non-combustible
28 1/2" (724mm)
To finished
countertop
23 3/4" (603mm)
24" (610mm)
Junction
Box
Trim frame
(accessory)
3/4" (19mm)
Min. to any
material*
10" (254mm) Min. to combustibles
2" (51mm) Min. to non-combustible
1/4"
(6mm)
23 3/4" (603mm)
24" (610mm)
See page 8 for overall cabinet dimensions.
See page 8 for overall cabinet dimensions.
OB36, OBS36, OB52 and OBS52


Side View

8
Planning the Installation
Location Planning - Enclosed Cabinets (continued)
3/8" (10mm)ø
Both sides
6" x 7"
(152mm x 178mm)
utility cutout
Coutertop
25"
(635mm)
24"
(610mm)
8" (203mm)
Min. to
combustibles above
the countertop surface,
both sides
1 1/2"
(38mm)
12 1/4"
(311mm)
2" (51mm)
OB(S)36 - 33 1/2" (851mm)
OB(S)52 - 49 1/2" (1257mm)
6" x 6"
(152mm x 152mm)
utility cutout
for OBSB162
3/4" (19mm)
Min. to any
material for
ventilation
9" (228mm)
Max.
OB(S)36 - 36 1/2" (927mm)
OB(S)52 - 52 1/2" (1334mm)
OBSB162
16 1/8" (410mm)
36"
(914mm)


OBAD36 Accessory doors shown
Accessory Door Cutout Dimensions
Dimension
Cutout Width OBAD20: 16 3/4” (425mm)
OBAD36: 33 1/8” (841mm)
Cutout Height 18 3/4” (476mm)
Cutout Depth 3” (76mm)

9
Planning the Installation
Location Planning - Cart Installations
Example of Grill Cart Location
Maintain all minimum clearances shown between the•
appliance and all surfaces behind and to the side of the
appliance.
Allow 26 inches minimum in front to open and close the•
cabinet drawers.
For proper grill and drawer operation, use the outdoor•
grill and cart only on a level surface.
Side distances exclude optional shelves.•
Above the cooking surface, both sides:
1 1/4” (32mm) Min. to non-combustibles
10” (254mm) Min. to combustibles
Above cooking surface, behind unit:
2 1/2” (64mm) Min. to non-combustibles
11 1/4" (286mm) Min. to combustibles
(with hood in closed position)
Above the cooking surface, both sides:
1 1/4” (32mm) Min. to non-combustibles
10” (254mm) Min. to combustibles
Above the cooking surface, behind unit:
2 1/2” (64mm) Min. to non-combustibles
11 1/4” (286mm) Min. to combustibles
(with hood in closed position)

10

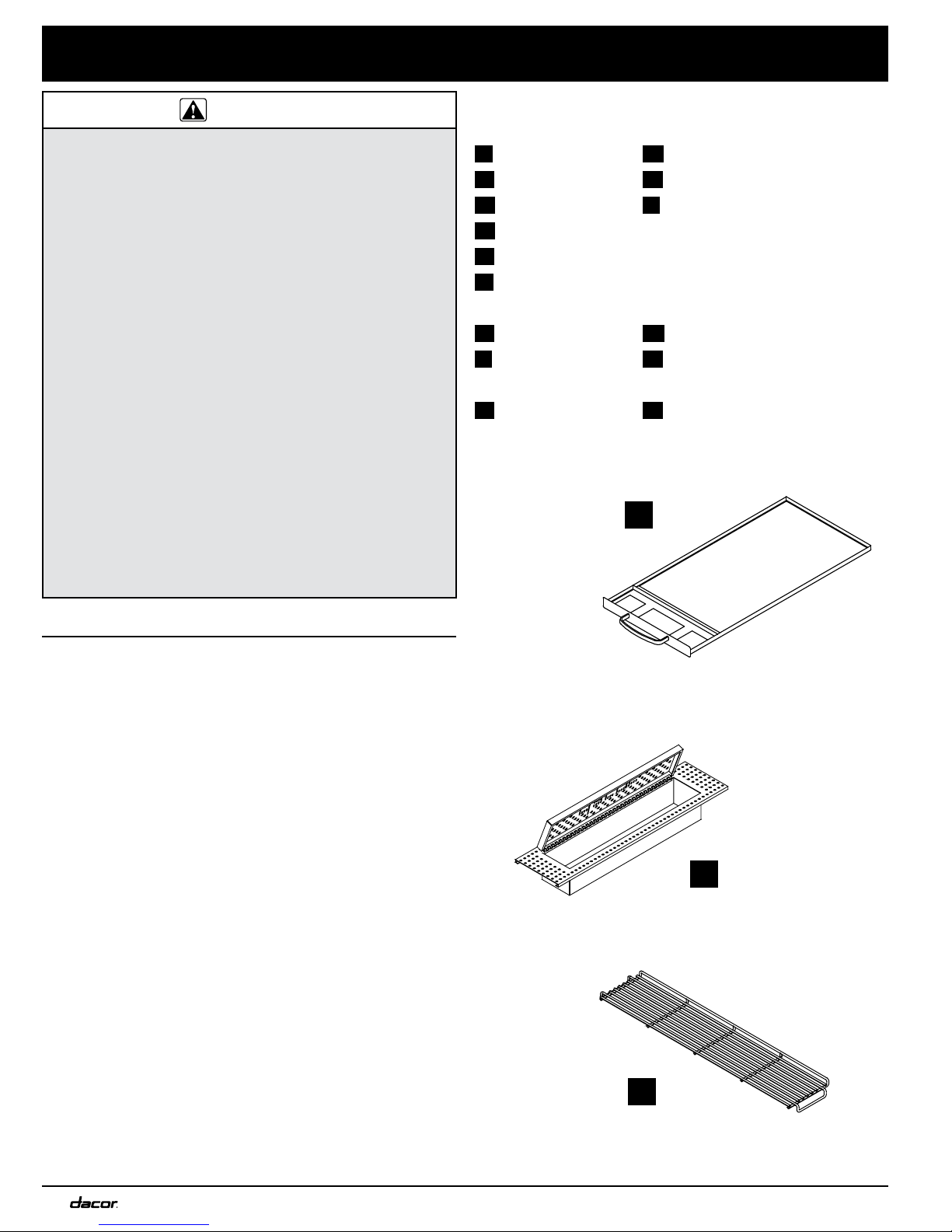

Parts List
Models OB36, OBS36, OB52 and OBS52:
A Drip tray G Rotisserie rod and forks
B Smoker box H Rotisserie motor
C Warming rack J Light lens pry stick
D Regulator assembly Match holder
E Grills Cleaning cream
F Flame spreaders
Models OB52, OBS52 and OBSB162
K Side burner grate M Side burner heads (2)
L Side burner cover N Side burner caps (2)
LP Models equipped for use with an LP cylinder:
P 3/4” coupling R 3/4” nipple
Installation Instructions
WARNING
Before installing the appliance, make sure the elec-•
trical and gas (on tank-less installations) service
meets the requirements specified in the Planning the
Installation section of this manual.
This appliance must be installed by a licensed•
plumber or gas fitter when installed within the
Commonwealth of Massachusetts.
Excessive weight warning: Since the appliance and•
grill cart are heavy, install the appliance with the help
of at least one other person.
Make sure the power cord is NOT connected to the•
electrical outlet while connecting the gas line to the
appliance.
Do not apply excessive pressure when tightening con-•
nections and fittings.
Do not use plumber’s putty or Teflon tape on gas com-•
pression connections. Doing so can defeat the proper
sealing of these fittings.
Use only approved gas line thread compound or tape•
to seal gas connections.
The maximum gas supply pressure to the regulator•
must not exceed 1/2 pound per square inch.
Preparing for Installation
Before removing the unit from the box, check the1.
labeling on the box to make sure that the appliance is
equipped for the gas type to be used. Liquid petroleum
(propane) units are identified by the “LP” designa-
tion at the end of the model number. Do not proceed
with installation if you do not have the correct model.
Conversion in the field from one gas type to another is
not permissible.
With the help of an assistant, remove the appliance2.
and all the parts from the box. Check to make sure all
parts are included.
Remove all shipping materials from the appliance and3.
peel off the protective plastic coating.
To reduce weight during installation, make sure all4.
loose parts are removed from the grill.
A
C
B

11
Installation Instructions
D
E
H
L
N
M
P
R
J
K
F
G
D D
Whole house natural
gas or LP regulator*
LP cylinder regulator
OBS162, OB36 and OBS36
(PN 72310)
LP cylinder regulator
OB52 and OBS52
(PN 101578)
* A whole house gas regulator comes standard with natural gas models. For whole house LP installations, replace the
standard LP tank regulator and hose that come with LP models with a whole house LP regulator (Dacor PN 700597LP).
The whole house LP regulator must be ordered separately.

12
Cart Installation
WARNING
Attach the appliance to the cart with all of the supplied•
bolts before use.
All gas and electrical connections should be made•
after the grill is installed and bolted to the cart.
To avoid an explosion hazard, do not connect the cart•
or appliance(s) to electrical power until after the gas
supply system has been checked for leaks.
IMPORTANT
To prevent damage to the gas regulator, install the
regulator only after the appliance is mounted in its
permanent position on the cart.
Remove the cart from the shipping pallet before instal-1.
lation. The Dacor cart ships assembled ready for
installation of the outdoor grill. Set the cart in an open
location and lock the wheels on the cart to minimize
movement.
Remove the drawers.2.
With at least one person on each side, lift the appliance3.
up and lower it onto the cart. As you lower it onto the
cart slide the electrical cord into the utility cut-out.
Center the unit on the cart, making sure to line up the4.
threaded mounting holes under the bottom of the grill
with the holes in the top of the cart.
Thread all of the supplied bolts into the bottom of the5.
outdoor grill from inside the cart. Tighten the bolts into
place.
Utility cutout
Rotating wheel
Locking
wheel Locking wheel
Tank shelf
Insert power cord
into utility cutout

Cabinet Installation
WARNING
To avoid an explosion hazard, do not connect the cart or
appliance(s) to electrical power until after the gas supply
system has been checked for leaks.
IMPORTANT
To prevent damage to the gas regulator, install the
regulator only after the appliance is mounted in its
permanent position in the enclosure.
With at least one person on each side of the unit, lift•
it up and lower it into the cabinet cutout. As you lower
it into the cutout slide the electrical cord into the utility
cutout.
Installation Instructions
OBSB162 OB36 or
OBS36
OB52 or
OBS52
Insert power cord
into utility cutout
Insert power cord
into utility cutout

13
Optional Side Shelf Installation
Install the front mounting bracket for the right side1.
shelf. Use two (2) of the provided button head fasten-
ers and two (2) lock washers. Tighten into place using
a 5/32” Allen wrench.
Slide the slot on the inside of the shelf over the pin on2.
the mounting bracket.
While holding the shelf in place, insert the pin on the3.
back mounting bracket into the slot on the back side of
the shelf.
While holding the shelf and back mounting bracket in4.
place, attach the back mounting bracket using two (2)
of the provided button head fasteners and two (2) lock
washers.
Repeat steps 1 through 4 for the other shelf.5.
Installation Instructions
Bracket
Pin
Lock
washer
Button head
fastener

14
Install an approved flexible gas line from the regulator3.
to the gas shut-off valve.
Gas Connection - LP Gas Cylinder Hose
Connect the supplied 3/4” coupling and nipple to the1.
gas inlet at the back right bottom corner of the unit.
Connect the included LP cylinder hose to the nipple.2.
Connecting the Gas
Gas Connection - Natural Gas
NOTE
Units equipped for use with natural gas ship with a•
regulator assembly with 3/4” pipe attached and an
additional 3/4” nipple.
The regulator assembly is also equipped with a 3/4” to•
1/2” reducer on the inlet side.
Connect the factory supplied regulator assembly to the1.
gas inlet at the back right bottom corner of the appli-
ance. Make sure the arrow on the regulator points in
the direction of the gas flow (towards the grill).
Connect a 1/2” nipple to the regulator.2.
Install an approved flexible gas line from the regulator3.
to the gas shut-off valve.
Gas Connection - Whole House LP Gas
Connect the LP regulator assembly (special order from1.
Dacor) to the gas inlet at the back right bottom corner
of the appliance. Make sure the arrow on the regulator
points in the direction of the gas flow (towards the grill).
Connect a 1/2” nipple to the regulator.2.
Installation Instructions
Regulator assembly
(included PN 700597NG)
1/2” Nipple (not included)
Flexible gas line (not included)
Natural Gas
Connection
Regulator assembly
(special order PN 700597LP)
1/2” Nipple (not included)
Flexible gas line (not included)
Whole House LP
Gas Connection
LP Cylinder Hose Connection
3/4” Coupling and
nipple (included)
Connect
to outdoor grill
LP regulator and hose
assembly (included)
PN 101578 for
OB52 and OBS52
PN 72310 for OBSB162,
OB36 and OBS36

15
Installation Instructions
Final Assembly and Test
Assemble the Grill
Open the canopy on the unit.1.
Insert the drip tray completely into the slot on the front2.
of the unit.
Put the flame spreaders on the floor of the appliance,3.
inside the canopy. The large holes go toward the front
of the unit. The holes are used to light the burners in
case of power failure. Push the spreaders as far to the
right as possible, leaving an opening on the left for the
smoker box.
Install the grills on the shelves above the flame spread-4.
ers. Push the grills as far to the right as possible, leav-
ing an opening on the left for the smoker box.
Insert the smoker box into the opening to the left side5.
of the grills.
Place the warming rack on the holders on the walls6.
inside the canopy.
9 Burner cover
8 Grate
7 Burner heads and caps
1 Open canopy
6 Warming rack
2 Drip tray
3 Flame spreaders
4 Grills
5 Smoker box
Assemble the Side Burner - Some Models
Put the burner heads on to the burner bases. Line up7.
the slots on each head with the pins on the base so
that it lies flat. Put the burner caps on top of the burner
heads. Line up the slots on each cap with the pins on
the base so that it lies flat.
Put the grate over the top of the side burner. Line up8.
the legs with the dimples on the top of the side burner
chassis.
