Dacor DOB30M977D series User manual

User Manual
Contemporary Built-In Electric Wall Oven
DOB30M977D*

English2
Regulatory Notice
1. FCC NOTICE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
To satisfy FCC RF exposure requirements, a separation distance of
20 cm or more should be maintained between the antenna of this
device and persons during device operation.
To ensure compliance, operations at closer than this distance is not
recommended.
WARNING
Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.

English 3
2. IC Notice
The term “IC” before the radio certification number only signifies
that Industry Canada technical specifications were met. Operation
is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
This Class B digital apparatus complies with Canadian ICES-003. For
products available in the US/Canadian markets, only channels 1~11
are available. You cannot select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits
set forth for an uncontrolled environment. This equipment should
be installed and operated so there is at least 8 inches (20 cm)
between the radiator and your body. This device and its antenna(s)
must not be co-located or operated in conjunction with any other
antenna or transmitter.

English4
Contents
Important information 7
Energy-saving 7
Safety information 8
What you need to know about safety instructions 8
California proposition 65 warning 10
For your safety 10
Electrical safety 12
Child safety 12
Oven 13
Self-cleaning ovens 14
Ventilating hood 14
Critical installation warnings 15
Critical usage warning 16
Usage cautions 18
Critical cleaning warnings 19
Introducing your new oven 20
Overview 20
What’s included with your oven 21
Operations 22
Control panel 22
Display 23
Water reservoir 24
Control lockout 26
Kitchen timer 27
Timed cooking 29
Delay start 31
Using the oven racks 32
Using the gliding rack 35
Using the temp probe 37
Oven functions 40
Setting the mode 44
Setting the temperature 45
Basic baking and broiling instructions 45
Using the special function feature 49
Contents

English 5
Contents
Using the Chef Mode feature 52
Using the iQ control feature 53
Using the clean feature 55
Settings 65
Using the sabbath feature 69
Care and maintenance 71
Care and cleaning of the oven 71
Removing the oven doors 78
Replacing the oven doors 80
Changing the oven light 82
Troubleshooting 84
Information codes 88
Warranty and Service 90
Getting Help 90
Warranty 90
Open Source Announcement 93

English6
To Our Valued Customer:
Congratulations on your purchase of the very latest in Dacor products! Our unique
combination of features, style and performance make us The Life of the Kitchen™, and a
great addition to your home.
In order to familiarize yourself with the controls, functions and full potential of your new
Dacor Appliance, read this use and care manual thoroughly, beginning with the Important
Safety Instructions section.
All Dacor appliances are designed and manufactured with quality and pride, while working
within the framework of our company value. Should you ever experience a problem with
your product, please first check the Troubleshooting section of this manual for guidance. It
provides useful suggestions and remedies prior to calling for service.
Valuable customer input helps us to continuously improve our products and services, so
please feel free to contact our Customer Service Team for assistance with any of your
product support needs.
Dacor Customer Assurance
• USA
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
• Canada
Samsung Electronics Canada Inc.
2050 Derry Road West, Mississauga,
Ontario L5N 0B9 Canada
Telephone: [phone](USA), 844-509-4659(Canada)
Hours of Operation: Mon – Fri, 8:00 a.m. to 8:00 p.m. Pacific Time
Website: www.dacor.com
Thank you for choosing Dacor for your home. We are a company built by families for
families, and we are dedicated to serving yours. We are confident that your new Dacor
product will deliver a high level of performance and enjoyment for many years to come.
Sincerely,

English 7
Important information
Important information
Clean the oven thoroughly before using it for the first time. Then, remove the accessories,
set the oven to Bake, and then run the oven at 400 °F for 1 hour. There will be a
distinctive odor. This is normal.
Ensure your kitchen is well ventilated during this conditioning period.
Energy-saving
• During cooking, the oven door should remain closed except when you turn food over.
Do not open the door frequently during cooking to maintain the oven temperature and
to save energy.
• If cooking time is more than 30 minutes, you can switch the oven off 5-10 minutes
before the end of the cooking time to save energy. The residual heat will complete the
cooking process.
• To save energy and reduce the time needed for re-heating the oven, plan oven use to
avoid turning the oven off between cooking one item and the next.
• Whenever possible, cook more than one item at a time.

English8
Safety information
Safety information
Read and follow all instructions before using your oven to prevent the risk of fire,
electric shock, personal injury, or damage when using the oven. This guide does not
cover all possible conditions that may occur. Always contact your service agent or the
manufacturer about problems that you do not understand.
What you need to know about safety instructions
Warnings and important safety instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your oven.
Important safety symbols and precautions
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.

English 9
Safety information
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
oven, follow these basic safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call a Dacor Customer Service for help.
Note
These warning signs are here to prevent injury to you and others. Please follow them
explicitly.
After reading this section, keep it in a safe place for future reference.

English10
Safety information
Safety information
California proposition 65 warning
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
For your safety
When using electrical appliances, you should follow basic safety precautions, including the
following:
CAUTION
• Use this appliance only for its intended purpose as described in this Owner’s Manual.
• Potentially hot surfaces include the oven vent opening, surfaces near the opening, and
crevices around the oven door.
Proper Installation - Be sure your appliance is properly installed and grounded by a
qualified technician.
User servicing - Do not repair or replace any part of the appliance unless specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
Always disconnect the power to the appliance before servicing by removing the
fuse or switching off the circuit breaker.
• Do not enter the oven.
• Do not leave children alone. Never leave children alone or unattended in an area
where this appliance is in use. They should never be allowed to sit or stand on
any part of the appliance.
• Never use your appliance for warming or heating the room.
• Do not use water on grease fires. Turn off the oven to avoid spreading the
flames. Smother the fire or flames by closing the door or use a dry chemical,
baking soda, or foam-type extinguisher.
• Avoid scratching or striking the glass doors and the control panel. Doing so may
lead to glass breakage. Do not cook on a product with broken glass. Shock, fire,
or cuts may occur.

English 11
Safety information
• If there is a fire in the oven during self-cleaning, turn the oven off and wait for
the fire to go out. Do not force the door open. The introduction of fresh air at
self-cleaning temperatures may lead to a burst of flame from the oven. Failure to
follow these instructions may result in severe burns.
• If the oven is heavily soiled with oil, self-clean the oven before using the oven
again. Leaving the oil in place creates a risk of fire.
• Wipe up heavy soil on the oven bottom with a paper tower or rag before self-
cleaning. Self-cleaning the oven when there is heavy soil on the oven bottom
requires longer cleaning cycles and produces more smoke.
• Storage in or on the appliance. Do not store flammable materials in the oven
or near the surface units. Be sure all packing materials are removed from the
appliance before operating it. Keep plastics, clothes, and paper away from parts
of the appliance that may become hot.
• Wear proper apparel. Never wear loose-fitting or hanging garments while using
the appliance.
• Use only dry potholders. Placing moist or damp potholders on hot surfaces may
result in burns from steam. Do not let the potholder touch hot heating elements.
Do not use a towel or other bulky cloth instead of a potholder.
• Teach children not to play with the controls or any other part of the oven.
• For your safety, do not use high-pressure water cleaners or steam jet cleaners to
clean any part of the oven.
• If the power cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualified persons to avoid creating a hazard.
• The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

English12
Safety information
Safety information
Electrical safety
• Use only the factory installed flexible power cord to connect to the power supply.
Do not use a 3rd-party power-supply cord kit.
• The appliance should be serviced only by qualified service personnel. Repairs
carried out by unqualified individuals may cause injury or a serious malfunction.
If your appliance is in need of repair, contact a Dacor authorized service center.
Failure to follow these instructions may result in damage and void the warranty.
• Flush-mounted appliances may be operated only after they have been installed
in cabinets and workplaces that conform to the relevant standards. This ensures
that the appliances are installed in compliance with the appropriate safety
standards.
• If your appliance malfunctions or if fractures, cracks, or splits appear:
- Switch off the oven.
- Unplug the oven from the AC wall outlet.
- Contact your local Dacor Customer Service.
WARNING
Ensure that the appliance is switched off before replacing the lamp to avoid the possibility
of electric shock.
Child safety
WARNING
• This appliance is not intended for use by young children or infirm persons without the
adequate supervision of a responsible adult.
• Young children should be supervised to ensure that they do not play with the
appliance.
• Keep children away from the door when opening or closing it as they may bump
themselves on the door or catch their fingers in the door.
• During self-cleaning, the surfaces may get hotter than usual. Keep small children away
from the oven when it is in the self-cleaning mode.
WARNING
Accessible parts may become hot during use. To avoid burns, young children should be
kept away.

English 13
Safety information
Oven
• DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Heating elements may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns. During and after use,
do not touch or let clothing or other flammable materials contact the heating
elements or interior surfaces of the oven until they have had sufficient time to
cool. Other surfaces of the appliance may become hot enough to cause burns.
Among these surfaces are oven vent openings and surfaces near these openings,
the oven door, and the window of the oven door.
• Do not heat unopened food containers. The buildup of pressure may cause the
container to burst and result in injury.
• Do not use the oven to dry newspapers. If overheated, newspapers can catch fire.
• Do not use the oven for a storage area. Items stored in an oven can ignite.
• Use care when opening the door. Let hot air or steam escape before you remove
food from or put food into the oven.
• Protective liners. Do not use aluminum foil to line the oven bottoms, except as
suggested in this manual. Improper installation of these liners may result in a risk
of electric shock or fire.
• Keep oven vent ducts unobstructed. The oven vent is located above the right
rear surface unit. This area could become hot during oven use. Never block this
vent or place plastic or heat-sensitive items on it.
• Placement of oven racks. Always place oven racks in the desired location while
the oven is cool. If the rack must be moved while the oven is hot, use potholders.
Do not let the potholders come in contact with the hot heating element in the
oven.
• Do not allow aluminum foil or a meat probe to contact the heating elements.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass. They can scratch the surface which may result in the glass shattering.
CAUTION
Do not attempt to operate the oven during a power failure.
If the power fails, always turn the oven off. If the oven is not turned off and the power
returns, the oven may begin to operate again. Food left unattended could catch fire or
spoil.

English14
Safety information
Safety information
Self-cleaning ovens
Do not clean the door gasket. The door gasket is essential for a good seal. Care
should be taken not to rub, damage, or move the gasket.
• Never keep pet birds in the kitchen. Birds are extremely sensitive to the fumes
released during an oven self-clean cycle. Fumes may be harmful or fatal to birds.
Move birds to a well-ventilated room.
• Clean only the parts listed in this manual in the self-clean cycle. Before self-
cleaning the oven, remove the divider, rack, utensils, and any food.
• Before operating the self-clean cycle, wipe grease and food soils from the oven.
Excessive amounts of grease may ignite, leading to smoke damage to your home.
• Do not use any commercial oven cleaner or oven liner protective coating of any
kind in or on the outside of the oven.
• Remove the nickel oven shelves from the oven before you begin the self-
cleaning cycle or they may discolor.
• If the self-cleaning mode malfunctions, turn the oven off and disconnect the
power supply. Have it serviced by a qualified technician.
• Excess spillage must be removed before you run the self-cleaning cycle.
Ventilating hood
• Clean ventilating hoods frequently. Do not let grease accumulate on the hood or
filter.
• When flaming foods under the hood, turn the fan on.

English 15
Safety information
Critical installation warnings
WARNING
• This appliance must be installed by a qualified technician or service company.
- Failing to have a qualified technician install the oven may result in electric
shock, fire, an explosion, problems with the product, or injury.
• Unpack the oven, remove all packaging material and examine the oven for
any damage such as dents on the interior or exterior of the oven, broken door
latches, cracks in the door, or a door that is not lined up correctly. If there is any
damage, do not operate the oven and notify your dealer immediately.
• Plug the power cord into a properly grounded outlet with the proper
configuration. Your oven should be the only item connected to this circuit.
• Keep all packaging materials out of the reach of children. Children may use them
for play and injure themselves.
• This appliance must be properly grounded.
• Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the
product.
• Do not cut or remove the ground prong from the power cord under any
circumstances.
• Connect the oven to a circuit that provides the correct amperage.
• Do not install this appliance in a humid, oily or dusty location, or in a location
exposed to direct sunlight or water (rain drops).
- This may result in electric shock or fire.
• Do not use a damaged power cord or loose wall socket.
- This may result in electric shock or fire.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the
power cord, or insert the power cord between objects.
- This may result in electric shock or fire.
If the power cord is damaged, contact your nearest Dacor Customer Service.

English16
Safety information
Safety information
Critical usage warning
CAUTION
• If the appliance is flooded by any liquid, contact your nearest Dacor Customer
Service. Failing to do so may result in electric shock or fire.
• If the appliance produces a strange noise, a burning smell, or smoke, unplug the
power plug immediately and contact your nearest Dacor Customer Service.
- Failing to do so may result in electric shock or fire
• In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area
immediately. Do not touch the power cord. Do not touch the appliance.
- A spark may result in an explosion or fire.
• Take care not to contact the oven door, heating elements, or any of the other hot
parts with your body while cooking or just after cooking.
- Failing to do so may result in burns.
• If materials inside the oven should ignite, keep the oven door closed, turn the oven
off and disconnect the power cord, or shut off power at the fuse or circuit breaker
panel. If the door is opened, the fire may spread.
• Always observe safety precautions when using your oven. Never try to repair
the oven on your own - there is dangerous voltage inside. If the oven needs to be
repaired, contact an authorized Dacor Customer Service near you.
• If you use the appliance when it is contaminated by foreign substances such as food
waste, it may result in a problem with the appliance.
• Take care when removing the wrapping from food taken out of the appliance.
- If the food is hot, steam may be emitted abruptly when you remove the
wrapping and this may result in burns.
• Do not attempt to repair, disassemble, or modify the appliance yourself.
- Since a high voltage current enters the product chassis, it may result in electric
shock or fire.
- When a repair is needed, contact your nearest Dacor Customer Service.

English 17
Safety information
• Do not touch the power cord with wet hands.
- This may result in electric shock.
• Do not turn the appliance off while an operation is in progress.
- This may cause a spark and result in electric shock or fire.
• Make sure that the appliance’s controls and cooking areas are out of the reach of
children.
- Failing to do so may result in electric shock, burns, or injury.
• Do not use or place flammable sprays or objects near the oven.
- Flammable items or sprays can cause fires or an explosion.
• Do not insert fingers, foreign substances, or metal objects such as pins or needles
into inlets, outlets, or holes. If foreign substances are inserted into any of these
holes, contact your product provider or nearest Dacor Customer Service.
• Do not tamper with or make any adjustments or repairs to the door. Under no
circumstances should you remove the door or outer shell of the oven.
• Do not store or use the oven outdoors.
• Never use this appliance for purposes other than cooking.
- Using the appliance for any purpose other than cooking may result in fire.
• Open the cap or stopper of sealed containers (herb tonic tea bottle, baby bottle,
milk bottle and so on) before heating them. Make a hole in food items that have
shells (eggs, chestnuts, etc) with a knife before cooking them.
- Failing to do so may result in burns or injury.
• Never heat plastic or paper containers and do not use them for cooking.
- Failing to do so may result in fire.
• Do not heat food wrapped in paper from magazines, newspapers, etc.
- This may result in fire.
• Do not apply excessive pressure to the door or the inside of the appliance. Do not
strike the door or the inside or the appliance.
- Hanging on to the door may result in the product falling and cause serious
injury.
- If the door is damaged, do not use the appliance. Contact a Dacor Customer
Service.
• Do not hold food in your bare hands during or immediately after cooking.
- Use oven mitts. The food may be very hot and you could burn yourself.
- As the handle and oven surfaces may be hot enough to cause burns after
cooking, use oven mitts to protect your hands from burns.

English18
Safety information
Safety information
Usage cautions
CAUTION
• Dishes and containers can become hot. Handle with care.
• Hot foods and steam can cause burns. Carefully remove container coverings,
directing the steam away your hands and face.
• Remove lids from baby food jars before heating. After heating baby food, stir
well to distribute the heat evenly. Always test the temperature by tasting before
feeding the baby. The glass jar or the surface of the food may appear to be
cooler than the interior, which can be hot enough to burn an infant’s mouth.
• Take care as beverages or food may be very hot after heating.
- Especially when feeding a child, make sure the food or beverage has cooled
sufficiently.
• Take care when heating liquids such as water or other beverages.
Make sure to stir during or after cooking.
Avoid using a slippery container with a narrow neck.
Wait at least 30 seconds after heating before removing the heated liquid.
Failing to do so may result in an abrupt overflow of the contents and cause
burns.
• Do not operate the appliance with wet hands.
- This may result in electric shock.
• Do not spray volatile substances such as insecticide onto the surface of the
appliance.
- As well as being harmful to humans, it may also result in electric shock, fire, or
problems with the product.
• Do not put your face or body close to the appliance while cooking or when
opening the door just after cooking.
- Take care that children do not come too close to the appliance.
- Failing to do so may result in children burning themselves.
• Do not abruptly cool the door, the inside of the appliance, or a dish by pouring
water over it during or just after cooking.
- This may result in damage to the appliance. The steam or water spray may
result in burns or injury.

English 19
Safety information
• Do not operate while empty except for self-cleaning.
• Do not defrost frozen beverages in narrow-necked bottles. The bottles can break.
• Do not scratch the glass of the oven door with a sharp object.
- This may result in the glass being damaged or broken.
• Do not use sealed containers. Remove seals and lids before cooking. Sealed
containers can explode due to the buildup of pressure even after the oven has
been turned off.
• Do not let the food in the oven touch the heating element.
- This may result in fire.
• Do not over-heat food.
- Overheating food may result in fire.
• Use caution when opening or closing the door. Your fingers may be pinched,
resulting in physical injury.
• The door reveals wires at the bottom for connecting LED lights. So use caution
not to pull or cut the wires when handling the door.
Critical cleaning warnings
CAUTION
• Do not clean the appliance by spraying water directly on to it.
• Do not use benzene, thinner, or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock, or fire.
• Take care not to hurt yourself when cleaning the appliance (externally or
internally).
- You may hurt yourself on the sharp edges of the appliance.
• Do not clean the appliance with a steam cleaner.
- This may result in corrosion.
• Keep the inside of the oven clean. Food particles or spattered oils stuck to the
oven walls or floor can cause paint damage and reduce the efficiency of the
oven.

English20
Introducing your new oven
Introducing your new oven
Overview
01
09
06 07
04
03
02
03
02
05
05
08

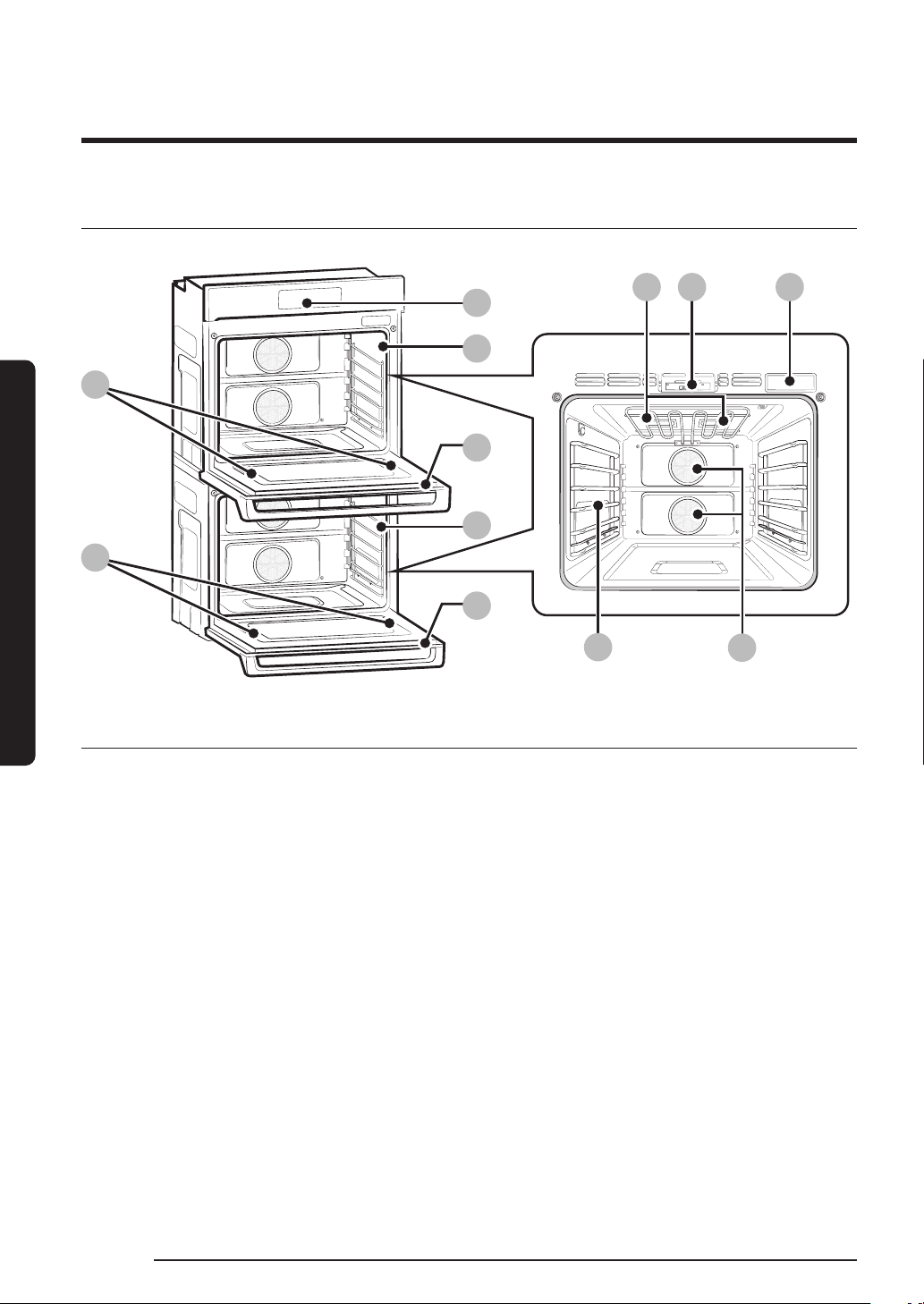

01 Oven control panel 02 Oven door 03 Oven gasket
04 Halogen lamp * 05 Door LED light 06 Door latch
07 Water reservoir 08 Convection filter 09 Rack support
