Dacor DOB30M977DS User manual

User Manual
Modernist Built-In Electric Wall Oven
DOB30M977
Part No. 112177 Rev B

English2
Contents
Important information 5
Energy-saving tips 5
Safety information 6
What you need to know about safety instructions 6
State of California Proposition 65 warning (US only) 8
For your safety 8
Electrical safety 10
Child safety 10
Oven 11
Self-cleaning ovens 12
Ventilating hood 12
Critical installation warnings 13
Critical usage warning 14
Usage cautions 16
Critical cleaning warnings 17
Introducing your new oven 18
Overview 18
What’s included with your oven 18
Operations 19
Control panel 19
Display 20
Water reservoir 21
Control lockout 23
Kitchen timer 24
Timed cooking 26
Delay start 28
Using the oven racks 29
Using the gliding rack 32
Using the temp probe 34
Oven functions 37
Setting the mode 41
Setting the temperature 42
Basic baking and broiling instructions 42

English 3
Using the special function feature 46
Using the Chef Mode feature 49
Using the iQ control feature 50
Using the clean feature 52
Settings 61
Using the sabbath feature 65
Care and maintenance 67
67
75
76
78
Care and cleaning of the oven
Removing the oven doors
Reinstalling the oven doors
Changing the oven light
Troubleshooting 79
Information codes 83
Warranty and Service 85
Getting Help 85
Warranty 85
Regulatory Notice 88
Open Source Announcement 90

English4
To Our Valued Customer:
Congratulations on your purchase of the very latest in Dacor® products! Our unique
combination of features, style, and performance make us a great addition to your home.
To familiarize yourself with the controls, functions and full potential of your new Dacor
wall oven, read this manual thoroughly, starting at the Before you begin section (pg. 5).
Dacor appliances are designed and manufactured with quality and pride, while working
within the framework of our company values. Should you ever have an issue with your
wall oven, first check the Troubleshooting section (Pt. 2, pgs. 29 –35) for guidance. It
gives suggestions and remedies that may pre-empt a call for service.
Valuable customer input helps us continually improve our products and services, so feel
free to contact our Customer Assurance Team for assistance with all your product-
support needs.
Dacor Customer Assurance Team
14425 Clark Avenue
City of Industry, CA 91745
Telephone:
Fax:
Hours of Operation:
Website:
[phone]
[phone]
Mon – Fri, 5:00 A.M. to 5:00 P.M. Pacific Time
www.dacor.com/customer-care/contact-us
Thanks for choosing Dacor for your home. We are a company built by families for
families, and we are dedicated to serving yours. We are confident that your new Dacor
wall oven will deliver a top-level performance and enjoyment for decades to come.
Sincerely,
The Dacor Customer Assurance Team

English 5
Important information
Clean the oven thoroughly before using it the first time. Then, remove the racks, set the
oven to Bake at 400 °F for 1 hour. There will be a distinctive odor. This is normal.
The kitchen should be well ventilated during this conditioning session.
Energy-saving tips
•Leave the oven door closed except to turn food.
•For cook times over 30 minutes, you can turn the oven off 5-10 minutes early. The
residual heat will finish cooking the food.
•Plan your cooking schedule so you do not have to turn the oven off between items.
•When possible, cook multiple items together.

English6
Safety information
Read and follow all directions before using your oven to avoid risk of fire, electric shock,
personal injury, or other damage. Contact your service agent or the manufacturer about
issues you do not understand or cannot resolve through troubleshooting (pg. 79).
What you need to know about safety instructions
Warnings and important safety instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when maintaining, and operating your oven.
Important safety symbols and precautions
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
oven, follow these basic safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call a Dacor Customer Service for help.
Note
Keep this manual in a convenient place for reference.
State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.

Safety information
For your safety
When using electrical appliances, follow basic safety precautions, including:
CAUTION
•Use the oven only as instructed in this manual.
•Potentially hot surfaces include oven vents and nearby surfaces, and door seams.
Ensure the oven is properly installed and grounded by a qualified technician.
Do not repair/replace any components unless as specifically recommended in this
manual. A qualified technician should perform all other service.
Before servicing the oven, remove power at the fusebox or circuit breaker.
•Do not leave children unattended near the oven when it is in use.
•Do not let children climb on or play with any part of the oven.
•Do not use the oven as a space heater.
•Do not use water on grease fires. Turn off the oven, and smother the fire by
closing the door, or use a dry-chemical, baking soda, or foam-type extinguisher.
•Avoid scratching or striking the glass doors and control panel. Do not use the
oven if the door glass is damaged.
• Do not keep flammable material (gasoline, plastic, clothing, paper) near the oven.
•Do not wear loose-fitting or hanging garments while using the oven.
•Do not use high-pressure water cleaners or steam-jet cleaners on the oven.
•If there is an oven fire during self-cleaning, turn the oven off, and wait for the
fire to die. Do not force the door open. Introducing fresh air at self-cleaning
temperatures may cause a burst of flame from the oven.
•Oil buildup in the oven chamber is a fire hazard. Periodically wipe up oil with a
paper towel or rag, then run a self-cleaning cycle before using the oven again.
•Remove all packing material before using the oven.
•Use only dry potholders. Placing moist or damp potholders on hot surfaces may
cause steam burns. Do not let the potholder touch hot heating elements. Do not
substitute a towel or other bulky cloth for a potholder.
•A damaged power cord is an electric-shock hazard. Have the cord replaced by
the manufacturer, its service agent, or an electrician.
• The oven should be operated only by trained users. Children and they of reduced
physical, sensory, or mental capacity should be supervised by a responsible party.
English 7

8English
Safety information
Electrical safety
• Use only the factory installed flexible power cord to connect to the power supply.
•The oven should be serviced only by qualified personnel. Repairs by unqualified
persons may cause injury and oven malfunction, and may void the warranty. For
service, contact a Dacor-authorized center.
•A flush-mounted oven should be operated only if installed in cabinetry that
conforms to accepted safety standards as instructed in this manual.
•If your oven malfunctions, or if fractures, cracks, or splits appear:
-turn off and unplug the oven.
-contact Dacor Customer Service (pg. 4).
WARNING
Turn off the oven before replacing the lamp to avoid the possibility of electric shock.
Child safety
WARNING
•Children and infirm persons should only use the oven under the supervision of a
responsible adult.
•Children should not be allowed to play with the oven.
•Keep children away from the oven door when opening or closing.
•During self-cleaning and even during normal use, oven surfaces get very hot. Keep
children away from the oven during these times.

English 9
Oven
•DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES. Heating
elements may be hot even if dark in color. Interior surfaces become hot enough
to cause severe burns. Do not touch or let clothing or other flammable materials
touch the heating elements or interior oven surfaces unless those surfaces are
cool to the touch. Other oven surfaces (e.g., oven vents and nearby surfaces , the
oven door including the window) become hot enough to cause burns.
•Do not heat sealed food containers. Pressure buildup may burst the containers.
•Do not use the oven to dry newspapers.
•Do not the oven for storage.
•Open the oven door carefully to let out hot air or steam before removing food.
•Do not line the oven chamber or racks with aluminum foil. Doing so causes
inefficient heating and creates fire and electric-shock hazards.
•To avoid a burn or fire risk, do not block the vents at the front base of the oven.
•Always adjust the racks when the oven is cool. If a rack must be moved while
the oven is hot, use potholders (keeping them away from the heating element).
•Do not let aluminum foil or a meat probe touch the heating element.
•Do not clean the oven door glass with abrasive cleaners or sharp metal
scrapers. These can mar the glass, possibly causing it to shatter in the future.
CAUTION
Do not operate the oven during a power failure.
If the power fails, turn the oven off. If the oven is on when power returns, the oven may
begin to operate again. Forgotten food may catch fire or spoil.

10English
Safety information
Self-cleaning ovens
Do not clean the door gasket. The door gasket is essential for a good seal. Care
should be taken not to rub, damage, or move the gasket.
•Fumes released during a self-clean cycle may be fatal to pet birds. Move birds
to a well-ventilated room.
•Before self-cleaning the oven, remove all accessories and food, and wipe up
cooking residue. (Excess grease may ignite and cause smoke damage.)
•Do not use commercial oven cleaners or protective coatings on the oven.
•If self-cleaning mode malfunctions, turn the oven off, and disconnect the power
supply. Have the oven serviced by a qualified technician.
Critical usage warning
CAUTION
•If the oven is flooded by any liquid, call Dacor Customer Assurance (pg. 4). Failure
t o do so may result in electric shock or fire.
•If the oven emits a odd noise, burning smell, or smoke, unplug it immediately to
a void possible electric shock or fire. Contact Dacor Customer Assurance (pg. 4).
•During and immediately after operation, take care not to touch cookware or oven
surfaces without oven mitts.
•If fire ignites in the oven, keep the oven door closed, turn off and unplug the
oven, or shut off power at the fuse box or circuit-breaker panel.
•Carefully remove the wrapping from hot food to avoid steam burns.
•Do not repair, disassemble, or modify the oven. For repair assistance, call Dacor
Customer Assurance (pg. 4).
•Do not touch the power cord with wet hands.
•Do not turn the oven off while an operation is in progress.
•Do not insert fingers, foreign substances, or metal into slots or holes in the oven.
•Do not store or use the oven outdoors.
•Use the oven only for cooking tasks consistent with residential use.
•Do n ot heat sealed containers or food items with shells (eggs, nuts) in the oven.
•Do n ot heat plastic or paper containers/wrapping in the oven.
•Do not strike the door or the oven chamber.
•Do not hang on, slam, or yank the door. If the door is damaged, do not use the
ove n. Call Dacor Customer Assurance (pg. 4).

Safety information
Usage cautions
CAUTION
•In removing coverings from hot cookware, direct steam away from exposed skin.
•Remove lids from baby food jars before heating. Afterward, stir the food well to
distribute heat, and taste-test the temperature before feeding the baby.
•Take care when heating water or other beverages.
•Avoid using a slippery container with a narrow neck. Wait at least 30 seconds
after heating before removing the heated container to avoid an abrupt overflow
and possible burns.
•When opening the oven door, stand to one side to avoid exposure to the heat.
•Take care not to pinch fingers or hands when opening or closing the door.
•The door reveals wires at the bottom for connecting LED lights. Take care not to
damage the wires when handling the door.
•Do not operate the oven with wet hands.
•Do not spray volatile substances (insecticide, benzene, etc) directly on the oven.
•Do not pour water in the oven chamber or other surfaces directly after cooking.
•Do not heat the oven while empty except for self-cleaning.
•Do not defrost beverages in narrow-necked bottles. The bottles can break.
•Do not let the food in the oven touch the heating element.
•Do not overheat food. Overheating food may result in fire.
Critical cleaning warnings
CAUTION
•Do not spray water directly on the oven.
•Do not use substances such as benzene, thinner, or alcohol to clean the
appliance. Discoloration, deformation, electric shock, or fire may result.
•When cleaning, take care not to injure yourself on the oven's sharp edges.
•Do not clean the oven with a steam cleaner, which may corrode metal parts.
•Keep the oven chamber clean. Residue can mar the finish and hinder oven
function.
English 11

12English
Introducing your new oven
Overview
01
03
04
08
06 07
05
02
09
01 Oven control panel 02 Oven door 03 Oven gasket
04 Halogen lamp* 05 Door LED light 06 Door latch
07 Water reservoir 08 Convection filter 09 Rack support
What’s included with your oven
Wire racks (1)* Gliding rack (2)* Temp probe (1)*
NOTE
Accessories marked with an * can be purchased from Dacor Customer Assurance.

English 13
Operations
Control panel
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
01 04
05
06
02
03
07

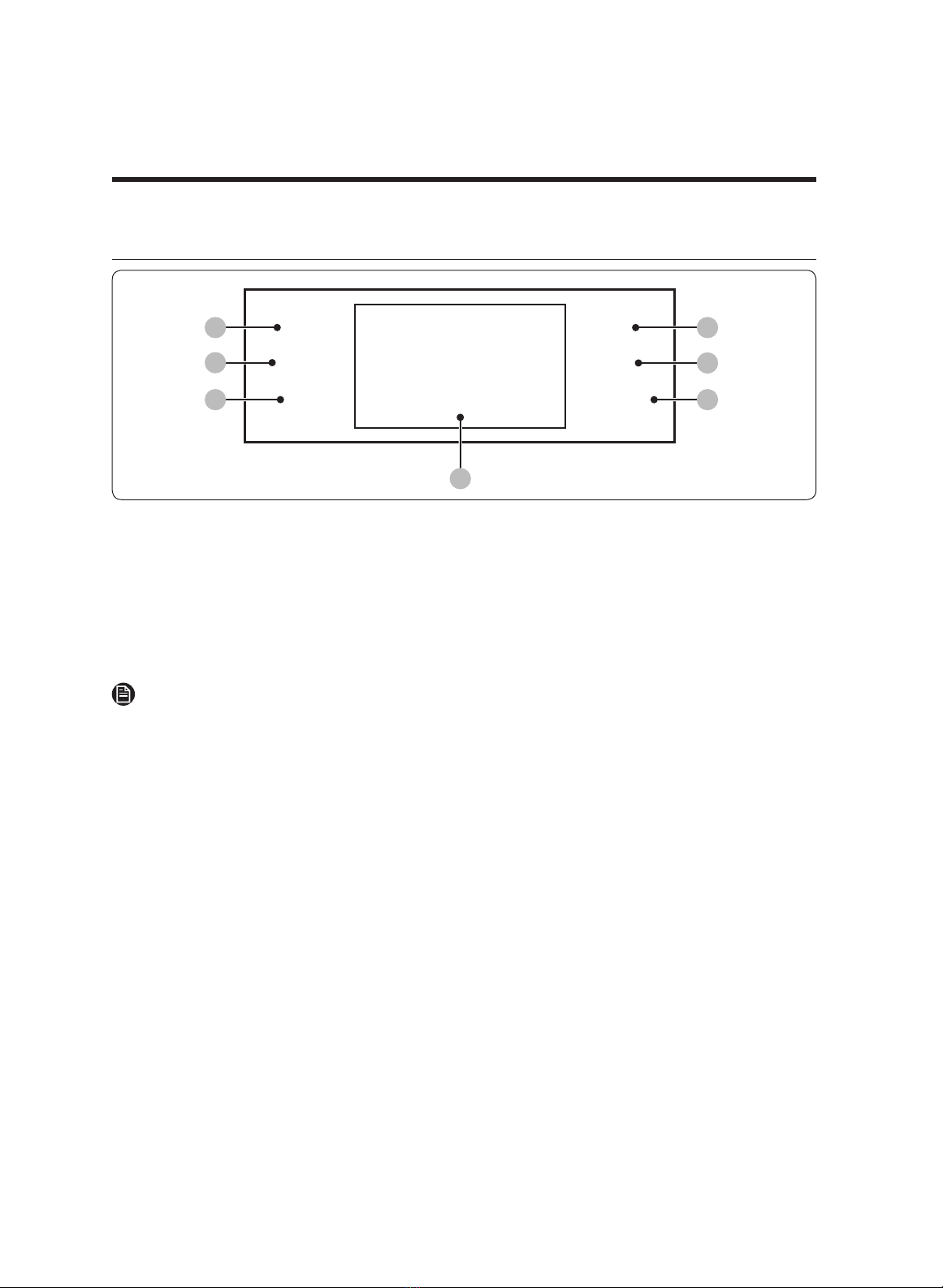

01 TIMER: Use to display the set Timer screen.
02 SETTINGS: Use to display the Setting screen.
03 LOCK (CONTROL LOCKOUT): Press-hold for 3 seconds to disable all oven functions.
04 OFF: Use to cancel when oven is cooking.
05 LIGHT: Use to turn the oven light on or off.
06 OPEN/CLOSE RESERVOIR: Touch to open or close the water reservoir.
07 Display: Swipe to navigate the menus and tap to select a desired setting.
NOTE
You cannot operate the display while wearing gloves/mitts. Always touch the display
with a bare finger.

14 English
Operations
Display
Convection Bake
Faster, more even baking
325°F
Temp Probe
150
°
InstantHeat™
Off
Cook Time
None
Delay Start
None
START
4:35 PM
OVEN
MODE
View
Summary
01
03
04
06
02
05
07
08

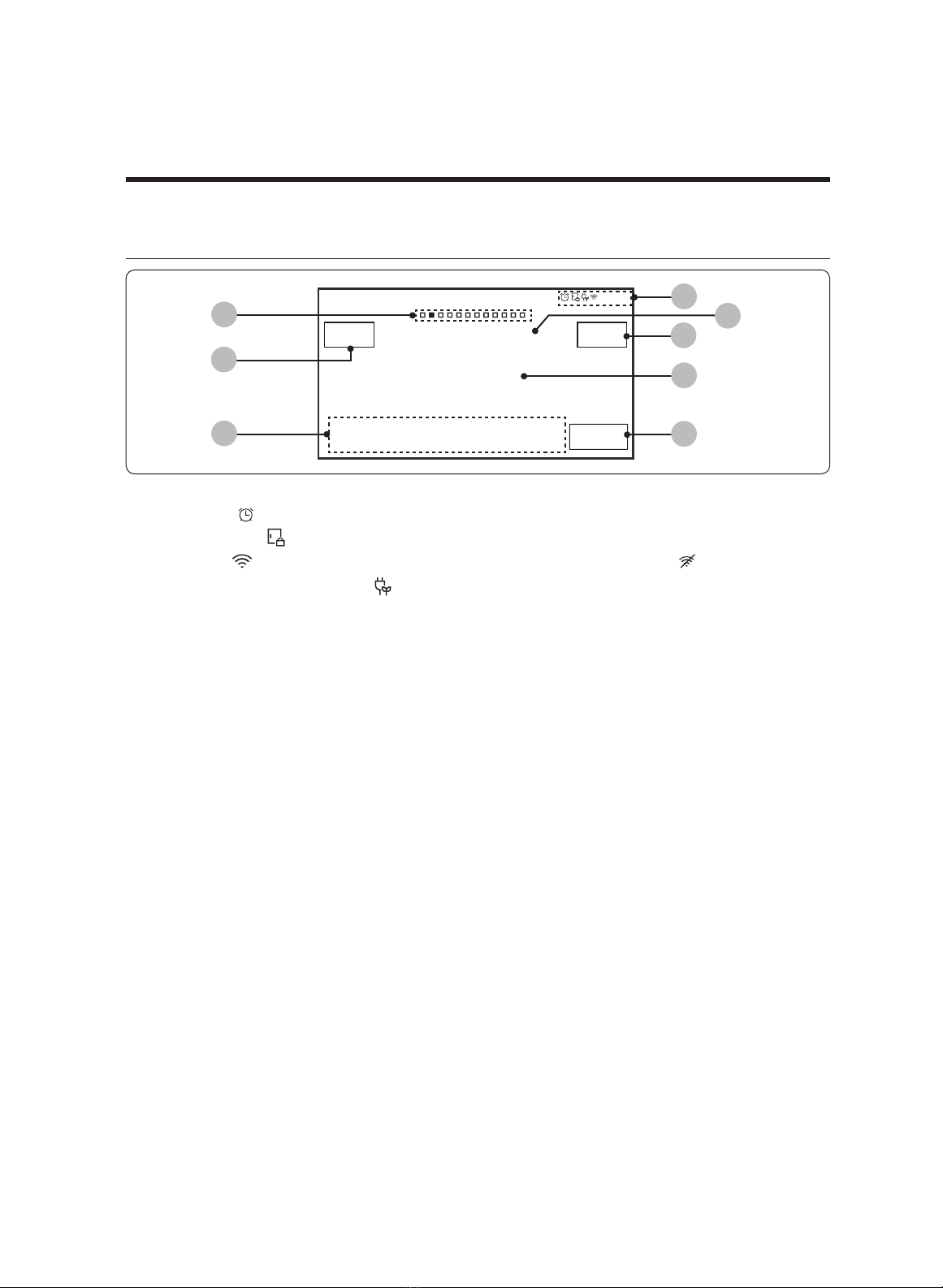

01 Indicator area
•Timer (): When the timer is set, the timer indicator is displayed.
•Door lock (): Displayed when the oven door is locked.
•Wi-Fi ( ): Shows Wi-Fi signal strength. If Wi-Fi is disconnected, is appears.
•12-hour energy saving ( ): Displayed when 12-hour energy saving is turned on.
•Current time: The current time is displayed.
02 Page indicator: Shows location of current mode.
03 Mode: The current or selected menu is displayed with a mode description.
04 Temperature: The current or selected temperature is displayed. When you tap this
area, the temperature adjustment screen is displayed.
05 Information area
•Temp Probe: Tap to show the Temp Probe screen.
•Cook Time: Tap to show the Cook Time screen.
•Delay Start: Tap to show the Delay Start screen.
•InstantHeat™: Shows that InstantHeat™ is on/off. (Convection Bake, Convection
Roast modes only.)
•Steam: Tap to show the Steam Level screen. (Steam Bake, Steam Roast modes
only.)
06 START: Tap to start the oven using the displayed settings.
07 View Summary: Tap to display the oven's cooking modes.
08 OVEN MODE: Tap to select an oven mode.

English 15
Water reservoir
The reservoir is used in Steam Bake and Steam Roast modes and to remove water scale
left on the oven walls after steam-cooking modes.

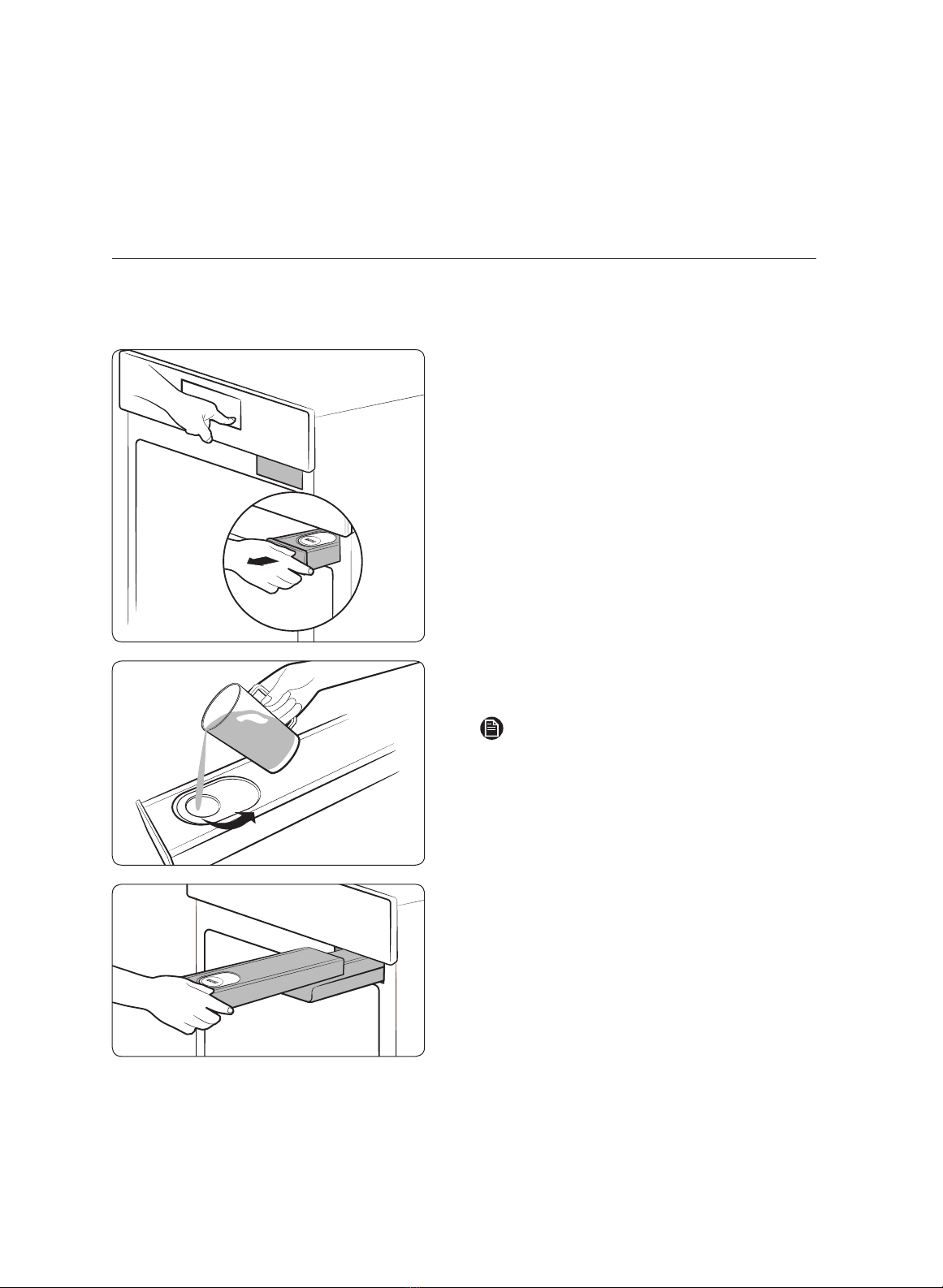

1. Open the oven door. The reservoir is
on the right-hand side of the oven
above the oven opening. On the
control panel, touch OPEN/CLOSE
RESERVOIR. The reservoir ejects.
Pull the reservoirfrom its slot.
2. Open the reservoir cap, and fill it
with 22 oz (650ml) of drinkable water.
NOTE
You could also remove the rubber cap.
3. Replace the cap (or plastic top), and
slide the reservoir into its slot. A soft
click indicates it is seated correctly.
4. Touch OPEN/CLOSE RESERVOIR. The
oven retracts the reservoir.
5. Close the oven door.

16 English
Operations
Max
0.5L
0.3L

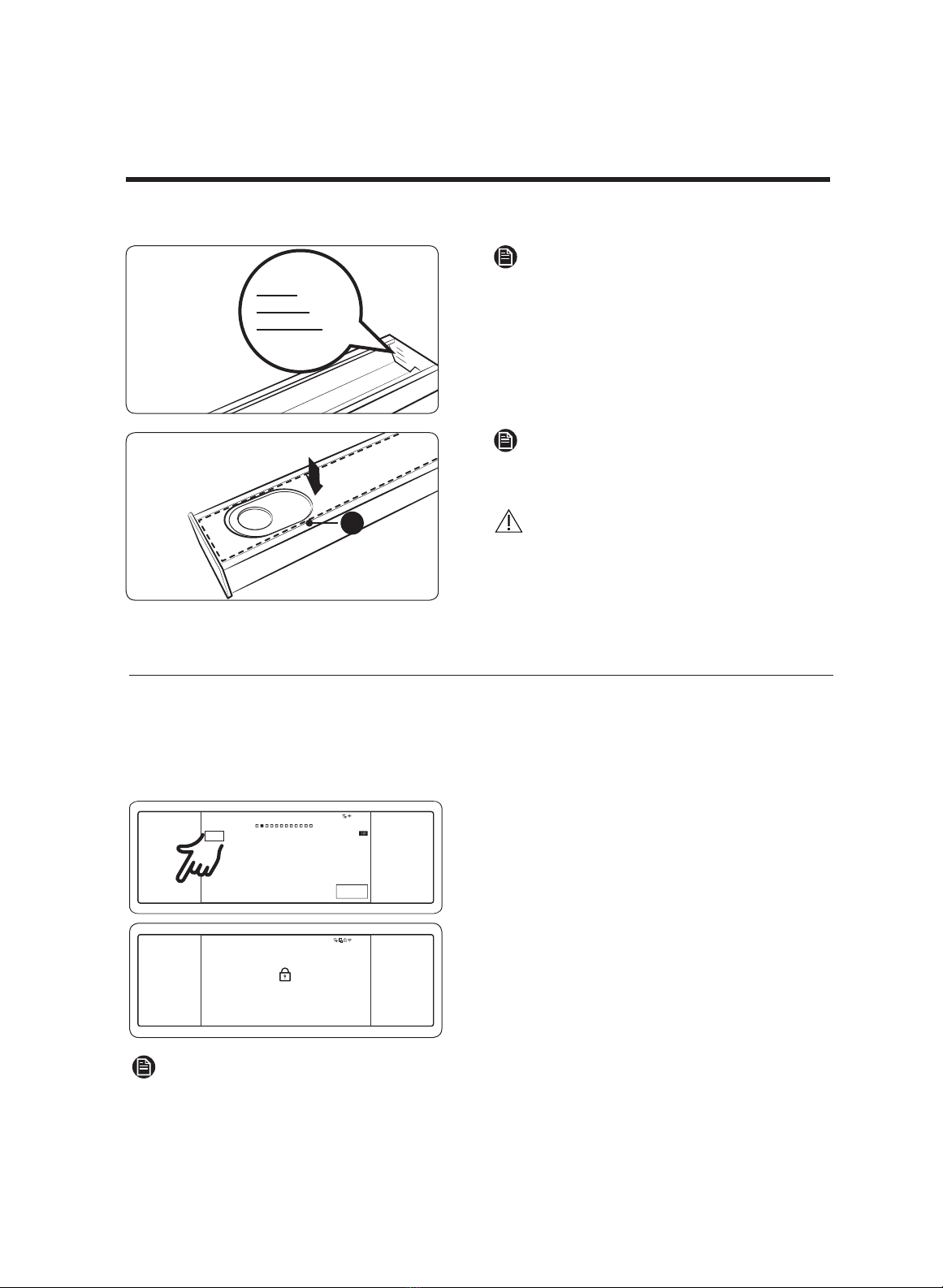

NOTE
Do not exceed the max line.
A
NOTE
Close the cap and top portion of the
reservoir (A) before using the oven.
CAUTION
The reservoir heats up during
cooking. Wear oven mitts to
remove/refill the reservoir.
Control lockout
Control lockout lets you lock touchpad buttons to prevent undesired changing of the
controls. This feature also locks the oven door(s). Control lockout must be activated
when the oven is in Standby mode.
How to activate Control Lockout
Convection Bake
Faster, more even baking
325°F
Temp Prob e
150°None
InstantH eat™
Off
Cook Tim eDelay Sta
rt
None
START
4:35 PM
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
1. Cancel or turn off all functions.
2. Touch LOCK for 3 seconds.
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
Child Lock
4:35 PM
•The display changes to the Child Lock
screen, and the control lock
confirmation appears at the bottom of
the screen.
NOTE
•Control Lockout is available only when the oven temperature is under 400 °F.
•All other functions must be cancelled before you activate Control Lockout.

English 17
How to unlock the controls
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
1. Touch LOCK for 3 seconds. The control
lock confirmation and the lock icon
disappear.
NOTE
It may take 10 seconds for the doors to
unlock.
Kitchen timer
This timer beeps when the set time elapses. It does not start/stop cooking functions.
You can use the kitchen timer with any oven function.
How to set the timer
4:35 PM
Convection Bake
Faster, more even baking
325°F
Temp Probe
150°None
InstantH eat™
Off
Cook Time
Delay Star t
None
START
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
1. Touch TIMER. The display changes
to the timer screen.
+
Add timer
Timer
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
2. Tap + Add timer.
1
6 7 8 9 0
2 3 4 5
OK
0 hr 00 min 00 sec
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
4:35 PM
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
DELETE RESET
Timer 01
00:00:20
START
Timer + ADD
DELETE RESET
Timer 01
00:00:18
PAUSE
Timer + ADD
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
3. Tap the numbers on the touchpad to
set the time (from 1 sec to 23 hr 59
min 59 sec).
4. Tap START. When the time elapses,
the oven beeps, and the display
shows the timer has finished.
•You can pause, reset, or delete the timer
at any time by touching the screen.

How to change timer name
DELETE RESET
Timer 01
00:00:20
START
Timer + ADD
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
Enter timer name.
Timer 01
OKEnglish?123
sa d f g h j k l
wq e r t y u i o p
z x c v b n m
.
... ...
1 2 3 4 5 6 7 8 9 0
- @ * ^ : ; ( )
/ ‘ “ : , ? !
~
4:35 PM
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR

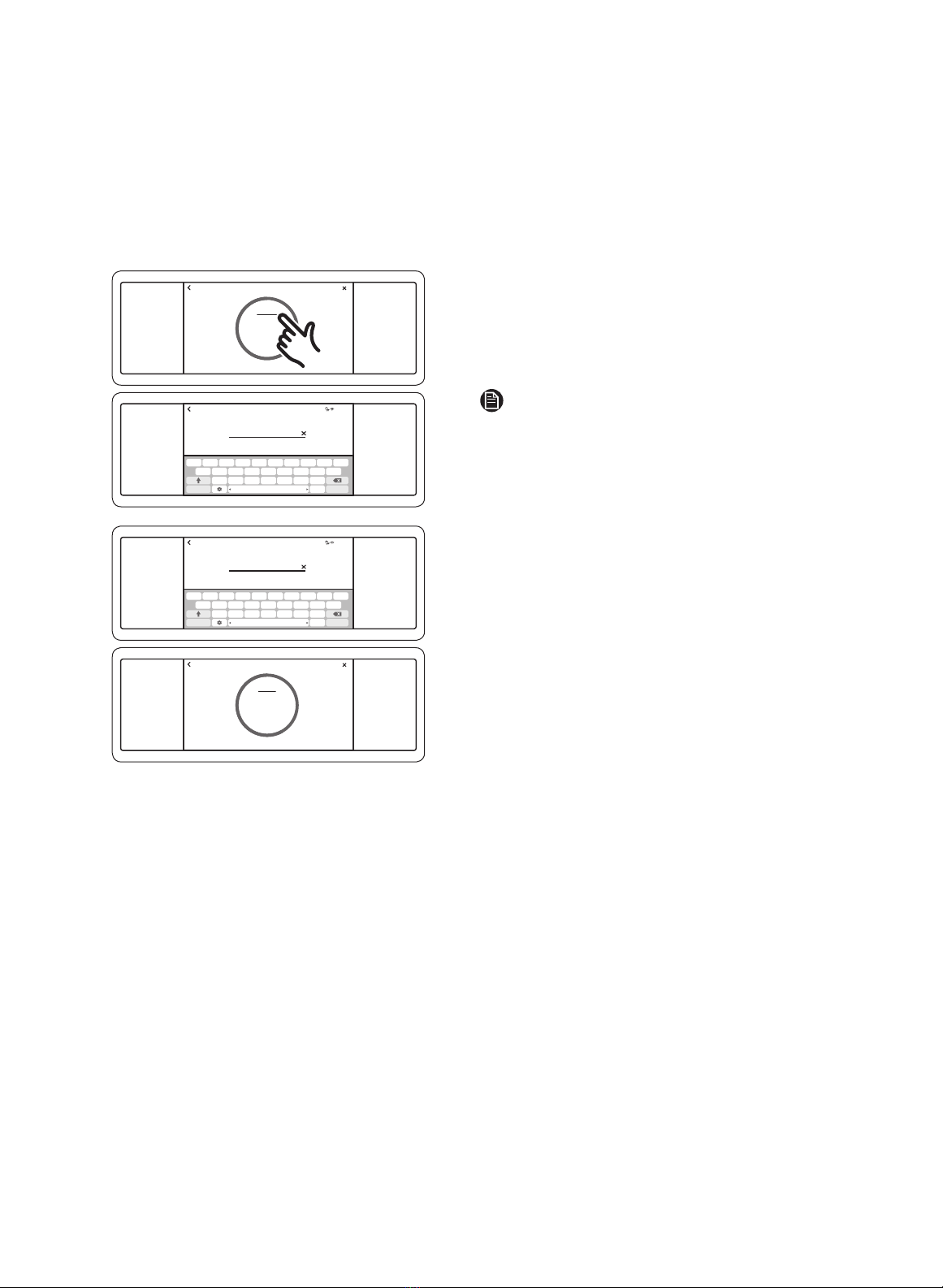

You can change the timer name to identify
what you are timing, for example, a
chicken defrosting.
1. Tap the timer name area.
•The keyboard appears.
NOTE
•You can name the timer in a max of 13
characters.
Chicken
OK English?123
sa d f g h j k l
wq e r t y u i o p
z x c v b n m
.
... ...
1 2 3 4 5 6 7 8 9 0
- @ * ^ : ; ( )
/ ‘ “ : , ? !
~
4:35 PM
Enter timer name.
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
DELETE RESET
Chicken
00:00:20
START
Timer
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
+ ADD
2. Tap the keyboard to set the new timer
name.
•The display shows the changed timer
name.
18English

Operations
Timed cooking
In this mode, the oven turns on immediately and cooks for the length of time you set.
At the end of the cooking time, the oven turns off automatically.
You can use Timed Cooking only with another cooking mode (Bake, Convection Bake,
Convection Roast, Pure Conv. Sear, Convection Broil, Steam Bake, Steam Roast, Dual
Four Part Pure Convection, Proof, Stone Bake Mode, Dehydrate).
How to set the oven for timed cooking
START
4:35 PM
Convection Bake
Faster, more even baking
325°F
InstantHeat™
Off
Cook Time
None
Delay Start
None
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
4:35 PM
1
6 7 8 9 0
2 3 4 5
OK
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
0 hr 00 min
Set cooking time
1. Swipe to the desired cooking mode.
2. Tap Cook Time. The display changes to
the Set Cooking Time screen.
4:35 PM
1
6 7 8 9 0
2 3 4 5
OK
Ready at 5:05PM
0 hr 30 min
Set cooking time
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
4:35 PM
1
6 7 8 9 0
2 3 4 5
OK
1 hr 45 min
Set cooking time
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
Ready at 5:05PM
3. Tap numbers on the touchpad to
set the cooking time (from 1 min to 9
hr and 59 min).
START
4:35 PM
Convection Bake
Faster, more even baking
325°F
None
InstantH eat™
Off
Cook Tim e
1hr 45min
Delay St art
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
•
•
The cook time appears in the Cook
Time area of the screen.
Cancel the cook time at any time by
setting the Cook Time to 0 minutes.
CAUTION
You can use timed cooking and delay start to cook cured or frozen meats, and most
fruits and vegetables. Food that spoils easily (e.g., eggs, meat) should be chilled first.
Even so, it should sit in the oven no longer than 1 hour before cooking and should be
removed promptly when done. Eating spoiled food can cause food poisoning.
English 19

20English
Operations
Delay start
In this mode, the oven timer turns the oven on at your preset time. At the same
time, you can set the oven to turn off automatically via the Timed Cooking function.
•You can use Delay Start only with another cooking operation (Bake, Convection Bake,
Convection Roast, Pure Conv. Sear, Steam Bake, Steam Roast, Dual Four Part Pure
Convection, Proof, Stone Bake Mode, Dehydrate, Self clean, GreenClean™).
•You can set Delay Start before setting other cooking operations.
•The oven clock must be set to the current time.
How to set the oven for delay timed cooking
START
4:35 PM
Convection Bake
Faster, more even baking
325°F
InstantHeat™
Off
Cook Time
None
Delay Start
None
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
4:35 PM
1
6 7 8 9 0
2 3 4 5
OK
4 : 35 AM
PM
Set start time
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
4:35 PM
1
6 7 8 9 0
2 3 4 5
OK
5 : 35 AM
PM
Set start time
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
1. Place the food in the oven.
2. On the control screen, swipe to the
desired cooking operation.
3. Set the cook time if you want the oven
to turn off automatically. (See Timed
cooking, pg. 26.)
4. Tap Delay Start. The current time
appears as the first entry.
5. Tap numbers on the touchpad to set
the oven start time.
START
4:35 PM
Convection Bake
Faster, more even baking
325°F
InstantHeat™
Off
Cook Time
1hr 45min
Delay Start
5:35 PM
TIMER
SETTINGS
LOCK
(3sec)
OFF
LIGHT
OPEN/CLOSE
RESERVOIR
OVEN
MODE
•The Delay Start screen closes. The start
time (and, if you set it) the cook time
are displayed.
