Dacor REMP16 User manual

Installation Instructions
Remote Blowers
Models: REMP3, REMP16
Part No. 65265 Rev. G
Suitable for use in a household cooking area.
Suitable for use with solid state controls.
To complete this blower, a Dacor ®hood assembly or Dacor raised vent must
be purchased separately. See the hood or raised vent installation instructions
to determine suitability.

Installation Instructions.................................................... 6
Parts List .......................................................................... 6
Installation ........................................................................ 6
Verifying Proper Operation............................................... 7
Technical Data ................................................................... 8
Table of Contents
Before You Begin...
Important Safety Instructions .......................................... 1
Important Information About Safety Instructions.............. 1
Safety Symbols and Labels ............................................. 1
General Safety Precautions ............................................. 2
Product Specifications ..................................................... 3
Product Dimensions ......................................................... 3
Installation Planning and Preparation............................. 4
Electrical Supply Requirements ....................................... 4
Installation Planning ......................................................... 4
Installation Preparation .................................................... 5
All specifications subject to change without notice. Dacor assumes no liability for changes to specifications.
Important:
Installer:• In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
Customer:• Keep these installation instructions for future reference and the local electrical inspector’s use.
© 2008 Dacor, all rights reserved.
If You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team. For
repairs to Dacor appliances under warranty call the Dacor
Distinctive Service line.
Dacor Customer Service
Phone: [phone]
Monday — Friday 6:00 a.m.to 5:00 p.m.Pacific Time
Web site: www.Dacor.com
Dacor Distinctive Service (for repairs under warranty only)
Phone: [phone]
Monday — Friday 6:00 a.m.to 4:00 p.m.Pacific Time
Customer Service Information
Model Identification
REMP3 = Remote blower with 8-inch diameter intake
REMP16 = Remote blower with 10-inch diameter intake

1
Important Information About
Safety Instructions
The• Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or oper-
ating this or any other appliance.
Always contact the Dacor Customer Service Team•
about problems and conditions that you don’t under-
stand. See Customer Service Information above.
Important Safety Instructions
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
DANGER
IMPORTANT: Do not store or use combustible,
flammable or explosive vapors and liquids (such as
gasoline) inside or in the vicinity of this or any other
appliance. Also keep items that could explode, such
as aerosol cans, away from the range or cooktop. Do
not store flammable or explosive materials in adjacent
cabinets or areas.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by thea.
manufacturer. If you have questions, contact the
manufacturer.
Before servicing or cleaning unit, switch power offb.
at service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warn-
ing device, such as a tag, to the service panel.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Installation work and electrical wiring must be donea.
by qualified person(s) in accordance with all appli-
cable codes and standards, including fire-rated con-
struction.
Sufficient air is needed for proper combustion andb.
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guide-
line and safety standards such as those published
by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the
local code authorities.
When cutting or drilling into wall or ceiling, do notc.
damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.d.
CAUTION
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials or vapors.
READ AND SAVE THESE INSTRUCTIONS

2
Important Safety Instructions
Do not install or operate this unit if it has been dam-•
aged, dropped, has damaged electrical wiring or
is not working properly. If the product is damaged
when received, immediately contact the dealer or
builder.
Install or locate this appliance only in accordance•
with these installation instructions and the Dacor
hood or downdraft vent installation instructions.
Improper installation, adjustment, alteration, service
or maintenance can cause serious personal injury or
property damage.
Before installing or servicing the in-line blower,•
make sure that power to the wiring is turned off at
the circuit breaker or fuse box. Make sure that the
service panel is locked or tagged to prevent power
from being switched on accidently.
To reduce the risk of electric shock or fire, the total•
combined current draw of the in-line blower and the
hood or downdraft vent must not exceed the maxi-
mum rated input current of the hood or downdraft
vent.
The installer must show the customer the location•
of the fuse or circuit breaker panel so that the cus-
tomer knows where and how to turn the power off.
WARNING
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using this blower, follow basic safety precautions,
including the following:
A minimum of two people are required to safely•
install this appliance.
Never allow the filters or vent openings on the hood•
or downdraft vent to become blocked or clogged.
Do not allow foreign objects, such as cigarettes or
napkins, to be sucked into the vent holes.
Tape all duct joints securely to prevent combus-•
tion by-products, smoke or odors from entering the
home. Doing so will also improve system efficiency.
Do not route electrical wiring near hot surfaces.•
Do not ground the appliance with the neutral (white)•
house supply wire. A separate ground wire must be
utilized.
To prevent a damaged or non-functional system,•
complete electrical connections properly. Follow
the wiring diagrams carefully in the hood or in-line
blower installation instructions to ensure a proper
installation. After installation or service, make sure
that all blower wires are tightly connected to their
respective terminals.
WARNING

3
Product Dimensions
Product Specifications
17 3/8" (441mm)
19" (483mm)
24 1/4"
(616mm)
3 5/8"
(92mm)
9 1/4"
(235mm)
Mounting
Flange
25 1/2"
(648mm)
7 1/2"
(191mm)
9 1/2" (241mm)
Discharge
Intake Collar
Power Supply
Conduit Hole C
L
C
L
C
L
C
L
26" (660mm)
32 1/4"
(819mm)
3 5/8"
(92mm)
12 1/4"
(311mm)
Mounting
Flange
33 1/2"
(851mm)
9 1/2"
(241mm)
13 1/8"
(333mm)
Discharge
Intake Collar
Power Supply
Conduit
Location
C
L
C
L
C
L
C
L
24 1/4" (616mm)
9 9/16"
(243mm)
10" Nom.
(254mm)
11 1/2"
(292mm)
Discharge
Intake Collar
5 13/16"
(148mm)
8" Nom.
(203mm)
7 15/16"
(202mm)
Discharge
Intake Collar
All tolerances: +1/16”, -0, (1.6 mm,0) unless otherwise noted.
REMP3
REMP16

4

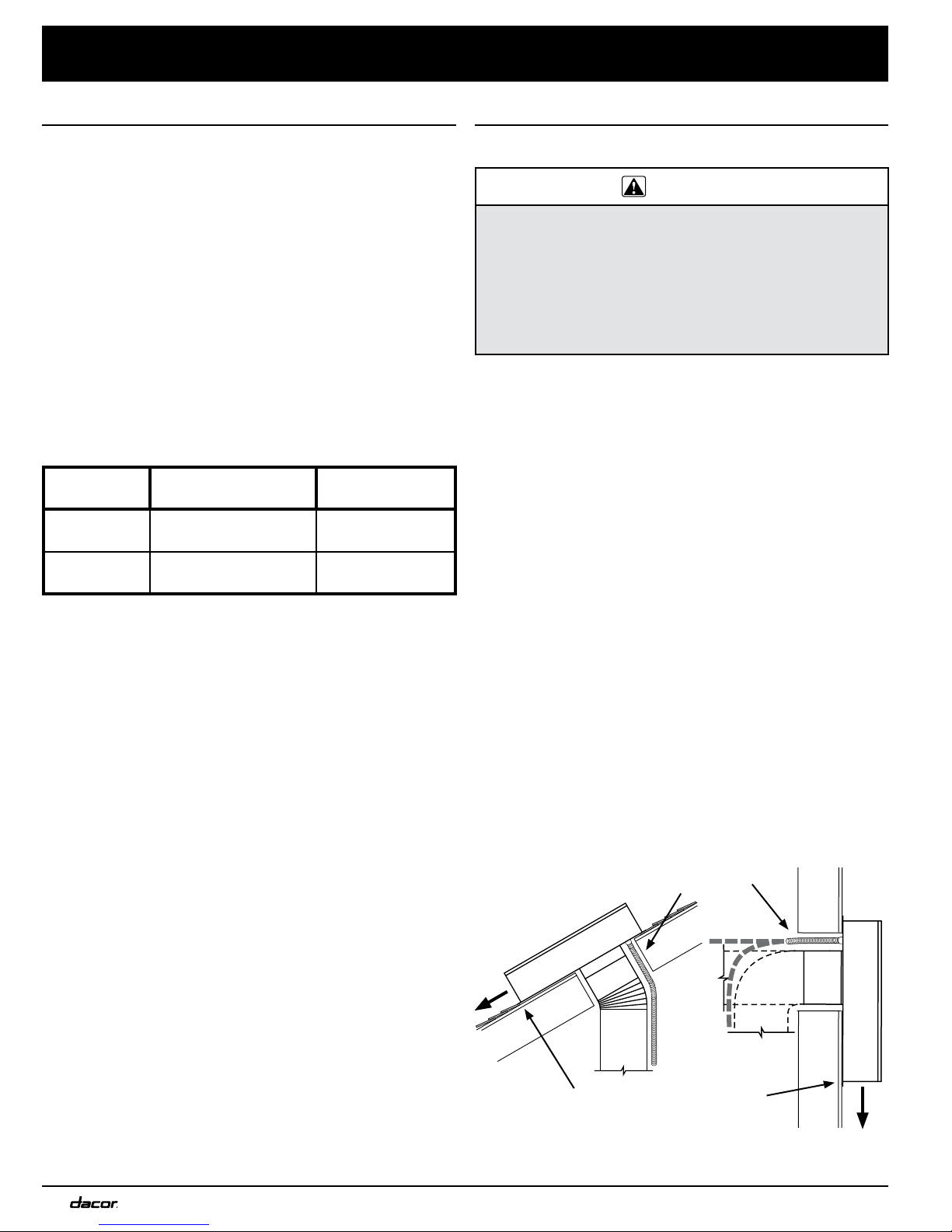

Installation Planning
System Layout
WARNING
To avoid the risk of fire due to the unit overheating:
DO NOT• install this blower with a hood or raised
vent that has an internal blower.
DO NOT• install more than one blower to increase
the length of the duct run. Even small differences
between blower air flow rates can greatly reduce the
air draw by the hood or raised vent.
Consult the installation instructions for the raised vent•
or hood for complete layout and duct system plan-
ning instructions. Observe all location and duct system
design instructions.
The remote blower needs to be wired to turn on when•
the raised vent or hood is turned on by routing wiring/
conduit parallel to the duct work. Connect the wiring/
conduit to the raised vent or hood on one end and the
remote blower on the other. There is a 7/8” electrical
access hole on the bottom of the blower.
Blower Location and Mounting
Install the blower in a location that allows it to be•
accessed for service if necessary. There must be
enough room to remove the top cover of the unit
and enough room to access the power terminals and
mounting holes located inside.
The mounting location needs to allow for a cutout•
under the unit for the duct and wiring/conduit to pass
through the wall or roof into the blower assembly. See
Figure 1.
The mounting location must allow for a clearance of at•
least 15” (381mm) between the blower air discharge
and any obstructions (vents, pipes, etc.) See below.
Installation Planning and Preparation
Electrical Supply Requirements
The power for this blower is supplied via 1/2” 3-wire•
wiring/conduit (not included) by an approved Dacor
hood or raised vent. The wiring/conduit is installed
between the hood or raised vent and the blower and
shall be terminated on each end by a 1/2” UL certi-
fied strain relief. The power is turned on and off by the
power switch on the approved ventilation device.
The correct voltage, frequency and amperage must be•
supplied to the hood or raised vent and the blower from
a grounded, single phase circuit that is protected by a
properly sized circuit breaker or time-delay fuse. The
circuit must have the capacity to supply the combined
power requirements for the hood or raised vent and the
in-line blower. See the installation instructions for the
hood or raised vent to determine total power require-
ments in combination with the blower electrical specifi-
cations.
Model
Number*
Power
Requirements** Blower Rating***
REMP3 120 Vac, 60 Hz,
3.8 Amp 600 CFM
REMP16 120 Vac, 60 Hz,
2.7 Amp 1000 CFM
* All models are thermally protected.
** In addition to the hood or raised vent
*** Nominal rating at 0 inches static pressure. See
Technical Data section for actual ratings.
The above specifications are for reference only, See the
data label on the blower for exact specifications. If the
above specifications vary from the label on the blower, use
the data on the blower label.
It is the owner’s responsibility to ensure that the power
supply is installed by a licensed electrician. The electri-
cal installation must comply with the latest revision of the
National Electric Code ANSI/NFPA 70 (latest revision) and
local codes and ordinances.
A copy of the specification may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
If the electrical service provided does not meet all product
specifications, or does not conform to the NEC or local
standards, do not proceed with the installation. Call a
licensed electrician to correct the electrical service before
proceeding.
Discharge, no obstructions
within 15 inches
Roof
Wall
Blower
Blower
Duct and wiring passing
through cutout
Example of Roof
Installation
Example of Wall
Installation

5
The blower must also be mounted vertically or at a•
pitch of 2:12 or greater. If the pitch of the mounting sur-
face is less than 2:12, construct a roof curb to mount
the blower. See Installation Preparation for exact
dimensions.
When mounted in a exposed location shield it to pre-•
vent the accumulation of water in the chassis. On
horizontal installations, point the discharge in the same
direction as prevailing winds. When mounted vertically,
the discharge must point down.
Installation Preparation
Prepare the mounting surface and reinforce it if neces-1.
sary according to the Blower Location and Mounting
specifications starting on page 4.
Make a cutout in the center of the mounting location2.
according to Figure 1.
On roofs with a pitch of 2:12 or less, construct a roof3.
curb according to the specifications below. Attach it to
the mounting surface and seal it around the base.
Installation Planning and Preparation
Blower Location and Mounting (cont.)
Select a location that can properly support or can be•
reinforced to support the weight of the blower (see
weight table below). The unit requires a mounting sur-
face around the perimeter of the base of the unit 2”
in width and thick enough to accommodate the 8, 2
1/2” long mounting screws that are provided with the
unit. All contact surfaces between the blower and any
mounting surfaces must be solid and at right angles.
See Figure 1 for the required mounting surface dimen-
sions.
Model Number Approximate Shipping Weight
REMP3 35 lbs.
REMP16 55 lbs.
Weight Table
Dimension REMP3 REMP16
A 19” (483mm) 26” (660mm)
B 25 1/2” (648mm) 33 1/2” (851mm)
C 4” (102mm) 4” (102mm)
D 2 1/8” (92mm) 2 1/8” (92mm)
E 11” (279mm) 13” (330mm)
F 12 5/8” (321mm) 16 5/8” (422mm)
The base of the remote blower needs to be sealed with•
mastic or the equivalent to prevent leaks.
A
D
2" (51mm)
around entire
perimeter
C
Reinforced
Mounting
Surface
Duct and
Conduit
Cutout
B
F
E
Discharge
Side
Figure 1:
Required Mounting Surface Dimensions
Figure 2: Installation with Roof Curb (for flat roofs)
Roof Curb
Blower
Discharge
Prevailing
Wind
33 1/2"
(851mm)
2"
(51mm)
26"
(660mm)
30 1/2"
(776mm)
6"
(152mm)
2"
(51mm)
REMP16
Roof Curb
25 1/2"
(648mm)
2"
(51mm)
19"
(483mm)
23 1/4"
(591mm)
6"
(152mm)
2"
(51mm)
REMP3
Roof Curb
Figure 3

6
WARNING
If the electrical service provided does not meet the•
power requirements for the hood/raised vent and the
blower combined, do not continue with the instal-
lation. Contact a licensed electrician to correct the
situation before continuing.
Failure to connect the wiring as specified may result•
in an electric shock hazard and/or improper blower
operation.
To avoid the risk of fire or electric shock, turn off•
power at the circuit breaker panel or fuse box before
connecting the blower to the power source.
The blower assembly is heavy. Do not attempt to lift•
or move it without assistance.
Parts List
Verify Package Contents
2 1/2” wood mounting screws (8)•
Blower assembly•
Parts Required
3 conductor wiring/conduit with UL certified strain relief•
on each end (length is determined by remote blower
location).
If the blower will be mounted to a surface other than•
wood, fasteners designed for the material the unit will
be mounted to must be provided. The fasteners must
be capable of supporting the weight of the blower (see
weight table on page 5) and meet local codes and ordi-
nances.
Consult the hood or raised vent installation instructions•
for additional part requirements.

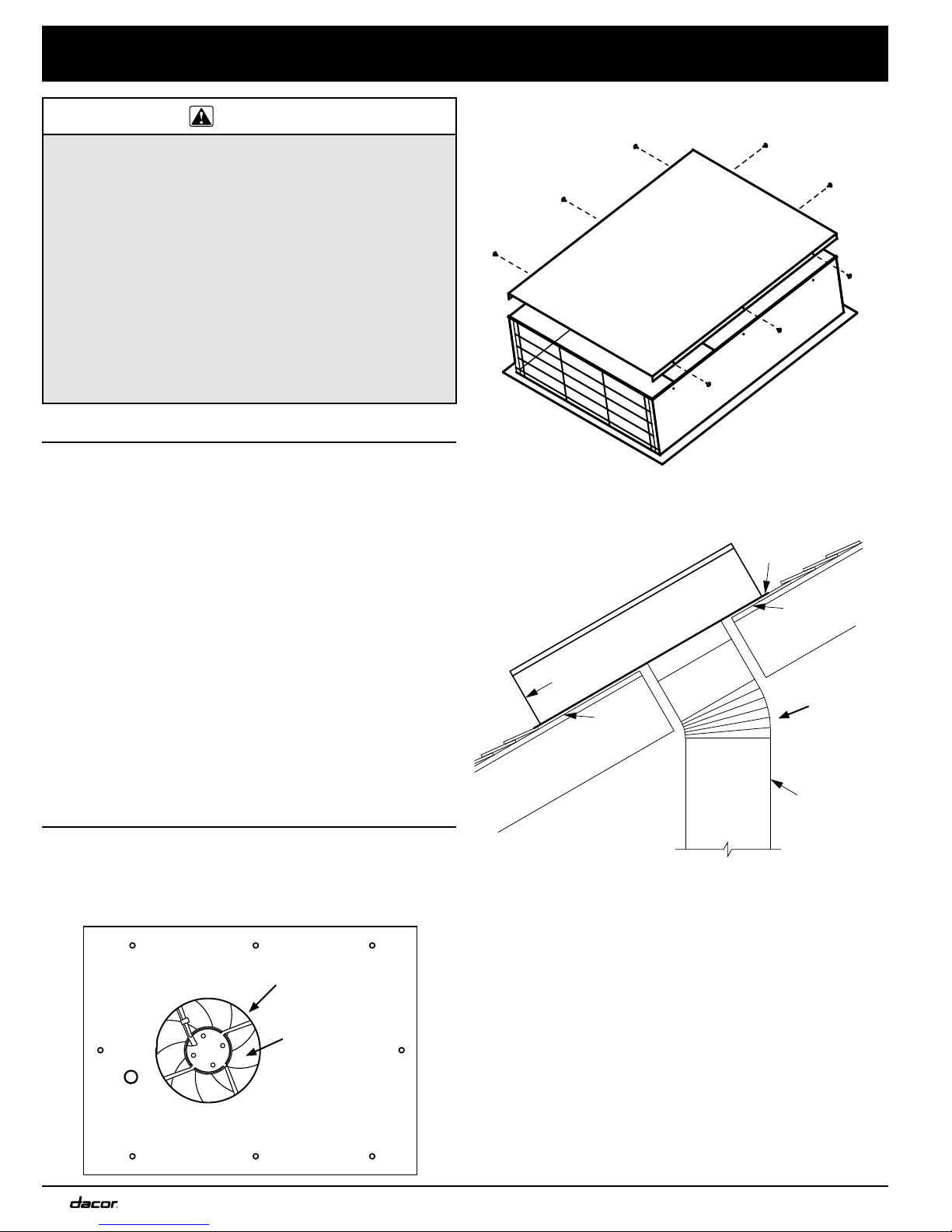

Installation
Before installing the blower, unpack the unit and check1.
for physical damage to the motor and blower assembly.
To do so, reach in through the intake collar and spin
the fan blades slowly. They should spin freely and qui-
etly without vibration.
Installation Instructions
Remove the blower’s top cover by removing the screws2.
around the edge that hold it in place.
Apply sealant between the blower and the mounting3.
surface where the flange around the edge of the blower
will rest.
Pick up the blower assembly and center it on the4.
mounting surface inserting the intake collar into the
cutout.
While holding the blower in place, fasten it to the5.
mounting surface with eight (8) mounting screws. The
mounting holes are located inside the blower assembly
chassis near the sides.
Install the duct work according to the installation6.
instructions for the hood or raised vent. Support the
duct weight as necessary to ensure properly sealed
joints.
Fan
Blades
Bottom of Blower
Intake
Collar
Figure 5
Figure 6
Sealant
Roof
Air
Discharge
Sealant
Blower
Round Duct
Flange
Figure 7
45° Adjustable
Elbow

7

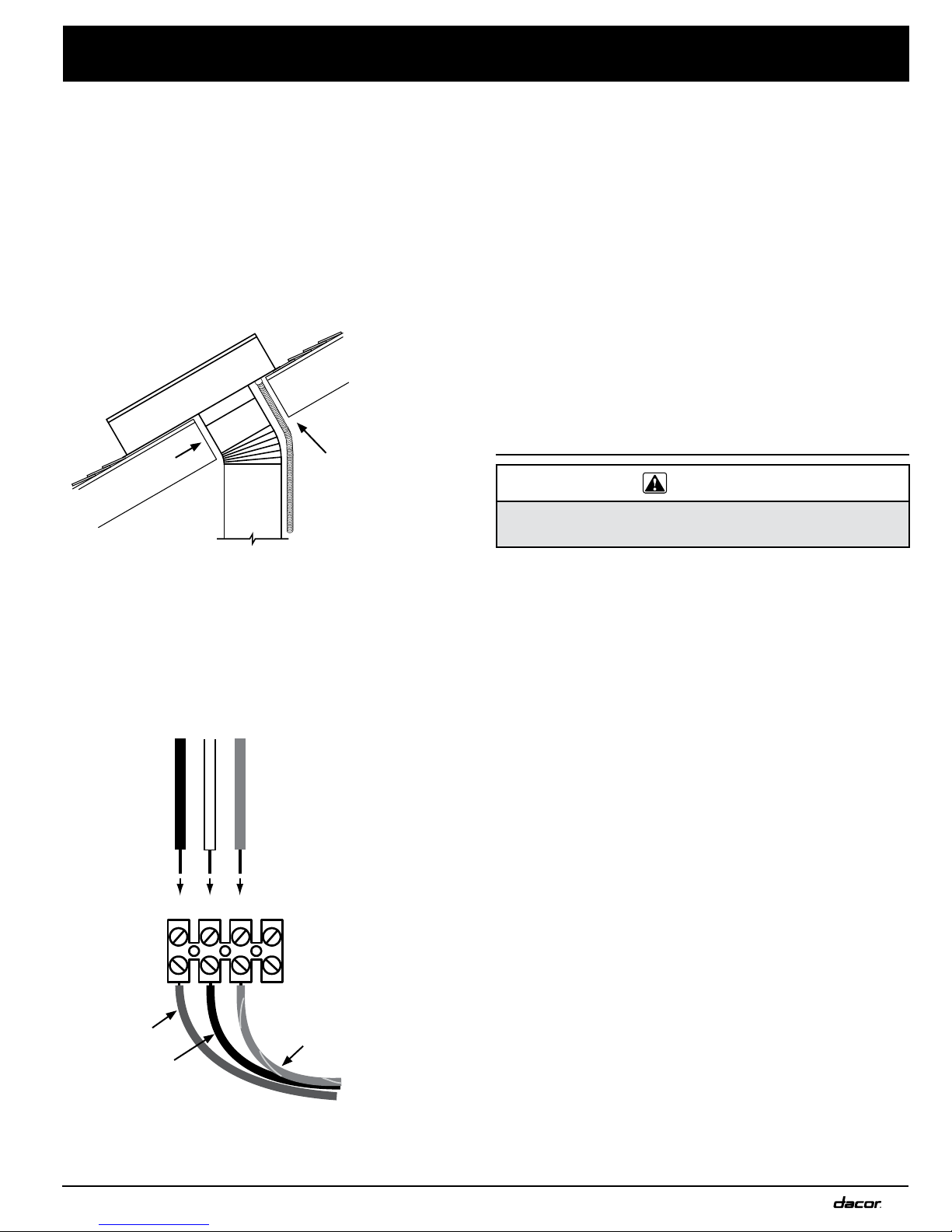

Electrical Installation
Run the wiring used to supply power from the installed7.
raised vent or hood to the blower parallel to the duct
work.
Make sure that power to the raised vent or hood is8.
disconnected or turned off at the circuit breaker or fuse
box.
With the UL certified strain relief attached to the end9.
of the wiring/conduit, feed the wires into the electrical
access hole on the under side of the blower and attach
it.
From inside the blower assembly, strip the three wires.10.
Connect the black (L1) wire to the L2 blower power ter-11.
minal (see Figure 9). Tighten the terminal screw firmly
into place. IMPORTANT: The L2 (hot) terminal on the
blower has the BLUE wire from the blower wiring har-
ness connected to it.
Installation Instructions
Connect the white (neutral) wire to the N2 blower12.
power terminal (see Figure 9). Tighten the terminal
screw firmly into place. IMPORTANT: The neutral (N2)
terminal on the blower has the BLACK wire from the
blower wiring harness connected to it.
Connect the green (GND) wire to the GND blower13.
power terminal (see Figure 9). Tighten the terminal
screw firmly into place.
Check the wires from the blower wiring harness to14.
make sure that they are firmly attached to the terminal
according to Figure 9. Reconnect any wires that are
loose. Make sure all terminal screws are tight.
Replace the blower’s top cover and screws.15.
Secure the other end of the wiring/conduit to the hood16.
or raised vent and connect the wires according to the
hood or raised vent installation instructions.
Verifying Proper Operation
WARNING
Read the raised vent or hood use and care manual
completely before operation.
Test the blower operation according to the Verify Proper
Operation section of the hood or raised vent installation
instructions.
If the blower does not work after having been properly
installed, contact Dacor Distinctive Service at (877) 337-
3226. Do not attempt to repair the unit yourself. Dacor is
not responsible for the costs required to correct problems
caused by a faulty installation.
Roof
Blower
Cutout
Wiring/conduit
connected to blower
Figure 8:
Wiring/Conduit Connection
L2 N2 GND
Not
Used
Wires from
hood/raised
vent
To blower
wiring harness
Black
Black
Blue
White
Green
Green
Figure 9: Wiring Diagram

8
Technical Data
REMP Series Blower Ratings
Model
Number
Nominal
Rating*
Actual
Rating*
REMP3 600 CFM 620.5 CFM
REMP16 1000 CFM 994.8 CFM
Airflow CFM (Cubic feet/minute)
Static pressure - inches of water
0
1.0
2.0
3.0
4.0
5.0
100 200 300 400 500 600 700
REMP3 Blower Performance
Airflow CFM (Cubic feet/minute)
Static pressure - inches of water
0
0.5
1.0
1.5
2.0
2.5
200 400 600 800 1000
REMP16 Blower Performance
* At 0” static pressure

Dacor ●1440 Bridge Gate Drive, Diamond Bar, CA 91765 ●Tel: [phone] ●FAX: [phone] ●www.Dacor.com
