DAESUNG MAREF MK300L User manual

Introduction
Guidance for indication
Thanks for purchasing our product. This product is an Air Compression Therapy System
to improve the blood circulation of the human body. Patient can also purchase or use it
personally after receiving doctor’s indications definitely.
This product is comprised of intermittent pneumatic controller, cuffs with 6 air chambers,
and connectable hose. The operating principle is that the air from the controller will be
delivered to the cuff with 6 air chambers and the air pressurizes sequentially the chambers
from 1st to 6rd.
This user’s manual contains the information how to use, keep and repair this product.
Please, be well informed of this manual to use this product correctly and to prevent the
malfunction for the best effect.
Please keep this manual with this system always and please carefully read it before using
the system properly.
Do not disjoint the device.
Death or serious wound can be occured if users do not
follow the instruction.
Instruction to be prohibited.
Wound or property-loss can be occurred in case of
disregarding the instruction
2

ENGLISH
Electrical Safety
This device is for domestic use only.
Please use a suitable AC cord for each
country. (Fire accidents and electric
shocks possible)
Pull out plug when not using or providing
against lighting, thunder.
Do not plug in or out with wet hands
(Electric shocks possible)
Do not touch signal input, signal output
or other connectors, and the patient
simultaneously.
Stop using the compressor when it makes
any kinds of abnormal smells. In this case,
top the compressor, and plug it out, and
then call customer service of a seller.
(It may cause the fire accident or
electric shot by immoderate use)
Grip the plug, not a power cord with
hands when you plug in or out
Do not bend or twist the power cord.
(Fire accidents & electric shocks
possible)
External equipment intended for
connection to signal input, signal output
or other connectors, shall comply with
relevant IEC Standard(e.g., IEC60950 for
IT equipment and IEC60601-1 series
for medical electrical equipment). In
addition, all such combination-system-
shall comply with the standard IEC60601-1
and/or IEC60601-1-1 harmonized national
standard or the combination. If, in doubt,
contact qualified technician or your local
representative.
3

Regarding cu
Do not use these cuffs together with
accessories,watch etc. (Physical damages,
cuff breakage possible)
Do not keep cuffs near to heating materials
such as stove, cigarettes etc.(Air leaking
or fire accidents possible)
Do not use other tools, except our
machines, to blow air into cuffs.
Do not use cuffs on undressed body.
Use the cuffs with wearing thin under
wears. (Cuff's endurance can be
weakened due to sweat
cosmetics and sebum)
Do not fold or bend the wire by force and
put any heavy object on the wire.
(It may cause the fire accident)
Do not stain cuffs by oil, benzene,
alcohol, gasoline etc.
(Anti-endurance possible)
4

ENGLISH
Safety for body
Forbid children to use the device.
Serious injuries can be occurred
when the air blows into cuffs.
Prohibit to use the device in case of
artificial-heart etc.
Prohibit using the device to the patients
having any artificial material inserted like
artificial-joint, metal-inserting, silicon,
etc in their body. (it can be the cause
of inflammation can or other
side effects)
Use the device after consulting to a doctor’s
definitely before using the device or do not
use it in case of heart disease, hypertension,
malignant tumor, acute inflamed skin
disease, high pyrexia, hyposthenia
or a patient having
any diseases now.
Do not use the device in a drunken state.
Do not use air hose to nose, mouth
or ears.(Any injuries possible)
Use the cuffs with wearing thin cloths.
Zip up perfectly the cuff as the
unzipped zipper can damage
the skin during using.
Use the device after consulting to a doctor’
definitely before using the device or do not
use it in case of lymph edema, vein diseases
vein, heart diseases, vascular cancer,
a patient under cancer therapy,
variant, gangrene, recent
artificial skin graft, or deep
vein thrombosis.
Stop using the device when you feel any
abnormal condition during using, and
consult to doctor.
Use the device according to a doctor’s
prescription definitely or do not use the
device to a patient with any surgical
operation, especially, internal organs,
nerve or brain surgery or a patient
within 1 year after surgery.
5

Use and Maintenance
Cleaning and Others
Use the device indoors of 0~40℃
(If not, any defects or
fire accidents possible)
Do not use oil, benzene, alcohol, gasoline,
chemicals when cleaning the device.
(Use dry towels)
Do not use or keep the device near to
heating equipments or a direct ray of the sun.
(Defects, fire accidents, or
transformations possible)
Do not repair, reproduce or disjoint the
device by yourself. (Fire accidents,
electric shocks possible)
Keep the device horizontally.
(If leaning, defects or
malfunctions possible)
Do not use the device in high humidity
place(Bathroom and sauna etc).
(Fire accidents, electric shocks
possible)
Do not use oil, benzene, alcohol, gasoline,
chemicals when cleaning cuffs.
(Use wet towels.)
Forbid children to touch.
Disorder can be happened due to
children's touch.
Be careful to not put clips, staples, needles,
metals or food into the device. (Short circuits,
heating generations possible)
* If happened, inform it to
concerned agent.
6

ENGLISH
Product Description 1) MK300L
(1) Introduction
This product is an Air Compression Therapy System to improve the blood circulation of the human
body. There are three different pressurizing modes which the user can select so that it will be very
effective to use this product up to patient's state or condition. This product has 2 channels which
can use maximum 4 cuffs at the same time. When all four cuffs are connected, each channel works
simultaneously and each cuff works sequential mode. If three cuffs are connected to the air socket;
the rest socket won’t discharge the air on the machine. This is DS Maref’s own technique and we have
patent for it.
Also there is a safety switch for emergency to make stop working during operation. This principle is
to make stop operation by controlling "start/stop" control parts software if user presses the switch
during operation. This switch is connected on each channel (two of them). For example, if user
presses the CH1’s safety switch during operation, the CH1’s operation is shopped but CH2 is working
normally.
The air chamber of cuff is comprised of 6 chambers and it pressurizes sequentially from 1st chamber
to 6th chamber to make blood into the foot circulating from bottom to up.
The pressure setting is that the sensor checks the pressure every time so it will not be
pressurized the cuff with the higher pressure than the pressure which the user set up. The time to
reach the setting pressure can be different a little according to user's body size but pressure applying
to body is kept regularly by the built-in air sensor.
(2) Name of operating function (part)
7

ENGLISH
START/STOP

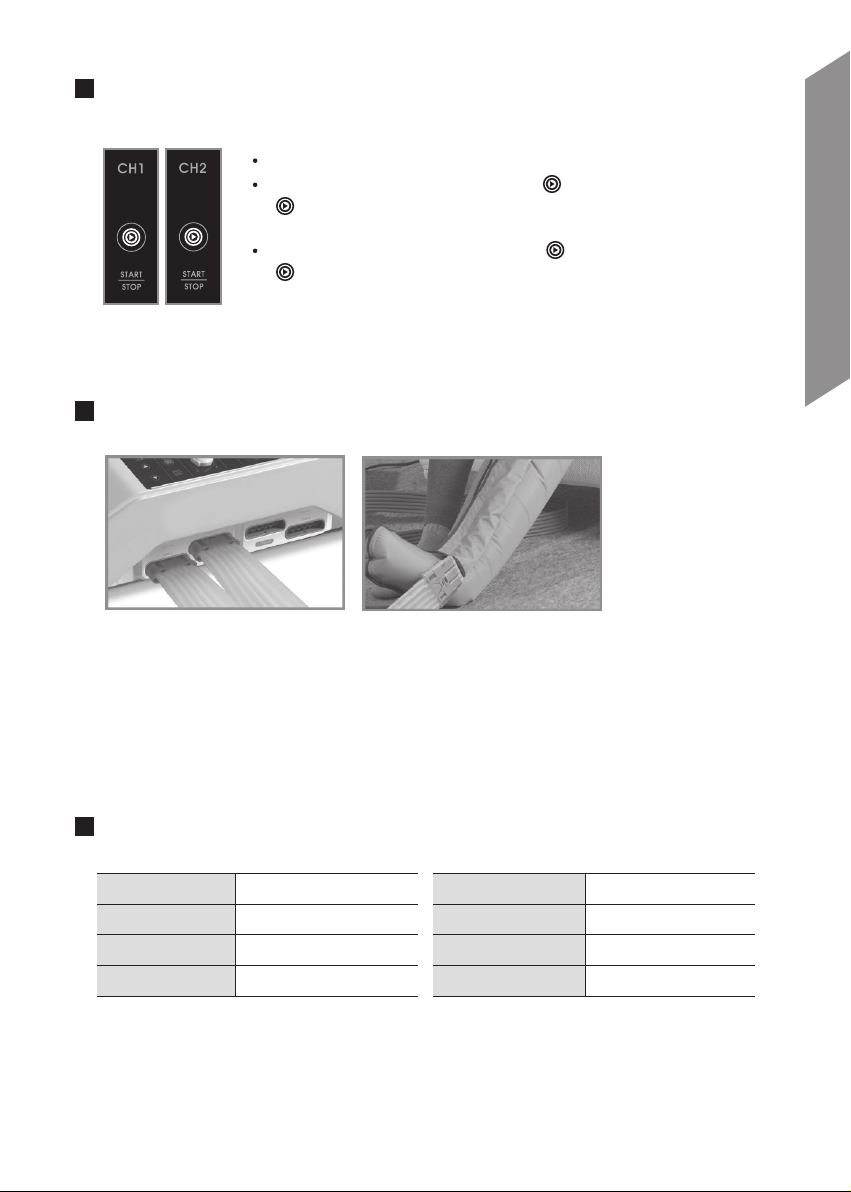

How to connect hose to the controller
Product standard and specications
After connecting a connectable hose plug to air socket of the controller, connect
the other remained plug of the hose to air socket of cuff.
There's a hole next to the air socket which user can connect the safety switch.
Press the safety switch button, stop the operation.
Individual operation (CH1/CH2)
In order to operate CH1, the user can touch“ ”on CH1, then,
“ ”will turn to blue. To stop operating, the user can touch it again,
then, it will turn to red.
In order to operate CH2, the user can touch“ ”on CH2, then,
“ ”will turn to blue. To stop operating, the user can touch it again,
then, it will turn to red.
Time control
Pressure control
Product dimension
Product weight
1~90 minutes
10~200mmHg
415 x 310 x 160 mm
6.5kg (Only body)
Rated voltage
Fuse capacity
Power consumption
AC 220~230V, 50/60Hz
AC 250V / 2A
70VA
※ The label is located on the bottom of the device.
9

Product Description 2) MK400L
(1) Introduction
This product is an Air Compression Therapy System to improve the blood circulation of the
human body. There are three pressurizing modes, reverse modes and optional care functions
which the user can select so that it will be very effective to use this product up to patient's state
or condition.
The air chamber of cuff is comprised of 6 chambers and it pressurizes sequentially from 1st
chamber to 6th chamber to make blood into the circulating from bottom to up The pressure
setting is that the sensor checks the pressure every time so it will not be pressurized the cuff
with the higher pressure than the pressure which the user set up.
The time to reach the setting pressure can be different a little according to user's body size but
pressure applying to body is kept regularly by the built-in air sensor.

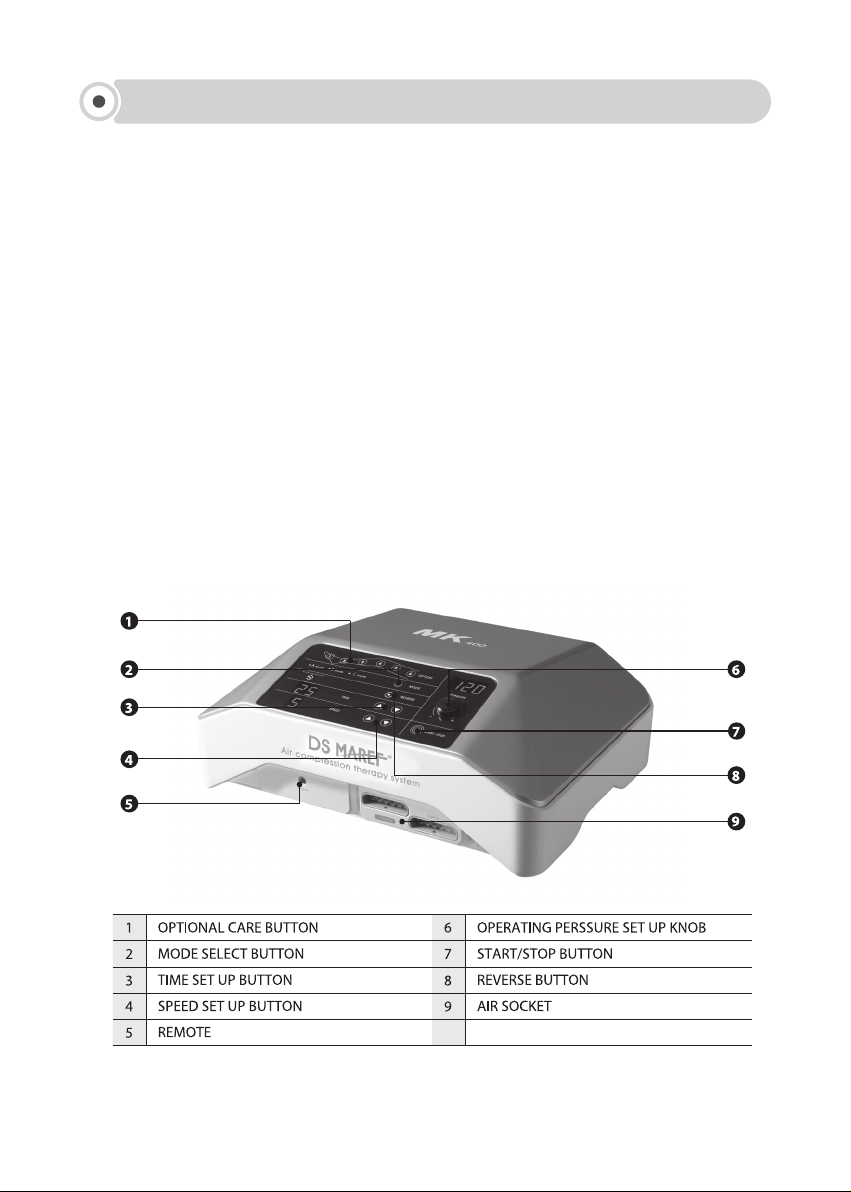

(2) Name of operating function (part)
10

ENGLISH

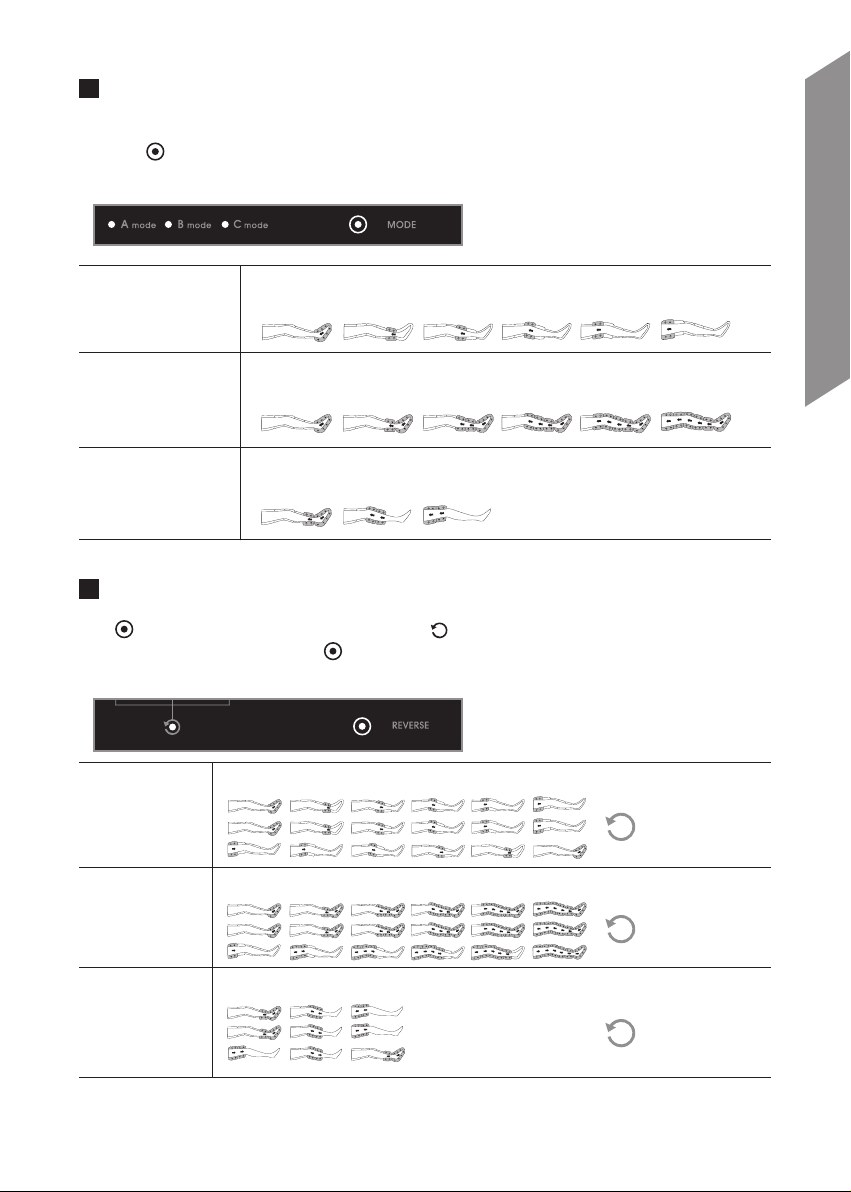

MODE setting
REVERSE setting
Touch the MODE button until you can select your wanted mode from A mode, B mode, C mode. If you
touch “
”of MODE, MODE indicator LED is displayed to the selected mode in order of A mode > B
mode > C mode > A mode
If " " button of REVERSE is touched, after LED of " " is displayed, the selected mode is changed to
REVERSE mode automatically. Press“ ”button of REVERSE to change one mode of from A mode,
B mode, C mode to Reverse mode as the pictures.
The selected air chamber(s) inflate(s) and deflates by one chamber sequentially
up to thigh from foot.
It repeats that A mode is operated reversely after two normal operations of A mode.
A mode
(+ reverse mode)
B mode
(+ reverse mode)
C mode
(+ reverse mode)
After all the selected air chamber(s) inflate(s) sequentially up to thigh from foot,
the inflated chambers deflates at once.
It repeats that B mode is operated reversely after two normal operations of B mode.
The selected air chamber(s) inflate(s) and deflates by two chambers sequentially
up to thigh from foot.
It repeats that C mode is operated reversely after two normal operations of C mode.
A mode
(Wave mode
by 1 chamber)
B mode
(Squeezing mode)
C mode
(B mode two time +
Reversed A mode 1 time)
11

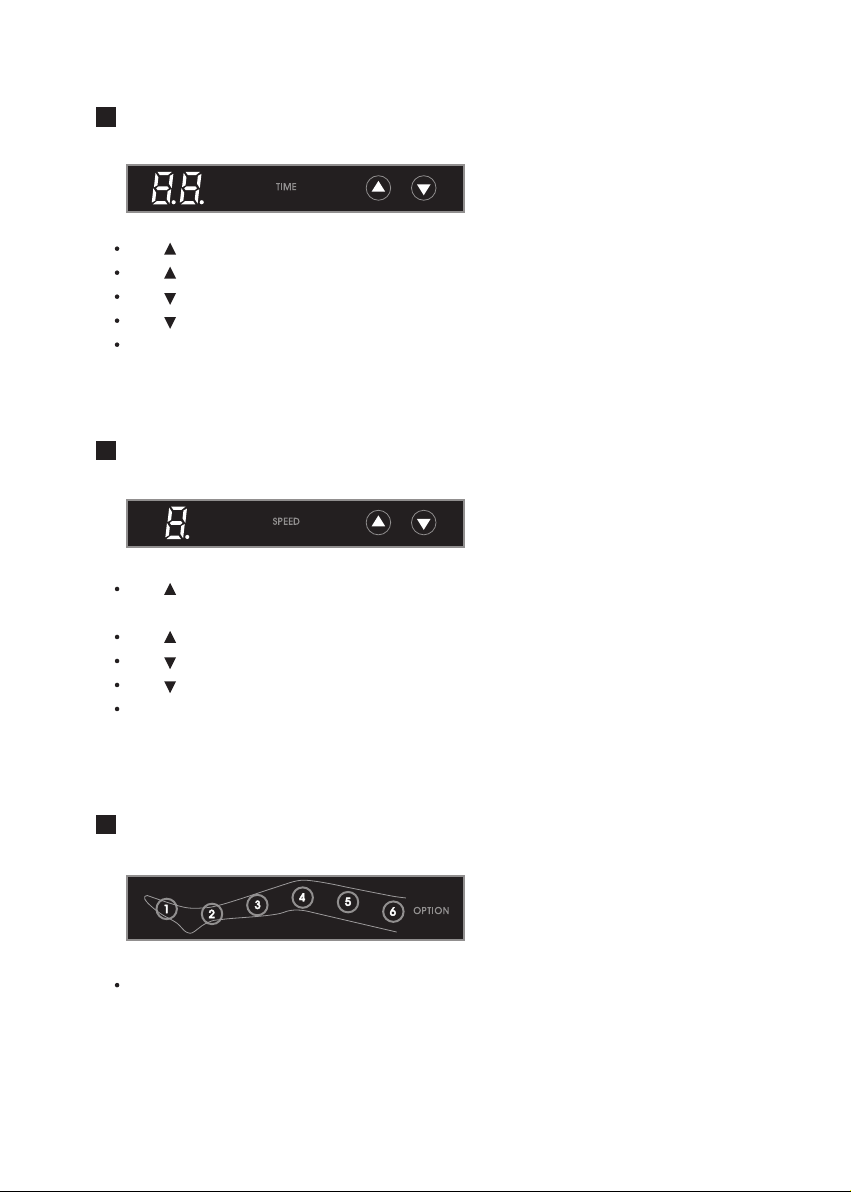

TIME setting
SPEED setting
OPTIONAL CARE setting
If the button is touched to increase use time, time indicator increases by 1 minutes unit.
If the button is touched for a long time, time indicator increases quickly.
If the button is touched to decrease use time, time indicator decreases by 1 minutes unit.
If the button is touched for a long time, time indicator decreases quickly.
Time range is 1~90 minutes.
If the button is touched to increase the speed to faster level, speed indicator increases
by 1 level unit.
If the button is touched for a long time, speed indicator increases quickly.
If the button is touched to decrease speed, speed indicator decreases by 1 level unit.
If the button is touched for a long time, time indicator decreases quickly.
Speed level range is 1 ~ 6 level
If you touch the number matched each chamber position, blue light is displayed on LED
of the number and the selected chamber(s) is (are) inflated.
12

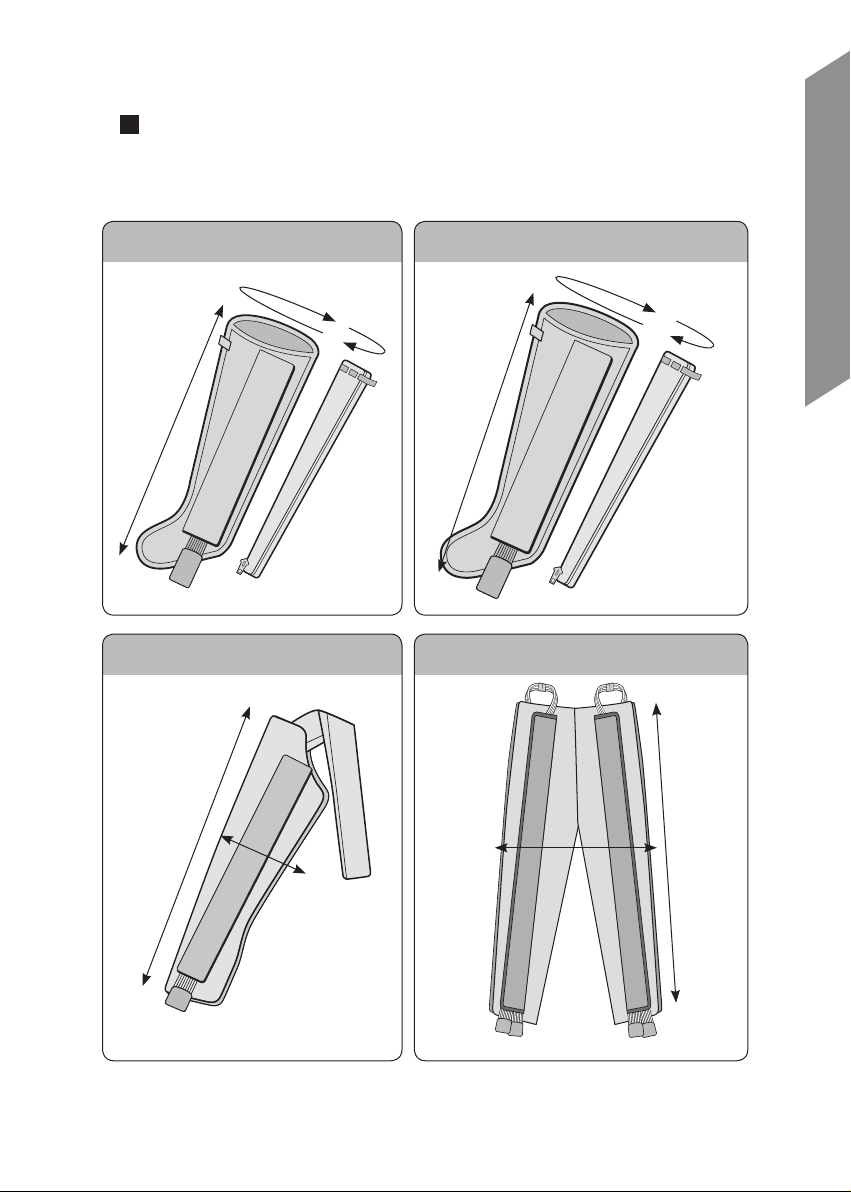

Accessories (MK300L, MK400L)
⑤
One touch
leg cuff (L/XL)
MK300L-4
MK400L-2
Single hose
/Double hose
MK300L-4
MK400L-2
One touch
waist cuff
MK300L-1
MK400L-Optional
Safety
switches
MK300L-2
MK400L-1
One touch
arm cuff
MK300L-1
MK400L-Optional
Center body
cuff
MK300L-Optional
MK400L-Optional
Leg or arm
extension zipper
MK300L-Optional
MK400L-Optional
Full body
cuff
MK300L-Optional
MK400L-Optional
⑥
⑦ ⑧
① ② ③ ④
① ② ③ ④
⑤ ⑥ ⑦ ⑧
14

ENGLISH
How to use the device
How to use cu
(1) Notices for the rst users
For a user during initial period, we recommend you to use this device from the lowest pressure
intensity, and increase the pressure intensity gradually with checking the body conditions
under a doctor's advice for more safe and effective use. Please make yourself as a comfortable
posture for best effects.
(2) Use and setting
1) Set the controller on a desk or flat place horizontally and connect the AC cord (plug) the
controller after checking local voltage.
2) Insert the plug of a connectable hose into a socket of the controller perfectly.
3) Connect a hose to a cuff.
4) Apply the selected cuff to a patient. We recommend for a patient to sear thin cloths to
protect skin and sweater during operation. (Please zip up perfectly. If unzipped cuff can
damage the skin or cuff during operation)
5) Set the controllers of MODE, TIME, PRESSURE, SPEED (MK400L) and REVERSE (MK400L).
Or press the START/STOP button without any setting for the previous setting use or factory
recommended setting use.
6) Press START/STOP button to start operating.
How to use one cu (MK300L, MK400L)
Apply the selected cuff from leg cuff,
arm cuff, waist cuff to a patient.
Connect one cuff and one connectable
hose.
Insert a hose plug into air socket of
a machine.
Put the hose plug into socket of a cuff
and a controller perfectly to prevent
air leaking during operation.
15

How to use two cus (MK300L, MK400L)
Three cus use (MK300L only)
Four cus use (MK300L only)
Apply two selected cuffs from leg cuff, arm cuff, waist cuff to a
patient.
Connect two cuffs and two connectable hoses.
Insert two hose plugs into two air sockets of a machine.
Put the hose plug into socket of a cuff and a controller
perfectly to prevent air leaking during operation.
※Caution : In the case of two arm cuffs use, as arm cuff is
applied near to a heart, please keep a protector near a patient
or under a doctor’s indications.
Apply three kinds of cuffs from leg cuff, arm
cuff, waist cuff to a patient.
Connect three cuffs and three connectable hoses
Insert three hose plugs into three air sockets of a machine.
Put the hose plug into socket of a cuff and a controller
perfectly to prevent air leaking during operation.
※NOTICE! In the case of waist cuff use, please check
whether inflation process from upper abdomen to hip or
not.
Apply four kinds of cuffs from leg cuff, arm cuff, waist cuff
to a patient
Connect four cuffs and four connectable hoses.
Insert four hose plugs into four air sockets of a machine.
Put the hose plug into socket of a cuff and a controller
perfectly to prevent air leaking during operation.
※NOTICE! In the case of two arm cuffs use simultaneously,
it can be dangerous for high blood pressure.
16

ENGLISH
How to use extension zipper
- Use an extension zipper if the cuff does not fit you.
- Zip down completely and put the extension zipper between the cuff and zip up.
Arm cuff size (one size)
Leg cuff (L) and extension zipper
Full body cuff size (one size)
Leg cuff (XL) and extension zipper
74cm
+10cm
96cm
Extension
zipper
88cm
+10cm
105cm
Extension
zipper
86cm
29cm
145cm
57cm
17

Clause 5
Information regarding potential electromagnetic or other interference
1. Type of protection against electric shock: Class I equipment.
2. Degree of protection against electric shock: Not classified - BF applied parts
3. Classification according to the degree of protection against ingress of water:
IPX0, ordinary equipment.
4. This equipment is not suitable for use in the presence of flammable anesthetics
or oxygen.
5. Mode of operation: continuous operation.
This equipment has been tested and found to comply with the limits for medical devices in
IEC/EN 60601-1-2. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference
to other devices in the vicinity. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to other devices,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving device.
- Increase the separation between the equipment.
- Connect the equipment into an outlet on a circuit different from that to
which the other device(s) are connected.
- Consult the manufacturer or field service technician for help.
18

ENGLISH
WEEE marking
Environmental conditions for transport and storage
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its
working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate
this from other types of waste and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either whether they purchased this
product, or their local government office, for details of where and how
they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the items and conditions of the
purchase contract. This product should no be mixed with other commercial waste for disposal.
Temperature (℃)
Relative humidity(%)
Atmospheric pressure (hPa)
Temperature (℃)
Relative humidity(%)
Atmospheric pressure (hPa)
0-40
10-90
700-1060
-20-60
0-90
500-1060
Operating
condition
Transport and
storage condition
19

Contraindications
Caution
Stop the device during operation
Recommendation
※MK300L and MK400L should NOT be used in the following conditions:
1. Severe arteriosclerosis or other ischemic vascular diseases.
2. Known or suspected acute deep vein thrombosis.
3. Severe congestive cardiac failure.
4. Any local condition in which garments would interfere, for example:
• Gangrene • Untreated, infected leg wounds
• Recent skin graft • Dermatitis
※ In case of not following the instructions, the user may suffer from injury or
property damage.
※Stop the operation of a control and follow one's doctor's indications for the
below symptoms.
1) When feeling difficulty of breathing or giddiness
2) When a part of body is felt any so strong compression
3) When feeling so serious pain during using a device
4) When body is paralyzed temporally or felt any itchy
5) When feeling any other strange during using a device
※As this device is a medical devices for the purpose of the assist therapy, use MK300L,
MK400L personally with easy way under their doctor's indication and guidance. What a patient
feels weaker the compression of this system as time is goes is due to accustom oneself to
the compression. So, do not use it for long time and use it definitely according to a doctor’s
indications.
20
